That sinking feeling when the car behind you is just a little too close at a red light is all too familiar. A brake light pulser transforms your standard stop signal into a rapid, attention-grabbing flash sequence that snaps drowsy or distracted drivers back to reality. This small module could be the difference between a close call and a costly rear-end collision.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing automotive safety accessories, digging into the wiring diagrams, owner reports, and real-world installation feedback to separate the plug-and-play winners from the frustrating duds.
Whether you ride a motorcycle, drive a classic car, or pilot a modern truck, adding flash to your brake circuit increases rear-end visibility considerably. This guide covers the best brake light pulser options for every vehicle and budget.
How To Choose The Best Brake Light Pulser
Choosing the right brake light pulser isn’t just about price — it’s about matching the module’s flash behavior, wiring requirements, and durability to your specific vehicle and riding or driving habits. The wrong pick can leave you with a non-functional brake light or a pattern that annoys other drivers rather than alerting them.
Flash Pattern: How Many Pulses and the Hold
The most effective brake pulsers deliver a rapid burst of 3 to 16 flashes, then transition to a steady illuminated brake light. Some modules let you adjust both the number of flashes and the speed, while others are fixed. A pattern that flashes too long or too slow can confuse drivers behind you. For maximum attention, look for a unit that goes from flash to solid within 2 to 4 seconds.
Wiring Type: Plug-and-Play vs. Splice-In
Vehicle-specific modules for popular platforms like the Harley-Davidson Softail or Corvette C6 simply plug into the existing harness without cutting a single wire. Universal modules require you to identify the positive brake wire, ground, and sometimes the power lead. If you are not comfortable stripping and crimping wires, a plug-and-play model saves time and avoids electrical headaches.
Voltage and Load Capacity
Nearly all brake pulsers run on a 12-volt DC system, but the maximum current they can handle varies. Modules rated for 1.5 to 3 amps work well with a single third brake light. If you plan to pulse both rear brake lights or a combined tail/brake light on a motorcycle, check the amp rating carefully. Overloading a module can cause it to fail silently, leaving you with no brake light function at all.
Waterproofing and Build Quality
Any module mounted near the rear taillight area is exposed to moisture, road spray, and temperature swings. A waterproof-rated housing or a silicone potting compound protects the internal electronics. Budget modules sometimes skip this protection, which leads to corrosion and erratic flashing after a few rainy months.
Daylight Visibility and LED Compatibility
LED brake lights already illuminate faster than incandescent bulbs, but adding a pulser still improves daytime detection significantly. Confirm that the module is explicitly listed as compatible with LED lights, because some older designs rely on the higher resistance of incandescent bulbs to function correctly. LED-compatible pulsers handle the lower load without triggering hyper-flash or constant-on issues.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Timers.Shop X1 | Universal Programmable | Cars and motorcycles needing custom flash patterns | 1 to 16 flashes per application | Amazon |
| United Pacific 90655 | Universal Adjustable | Classic cars and trucks with LED third brake lights | Adjustable flash speed and duration | Amazon |
| OZ-USA Strobe Flasher | Harley Plug-and-Play | Harley touring and cruiser models | 3 fast / 3 slow / then solid | Amazon |
| West Coast Corvette C6 Module | Vehicle-Specific | 2005-2013 Corvette C6 third brake light | Direct plug-in harness extension | Amazon |
| CURT 51116 VentureNext | Trailer Brake Controller | Tow vehicles controlling trailer brakes | Time-delay adjustable output | Amazon |
In‑Depth Reviews
1. Timers.Shop X1 Brake Light Flasher Module
The Timers.Shop X1 is the gold standard for universal brake light pulsers thanks to its deep programmability and waterproof polycarbonate housing. You can choose anywhere from 1 to 16 flashes per brake application, and the patented timeout lock prevents the module from resetting the flash count during repeated stops. This means the pulser remembers its flash count even in stop-and-go traffic, which is a detail most budget modules get wrong.
Installation requires connecting three wires to your third brake light, and the included connectors make the process clean for anyone who can identify a 12-volt positive wire. The programming sequence uses the brake pedal as the input, so you can adjust patterns without a separate controller. Owners consistently report this module works with both LED and incandescent bulbs across cars, trucks, and motorcycles without triggering hyper-flash or parasitic drain.
The only real friction point is the programming sequence itself — it requires a two-button brake-pedal rhythm that takes a few tries to master. Once set, however, the X1 holds its pattern through power cycles and delivers consistent, attention-grabbing flash behavior that significantly improves your rear visibility. The lifetime warranty backs up the build confidence.
What works
- Up to 16 programmable flash patterns cover every preference.
- Waterproof polycarbonate housing survives road spray and rain.
- Lifetime warranty from a US-based company.
What doesn’t
- Programming sequence is slightly unintuitive on the first attempt.
- Requires wire splicing unless you add your own connectors.
2. United Pacific 90655 Brake Attention Module
United Pacific’s 90655 Brake Attention Module stands out because it offers analog adjustability via small potentiometers on the circuit board, letting you fine-tune both the flash speed and the total flash duration before the light locks to steady-on. This is a rare feature at this tier — most sub- modules offer either fixed patterns or limited adjustment. The 1.5-amp capacity is sufficient for a single third brake light on most passenger cars and trucks.
The module is built in a compact black plastic housing and weighs barely 1.44 ounces, making it easy to tuck behind a tail light housing or under a seat. Installation involves cutting and splicing the brake light positive and ground wires, then adjusting the two small screw pots with a tiny flathead screwdriver. The instruction sheet is clear enough for anyone who has used a multimeter to identify their vehicle’s brake wire.
Where this unit loses some ground is its 4-second delay before the light starts flashing when the brake is first pressed — an intentional safety design, but one that might confuse riders expecting an instantaneous flash. A few buyers also reported receiving a defective unit that required replacement, though customer service handled the swaps promptly. For classic car enthusiasts who want to dial in a specific flash rhythm, this module delivers unmatched adjustability at a very accessible price.
What works
- Analog potentiometers allow custom flash speed and duration tuning.
- Lightweight and compact enough for tight install locations.
- Works well with LED third brake lights after adjustment.
What doesn’t
- Initial 4-second delay before flash begins can feel slow.
- Small potentiometers are fiddly to adjust without a precision tool.

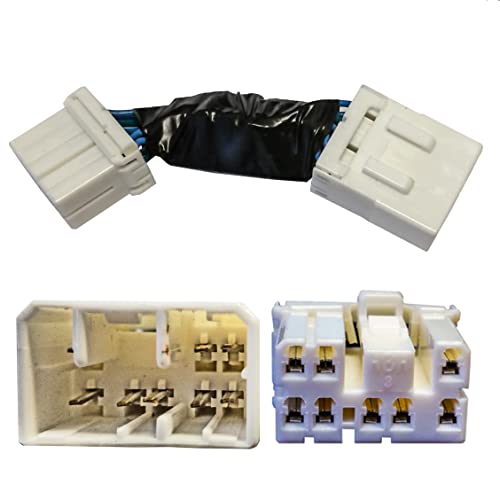

3. OZ-USA Strobe Flasher for Harley Motorcycles
The OZ-USA Strobe Flasher is engineered specifically for Harley-Davidson touring and cruiser models from the late 1990s through early 2010s, making it the closest thing to a factory-fit brake light pulser for these bikes. It plugs directly into the existing tail light harness under the seat — no cutting, no splicing, no resistors needed. The module works with both original halogen bulbs and aftermarket LED replacements, a critical feature for riders upgrading their lighting gradually.
The flash pattern is fixed at three rapid flashes, followed by three slower flashes, then a solid-on state until the brake is released. This is a proven cadence that grabs attention without the frantic strobe effect that can annoy fellow riders. Installation takes less than 10 minutes on models like the Electra Glide, Road King, or Dyna, and the module does not interfere with the factory alarm or tour-pack lighting.
The biggest limitation is the narrow vehicle compatibility — this module will not work on non-Harley motorcycles or cars. The build quality is adequate for the price, but the plastic housing lacks the waterproof sealing found on more premium modules. For a Harley rider who wants a zero-hassle installation with a proven flash pattern, this flasher delivers exactly what it promises.
What works
- Truly plug-and-play for a wide range of Harley models.
- Clear 3-fast-3-slow-solid pattern improves visibility.
- Works with both halogen and LED tail lights.
What doesn’t
- Compatible only with specific Harley years and models.
- Housing is not fully waterproof for extreme weather exposure.
4. West Coast Corvette C6 Third Brake Light Module
This module from West Coast Corvette is the definitive brake light pulser for 2005 through 2013 Corvette C6 models, functioning not just as a flasher but also as a wiring extension harness that adds roughly 6 inches of reach. That extra length is invaluable when installing a taller aftermarket spoiler that shifts the third brake light position. The pulser plugs directly into the factory harness and the light plugs into the module — a true three-minute install with zero wire cutting.
The flash pattern is preset and activates immediately upon brake application, pulsing the red LED third brake light multiple times before holding steady. The reset time after releasing the brake is around 20 seconds, which means rapid on-off brakes in traffic won’t trigger a new flash cycle immediately — a intentional feature to avoid over-flashing in stop-and-go conditions. The black polycarbonate housing is lightweight and fits neatly behind the center brake light housing.
The main drawback is the narrow application range — this pulser works only on the C6 Corvette and cannot be adapted to other vehicles without significant wiring modifications. At its price point, it also lacks any programmability, offering a single fixed flash pattern. But for a C6 owner, this is the cleanest, most reliable way to add a flashing third brake light without compromising the factory look.
What works
- Direct plug-in install with no splicing required for C6 Corvettes.
- Adds 6 inches of wiring length for spoiler conversion.
- Reliable 20-second reset prevents over-flashing in traffic.
What doesn’t
- Works exclusively with 2005-2013 Corvette C6 models.
- No programmable flash patterns — single preset mode only.
5. CURT 51116 VentureNext Trailer Brake Controller
The CURT 51116 VentureNext is a time-delay trailer brake controller rather than a traditional brake light pulser, but it serves a similar safety purpose for drivers who tow heavy loads. When you press the tow vehicle’s brake pedal, this unit sends a proportional or time-delayed signal to the electric brakes on your trailer, helping the trailer slow down in sync with the truck. It handles 2 to 6 trailer brakes across 1 to 3 axles, making it suitable for campers, boat trailers, and utility trailers.
The low-profile design and unique bracket system improve dash clearance in modern trucks, and the fully adjustable power and ramp time let you dial in the brake response for different trailer weights. The unit has no internal moving parts and requires no leveling, so it works reliably in any mounting orientation. Installation is straightforward with the appropriate CURT plug-and-play wiring harness for your specific truck model.
It is important to note that this controller does not flash the tow vehicle’s brake lights — that function must be handled by a separate pulser module. If your goal is simply to add flash to your pickup’s stop lights, the VentureNext is not the right tool. But if you tow regularly and want controlled, adjustable trailer braking that integrates cleanly with your dash, this CURT controller is the top choice in its category.
What works
- Fully adjustable output power and ramp time for different trailer loads.
- Slim, low-profile bracket improves dash mounting clearance.
- No internal moving parts ensures long-term durability.
What doesn’t
- Does not flash or pulse the vehicle’s own brake lights.
- Requires separate vehicle-specific wiring harness purchase.
Hardware & Specs Guide
Flash Pattern Flexibility
The number of bursts per brake application ranges from a single pulse (barely noticeable) up to 16 flashes on programmable units. The most effective patterns for rear-end collision prevention use 3 to 8 flashes within a 2-second window, followed by a steady illumination. Modules with adjustable potentiometers or push-button programming let you tailor this cadence to your specific riding environment — faster for freeway, slower for city traffic.
Current Load and Voltage Drop
A standard 12-volt third brake light draws roughly 0.5 to 1.5 amps. Ensure the pulser is rated at least 1.5 times your light’s draw to prevent overheating. Modules with a 2-amp or higher rating can handle dual brake light setups on motorcycles or trucks that run both the third light and the tail lights from a single module. Check the manufacturer’s spec sheet for the maximum wattage supported — LED lights typically draw less than incandescent, but a short circuit can still damage an under-rated pulser.
FAQ
Will a brake light pulser work with my LED tail lights?
Is a brake light pulser legal on public roads?
Can I install a brake light pulser on my motorcycle myself?
What does the 20-second reset on a brake pulser mean?
Will a trailer brake controller make my truck’s brake lights flash?
Final Thoughts: The Verdict
For most buyers, the brake light pulser winner is the Timers.Shop X1 because it combines deep programmability, waterproof construction, and a lifetime warranty in a universal package that fits cars, trucks, and motorcycles. If you want a completely tool-free install for a specific Harley model, grab the OZ-USA Strobe Flasher. And for a precise analog-tuning module that works with LED lights, nothing beats the adjustability of the United Pacific 90655.
