Choosing the wrong flywheel for your small engine doesn’t just cost you power—it can grenade your build the second you cross 7,000 RPM. The stock cast-iron unit on a Predator 212 or Honda GX200 is a heavy, dangerous liability once you start adding a cam, valve springs, and a mikuni carb. A proper aftermarket flywheel sheds rotational mass, advances ignition timing for a harder hit, and—most critically—survives the sustained high-rpm abuse that splits cast iron apart.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing small-engine performance parts, cross-referencing material specs, balance tolerances, and real-world owner feedback from mini-bike racers, go-kart builders, and tiller-swap enthusiasts to separate the safe, high-revving flywheels from the brittle knockoffs.
Whether you are building a Coleman mini-bike ripper, a Baja Warrior play bike, or a torque-heavy kart motor, choosing the right flywheel for engine comes down to matching material strength, RPM certification, and timing advance to your specific block style and power goals.
How To Choose The Best Flywheel For Engine
A flywheel for a small engine serves as both a rotating mass that stores kinetic energy and the magnetic trigger surface for your ignition coil. The wrong choice can rob horsepower, cause dangerous vibration, or fail catastrophically. Here are the three decisions that matter most.
Material and RPM Rating
Cast-iron flywheels are standard on every stock Predator 212 and Honda GX200. They are heavy—typically 5 to 6 pounds—and brittle at high strain. Once you push past 5,500 RPM, the iron can crack or shatter, sending shrapnel through your block and legs. Billet 6061-T6 aluminum flywheels weigh roughly half as much, reduce rotating inertia for faster throttle response, and are rated for 8,000 to 10,000 RPM when properly machined. Steel flywheels occupy a narrow middle ground, but for performance builds, billet aluminum is the standard. Always verify the advertised RPM limit and look for SFI certification on premium units.
Ignition Timing Advance
Stock flywheels set ignition timing around 28 degrees before top dead center (BTDC). Aftermarket flywheels often incorporate a fixed advance—commonly 30 to 34 degrees BTDC—machined directly into the magnet location relative to the keyway. This shifts the spark earlier in the compression stroke, which builds peak cylinder pressure sooner and produces a noticeable mid-range and top-end power bump. The trade-off can be harder starting and slightly more heat. Some billet flywheels ship with offset woodruff keys to allow you to fine-tune the timing, while others have the advance cut into the wheel itself and require a straight key.
Block Compatibility: Hemi vs. Non-Hemi
The Predator 212 is the most common small engine in the performance aftermarket, but it comes in two distinct head designs. The hemi version has a domed combustion chamber with angled spark plug access and uses a shorter crank hub, while the non-hemi (flat-head) version has a straight plug bore and a taller hub. Flywheels made specifically for hemi blocks will not bolt onto non-hemi cranks without clearance issues, and vice versa. The Honda GX160, GX200, Coleman CT200U, and Tillotson 212 all follow similar patterns. Always confirm your engine’s specific block code or head stamp before purchasing.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ARC Racing 6695 Speedway | Billet Aluminum | Competition racing builds | SFI certified, 3.4 lbs, 32° timing | Amazon |
| Slipstream Billet Flywheel | Billet Aluminum | Predator 196/212 & GX200 upgrades | 3.3 lbs, 34° advanced timing | Amazon |
| EOPOAYI 212cc Aluminum Flywheel | Aluminum | Hemi 212 builds with extras | 10,000 RPM, includes valve springs | Amazon |
| sthus Aluminum Flywheel | Aluminum | Predator 212 hemi entry-level upgrade | 10,000 RPM, precision-balanced | Amazon |
| Head Light Flywheel with Magneto | Cast Steel | Restoration & lighting retrofits | Built-in magneto, 0.65″ bore | Amazon |
In‑Depth Reviews

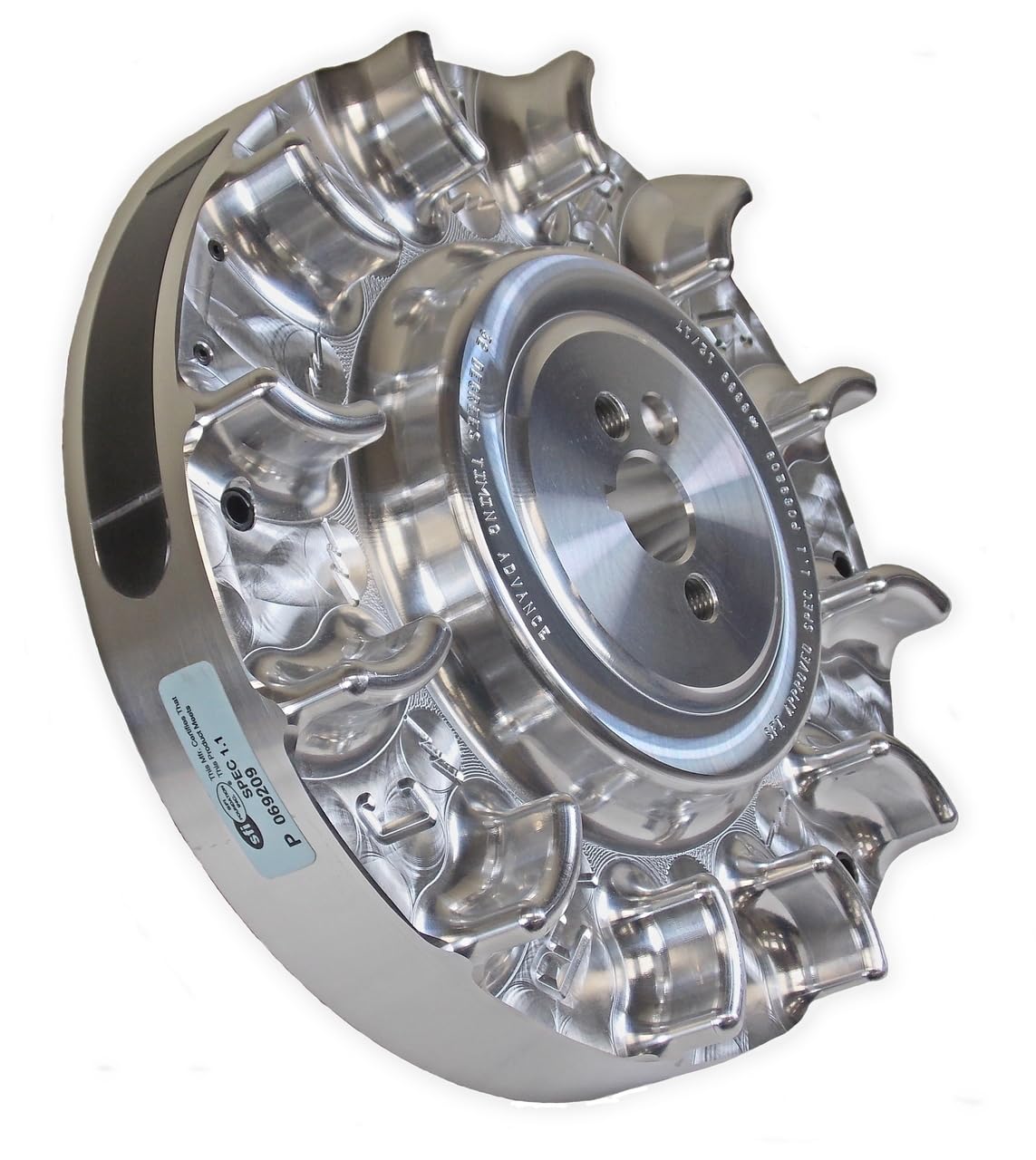

1. ARC Racing 6695 Speedway Billet Flywheel
The ARC Racing 6695 Speedway is the gold standard for non-hemi Predator 212 performance builds. At 3.4 pounds, it shaves nearly 40 percent of the rotating mass off a stock cast-iron unit, and the 32-degree timing advance with a standard straight key delivers a crisp mid-range hit that transforms a mild cam-and-spring motor. The SFI certification means this wheel has passed destructive spin testing—a level of safety that no generic aluminum flywheel can claim.
Machined from 6061-T6 billet in the USA, the chrome finish resists corrosion and the engraving is laser-precise. The instructions explicitly call for a minimum coil gap of 0.030 inch, which is tighter than many generic flywheels require, but following that spec is essential for consistent spark. Multiple verified buyers report this wheel transformed their DB30 and Baja Warrior builds, with one noting it made a cheap Chinese knockoff look like a toy.
The one hard limitation is compatibility: this unit will not work with hemi Predator blocks or any charging stator. You lose lighting capability entirely. But if your goal is a snappy, reliable, race-ready motor that can live at 8,000-plus RPM without fear, the ARC 6695 is the safest investment you can make.
What works
- SFI certified for competition-grade safety at high RPM
- Lightweight 3.4 lb design reduces rotating inertia significantly
- Precise 32-degree timing advance with stock key
- Made in USA with high-quality billet and chrome finish
What doesn’t
- Non-hemi Predator 212 only—no hemi or GX200 compatibility
- Incompatible with charging stators, eliminating lighting options
- Premium pricing compared to budget aluminum alternatives
2. Slipstream Billet Flywheel for Predator 196/212 and GX200
The Slipstream billet flywheel from GUCIDDAK lands in a sweet spot for builders who want advanced timing and light weight without stepping up to the ARC price bracket. At 3.3 pounds, it is actually a hair lighter than the ARC unit, and its 34-degree fixed timing advance is two degrees more aggressive, which translates to a harder snap at peak cylinder pressure. The unique fin profile is designed to reduce wind resistance, allowing the engine to spin up more freely in high-RPM ranges.
It fits Predator 196cc, 212cc, and Honda GX200 blocks, making it a better option for GX200 builds than the ARC wheel. The rare-earth neodymium magnet provides a strong magnetic field for reliable coil triggering. Multiple owners report it worked straight out of the package on Coleman B200 mini-bikes and 224cc swaps with zero modifications. One builder noted that the included offset timing key for finer adjustability did not fit correctly, but the wheel ran perfectly with the stock key at the built-in 34 degrees.
The primary risk is that there is no SFI certification here, and a small number of buyers report no spark after installation. That appears to be a coil-gap sensitivity issue rather than a magnet defect, but it is something to be aware of. For the money, this is one of the most aggressive timing wheels available for the GX200 and Predator platform.
What works
- Very light 3.3 lb billet construction reduces rotational mass effectively
- Aggressive 34-degree fixed timing for a noticeable power increase
- Works with Predator 196/212 and GX200 platforms
- Strong neodymium magnet provides reliable coil triggering
What doesn’t
- No SFI certification for high-rpm racing sanctioning
- Included timing key fitment can be inconsistent
- Spark issues reported, likely caused by coil gap sensitivity
3. EOPOAYI 212cc Aluminum Flywheel for Predator Hemi
The EOPOAYI 212cc flywheel delivers an unusually complete package for its position in the market. You get the aluminum flywheel rated to 10,000 RPM, a pair of 26-pound valve springs, and a main jet kit with three jet sizes plus an emulsion tube—all in one box. That makes it an enticing shortcut for someone building a hemi Predator 212 for a mini-bike or go-kart who needs the supporting parts anyway. The polished exterior looks clean against a billet side cover, and the precision balancing shows up in the smooth idle and reduced vibration owners report.
Fitment is specifically for hemi blocks and the Ghost engine, but not for non-hemi Predator heads. Several buyers confirmed it worked on Coleman CT200U and Baja Warrior frames with the proper hemi motor. One mini-bike owner running 10-60 gearing and hitting 50 mph reported the flywheel held up without issue under hard acceleration. The starter cup engagement did require minor trimming of the recoil fingers on some installs—a quick fix with a file.
The valve springs that ship with the kit are welcome extras, but reviews are mixed on whether the pictured springs actually arrive in every package. A couple of buyers reported the springs and jets were missing and had to source them separately. Still, the core flywheel itself appears to be well-made and durable for a performance-oriented budget build.
What works
- Includes valve springs and main jet kit for a complete upper-end package
- Rated to 10,000 RPM, proven on high-speed mini-bike builds
- Polished aluminum finish and balanced design reduce vibration
- Direct fit for hemi and Ghost engines without major modifications
What doesn’t
- Not compatible with non-hemi or flat-head Predator blocks
- Some packages missing the included valve springs and jets
- Starter cup engagement may need light filing on the recoil fingers
4. sthus Aluminum Flywheel for Predator 212 Hemi
The sthus aluminum flywheel is a straightforward, no-frills upgrade for the Predator 212 hemi crowd. Rated to 10,000 RPM, it replaces the heavy plastic-and-cast-iron factory assembly with a machined aluminum wheel that drops rotating mass and improves throttle response. The construction is high-grade 6061 alloy and the external machining is clean, with a consistent surface finish that looks at home in a performance engine bay.
The weight reduction alone makes the engine feel livelier off-idle compared to the stock cast-iron rotor. A few users noted the flywheel key stripped out on initial install, which may point to a soft key or improper torque on the nut. The timing advance built into this specific wheel is not clearly documented, and one experienced builder felt the timing was not as aggressive as advertised, so it may be better suited for entry-level builds where the stock timing curve is acceptable.
The biggest weakness is the lack of documentation or included hardware—there is no timing key, no coil gap guide, and no pull-starter spacer if your stock cup does not clear the new wheel. For the price-conscious builder swapping a plastic cooling fan for something that can survive long WOT pulls, the sthus wheel gets the job done, but it demands a careful setup on your part.
What works
- Affordable billet aluminum upgrade from heavy cast-iron factory rotor
- Lightweight construction improves revability and reduces rotating inertia
- Machined finish is clean and visually appealing for a performance build
- Proven to hold up past 7,000 RPM on built hemi engines
What doesn’t
- No timing key or installation hardware included in the package
- Reported flywheel key stripping suggests soft metal or torque issues
- Timing advance specification is vague; may not match advertised angle
5. Head Light Flywheel with Magneto for GX160/GX200
This flywheel from POWER PRODUCTS serves a different purpose than the high-rpm aluminum units above. It is a replacement flywheel for GX160, GX200, and Champion/Jiangdong 5.5 to 6.5 HP engines that includes an integrated magneto for powering headlights and brake lights. If you are restoring a Coleman mini-bike or fitting lighting to a snow blower or tiller, this wheel lets you run a 30-watt halogen headlight or LED lighting loads without an external charging coil.
At 6 pounds, it is much heavier than the performance options, but that is intentional—the extra mass smoothes out low-speed lugging on utility engines and provides consistent AC output from the integral magneto winding. One buyer successfully powered a 30-watt headlight, a 10-watt LED brake light, and four 5-watt ambient LEDs from this single unit. The critical spec is the 0.65-inch bore; the listing warns that 0.73-inch and 0.83-inch shafts are also common, so measuring your crank before buying is essential.
The downsides are significant for anyone expecting a bolt-on upgrade for a Predator 212. It does not fit the Predator 212 properly without sourcing a full 196cc crank and flywheel taper setup. The keyway alignment can be loose on the larger Predator shaft, leading to a jerry-rigged solution at best. This wheel is a specialized part for specific engine families and should not be treated as a universal replacement.
What works
- Built-in magneto powers headlights and brake lights without external coil
- Designed specifically for GX160, GX200, and Chinese 5.5-6.5 HP engine families
- Capable of driving combined lighting loads up to 60 watts total
- Ideal for restoration of original-equipment lighting-equipped engines
What doesn’t
- Will not properly fit Predator 212 without significant parts swapping
- Limited to 0.65-inch shaft engines; does not work with 0.73 or 0.83-inch cranks
- Heavy at 6 pounds, not suitable for performance RPM or racing
Hardware & Specs Guide
Billet vs. Cast Iron Safety
The material of your flywheel determines the maximum safe RPM of your engine. Cast-iron flywheels used on stock Honda GX200 and Predator 212 engines are heavy and brittle; they can crack without warning above 5,500 RPM. Billet 6061-T6 aluminum flywheels are machined from a single block of material, which eliminates internal voids and weak grain boundaries. A properly designed billet flywheel is typically safe to 8,000 or even 10,000 RPM. The highest safety standard is SFI certification, which means the wheel passed destructive spin testing to a specific overspeed rating.
Ignition Timing and the Woodruff Key
The woodruff key that locks the flywheel to the crankshaft determines where the magnet passes the coil in relation to piston position. A stock flywheel sets ignition around 28 degrees before top dead center. Aftermarket flywheels often machine the magnet location at 30 to 34 degrees, advancing the spark. Some flywheels use a key with an offset slot to allow further fine-tuning. Advancing timing increases cylinder pressure and power, but too much advance can cause detonation, overheating, and hard starting. Always verify your total timing with a degree wheel and dial indicator if you are pushing the edge.
FAQ
Can I use a hemi flywheel on a non-hemi Predator 212?
Do I need to replace the flywheel if I only have a stage 1 kit?
Will a billet flywheel make my engine start harder?
Final Thoughts: The Verdict
For most buyers, the flywheel for engine winner is the ARC Racing 6695 Speedway because it combines SFI-certified safety, precise 32-degree timing, and the lightest weight in the roundup for non-hemi Predator 212 builds. If you want a 34-degree timing advantage that also fits the GX200 platform, grab the Slipstream Billet Flywheel. And for a budget-friendly hemi-specific upgrade that ships with valve springs and jets, nothing beats the EOPOAYI 212cc Aluminum Flywheel.
