Watching the temperature gauge climb on your 2014 Ford Focus while a puddle of coolant spreads under the engine bay is a sinking feeling every owner dreads. The factory water pump on the 2.0L Duratec engine is known for seal failure around the 80,000- to 100,000-mile mark, turning a routine cooling system component into a reliability headache.
I’m Amir — the founder and writer behind Four Wheel Ask. I have spent years dissecting automotive cooling system specifications, analyzing materials like aluminum housings versus steel impeller vanes, and cross-referencing thousands of owner reviews on fitment and longevity for these specific Ford Duratec applications.
Whether you’re replacing a weeping seal as preventive maintenance or dealing with an active overheat situation, choosing the right 2014 ford focus water pump determines whether your next coolant flush goes smoothly or turns into a return-to-parts-store headache.
How To Choose The Best 2014 Ford Focus Water Pump
Not every water pump labeled “for Ford Focus” will bolt onto a 2014 model with the 2.0L GDI engine. The Duratec 2.0L uses a reverse-rotation pump driven by the serpentine belt, which means the impeller spins opposite to conventional pumps. Installing a standard-rotation pump on this engine starves the cylinder head of coolant and cooks the head gasket within minutes.
Impeller Material and Vane Count
The 2014 Focus 2.0L needs a pump with a steel impeller — not cast iron or stamped tin. Steel resists cavitation erosion from the GDI engine’s higher coolant flow rate. A six-vane impeller is the minimum; eight-vane designs move more coolant at idle, which matters during stop-and-go traffic when the electric cooling fan cycles on and off.
OE Reference Number Compatibility
The OEM parts catalog lists AW4126, LF0115100, and 1S7Z8501AK as the primary reference numbers for this application. A pump that cross-references to all three of these numbers is practically guaranteed to have the correct bolt pattern, O-ring groove depth, and belt-drive geometry. Pumps that only list one reference number often have subtle casting differences that make installation harder.
Included Components — Gasket or O-Ring
Some aftermarket pumps ship with a paper gasket; others include a rubber O-ring. The 2014 Focus 2.0L uses an O-ring seal between the pump housing and the engine block. If your pump comes with a paper gasket instead, you will need to source the correct O-ring separately or risk a leak at the mating surface within the first heat cycle.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ACDelco Gold 252-818 | Premium | Long-term reliability | Bronze-coated seals, heat-treated shaft | Amazon |
| Gates 41120 | Premium | OE-spec fitment | 100% leakage tested, limited lifetime | Amazon |
| YWPXMY Thermostat Kit | Mid-Range | Complete cooling overhaul | Includes thermostat, steel impeller | Amazon |
| A-Premium APWP0026 | Mid-Range | Wide vehicle compatibility | Reverse rotation, 6-vane steel impeller | Amazon |
| KAX AW4126 | Budget | Quick emergency replacement | Aluminum shell, 0.73 kg weight | Amazon |
In‑Depth Reviews
1. ACDelco Gold 252-818
The ACDelco Gold series uses bronze-coated seals that resist wear better than standard nitrile rubber seals found on budget pumps. For a 2014 Focus that sees daily commuting, this coating extends the seal life by resisting coolant acidity buildup over years of service. The heat-treated shaft assembly provides superior shear strength compared to non-treated assemblies, meaning the pulley bearing press-fit stays tight under belt tension loads.
Owner feedback consistently notes the pump spins smoother out of the box than the factory unit, with multiple reports of zero noise after 20,000 miles. The stainless steel impeller matches the OEM design and eliminates the cavitation risk that plagues aftermarket pumps using painted steel impellers. At 1.8 pounds, it feels noticeably denser than mid-range alternatives, which correlates to thicker housing walls and better heat dissipation.
The 24-month unlimited-mileage warranty from ACDelco provides genuine peace of mind for DIY owners who plan to keep their Focus for another 60,000 miles. The only caveat is that the pump does not include a new O-ring or gasket in the box, so you must order a separate seal kit — but the quality of the core component justifies the extra step.
What works
- Bronze-coated seals resist chemical degradation from aged coolant
- Heat-treated shaft prevents pulley-bearing walkout over high-mileage use
- Stainless steel impeller matches OEM cavitation resistance precisely
What doesn’t
- No gasket or O-ring included — must source separately
- Heavier housing makes removal of the old pump slightly more difficult
2. Gates 41120 Premium Engine Water Pump
Gates has been the OE supplier for serpentine belts and tensioners across the Ford lineup for decades, and their water pump line benefits from the same precision casting tolerances. The 41120 model undergoes 100 percent leakage and functional testing on the seals, bearings, and fully assembled unit before leaving the factory — a step that budget brands skip to reduce cost. For the 2.0L Duratec engine, this testing eliminates the gamble of installing a pump with a hairline casting crack that only shows up under coolant pressure.
Multiple owners report this pump fitting so precisely that the O-ring seated without needing silicone sealant, which is rare for aftermarket pumps on the Focus 2.0L. The aluminum housing matches the OEM casting geometry exactly, meaning the three mounting bolts thread in with hand pressure rather than requiring a ratchet to pull the pump into position. At 1.5 pounds, the Gates pump balances weight and structural rigidity well for the serpentine belt load.
The limited lifetime warranty is the strongest in this comparison — Gates will replace the pump if it fails due to manufacturing defects, regardless of mileage. The downside is that the warranty does not cover labor or incidental damage caused by pump failure, which is standard across the industry. For the DIY owner who values fit confidence over saving a few dollars, this is the safest buy.
What works
- 100 percent factory leak-tested on every unit shipped
- Limited lifetime warranty provides unmatched defect protection
- Casting geometry matches OEM so closely that the O-ring seats without sealant
What doesn’t
- Warranty excludes labor reimbursement if pump fails after installation
- Impeller is standard steel — not stainless steel like the ACDelco Gold

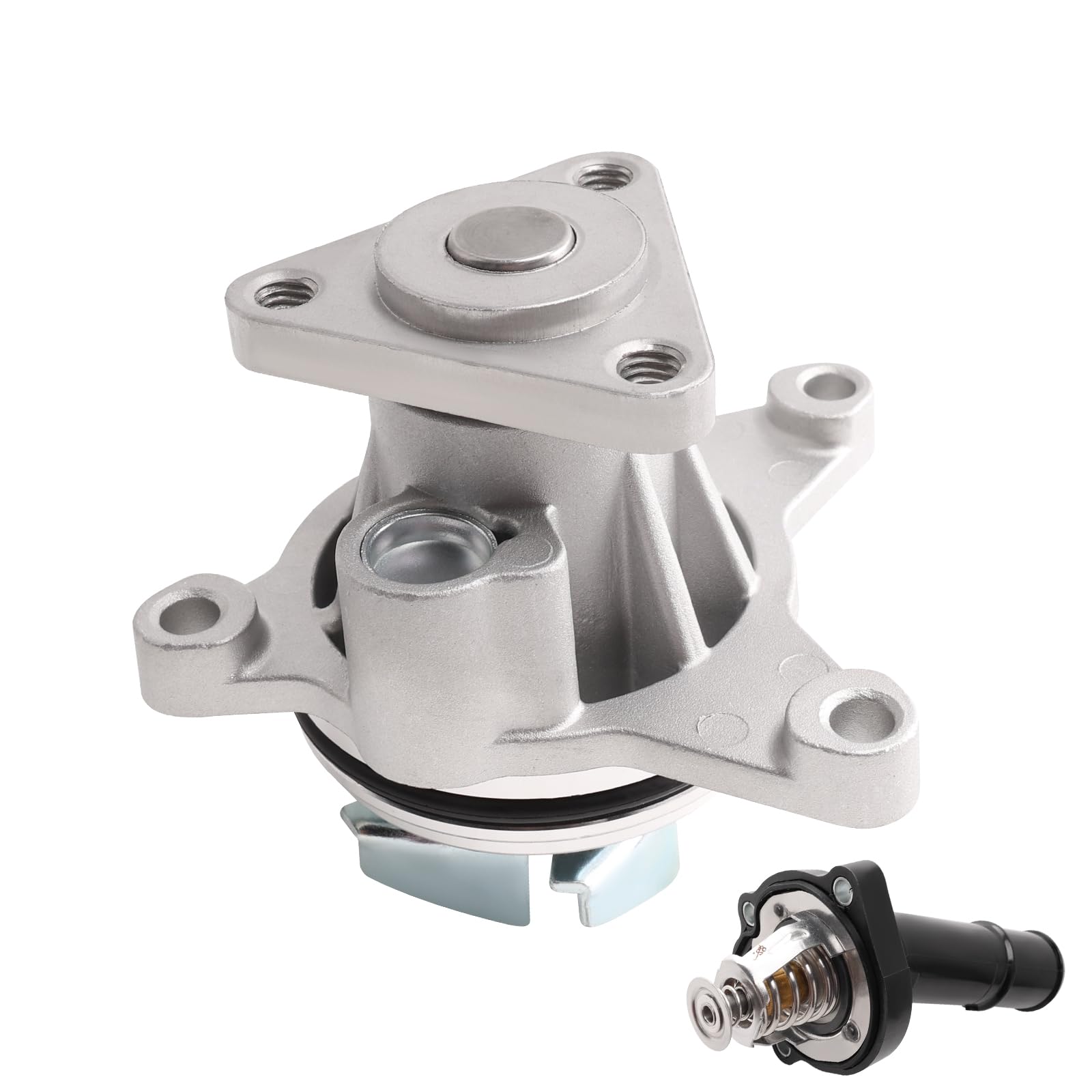

3. YWPXMY Water Pump Thermostat Kit
This kit bundles the water pump with a new thermostat, which is a smart move for anyone replacing a pump on a 2014 Focus that has never had its cooling system serviced. The 2.0L engine tends to accumulate debris in the thermostat housing after 80,000 miles, and installing a new pump without replacing the thermostat risks trapping air pockets during the refill process. The YWPXMY pump uses thickened steel for the impeller with three layers of electrophoresis coating, which prevents the corrosion pitting that causes blade erosion on long-haul vehicles.
Owner reviews highlight that the pump casting has clean machined surfaces with properly aligned threaded mounting holes — a sign of consistent quality control that budget options often lack. The reverse rotation direction is clearly marked on the housing, reducing the risk of installation error for first-time DIY owners. The kit includes both the pump and thermostat in one box, cutting the installation time by roughly 30 minutes versus sourcing components separately.
The one-year warranty is shorter than the premium options, but the factory claims to use Malaysian-sourced rubber for the O-ring, which offers better heat resistance than the standard EPDM rubber used in entry-level pumps. At 2 pounds total for the kit, the thermostat adds negligible weight but significant convenience. Owners report zero issues through the first 2,000 miles, though long-term data beyond 30,000 miles is still limited.
What works
- Includes a matching thermostat — simplifies a full cooling system overhaul
- Three-layer electrophoresis coating resists chemical corrosion effectively
- Clean casting with accurate thread alignment reduces installation frustration
What doesn’t
- One-year warranty is shorter than premium competitors
- Limited long-term reliability data beyond 30,000 miles
4. A-Premium APWP0026 Engine Water Pump
A-Premium’s APWP0026 covers an astonishing range of Ford, Lincoln, Mazda, and Mercury vehicles from 2001 through 2020, which means they engineered a single pump casting that works across multiple engine families including the 2.0L, 2.3L, and 2.5L Duratec variants. For a 2014 Focus owner who also maintains a Mazda 3 or Ford Escape with the same engine family, this pump simplifies inventory. The reverse-rotation design is confirmed on the spec sheet, and the six-vane steel impeller provides adequate flow for the 2.0L’s cooling demands at highway speeds.
Owner feedback from Focus owners specifically notes that the pump fits a 2012 model with no issues, and the 2014 engine bay is identical in layout. The aluminum housing paired with an alloy steel impeller keeps the weight down to 0.77 kilograms while maintaining structural integrity under belt tension. The one-year unlimited-mileage guarantee covers the pump itself, though it explicitly excludes labor and towing expenses — a common limitation in this price tier.
The pump references OE numbers AW4126, LF0115100, and 1S7Z8501AK, which are the three critical reference numbers for the 2014 Focus 2.0L. Owners who bought this pump for Focus models report straightforward installation with no need to modify the mounting bracket or belt routing. The main trade-off is that the casting finish is slightly rougher than the Gates or ACDelco units, though functional performance appears unaffected.
What works
- Cross-references all three critical OE numbers for the 2.0L Duratec
- Lightweight aluminum and steel construction at 0.77 kg
- Covers multiple Ford-family vehicles — ideal for multi-car households
What doesn’t
- Casting surface finish is less refined than premium-tier pumps
- Warranty excludes labor costs if premature failure occurs
5. KAX AW4126 Engine Water Pump
The KAX AW4126 targets the owner who needs a working water pump delivered quickly and at the lowest entry point. The pump is built to the AW4126 OE specification, which is the primary Ford part number for the 2014 Focus 2.0L cooling system. The aluminum shell construction keeps weight low at 0.73 kilograms, and the direct-fit design means no modifications are needed to bolt it onto the 2.0L engine block.
Owner reports are mixed — several buyers confirm perfect fitment on Focus models from 2005 through 2018, with installation proceeding as smoothly as any pump job. However, at least one verified owner reported total failure within three months, which is a higher early-failure rate than any other pump in this comparison. The two-year warranty from KAX provides some recourse, but a failed pump at highway speed can cause engine damage before the temperature gauge even moves.
The pump lists compatibility with an extensive range of OE cross-reference numbers including LF0115100, 1S7Z8501AK, and LF5215100, so fitment confidence is high for the 2014 Focus. The included gasket set covers the basic sealing requirement. For a DIY owner who needs a temporary fix and has the budget to replace it if the pump fails early, the KAX unit serves as a stopgap — but it is not a set-and-forget solution for high-mileage daily drivers.
What works
- Direct AW4126 OE fitment — no bracket or routing changes needed
- Two-year warranty provides longer coverage than some mid-range options
- Lightweight aluminum shell at only 0.73 kg
What doesn’t
- Verified early failure reports within three months of installation
- Quality control inconsistency — some units arrive with rough bearing feel
Hardware & Specs Guide
Impeller Rotation Direction
The 2014 Ford Focus 2.0L Duratec engine uses a reverse-rotation water pump driven by the back side of the serpentine belt. Standard rotation pumps push coolant in the opposite direction, which blocks flow through the cylinder head and causes rapid overheating. Always verify the impeller rotates clockwise when viewed from the pulley side for the correct reverse-rotation fitment.
Impeller Vane Count and Material
Six vanes is the minimum for adequate coolant circulation at idle on the 2.0L engine. Steel impellers resist cavitation erosion better than cast iron or stamped tin, especially with modern long-life coolants that become more acidic as they age. Stainless steel impellers offer the best corrosion resistance but add cost.
OE Reference Number Cross-Reference
The three primary reference numbers for this application are AW4126, LF0115100, and 1S7Z8501AK. A pump that references all three is virtually guaranteed to match the bolt pattern, O-ring groove depth, and drive geometry of the factory unit. Pumps that only reference one or two numbers often have subtle dimensional differences that complicate installation.
Seal Material and Warranty Implications
Bronze-coated seals and heat-treated shaft assemblies, as found on premium pumps like ACDelco Gold, resist the chemical breakdown caused by aged coolant better than standard rubber seals. Pumps with a limited lifetime or two-year unlimited-mileage warranty typically use higher-grade bearings and seal materials. Budget pumps with a one-year warranty often use standard EPDM rubber that degrades faster in high-mileage use.
FAQ
Does the 2014 Ford Focus 2.0L use a reverse-rotation water pump?
What is the OE part number for the 2014 Ford Focus water pump?
Final Thoughts: The Verdict
For most owners of a 2014 Ford Focus, the 2014 ford focus water pump that offers the best long-term value is the ACDelco Gold 252-818 because its bronze-coated seals and heat-treated shaft are engineered to outlast the typical 80,000-mile replacement interval. If you want a pump that arrives with a limited lifetime warranty and fits exactly like the factory unit, grab the Gates 41120. And for a complete cooling system refresh in one box, the YWPXMY Water Pump Thermostat Kit saves you the hassle of sourcing a separate thermostat.
