Choosing the wrong transmission rebuild kit can lock up your entire project for weeks, forcing you to hunt down missing seals and gaskets mid-assembly. A master overhaul kit should cover every wear component in a single order so you can pull the disassembly board, lay out the parts, and build straight through.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing transmission rebuild kit material quality, friction plate formulations, and clutch pack completeness from brands like Remco, Transparts Warehouse, and Alto to filter out which kits deliver reliable sealing and consistent shift feel.
This guide ranks the top offerings based on clutch holding capacity, steel plate precision, and seal material composition so you can confidently choose the best transmission rebuild kit for your specific make and model.
How To Choose The Best Transmission Rebuild Kit
Rebuild kits vary wildly in what they actually include — a budget-friendly overhaul gasket set stops at seals and gaskets, while a premium master kit delivers friction plates, steels, bushings, bonded pistons, a filter, and sometimes even a shift kit. Pinpointing what your specific transmission needs is the first step to avoiding a second teardown.
Clutch Friction Material & Holding Capacity
Paper-based clutches suffice for stock daily drivers, but when you push torque through a truck, tow rig, or tuned sedan, high-energy friction compounds prevent glaze and maintain bite at elevated oil temperatures. Alto and Raybestos Powertrain modules, for instance, offer 30% higher holding capacity over standard plates. If your build includes a power adder or you plan on towing at maximum GVWR, look for kits that explicitly mention an upgraded clutch stack or a high-energy friction pack.
Steel Plate Quality & Dimensional Tolerance
Thin or warped steel plates are the primary cause of low-speed shudder and delayed engagement. The best kits include steels that match OEM stack height within thousandths of an inch. Kits that bundle clutch steels in a separate module—like the Raybestos Powertrain steel pack—take the guesswork out of stack-up clearance. When rebuilding a Chrysler A727 or GM 4L60E, verify that the steel thickness matches your application’s required end-play specifications to avoid burning the clutches within a few hundred miles.
Seal Material & O-Ring Composition
Rubber seal formulation is critical for preventing fluid bypass that leads to slipping bands or delayed valve-body actuation. Standard nitrile (NBR) works for moderate-temperature builds, but premium kits use fluorine rubber (FKM) for the 80% of seals exposed to high heat inside the case and ACM rubber for components that require cold-weather flexibility. CVT rebuilds are especially sensitive to seal quality because the pulley system relies on precise hydraulic pressure — a mismatched O-ring causes belt slip and early chain failure.
Bushing & Bearing Coverage
Bronze or brass bushings replace worn steel bushings in high-load areas like the pump housing, output shaft, and planetary gear sets. A master kit that skips bushings forces you to source them separately, often delaying the build. Manual transmission rebuild kits for Muncie 4-speeds should bundle roller bearings and synchro rings since thrust washer wear causes gear clash and hard shifting under load. Look for the phrase “bushing kit included” on automatic rebuild kits and “bearing kit with rings” on manuals.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Remco 700R4 Full Overhaul Kit | Auto Master | GM TH700-R4 / 4L60E 82-93 | High-energy friction plates | Amazon |
| Transparts Warehouse BK116WS | Manual Gearbox | Muncie 4-speed rebuild | Nachi / Koyo roller bearings | Amazon |
| ATP TMS-14 Master Kit | Auto Master | Chrysler A727 1971-87 | Incl. flex band | Amazon |
| TRANSPEED JF011E CVT Kit | CVT Master | Nissan Altima / Rogue / Sentra | FKM seals + oil filter | Amazon |
| WIT 4R75W Master Kit | Auto Master | Ford 4R70E / 4R75E 04-UP | Raybestos friction & steel pack | Amazon |
| World Wide Parts 4L60E HD Kit | HD Master | GM 4L60E 97-03 heavy-duty | Alto HEG 3-4 Power-Pack | Amazon |
| Remco 4R70W Complete Kit | Auto Master | Ford AODE / 4R70W / 4R75W 04-UP | Includes pistons + bands | Amazon |
| Transparts/Alto 4L60E Level 2 | Performance | GM 4L60E / 65E / 70E 04-ON | Transgo shift kit + Corvette servo | Amazon |
| Remco 6L80E Master Kit | Auto Master | GM 6L80 / 6L90 07-UP | Bonded piston kit (5-pistons) | Amazon |
In‑Depth Reviews
8. Alto 4L60E Level 2 Deluxe Rebuild Kit
This Transparts Warehouse / Alto collaboration kit delivers the most comprehensive one-box solution for a late-model 4L60E performance build. It bundles friction clutches, steel clutches, a bushing kit, bonded pistons, a 13-vane pump kit, and a Transgo valve body shift kit — essentially everything except hard parts. The Corvette servo upgrades the 1-2 shift firmness, and the 3-4 clutch boost spring reduces overlap that causes harsh part-throttle upshifts.
Owners rebuilding their own transmissions with zero prior experience report that the kit includes enough detail in the labeled bags to assemble correctly, though you still need a manual for clearances. The Alto friction material holds up well under a tuned 5.3L in a Yukon XL, and multiple reviewers confirm the kit survived over a year of daily driving without slipping or band failure.
The 18-pound package covers every common failure point in the 4L60E — forward sprag, accumulator pistons, and the front pump bushing are all addressed. If you plan on adding a heavy-duty sunshell while you are in there, this kit leaves you a clear path to do so without overlapping parts.
What works
- Transgo shift kit included eliminates vague gear hunting in a heavy SUV
- Corvette servo dramatically reduces 1-2 shift lag under load
- Alto clutches maintain bite past 400 hp threshold
What doesn’t
- No heavy-duty sunshell included — recommend ordering separate
- Premium price places it near the top of the market

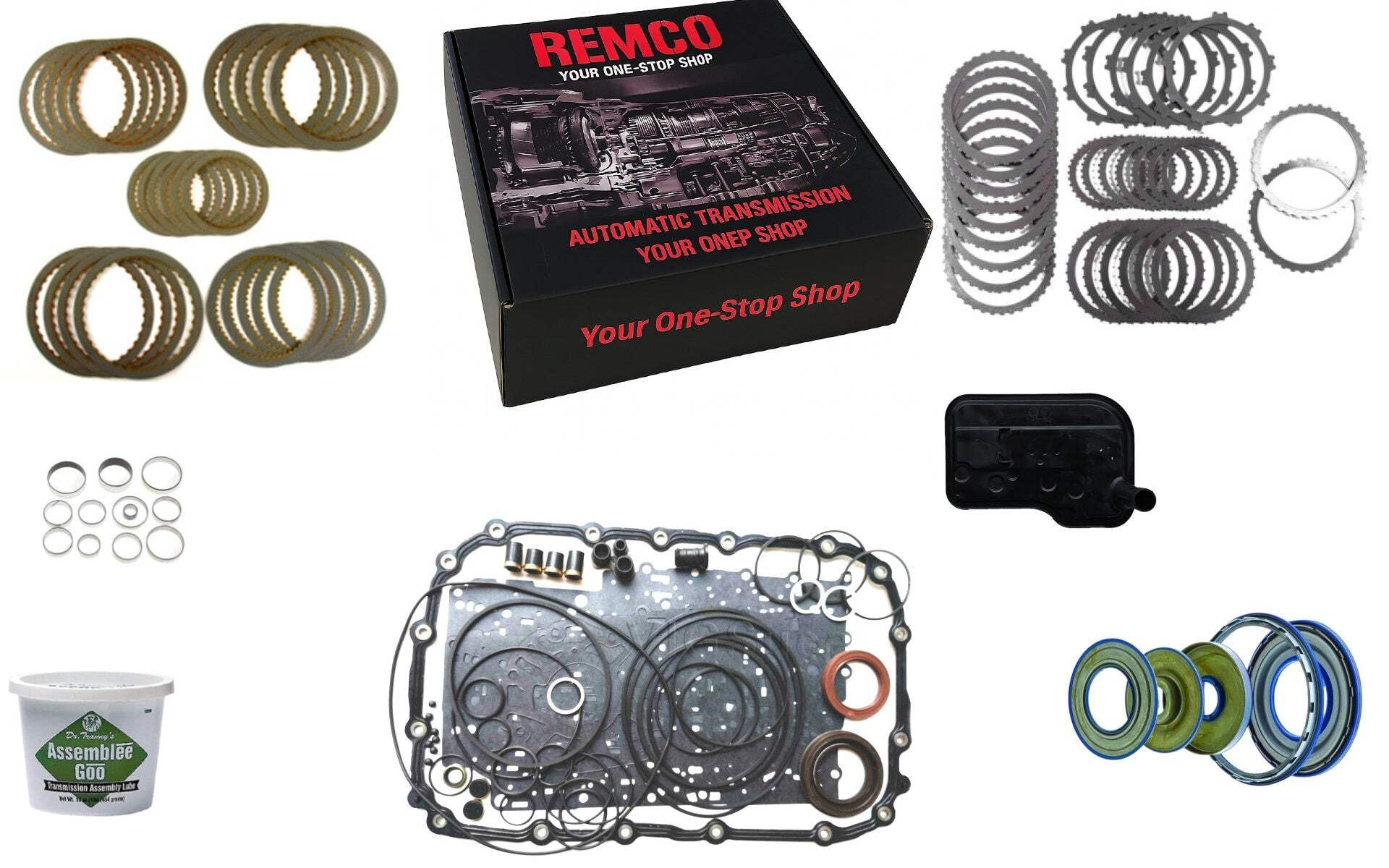

9. Remco 6L80E 6L90E Complete Master Overhaul Kit
Remco’s 6L80E / 6L90E kit is a true one-stop overhaul for the modern GM 6-speed automatic found in 2007-up trucks, SUVs, and performance cars. The kit ships with a bonded piston set covering five clutch cavities, a performance blue piston upgrade for increased durability, and an overhaul gasket set with high-quality seals. The steel clutch pack and friction clutch pack come pre-matched to eliminate stack-up guesswork.
The 23-pound package includes a new filter with the correct 6.30-inch height and 1.30-inch neck spacer, a bushing kit for the main case, and assembly lube to protect the pump during initial fire-up. The bonded piston kit is a critical upgrade for the 6L80 — the stock bonded pistons are known to delaminate under sustained heat, and the blue performance replacements resist breakdown at elevated oil temperatures.
One area to watch: the kit does not include the external housing bushings, so if your output shaft bore is worn you may need to order those separately. Overall, this level of completeness cuts rebuild time significantly compared to sourcing separate steel bundles, friction packs, and bushing sets from different suppliers.
What works
- Bonded piston kit eliminates the stock piston failure point on long highway runs
- Filter, bushing kit, and assembly lube included — truly master grade
- Clutch and steel packs arrive matched for consistent end-play
What doesn’t
- External housing bushings not included — check your case condition
- Heavier weight means you pay more for shipping
6. World Wide Parts 4L60E Heavy Duty Master Kit
For the 1997–2003 GM 4L60E, the World Wide Parts Outlet heavy-duty master kit stands apart with the Alto HEG 3-4 Power-Pack module. This single upgrade increases the holding capacity of the 3-4 clutch stack by 30% compared to the factory configuration — a critical improvement for trucks that see towing duty or tuned LS swaps. The kit requires you to set the 3-4 clearance to .025–.040 inch, a step that professional builders treat as standard but novices must carefully execute with a feeler gauge.
The custom power pack includes additional friction plates and steel plates that stack higher than the OEM clutch drum originally accommodated, so you must verify your drum depth before assembly. Owners report that after rebuilding a 5.7L 4L60E in a 25-foot camper-towing setup, the truck pulls 70 mph with noticeably firmer shifts and no slipping even after repeated grade climbing. The manufacturer also included extra components to cover vehicle-specific variations like deep-pan filters — be aware that shallow-pan or Corvette-pan filters will not seal correctly out of the box.
Although the kit is priced at the higher end of the 4L60E market, the inclusion of a premium Alto friction module eliminates the need to purchase a separate shift kit to get firm part-throttle shifts. Just budget for a set of solenoids and a harness if your valve body electrical components are original, as those are not included in this mechanical kit.
What works
- Alto HEG power pack delivers measurable 30% 3-4 clutch capacity increase
- Works for both daily driving and towing heavy trailers
- Extra gaskets and seals cover multiple transmission variations
What doesn’t
- 3-4 clearance must be set manually — not beginner friendly
- Shallow-pan filter not included — verify your oil pan type
7. Remco 4R70W 4R75W AODE Complete Overhaul Kit
Designed for 2004-up Ford 4R70W, 4R75W, and AODE transmissions, this Remco master kit includes every component needed to complete an overhaul in a single box. The kit ships with a 3-groove reverse servo, bonded pistons, a bushing set, and a pan filter. The inclusion of a 3-groove servo is a welcome upgrade — the stock single-groove unit is a common cause of delayed reverse engagement on high-mileage Fords.
Builders rebuilding a 2004 4R75E report that the overhaul gasket kit aligned perfectly, the check balls matched the separator plate holes, and the O/D snap ring was included — a minor detail often overlooked in cheaper sets. The bonded pistons address the known failure of the original rubber piston seals, which crack after years of heat cycling. One reviewer logged 8,000 miles before the servo pin failed; Remco’s warranty response was unclear in that case, so verify coverage before purchasing if you plan to hold the seller to long-term support.
The 11-pound package saves the hassle of sourcing a separate bushing kit and piston set. For a Mustang GT or F-150 daily driver, this kit restores shift quality to factory specifications without pushing the transmission beyond its intended torque limit. If you are building for boosted power, consider a reinforced servo bore cover separately.
What works
- Bonded pistons and 3-groove reverse servo solve two common Ford failure points
- Check balls and O/D snap ring included — no extra sourcing
- Everything fits factory clearances for a simple daily-driver rebuild
What doesn’t
- One report of servo pin failure at 8,000 miles
- No solenoid wire harness included

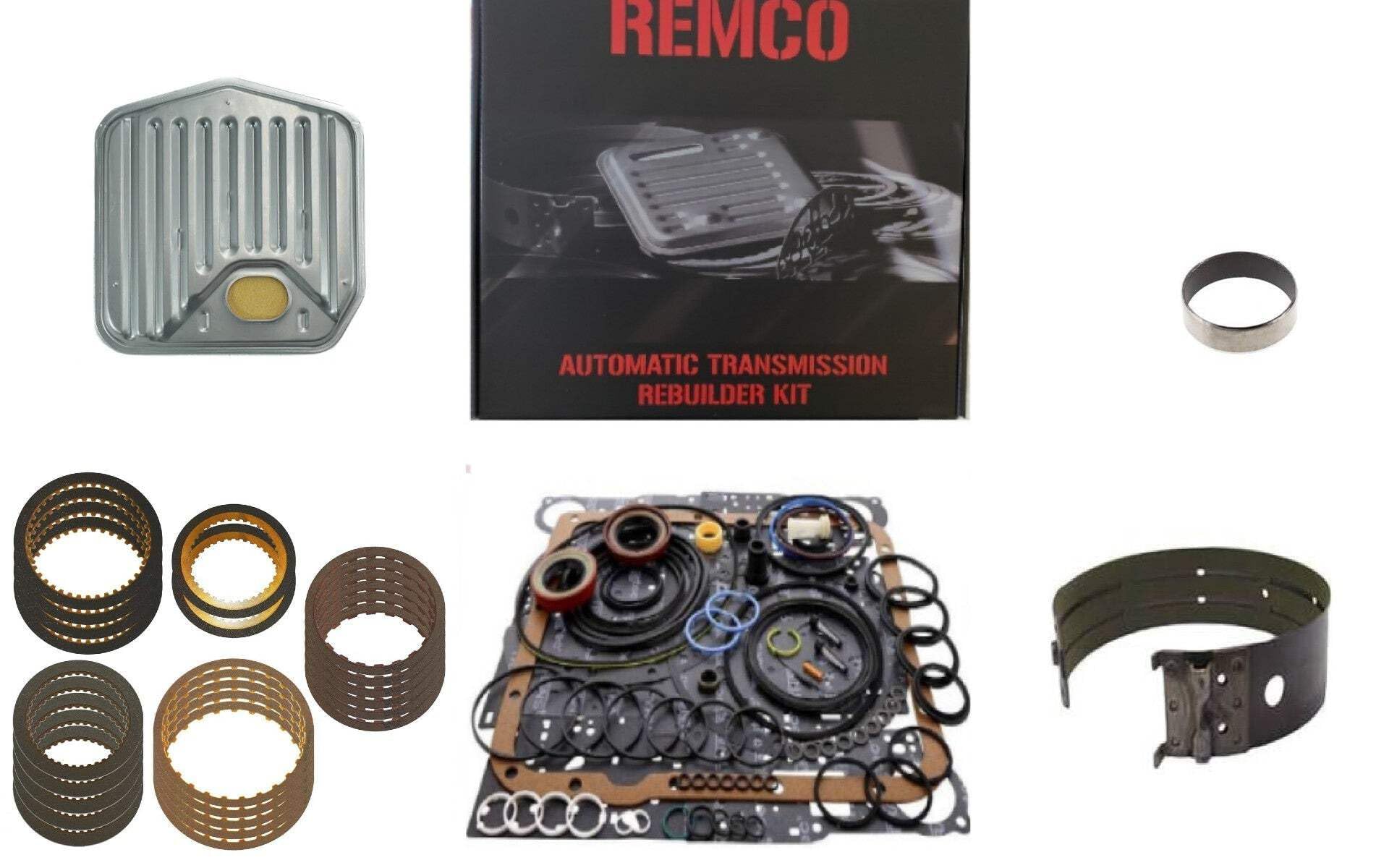

1. Remco TH700-R4 / 4L60E Full Overhaul Kit
The Remco RK700R4-FBA is a precision overhaul kit for the TH700-R4 and early 4L60E found in 1982–1993 GM applications, including the S10 Blazer, Astro Van, and full-size trucks up to the Avalanche 1500. The kit ships with high-energy friction clutches, a front band, a pump bushing, and a complete gasket and seal set sourced from trusted OEM-grade suppliers. This is a factory-style refresh kit for a transmission that is still shifting but showing signs of age like delayed engagement or worn clutches.
Multiple professional rebuilders note that the friction plates and seals match OE dimensions exactly, so there is no fitment fighting during assembly. The 5.7-pound package arrives compact, though one important documentation gap is that the kit does not include steels or main bushings — you must order those separately. If your transmission has already lost a gear or refused to move, the bushings in the drum and pump bore could be worn beyond spec, and this kit alone would not cover that repair.
The Remco brand supplies transmission shops across the country, and the sealed bags protect each component from moisture during storage. For a budget-friendly 700R4 refresh that returns smooth shifts without upgrading to high-performance parts, this kit delivers a reliable baseline. Just plan to add steels and a bushing kit to your cart at checkout if your transmission has more than 150,000 miles on it.
What works
- High-energy friction plates restore firm engagement without chatter
- Precision gaskets seal pump and valve body circuits consistently
- Lightweight packaging reduces shipping damage risk
What doesn’t
- Steels and main bushings not included — must buy separately
- Does not include upgraded 3-4 power pack for heavy towing
5. WIT 4R75W 4R70E 4R75E Master Rebuild Kit
Whatever It Takes Transmission Parts (WIT) assembles this 4R75W / 4R70E / 4R75E master kit around a Raybestos Powertrain friction and steel clutch pack module, giving it a clear edge in material quality over generic unbranded bundles. The 11.82-pound box also includes molded pistons, a pan filter, a bushing kit, and a washer kit — a level of completeness that matches what most shops expect for a full overhaul.
The kit covers 2004-up Ford transmissions found in vans, SUVs, and trucks. One owner rebuilding a van transmission confirmed the kit included all seals and gaskets needed to finish the job. However, a common complaint is that the seals and O-rings are not labeled inside the package — you must compare each rubber piece against the old parts before installing. This adds some time during assembly, especially if you are working from a schematic rather than a step-by-step video.
The kit does not include software-related upgrades or solenoids, which is standard for mechanical overhaul bundles. It also lacks some overdrive components that a true “master” kit would cover, so owners of 4R75E units with overdrive-specific failures may need to source those pieces separately. For a straightforward rebuild on a daily-driven Ford, the Raybestos clutch and steel pack alone justifies the cost.
What works
- Raybestos friction and steel module provides consistent bite
- Molded pistons and bushing kit reduce oil circuit leaks
- Includes a pan filter — not all master kits do
What doesn’t
- No seal or O-ring labeling inside the package
- Missing overdrive-specific components for certain applications
4. TRANSPEED JF011E RE0F10A F1CJA CVT Master Kit
The TRANSPEED JF011E CVT rebuild kit targets the Nissan Altima, Rogue, Sentra, Jeep Compass, and Citroen models that use the Jatco JF011E (RE0F10A) continuously variable transmission. Rather than using standard NBR seals throughout, 80% of the rubber components are fluorine rubber (FKM) for oil and heat resistance, and the remaining 20% are ACM rubber sourced from Japan for cold-weather flexibility. The kit also includes NAK brand oil seals — a name that carries weight in seal durability for high-mileage CVTs.
The steel and friction plate packs are precision-machined to OEM dimensions, with the friction plates using an asbestos-free formula that reduces harmful emissions while resisting glaze buildup. Owners rebuilding a 2013 Nissan Rogue FWD reported the kit worked perfectly and included everything needed for the pulley sections. However, one reviewer noted that the pulley variator O-rings had only four instead of the required six — a critical detail if your unit uses six bolts on the pulley cover.
The 3.39-pound package is compact compared to automatic kits, but the CVT rebuild process is far more sensitive to seal alignment and oil pressure. If you plan to tackle a CVT rebuild yourself, triple-check the variator O-ring count against your factory hardware before discarding the old parts. The kit also lacks teflon seals that match the OEM two-step jig design — you may need to reuse the original teflon rings if the aftermarket versions do not overlap correctly.
What works
- FKM and ACM seal compounds offer wide temperature tolerance
- Asbestos-free friction plates with high wear resistance
- NAK oil seals ensure proper pulley bore sealing
What doesn’t
- Pulley variator O-ring count may be short — count your old parts first
- No teflon seals for OEM-style valve body sealing
3. ATP Automotive TMS-14 A727 Master Repair Kit
For owners of 1971–1987 Chrysler A727 transmissions — found in everything from Dodge trucks and vans to muscle cars — the ATP TMS-14 is a complete master repair kit that includes the front/kickdown flex band, a component often left out of competing kits. High-quality clutch material provides smooth, load-stable shifts, while the steel plates are manufactured to tight dimensional tolerances to ensure shudder-free performance and consistent stack-height across all apply pistons.
The gaskets, seals, and O-rings are exact-fit replacements for the A727 case, meaning they match the original fluid passage holes and bolt patterns without trimming. ATP packages the parts on vacuum-formed boards and sealed bags, which keeps the gaskets from creasing during shipping — a common failure mode for budget kits that arrive with bent sealing surfaces. Builders report the flex band was a surprise inclusion because it was not shown in the listing photo, making this a strong value for a full overhaul.
The kit weighs 5.36 pounds and covers the full A727 rebuild without requiring separate steel packs or band purchases. For a daily-driver Chrysler, this kit restores factory operation without unnecessary upgrades. The one limitation is that the A727 is a three-speed unit — if you are building for performance, the stock-type clutches in this kit are adequate for stock engines but not modified high-torque applications.
What works
- Flex band included — a rarity even in premium kits at this price point
- Vacuum-sealed gaskets arrive flat and ready to install
- Clutch material offers smooth engagement for daily driving
What doesn’t
- Not designed for high-horsepower builds — stock torque limits apply
- No bushing kit included for the pump or planet carriers
2. Transparts Warehouse BK116WS Muncie Rebuild Kit
For the Muncie 4-speed manual transmission — a gearbox found in classic GM muscle cars, trucks, and performance builds from the 1960s and 1970s — the BK116WS kit from Transparts Warehouse is a complete bearing and synchro ring set. The bearings are high-quality Japanese-manufactured Nachi and Koyo roller bearings, which far exceed the longevity of generic Chinese substitutes that often fail within the first year of driving. The small parts kit is manufactured in the USA and includes seals and gaskets.
The kit covers every roller bearing inside the Muncie case, including the input shaft bearing, the cluster gear bearings, and the tail shaft bearing. Synchro rings are included, which are essential for stopping gear clash during downshifts. One builder noted that the kit covers everything except hard parts like gears and shafts — if your mainshaft or cluster gear has pitted teeth, you will need to order those separately. The kit also does not include the locks for the throw-out bearing retainer bolts, a minor oversight that requires reusing the originals or sourcing them from a hardware store.
At just 80 millimeters of thickness for the main bearings, the dimensional specifications match factory service manual tolerances, so no shimming adjustments are needed if the case bores are in good shape. For classic car enthusiasts restoring a Muni, this kit delivers the peace of mind that the internals will roll freely and shift cleanly for years.
What works
- Nachi and Koyo bearings are OEM-grade for Japanese manufacturing
- Synchro rings included — eliminates the need for a separate ring kit
- Small parts and seals assembled in the USA
What doesn’t
- No throw-out bearing retainer bolt locks included
- Does not cover hard parts — gears and shafts must be sourced separately
Hardware & Specs Guide
Friction Material Construction
The energy rating of the friction plates determines how much heat the clutch pack can absorb before surface glazing occurs. Paper-based friction is standard for street rebuilds and holds up to normal driving temperatures around 180–210°F. High-energy friction formulations like Alto Red or Raybestos Blue incorporate carbon or Kevlar fibers that resist fade up to 350°F, critical for transmissions that see repeated heavy-towing cycles, staged launches, or sustained high-speed cruising. Thicker friction discs in power-pack kits increase the thermal mass of the clutch stack, extending service intervals by reducing the peak temperature spike during a gear change.
Seal Material & Compatibility
Rubber lip seals seal the hydraulic circuits that apply the clutches and bands. NBR (nitrile butadiene rubber) is the budget standard — it hardens and cracks over time when exposed to high heat. FKM (fluorine rubber) resists oil degradation up to 400°F and is used in upgraded rebuild kits for forced-induction applications. ACM (polyacrylate rubber) offers a balance of heat resistance and low-temperature flexibility, making it a choice for CVT pulley seals that must maintain consistent bore pressure across seasonal temperature swings. For a long-lasting rebuild, specify kits that use FKM for the major case seals and pump seal rings.
FAQ
Does a master transmission rebuild kit include the hard parts like gears and shafts?
How do I know if my 4L60E needs a master kit or a simple overhaul gasket set?
Can I rebuild a CVT with the same kit as a traditional automatic transmission?
What does the term ‘3-4 power pack’ mean in a 4L60E rebuild kit?
Do all transmission rebuild kits come with steel clutch plates?
Final Thoughts: The Verdict
For most buyers, the best transmission rebuild kit winner is the World Wide Parts 4L60E Heavy Duty Master Kit because its Alto HEG 3-4 Power-Pack delivers a measurable 30% increase in clutch holding capacity without requiring a separate shift kit. If you are tackling a Ford 4R70W or AODE rebuild, grab the Remco 4R70W Complete Overhaul Kit — the bonded pistons and 3-groove servo correct the two most common failure points on that platform. And for a classic Muncie 4-speed manual, nothing beats the Transparts Warehouse BK116WS Kit with Japanese Nachi and Koyo bearings that keep the gearbox spinning smoothly for decades.
