A 2005 Chevy Silverado 1500 with the 4.8L or 5.3L Vortec V8 cranks via a PG260-series starter that spins clockwise with nine teeth on the drive pinion. That specific tooth count and rotation direction is non-negotiable — the wrong combo either refuses to mesh with the flexplate or buzzes in reverse gear. Most aftermarket options land around 1.1 kW of cranking power, though the heavy-duty 6.0L trucks demand a brawnier 1.6 kW unit with eleven teeth. If you hear a single metallic click under the hood instead of a healthy roar, that starter solenoid is telling you the internal contactor has welded shut or the brushes have given up — and a full unit swap is the only lasting fix.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years cross-referencing OEM part numbers like 12568051 and 12578050 against aftermarket equivalents, analyzing owner-reported failure modes, and tracking which remanufacturing processes actually hold up past the first winter cold soak.
Whether you’re wrenching on a work truck or resurrecting a weekend project, this guide cuts through the compatibility confusion so you can land the right 2005 chevy silverado starter for your specific engine and driving demands.
How To Choose The Best 2005 Chevy Silverado Starter
A drop-in starter replacement requires matching three gatekeepers: tooth count, rotation direction, and mounting type. On a 2005 Silverado 1500 with a 4.8L or 5.3L engine, you need a clockwise-rotating, 9-tooth starter from the PG260 series. The 2500/3500 trucks running a 6.0L Gen III Vortec use the PG260L series with 11 teeth — swap those and you risk grinding down both the pinion and the flexplate ring gear. Here are the specific points to focus on before clicking buy.
Pinion Tooth Count and Rotation Direction
The flexplate ring gear on a 4.8L or 5.3L Silverado has a specific helical tooth pattern that only meshes correctly with a 9-tooth starter drive spinning clockwise (CW). If a seller lists a starter as compatible with a 2005 Silverado but the description says 11 teeth or doesn’t specify rotation, verify against the OEM reference numbers (12568051, 12578050, 12592294, 12604477) before installing. The wrong count will either cause a no-start condition or destroy the ring gear over a few cranks.
Power Rating: 1.1 kW vs 1.6 kW
Standard 4.8L and 5.3L applications use a 1.1 kW starter. The 6.0L LQ4 and LQ9 engines require a 1.6 kW unit because the larger displacement generates higher compression and needs more torque to spin the rotating assembly. Using a 1.1 kW starter on a 6.0L will often produce slow cranking in cold weather and eventual solenoid failure. Conversely, a 1.6 kW starter on a 4.8L works but adds unnecessary weight and draws more current from the battery.
New vs Remanufactured Construction
Remanufactured units from well-regarded brands (LUCAS, ACDelco Gold) typically receive new solenoids, commutators, brushes, and drive assemblies, and are tested in the US before shipping. All-new offshore starters (Grezuton, A-Premium, ultramindz) eliminate any core handling risk but vary in internal copper winding quality. A reman from a reputable supplier with a printed test sheet is often more consistent than a cheap offshore casting. Budget offshore units can be fine for temporary use but show higher early failure rates in high-mileage work applications.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ACDelco Gold 337-1131 | Premium New | OE-grade long-term dependability | 6.0L 1.6 kW / 11 tooth | Amazon |
| LUCAS 6494 | Reman USA | Best value for 4.8L/5.3L | 1.1 kW 12V / 9 tooth | Amazon |
| Grezuton 6494N | New Aftermarket | Reliable all-new construction | 1.2 kW 12V / 9 tooth | Amazon |
| A-Premium APSTR288 | New Aftermarket | Precision fit with test sheet | 1.1 kW 12V / 9 tooth | Amazon |
| ultramindz ST-6494N-A | New Aftermarket | Budget-friendly for 4.8L/5.3L | 1.1 kW 12V / 9 tooth | Amazon |
| OEG Parts PP6492N | New Aftermarket | 6.0L trucks and HD applications | 1.6 kW 12V / 11 tooth | Amazon |
| Ezexpreze SD510 | New Certified | ISO-certified 6.0L replacement | 1.6 kW 12V / 11 tooth | Amazon |
In‑Depth Reviews

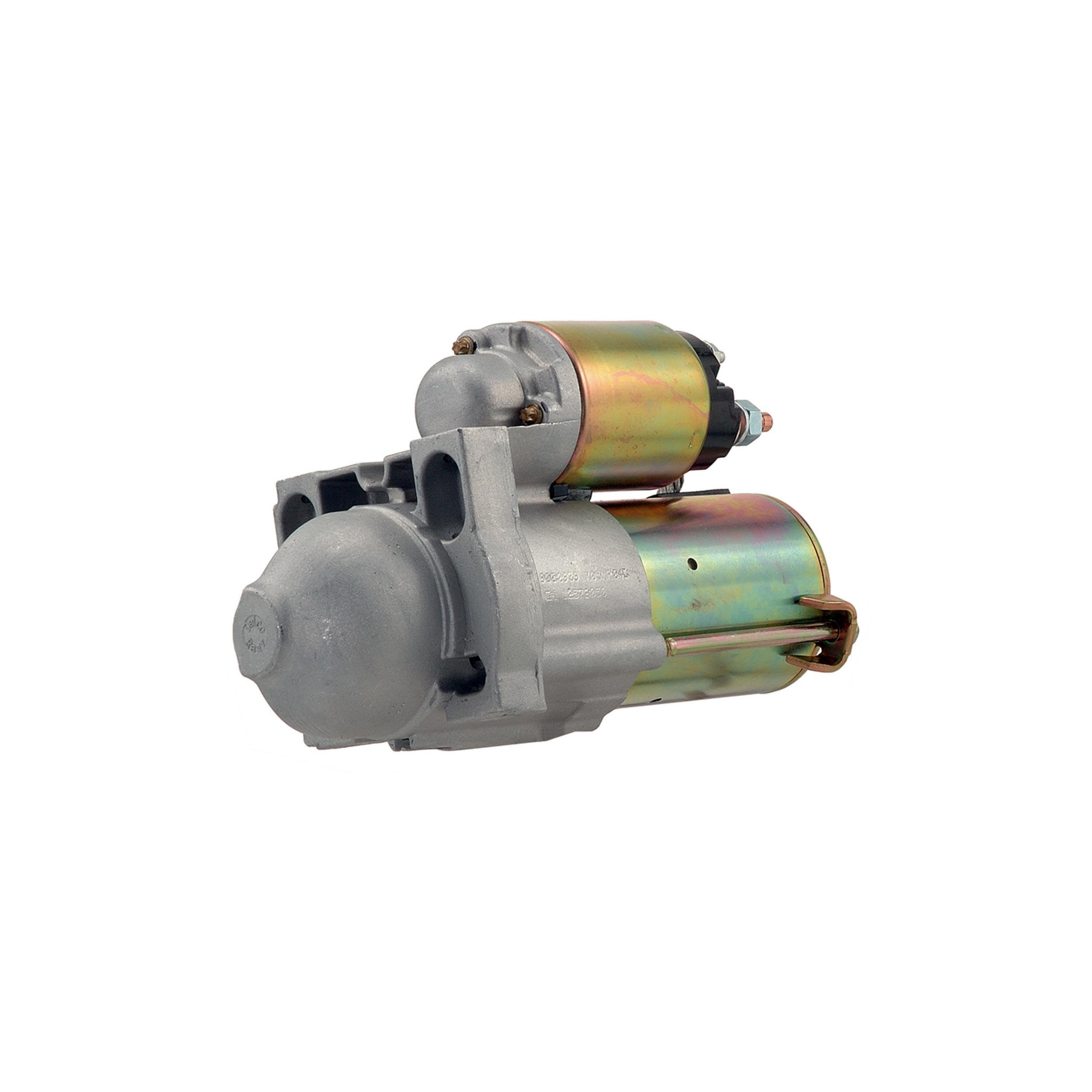

1. ACDelco Gold 337-1131 (19298444) Starter
ACDelco Gold starters are built from 100% new components under ISO quality guidelines, which means zero core-rebuild variability. This unit ships as a direct OE replacement for the 6.0L LQ4/LQ9 found in Silverado 2500/3500, Yukon Denali, and Escalade models from 2002-2005. The 11-tooth pinion and 1.6 kW power rating provide the extra torque needed to spin a warm high-compression V8 without hesitation, and every mounting surface is gauged before leaving the factory.
Internal engineering enhancements include upgraded solenoid contacts and greased planetary gears that resist cold-soak bind in northern winters. The aluminum housing dissipates heat better than painted steel cases, which matters when the exhaust manifold sits inches away. Owners report that this starter cranks faster and more consistently than the original, even on 150,000-mile trucks with original battery cables.
The premium price reflects the all-new construction and ACDelco’s quality gate. A small number of buyers report an early failure within the first week, but the manufacturer warranty handles replacement directly. For a truck that needs to start every morning without drama, this is the benchmark against which all other starters are measured.
What works
- 100% new components eliminate reman failure points
- 1.6 kW provides reliable hot-start cranking on 6.0L engines
- Gauged mounting surfaces ensure exact OE fitment
What doesn’t
- Premium pricing versus aftermarket alternatives
- Early failure does occur in a small percentage of units
2. LUCAS Starter 6494
The LUCAS 6494 is a remanufactured PG260-series starter built in the US, covering the 4.8L and 5.3L engines in Silverado 1500, Suburban, Tahoe, and related GM trucks from 2003-2008. It uses a 9-tooth pinion with clockwise rotation and produces a rated 1.1 kW of cranking power. Every unit ships with a printed quality-control test sheet showing the specific current draw, free-run RPM, and solenoid pull-in voltage — verifiable proof that the rebuild passed bench testing.
Owner feedback consistently highlights perfect bolt-on fitment with no shimming or wire-stretching required. The unit finish matches the OE black paint, and the alloy steel construction resists corrosion from road salt and moisture. Multiple verified reviews note the starter still cranks strongly past the one-year mark, a good sign for a reman part in daily-driven trucks.
One concerning pattern emerges around the 60-day mark: a handful of units fail with no warning, leaving the owner stranded. The one-year hassle-free guarantee covers replacement but not labor or towing. If you’re installing this in a truck that can’t be down, carry a backup plan or buy locally from a parts store with instant exchange.
What works
- Remanufactured in the USA with printed test sheet
- Perfect OE fitment with no modification needed
- Priced well below local parts store options
What doesn’t
- Occasional early failure around the 60-day mark
- Mounting hardware not included in the package

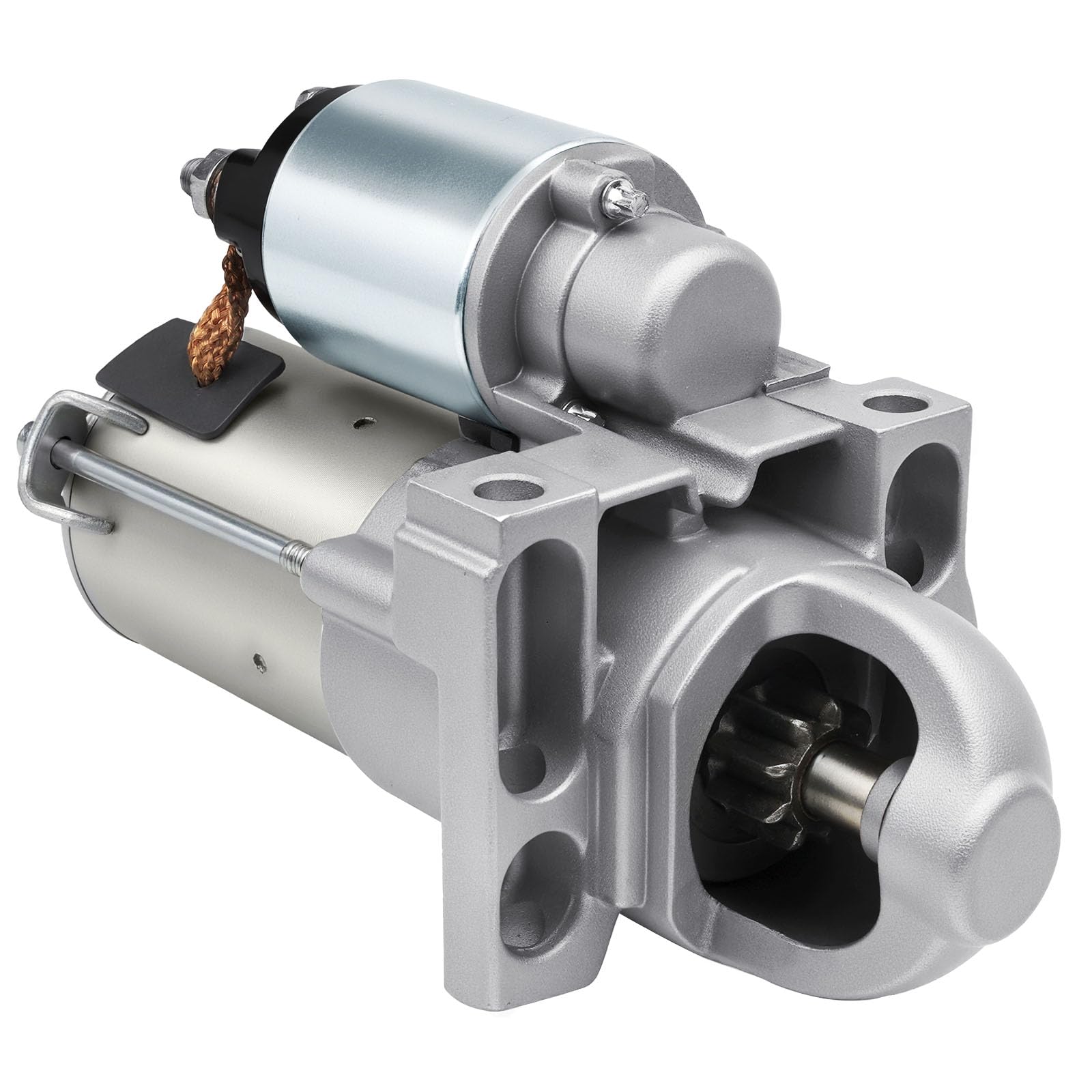

3. Grezuton 6494N Starter
The Grezuton 6494N represents a solid middle ground of all-new construction at a mid-range price point. It delivers 1.2 kW of cranking power — slightly above the standard 1.1 kW — which gives a small but real margin on cold-start torque for the 4.8L and 5.3L Vortec engines. The metal housing is finished in black and includes all reference numbers (6494N, 12568051, 12578050) cross-matched directly to the GM parts catalog.
Multiple owners report clean, no-fuss installation and immediate start-up after swapping out a failed OEM unit. The three-month and six-month follow-up reviews indicate consistent performance without the grinding or slow-crank symptoms that often precede starter failure. The one-year unlimited-mileage guarantee covers the part cost, though the standard disclaimers exclude labor and incidental costs.
Because this is an offshore new-build rather than a US remanufactured product, the internal copper winding density and magnet quality can vary from batch to batch. Early reports have been overwhelmingly positive, but long-term durability past two years is not yet established in owner feedback. If you only plan to keep the truck another year or two, this is an excellent value choice.
What works
- All-new construction with 1.2 kW output
- Direct fitment across wide GM application range
- Strong three-month and six-month owner feedback
What doesn’t
- Offshore build quality can vary between batches
- No US-based remanufacturing test sheet provided

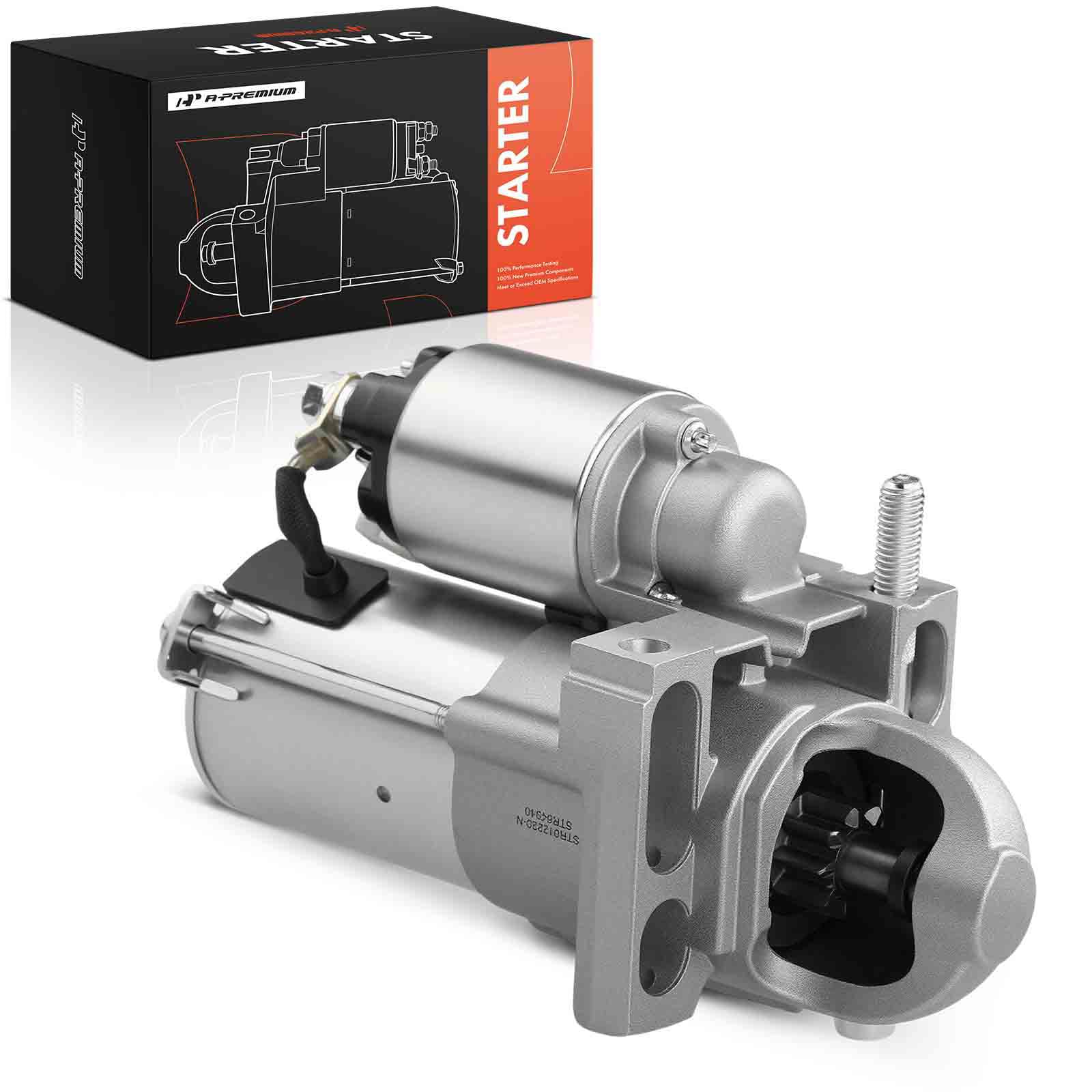

4. A-Premium APSTR288 Starter Motor
The A-Premium APSTR288 targets the 4.8L and 5.3L engine family with a 1.1 kW, 12V, clockwise-rotating, 9-tooth design. The unit arrives with a printed test spec sheet similar to the LUCAS reman, confirming that the solenoid pull-in, free-run current, and no-load RPM all meet the PG260-series specification. That documentation is rare in the mid-range price bracket and provides peace of mind during installation.
Owner reviews consistently note the “solid and sturdy” feel of the metal housing and the fact that it bolts directly to the bellhousing with no shimming. The one-year unlimited-mileage guarantee is straightforward, though the fine print clarifies coverage is limited to the part cost only — labor and tow charges are not covered. Several reviewers have crossed the six-month mark with zero issues.
The main drawback is that A-Premium remains a lesser-known brand in the starter aftermarket, so long-term track record data is limited compared to LUCAS or ACDelco. The weight of the unit (3.28 kg) suggests decent internal copper mass, but without a teardown analysis, batch consistency is an open question. For a weekend driver or backup vehicle, this is a very solid value.
What works
- Printed test sheet verifies performance before installation
- Solid metal construction with OEM-style fitment
- One-year unlimited-mileage guarantee
What doesn’t
- Brand track record is limited for long-term data
- Warranty excludes labor and incidental costs
5. ultramindz ST-6494N-A Starter
The ultramindz ST-6494N-A is an all-new PMGR (permanent magnet gear reduction) starter built to the 6494N specification for 4.8L and 5.3L GM trucks. It delivers the standard 1.1 kW at 12V with a 9-tooth pinion and clockwise rotation. The construction uses aluminum, copper, and magnet materials rather than the alloy steel found in some mid-range units, which slightly reduces weight but also long-term heat tolerance in severe duty cycles.
Multiple owners with 2003-2005 Tahoe and Silverado trucks report that it measures less than half the price of a local parts store alternative and cranks the engine immediately after installation. The unit is advertised as “all new made” rather than remanufactured, which avoids the core-handling variability of some rebuilds. The 12-month installation window covered by verified purchases suggests consistent early reliability.
The downsides center around the brand’s limited service history. ultramindz is not a dedicated starter manufacturer, so replacement parts or spec support is minimal if an issue arises. Additionally, the lack of a printed test sheet means you’re trusting batch quality rather than individual unit verification. For a budget-first build where every dollar matters, this starter works well — but don’t expect the same long-term durability as a premium unit.
What works
- Significant cost savings over local parts store options
- All-new construction eliminates core rebuild risk
- Reported direct fit on 2003-2005 GM trucks
What doesn’t
- Limited brand support and no individual test sheet
- Lighter construction may reduce heat tolerance
6. OEG Parts PP6492N Starter
The OEG Parts PP6492N is a new PG260L-series starter designed for the 6.0L LQ4/LQ9 engines found in Silverado 2500/3500, Suburban 2500, and Yukon Denali models from 2002-2005. It produces 1.6 kW of cranking power at 12V with an 11-tooth clockwise pinion — a heavy-duty specification that provides the additional torque needed to reliably spin the larger rotating assembly when the engine is hot and the compression is high.
Corvette C5 owners have also used this starter successfully on their LS1 and LS6 engines, which share the same bellhousing pattern and tooth count. The unit uses a pad-style mounting system that requires two long mounting bolts not included in the box — a known point of friction for first-time installers who expect hardware in the package. The 9.05-pound weight indicates substantial copper windings and a robust planetary gear set.
A few buyers have reported missing bolts upon arrival, but the starter unit itself has solid reliability reviews. The 1.6 kW rating provides noticeably faster cranking than the factory 1.1 kW unit, a common upgrade for owners running higher-compression builds. If you’re replacing a starter on a 6.0L truck, confirm the 11-tooth spec and plan to supply your own mounting hardware before starting the job.
What works
- Full 1.6 kW for reliable 6.0L cranking
- Cross-compatible with C5 Corvette LS engines
- Robust construction with significant copper mass
What doesn’t
- No mounting hardware included
- Occasional reports of missing bolts in shipment
7. Ezexpreze SD510 Starter
The Ezexpreze SD510 is a new replacement for the 6492N application, covering the 6.0L V8 in Silverado 1500 HD, 2500, 3500, Sierra HD, Yukon, and Savana models. It delivers 1.6 kW of cranking torque from a 12V system, paired with an 11-tooth clockwise pinion. The key differentiator is ISO 9001 and IATF 16949 certification for the manufacturing facility, which imposes stricter quality management standards than typical aftermarket production lines.
Owners who have fitted this starter to both GM trucks and Jeeps (1999-2006 4.0L TJ models share the same bellhousing pattern) report exact bolt-on fitment and a noticeable improvement in cranking speed versus worn OEM units. The DV (design validation) testing that every unit passes before shipment adds a layer of confidence for a daily driver. The one-year hassle-free guarantee backs the part directly.
The SD510 is a newer entrant to the market, so long-term ownership data beyond six months is thin. The IATF 16949 certification is genuine, but the actual internal component quality (copper purity, solenoid actuation consistency) will become clearer as more owner miles accumulate. If the ISO certification matters to you and you need a 1.6 kW option, this is a compelling buy.
What works
- IATF 16949 certified manufacturing quality
- Full 1.6 kW output for 6.0L applications
- 100% DV tested before shipment
What doesn’t
- New entrant with limited long-term owner feedback
- Internal component consistency not yet proven at scale
Hardware & Specs Guide
PG260 vs PG260L Series
The PG260 series is the standard-service starter for 4.8L and 5.3L Vortec engines. It uses a 9-tooth pinion and produces 1.1 kW. The PG260L series steps up to an 11-tooth pinion and 1.6 kW output for 6.0L high-compression engines. Both spin clockwise and share the same two-hole pad-mount pattern, but the armature length and planetary gear ratio differ, meaning the series are not interchangeable on the flexplate without causing gear clash or insufficient mesh depth.
Current Draw Benchmarks
A healthy 1.1 kW starter should draw approximately 70-90 amps under no-load free spin and peak around 200-250 amps during initial engine cranking. The 1.6 kW units pull higher — roughly 100-130 amps free spin with a cranking peak near 300-350 amps. If a replacement starter consistently draws 30% above these figures, suspect a failing solenoid, binding armature, or undersized battery cables. Those high peaks accelerate battery drain and can damage the starter drive over time.
Remanufacturing Quality Indicators
US-based remanufacturers (LUCAS, ACDelco Gold) replace the brushes, solenoid contacts, drive assembly, and bearings as standard practice. They also turn the commutator and test every unit on a bench before shipping. Lower-cost offshore remanufacturers often skip the commutator turning and reuse worn armatures, which leads to intermittent hot-start failures due to poor brush contact on an uneven copper surface. The printed test sheet is the best indicator of genuine reman quality.
Mounting Hardware Requirements
Most Silverado starters use a two-hole pad mount with long bolts that thread into the bellhousing from the engine bay side. The bolts are typically 10mm x 1.5 pitch, approximately 100-120mm long for the top hole and 70-80mm for the lower hole. Many aftermarket starters ship without these bolts, assuming reuse of the original hardware. If your truck’s original bolts are corroded or stripped, order replacement bolts before the swap to avoid a mid-job parts run.
FAQ
Will a 9-tooth starter fit my 2005 Silverado 2500 6.0L?
Why does my new starter crank slowly in the morning?
Can I replace a reman starter while the truck is on jack stands?
How many miles should a Silverado starter last?
Final Thoughts: The Verdict
For most buyers of the 2005 chevy silverado starter, the winner is the LUCAS 6494 because it combines US-based remanufacturing quality with printed bench-test verification and an accessible price point. If you want OE-grade longevity and a 1.6 kW output for a 6.0L heavy-duty truck, grab the ACDelco Gold 337-1131. And for a budget-friendly build on a 4.8L or 5.3L where every dollar counts, nothing beats the ultramindz ST-6494N-A.
