An axle shaft failure miles from pavement turns a day on the trail into an expensive recovery. The difference between a component that lasts and one that lets you down comes down to spline count, material grade, and how well the assembly handles real-world loads. Owners who upgrade or replace a broken shaft quickly learn that not all axles are built to the same standard.
I’m Amir — the founder and writer behind Four Wheel Ask. My research focuses on cross-referencing OEM specifications with aftermarket metallurgy, bearing quality, and long-term owner reports to determine which axle shafts deliver consistent performance under stress.
This guide breaks down spline counts, materials, and real-world owner feedback to help you find the best rear axle shaft.
How To Choose The Best Rear Axle Shaft
Selecting the right axle shaft requires matching material strength, spline configuration, and assembly components to your specific vehicle and driving conditions. A well-chosen shaft improves durability and reduces future downtime.
Spline Count and Compatibility
The spline count determines how the shaft interfaces with the differential side gears. Common counts include 27, 30, and 32 splines for Dana axles, while some applications use proprietary counts. Using the wrong spline count prevents installation entirely, so confirming your differential type before purchase is essential.
Material Grade and Heat Treatment
Standard axle shafts use medium-carbon alloy steel, while premium options use 4140 or 4340 chromoly steel. Chromoly offers higher tensile strength and better fatigue resistance, especially in off-road or high-torque applications. Heat treatment further enhances durability by reducing stress risers along the shaft.
Bearing, Seal, and ABS Tone Ring Integration
Many complete axle assemblies include pre-installed bearings, seals, and ABS tone rings. Pre-assembled units simplify installation and ensure correct bearing seating. The tone ring must match your vehicle’s ABS system, and the bearing must fit the axle tube diameter precisely.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Yukon 1541H Dana 44 JK | Axle Shaft | Jeep JK off-road upgrade | 30 spline, 32″ long, 1541H alloy | Amazon |
| SuperATV Rhino 2.0 RZR | CV Axle | Polaris RZR Turbo S strength | 4340 chromoly, 4mm larger shaft | Amazon |
| Dorman 630-214 | Axle Shaft | Ford/Lincoln OEM replacement | Complete with bearing, seal, ABS ring | Amazon |
| Chabushi CV Axle Set | CV Axle | Polaris Ranger multi-model fit | 4340 chromoly, pair left/right | Amazon |
| Spicer 2004785-2 | Axle Shaft | Dana 44 electronic locker | 32 spline, 31.18″ length | Amazon |
| SuperATV ADR Ranger | CV Axle | Budget Ranger 800 replacement | Heavy-duty rubber boot, precision CV | Amazon |
| A-Premium Driveshaft | Drive Shaft | Dodge Durango RWD 3.6L | 71.125″ prop shaft, steel | Amazon |
| TEN Factory MG22135 | Axle Shaft | Jeep YJ/TJ/XJ Dana 44 chromoly | 4140 chromoly, dual bolt pattern | Amazon |
| USA Standard Gear Dana 30 | Axle Shaft Kit | Jeep front Dana 30 chromoly | 27/32 spline, 1310 u-joint | Amazon |
In‑Depth Reviews
1. Yukon 1541H Alloy Axle for Dana 44 JK
Yukon Gear & Axle uses 1541H alloy steel for this Dana 44 rear axle shaft, a material chosen for its balance of strength and machinability. The 30-spline configuration matches the JK non-Rubicon differential, and the 32-inch length is specific to this application. Each shaft ships with a wheel bearing, seal, axle retainer, and ABS tone ring pre-configured for a straightforward swap.
Owner reports from JK Wrangler owners highlight successful installations on both two-door and Unlimited models, with several noting over a year of rock-crawling duty without issues. The included Timken bearing and pre-installed tone ring reduce the need for additional pressing work. Some owners point out that wheel studs are not included despite what the product images suggest, which can cause a delay if the vehicle is already disassembled.
A small number of failure reports exist, with one owner experiencing breakage on both shafts within four months. However, the majority of feedback across multiple forums and verified purchases indicates that this shaft delivers reliable performance for hard off-road use when installed correctly. The 1541H alloy provides a meaningful upgrade over stock Dana 44 shafts without the premium of full chromoly.
What works
- Pre-installed bearing and ABS ring simplify installation
- 1541H alloy offers genuine strength upgrade over OEM
- Fits JK non-Rubicon Dana 44 with correct 30-spline interface
What doesn’t
- Wheel studs not included despite product imagery
- Some owners report premature failure under extreme abuse
- No installation grease specified for bearing seating
2. SuperATV Rhino 2.0 Rear Axle for Polaris RZR Turbo S
SuperATV engineered the Rhino 2.0 axle as a direct upgrade for the Polaris RZR XP Turbo S and XP 4 Turbo S models. The shaft is machined from 4340 chromoly steel and heat-treated to resist bending and fatigue, with a 4-millimeter increase in shaft diameter over the factory part. Replacing OEM part numbers 2207753, 1334060, and 1334318, this axle is designed for owners who push their machines hard on rough terrain.
Multiple verified buyers report that these axles handle aggressive riding without breakage, with one owner noting they have run them on two different RZRs without issues. The heavy-duty CV joints and upgraded rubber boots address common failure points on stock axles. SuperATV backs the Rhino 2.0 with an 18-month warranty, which reflects confidence in the design. A small number of owners have experienced breakage within a short period, though some of those cases involved wheel impact at high throttle.
It is important to note that these axles are not compatible with ABS-equipped models, so buyers with ABS must verify their system before ordering. The price positions this axle in the premium tier, but the material upgrade and warranty coverage provide a strong value proposition for owners who regularly ride in demanding conditions.
What works
- 4340 chromoly steel with heat treatment for maximum durability
- 4mm larger shaft diameter than factory reduces flex
- 18-month warranty supports long-term ownership
What doesn’t
- Not compatible with ABS-equipped models
- Premium price compared to standard aftermarket axles
- A small number of early failures reported in extreme conditions
3. Dorman 630-214 Drive Axle Shaft
Dorman’s 630-214 axle shaft covers a wide range of Ford, Lincoln, and Mercury applications, making it a go-to for owners of sedans, SUVs, and trucks from the early 2000s. The assembly ships as a complete unit with the ABS tone ring pre-installed, plus a new bearing, seal, and chrome lug nuts. This all-in-one approach eliminates the need to press components or source additional hardware.
Verified purchasers consistently highlight the affordability compared to dealer parts, with one owner noting a 66 percent savings over local auto parts stores. Fitment feedback is strong across multiple Ford models, and the inclusion of the bearing and seal simplifies what can be a complex job. The Hollander number cross-references (447-2733, 447-2733X) help buyers confirm compatibility across salvage and aftermarket catalogs.
Some owners have reported the bearing surface galling before 10,000 miles, though Dorman’s customer service team replaced those units under warranty. One reviewer noted that a Ford design flaw limits axle lifespan to around 40,000 miles regardless of brand, so buyers should set realistic longevity expectations for this platform.
What works
- Complete assembly with bearing, seal, and ABS ring
- Chrome lug nuts included for convenience
- Significant cost savings over dealer and local parts stores
What doesn’t
- Some units show bearing surface wear before 10k miles
- Vehicle-specific fitment confirmation required for some models
- Underlying platform design limits overall axle lifespan
4. Chabushi Rear CV Axle Assembly for Polaris Ranger
Chabushi designed this CV axle set to cover multiple Polaris Ranger generations, including the 2013-2018 Ranger Crew/XP 900, 2017-2018 XP 1000, and select 570 models. The shafts are machined from heat-treated 4340 chromoly steel, and the CR rubber boots are rated for temperatures from -40°C to 120°C. Cross-reference numbers 1332947, 1333756, and 1334175 confirm compatibility with OEM part listings.
Buyers who installed these on Rangers report a smooth fitment process and no issues after several hundred trail miles. The complete assembly includes both left and right shafts with pre-greased CV joints, which reduces installation complexity. Several owners describe these as a fraction of the cost compared to dealer axles while matching OEM dimensions precisely.
The 4340 chromoly construction gives these axles a strength advantage over standard replacement units, though some buyers note that long-term durability data is still limited since the product has been on the market for a shorter period. The manufacturer offers fast technical support within eight hours for fitment questions, which helps reduce ordering risk.
What works
- 4340 chromoly steel provides strength over standard axles
- Includes both left and right shafts in one set
- Multi-generation fitment covers many Ranger models
What doesn’t
- Limited long-term durability data available
- Boot design may differ from product photos
- Fitment checking required across multiple model years
5. Spicer 2004785-2 Rear Axle Shaft Assembly Dana 44
Spicer is an OE supplier for Dana axles, and the 2004785-2 axle shaft assembly reflects that pedigree. This rear left shaft fits Dana SUPER 44 axles with electronic locking differentials, using 32 inboard splines and a 5×5-inch bolt pattern. The assembly includes a pre-installed bearing, seal, and tone ring, allowing a direct swap without specialty pressing equipment.
Jeep JK Rubicon owners consistently report this as a high-quality replacement for leaking or worn driver-side rear axles. The pre-assembled bearing and seal eliminate the need for a 20-ton press, though a heavy-duty slide hammer and axle puller are still required for removal. The shaft is noticeably heavier than the factory component, reflecting the robust construction.
Buyers must confirm they need the left-side shaft (part 2004785-2) versus the right-side (2004785-3), as the two are different lengths. One reviewer noted that the 32-spline interface is not interchangeable with 30-spline differentials, so verifying differential type before ordering is critical. The price reflects the premium brand and OE-level quality assurance.
What works
- OE supplier quality with pre-installed bearing, seal, and tone ring
- Heavier construction than factory shaft improves durability
- Direct fit for Dana SUPER 44 electronic locker applications
What doesn’t
- 32-spline incompatible with standard 30-spline differentials
- Left and right shafts are different lengths and sold separately
- Requires slide hammer and axle puller for removal
6. SuperATV ADR Rear Axle for Polaris Ranger XP 800
SuperATV’s ADR series axles are designed as a cost-effective replacement for the Polaris Ranger XP 800 and Crew models from 2010 to 2014. The assembly uses precision CV components, high-quality grease, and a heavy-duty rubber boot to match the durability of SuperATV’s more expensive Rhino line. The ADR designation indicates a focus on meeting or exceeding OEM specifications at a lower price point.
Owners of 2011-2013 Ranger 800 and 800 Crew models report that the axle fits perfectly and is thicker than the factory shaft. Multiple verified purchasers note that the heavy-duty boots outlast cheaper replacement axles, with one owner reporting that budget axles tore their boots within a week while the ADR version held up. A few buyers observed that the boot design on the delivered product differs from the product photos, with a different boot style that may not perform identically.
The ADR axle is a single unit, so buyers needing both rear axles must order two. While not as strong as the chromoly Rhino 2.0 series, this axle provides a reliable option for owners who want a durable replacement without stepping up to premium pricing.
What works
- Direct replacement for 2010-2014 Polaris Ranger XP 800 and Crew
- Heavy-duty rubber boots resist tearing better than budget options
- Precision components and quality grease extend service life
What doesn’t
- Boot style may differ from product photos
- Not as strong as chromoly upgrade axles
- Sold as single axle, need two for complete rear replacement

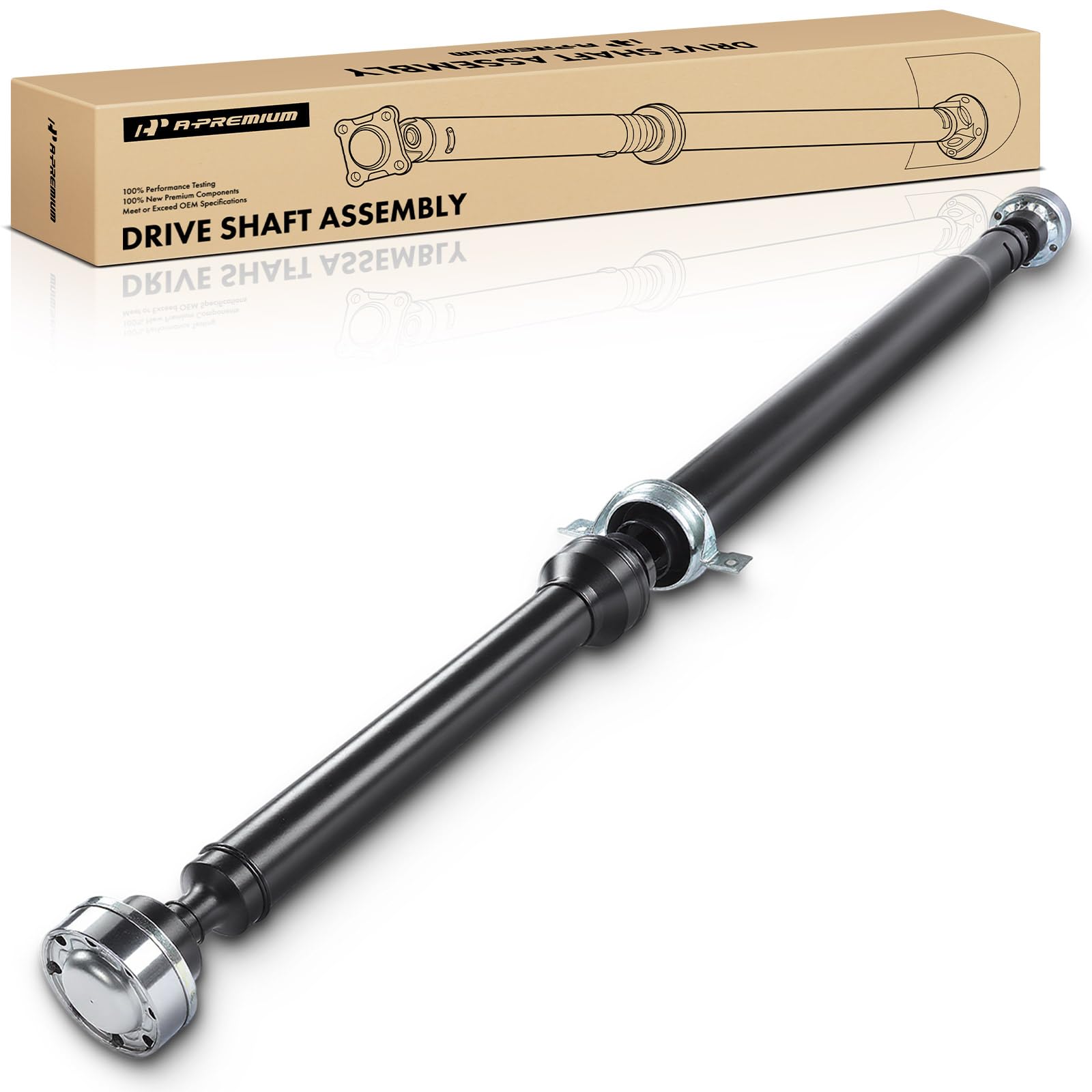

7. A-Premium Rear Drive Shaft for Dodge Durango
A-Premium offers a complete rear driveshaft assembly for the 2011-2013 Dodge Durango with the V6 3.6L engine and RWD configuration. This prop shaft measures 71.125 inches overall and is specifically designed for vehicles with sales code DR1, which indicates the 230-millimeter rear axle. The steel construction focuses on corrosion resistance and vibration damping for smooth daily driving.
Installers report that the driveshaft fits perfectly on Durango models that meet the specifications, with several noting the OEM-like quality of the construction. The installation requires exhaust removal on some models, and owners recommend using penetrating oil on flange bolts to prevent breakage. The shaft ships with corrosion-resistant coating and balanced for minimal vibration.
Fitment is strictly limited to RWD Durangos with the DR1 axle code, so AWD models or those with different axle codes will not work. The price positions this as a premium replacement option, but the direct fit and pre-balanced design eliminate the need for a driveline shop visit. Owners report that the installation takes one to two hours with basic tools.
What works
- Direct replacement for Durango RWD with DR1 axle code
- Corrosion-resistant coating and vibration-damped design
- OEM-level quality at a competitive price point
What doesn’t
- Fits only RWD models with specific axle code, not AWD
- Requires exhaust removal for installation access
- No replacement bolts included for flange fasteners
8. TEN Factory MG22135 Axle Shaft for Dana 44
TEN Factory engineered this axle shaft kit for Dana 44 standard rear axles found in Jeep Wrangler YJ, TJ, and Cherokee XJ models from 1987 to 2006. The shafts are machined from 4140 chromoly steel with a black oxide finish for corrosion resistance, and they feature a dual bolt pattern accommodating both 5×4.5-inch and 5×5.5-inch wheel bolt circles. The set includes left and right shafts with wheel studs, seals, and bearings.
Owners of TJs and XJs with Dana 44 axles report that these shafts are a significant upgrade over factory components, particularly for those running larger tires and wheel spacers. The dual bolt pattern eliminates the need to drill or modify axle flanges when changing wheel patterns. Some buyers note that retainer plates are not included, which means sourcing those separately is necessary for complete installation.
The 4140 chromoly construction provides a strength improvement over standard alloy shafts without reaching the price of 4340 steel. The one-year limited warranty offers basic protection, though some owners wish the warranty term was longer given the investment. Overall, this kit is well-suited for builders upgrading a Dana 44 for moderate off-road use.
What works
- 4140 chromoly steel offers significant strength upgrade over stock
- Dual bolt pattern supports 5×4.5 and 5×5.5 wheel fitments
- Includes wheel studs, seals, and bearings for complete assembly
What doesn’t
- Retainer plates not included and must be sourced separately
- Wheel stud installation requires press before bearing assembly
- One-year warranty is shorter than some competitors
9. USA Standard Gear Chromoly Axle Kit Dana 30
USA Standard Gear’s chromoly front axle kit is designed for Dana 30 axles found in Jeep Wrangler TJ and JK models. The kit includes inner and outer axle shafts with pre-installed Spicer 1310 u-joints, plus the necessary hardware and fasteners. The 4340 chromoly construction targets owners who need increased strength for off-road use without upgrading to a larger axle housing.
JKU Sport owners report that the axles fit perfectly and the Spicer u-joints operate smoothly. One TJ owner noted that this chromoly kit was actually cheaper than standard replacement shafts from local parts stores, making it a cost-effective upgrade. The included cork gasket, retainer plates, and seals provide everything needed for a complete front axle rebuild.
However, some buyers experienced failures on the first off-road outing, with one owner reporting a snapped shaft during a low-traction snow run. This suggests that while the chromoly material is an upgrade, extreme driving conditions can still exceed the limits of a Dana 30 platform. The price is the highest in this guide, reflecting the complete kit nature and Spicer u-joint inclusion.
What works
- 4340 chromoly construction with Spicer u-joints
- Complete kit with gasket, plates, seals, and hardware
- Can be cheaper than OEM replacement shafts
What doesn’t
- Some units failed on first off-road trip
- Dana 30 platform has inherent strength limitations
- Premium price reflects complete kit assembly
Hardware & Specs Guide
Spline Count and Differential Interface
The spline count on an axle shaft must match the differential side gears exactly. Dana 44 axles commonly use 30 or 32 splines, while Dana 30 axles use 27 or 32 splines depending on the generation. Using the wrong spline count will prevent the shaft from engaging the differential. Always verify your differential model and spline count before purchasing.
Material Grades: 1541H vs 4140 vs 4340 Chromoly
1541H is a medium-carbon alloy steel with good strength for moderate off-road use. 4140 chromoly adds chromium and molybdenum for higher tensile strength and better fatigue resistance. 4340 chromoly offers the highest strength and impact resistance of the three, making it the preferred choice for extreme off-road and racing applications. Heat treatment processes further enhance the properties of all three grades.
Bearing and Seal Integration
Many replacement axle shafts ship with pre-installed bearings and seals, which eliminates the need for a hydraulic press during installation. The bearing type must match the axle tube diameter and the seal must fit the housing bore. ABS tone rings are often integrated into the bearing assembly, and the tone ring tooth count must match the vehicle’s ABS system to avoid warning lights.
Bolt Pattern and Wheel Stud Compatibility
Axle shaft flanges are machined with a specific bolt pattern that must match the vehicle’s wheel hubs. Common patterns include 5×4.5 inches and 5×5.5 inches for Jeep applications. Some aftermarket shafts feature dual bolt patterns to accommodate both standards. Wheel studs may or may not be included, so verify before beginning installation to avoid delays.
FAQ
How do I know which spline count my axle needs?
What is the difference between 4140 and 4340 chromoly steel?
Can I install a rear axle shaft without a press?
How often should rear axle shafts be replaced?
Will a chromoly axle shaft fit in a stock axle housing?
Final Thoughts: The Verdict
For most buyers, the best rear axle shaft winner is the Yukon 1541H Dana 44 JK axle because it delivers a genuine strength upgrade with pre-installed components at a price that suits serious off-road owners without jumping into full chromoly territory. If you need maximum durability for a Polaris RZR Turbo S, grab the SuperATV Rhino 2.0 for its 4340 chromoly construction and 18-month warranty. And for a budget-friendly daily driver replacement, nothing beats the Dorman 630-214 with its complete kit including bearing, seal, and ABS ring.
