A brake line failure isn’t a slow leak—it’s a sudden loss of stopping power. Yet many drivers still install steel tubing that corrodes from the inside out, hidden until the pedal goes to the floor. Nickel-copper alloy brake lines change that equation by offering genuine rust resistance, easier bending, and longer service life. Choosing the right kit means understanding alloy composition, fitting compatibility, and real-world durability—not just looking at the price tag.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing aftermarket brake line specifications, owner feedback, and third-party test data to separate genuine 90/10 cupronickel from copper-coated steel that looks the part but fails over time.
This guide walks through the key features that determine long-term safety and ease of installation, and highlights the kits that deliver consistent flare quality and corrosion resistance. If you’re serious about a reliable hydraulic system, the best nickel copper brake line choice comes down to alloy purity, included fittings, and wall thickness for your specific application.
How To Choose The Best Nickel Copper Brake Line
Selecting the right brake line tubing involves more than just picking the cheapest coil. The alloy composition, wall thickness, included fittings, and intended use all determine whether your repair will last a decade or fail prematurely. Below are the critical factors to evaluate before buying.
Alloy Composition: True CuNi vs. Copper-Coated Steel
Genuine copper-nickel alloy typically contains 90% copper and 10% nickel, with small amounts of iron and manganese. This blend is non-magnetic, resists corrosion from road salt and moisture, and remains workable after years of service. Copper-coated steel tubing looks similar at first glance but will rust once the thin coating is scratched or compromised. A simple magnet test (though nickel itself is slightly magnetic) or a file test can reveal the difference. Kits explicitly stating “copper-nickel alloy” with a composition breakdown are safer bets.
Wall Thickness and Pressure Rating
Most 3/16-inch brake line tubing uses a nominal wall thickness of 0.028 inches, which is adequate for hydraulic pressures up to around 3,000 psi. Heavier-duty applications or 1/4-inch lines may use 0.035 or 0.065 inch walls, raising the pressure ceiling above 8,000 psi. Thicker walls also resist kinking during tight bends. Always verify the wall thickness listed—a few kits do not specify, which can lead to flare failures under high heat.
Fitting Kit Completeness
The best kits include a range of inverted flare tube nuts (3/8-24, 7/16-24, 1/2-20, 9/16-18) and optional unions so you can handle multiple connection points without sourcing additional parts. Some budget kits only include one size, forcing a separate purchase. Check that your vehicle’s master cylinder, wheel cylinders, and proportioning valve all match one of the included thread sizes.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| 4LifetimeLines 3/16″ Kit | Premium Kit | Brake line replacement | 3/16″ OD, 0.028″ wall, 16 fittings | Amazon |
| Nstarsmotor 25 ft Kit | True CuNi | Rust-free reliability | 88.1% Cu / 9.7% Ni, 0.028″ wall | Amazon |
| TUBPRO 3/16 with Unions | Complete Kit | Full brake system overhaul | 25 ft + 16 nuts + 4 unions | Amazon |
| MuHize Dual-Size Kit | Dual Pack | Front & rear lines | 3/16″ & 1/4″ each 25 ft, 32 fittings | Amazon |
| 4LifetimeLines 1/4″ Coil | 1/4″ OD | Rear axle or heavy-duty | 1/4″ OD, 0.028″ wall, no fittings | Amazon |
| TUBPRO 3/16 Basic | Entry CuNi | Budget-friendly true alloy | 25 ft + 16 nuts, SAE/ISO | Amazon |
| smseace 2-Set Brake Line Kit | Copper-Coat | Budget two-car project | 2 x 25 ft, 28 nuts, 4 unions | Amazon |
| Ailbiuko 2-Set Brake Line Kit | Value Pack | Multi-size kit needed | 2 x 25 ft, 60 fittings total | Amazon |
| 4LifetimeLines 5/16″ Fuel Line | Fuel/Trans | Fuel or transmission line | 5/16″ OD, 0.065″ wall, 25 ft | Amazon |
| 4LifetimeLines 2-Pack Combo | Best Dual | Complete brake + fuel lines | 3/16″ & 1/4″ both 25 ft + fittings | Amazon |
| The Stop Shop 250 ft Bulk | Shop Bulk | Professional workshops | 1/4″ OD, 0.028″ wall, 250 ft | Amazon |
In‑Depth Reviews
1. 4LifetimeLines 3/16″ x 25 ft Copper-Nickel Brake Line Replacement Kit
This kit from 4LifetimeLines is the gold standard for DIY brake line replacement. The 3/16-inch OD tubing uses a true 90/10 copper-nickel alloy that never rusts, bends easily by hand, and flares consistently with a standard double-flare tool. The 0.028-inch wall thickness is well within SAE J527 and ISO specifications, and the burst pressure rating exceeds 11,000 psi — far more than any hydraulic brake system will ever demand.
Included are 16 inverted flare tube nuts in the four most common sizes: 3/8-24 (10), 7/16-24 (2), 1/2-20 (2), and 9/16-18 (2). This covers virtually every domestic and import vehicle connection. The coil comes tightly wound but straightens easily, and the material’s malleability means no tubing bender is needed for most routing paths. Owner reports consistently highlight leak-free flares on the first attempt, even for beginners.
The only missing piece is a union fitting, so if you need to splice two sections, you will need to buy a separate coupling. However, the 25-foot length is sufficient for a complete front-to-rear run on most cars and light trucks. For a premium balance of quality, fitting selection, and ease of use, this kit is the clear first choice.
What works
- Genuine copper-nickel alloy with documented burst pressure
- Includes all four common fitting sizes
- Hand-bendable without kinking
- SAE and ISO certified
What doesn’t
- No union fittings included
- Only one size (3/16″) available in this kit
2. Nstarsmotor 25 ft 3/16 True Copper-Nickel Brake Line Kit
Nstarsmotor provides a transparent breakdown of their alloy: 88.1% copper, 9.7% nickel, 1.4% iron, 0.8% manganese. That is a genuine 90/10 cupronickel formulation that will not rust and remains flexible after years of exposure. The 0.028-inch wall thickness matches industry standards, and the tubing meets SAE and ISO specs. The coil is 25 feet of 3/16-inch OD tubing, ideal for a single-axle brake line replacement or a short main run.
The kit includes 16 inverted flare nuts in the same four sizes as the 4LifetimeLines kit, though the thread count leans heavier on the 3/8-24 (10 pieces) with fewer of the less common sizes. Some users note that the included nuts are slightly softer brass than OEM, but they work fine for double flares. The material flares easily without cracking, and bends can be made by hand up to 90 degrees without a tool.
Nstarsmotor backs this with a lifetime warranty, which adds confidence for a part that is expected to outlast the vehicle. The only downside is the lack of unions or a flaring tool in the package, but for the price point, the alloy transparency alone makes this a strong contender for those who want to know exactly what metal is under the car.
What works
- Exact alloy composition stated
- Lifetime warranty included
- Easy hand-bending and flaring
What doesn’t
- No union or connector fittings
- Nut sizes skewed toward 3/8-24 only
3. TUBPRO 3/16″OD x 25 ft Copper Nickel Brake Line Kit with Unions
TUBPRO’s kit stands out because it includes four union connectors alongside the 16 tube nuts. This allows you to splice two lines together cleanly, which is especially useful when replacing a brake line that runs from the master cylinder to a rear axle junction. The unions are 3/8-24 inverted flare, matching the most common thread. The tubing itself is genuine copper-nickel alloy, non-magnetic, and meets SAE and ISO standards.
The 0.028-inch wall thickness is standard, and the material bends much like other cupronickel—by hand with moderate effort. The kit comes in a coil that can be straightened easily. The nut assortment includes 10x 3/8-24, 2x 7/16-24, 2x 1/2-20, and 2x 9/16-18, which covers the majority of applications. The unions are double-flare compatible and seal well with brass seats.
One drawback is that the included instruction sheet is minimal, and the tubing might have a slight memory from the coil, requiring gentle over-bending to hold a curve. Nonetheless, for a DIYer who needs to repair a split or extend a line, the included unions save a separate purchase. This is a well-rounded kit for the price.
What works
- Four union fittings included
- Full nut assortment
- Genuine CuNi alloy
What doesn’t
- Coil memory may require over-bending
- No flaring tool included
4. MuHize Dual-Size Brake Line Kit (1/4 + 3/16 Inch)
MuHize offers a two-in-one solution that provides 25 feet each of 3/16-inch and 1/4-inch copper-nickel brake line tubing, plus a full set of 32 inverted flare nuts. This is ideal when your vehicle uses different line diameters for the front and rear circuits, or when you want to use the 1/4-inch line for a rear axle or transmission cooler. Both coils are made from surface-treated copper-nickel that resists corrosion and bends easily.
The fitting selection is comprehensive: for the 1/4-inch line, you get 10 extended 7/16-24 nuts, plus 2 each of 9/16-18, 1/2-20, and 7/16-24. For the 3/16-inch line, the nut set mirrors other kits (10x 3/8-24, 2x each of the others). The kit does not include union connectors, but the dual lengths cover most applications without splicing. The tubing flares cleanly, and the brass nuts thread smoothly.
Some owners have noted that the 1/4-inch line’s wall thickness appears slightly thinner than OEM in spots, but it still meets pressure requirements. For someone working on a truck that uses 1/4-inch lines to the rear, this dual kit eliminates the need to buy two separate packages. It is a practical choice for comprehensive brake system work.
What works
- Two diameters in one package
- Large assortment of fittings
- Corrosion-resistant CuNi
What doesn’t
- No union connectors
- Wall thickness may vary slightly
5. 4LIFETIMELINES True Copper-Nickel Alloy 1/4 Inch, 25 Feet
When your application requires the larger 1/4-inch OD tubing—common on many trucks and older vehicles—this 25-foot coil from 4LifetimeLines delivers the same high-quality copper-nickel alloy as their smaller kits. The 0.028-inch wall thickness provides a burst pressure rating of nearly 9,000 psi, and the material meets both SAE and ISO standards. The tubing is shipped in a coil, requires straightening, and can be hand-bent without kinking.
This product is tubing-only; no fittings or nuts are included. That means you must source the correct inverted flare nuts and unions separately, which is typical for professionals who prefer to match their own hardware. The alloy is non-magnetic and will never rust, making it ideal for brake, fuel, or transmission line use. The flexibility also means you can route lines in tight spaces with fewer bends.
Some users report that the tubing can be slightly harder to bend than 3/16-inch because of the larger diameter, but still easier than steel. The lack of a fitting kit keeps the price lower, but the buyer must factor in the cost of nuts and unions. For those who need exactly 1/4-inch line and have their own fittings, this is the best raw material choice.
What works
- Genuine CuNi alloy, high burst pressure
- Flexible and corrosion-proof
- SAE and ISO certified
What doesn’t
- No fittings or nuts included
- Larger diameter requires more force to bend

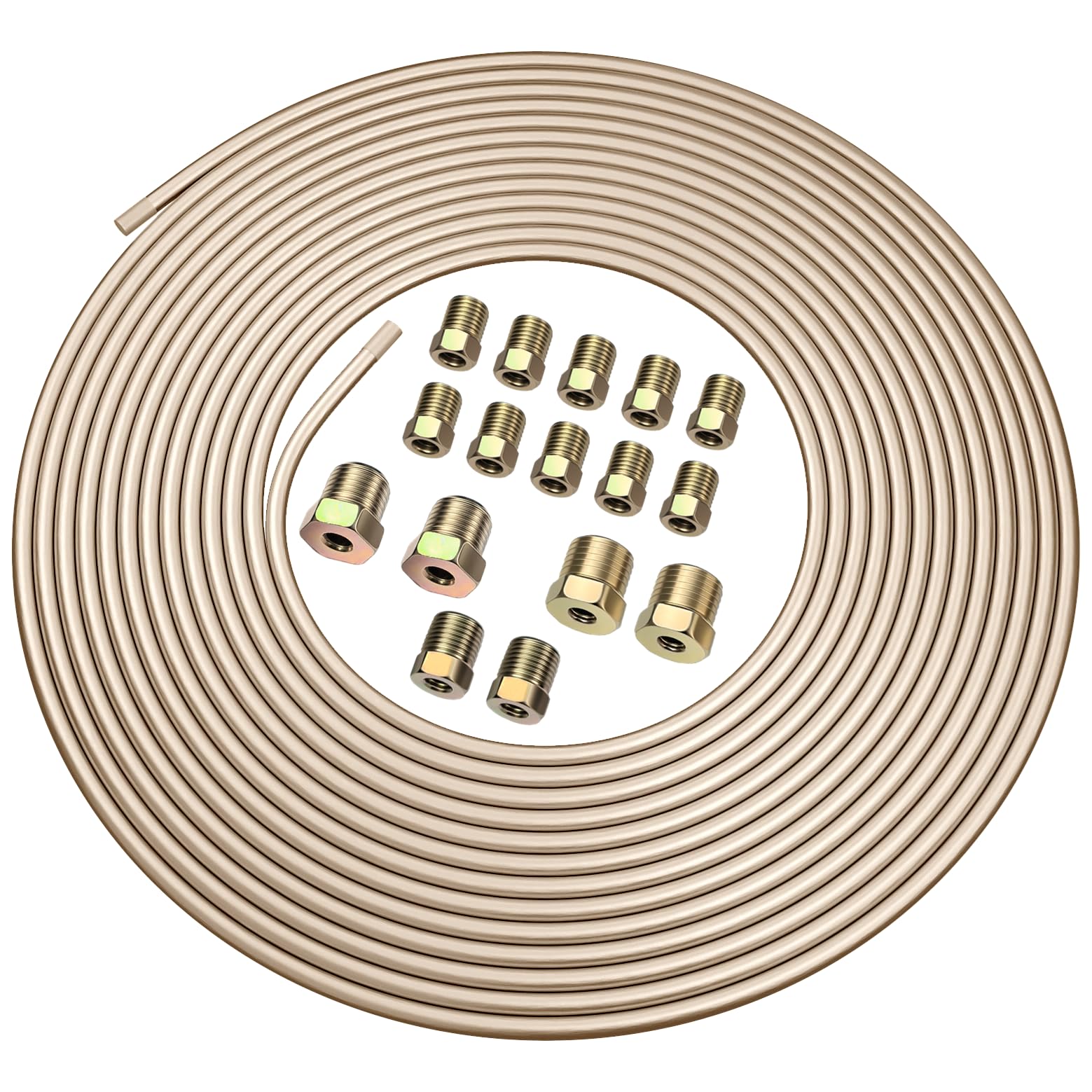

6. TUBPRO 3/16 Brake Line 25 ft with 16 Nuts
This is the entry-level true copper-nickel option from TUBPRO. It provides 25 feet of 3/16-inch OD tubing and 16 inverted flare nuts, but unlike their kit with unions, this one omits the connectors. The alloy is genuine CuNi, non-magnetic, and rated for 3,000 psi—sufficient for standard brake systems. The yellow packaging is distinctive, and the tubing meets SAE and ISO specs.
The nut assortment includes 2x 7/16-24, 10x 3/8-24, 2x 1/2-20, and 2x 9/16-18. That covers the most common sizes, but the lack of any unions means any splice requires a separate purchase. The material bends and flares similarly to other CuNi tubing, though some users note the coil memory can be stubborn. Straightening the tubing before cutting helps avoid uneven bends.
For the budget-conscious DIYer who only needs a single continuous run and already has unions on hand, this kit offers a low-cost way to get genuine copper-nickel alloy rather than copper-coated steel. The manufacturer recommends having the line inspected by a professional testing agency if authenticity is in question, which adds a layer of confidence.
What works
- Genuine CuNi at a low price
- Includes 16 nuts in common sizes
- SAE/ISO certified
What doesn’t
- No union fittings
- Coil memory may require extra straightening

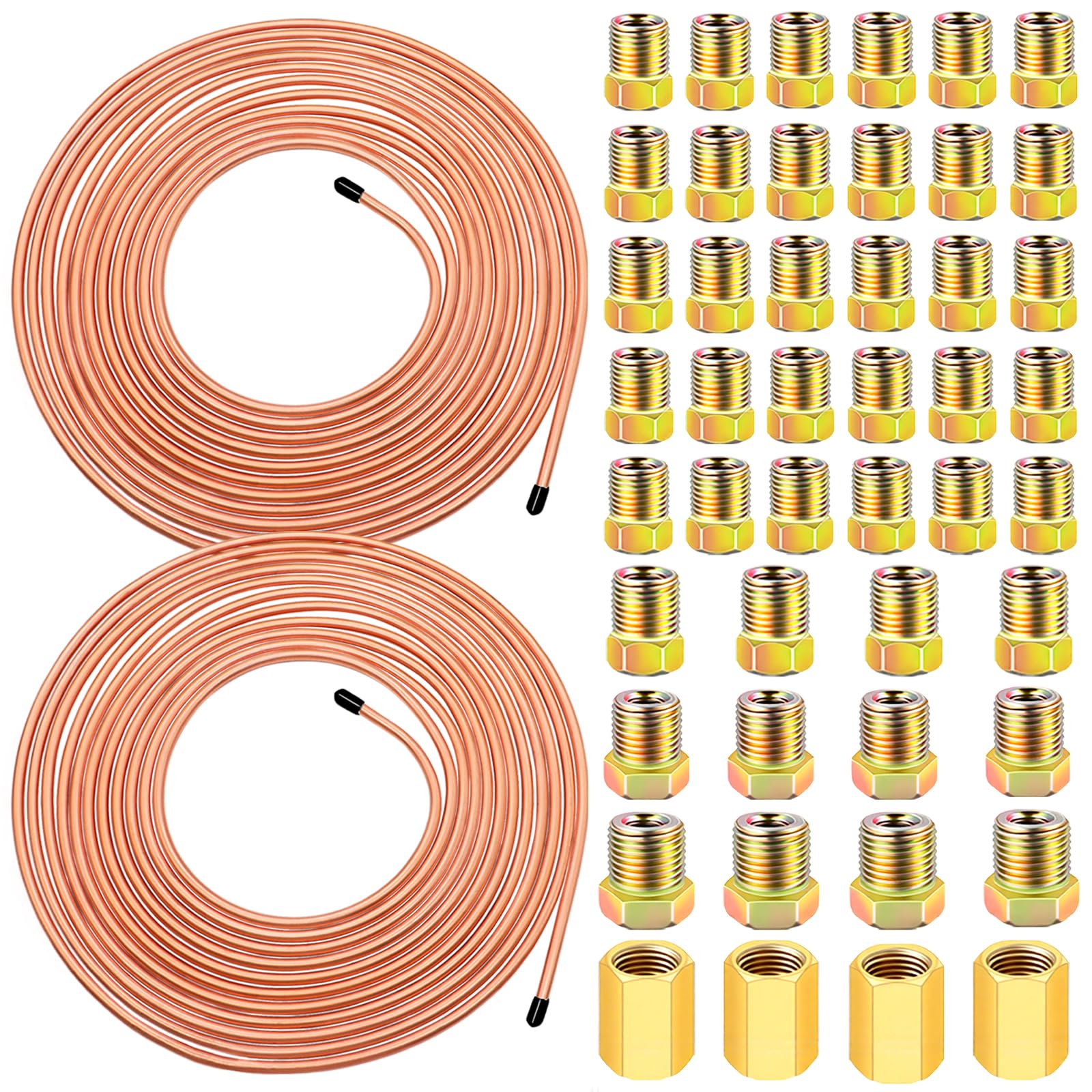

7. smseace 2 Sets 25 FT 3/16″ Brake Line Kit with Fittings
This smseace kit provides two 25-foot coils of 3/16-inch brake line, plus 28 inverted tube nuts and 4 union connectors. However, the material is copper-coated steel, not true copper-nickel alloy. The product description explicitly states “copper-coat” and “copper plated with a unique surface treatment.” While the copper plating offers better corrosion resistance than bare steel, it can chip or scratch, exposing the steel underneath to rust.
The fitting count is generous: 28 nuts across four thread sizes and 4 unions. This makes it a great value if you need to tackle two separate brake line repairs on a tight budget. The tubing is semi-flexible but not as easy to bend as CuNi—it requires a bender for tight radii. Double flaring is possible with a good tool, but the coating can flake near the flare seat if not chamfered properly.
Pros include the low price and complete fitting set. The trade-off is long-term durability; in salt-belt states, this line will eventually corrode from scratches. For a temporary repair or a vehicle kept in dry conditions, it may suffice. But for a permanent solution, genuine CuNi is recommended.
What works
- Two full rolls plus many fittings
- Low entry cost
- Includes unions
What doesn’t
- Copper-coated steel, not true CuNi
- Coating can chip, leading to rust
- Requires bender for tight bends

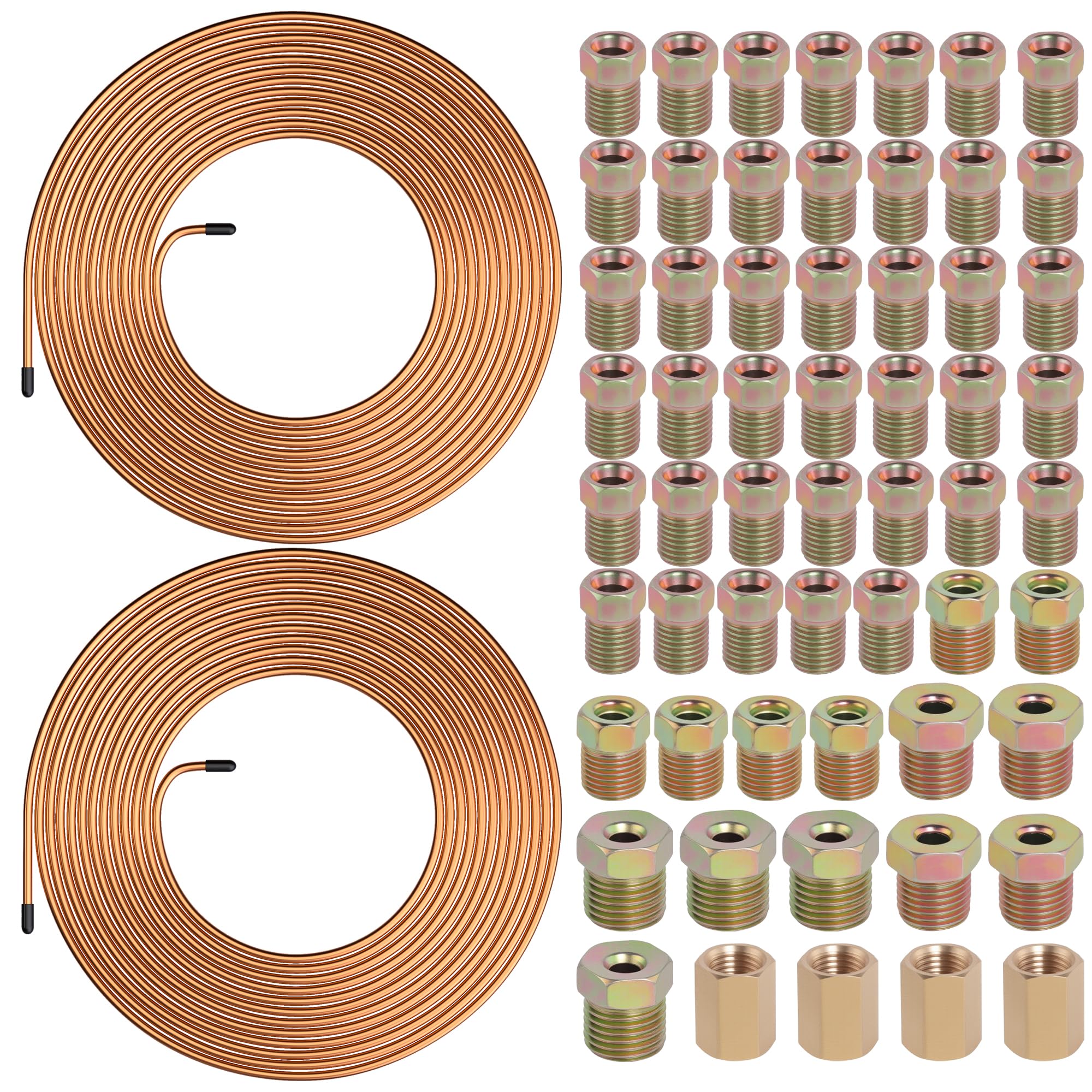

8. Ailbiuko 2 Sets 25 FT 3/16″ Brake Line with 60 Pcs Fittings
Ailbiuko’s kit includes two 25-foot coils of 3/16-inch brake line and a massive assortment of 60 fittings: 40 3/8-24 nuts, plus 6 each of 7/16-24, 1/2-20, and 9/16-18 nuts, and 4 unions. The material is listed simply as “copper,” which in this price range typically means copper-plated steel rather than a copper-nickel alloy. The product description mentions “high-quality copper plated with a unique surface treatment.” This is not the same as solid CuNi.
The huge fitting count is the main draw—you will have plenty of extras for future projects. The tubing requires careful handling during flaring to avoid cracking the plating. The unions are brass and work well. For a shop that needs a bulk supply of nuts and unions, buying this kit for the fittings alone may be cost-effective, even if the tubing is not top-tier.
However, for a brake line that needs to last decades, the corrosion risk remains. The price is very competitive, but the material compromise is significant. If you are working on a low-mileage show car or a dry-climate daily driver, it might be acceptable. For winter-driven vehicles, invest in genuine CuNi.
What works
- Extremely large fitting assortment
- Two full coils
- Budget-friendly
What doesn’t
- Copper-plated steel, not genuine CuNi
- Plating can fail over time
- Not ideal for salt-exposed environments
9. 4LIFETIMELINES 5/16″ Copper Nickel Fuel/Transmission Line – 25 ft
While this product is marketed primarily for fuel and transmission lines, it is the same high-quality copper-nickel alloy used in brake line applications. The 5/16-inch (0.312-inch) outer diameter with a 0.065-inch wall thickness provides exceptional burst strength and rigidity. This size is not typically used for brake lines, but it can serve as a transmission cooler line or fuel supply line where larger diameter is needed.
The thicker wall makes bending slightly more difficult than standard brake line, but it is still significantly easier than steel. The alloy will never rust, and the material meets SAE J527. No fittings are included, so you must source appropriate clamps or compression fittings separately. The 25-foot length is generous for most transmission runs.
For those building a custom fuel system or replacing rusty transmission lines, this copper-nickel option beats steel hands down. The durability is excellent, and the lifetime warranty adds peace of mind. Just be aware that this is not intended for brake system use—it is best reserved for fluid transfer applications that do not require inverted flare connections.
What works
- Thick wall for high-pressure fuel/transmission
- Non-corrosive alloy
- Lifetime warranty
What doesn’t
- Not standard brake line size
- No fittings included
- Harder to bend due to wall thickness
10. 4LifetimeLines Copper Nickel Brake Line Kit 2-Pack (3/16″ + 1/4″)
This 2-pack from 4LifetimeLines includes both a 3/16-inch and a 1/4-inch coil, each 25 feet long, plus a full assortment of tube nuts and unions for both sizes. It is essentially two premium kits combined. The alloy is 90/10 copper-nickel that will never rust, and both coils meet ASTM B111 and SAE J527 standards. This is the most complete solution for a full vehicle brake line overhaul where front and rear lines may differ in diameter.
The fitting set includes nuts in 3/8-24, 7/16-24, 1/2-20, and 9/16-18 for the 3/16-inch side, and matching 9/16-18, 1/2-20, 7/16-24 (extended) for the 1/4-inch side. Unions are also included. The tubing is hand-bendable and flares cleanly. Owner feedback is overwhelmingly positive, with many noting the kit reduced multiple parts store trips to a single purchase.
The only downside is the price—it is higher than single-kit options, but when you factor in the fittings and dual lengths, it is still a good value versus buying two separate kits from less reputable brands. For anyone planning a comprehensive brake system rebuild, this pack removes guesswork and provides everything needed in one box.
What works
- Both common diameters included
- Full fitting set for each size
- Premium CuNi alloy, SAE/ISO certified
What doesn’t
- Higher upfront cost
- No flaring tool included

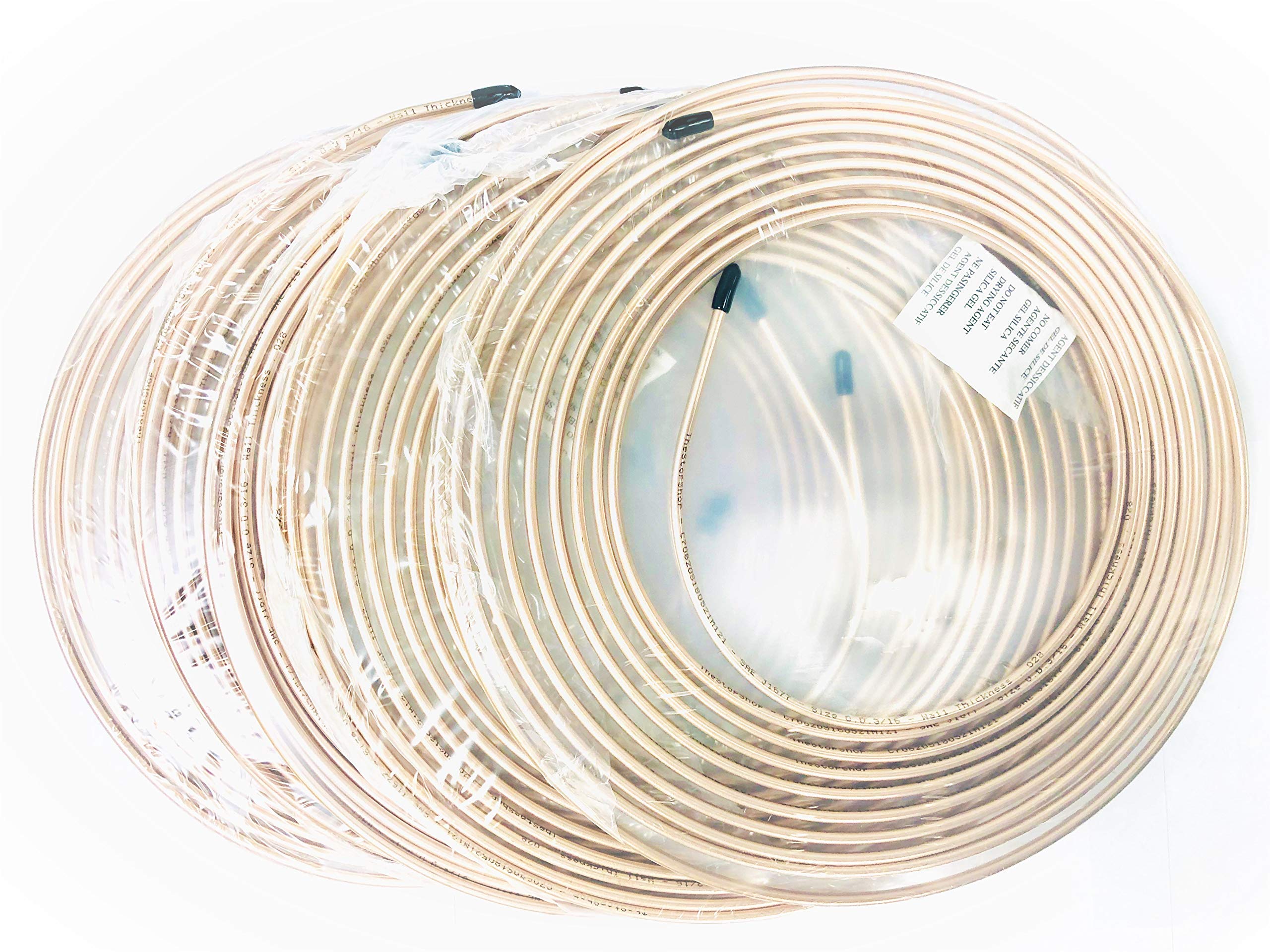

11. The Stop Shop 250 Feet of 1/4″ Copper Nickel Brake Line Tubing (10 coils)
This bulk option from The Stop Shop delivers 250 feet of 1/4-inch copper-nickel brake line tubing, divided into ten 25-foot coils. It is intended for professional shops or serious DIYers who go through large quantities. The tubing is genuine cupronickel that will never rust, and it bends and flares easily. The 0.028-inch wall thickness is standard for brake line.
No fittings are included—this is raw material only. The bulk packaging saves money per foot compared to buying individual kits. Many local parts stores rent flaring tools, which the manufacturer mentions. The coils are individually bagged, keeping them clean and easy to store. The material quality is consistent across all coils, as expected from a brand focused on brake line products.
For an individual working on one vehicle, 250 feet is excessive. However, if you own multiple cars, plan to do brake lines for friends, or run a small shop, this is the most economical way to stock genuine CuNi tubing. The upfront investment is significant, but the per-foot cost is lower than any retail kit.
What works
- Bulk pricing lowers per-foot cost
- Genuine CuNi, never rusts
- Easy to bend and flare
What doesn’t
- No fittings included
- Large quantity may be wasteful for one car
- High initial outlay
Hardware & Specs Guide
Wall Thickness & Pressure Ratings
Most 3/16-inch copper-nickel brake line tubing uses a 0.028-inch nominal wall thickness. This provides a working pressure around 3,000 psi and burst pressure above 11,000 psi for premium kits. Heavier-wall tubing (0.035, 0.065 inch) is used for 1/4-inch and 5/16-inch lines, where burst ratings can exceed 8,000 psi. Thicker walls also resist denting during bending, but require more force to shape. Always confirm the wall specification; some budget kits omit this detail, which can lead to premature fatigue.
Alloy Composition: 90/10 Cupronickel
The ideal brake line alloy is 90% copper, 10% nickel, with trace iron and manganese. This combination provides excellent corrosion resistance, non-magnetic properties (though nickel can be slightly magnetic), and malleability for hand bending. Genuine CuNi will not rust even when scratched. Copper-coated steel tubing has a thin copper plating over steel—it is cheaper but will corrode once the plating is damaged. Look for explicit alloy percentages in the product description to ensure you are getting the real material.
Inverted Flare Fitting Threads
Brake line tube nuts use standard SAE inverted flare threads. The most common sizes are 3/8-24 (used on many domestic master cylinders and wheel cylinders), 7/16-24 (common on Ford and some imports), 1/2-20 (GM and others), and 9/16-18 (for 1/4-inch lines or some truck applications). A good kit includes at least a few of each size. If your vehicle uses metric bubble flare (ISO), you need a different type of fitting—inverted flare nuts will not seal properly.
Flaring Tools & Technique
Copper-nickel tubing is easier to flare than steel, but a proper double-flare tool is still essential. The material is soft enough to deform if over-tightened, so lubricating the cone and using consistent pressure is key. Many auto parts stores rent flaring tools. A tubing cutter (not a hacksaw) gives a clean square end. After cutting, deburr the inside and outside edges to prevent the flare from cracking. Practice on a scrap piece before the actual line.
FAQ
Why should I choose copper-nickel over steel brake line?
How can I tell if a brake line kit is genuine CuNi or copper-coated steel?
What fittings do I need for a copper-nickel brake line repair?
Can I use copper-nickel brake line for fuel or transmission systems?
Final Thoughts: The Verdict
For most buyers, the best nickel copper brake line winner is the 4LifetimeLines 3/16″ Kit because it offers a complete package of genuine CuNi alloy, four fitting sizes, and a proven track record among DIYers and shops. If you want the convenience of unions and a second diameter, grab the 4LifetimeLines 2-Pack for the most comprehensive coverage. And for a budget-friendly true CuNi option without extras, the TUBPRO kit with unions provides excellent value. Steer clear of copper-coated kits if you plan to keep the vehicle in a corrosive environment—invest in the real alloy and install once.
