A trailer wiring harness that fails on the road turns a weekend hauling job into an electrical nightmare. Every Ford F-150 owner eventually faces the choice between a budget connector that corrodes by winter and a properly engineered harness that delivers consistent power to lights, brakes, and auxiliary circuits season after season. The right wiring harness eliminates the guesswork, preserves factory integrity, and keeps your truck’s electrical system operating at the level Ford intended.
I’m Amir — the founder and writer behind Four Wheel Ask. Over thousands of hours analyzing owner feedback, comparing build materials, and evaluating connector durability across multiple generations of Ford trucks, I’ve developed a clear picture of which wiring harnesses actually hold up under real-world towing conditions.
This guide breaks down seven distinct harness options spanning 4-pin, 5-pin, and 7-way configurations, plus specialty camera and brake controller solutions. Whether you need a simple 4-pin connector or a complete 7-way setup, finding the right best ford f150 wiring harness ensures reliable electrical performance for your truck.
How To Choose The Best Ford F150 Wiring Harness
Ford F-150 wiring harnesses vary widely in connector configuration, build material, and vehicle integration method. Choosing the wrong type can lead to intermittent connections, blown fuses, or failed trailer lights at the worst possible moment. The following factors separate a dependable harness from one that leaves you stranded.
Connector Type: 4-Pin, 5-Pin, or 7-Way
The connector standard dictates what your harness can power. A 4-pin flat connector handles basic tail lights, brake signals, and turn signals — sufficient for small utility trailers and light-duty hauling. A 5-pin adds reverse light capability, useful for marine trailers and some campers. The 7-way RV-style connector supplies everything the 4- and 5-pin versions do plus electric brake control, auxiliary power (12V+), and a dedicated reverse circuit. Trucks factory-equipped with a tow package typically include a 7-way, but many base models require an aftermarket upgrade to access brake controller functions.
Plug-and-Play Versus Splicing
Plug-and-play harnesses use vehicle-specific T-connectors that mate directly with the truck’s existing factory wiring — no cutting, stripping, or soldering required. These harnesses preserve the factory electrical architecture and reduce the risk of shorts or voltage drops. Splicing-based harnesses require cutting into factory wires and can void portions of your truck’s warranty if not executed perfectly. For most owners, a direct plug-in solution delivers the highest long-term reliability with the least installation time.
OEM vs Aftermarket Construction
OEM Ford harnesses use the same connectors, wire gauges, and weather seals as the original truck wiring, ensuring perfect fitment and corrosion resistance. Aftermarket brands like CURT and Tekonsha often add thicker insulation, reinforced dust covers, or extended cable lengths that improve upon the factory design. The trade-off comes down to exact OEM tolerances versus aftermarket enhancements — both can deliver excellent performance when matched to the correct vehicle generation and trim level.
Application Specificity
Not all wiring harnesses serve the same purpose. Trailer brake harnesses require a separate controller and 7-way connector. Backup camera harnesses use different pin configurations and cable types. Truck bed extensions for fifth-wheel or gooseneck trailers need a separate 7-way socket mounted in the bed. Selecting a harness designed for your exact use case — whether towing, camera retrofitting, or brake controller installation — prevents compatibility headaches and unnecessary return shipping.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CURT 56584 | 5-Pin USCAR | Best Overall | 5-way flat, plug-and-play, dust cover, slit loom | Amazon |
| Tekonsha 118242 | 7-Way | Premium Upgrade | 7-way connector, plug-in, fuses included, retains 4-flat | Amazon |
| MECMO 7-Pin Extension | 7-Pin Truck Bed | Heavy Towing | 7-foot extension, 7-way RV, spring-loaded cover, molded plastic | Amazon |
| Genuine Ford 9L3Z-15A416-B | OEM Trailer Hitch | Factory Replacement | OEM Ford, direct fit, USA made, 4.0-inch package height | Amazon |
| CURT 56031 | 4-Pin Custom | Entry-Level Towing | 4-way flat, plug-in, no cutting, rubber dust cover | Amazon |
| Ford 9U5Z-14489-MAA | 4/7 Pin Brake | Brake Controller Prep | OEM 4/7 pin, 2009-2023 F-150, plastic housing, 10 oz | Amazon |
| Ford BL3Z-14A411-A | Camera Harness | Rear View Camera | OEM 2011-2014 F-150, copper/PVC construction, USB Type B | Amazon |
In‑Depth Reviews

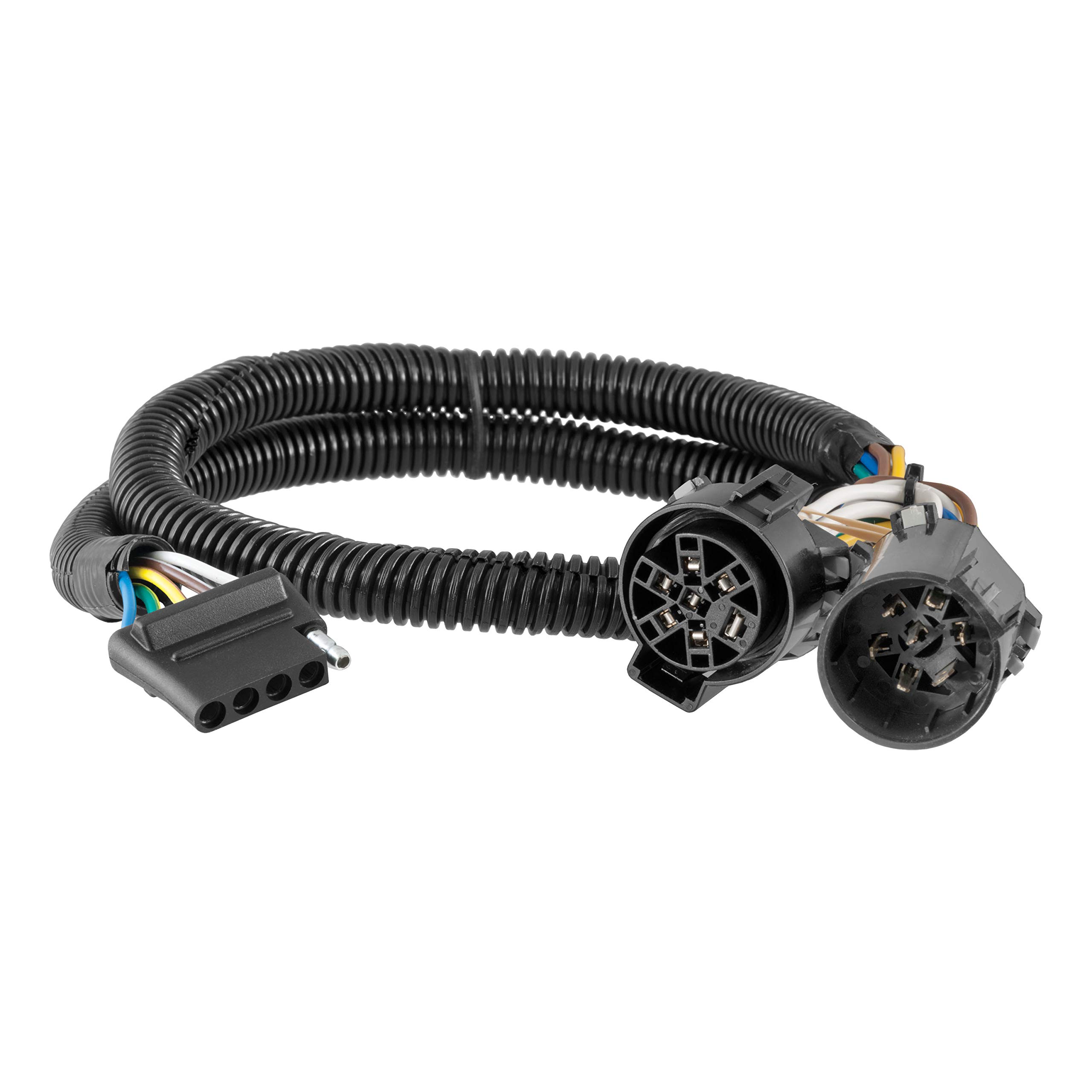

1. CURT 56584 Replacement Vehicle-Side Custom USCAR 5-Pin Trailer Wiring Harness
The CURT 56584 occupies the sweet spot between connector capability and straightforward installation. It taps into the vehicle-side USCAR connection and delivers a 5-way flat output that covers tail lights, brake lights, turn signals, and reverse lights — a configuration that suits boat trailers, small campers, and utility trailers without requiring the full 7-way setup. The included slit loom keeps wires organized and protected from road debris and moisture intrusion.
Build quality stands out in this price bracket. The molded plastic connector feels dense and snaps securely into the factory USCAR port without play or wiggle. A rubber dust cover protects the 5-way flat socket when not in use, preventing corrosion that often plagues open connectors exposed to winter road salt. The 11.36-ounce assembly uses a T-connector design that eliminates any need for cutting or splicing into factory wiring.
Owner feedback consistently highlights the hassle-free nature of this harness. The plug-and-play design reduces installation time to under fifteen minutes for most F-150 owners, and the reverse light circuit is a genuine advantage over standard 4-pin connectors. For truck owners who occasionally tow trailers requiring reverse lighting but don’t need the full brake controller integration of a 7-way, this harness delivers exactly the right feature set without unnecessary complexity.
What works
- Genuine plug-and-play with no cutting or splicing required
- Reverse light circuit included for marine and camper trailers
- Slit loom and rubber dust cover add real weather protection
What doesn’t
- 5-pin configuration limits compatibility with 7-way RV trailers
- USCAR connection required — not compatible with older round-pin trucks
2. Tekonsha 118242 Tow Custom Harness, 7-Way
The Tekonsha 118242 targets owners who want to upgrade from a factory 4-pin setup to full 7-way capability without replacing the entire vehicle-side wiring. This harness connects directly to the existing 4-pin port and adds a 7-way connector while keeping the original 4-flat socket fully functional. The design is particularly useful for F-150 models that came with a basic tow package but lack the factory 7-pin connector needed for brake controllers and auxiliary power.
Installation follows a true plug-in workflow. The harness comes with the required fuses pre-selected — simply plug into the vehicle connector, insert the provided fuses into the under-hood fuse box, and the system is ready for a brake controller and 7-way trailer. The included mounting bracket secures the 7-way socket to the hitch receiver area, keeping the connector accessible while protecting it from road spray. The PVC jacketing resists abrasion and temperature swings better than basic vinyl alternatives.
Long-term durability reports from owners highlight the reliable pin retention and weather sealing. The 7-way connector uses spring-loaded terminals that maintain consistent contact even after hundreds of connection cycles. A key limitation is that this harness only works on trucks originally equipped with a 4-pole harness — it will not function on vehicles that already have a factory 7-pole connector. For the right application, it delivers a clean, professional-grade upgrade path.
What works
- Clean upgrade from 4-pin to 7-way without rewiring the truck
- Original 4-flat socket remains functional after installation
- Includes all fuses needed for brake controller integration
What doesn’t
- Incompatible with trucks already equipped with factory 7-pin
- Limited to 1997-2003 F-150 and 2004 Heritage models
3. MECMO Truck Bed 7-Pin Trailer Wiring Harness Extension 7ft
The MECMO 7-pin extension solves a specific problem that fifth-wheel and gooseneck trailer owners face: the factory 7-way connector is typically mounted at the bumper, forcing a long, unsightly cable run across the truck bed. This 7-foot harness plugs directly into the existing USCAR 7-pin pigtail and routes the connector to a convenient bed-mounted location, keeping the bed clear for cargo while providing easy access for trailer hookup.
Construction emphasizes durability in a harsh environment. The molded black plastic housing withstands UV exposure and impact from cargo shifting during transit. A spring-loaded dust cover snaps shut automatically when the connector is unplugged, preventing dirt and moisture from contaminating the pins. The plastic tube that encases the wiring loom adds a layer of crush resistance that bare cables lack, which matters when heavy loads roll around during transit.
Compatibility spans multiple truck brands and generations, including 1997-2014 Ford F-150, 1999-2016 F-250 Super Duty, and 1999-2021 F-350 Super Duty models. The extension retains full functionality of the factory 7-way connector, so bumper-mounted trailers remain operational without unplugging the bed harness. For owners who regularly switch between bumper-pull and gooseneck trailers, this eliminates the hassle of crawling under the truck to swap connections.
What works
- Bed-mounted connector eliminates messy cable runs across cargo area
- Spring-loaded dust cover provides reliable pin protection
- Reinforced plastic tube resists crushing from heavy loads
What doesn’t
- Requires existing factory 7-pin pigtail to function
- 7-foot fixed length may be too short for some long-bed configurations
4. Genuine Ford 9L3Z-15A416-B Trailer Hitch Wiring Harness
The Genuine Ford 9L3Z-15A416-B is the exact harness that rolled off the assembly line with your truck. For owners who insist on OEM specifications — whether for warranty preservation, insurance compliance, or simply the peace of mind that comes with factory engineering — this harness delivers zero-compromise fitment. The connectors, wire gauges, and weather seals match the original Ford service parts catalog identically.
Manufactured in the United States, this harness reflects Ford’s quality control standards for terminal retention and moisture sealing. The 1.57-pound assembly uses the same copper conductors and PVC jacketing specified in the original vehicle build, ensuring consistent voltage drop characteristics across the entire length. The package dimensions of 12 x 6 x 10 inches indicate a compact, well-protected unit that ships without excessive packaging waste.
The primary advantage of choosing an OEM harness is the elimination of fitment guesswork. Every tab, clip, and bracket aligns with the factory mounting points on F-150 models equipped with the trailer tow package. Aftermarket harnesses often require minor adjustments or additional hardware to achieve the same fit. For owners who value a clean, factory-like installation and are willing to pay a premium for exact tolerances, this harness justifies its position in the lineup.
What works
- Exact OEM specifications for perfect factory fitment
- USA manufacturing with Ford-grade quality control
- No modification or adapter brackets needed for installation
What doesn’t
- Premium cost relative to aftermarket equivalents
- Limited to vehicles originally equipped with tow package
5. CURT 56031 Vehicle-Side Custom 4-Pin Trailer Wiring Harness
The CURT 56031 is a focused solution for F-150 owners who need basic trailer lighting capability without the complexity or cost of a multi-pin system. This 4-pin flat connector handles tail lights, brake signals, and turn signals — everything required for a standard utility trailer, small boat trailer, or lightweight camper. The plug-in design connects directly to the factory wiring, making it one of the most accessible harness options for first-time trailer towers.
Physical design choices reflect real-world usability. The socket features ergonomic tabs on the top and bottom that provide a secure grip when connecting or disconnecting the trailer plug — a small detail that makes a noticeable difference when wearing gloves in cold weather. The included rubber dust cover snaps into place over the 4-way flat connector when not in use, protecting the terminals from rain, snow, and road salt. The compact 9 x 4 x 2-inch package fits easily into a glove box or storage compartment.
Owner reports consistently praise the installation simplicity. No wire stripping, no soldering, no confusion about which wire goes where — plug the T-connector into the factory port, route the cable to the hitch area, and secure the socket. The harness is designed for select years of the Ford F-150, so checking compatibility with your specific model year is essential before purchase. For budget-conscious owners who only need basic lighting functionality, this harness delivers exactly what it promises without overcomplicating the task.
What works
- True plug-and-play installation with zero wire cutting
- Ergonomic grip tabs make trailer connection easier in gloves
- Rubber dust cover extends connector life in harsh weather
What doesn’t
- 4-pin configuration does not support reverse lights or brake controllers
- Vehicle-specific fitment requires verifying model year compatibility

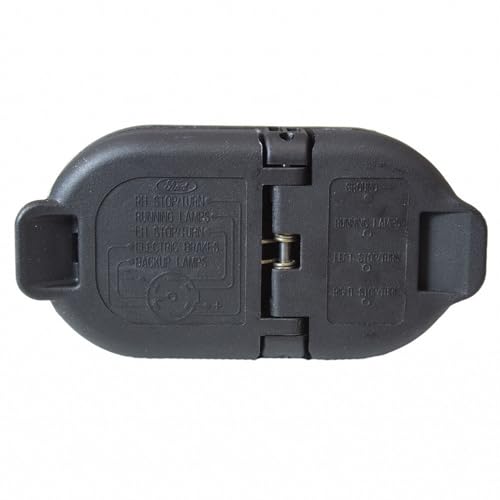

6. Ford 9U5Z-14489-MAA OEM Trailer Brake Harness Towing 4/7 Plug Connector
The Ford 9U5Z-14489-MAA is an OEM harness that bridges the gap between basic lighting and full brake control. It provides both a 4-pin and 7-pin connector in a single integrated plug, giving owners the flexibility to tow trailers with either connector standard without carrying adapters. The harness is designed for vehicles factory-equipped with the trailer towing package, making it a direct replacement for worn or damaged original equipment.
Compatibility spans an unusually wide range of Ford vehicles. Beyond the 2009-2020 F-150, this harness fits F-250, F-350, Transit, Expedition, Explorer, Bronco, and Maverick models with factory towing — a level of cross-platform compatibility that simplifies inventory for owners with multiple Ford vehicles. The 10-ounce assembly uses a plastic housing with sealed internal terminals that resist moisture ingress better than open-contact designs.
The harness ships as a plug-only unit, meaning it does not include the bracket or mounting hardware. Owners need to reuse the existing bracket from the original harness or purchase a separate bracket kit. This is worth noting for those replacing a completely missing harness rather than upgrading an existing one. The two-year warranty from date of purchase provides additional protection beyond typical aftermarket coverage periods, reflecting Ford’s confidence in the OEM build quality.
What works
- Dual 4-pin and 7-pin functionality in a single OEM plug
- Broad compatibility across multiple Ford vehicle lines
- Two-year warranty exceeds typical aftermarket coverage
What doesn’t
- Plug-only configuration — bracket and hardware sold separately
- Requires factory tow package for proper fitment
7. Ford BL3Z-14A411-A Rear View Backup Camera Wire Harness OEM
The Ford BL3Z-14A411-A addresses a completely different need from the trailer-focused harnesses on this list. It is the OEM wiring harness for the rear view backup camera system on 2011-2014 Ford F-150 models. If your truck’s factory camera has stopped working due to a damaged wire at the tailgate hinge or a corroded connector, this harness provides the exact OEM replacement without requiring any aftermarket splicing or adapter modules.
Construction uses copper conductors with a blend of PVC, PE, and TPE insulation materials that match the original wire specifications. The auxiliary cable type and USB Type B connector interface are designed specifically for the factory camera module and radio/navigation system, ensuring proper video signal transmission without interference. The 0.5-pound package includes the complete harness assembly as specified by the Ford BL3Z-14A411-A part number.
Installation involves routing the harness from the camera mounting location at the tailgate handle through the body panels to the head unit or display module. This is more involved than plugging in a trailer harness — owners should be comfortable removing interior trim panels and tailgate skin components. For those experiencing the common F-150 camera failure caused by broken wires in the tailgate hinge boot, this harness is the definitive factory-correct repair solution that aftermarket splices cannot match in reliability.
What works
- Exact OEM replacement for 2011-2014 F-150 backup camera systems
- Factory-matched copper conductors and insulation materials
- Solves the common tailgate hinge wire failure permanently
What doesn’t
- Limited to 2011-2014 F-150 models with factory camera
- Installation requires trim panel removal and moderate DIY skill
Hardware & Specs Guide
Connector Types Explained
A 4-pin flat connector carries four circuits: left turn/brake, right turn/brake, tail/marker lights, and a ground. This covers the legal minimum for trailer lighting in most states and works with small utility, boat, and landscape trailers. A 5-pin flat adds a dedicated reverse light circuit, which some marine and camper trailers require for loading at night or backing into tight spaces. The 7-way RV connector adds two more circuits: electric brake controller output (blue wire) and a 12V auxiliary power line (black wire) that charges trailer batteries and powers interior lights or winches. The 7-way also uses a different physical latch mechanism compared to 4- and 5-pin flats, requiring a matching trailer-side plug.
Wiring Material and Durability
Automotive-grade wiring harnesses use stranded copper conductors for flexibility and resistance to vibration fatigue. The insulation material plays a major role in longevity: PVC (polyvinyl chloride) is the most common and offers good abrasion and moisture resistance at a moderate cost. TPE (thermoplastic elastomer) and PE (polyethylene) blends improve low-temperature flexibility and UV resistance, making them preferable for trucks exposed to extreme cold or constant sun. Slit loom or corrugated conduit adds a secondary layer of protection against chafing where the harness passes through metal body panels. Rubber dust covers on connectors prevent terminal corrosion, which is the leading cause of intermittent electrical faults in trailer wiring systems.
FAQ
Can I install a 7-way harness on a Ford F-150 that only has a 4-pin connector?
What is the difference between a plug-and-play harness and a universal splice-in harness?
Why does my Ford F-150 backup camera show a black screen even though the camera itself looks clean?
Do I need a brake controller to use a 7-way trailer harness on my F-150?
Final Thoughts: The Verdict
For most buyers, the best ford f150 wiring harness winner is the CURT 56584 because it balances 5-pin capability, true plug-and-play installation, and protective features like slit loom and a dust cover at a reasonable investment. If you need to upgrade a 4-pin truck to full 7-way brake controller compatibility, grab the Tekonsha 118242. And for heavy-duty fifth-wheel or gooseneck towing, nothing beats the MECMO 7-pin truck bed extension for keeping your bed clean and your connections accessible.
