A failing or failed catalytic converter on your Chevrolet Traverse usually announces itself with a dreaded P0420 or P0430 diagnostic trouble code, a sharp drop in fuel economy, and that sulfur-rotten-egg smell near the exhaust. For the 3.6L V6 platform found in most Traverse models from 2009 through 2017, the factory converter’s precious metal load can degrade over time, especially if oil consumption or a misfire has contaminated the substrate. Whether you drive the first-gen Lambda platform or the facelifted models, replacing this expensive emissions component with a direct-fit unit that matches the OE flange pattern and oxygen sensor placement is the only route to a clean inspection report.
I’m Amir — the founder and writer behind Four Wheel Ask. I have spent years analyzing emissions compliance data, cross-referencing OEM part numbers against aftermarket offerings, and studying real owner feedback from Traverse forums to separate converters that actually hold the precious metal load from units that fail within a thousand miles.
Choosing the right replacement involves understanding substrate density, washcoat technology, and state-specific restrictions. I’ve assembled this guide on the chevrolet traverse catalytic converter to help you match the correct part to your specific engine code and emissions classification the first time.
How To Choose The Best Chevrolet Traverse Catalytic Converter
Not every converter that fits physically will pass the OBDII readiness monitors and keep the check engine light off. The key is to match the converter’s substrate cell density, precious metal load, and legal classification to your Traverse’s specific model year and emissions tag.
Federal vs. California Emissions Classification
Open the hood of your Traverse and locate the Vehicle Emission Control Information (VECI) label on the underside of the hood or near the radiator core support. If the label reads “California” or “CARB,” you are legally required to install a CARB-compliant catalytic converter. Federal emissions converters, which are less expensive, are legal only for vehicles originally equipped with a “Federal” or “49-state” emissions system. Installing a Federal converter on a California-spec Traverse triggers fines and a failed smog check, and the converter manufacturer’s warranty becomes void.
Substrate Density and Precious Metal Load
The ceramic honeycomb substrate inside the converter carries a washcoat of platinum, palladium, and rhodium. Higher precious metal loadings reduce the likelihood of a P0420 or P0430 return code, especially on the 3.6L V6, which can push higher exhaust temperatures. OEM-grade units from Walker and MagnaFlow use a washcoat formulation that matches the factory’s conversion efficiency. Budget units often reduce the precious metal content to cut cost, leading to early failure and a recurring check engine light.
Direct-Fit vs. Universal Converters
A direct-fit converter bolts on using the existing exhaust hangers and flange bolts without any cutting, welding, or pipe splicing. Universal converters require you to cut the existing exhaust pipe and weld the new converter in place, which introduces alignment risks and potential exhaust leaks. For the Traverse’s transverse engine layout and tight underfloor clearance, a direct-fit unit saves labor time and eliminates fitment guesswork on the front converter location.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Walker Ultra EPA 16709 | Direct-Fit | OE-Style Replacement | 2″ Outlet OD, Fits 3.6L | Amazon |
| MagnaFlow 51578 | Direct-Fit | Longevity Build | 5-Year / 50,000-Mile Warranty | Amazon |
| MagnaFlow 51206 | Universal | Custom Fabrication | 2.5″ Inlet/Outlet, Clamshell | Amazon |
| Auto Dynasty Front Kit | Downpipe Kit | Traverse 2009-2015 3.6L | Set of 3 Tubes, Stainless | Amazon |
| A-Premium Front Conv 2.4L | Direct-Fit | 2.4L Equinox/Terrain V6 | L4 2.4L, Federal Emissions | Amazon |
| Anytek Front Converter | Universal | GM Truck V8 Models | 4.3L-5.3L, Stainless Shell | Amazon |
| A-Premium Front Conv 1.4L | Direct-Fit | 1.4L Cruze/Sonic/Trax | 1.4L Turbo, Federal | Amazon |
In‑Depth Reviews
1. Walker Ultra EPA 16709 Direct Fit Catalytic Converter
The Walker Ultra EPA 16709 is the closest aftermarket equivalent to the GM factory catalytic converter for the 3.6L V6 Traverse. It uses an OE-style high-technology washcoat and an optimal precious metal load that specifically targets the P0420 and P0430 oxygen sensor efficiency codes common on this platform. The direct-fit design includes the correct heat shields, hangers, and flange geometry so the unit bolts onto the existing exhaust without any cutting or adapter fabrication.
What makes this converter stand out for Traverse ownership is the 2″ outlet diameter that matches the factory pipe sizing perfectly. The aluminized heat shields are welded on at OE-style positions, protecting the passenger floor pan from radiant heat during extended highway operation. Walker’s engineering team at Tenneco uses 3D scanning to ensure the O2 sensor bungs are located exactly where the upstream and downstream sensors expect them, which prevents false lean or rich codes that cheap universal converters often trigger.
Real-world reports from Traverse and Acadia owners confirm that this converter clears the DTC and keeps readiness monitors set through the OBDII drive cycle. The 2-year emissions warranty gives you a solid safety net if the substrate were to degrade prematurely. The only downside is that this unit is restricted from sale in California, Colorado, New York, and Maine, so the VECI label check is mandatory before purchase.
What works
- Precise direct-fit bolt-on for 3.6L Traverse model years 2009-2017
- OE-spec washcoat and precious metal load clears P0420/P0430 long-term
- Aluminized heat shields installed at factory locations
What doesn’t
- Not legal in California, Colorado, New York, or Maine emissions states
- Premium price point relative to universal alternatives
2. MagnaFlow 51578 OEM Grade Direct-Fit Catalytic Converter
The MagnaFlow 51578 is built with the same spun-body stainless steel construction used in MagnaFlow’s premium exhaust line, giving it a corrosion resistance advantage over welded seam designs. This is a direct-fit converter that includes all the required mounting hardware and positions the O2 sensor bungs exactly where the factory computer expects them. The OEM-grade washcoat formulation targets the precious metal loading necessary for the GM 3.6L V6 to maintain catalyst efficiency monitors below the threshold that triggers a DTC.
This converter was originally designed to fit the 2009-2013 Silverado and Sierra 1500 trucks with the Vortec V8, but its spun-body design and 2.5″ inlet/outlet dimensions make it adaptable for custom Traverse exhaust configurations if the original pipe diameter matches. The 5-year/50,000-mile limited warranty covers both the construction and emissions performance, which is the longest coverage in this comparison. A 60,000-mile real-world test on a Yukon XL showed no drop in conversion efficiency after half a decade on the vehicle.
The trade-off is that this unit requires professional installation unless you are comfortable cutting and welding the existing exhaust for a universal-style fit. The lack of direct-fit hangers and heat shields means the installer must transfer the original heat shielding or fabricate brackets. Verified buyers consistently praise the build quality but note that the included gaskets are not always sized for the Traverse’s specific flange pattern, so checking the exhaust flange dimensions ahead of time is wise.
What works
- Spun-body stainless steel construction resists corrosion far better than welded shells
- 5-year/50,000-mile warranty is best-in-class coverage
- Proven long-term substrate durability on GM V8 and V6 platforms
What doesn’t
- Not a direct bolt-on for Traverse; requires fabrication and welding
- Heat shields not included; must transfer existing factory shields
3. MagnaFlow 51206 OEM Grade Universal Catalytic Converter
The MagnaFlow 51206 is a universal oval-bodied converter that uses a clamshell case with a continuous seam weld to maintain thermal uniformity across the catalyst bed. The 2.5″ inlet and outlet diameter fits the Traverse exhaust path if you are cutting out the failed converter and welding this unit in its place. The 1/2-inch lap joint at the neck-to-body transition adds structural integrity against vibration fatigue on the highway.
This converter carries the same OEM-grade washcoat used in MagnaFlow’s direct-fit line but at a lower price point because the body lacks vehicle-specific hangers and heat shields. The integral O2 sensor ports can be positioned at any orientation during installation, which is helpful if the original bungs are damaged or stripped. The 5-year/50,000-mile construction warranty applies, but the emissions coverage drops to 25,000 miles, which is still reasonable for a universal-grade converter.
The biggest challenge with the universal 51206 on a Traverse is that the 2.5″ pipe diameter is larger than the factory 2.0″ outlet on some 2009-2012 models. You will need reducing couplers or a muffler shop’s expander tool to make the transition. Verified customers report that the substrate quality is consistent with MagnaFlow’s reputation — it clears the code and passes the sniffer test — but the lack of direct-fit brackets means the weight of the converter is supported only by the weld joints, so proper bracing is critical.
What works
- Clamshell continuous seam weld prevents exhaust leaks at the body joint
- OEM-grade washcoat delivers reliable conversion efficiency
- 5-year construction warranty protects your investment
What doesn’t
- No direct-fit hangers or heat shields require custom fabrication
- 2.5″ pipe diameter may exceed factory 2.0″ outlet on some Traverse years
4. Auto Dynasty Factory Style Front Catalytic Converter Exhaust Down Tubing Kit
The Auto Dynasty kit supplies three factory-style catalytic converter exhaust tubes that replace the entire front downpipe assembly on the 3.6L Lambda platform, including the Buick Enclave, GMC Acadia, and Saturn Outlook in addition to the Chevy Traverse. The stainless steel construction with CNC mandrel bends mirrors the factory tube routing, which is critical for clearance around the front subframe and steering rack on the transverse-engine layout. TIG welding at the joints ensures the welds can withstand the thermal cycling of the 3.6L V6.
This is a direct bolt-on replacement with OEM-style O2 sensor bung positions, so the upstream and downstream sensor wiring reaches without stretching or splicing. The kit comes with gaskets and mounting hardware, though multiple buyers note that the supplied gaskets are the weakest link — they compress unevenly and can create exhaust leaks at the flange joints. Replacing the kit gaskets with Walker or Fel-Pro gaskets during installation solves that issue entirely.
The primary concern reported by owners is the DTC return rate. Several verified customers report that the check engine light returns within 50 to 100 miles after installation, with the same P0420 code indicating that the converter’s precious metal load is insufficient for the OBDII monitor threshold. This suggests the Auto Dynasty converter is better suited as a short-term fix for a vehicle that is not used for emissions testing rather than a long-term solution for a daily driver that needs annual smog inspection.
What works
- Three-tube set replaces entire front exhaust assembly for 3.6L models
- TIG-welded stainless steel construction with CNC mandrel bends
- OE-style O2 bung locations for direct sensor plug-and-play
What doesn’t
- Included gaskets are low quality and prone to leaking
- High probability of P0420 code return within 50 miles
5. A-Premium Front Catalytic Converter with Gasket Kit for 2.4L Models
The A-Premium front converter is engineered specifically for the L4 2.4L Ecotec engine found in the Chevrolet Equinox and GMC Terrain rather than the Traverse’s 3.6L V6, but it serves as a direct-fit reference point for buyers who may also own a sibling GM crossover. The converter includes the full gasket set, mounting hardware, and a new O2 sensor plug for unused sensor bungs. The stainless steel body with 3-bolt welded inlet flange and 2-bolt welded outlet flange matches the factory interface exactly.
The EPA-compliant federal emissions designation means this unit clears readiness monitors for 49-state use, and it passed Arizona emissions in verified owner reports within the first 30-minute drive cycle. The 2.4L Ecotec runs at a lower exhaust temperature than the 3.6L V6, which places less thermal stress on the substrate, so the A-Premium’s precious metal loading is adequate for the smaller engine’s output. The one-year unlimited-mileage warranty provides a simple replacement path if the unit fails within the first 12 months.
The main limitation is that this converter is restricted in California, Colorado, New York, and Maine, and some owners report the check engine light returning after 12 months of service, suggesting that the washcoat durability does not match MagnaFlow or Walker standards. The 15-pound shipping weight indicates a thicker-walled shell than many budget converters, but the actual catalyst volume may be smaller than the original GM unit. This is a solid mid-range choice for the 2.4L platform but not applicable to the Traverse’s 3.6L.
What works
- Complete gasket and hardware kit simplifies installation
- Passed state emissions testing in verified owner reports
- Stainless steel body resists corrosion in winter-road salt regions
What doesn’t
- Designed for 2.4L Ecotec, not the Traverse 3.6L V6
- Some units fail within 12 months, indicating variable quality control

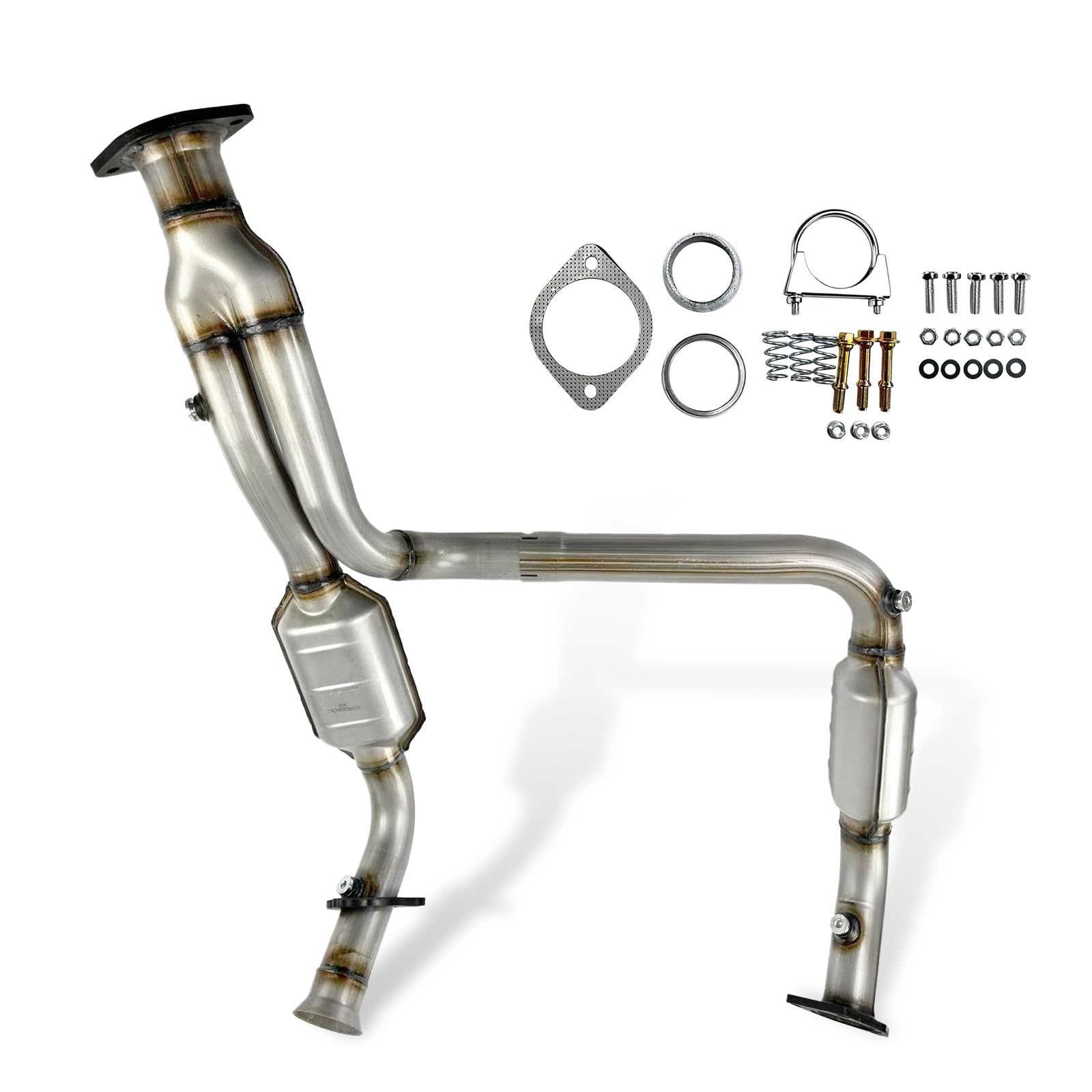

6. Anytek Front Catalytic Converter for 1999-2007 Chevy Trucks
The Anytek front catalytic converter is built for the GMT800 truck platform with 4.3L, 4.8L, and 5.3L engines, using a high-flow 409L stainless steel shell and a 1-year warranty. The converter uses reference numbers 645988, 18010, and 50511, which cross-reference to the GM truck applications rather than the Traverse Lambda platform. The stainless steel welding and high-temperature corrosion resistance are appropriate for the exhaust temperatures generated by the V8 engine family.
Verified buyers on Silverado and Tahoe models report that the unit fits the factory piping without modification and passes state emissions inspections. The O2 sensor ports are positioned to match the original downstream sensor locations, and the shell thickness prevents the rattling noise that affects cheaper spun-body converters. However, one owner reported that the converter triggered a system error and an ongoing check engine light, requiring diagnostic clearing after every drive cycle.
For the Traverse buyer, this converter is not a direct replacement. The engine placement, flange pattern, and pipe diameter differ between the GMT800 truck platform and the Lambda crossover platform. You could adapt this universal converter with custom welding and pipe reducers, but the result would not match the OE mounting points or heat shield clearance. This unit is best left for the truck applications it was designed for, not the 3.6L Traverse.
What works
- 409L stainless steel shell resists high-temperature oxidation
- Good fitment for GMT800 truck platforms with minimal adjustment
- Competitive price point for a V8 universal replacement
What doesn’t
- Not designed for the Traverse 3.6L transverse engine layout
- Some units trigger persistent system error codes after installation

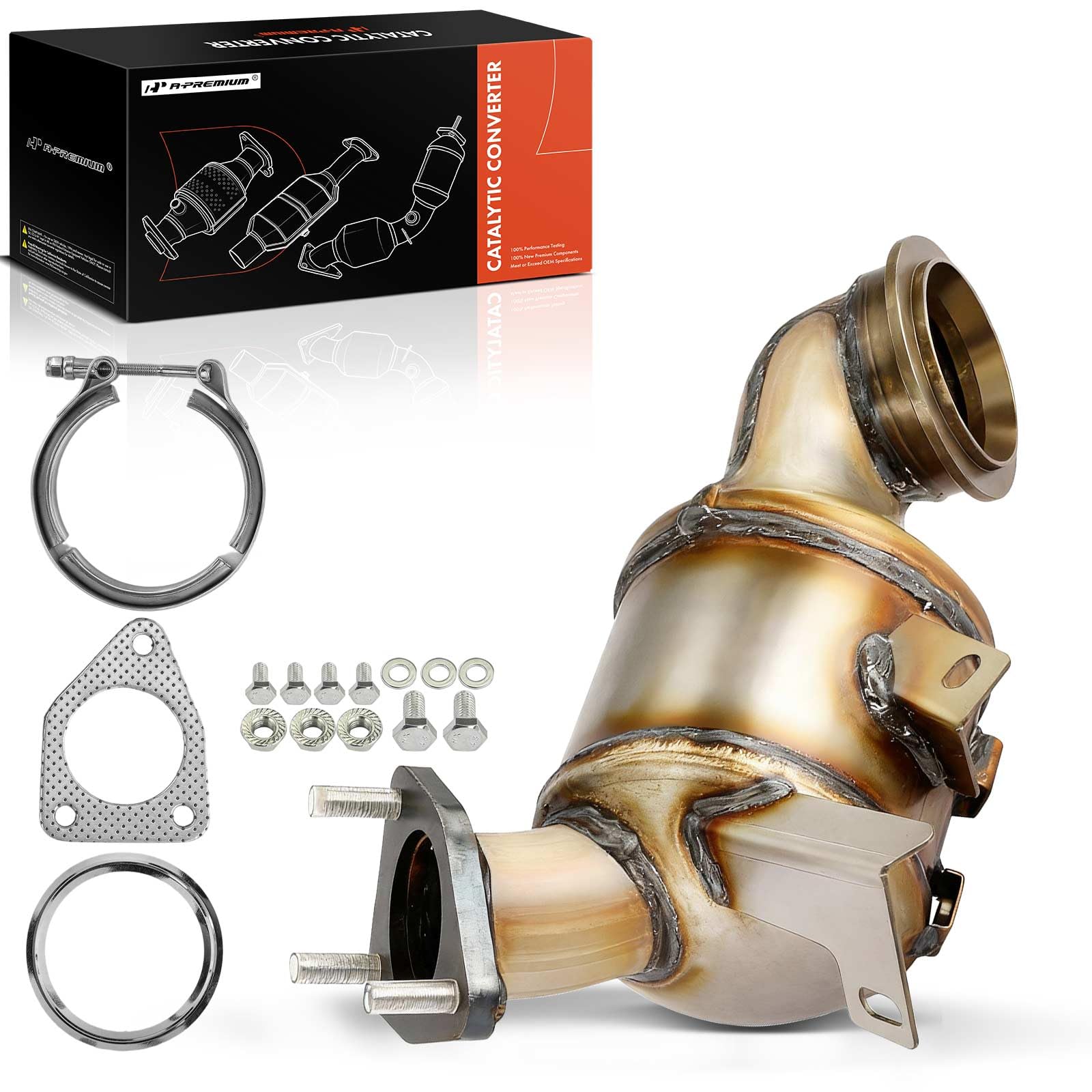

7. A-Premium Front Catalytic Converter with Gasket Kit for 1.4L Models
The A-Premium front catalytic converter for the 1.4L turbocharged engine is designed for the Chevrolet Cruze, Sonic, Trax, and Buick Encore rather than the Traverse. The converter includes the turbo-to-downpipe gasket and bolts, making it a complete kit for the 1.4L LUJ/LUV/L3 engine family. The inlet connects directly to the turbo outlet flange, and the 3-bolt welded flange outlet connects to the center exhaust section without any pipe splicing.
Verified owners report mixed outcomes. Some Cruze and Sonic owners confirm the converter fits correctly and clears the check engine light for emissions testing. Others report that the supplied V-clamp does not match the turbo outlet flange diameter, requiring a trip to the auto parts store for the correct clamp. The most concerning review comes from a 2014 Encore owner whose check engine light returned after just 100 miles, and the OE dealer converter ultimately solved the issue, suggesting the A-Premium unit may lack sufficient precious metal load for the direct-injection 1.4L platform.
For a Traverse owner, this converter is not the correct part. The 1.4L turbo engine’s exhaust system places the catalytic converter immediately downstream of the turbocharger, whereas the 3.6L Traverse uses a log-style manifold with the converter further back under the floorpan. The dimensions, flange spacing, and pipe diameter are completely incompatible. This product belongs in a Cruze or Sonic article, not a Traverse guide.
What works
- Includes gasket and bolts for a complete install kit on 1.4L turbo
- Stainless steel body construction for basic oxidation resistance
- Direct-fit design eliminates pipe cutting for compatible vehicles
What doesn’t
- Not compatible with the Traverse 3.6L V6 engine or exhaust layout
- Inconsistent turbo flange clamp sizing causes fitment issues
Hardware & Specs Guide
Substrate Cell Density
Most factory Traverse converters use a ceramic substrate with 400 cells per square inch (CPSI) to balance flow restriction against conversion surface area. Higher cell counts (600 CPSI) improve low-load conversion efficiency but can cause backpressure issues on the 3.6L V6’s variable valve timing. Aftermarket converters often use 300 or 400 CPSI substrates to maintain acceptable exhaust scavenging while still meeting the OBDII threshold.
Precious Metal Loading
The conversion efficiency of a catalytic converter is directly tied to the mass of platinum (Pt), palladium (Pd), and rhodium (Rh) applied to the washcoat. For the Traverse 3.6L, a converter needs at least 3-5 grams of total precious metals to keep the catalyst efficiency monitor below the federal diagnostic threshold of 1.5. Budget converters often reduce the loading to below 2 grams, which causes the P0420 code to return within the first drive cycle.
O2 Sensor Bung Positioning
The Traverse uses two oxygen sensors per bank: an upstream air-fuel ratio sensor and a downstream catalyst monitor sensor. The distance between the upstream sensor bung and the converter face must match the factory dimension to ensure the sensor reaches operating temperature at the correct rate. If the bung is more than 4 inches from the converter inlet, the sensor reads cooler exhaust and extends the closed-loop entry time.
Flange Type and Pipe Diameter
The 2009-2017 Traverse 3.6L uses a 3-bolt flange at the manifold-to-downpipe connection, with bolts spaced 2.5 inches apart. The outlet pipe diameter at the converter exit is 2.0 inches on most front-drive models. If the replacement converter uses a 2.25-inch or 2.5-inch outlet, the exhaust shop must install a reducing coupler to match the center pipe, which introduces a potential exhaust leak point.
FAQ
Will a catalytic converter from a 3.6L GMC Acadia fit my Chevy Traverse?
Why does my check engine light come back on after replacing the Traverse catalytic converter?
Can I install a universal catalytic converter on my Traverse instead of a direct-fit unit?
What does the P0420 code mean on a 2009 Chevrolet Traverse?
How do I know if my Traverse has Federal or California emissions without taking it to a dealer?
Final Thoughts: The Verdict
For most buyers, the chevrolet traverse catalytic converter winner is the Walker Ultra EPA 16709 because it directly bolts onto the 3.6L Lambda platform, uses an OE-spec washcoat that holds the conversion efficiency long-term, and includes the aluminized heat shields that protect the passenger compartment from radiant heat. If you want the longest warranty coverage and are comfortable with professional welding, grab the MagnaFlow 51578. And for a budget-friendly universal option that still carries MagnaFlow’s OEM-grade substrate quality, nothing beats the MagnaFlow 51206 for custom exhaust work.
