The humble banjo fitting is the hydraulic lynchpin of any disc brake system. A mismatched thread or a low-grade crush washer creates a failure point that compromises fluid pressure and introduces air into the system. Understanding the material science and thread compatibility behind these small parts separates a reliable build from a roadside disappointment.
I’m Amir — the founder and writer behind Four Wheel Ask. My work focuses on analyzing aftermarket brake system components, comparing material grades, thread compatibility, and real-world sealing performance across hundreds of owner reports.
Whether you are plumbing a custom caliper or refreshing a rusty original line, the choice of fitting dictates the integrity of the connection. Upgrading your stopping power demands reliable hardware, and finding the best banjo brake fittings ensures a leak-free, high-pressure seal for your custom lines.
How To Choose The Best Banjo Brake Fittings
Banjo fittings appear simple, but the details determine whether your hydraulic system bleeds properly and holds pressure for years. Three core factors will dictate your choice: the physical thread dimensions, the material properties, and the routing geometry of the fitting itself.
Thread Size and Pitch
The most common metric threads in automotive and motorcycle calipers are M10x1.0 and M12x1.25. Using the wrong pitch even by a fraction of a millimeter will strip the caliper bore. For AN conversions, you need an adapter that bridges the -3AN or -4AN flare fitting to the correct metric banjo bolt. Always verify the thread pitch using a thread gauge before ordering any replacement hardware.
Material and Build Quality
Stainless steel (usually 304 SUS) offers the best corrosion resistance and retains torque well at the hex head. Chromed brass fittings resist corrosion but can be softer and prone to rounding if over-torqued. The crush washers supplied with the kit—typically copper or aluminum—are single-use items that deform to create the hydraulic seal. Reusing them invites leakage at the banjo joint.
Angle and Routing Clearance
Banjo fittings come in straight, 28-degree, 45-degree, and 90-degree configurations. The specific angle you need depends entirely on the caliper inlet orientation and the path of your brake line. Some high-end kits feature a 360-degree rotatable joint that lets you align the banjo perfectly without pre-twisting the line, which is a strong indicator of a premium design.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Russell/Edel 640471 | Adapter Fitting | OEM+ Reliability | -3AN to 10mm | Amazon |
| VRWEARE AN3 Kit | Brake Hose Kit | Complete Install | 120cm + 3 Banjos | Amazon |
| AC PERFORMANCE | Bolt Set | M10 Value Kit | 20mm UHL / 2-Pack | Amazon |
| Edelbrock 640541 | 90 Deg Banjo | Custom Angles | #3 to 10mm | Amazon |
| AFATEBOX M12 | Single Bolt | Budget Replacement | M12x1.25 Thread | Amazon |
In‑Depth Reviews
1. Russell/Edel 640471 Endura -3AN 10mm
Russell is a benchmark name in AN plumbing, and their Endura line carries the same engineering as their race-proven hardware. This adapter fitting bridges -3AN line to a 10mm banjo bolt configuration, making it the ideal solution for converting a modern metric caliper to a traditional AN flare setup. The Endura finish is a corrosion-resistant coating applied over the brass core to extend the service life in road salt and moisture.
Owner feedback is consistently positive, with multiple reports of zero leakage when installed on high-end big brake kits and Brembo caliper conversions. The 45-degree endura finishing mentioned in the technical specifications helps reduce bending stress on the hard line, creating a cleaner routing path than a straight adapter would allow. Every fitting is backed by Russell’s ISO 9001:2008 quality registration, ensuring dimensional consistency.
This is not a generic import part. It is a precisely machined component from a manufacturer that supplies the professional racing market. For builders who prioritize reliability over price and need a guaranteed leak-free seal on a performance brake system, this fitting sets the standard.
What works
- Trusted Russell/Edelbrock manufacturing pedigree
- Endura finish adds real corrosion resistance
- Ideal for custom brake line conversions
What doesn’t
- Sold individually, not as a pair
- Brass body softer than stainless steel alternatives
2. VRWEARE AN3 28 90 Degree M10 Brake Hose Line
This VRWEARE kit provides everything needed for a complete brake line replacement in one package: a stainless steel braided PTFE hose, two 28-degree banjos, one 90-degree banjo, and all necessary fittings. The 360-degree rotatable joint at the caliper end is a standout feature, allowing you to orient the banjo perfectly without twisting the line or stressing the hose end.
Build quality is noticeably high for the price point. The stainless steel braid is tightly woven without stray wires, and the aluminum black fittings have a uniform anodized finish. Owners report successful installations on a wide range of applications including Chinese Enduro bikes, Harley Road Glides with inverted front ends, and custom metric cruisers. The ability to cut the hose to a custom length is a significant advantage over pre-made lines.
The included banjos offer flexibility for routing around forks and frame tubes. The 28-degree fittings work well for standard caliper mounts, while the 90-degree banjo solves tight clearance angles on the master cylinder or rear caliper. This is a comprehensive solution for anyone looking to upgrade rubber lines to stainless steel without sourcing multiple components.
What works
- Excellent overall value for a full hose kit
- 360-degree swivel eliminates line twisting
- Multiple banjo angles included for routing flexibility
What doesn’t
- Fixed 120cm length may be too long for compact builds
- Long-term UV resistance of the outer sheath is unproven

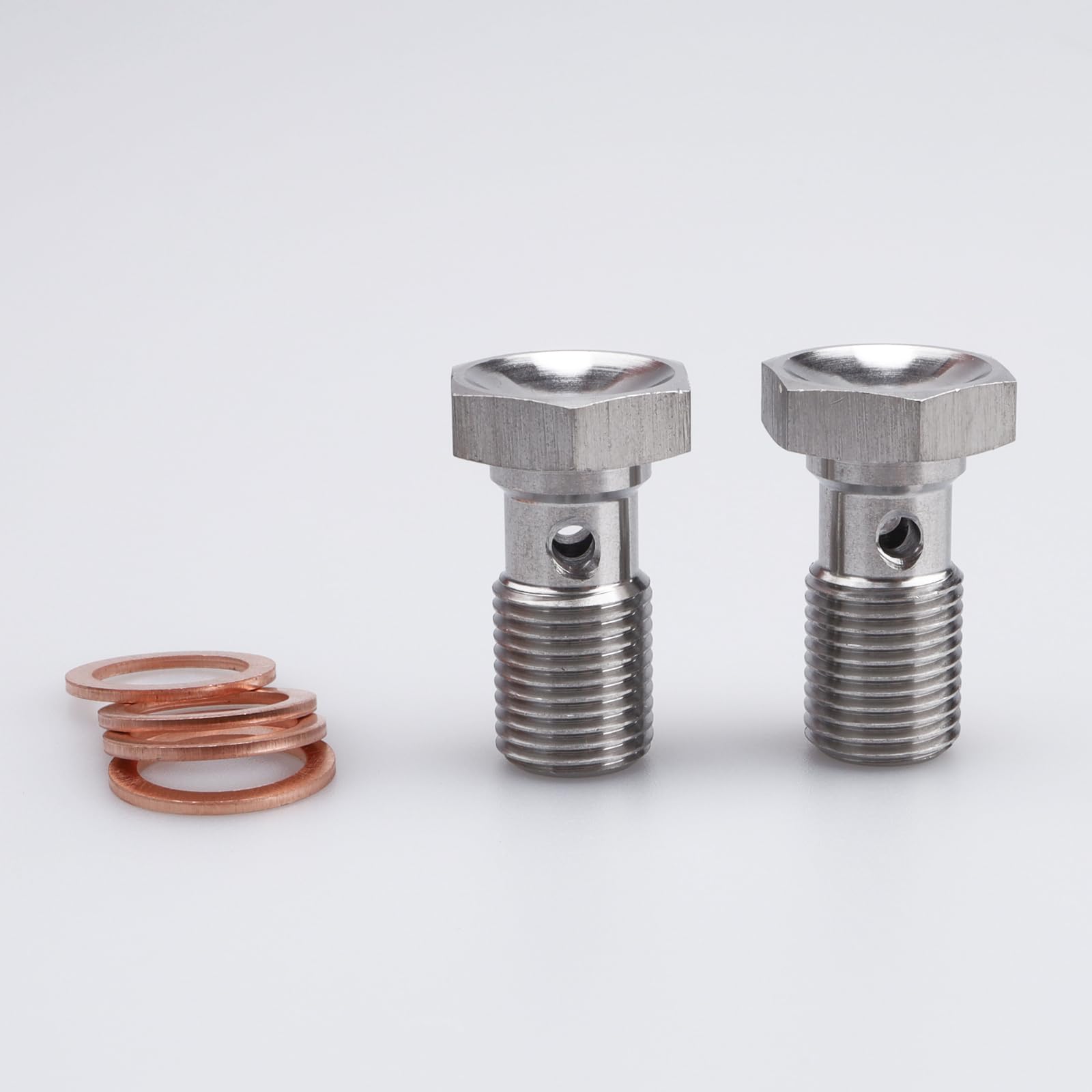

3. AC PERFORMANCE M10 x 1.0 Banjo Bolt Set
AC PERFORMANCE delivers a precision-machined 304 stainless steel banjo bolt set that competes directly with OEM quality at a fraction of the dealership price. The set includes two bolts and four copper crush washers, giving you a complete replacement for a pair of calipers. The 20mm thread length (under head) covers most standard caliper applications without bottoming out.
Real-world owner reports highlight the versatility of this fitting. Users have successfully installed these bolts on a 1972 Chevelle front caliper swap, a Willys Jeep CJ2A disc brake conversion, and various streetbike applications. The stainless steel material provides inherent corrosion resistance that plated steel bolts cannot match, making them a smart choice for vehicles exposed to moisture or road salt.
Each component is machined to tight tolerances. The hex head is crisp and accepts a wrench without slop. The threads are clean and start smoothly into cleaned caliper bores. For a budget-conscious build that demands reliable sealing, this two-pack represents the best value proposition in the metric banjo category.
What works
- True 304 stainless steel will not rust or pit
- Excellent thread fit and hex head machining
- Two bolts included provide great value
What doesn’t
- 20mm thread length may need trimming for shallow calipers
- Crush washers are basic copper, not aluminum sealing rings
4. Edelbrock 640541 Endura #3 To 10Mm 90Deg Banjo
Edelbrock is a name that commands respect in the aftermarket performance industry, and this banjo fitting reflects their commitment to American manufacturing and quality control. The 640541 is a 90-degree adapter that converts a -3 AN male flare to a 10mm banjo bolt, engineered specifically for solving tight clearance issues around calipers and master cylinders where a straight fitting will not work.
The fitting is manufactured under Edelbrock’s ISO 9001:2008 registered quality system. The Endura coating provides a clean finish that resists the elements. Owner reviews consistently describe the fit as precise, with one user noting it worked perfectly for relocating a brake line on a motorcycle to achieve a cleaner routing path. The 90-degree bend allows the hard line or hose to sit parallel to the caliper body, reducing the risk of snagging.
While the listing specifies a painted exterior, the underlying build quality ensures that this fitting will seal correctly and hold pressure for the long term. It is a specialized component designed for builders who need a specific geometry and refuse to compromise on brand reputation.
What works
- Trusted Edelbrock/Russell engineering and QC
- Ideal 90-degree angle for tight routing constraints
- Durable Endura corrosion-resistant finish
What doesn’t
- Limited to a single specific angle configuration
- Higher unit cost compared to universal straight bolts
5. AFATEBOX M12x1.25 Stainless Steel Banjo Bolt
For owners needing a simple, direct replacement for an M12x1.25 banjo bolt, the AFATEBOX option provides a functional solution at the lowest entry point. It is constructed from SUS304 stainless steel and includes two copper crush washers. The chrome-plated finish gives it a bright, clean appearance that matches OEM hardware visually.
Owner feedback confirms that the bolt fits standard caliper applications correctly. Several users on a tight budget or those needing a quick replacement found it to be a convenient option. The overall length of 36mm is sufficient for most M12 caliper bores, and the 12.2mm banjo eye diameter accommodates standard banjo fittings.
It is important to note that this is a single bolt, whereas many competitors offer a two-pack. The chrome-over-stainless construction also means the plating can chip over time if the hex head is rounded by a wrench. For a no-fuss replacement where cost is the primary constraint, this bolt gets the job done.
What works
- Affordable entry price for a single replacement
- Bright chrome finish looks clean on the caliper
- Stainless steel core prevents rust
What doesn’t
- Only one bolt in the package
- Chrome plating can chip if torqued carelessly
Hardware & Specs Guide
Thread Pitch vs. AN Size
Metric calipers use either M10x1.0 or M12x1.25 threads. The number after the “x” is the pitch in millimeters per thread. AN (Army-Navy) sizes like -3AN and -4AN refer to the outer diameter of the metal tube (-3AN is 3/16-inch, -4AN is 1/4-inch). Adapter fittings bridge these two worlds.
Material Selection
304 Stainless Steel offers the best balance of tensile strength and corrosion resistance, making it ideal for daily-driven vehicles. Chromed Brass is common in show builds because of its shine, but it is softer and more prone to galling. Aluminum fittings are lightweight but require careful torque application to avoid stripping.
Crush Washer Orientation
Copper and aluminum crush washers deform under torque to fill microscopic gaps between the banjo bolt head, the fitting, and the caliper body. These washers are designed for single use. Reusing a hardened washer is the most common cause of a persistent weep leak at the banjo joint.
Angle and Clearance
The fitting angle determines the direction the brake line exits the caliper. Standard options include 0 (straight), 28, 45, and 90 degrees. A 360-degree swivel joint allows the banjo to rotate freely during installation, allowing the line to be positioned without twisting the hose.
FAQ
What is a banjo brake fitting?
How do I know my banjo bolt thread size?
Can I reuse banjo crush washers?
Final Thoughts: The Verdict
For most buyers, the best banjo brake fittings winner is the Russell/Edel 640471 Endura because it delivers race-proven sealing at a reasonable price point with a brand that backs its manufacturing. If you want a complete line upgrade with routing flexibility, grab the VRWEARE AN3 Kit. And for a budget-friendly stainless steel replacement that comes as a pair, nothing beats the value of the AC PERFORMANCE M10 Set.
