Air brake tubing is the silent backbone of every heavy‑duty braking system—get it wrong and you risk downtime, leaks, or worse. The sheer variety of materials, approvals, and diameters makes choosing the right line a real headache for fleet managers and owner‑operators alike.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years dissecting manufacturer specs, cross‑referencing SAE and DOT standards, and combing through hundreds of owner reports to understand what actually holds up under the dash and behind the cab.
When choosing replacement air lines for your rig, finding the best air brake tubing means balancing DOT compliance with real‑world durability and hassle‑free installation.
How To Choose The Best Air Brake Tubing
Selecting air brake tubing isn’t just about grabbing the cheapest roll. The three pillars are material grade, compliance rating, and physical dimensions. Each factor directly impacts safety, installation ease, and how long the line will last under vibration, salt, and temperature swings.
Material: PA12 vs. Standard Nylon
Polyamide 12 (PA12) is the gold standard for air brake systems because it absorbs very little moisture and resists cracking from UV and road chemicals. Standard nylon (PA6 or PA66) is cheaper but can become brittle in cold weather. All 3/8″ DOT lines in this guide use PA12 for a reason—greater impact resistance and a wider operating temperature window.
DOT Approval and SAE J844
DOT FMVSS 571.106 and SAE J844 are the legal benchmarks for air brake tubing in commercial vehicles. Using non‑compliant line voids safety certifications and can lead to fines during inspections. Every product we review either meets or exceeds these standards—look for the marking printed on the hose.
Outer Diameter and Wall Thickness
1/4″ OD is common for light‑duty air accessories and trailer brake lines, while 3/8″ OD is the standard for main air brake circuits on semi‑trucks and heavy trucks. 1/2″ OD is used for high‑volume applications like suspension systems. Wall thickness determines burst pressure—thicker walls handle higher pressure but reduce flexibility. Aim for at least 0.040″ wall for 1/4″ and 0.125″ for 3/8″.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| CheeMuii Kit (100ft) | Premium | Complete system swap | 3/8″ OD PA12, 32 brass fittings | Amazon |
| Boeray 50ft + Cutter | Mid-Range | Long runs + precise cuts | 3/8″ OD, PA12, 800 PSI | Amazon |
| Utah Pneumatic 32.8ft | Mid-Range | Engine bay & industrial | 3/8″ OD, PA12, 150 PSI working | Amazon |
| Mytee Products 1/4″ 50ft | Value | Trailer & accessory lines | 1/4″ OD, SAE J844, 150 PSI | Amazon |
| Qolekog 32.8ft | Budget | Basic air ride or fluid transfer | 3/8″ OD, nylon, 750 PSI | Amazon |
| Boeray 35ft + Cutter | Value | Medium run + included cutter | 3/8″ OD, PA12, DOT, 800 PSI | Amazon |
| 4LIFETIMELINES 3/16″ Steel | Premium | Hydraulic brake lines | 3/16″ OD, PVF coated, 12559 PSI | Amazon |
| telfair 1/2″ 50ft | Mid-Range | Air suspension & high flow | 1/2″ OD, PA12, 500 PSI | Amazon |
| Boeray Brass Fittings (5pc) | Accessory | Replacing leaky connections | 3/8″ OD × 1/4″ NPT, brass, 250 PSI | Amazon |
| XaXmTee 12ft 3‑in‑1 | Premium | Pre‑assembled trailer swap | 3/8″ ID rubber, SAE J1402A | Amazon |
| CheeMuii 15ft Coiled Kit | Premium | Complete gladhand replacement | Coiled PA12, 7‑way cord included | Amazon |
In‑Depth Reviews
1. CheeMuii 100ft 3/8″ DOT Air Line Kit
The CheeMuii kit bundles a full 100 feet of 3/8″ DOT‑approved PA12 nylon tubing with 32 solid brass push‑connect fittings, covering nearly every angle an installer needs. The tubing is rated up to 800 PSI and handles temperatures from -40°F to +248°F, matching or exceeding fleet spec requirements. Customer feedback highlights the premium feel of the brass components over plastic alternatives, with several users noting improved sealing on repaired air leaks.
Included in the box are tees, unions, elbows (45° and 90°), NPT straight adapters, a tube cutter, and Teflon tape—effectively a complete air brake tubing system in one package. The tubing’s PA12 formulation provides excellent resistance to road salt, diesel, and UV, making it suitable for long‑term exposed installs on semi‑trucks and trailers.
Owners report that the fittings mate securely without wrenches, but advise ensuring cuts are perfectly square to avoid leaks. One reviewer fixed a persistent air leak that had been a problem with previous plastic fittings, praising the brass construction for long‑term reliability. For a full system overhaul or new build, this kit saves both time and money compared to buying components separately.
What works
- All‑in‑one solution with premium brass fittings
- High burst pressure and wide temp range
- PA12 material resists chemicals and UV
What doesn’t
- Oversized for small repair jobs
- Some users wanted color‑coded tubing
2. Boeray 50ft 3/8″ DOT Air Line + Cutter
The Boeray 50‑foot coil provides an excellent balance of length, compliance, and price for those who need a generous run of 3/8″ line. Manufactured from PA12 nylon and meeting SAE J844 / DOT standards, it operates up to 800 PSI and down to -40°F. The included tube cutter is a thoughtful addition—clean, square cuts are critical for leak‑free push‑to‑connect installations.
Customers consistently praise the tubing’s flexibility and overall build quality, reporting that it fits standard fittings without leaks and holds up well under vibration. Many used it for air ride kits, onboard air systems, and brake line repairs, noting that the material is “hard enough to last but soft enough to route in tight spaces.” The 50‑foot length covers most truck applications without excessive waste.
Some users mention that the tubing could be more clearly marked with DOT certification printing, though the spec sheet confirms compliance. The cutter works effectively but requires a firm hand to avoid ovaling the tube. Overall, the Boeray 50‑footer is a strong mid‑range option that rewards buyers with consistent results and a handy accessory at no extra cost.
What works
- Good length for most installs
- Durable PA12 formulation
- Bonus cutter ensures clean cuts
What doesn’t
- No color options for line identification
- Cutters may need occasional replacement

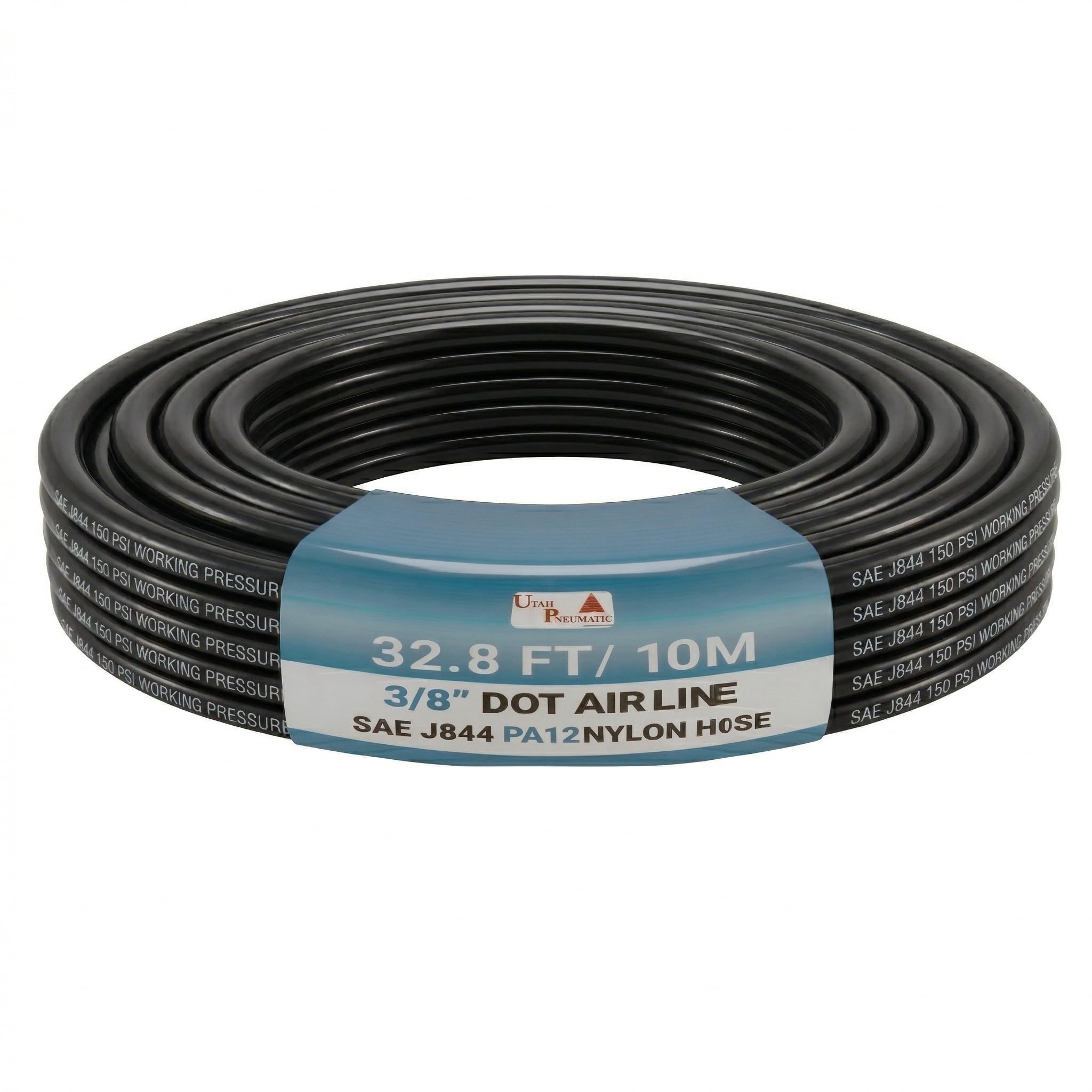

3. Utah Pneumatic 3/8″ DOT Air Line 32.8ft
Utah Pneumatic’s offering stands out for its emphasis on UV and chemical resistance, making it a top choice for exposed under‑hood or under‑chassis runs. The PA12 material is formulated to resist gasoline, oils, and road salts, and the 150 PSI working pressure is adequate for most air brake and auxiliary systems. The tube measures 3/8″ OD with a 1.5 mm wall, striking a good balance between flexibility and crush resistance.
Users have successfully deployed this line for air horns, onboard tire inflation, and bumper‑mounted air ports. One review notes that it handles 125 PSI continuously in an exposed environment without degrading. The line cuts cleanly with a razor knife and mates well with standard push‑to‑connect fittings. Several owners appreciate the square packaging that prevents kinking during shipping.
On the downside, a few customers wished for a longer spool length at this price point, and the 150 PSI working limit means it’s not suitable for high‑pressure pneumatic tools or extreme applications. Nevertheless, for straight air brake and suspension work, the Utah Pneumatic line delivers reliable performance with above‑average weather resistance.
What works
- Excellent UV and chemical resistance
- Flexible enough for tight routing
- Consistent OD for leak‑free fit
What doesn’t
- Working pressure limited to 150 PSI
- Length could be longer for large jobs
4. Mytee Products 1/4″ x 50ft SAE J844 Air Brake Tubing
When space is tight or you only need to run ancillary air lines, Mytee’s 1/4″ OD nylon tubing offers a legitimate DOT‑approved solution. It meets SAE J844 Type A standards and is rated for 150 PSI in air brake systems. The 50‑foot roll provides plenty of material for trailer brake lines, air‑assist components, or small air ride systems.
Customer reviews highlight ease of installation with push‑to‑connect fittings and excellent cold‑weather flexibility (down to -40°F). One truck owner used it on a Peterbilt 567 for cab air lines and found the quality matched OEM at a fraction of the cost. The material resists gasoline, diesel, and road debris, though it is explicitly not for fuel transfer.
The main limitation is the 1/4″ OD—it cannot flow the same volume as 3/8″ line, so it is unsuitable for main brake circuits on heavy trucks. Additionally, the wall thickness is only 0.040″, so care is needed to avoid kinking during tight bends. For its intended role as a secondary air line, the Mytee product delivers strong value and real DOT peace of mind.
What works
- DOT compliant and clearly marked
- Flexible in cold weather
- Great for trailer and accessory lines
What doesn’t
- Not for high‑volume applications
- Thin wall can kink if over‑bent
5. Qolekog 3/8″ Nylon Air Line 32.8ft
The Qolekog 3/8″ nylon line is a no‑frills entry that gets the job done for light‑duty air brake and fluid transfer tasks. Rated up to 750 PSI working pressure (1150 PSI burst) and temperature from -40°F to 248°F, it covers the basics well. The 0.125″ nominal wall offers solid puncture resistance, and the polyamide material provides decent UV and oxidation resistance.
Buyers report success using it for air ride conversions, compressor lines, and even garage pneumatic systems. One review highlighted that it fit all standard fittings perfectly without leaks and proved both flexible and durable. Another used it for a full air suspension setup and found the length accurate and the material easy to route.
However, a few owners note that it is not as flexible as PA12‑based lines, especially in cold weather, and it lacks formal DOT approval markings. The black color makes it hard to trace if multiple lines run together. For budget‑conscious DIYers or secondary systems, it offers adequate performance, but for critical commercial brake circuits, a certified DOT line is strongly recommended.
What works
- Affordable for basic projects
- High working pressure rating
- Good resistance to weathering
What doesn’t
- Not officially DOT marked
- Less flexible than PA12

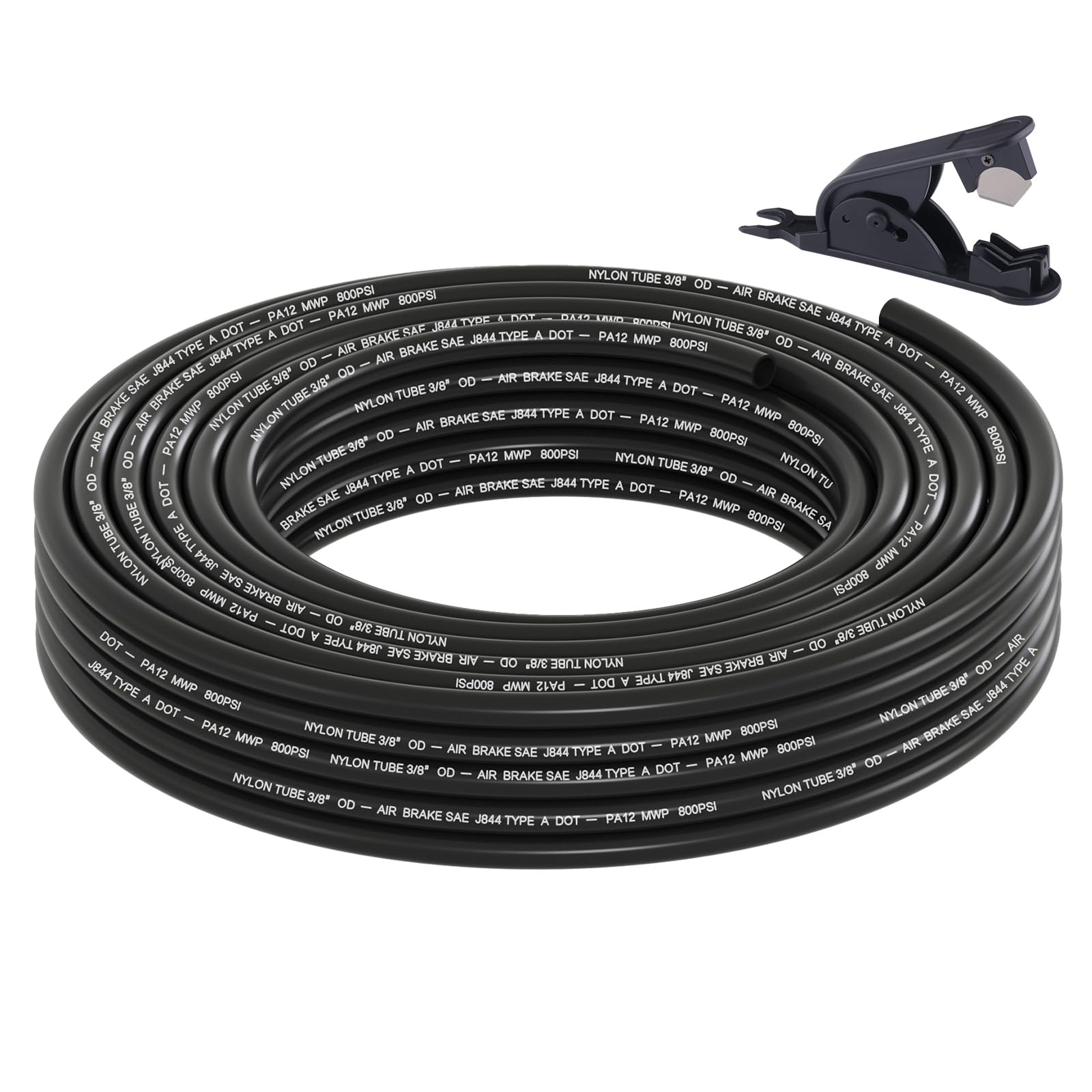

6. Boeray 35ft DOT Air Line + Cutter
Boeray’s 35‑foot version of their DOT‑approved PA12 tubing offers a shorter, more manageable length for jobs that don’t require a full 50‑foot spool. It comes with the same tube cutter and meets SAE J844 Type 3 specifications. The 3/8″ OD × 6.3 mm ID provides adequate flow for brake and suspension systems, with a max working pressure of 800 PSI.
Customer feedback mirrors the 50‑foot variant: near‑OEM quality, easy installation with standard fittings, and reliable leak‑free performance. One user paired it with a Firestone Ride‑Rite kit and reported perfect fit and no leaks. The cutter helps maintain clean cuts, which is crucial for push‑to‑connect fittings.
The only trade‑off is the shorter length—35 feet may require a second roll for large trucks or if routing takes multiple turns. Some reviewers wished the tubing came with printed DOT markings for quick identification. Overall, this is an ideal choice for a single‑axle trailer, air ride install, or as a replacement for a specific air line circuit.
What works
- DOT approved with PA12 material
- Comes with cutter for clean cuts
- Excellent value for smaller runs
What doesn’t
- May be too short for big trucks
- No color coding
7. 4LIFETIMELINES PVF‑Coated Steel Brake Line 3/16″ x 25′
While not a nylon air brake tube, this PVF‑coated steel line earns a spot for hydraulic brake system applications where air is not the medium. The 3/16″ OD × 25′ coil is double‑walled copper‑brazed and coated with a poly‑vinyl fluorine layer that offers 30 times the corrosion resistance of standard galvanized steel. It meets SAE J527 standards and is DOT approved for hydraulic brakes.
Users across a range of vehicles—Volkswagen, Toyota, vintage Cadillacs—praise its ability to bend without kinking and flare easily. The coating stays intact even when heated for welding, making it versatile for custom brake lines, fuel lines, and throttle cable conduits. One owner used it to replace a rusted fuel line on a toy hauler and reported perfect performance.
The main caveat is that it is a steel product meant for solid tubing—not for air brake systems that require flexible nylon lines. Also, the 0.028″ wall is thin, so careful bending is still needed. For anyone working on hydraulic brake systems in salt‑belt vehicles, this line provides exceptional longevity.
What works
- Superior corrosion resistance
- Bends and flares easily
- DOT approved for hydraulic brakes
What doesn’t
- Not for air brake systems
- Thin wall requires careful handling
8. telfair 1/2″ x 50ft PA12 Nylon Air Line
When your air suspension or pneumatic system demands higher flow volume, the telfair 1/2″ OD tubing delivers. Made from PA12 nylon with SAE J844 compliance, it handles up to 500 PSI and operates from -40°F to +248°F. The thicker walls (0.5″ nominal) provide extra durability against abrasion and impacts, making it suitable for heavy truck chassis and industrial automation.
Owners report that this line replaces “hard tubing” in air horn setups and onboard air systems, with one user noting it was a major upgrade over the substandard hose that came with his air horn kit. The flexibility is good enough to route around tight corners without kinking, yet the material maintains its shape under constant pressure.
Some users pointed out that the 1/2″ size requires matching fittings and connectors—these are not as common as 3/8″ or 1/4″, so plan accordingly. Also, the larger coil can be heavier to handle. For high‑flow air brake applications on off‑road vehicles or large trailers, this tubing offers robust performance with proper DOT backing.
What works
- High flow capacity with 1/2″ bore
- Durable PA12 construction
- Wide temperature range
What doesn’t
- Fittings less common than 3/8″
- Heavier and stiffer than smaller tubes

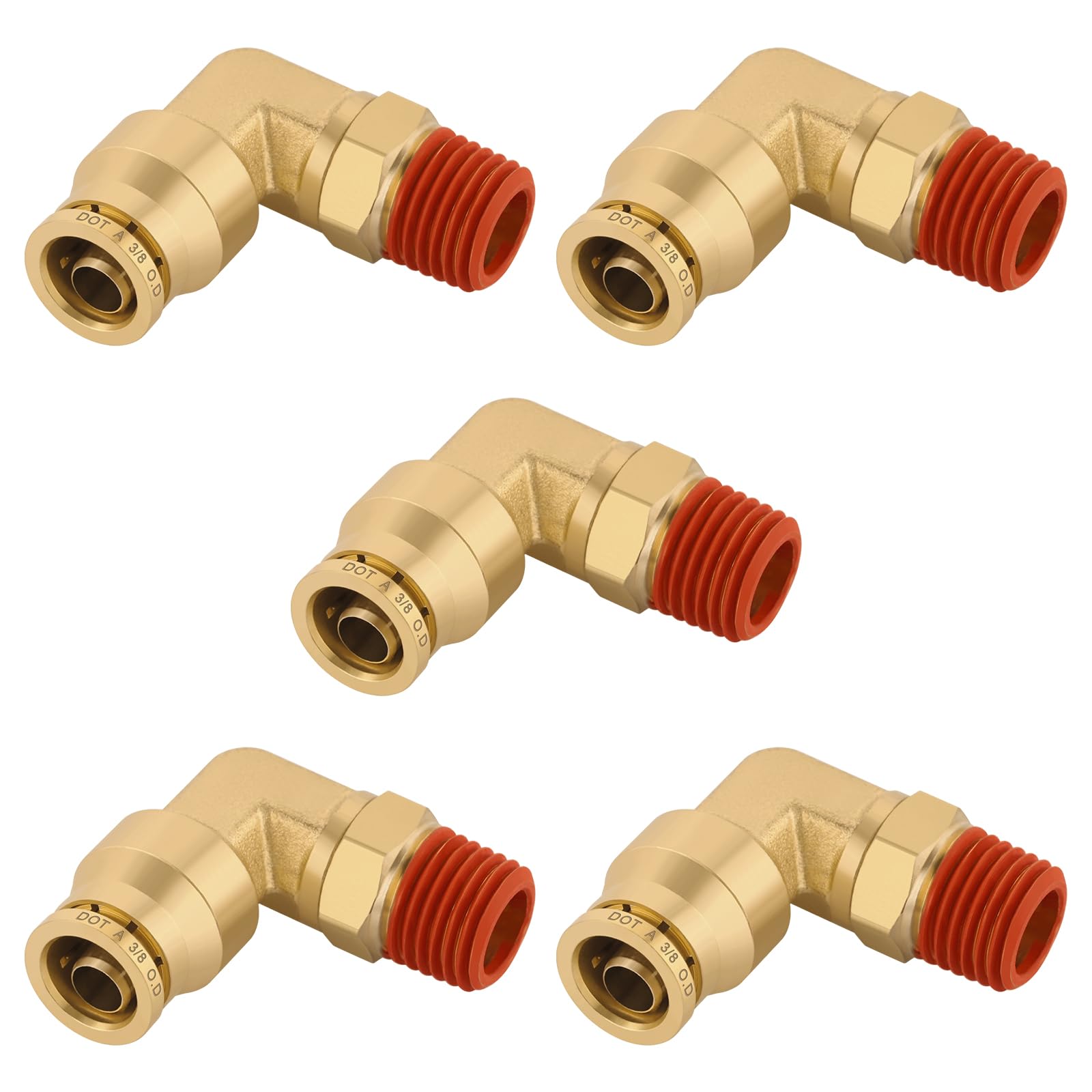

9. Boeray 3/8″ Brass Push‑to‑Connect Fittings (5‑pack)
Even the best tubing is useless without leak‑free connections, and Boeray’s brass fittings are designed for 3/8″ nylon lines. This 5‑pack includes 90‑degree elbow unions with 1/4″ NPT threads, made from solid CA360 brass with a red sealant coating. They meet DOT FMVSS 571.106 and SAE J1131, ensuring compatibility with commercial air brake systems.
The push‑to‑connect (PTC) design allows tool‑free installation—just insert the tube until it bottoms out. The 360° rotation helps align the fitting perfectly without twisting the line. Customers report zero leaks even under vibration, with one reviewer noting that other brands leaked at the swivel while these held tight.
One limitation is the 1/4″ NPT thread size—make sure your mating ports match. Also, the maximum pressure of 250 PSI is sufficient for air brake systems but not for heavy pneumatic tools. For general air line repairs, these fittings are a reliable upgrade over plastic alternatives.
What works
- Solid brass construction
- Easy push‑to‑connect operation
- Rotating head for alignment
What doesn’t
- Limited to 250 PSI
- Only 90° elbow style in pack
10. XaXmTee 12ft 3‑in‑1 Air Lines Kit
For a true plug‑and‑play replacement of trailer air lines, the XaXmTee 3‑in‑1 kit bundles two SAE J1402A air hoses and one SAE J2394 ABS cable with a 7‑way electrical cord. Both ends are protected by stainless steel springs to prevent kinking, and the assembly is pre‑routed for quick installation. The air hoses use a three‑layer integrated molding process for high burst resistance.
Users with Freightliner and Peterbilt tractors report that the kit fits perfectly and includes everything needed except the gladhand handles (included separately in some versions). The springs hold up well in harsh weather, and the zinc die‑cast plug meets SAE J560 for reliable electrical connection. One owner noted it replaced a Philips kit at a fraction of the dealer price.
A few reviews mention that the kit includes only one clamp holder instead of two, requiring a small purchase for a second clamp to fully secure the lines. Also, the 12‑foot length may be short for some long‑wheelbase trailers. For standard 53‑foot trailers, it works well, and the overall build quality is praised.
What works
- Complete pre‑assembled trailer kit
- Spring guards protect cable ends
- Good electrical and pneumatic performance
What doesn’t
- Only one clamp holder included
- 12ft may be short for some trailers
11. CheeMuii 15ft Coiled Air Brake Hoses & ABS Kit
CheeMuii’s 15‑foot coiled air brake hose assembly brings premium convenience to the tractor‑trailer interface. The two coiled air hoses are made from PA12 nylon using a three‑layer integrated molding process, offering excellent flexibility and burst strength. The kit also includes a 7‑way electrical cord with pure copper wiring, galvanized carbon steel tender springs, gladhands, and handles—everything you need for a full replacement.
Customer feedback is largely positive, with drivers praising the value compared to OEM parts. The heavy‑duty spring and wide clamp holder keep the assembly secure, and the brass DOT fittings at the hose ends ensure compatibility. Several users reported easy installation and reliable operation across all weather conditions, with one citing “great quality especially for the price.”
However, there is a notable concern: one reviewer experienced a red air hose breaking after just one month of use, raising questions about consistency. That incident appears isolated, but potential buyers should inspect the hoses periodically. For the majority of users, this kit provides a cost‑effective, high‑quality replacement that saves dealer trip costs.
What works
- Premium PA12 coiled hoses
- Includes gladhands and handles
- Excellent overall value
What doesn’t
- One report of hose failure after 1 month
- Coiled design can snag on sharp edges
Hardware & Specs Guide
PA12 Nylon vs. Standard Nylon
PA12 (Polyamide 12) is the preferred material for DOT‑approved air brake tubing because of its low moisture absorption, high impact resistance, and flexibility at low temperatures. Standard nylon (PA6 or PA66) can absorb up to three times more moisture, leading to embrittlement and cracking in freeze‑thaw cycles. All premium options in this guide use PA12, while some budget lines use generic polyamide that may lack formal DOT certification.
Wall Thickness and Burst Pressure
Most 3/8″ DOT tubing has a nominal wall thickness around 0.125 inches (1.5–1.6 mm). Thicker walls increase burst pressure—walls of 0.127″ typically yield 800–1150 PSI burst. Thinner walls (0.040″) are common for 1/4″ tubing and are adequate for low‑pressure brake signals but not for main circuits. Always match the wall thickness to the working pressure demands of your system.
Temperature Range
Air brake tubing must perform in extreme environments. The standard range for PA12 nylon is -40°F to +248°F (-40°C to +120°C). Below -40°F, most nylon becomes brittle; above 248°F, the material softens and loses pressure capacity. If your rig operates in arctic or engine‑bay heat, verify that the tubing’s rating covers your actual conditions—some budget lines claim wide ranges but may degrade faster.
DOT Marking and Compliance
Legally required marking on air brake tubing includes the DOT symbol, SAE J844 designation, material code, and manufacturer ID. Non‑marked tubing may look identical but can fail roadside inspections and void liability coverage. All products in the “DOT Approved” category in this guide bear the proper markings. If you are replacing a line on a commercial vehicle, always choose clearly marked tubing.
FAQ
What does DOT approved mean for air brake tubing?
What size air brake tubing do I need for my semi truck?
Can I use PA12 tubing for air suspension on my pickup truck?
Is it safe to use nylon tubing for fuel lines?
How do I cut air brake tubing without causing leaks?
Final Thoughts: The Verdict
For most buyers, the best air brake tubing winner is the CheeMuii 100ft Kit because it combines premium PA12 tubing with a full set of brass fittings in one box, saving time and ensuring system compatibility. If you need a flexible, DOT‑approved spool for a typical repair or upgrade, grab the Boeray 50ft + Cutter for its excellent value and included tool. And for a complete trailer air line replacement with gladhands, nothing beats the CheeMuii 15ft Coiled Kit—just be sure to inspect the hoses periodically.
