A worn-out suspension doesn’t just dull the driving experience — it compromises steering response, braking stability, and tire contact patch under load. Upgrading to properly valved dampers transforms how a vehicle handles everything from highway merging to gravel-road traverses.
I’m Amir — the founder and writer behind Four Wheel Ask. My assessments come from cross-referencing technical specification sheets, evaluating material quality across hundreds of OEM-replacement and performance-oriented units, and aggregating long-term owner reliability data from multiple enthusiast forums.
This guide breaks down the key differences in damper architecture, valving strategies, and build quality that separate mediocre replacements from genuine suspension upgrades. By analyzing build quality and owner data, the best aftermarket shock absorbers consistently outperform OEM units in ride comfort and longevity.
How To Choose The Best Aftermarket Shock Absorbers
Selecting replacement dampers requires more than matching eyelet spacing. The right choice depends on vehicle weight, intended use, suspension geometry modifications, and the specific failure modes of the original equipment. Understanding three core factors narrows the options considerably.
Damper Architecture: Monotube vs Twin-Tube
Monotube designs place the gas charge and oil in a single chamber separated by a free-floating piston, which allows for larger piston diameters and better heat dissipation during sustained use. Twin-tube shocks use an inner and outer tube with a base valve, which generally produces a softer initial feel but can suffer from aeration under heavy off-road or towing loads. For trucks and SUVs that see mixed-use duty, monotube construction typically delivers more consistent fade-free performance.
Valving Characteristics and Spring Rates
Digressive valving provides firm damping control during high-speed piston movement — the kind encountered on washboard roads or when towing — while maintaining compliance over small bumps at low speeds. Shocks with linear valving feel more predictable during gradual cornering but can overwhelm the chassis on sharp impacts. For vehicles that carry variable loads, a shock with adjustable preload or an integrated coil spring (like the Monroe load-assist units) prevents sag without requiring airbag systems.
Stroke Length and Ride Height Compatibility
Lifting or lowering a vehicle changes the suspension’s available compression and rebound travel. A shock designed for stock ride height will bottom out prematurely on a lifted truck or top out harshly on a dropped truck. Manufacturers like Bilstein and Belltech offer specific extended and collapsed length variants calibrated for 0–2 inch lifts or 2–4 inch drops. Measuring from the mounting bolt center at full droop and full compression ensures the chosen damper operates within its intended stroke window.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Bilstein 5100 Set F250/F350 | Premium Monotube | Leveled Super Duty trucks | 46mm monotube, digressive valving, 2″ lift compatible | Amazon |
| Bilstein 5100 Set Silverado/Sierra HD | Premium Monotube | 2011-2024 HD trucks with 1.5″ front lift | 46mm monotube, zinc finish, limited lifetime warranty | Amazon |
| Belltech Street Performance 9530 | Performance Twin-Tube | Lowered GM fullsize trucks 0-4″ drop | 55mm body, 35mm piston, triple-lip NBR seal | Amazon |
| Belltech Nitro Drop 2 8510 | Value Drop Shock | Lowered Silverado/Sierra RWD 4WD | 18.11″ extended length, cavitation-free valve train | Amazon |
| Rough Country N3 23141 | Off-Road Nitrogen | 07-24 Chevy/GMC 1500 with 0-4″ lift | 54mm body, 10-stage variable valving, -50°F fluid | Amazon |
| Monroe Coil Spring Assembly 58640 | Load-Assist Coil-Over | 2002-2008 Dodge Ram 1500 rear | Integrated coil spring, full-displaced valving, OE fluid | Amazon |
| Monroe Coil Spring Assembly 58643 | Load-Assist Coil-Over | 04-14 Ford F-150 rear with heavy payloads | 1200 lb load capacity, nitrocarburized rod, self-lubricating seal | Amazon |
| TRQ SBA60379 4-Piece Set | Direct-Fit OE Replacement | 99-04 Ford F-250/F-350 Super Duty | Pre-assembled, direct-fit, DIY video support | Amazon |
| maXpeedingrods Air Shocks 2-Pack | Budget Air Suspension | 00-14 Chevy/GMC SUV rear replacement | Z55 compatible, adjustable ride height, alloy steel | Amazon |
| Detroit Axle 4-Piece Set | Budget Complete Set | 99-06 Chevy Silverado/GMC Sierra 1500 RWD | 4 shocks front + rear, alloy steel, 10-year warranty | Amazon |
| GZYF Universal Rear Air Shock | Entry-Level Universal | 150cc-750cc motorcycles, ATVs, go karts | 320mm eye-to-eye, CNC aluminum reservoir, adjustable preload | Amazon |
In-Depth Reviews
1. Bilstein 5100 Set Front & Rear — 1999-2004 Ford F-250/F-350 Super Duty 4WD with 2″ Lift
The Bilstein 5100 series represents the benchmark for monotube shock performance in the truck segment. This four-piece set is engineered specifically for 1999-2004 F-250 and F-350 Super Duty 4WD trucks running a 2-inch front lift, with digressive valving that delivers immediate damping response across a broad range of piston speeds. The 46mm monotube construction, combined with zinc-plated externals, provides corrosion resistance and consistent fade-free performance during extended towing or off-road use.
Owner data from heavy-duty truck forums consistently points to two standout attributes: the elimination of the “porpoising” effect common to leaf-sprung Super Duties and a marked improvement in steering precision when running aggressive tire packages. Several reports note that the extended length of the rear shocks requires manual compression during installation — a roping or strap method works well — and that the difference in ride quality versus stock Rancho or Motorcraft units is immediately apparent even on unloaded trucks.
For owners who tow, the digressive valving controls trailer-induced sway without transmitting excessive harshness into the cabin. The limited lifetime warranty adds long-term confidence, and the bolt-on fitment requires no suspension disassembly beyond the shock mounts themselves. These dampers are a genuine upgrade, not merely a replacement.
What works
- Digressive valving eliminates bottom-out on large impacts while preserving small-bump compliance
- Monotube design resists aeration and fade during sustained highway towing
- Direct-fit bolt-on installation with included hardware simplifies the swap
What doesn’t
- Rear shocks may require manual compression to align during installation
- Premium pricing reflects a significant investment over budget twin-tube alternatives
2. Bilstein 24-253161 24-196468 5100 Series — 2011-2024 Silverado/Sierra 2500/3500 HD with 1.5″ Front Lift
This 5100-series set is purpose-built for the heavier chassis of the 2500/3500 HD platform from GM, accommodating a 1.5-inch front lift and 0-1 inch rear lift. The 46mm monotube design uses Bilstein’s patented digressive valving, which provides firm damping at high shaft velocities — precisely the condition encountered when towing near max payload on uneven grades. The zinc exterior finish adds a layer of corrosion protection that matters for trucks exposed to road salt or off-road mud.
Owner feedback from 2500/3500 HD owners frequently highlights the transformation from the factory Rancho units, which tend toward a loose, under-damped feel, especially in the rear of diesel-equipped trucks. Reports indicate that the Bilstein valving reduces the “head toss” effect on washboard gravel roads and controls trailer tongue bounce more effectively than any stock damper. Several owners with 10,000-plus-pound towing setups noted that the Bilsteins kept the rear axle planted even during sudden lane changes on the interstate.
Installation is straightforward, requiring only basic hand tools and a torque wrench. The direct-fit nature means no adapter brackets or spring compressors are needed. While the initial investment is higher than budget sets, the limited lifetime warranty and consistent owner satisfaction across hundreds of reported miles make this set a sound long-term investment for HD truck owners.
What works
- Eliminates rear-end wander and bounce when towing heavy trailers at highway speeds
- Monotube design with digressive valving maintains control during repeated washboard sections
- Corrosion-resistant zinc finish holds up well in salt-belt conditions
What doesn’t
- Unloaded ride can feel firmer than twin-tube alternatives for some daily drivers
- Premium price point may exceed budgets for owners seeking basic replacement only
3. Belltech Street Performance 9530 — 1999-2007 GM Fullsize SUV/Truck 0-4″ Lowered (Set of 4)
Belltech’s Street Performance twin-tube shocks are engineered specifically for lowered fullsize GM trucks and SUVs, with a 55mm wide body that increases oil volume for improved heat management during spirited driving. The 35mm piston with low-friction seals and a hardened chrome 15mm piston rod provides the structural integrity needed to handle the reduced suspension travel common to dropped vehicles. Triple-lip NBR rod seals resist contamination, a critical factor for trucks that see both street and occasional off-road use.
Analysis of owner reports from the GMT800 community reveals a consistent pattern: these shocks eliminate the “pogo” rebound oscillation that plagues stock dampers on 3- to 4-inch dropped trucks. The silver-painted steel body and included metal dust boots provide a cleaner undercarriage appearance compared to plain black units. Owners running 4/6 and 4/8 drop configurations report that the ride transitions from harsh to controlled without losing the firm feedback that lowering enthusiasts prefer.
The application-specific valving is calibrated for the weight distribution of the GMT800 platform, so mixed-fleet owners should verify their exact chassis and drop height before purchasing. The 2-year limited warranty backs the build quality. For those who have invested in a proper lowering kit, these dampers complete the suspension package with predictable, fade-resistant damping.
What works
- Twin-tube design with increased oil volume provides consistent damping during aggressive cornering
- Hardened chrome rod and NBR seals resist wear in dusty or wet environments
- Metal dust boots protect the rod extension and improve undercarriage aesthetics
What doesn’t
- Requires precise drop-height verification — not suitable for stock-height or lifted trucks
- Firm ride character may feel overly stiff for owners using the truck as a daily commuter
4. Belltech 8510 Nitro Drop 2 — Rear Shocks for Silverado/Sierra RWD 4WD Lowered Applications (Pair)
The Belltech Nitro Drop 2 series offers a targeted solution for lowered trucks that need proper damping without the price tag of a full coil-over system. These rear shocks are designed exclusively for lowered applications — they feature a shorter collapsed and extended length than stock dampers, preventing topping out on the rebound stroke and bottoming out on compression. The cavitation-free valve train prevents air from mixing with the oil, which maintains consistent damping force even during rapid, repeated actuation.
Owner reports from Dodge Ram and GM truck forums indicate that these drop shocks soften the ride significantly compared to using stock-length shocks with relocation brackets. On trucks with 4- to 8-inch rear drops, users report a dramatic reduction in the “buckboard” effect that comes from running out of rebound travel. The durable metal dust boot keeps the piston rod clean, extending seal life in daily-driven vehicles exposed to road grit.
These are drop-only shocks — they will not work at stock ride height or on lifted trucks. The fixed valving is tuned for the reduced leverage ratio of a dropped rear suspension, so mixing them with different spring rates or air bag systems could produce unexpected damping behavior. For the lowered truck owner seeking a direct-fit improvement, this pair represents a practical, proven upgrade.
What works
- Engineered specifically for lowered suspension geometry — no need for relocation brackets
- Cavitation-free valve train maintains consistent damping during repeated compression cycles
- Metal dust boot protects the piston rod from debris and extends seal longevity
What doesn’t
- Not compatible with stock ride height or lifted suspensions
- Pair-only offering leaves front shock replacement to separate purchase
5. Rough Country N3 23141 — 0-4″ Rear Shock Absorbers for 07-24 Chevy/GMC 1500
Rough Country’s N3 series uses a 54mm monotube body filled with nitrogen gas and military-spec hydraulic fluid rated to -50 degrees Fahrenheit, ensuring consistent damping performance across extreme temperature ranges common to off-road environments. The 10-stage variable valving automatically adjusts damping force based on piston velocity, providing compliance over trail chatter while ramping up control during high-speed desert running or whoop sections. The 36kN tensile strength rating indicates robust internal construction capable of handling the cyclic loads from larger all-terrain tires.
User feedback from Silverado and Sierra 1500 owners running 0-4 inch lift kits highlights the plug-and-play installation — no special tools beyond basic sockets are required, and several reports mention a 30-minute swap time on a lift. The rubber bushings isolate road noise effectively, and the nitrogen charge prevents the foaming issues that plague oil-only shocks during extended washboard sections. Owners coming from worn factory dampers consistently report a noticeable improvement in rear-end stability during corner entry on rough pavement.
Backed by Rough Country’s limited lifetime replacement warranty, these shocks offer a strong value proposition for the light off-roader. They lack the external reservoir or adjustable damping of premium race-oriented shocks, but for the vast majority of weekend trail users and daily drivers with lift kits, the N3 delivers a balanced blend of comfort and control at a accessible price point.
What works
- 10-stage variable valving adapts to trail chatter and high-speed impacts without harsh transitions
- Military-spec fluid maintains consistent damping in sub-zero and high-heat conditions
- Fast-cooling 54mm body resists fade during sustained off-road use
What doesn’t
- Lacks external adjustments for fine-tuning compression or rebound rates
- Universal dust boot recommended to prevent premature seal wear in muddy conditions
6. Monroe Suspension Shock Absorber & Coil Spring Assembly 58640 — 2002-2008 Dodge Ram 1500 Rear (Pair)
The Monroe 58640 integrates a heavy-duty coil spring directly onto the shock body, creating a load-assist damper that reduces rear-end sag when towing or hauling. This design eliminates the need for separate air bags or add-a-leaf kits on Dodge Ram 1500 models from 2002-2008, providing up-rated spring support while maintaining the damping characteristics of Monroe’s full-displaced valving. The self-lubricating fluid seal and OE-spec all-weather fluid ensure consistent performance across temperature swings without degradation.
Owner reports from Ram 1500 owners towing boats and utility trailers indicate that these assemblies eliminated the “squat-and-bounce” cycle that occurs when stock shocks run out of damping authority under load. Several reviewers noted that the ride height increased by roughly 1 to 1.5 inches at the rear when unloaded, which can be corrected with a front-leveling kit if desired. Installation requires compressing the spring to align the lower mount — a strap or jack works — and some owners reported needing to grind a small clearance notch on the passenger-side upper bracket.
These assemblies are best suited for trucks that carry or tow frequently but do not have extreme lift or drop modifications. The integrated spring design means the shock and spring are replaced as one unit, simplifying maintenance compared to separate components. For the Ram 1500 owner who wants to restore load capacity without a full suspension overhaul, this pair is a targeted and effective solution.
What works
- Integrated coil spring eliminates rear sag under towing and payload loads up to 1,200 pounds
- Full-displaced valving adjusts to road extremes for consistent ride quality
- OE-spec all-weather fluid maintains damping performance across seasonal temperature changes
What doesn’t
- Installation requires spring compression and may need minor bracket modification on some models
- Unloaded ride height increase may create a noticeable rake that requires front leveling
7. Monroe Suspension Shock Absorber & Coil Spring Assembly 58643 — 2004-2014 Ford F-150 Rear (Pair)
The Monroe 58643 serves the Ford F-150 market with the same integrated coil-over-shock architecture, supporting up to 1,200 pounds of payload while dampening the axle movement that causes sway and bottoming. The nitrocarburized piston rod provides a harder, more corrosion-resistant surface than standard chrome rods, extending seal life in trucks exposed to moisture, road salt, or frequent pressure washing. Full-displaced valving automatically adjusts damping force to match road conditions, from smooth pavement to broken asphalt.
Owner data from F-150 forums shows that these assemblies are particularly effective for trucks carrying slide-in campers, heavy toolboxes, or towing dual-axle trailers. The coil spring eliminates the sag that occurs when the rear suspension compresses into its bump stops, maintaining proper headlight aim and steering geometry. Several owners with 2-inch front leveling kits reported that the Monroe assemblies created a nearly level stance while dramatically reducing the “porpoising” that occurs on undulating highway sections.
Installation mirrors the Ram version — the spring must be compressed to fit the lower mount, and some owners found it easiest to unbolt the upper control arm for clearance on the driver side. The ride quality unloaded is firmer than a standard shock, with a slight “hop” over sharp bumps being the main trade-off for the improved load stability. For F-150 owners who regularly work their trucks, the 58643 pair delivers functional, long-lasting support.
What works
- Supports up to 1,200 pounds of payload without sagging or bottoming out
- Nitrocarburized rod provides superior corrosion resistance compared to standard chrome
- Full-displaced valving smooths out transitions between loaded and unloaded operation
What doesn’t
- Unloaded ride can feel hoppy on sharp single bumps
- Spring compression required during installation adds complexity to the swap

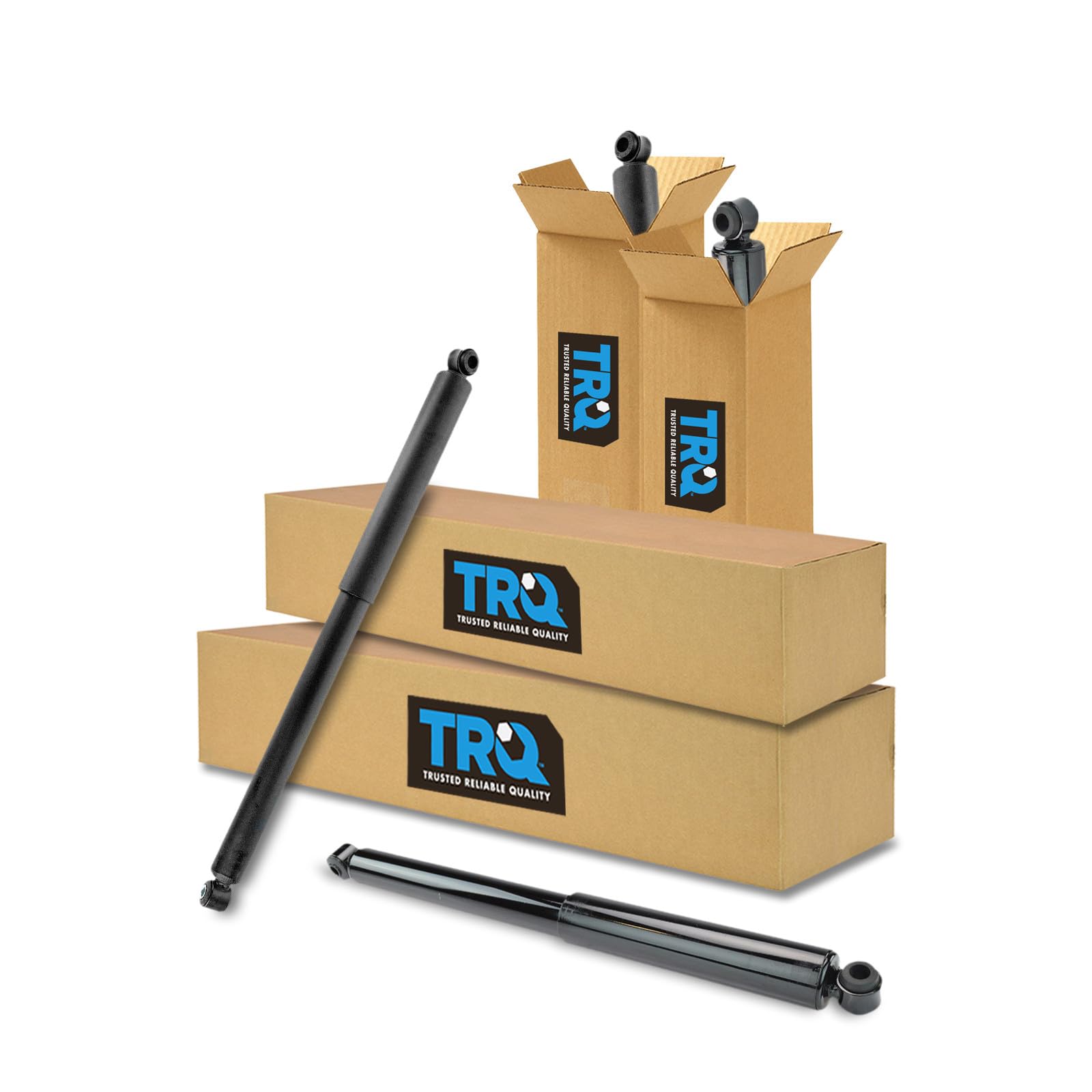

8. TRQ SBA60379 — Front and Rear Shock Absorber Set for 1999-2004 Ford F-250 Super Duty / F-350 Super Duty
The TRQ SBA60379 is a comprehensive four-piece shock absorber set designed as a direct OE replacement for 1999-2004 Ford F-250 and F-350 Super Duty trucks. TRQ has spent over 25 years building a reputation for fitment accuracy, and this set reflects that focus with pre-assembled components that bolt in without modification. The set includes two front and two rear shocks, covering all four corners in a single purchase for owners who want a complete refresh rather than a piecemeal replacement.
TRQ provides one of the largest catalogs of DIY installation videos in the automotive aftermarket, which adds practical value for home mechanics tackling this job for the first time. The compatibility matrix covers the extensive range of Super Duty chassis variants from this generation, including both two-wheel-drive and four-wheel-drive configurations. Reference numbers — including cross-references to Monroe, Gabriel, and Motorcraft part numbers — confirm that these are dimensionally identical to the factory units.
These shocks are calibrated for stock ride height and stock spring rates, making them unsuitable for lifted or lowered trucks. The 2-year manufacturer warranty provides assurance, and the direct-fit philosophy means no spring compressors, no bracket modifications, and no guesswork. For the Super Duty owner seeking a reliable, no-surprises replacement that restores factory ride quality, this set covers all four corners efficiently.
What works
- Complete four-corner set simplifies ordering and ensures matched damping front to rear
- Direct-fit design with no modifications required, backed by extensive DIY video support
- Cross-referenced against multiple OEM part numbers for confirmed compatibility
What doesn’t
- Not designed for lifted or lowered suspensions — stock geometry only
- Valving may feel under-damped for heavy towing applications compared to monotube options
9. maXpeedingrods 2PCS Rear Air Shocks — 2000-2014 Cadillac Escalade / Chevy Tahoe / Suburban 1500 / GMC Yukon
The maXpeedingrods rear air shocks are designed as a direct replacement for the GM Z55 air suspension system found on 2000-2014 Escalades, Tahoes, Suburbans, and Yukons. These units incorporate the air spring and shock absorber into a single assembly, allowing adjustment of ride height by varying air pressure while maintaining damping control. The alloy steel construction and black finish match the factory appearance, and the set includes the necessary cross-reference numbers — including 25979391, 25979393, and 25979394 — for easy fitment verification.
Owner reports from GM SUV forums show mixed but instructive data. Positive experiences describe straightforward installation, proper fitment, and restored ride height for vehicles that had sagging rear suspension due to failed factory air shocks. The ability to adjust air pressure gives owners control over ride firmness and load leveling. However, several reports detail premature seal failure leading to air leaks within the first few thousand miles, and one account noted that worn bushings caused enough lateral play to damage the shock tower mounts. These durability concerns appear to affect a minority of units but are worth factoring into the purchase decision.
At a budget-friendly price point, these air shocks offer a cost-effective path to restoring factory function for Z55-equipped SUVs. The 1-year warranty provides a safety net, but owners who frequently carry heavy loads or operate in extreme temperatures may find greater long-term reliability in OEM or premium aftermarket alternatives. For light-duty use and budget-conscious restoration, they fill a useful market gap.
What works
- Direct-fit replacement for Z55-equipped GM SUVs with multiple OEM cross-references
- Adjustable air pressure allows fine-tuning of ride height and load support
- Budget-friendly entry point for restoring factory air suspension function
What doesn’t
- Some units have reported air leaks from seal defects within the first 1,500 miles
- Bushing durability concerns may lead to premature wear in high-mileage or heavy-use applications
10. Detroit Axle — 4-Piece RWD Shock Absorber Set for 1999-2006 Chevy Silverado / GMC Sierra 1500
Detroit Axle offers a four-piece shock absorber set covering front and rear positions for 1999-2006 Chevrolet Silverado and GMC Sierra 1500 trucks equipped with RWD and without electronic suspension or Quadrasteer. The set includes two front and two rear units, making it a complete corner-to-corner replacement solution at a competitive price point. The alloy steel construction and black exterior finish match the utilitarian nature of the GMT800 platform.
Owner feedback across multiple sales channels confirms that these shocks fit correctly and restore basic ride quality to trucks with worn-out dampers. Several buyers noted that the set was priced lower than a single pair of premium alternatives, making it an attractive option for those looking to address a worn suspension on a budget. However, reports also indicate that these are not performance-oriented dampers — they function as direct OE replacements rather than upgrades, and owners looking for improved handling or towing stability will find the valving to be on the softer side.
The standout feature here is the 10-year warranty, which signals manufacturer confidence in the basic build quality despite the accessible price. Installation is straightforward with basic hand tools, and the set covers all four corners in one box, eliminating the need to source individual shocks. For the GMT800 owner seeking a cost-effective refresh for a daily driver or work truck, this set delivers functional, warrantied replacement without unnecessary complexity.
What works
- Complete four-shock set covers both front and rear in a single purchase
- 10-year warranty provides long-term coverage at a budget-friendly price
- Direct-fit installation with no modifications required for RWD non-electronic trucks
What doesn’t
- Valving is calibrated for basic replacement, not enhanced performance or towing stability
- Not compatible with 4WD models, electronic suspension, or Quadrasteer configurations
11. GZYF 12.6 inch Universal Motorcycle Rear Air Shock Absorbers 320mm — Multi-Fit for ATV, Dirt Bike, Go Kart
The GZYF 12.6 inch rear air shock absorbers are universal-fit units with a 320mm eye-to-eye length, designed to accommodate a wide range of motorcycles, ATVs, dirt bikes, and go karts in the 150cc to 750cc range. The large CNC-machined aluminum reservoir tank provides heat dissipation for the nitrogen charge, while the steel and aluminum alloy body construction balances weight with durability. Adjustable spring preload allows the rider to tune sag and compression feel based on rider weight and riding conditions.
Owner reports from the mini-bike, go-kart, and Chinese quad communities indicate strong satisfaction for the price point. The most detailed feedback comes from owners of Coleman B200 series mini bikes and Yerf Dog go karts, where the GZYF shocks replaced undersprung factory units and eliminated the “bouncing out of the seat” problem on curbs and uneven terrain. Several owners noted that the eyelet mounting hardware may require spacer adjustments or pivot relocation kits, but that the improvement in ride quality and bottom-out resistance was dramatic after the swap.
These shocks occupy a specific niche — they are not intended for high-performance sport bike applications or heavy-duty ATV use. The universal fit means the buyer must verify eye-to-eye distance, bushing width, and spring rate suitability for their specific vehicle. For small-displacement recreational vehicles, go karts, and budget off-road builds, the GZYF offers an adjustable, durable rear damping solution at an entry-level investment.
What works
- CNC aluminum reservoir provides effective heat dissipation for sustained use
- Adjustable spring preload allows tuning for different rider weights and terrain
- Steel and aluminum construction offers a good strength-to-weight ratio for the price
What doesn’t
- Universal fit requires the buyer to verify eye-to-eye distance and bushing dimensions
- Not valved for high-performance sport bikes or heavy side-by-side applications
Hardware & Specs Guide
Monotube vs Twin-Tube Construction
Monotube shocks — used by Bilstein and Rough Country in this guide — place the oil and nitrogen charge in a single tube separated by a floating piston. This design allows a larger working piston diameter in a given housing size, improving fluid displacement and heat dissipation. The result is more consistent damping during sustained high-speed use or heavy towing without the “fade” that occurs when twin-tube shocks aerate their oil. Twin-tube designs, such as Belltech’s Street Performance series, use an inner and outer tube with a base valve. They generally provide a softer initial ride feel and are less prone to rod-side damage from impacts, but they generate more internal heat during continuous hard use and can suffer from oil aeration during rapid cycling.
Digressive vs Linear Valving
Digressive valving — a hallmark of Bilstein 5100 units — provides firm damping at high piston velocities (the kind generated by potholes or washboard roads) while remaining compliant at low velocities (gentle undulations and road texture). This dual-nature curve prevents the “buckboard” effect that linear-valved shocks can produce when they over-damp minor inputs. Linear valving, used in many OE-replacement units like Detroit Axle and TRQ, provides a more predictable, one-rate-fits-all response but requires careful spring matching to avoid harshness or under-damping at either end of the speed spectrum.
Spring Rates and Load Assist
For vehicles that carry variable loads — pickup trucks and SUPS — the combination of shock damping and spring support determines ride height and stability under weight. Monroe’s Load-Assist coil-over assemblies integrate a calibrated coil spring around the shock body, providing additional spring rate specifically for the rear axle. These units are specified for trucks that regularly carry 500 to 1,200 pounds of payload or tow trailers that impose significant tongue weight. The spring rate is chosen to maintain near-stock ride height under load, preventing the steering geometry changes and headlight misalignment that sagging rear suspension causes.
Stroke Length and Vehicle Geometry
Suspension modifications — lift kits, drop spindles, shackle flips — change the distance between the shock mounting points at full droop and full compression. Installing a shock with the wrong extended or collapsed length leads to mechanical topping out (internal damage from over-extension) or bottoming out (metal-on-metal contact from insufficient compression stroke). Belltech’s Nitro Drop 2 series and Bilstein’s 5100 lift-specific variants are engineered with application-specific lengths that match the altered geometry of lowered or lifted trucks. Measuring from mount center to mount center at full suspension droop and comparing that to the shock’s published extended and collapsed lengths ensures correct fitment.
FAQ
How do I know if my shock absorbers need replacement?
Can I mix different shock brands on the same axle?
Will aftermarket shocks improve my towing stability?
What is the difference between a shock absorber and a strut?
How long should aftermarket shock absorbers last?
Final Thoughts: The Verdict
For most buyers, the best aftermarket shock absorbers winner is the Bilstein 5100 set for Super Duty trucks because it delivers digressive monotube performance that transforms both daily driving and towing stability with direct-fit simplicity. If you regularly haul heavy loads and want integrated spring support, grab the Monroe Load-Assist 58640 for Ram 1500 or the 58643 for Ford F-150. And for lowered truck owners who need drop-specific dampers, nothing beats the Belltech Nitro Drop 2 8510 pair for restoring proper ride quality at a reduced ride height.
