The 6.0 Powerstroke earned a reputation for overheating, clogging, and leaving owners stranded — and most of those problems trace back to a single weak link in the cooling and exhaust gas recirculation system. Sorting through aftermarket solutions requires understanding which parts actually solve the root cause rather than just masking symptoms with a temporary fix.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing diesel powertrain failure data, comparing aftermarket component metallurgy and sealing designs, and cross-referencing owner-reported reliability trends across forums and technical service bulletins.
Understanding which components prevent the common failures that plague these engines helps you choose the ideal best 6.0 egr delete kit for your specific build.
How To Choose The Best 6.0 EGR Delete Kit
Selecting components for the 6.0 Powerstroke EGR system requires more than picking the cheapest option. The interplay between oil pressure, coolant flow, and exhaust gas temperature means every part affects something else down the line. Focus on material quality, sealing integrity, and compatibility with your truck’s model year.
Material Construction and Heat Management
Stainless steel tubes with smooth internal passages resist soot buildup far better than the factory turbulator-style coolers. CNC-machined billet aluminum offers precise sealing surfaces but requires proper torque procedures to avoid warping. Cast iron manifolds handle thermal cycling well but add weight and can crack if the supporting brackets are weak.
Seal and Gasket Quality
Viton rubber O-rings with PTFE back-up rings provide the best resistance to high-pressure oil and coolant at elevated temperatures. Standard rubber O-rings degrade quickly in the 6.0’s operating environment, leading to external leaks and pressure loss that causes hard starts and rough idle.
Integration with Supporting Systems
A quality kit accounts for the oil cooler, fuel pressure regulator, and coolant filtration. Neglecting these supporting systems means the new EGR components face the same contamination and pressure issues that killed the factory parts. Look for kits that include or recommend complementary upgrades.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| APDTY 015373 EGR Cooler Kit | EGR Cooler | Overall reliability upgrade | Straight tube stainless design | Amazon |
| Sinister Diesel Blue Spring Kit | Fuel Regulator | Fuel pressure stability | Billet aluminum housing | Amazon |
| Xotic Performance Stand Pipe Kit | Oil System | High-pressure oil leak repair | Heat-treated alloy steel | Amazon |
| Rudy’s Heavy Duty Y-Pipe | Exhaust | Exhaust leak repair | Bolt-on with gasket set | Amazon |
| Auto Parts Prodigy Coolant Filter | Cooling | Oil cooler protection | CNC billet 6061 aluminum | Amazon |
| BD Diesel Exhaust Manifold Set | Manifold | Ecoboost exhaust upgrade | Cast iron with heat sinks | Amazon |
| GM Genuine Parts EGR Valve | EGR Valve | OEM direct replacement | Factory-spec metal body | Amazon |
| Edge 98617 EAS Competition Kit | Monitoring | Real-time data logging | EGT probe and pressure sensor | Amazon |
| Baxzl EGV1151 EGR Valve | EGR Valve | Budget basic replacement | Stainless steel finish | Amazon |
In-Depth Reviews
1. APDTY 015373 EGR Cooler Kit
This EGR cooler replaces the factory turbulator-style unit with a six-tube straight-through stainless design that resists clogging far better than stock. Owner feedback spanning several years of use indicates the welds and tube thickness hold up well under sustained towing loads, with multiple reports noting zero coolant loss after thousands of miles.
The kit includes the intake manifold gasket, turbo hardware kit, and EGR cooler gaskets, which simplifies a job that typically requires sourcing each seal separately. The straight-tube configuration allows exhaust gas to flow through without the restrictive internal passages that cause overheating in the original cooler design.
Some owners reported weld splatter inside the cooler on arrival, though the majority found it functional after a brief shake-out. The gasket quality received consistent praise for thickness and compression characteristics, and several long-term users confirmed the cooler performed without failure for three years or more in daily-driver applications.
What works
- Stainless straight-tube design eliminates clogging common with OEM turbulator coolers
- Complete gasket set included saves time sourcing individual seals
- Long-term reliability confirmed by owners with multi-year service history
What doesn’t
- Occasional weld splatter found inside the cooler passages on arrival
- Shipping times can run longer than advertised
2. Sinister Diesel Blue Spring Kit
This fuel pressure regulator spring kit addresses the well-documented factory fuel pressure drop that leads to injector stiction and hard starting on 6.0 Powerstroke engines. The billet aluminum housing replaces the stamped steel factory cover, and the upgraded spring restores fuel pressure to factory-recommended levels with a reported increase of 10 to 15 psi.
Installation times averaged around 15 minutes in owner reports, with the kit including all necessary O-rings and hard parts for a complete fuel-pressure housing rebuild. The powdercoated cover with the Sinister Diesel emblem provides a visual upgrade under the hood while the functional improvement protects injectors from the low-pressure damage that drives expensive repair bills.
American-sourced materials and US-based manufacturing support the premium positioning, and the one-year warranty provides peace of mind for a part that directly affects fuel system health. Owners consistently noted smoother throttle response and reduced crank time after installation, with several describing it as an essential first step in bulletproofing the 6.0 fuel system.
What works
- Restores fuel pressure 10-15 psi for improved injector performance
- Quick 15-minute installation with complete hardware included
- Powdercoated billet housing outlasts factory stamped steel cover
What doesn’t
- Premium pricing compared to unbranded spring kits
- Adjustable regulator offers more flexibility for tuned trucks

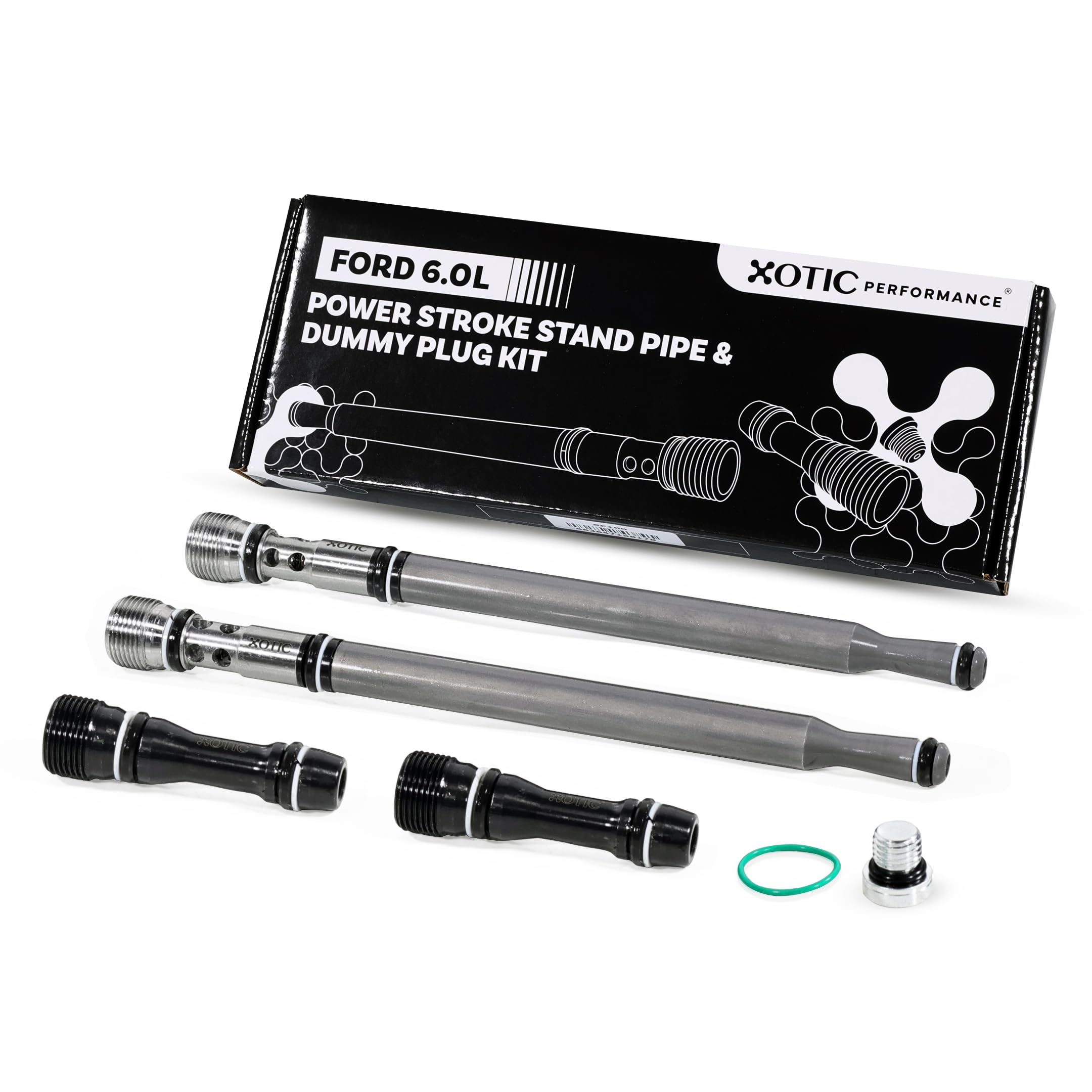

3. Xotic Performance Stand Pipe & Dummy Plug Kit
High-pressure oil leaks at the stand pipes and dummy plugs are a primary cause of hard-start and no-start conditions on the 6.0 Powerstroke, and this kit directly targets that failure point with CNC-machined alloy steel components. Each stand pipe features an integrated check valve to maintain oil rail pressure after shutdown, reducing the extended crank times that signal worn seals.
The kit includes two stand pipes and two dummy plugs fitted with Viton O-rings and PTFE back-up rings, a significant upgrade over the factory rubber seals that harden and leak under the 4,000 psi operating pressure of the high-pressure oil system. Owner reports consistently noted faster hot starts and elimination of the long crank that had plagued their trucks prior to installation.
Compatibility spans 2004.5 through 2010 model years covering Super Duty trucks and E-Series vans, making this a versatile solution for the late-build 6.0 platform. The precision threads and thicker port walls drew specific praise from owners who had experienced thread stripping on factory components during previous repairs.
What works
- Integrated check valves maintain oil rail pressure for faster hot starts
- Viton seals with PTFE back-up rings outperform standard rubber O-rings
- Heat-treated alloy steel withstands high-pressure oil system demands
What doesn’t
- Installation requires cab removal or significant contortion without lifting cab
- Price reflects premium materials versus basic steel alternatives
4. Rudy’s Heavy Duty Y-Pipe Up Pipe with Gasket Kit
The factory Y-pipe on the 6.0 Powerstroke is a common exhaust leak source once the thin-wall tubing warps from thermal cycling, and this heavy-duty replacement from Rudy’s addresses that with thicker material and reinforced joints. Owner reports indicate the fitment matches OEM specifications closely, with the key installation step being to leave manifold bolts loose until the turbo clamp is fully tightened.
The kit ships with the Y-pipe itself along with the turbo installation gasket and O-rings, eliminating the need to source those separately. Several owners noted that the included hardware and gaskets made the job straightforward even when working without pulling the cab, though access to the rear manifold bolts remains tight on the passenger side.
Multiple long-term users reported the pipe solved their exhaust leak issues completely, with one owner noting it fixed a persistent noise that had been misdiagnosed as a turbo issue. The price point undercuts OEM replacement while offering improved material thickness, making it a sensible choice for owners planning to keep their trucks for the long haul.
What works
- Heavier wall construction resists warping better than factory pipe
- Complete gasket and hardware kit included for single-order convenience
- Affordable alternative to OEM replacement with improved durability
What doesn’t
- Rear manifold bolts remain difficult to access without cab removal
- Instructions could be more detailed for first-time installers
5. Auto Parts Prodigy Coolant Filtration System
Cast iron debris left inside the 6.0 engine block during manufacturing is a known contributor to oil cooler and EGR cooler clogging, and this coolant filtration system provides a dedicated bypass path to capture those particles before they reach critical components. The CNC-machined 6061 aluminum filter mount attaches to the passenger-side radiator support for easy filter access without removing other components.
The kit includes two brass ball valves that isolate the filter during changes, making the process cleaner than systems without shutoff valves. The silicone coolant hoses are designed as single-piece runs to eliminate splice points that could develop leaks over time, and the bracket positioning allows the filter to sit in a location that sees consistent coolant flow.
Some owners reported that the filter housing threads required careful tightening to prevent seepage, with the recommendation to warm the engine and retighten after initial thermal cycling. The hose clamps included in the kit were described as functional but basic, and several owners upgraded to constant-tension clamps for a more permanent seal.
What works
- Removes casting debris that clogs oil and EGR coolers
- Brass ball valves simplify filter changes without draining coolant
- Single-piece silicone hoses reduce leak points vs. spliced alternatives
What doesn’t
- Filter housing threads may seep until properly heat-cycled and retightened
- Included hose clamps are basic quality and benefit from upgrading
6. BD Diesel Exhaust Manifold Set
The BD Diesel exhaust manifold set for the Ford 3.5L Ecoboost addresses the warping and broken stud issues common on the factory manifolds through thicker castings and integrated heat sink fins around the stud locations. The precision-machined mounting surfaces and included gaskets allow a direct bolt-on installation once the original manifolds are removed, though removing the factory parts typically requires dealing with seized and broken studs on the rear cylinders.
Owner reports highlight the improved thread engagement compared to OEM manifolds, with additional bolt locations that distribute clamping force more evenly across the sealing surface. The heat sink fins around each stud hole draw thermal energy away from the fastener area, reducing the temperature cycling that causes studs to fatigue and snap over time.
The instructions include specific guidance on cleaning the gasket mating surfaces and chasing threads before installation, which owners found critical for achieving a proper seal. Several long-term users reported the manifolds stayed leak-free after multiple seasons of towing, with one owner noting the upgrade eliminated the ticking exhaust leak sound that had returned after two previous OEM replacements.
What works
- Heat sink fins reduce stud fatigue from thermal cycling
- Additional bolt locations improve sealing surface clamping
- Thicker casting resists warping better than factory manifolds
What doesn’t
- Removing original manifolds often requires dealing with broken studs
- Premium price reflects cast iron quality over tubular alternatives

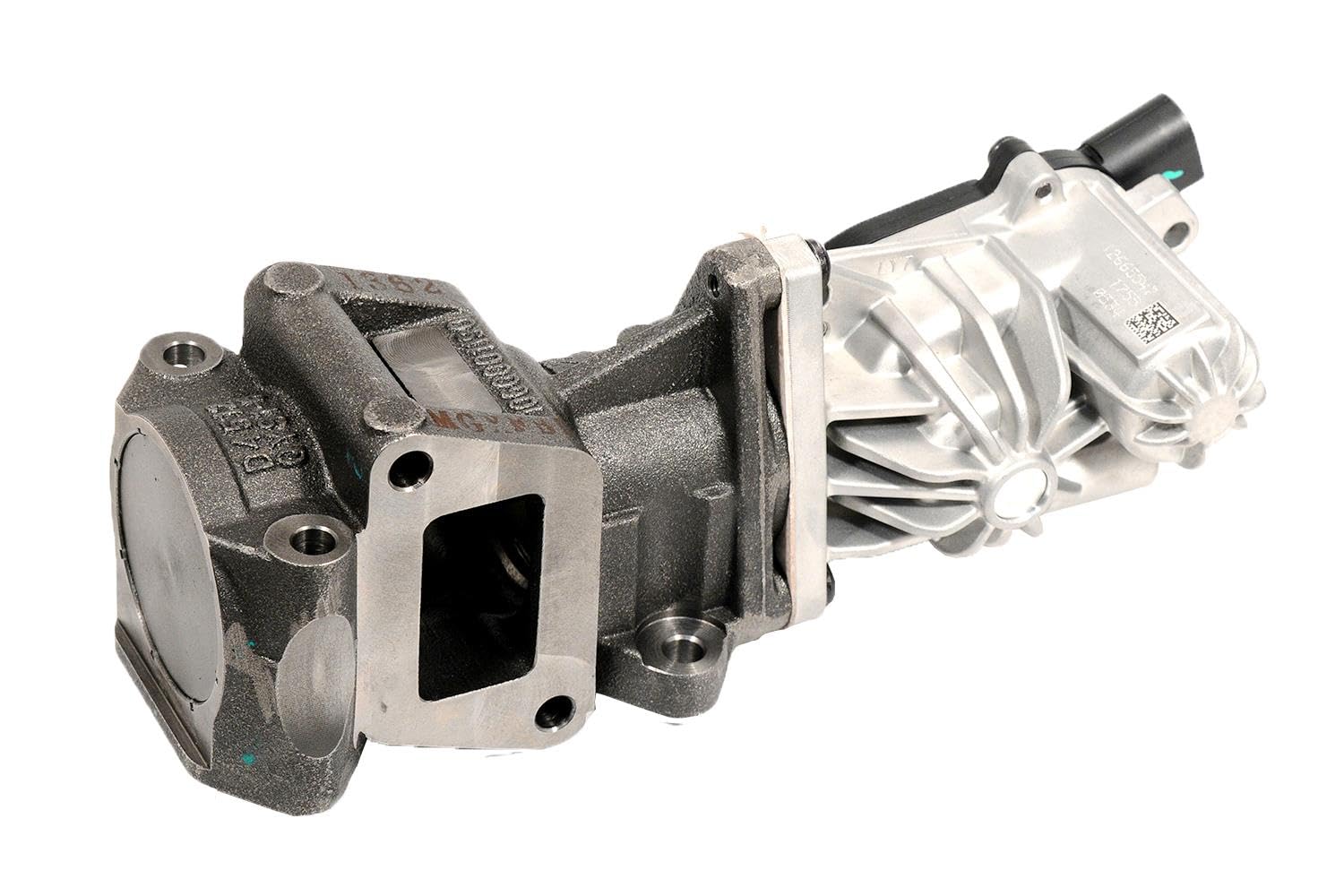

7. GM Genuine Parts 12665547 EGR Valve
This GM Genuine Parts EGR valve offers a direct OEM replacement for Duramax applications, providing the same fit, form, and function as the factory-installed component. The metal body construction and flanged connector match original specifications precisely, which owners consistently reported allowed a straightforward swap without modification to the intake or wiring.
Several owner reports noted the valve successfully resolved P140C and other EGR-related diagnostic trouble codes on LML Duramax engines with around 120,000 miles, restoring normal exhaust gas recirculation function without any adaptation or programming required. The 24-month unlimited-mileage warranty provides coverage that aftermarket budget valves typically lack.
The painted exterior finish matches the factory appearance and resists corrosion in underhood conditions. While this part is a direct replacement rather than a performance upgrade, owners appreciated that the genuine GM engineering eliminated the fitment guessing that comes with generic replacements, and the quick shipping times mentioned in multiple reviews reflect the availability of a widely stocked OEM part.
What works
- Exact OEM fitment eliminates installation guesswork
- Resolves P140C and related EGR fault codes reliably
- 24-month warranty provides long-term coverage
What doesn’t
- OEM pricing is higher than aftermarket alternatives
- Not a performance upgrade — stock functionality only

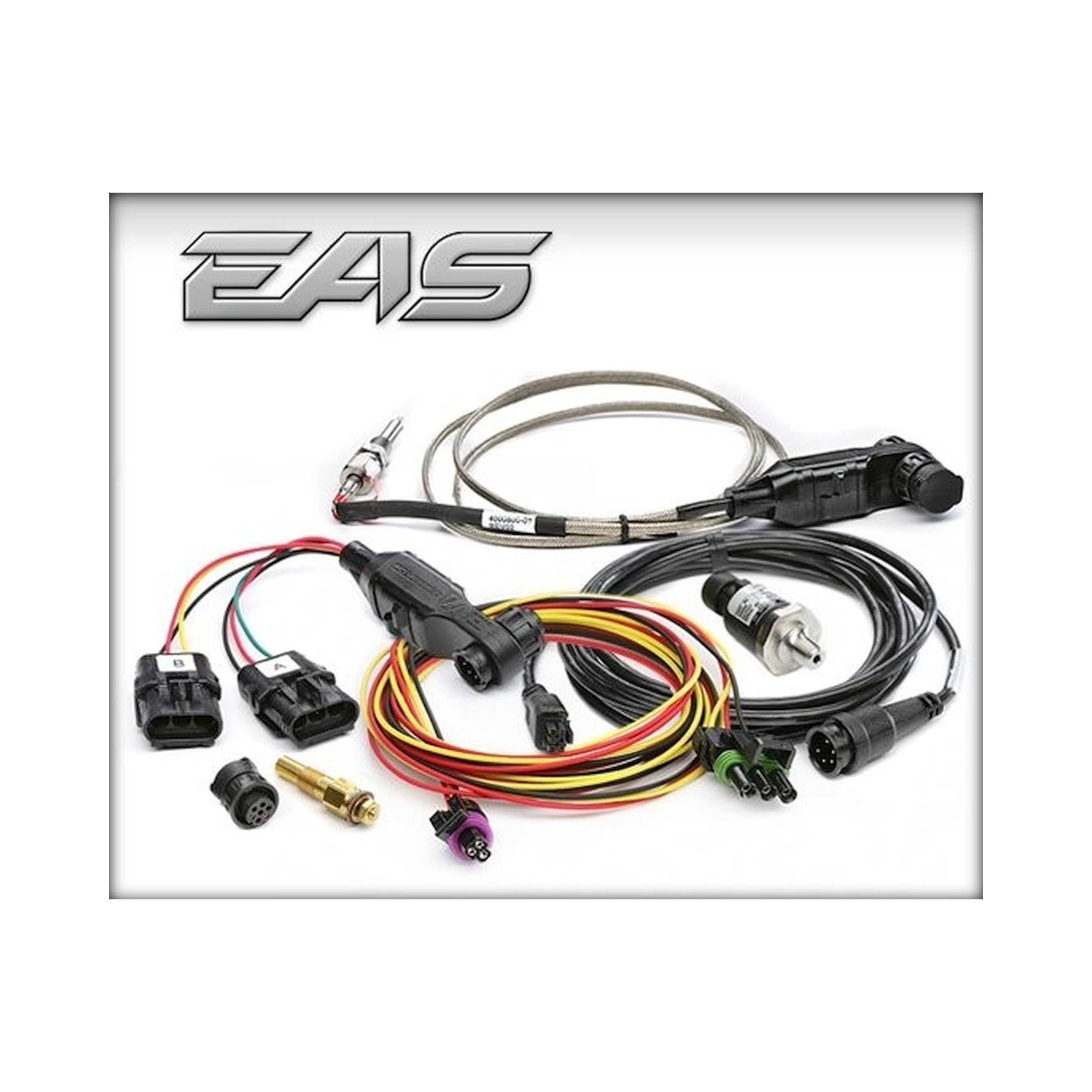

8. Edge 98617 EAS Competition Kit
The Edge EAS Competition Kit provides a complete external sensor system for monitoring critical engine parameters during high-load operation, including exhaust gas temperature, boost pressure, and coolant temperature. The system uses a daisy-chain harness layout that keeps the underhood wiring organized, with a single cable passing through the firewall for a clean cab installation.
Included components are the EAS starter cable, EGT probe kit with thermocouple, a 0-100 psi boost pressure sensor, and a 0-250 degree temperature sensor along with all required wiring. The plug-and-play design allows integration with Edge Insight or CTS monitors, giving real-time readouts that help drivers avoid excessive EGTs during towing or performance driving.
Some owners noted compatibility limitations with aftermarket tuning devices, with one user reporting the sensor set was not fully compatible with their Diablo tuner without the Trinity T2 EX monitor. The price point positions this as a premium monitoring solution for owners who already have or plan to invest in the Edge ecosystem, rather than a standalone gauge kit.
What works
- Complete sensor package eliminates piecing together individual gauges
- Daisy-chain harness keeps engine bay wiring organized
- EGT probe provides critical data for protecting exhaust components
What doesn’t
- Compatibility limited to Edge monitoring ecosystem
- Premium price for a sensor kit without included display
9. Baxzl EGV1151 EGR Valve
This budget-oriented EGR valve from Baxzl offers a stainless steel finish and threaded inlet connections designed to fit 2008-2010 Ford 6.4L Super Duty applications, though the 1-inch and 1.25-inch threaded ports require careful attention to thread sealing during installation. The manufacturer states the valve is produced with reference to original specifications and includes a 6-month quality guarantee.
Owner feedback presents a consistent pattern of the valve triggering P1335 EGR position errors and failing to communicate properly with the engine control module. Multiple users reported the truck entering limp mode immediately after installation, with some owners opting to delete the EGR system entirely rather than troubleshoot the replacement valve. Professional installation is recommended but several users noted the valve still failed to function correctly even after proper installation.
The low entry price reflects the quality issues documented across multiple owner reports, with the majority of verified purchasers advising against the purchase. While the specifications on paper match the OEM fitment, the real-world performance data suggests the internal components do not meet the positional accuracy required by the Ford engine management system for proper EGR flow modulation.
What works
- Stainless steel exterior finish resists corrosion
- Threaded ports allow secure connection with proper sealing
What doesn’t
- Consistently triggers P1335 EGR position fault codes
- Multiple owner reports of limp mode after installation
- Internal components lack positional accuracy for proper ECM communication
Hardware & Specs Guide
EGR Cooler Core Design
Factory 6.0 coolers use a turbulator-style internal passage with small fins that trap soot and carbon, leading to clogging and overheating. The upgraded straight-tube design uses six smooth stainless steel passages that allow exhaust gas to flow freely without obstruction, eliminating the primary failure mode of the original cooler. Weld quality and tube wall thickness vary across manufacturers, with heavier gauge tubing providing better resistance to thermal fatigue over multiple heat cycles.
High-Pressure Oil System Seals
Stand pipes and dummy plugs in the 6.0 high-pressure oil system operate at over 4,000 psi, which rapidly degrades standard rubber O-rings. Viton material with PTFE back-up rings provides the necessary heat and pressure resistance for long-term sealing. Integrated check valves in upgraded stand pipes maintain oil rail pressure after shutdown, reducing the extended crank times that indicate bleed-down through worn seals.
Fuel Pressure Regulation
The factory fuel pressure regulator on 6.0 Powerstroke engines uses a stamped steel cover and a spring that weakens over time, causing fuel pressure to drop below the 45-50 psi range required for proper injector operation. Billet aluminum replacement housings with upgraded springs restore pressure by 10-15 psi, protecting injectors from the lean-condition damage that occurs when fuel delivery falls short under load.
Coolant Filtration By pass Design
Cast iron debris left from the engine manufacturing process circulates through the cooling system and accumulates in the oil cooler’s narrow passages, restricting coolant flow and causing the EGR cooler to overheat. A bypass coolant filter system routes a small portion of coolant through a spin-on filter with each pass, capturing particles before they reach the oil cooler. Brass isolation valves allow filter changes without draining the entire cooling system.
FAQ
What exactly does an EGR delete do on a 6.0 Powerstroke?
Is an EGR delete legal for street use?
What other upgrades should I do alongside an EGR delete?
Will an EGR delete solve my 6.0 overheating problem?
How long does it take to install an EGR delete kit?
Final Thoughts: The Verdict
For most buyers, the best 6.0 egr delete kit winner is the APDTY 015373 EGR Cooler Kit because it directly addresses the clogging and overheating that plague the factory cooler with a proven straight-tube stainless design at a reasonable cost. If you want to stabilize fuel pressure before addressing the EGR system, grab the Sinister Diesel Blue Spring Kit. And for resolving hard-start issues caused by high-pressure oil leaks, nothing beats the Xotic Performance Stand Pipe Kit with its integrated check valves and Viton sealing.
