A failing radiator in a 2015 Chevy Malibu isn’t an inconvenience — it’s a ticking clock. When the temperature gauge climbs past the midpoint, the risk of a blown head gasket or warped cylinder head becomes immediate. The 2.5L Ecotec engine in these sedans runs hot by design, and a clogged or cracked radiator turns that thermal margin into a liability that can strand you or cost thousands in block repairs.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing automotive cooling system specifications, cross-referencing OEM part numbers, and combing through owner feedback to separate parts built for the long haul from those that fail within a season.
After evaluating fitment data, heat rejection design, and build quality across multiple suppliers, this guide breaks down the best options for keeping the 2.5L and 2.0T engines cool. This is your complete resource for finding the right 2015 chevy malibu radiator.
How To Choose The Right 2015 Chevy Malibu Radiator
A 2015 Malibu radiator must meet specific dimensional and thermal requirements that vary by engine code. The 2.5L LKW engine and the 2.0T LHU engine use different inlet/outlet sizes and core dimensions. Simply grabbing a radiator that “looks close” can result in hose misalignment and air pockets that cause overheating.
Inlet and Outlet Diameter
The 2.5L Malibu uses a 1-3/8 inch inlet and outlet. The 2.0T models sometimes step up to a 1-1/2 inch inlet and 1-3/4 inch outlet. Check your existing radiator stamped part number before ordering. If you mix these up, the hose clamp won’t seat properly and coolant will leak under pressure.
Core Thickness and Row Count
Most aftermarket radiators for this platform use a single-row core. A 1-inch core thickness is the baseline. A 1-1/4 inch core provides marginally better heat rejection for heavy-traffic or towing scenarios, but confirm it still fits within the factory fan shroud clearance.
Material and Certification
Look for an aluminum core with glass-fiber reinforced nylon PA66 tanks. This combination resists the thermal cycling that cracks older ABS plastic tanks. IATF16949 certification indicates the factory follows automotive-grade quality controls, including pressure and leak testing before shipment.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| YITAMOTOR Radiator | Premium | Daily Driver Reliability | PA66 Tanks, 15.67″ x 26.77″ Core | Amazon |
| TRQ Radiator 1 Row | Premium | DIY Video Installation | 26.75″ Core, CU13328 Cross Reference | Amazon |
| DNA Motoring CU13146 | Premium | 2.4L Engine Compatibility | T-6061 Alloy Core, 680mm x 378mm | Amazon |
| PHILTOP CU13332 | Mid-Range | IATF16949 Certified Build | 1-1/4″ Core, Inlet 1-1/2″ | Amazon |
| KAX 13332 Radiator | Mid-Range | Leak-Tested Value Pick | IATF16949, High-Density Multi-Louver Fins | Amazon |
| Torchtree 13332 Radiator | Mid-Range | Two-Year Warranty Support | Core: 1″ x 26-3/4″ x 15-5/8″ | Amazon |
| Auto Dynasty CU13328 | Budget | Entry-Level Replacement | 1-Row, Core: 26-3/4″ x 15-11/16″ x 7/8″ | Amazon |
In‑Depth Reviews

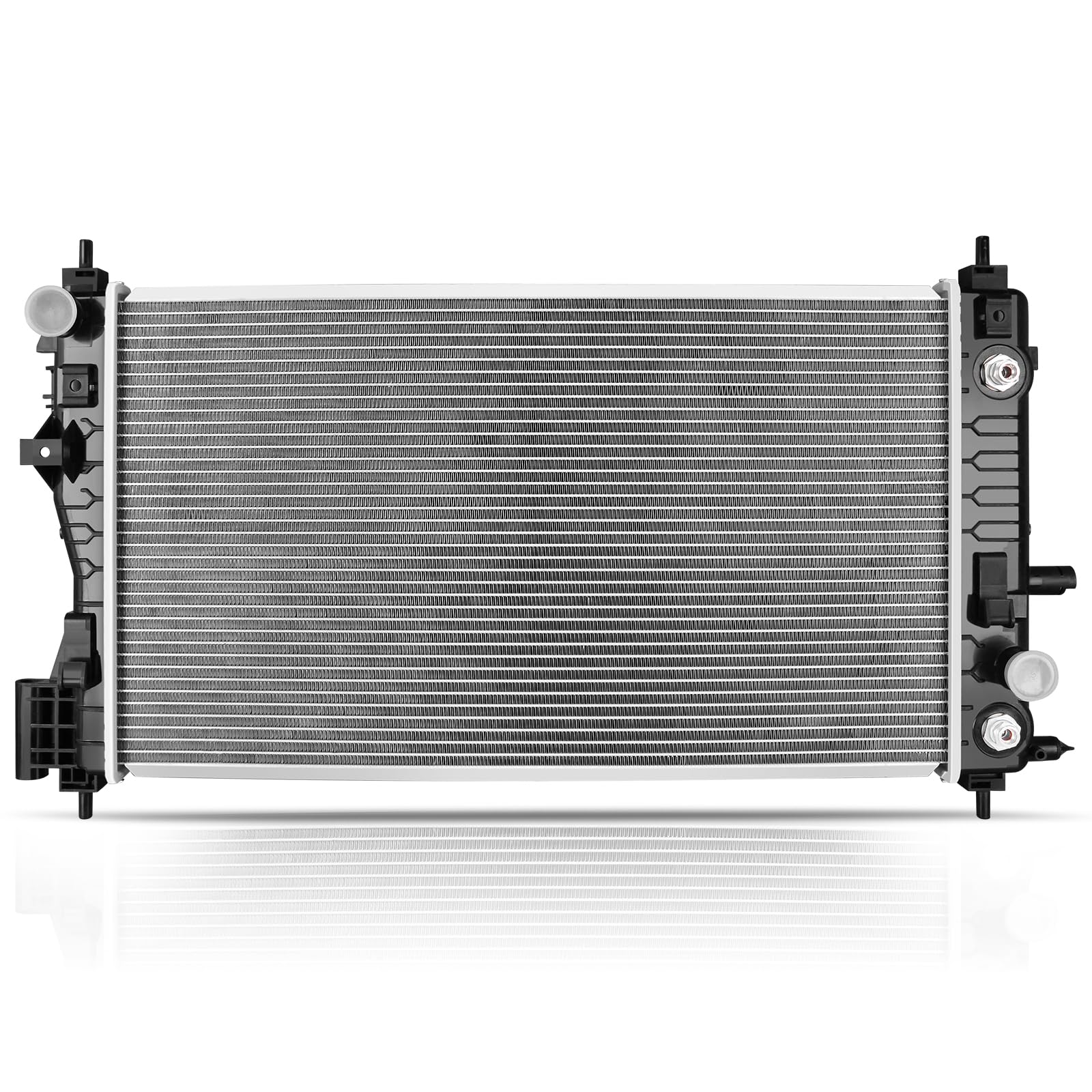

1. YITAMOTOR Radiator
The YITAMOTOR radiator lands at the top of this list because it directly addresses the two failure modes that kill 2015 Malibu radiators: tank cracking and fin collapse. The PA66 glass-filled nylon tanks resist the thermal expansion cycles that cause ABS tanks to split at the seam after two or three summers. Seamless welding at the tank-to-core joint eliminates the weak point where most budget radiators develop micro-cracks.
The core measures 15.67 inches tall by 26.77 inches wide, matching the factory dimensions precisely so the fan shroud bolts up without modification. High-density aluminum tubes and multi-louver fins increase the surface area for heat rejection compared to the stock unit. This matters most when you are sitting in traffic with the AC running — the YITAMOTOR keeps the coolant temperature from creeping into the yellow zone.
Every unit is leak-tested at the factory and shipped in multi-layer cardboard with PE foam corner protection. The only catch is that a radiator cap is not included, so you will need to reuse your original or buy a new one rated for the correct pressure. Professional installation is recommended because bleeding air from the 2.5L cooling system requires a specific burping procedure.
What works
- PA66 tanks resist thermal cracking significantly better than standard ABS
- Leak-tested before shipment with reinforced packaging
- Direct bolt-on fitment for 2013-2015 Malibu and 2016 Malibu Limited 2.5L
What doesn’t
- Radiator cap not included — must be purchased separately
- Professional installation recommended for proper air bleed

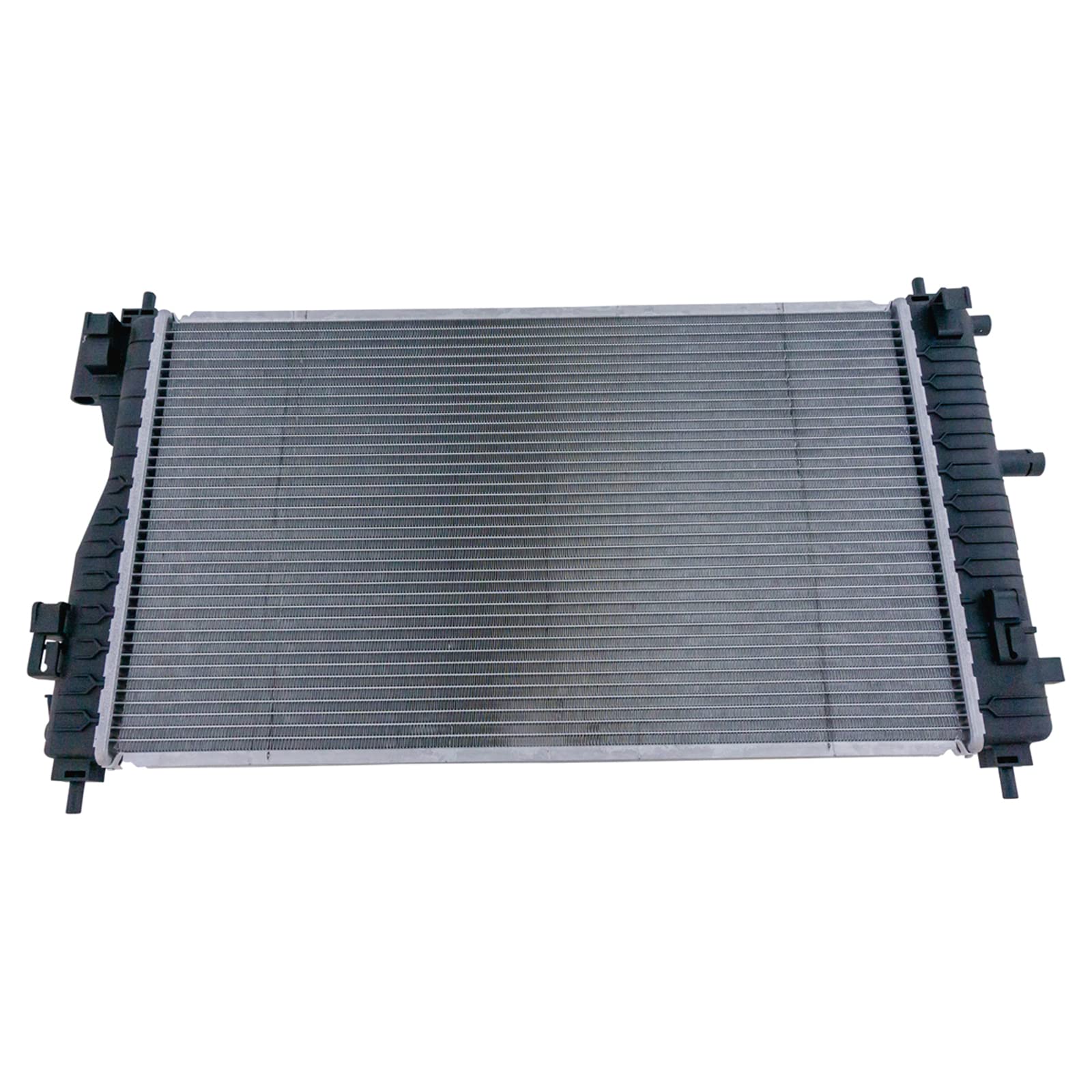

2. TRQ Radiator 1 Row Aluminum Core
TRQ has been supplying direct-fit replacement parts for a quarter-century, and their 2015 Malibu radiator reflects that institutional knowledge. The 26.75-inch core width and 1-row aluminum construction match the OEM CU13328 and GM3010553 part numbers exactly. This unit is pre-assembled with the inlet and outlet positioned at factory spec, so you are not bending hoses or fighting alignment during installation.
What sets TRQ apart is their DIY video library. Each radiator sale includes access to a step-by-step installation video specific to this platform. For the home mechanic replacing a radiator for the first time, seeing the exact sequence for draining the coolant, disconnecting the transmission cooler lines, and bleeding the system reduces the risk of an air pocket that causes a false overheat reading.
The aluminum core uses high-density louvered fins that improve heat transfer over the stamped steel found on some lower-tier competitors. The unit weighs just over 10 pounds, making it manageable to maneuver under the car without a second person. The downside is that this premium comes with a higher price tag, but the 25-year brand reliability and video support justify the extra cost for owners who plan to keep the Malibu on the road long-term.
What works
- Direct CU13328 cross-reference ensures accurate fitment
- Comprehensive DIY installation video included
- Pre-assembled components save installation time
What doesn’t
- Premium tier pricing is higher than comparable aftermarket units
- Radiator cap sold separately
3. DNA Motoring CU13146 1-Row Aluminum Core
The DNA Motoring CU13146 is a versatile option that covers the 2013-2014 Malibu 2.4L — a configuration that some aftermarket radiators skip. The full T-6061 aluminum alloy core provides excellent thermal conductivity, and the ABS material used for the tanks is reinforced for better impact resistance than standard plastic. The core measures 680mm by 378mm, which is slightly different from the 2.5L-specific units, so double-check your engine code before purchasing.
This radiator uses a multi-blade fin design that increases the overall heat dissipation area without adding core thickness. Owners running the 2.4L engine in warmer climates report stable coolant temperatures even after extended highway driving. The bolt-on mounting style uses the factory brackets without requiring drilling or adapter plates.
The trade-off is that this unit is not compatible with the 2.5L engine found in most 2015 Malibus. It also excludes vehicles with the hot weather package and certain Police Package Impala variants. If your Malibu has the 2.4L, this is a solid mid-premium choice. For 2.5L owners, stick with the CU13328-based options listed elsewhere in this guide.
What works
- T-6061 aluminum alloy core offers superior heat dissipation
- Direct bolt-on fitment for 2.4L Malibu models
- Reinforced ABS tanks resist impact damage
What doesn’t
- Not compatible with 2.5L engine — verify before purchase
- Excludes hot weather package and Police Package variants

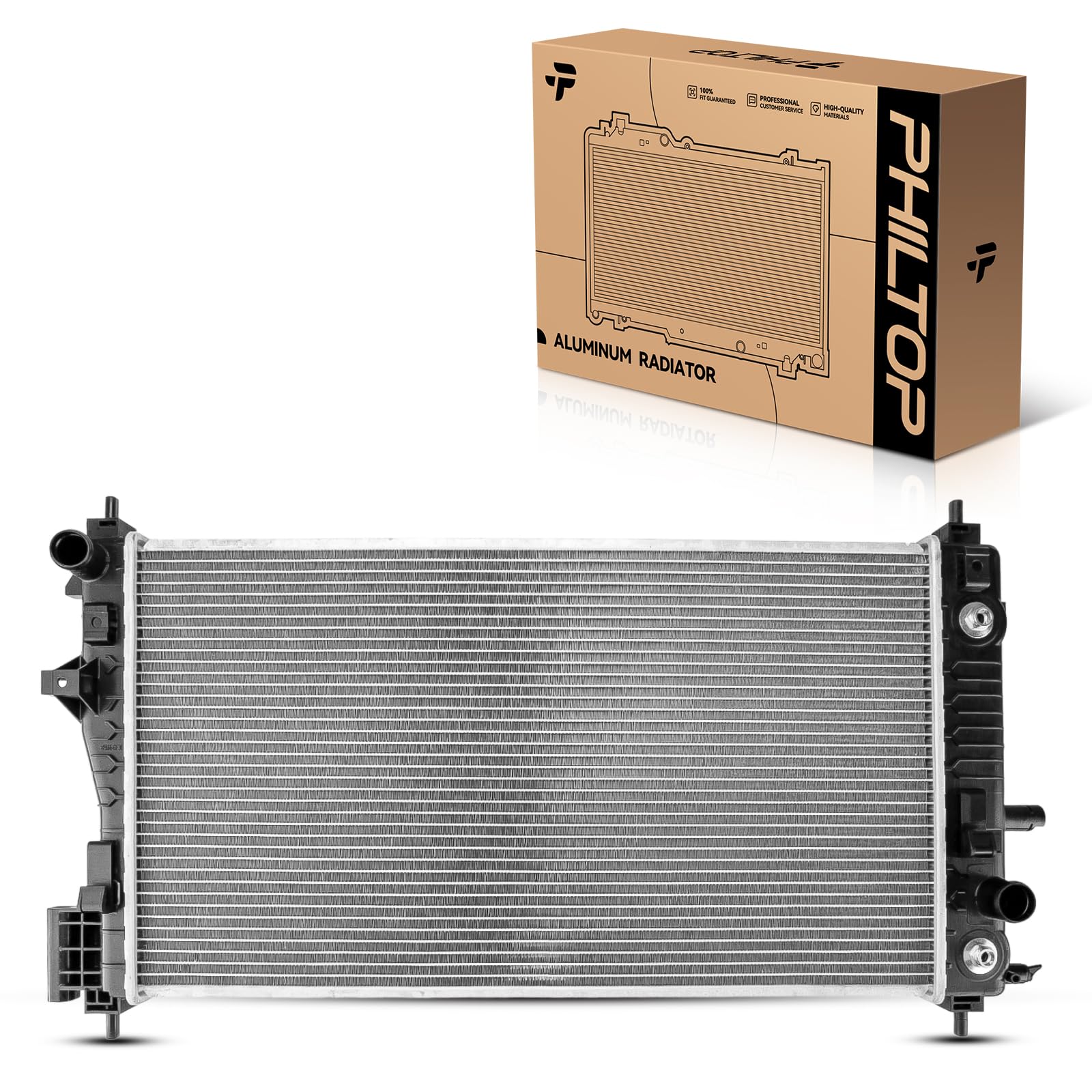

4. PHILTOP CU13332 Engine Coolant Aluminum Radiator
The PHILTOP CU13332 stands out for its core thickness — 1-1/4 inches, which is a quarter-inch thicker than the baseline found on most competitors. This additional volume translates to more coolant capacity and higher thermal inertia, meaning the temperature gauge takes longer to spike during sustained load. The core width is 23-7/16 inches with a height of 18-11/16 inches, so verify clearance with your fan shroud before ordering.
This unit carries IATF16949 certification, indicating the manufacturing facility follows automotive-grade quality management. Each radiator undergoes pressure testing and leak testing before leaving the factory. The direct-fit design means the inlet and outlet align with the factory hoses without adapters. PHILTOP specifies an inlet diameter of 1-1/2 inches and outlet diameter of 1-3/4 inches, which matches the 2.0T LHU engine specifications.
The thicker core does add weight, though at 10.23 pounds it remains manageable. The main consideration here is that the 1-1/2 inch inlet may not fit the 2.5L engine hoses, which use a 1-3/8 inch diameter. Owners of the 2.0T Malibu or Regal will benefit most from this radiator’s extra cooling capacity, while 2.5L owners should confirm hose compatibility before buying.
What works
- 1-1/4 inch core thickness provides superior thermal capacity
- IATF16949 certification ensures quality control and leak testing
- Direct-fit for 2.0T compatible models
What doesn’t
- 1-1/2 inch inlet may not fit 2.5L hose diameter
- Core dimensions differ from standard 2.5L radiators

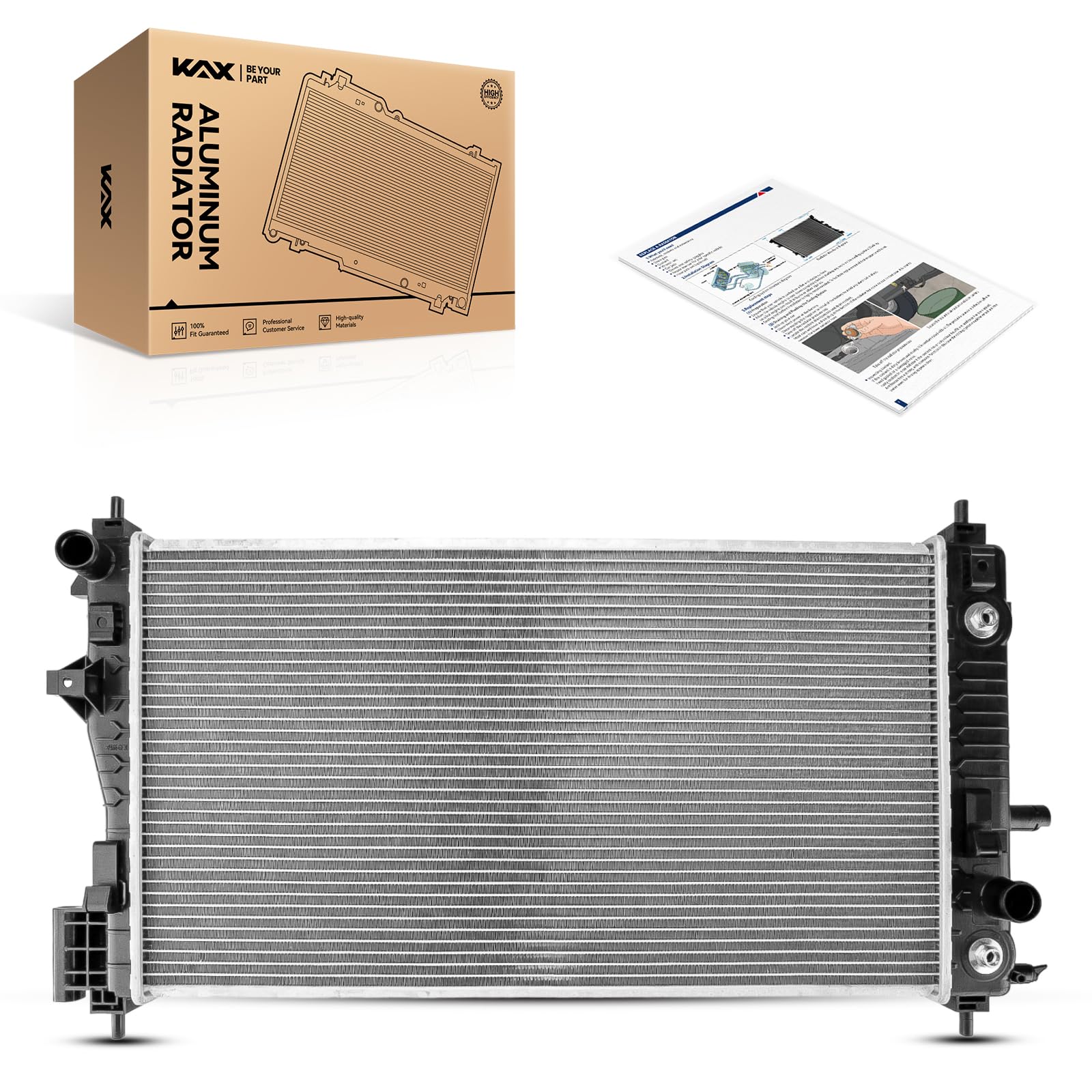

5. KAX 13332 Engine Radiator Replacement
The KAX 13332 delivers mid-range quality at a price point that undercuts most premium options while retaining IATF16949 certification. The high-density multi-louver fin design provides a larger heat dissipation area than standard flat-fin radiators. Each unit passes leak, pressure, aging, and durability tests before leaving the factory. For the budget-conscious owner who refuses to sacrifice cooling performance, the KAX hits the sweet spot.
The core dimensions are 26-3/4 inches wide by 15-5/8 inches tall with a 1-inch thickness — identical to the OEM specifications for the 2.5L engine. The inlet and outlet both measure 1-3/8 inches, which matches the factory hose diameter. The plastic tanks use high-grade material to resist the embrittlement that occurs after years of heat cycling. The reinforced shockproof packaging includes foam corner blocks and multiple layers of corrugated cardboard to prevent shipping damage.
KAX backs this radiator with a two-year quality assurance and offers responsive after-sales support. The only practical drawback is that this is a relatively new brand on the market, so the long-term track record is shorter than established names like TRQ. For a daily driver that needs a reliable replacement without the premium markup, the KAX is a strong contender.
What works
- IATF16949 certification at a mid-range price point
- Multi-louver fins maximize heat rejection surface area
- 1-3/8 inch inlet and outlet match 2.5L factory hoses
What doesn’t
- Brand is newer with limited long-term owner history
- Professional installation recommended for best results

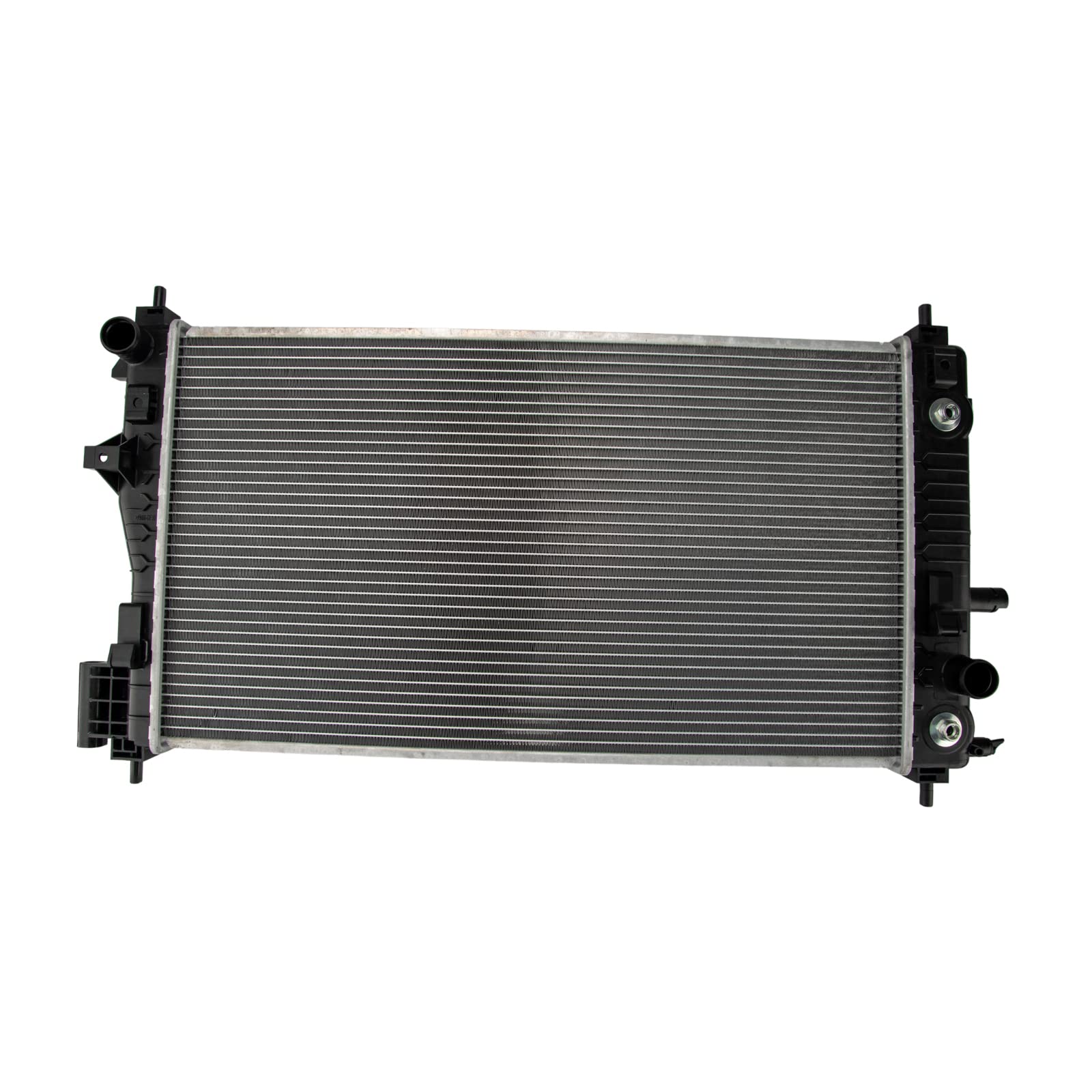

6. Torchtree 13332 Radiator
The Torchtree 13332 radiator is built around the same core specs as the KAX — 1-inch thickness, 26-3/4 inches wide, 15-5/8 inches tall, with 1-3/8 inch inlet and outlet. The difference lies in the quality assurance package: Torchtree offers a two-year warranty and a dedicated customer support team that responds directly to fitment questions. For owners who want peace of mind beyond the standard 90-day return window, this matters.
The metallic finish on the tanks is more than cosmetic — it indicates a surface treatment that resists coolant staining and external corrosion. The high-density multi-louver fins use the same design philosophy as the KAX, with each fin angled to maximize airflow through the core. The unit has passed IATF16949 quality management system standards, including the same battery of leak, pressure, and durability tests.
The upgraded shockproof packaging includes foam pads at all four corners and multi-layer sealing strips. Torchtree has been producing auto parts long enough to understand that a radiator damaged in transit is a complete waste of time for the buyer. The only reason this unit is not ranked higher is that the materials and spec sheet closely mirror the KAX, making price the primary differentiator. Choose Torchtree if the warranty length is your deciding factor.
What works
- Two-year warranty provides extended coverage
- Metallic finish resists corrosion and staining
- IATF16949 certified with full battery of factory tests
What doesn’t
- Specs are nearly identical to lower-priced competitors
- Warranty claim process requires detailed documentation

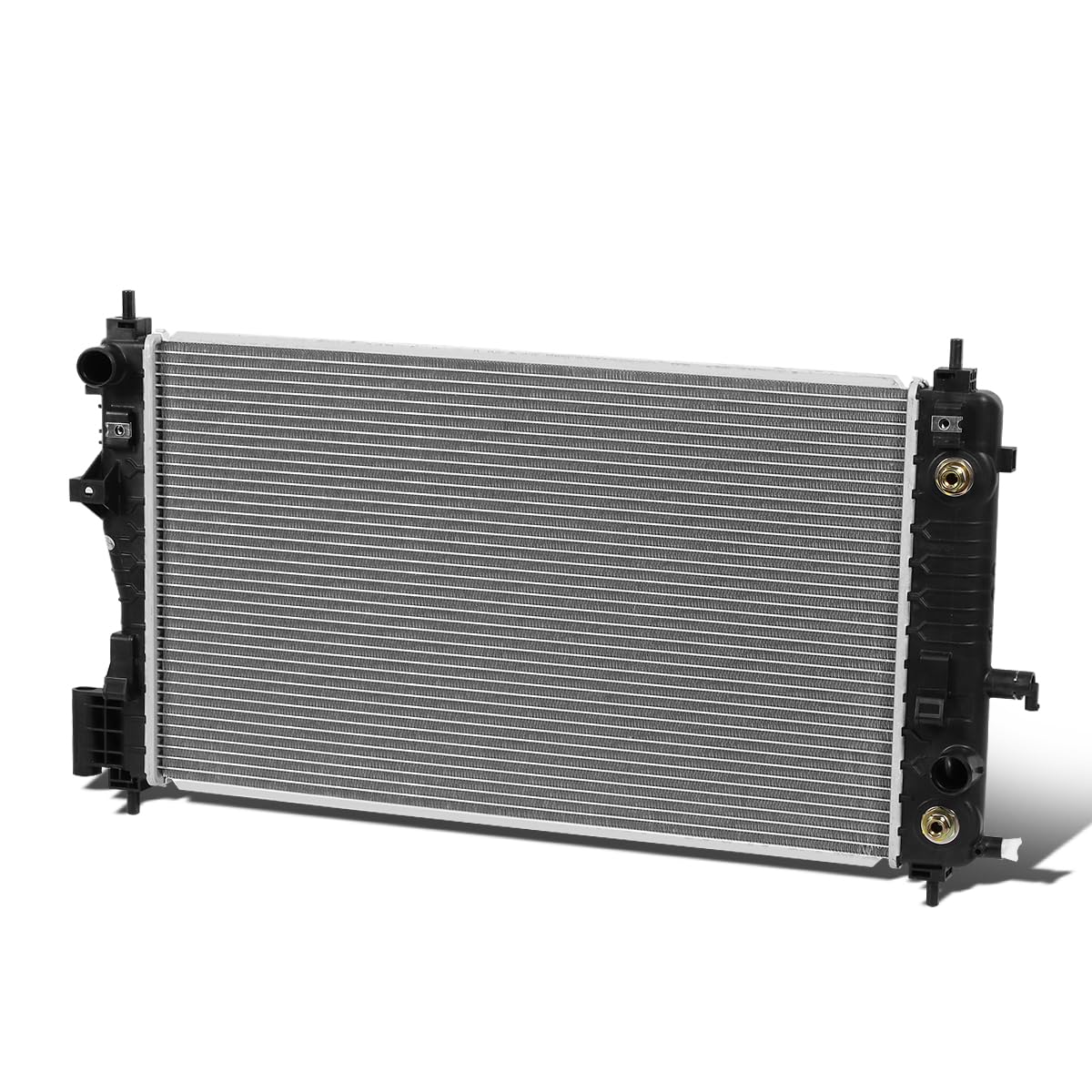

7. Auto Dynasty Radiator CU13328
The Auto Dynasty CU13328 is the entry-level option in this lineup, covering the 2013-2015 Malibu, 2016 Malibu Limited, and compatible Buick Regal and Chevrolet Impala models with 2.0L and 2.5L engines. The core measures 26-3/4 inches by 15-11/16 inches with a thinner 7/8-inch depth. The inlet and outlet are both 1-3/8 inches, making it compatible with the 2.5L hose setup out of the box.
The construction uses an aluminum core with heavy-duty ABS plastic tanks. Aluminum cooling fins improve heat transfer over all-steel designs, and the lightweight 10.91-pound build makes installation easier for a solo mechanic. The factory-style 1-row design means this radiator will replicate the cooling performance of the original equipment rather than exceeding it. For a car that has never shown overheating issues with a healthy cooling system, that baseline is sufficient.
The thinner 7/8-inch core is the primary limitation — it holds less coolant and has less thermal mass than the 1-inch or 1-1/4-inch alternatives. In stop-and-go summer traffic, the temperature may climb faster than with a thicker core. This is a perfectly functional option for the owner on a tight budget who needs a working radiator immediately, but for long-term reliability in hot climates, spending a little more on a 1-inch core is advisable.
What works
- Direct bolt-on fitment for multiple GM models
- Lightweight design simplifies solo installation
- 1-3/8 inch inlet and outlet match 2.5L hoses
What doesn’t
- 7/8-inch core is thinner than 1-inch standard
- ABS plastic tanks less durable than PA66 nylon
Hardware & Specs Guide
Core Dimensions
The core width for the 2015 Malibu 2.5L radiator ranges from 26-3/4 to 26-3/4 inches. Core height sits between 15-5/8 and 15-11/16 inches. Core thickness varies from 7/8 inch on budget units up to 1-1/4 inches on premium models. Always measure your existing radiator before ordering, as fan shroud clearance can vary between trim levels.
Inlet and Outlet Diameter
The 2.5L engine uses 1-3/8 inch inlet and outlet diameters. The 2.0T engine may require 1-1/2 inch inlet and 1-3/4 inch outlet. Using the wrong size prevents the hose from sealing properly and causes coolant loss under pressure. Cross-reference your OEM part number — CU13328 typically indicates 1-3/8 inch fittings.
FAQ
What is the difference between CU13328 and CU13332 for a 2015 Malibu?
Can I install a radiator in my 2015 Malibu without bleeding the cooling system?
Why do my radiator tanks crack after two years?
Final Thoughts: The Verdict
For most buyers, the 2015 chevy malibu radiator winner is the YITAMOTOR Radiator because it combines PA66 tank durability, leak-tested build quality, and factory-direct fitment for the 2.5L engine without the premium markup. If you want threaded installation video support and a 25-year brand history, grab the TRQ Radiator. And for the budget-conscious daily driver who still wants IATF16949 certification, nothing beats the KAX 13332 for value.
