Transmission heat is the silent killer of modern drivetrains—exceeding safe operating temperatures degrades fluid viscosity, accelerates clutch pack wear, and triggers torque converter lockup failures long before the check engine light ever flashes. Monitoring actual TCM data rather than relying on dashboard warnings separates preventive maintenance from costly rebuilds.
I’m Amir — the founder and writer behind Four Wheel Ask. My work focuses on comparing diagnostic tool specifications, analyzing owner-reported data across multiple vehicle platforms, and evaluating how live data sampling rates and protocol coverage translate into real-world repair insights.
Wading through code readers that hide TCM parameters behind paywalls or skip transmission data entirely wastes both time and money. For serious DIY mechanics, the ideal best obd2 scanner for transmission temperature offers live TCM data and multi-system diagnostics without hidden costs.
How To Choose The Best OBD2 Scanner For Transmission Temperature
Selecting a scanner that accurately reads transmission control module data requires more than checking the product description for the word “transmission.” You need to verify protocol support, live data sampling rates, and whether the tool actually accesses TCM PIDs or simply reads engine codes. Below are the critical factors that separate a genuine transmission diagnostic tool from a basic code reader.
Transmission System Coverage
Not all scanners that advertise “multi-system” support actually access the transmission control unit. Many entry-level tools only read engine DTCs and ignore TCM entirely. Look for explicit support for transmission diagnostics—reading and clearing TCM codes, viewing live transmission data such as fluid temperature, shift solenoid status, and gear ratio monitoring. Some tools list “4-system” or “full-system” coverage that includes Engine, ABS, SRS, and Transmission; confirm the transmission portion is available for your specific vehicle make and model year.
Live Data Sampling and PID Access
Transmission temperature fluctuates rapidly under load, so the scanner must refresh live data quickly enough to capture thermal spikes during towing, stop-and-go traffic, or spirited driving. A tool that displays transmission fluid temperature (TFT), torque converter slip speed, clutch pressure, and shift timing gives you the diagnostic depth needed to spot overheating before damage occurs. Verify that the scanner supports the specific SAE and manufacturer-specific PIDs for your vehicle’s TCM.
Scan Tool vs. Basic Code Reader
A basic code reader may clear a check engine light but cannot track transmission temperature trends, log freeze frame data from the TCM, or perform bidirectional tests on shift solenoids. Full diagnostic scanners—especially those with graphing and recording features—let you monitor transmission temperature over a test drive and replay the data later. If your goal is preventive maintenance on a high-mileage vehicle, investing in a tool with data logging and multi-frame playback saves money in the long run.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| XTOOL D5 | Scan Tool | Transmission diagnostics & resets | 5.45″ touch, 4-system, 10 resets | Amazon |
| Innova SDS43 | Tablet | Bidirectional transmission control | 4.3″ tablet, bidirectional TCM | Amazon |
| GOOLOO DS900 | Bluetooth | Wireless full-system diagnosis | 8″ Android, Bluetooth 5.0, 10k mAh | Amazon |
| FOXWELL NT510 Pro | Specific | GM/Chevy/Buick/Cadillac TCM | 4.3″ Linux, 20+ resets, battery test | Amazon |
| iCarsoft E660 | Scan Tool | 4-system reading + 6 resets | 4″ screen, 118+ live data PIDs | Amazon |
| Autel AL549 | Code Reader | ABS + battery test on a budget | 2.8″ TFT, ABS codes, battery/alt | Amazon |
| KONNWEI KW206 | HUD Gauge | Real-time temp display while driving | 3.5″ color HUD, 4-param alarm | Amazon |
| FOXWELL HD500 | Heavy Duty | Diesel truck transmission & DPF | 5.5″ Android, J1939/J1708 | Amazon |
| ANCEL HD7000 Elite | Heavy Duty | Commercial truck fleet management | 7″ touch, DPF regen, idle adjust | Amazon |
| UJS SAFESCAN | Code Reader | Budget engine code reading only | 2.8″ HD, 65k DTC library | Amazon |
| UJS ROCCO | Bluetooth | Phone-based diagnostic reports | BT 5.4, AI reports, 35k+ codes | Amazon |
In‑Depth Reviews
1. XTOOL D5 Car Code Reader and Reset Tool
The XTOOL D5 stands out for its explicit transmission control module coverage—reading and clearing TCM codes while displaying live data from up to four PIDs simultaneously. Engine, ABS, SRS, and Transmission diagnostics come standard, and the tool supports CAN FD protocol and FCA AutoAuth for broader modern-vehicle access.
What makes the D5 particularly useful for transmission temperature monitoring is the ability to view real-time TCM data alongside other critical parameters. The 5.45-inch high-resolution touchscreen (1440×720) displays graphing data clearly, and the tool includes 10 essential reset functions—EPB, throttle relearn, ABS bleeding, injector coding, BMS reset, and more—that reduce trips to the shop for routine electronic maintenance.
Wireless Wi-Fi updates keep the software current without subscriptions or hidden fees, and the 64 GB of built-in storage allows extensive data logging. Some vehicles integrate Engine and Transmission control units, which may show only three systems instead of four, but compatibility verification before purchase resolves that concern.
What works
- Full TCM read/clear with live data graphing
- 10 reset functions including throttle relearn and ABS bleed
- No subscription fees and lifetime Wi-Fi updates
What doesn’t
- Some vehicles show combined ECU/TCM as three systems only
- Bi-directional control not available on all modules
2. Innova SDS43 OBD2 Scanner Diagnostic Tool
The Innova SDS43 is a professional-grade tablet scanner that delivers bidirectional control for both the Engine Control Module and the Transmission Control Module. This means you can command shift solenoids, verify TCM outputs, and confirm transmission repairs in real time rather than relying solely on passive code reading.
Covering Engine, ABS, SRS, and Transmission systems, the SDS43 works with most 1996 and newer vehicles including Ford, Toyota, Honda, GM, and Nissan. The tool includes FCA AutoAuth integration for deeper access to Chrysler, Dodge, Jeep, and Ram vehicles, which is particularly useful for transmission diagnostics on those platforms.
All essential functions come with lifetime access—no subscriptions or locked features. The 4.3-inch tablet-style interface is intuitive for garage use, and the universal fit means it works across multiple vehicle brands without needing brand-specific adapters. Note that bidirectional features are limited to ECM/PCM and TCM modules.
What works
- Bidirectional TCM control for active solenoid testing
- FCA AutoAuth integration for Chrysler/Jeep/Ram
- Lifetime access with no subscription fees
What doesn’t
- Bidirectional limited to ECM and TCM only
- Larger tablet form factor less portable than handhelds

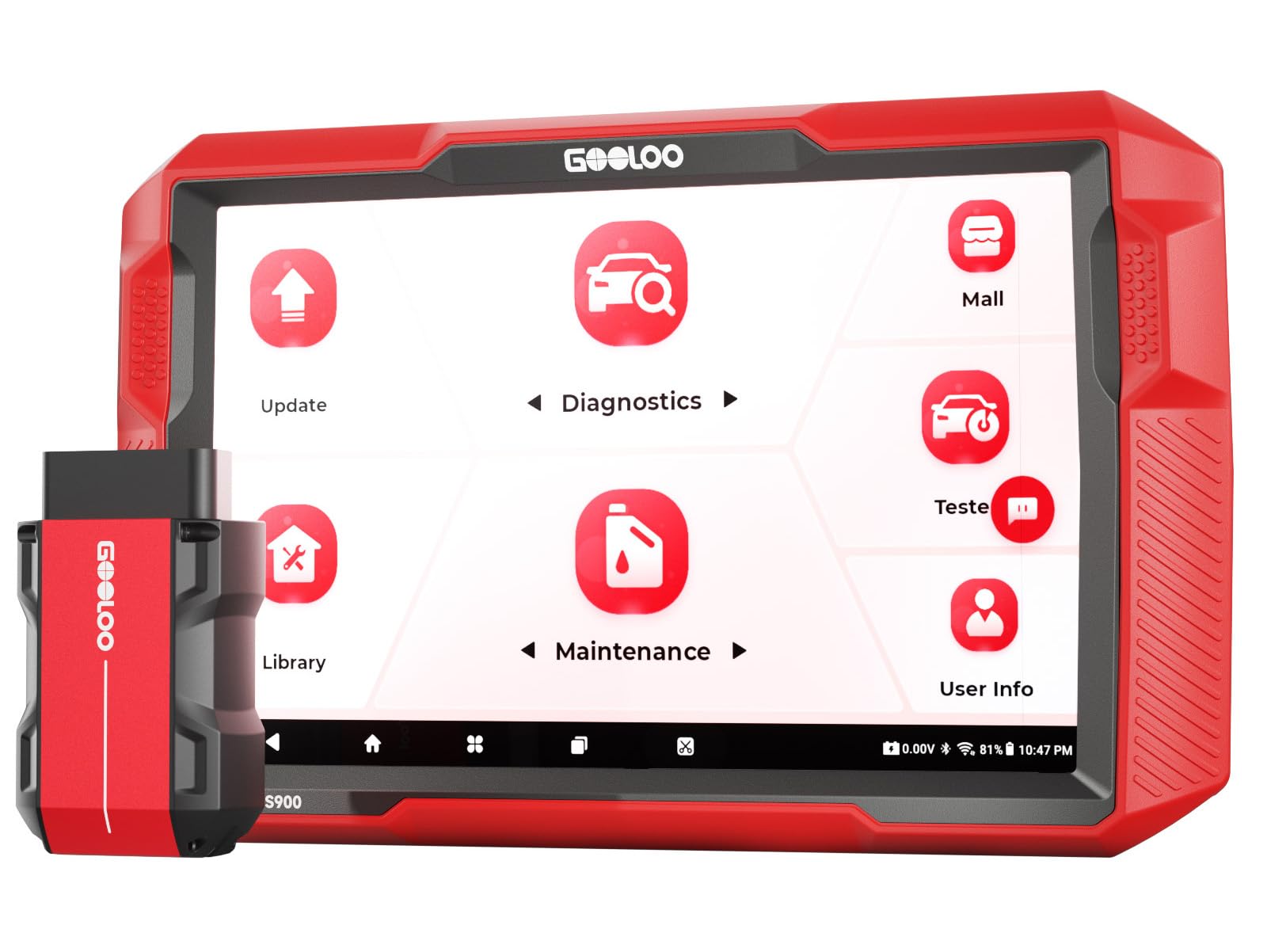

3. GOOLOO DS900 OBD2 Scanner Diagnostic Tool
The GOOLOO DS900 runs Android 11.0 on a large 8-inch touchscreen with a 10,000 mAh battery that sustains up to 12 hours of continuous diagnostics. The wireless Bluetooth 5.0 connection provides stable communication up to 10 meters from the vehicle, making it convenient for monitoring transmission temperature while performing road tests.
Full-system diagnostics cover Engine, Transmission, ABS, Airbag, EPB, TPMS, and Steering systems with OE-level access. The bidirectional active test lets you command ECU-controlled components—injectors, windows, wipers, headlights—to isolate intermittent faults that simple code readers miss. Eight plus reset services include Oil Reset, EPB Reset, Steering Angle Reset, DPF Regeneration, ABS Bleeding, and Throttle Adaptation.
Detailed DTC repair guides are built in for Chrysler, Dodge, Jeep, and Fiat models from 2010 to 2024, with additional brands added through free updates. The tool covers 60-plus makes and over 10,000 models from 1996 to 2025, and includes a 2-year free software update commitment.
What works
- Large 8-inch Android tablet with long battery life
- Wireless Bluetooth operation for road-test monitoring
- Bidirectional active test across multiple systems
What doesn’t
- Larger size less convenient for glove-box storage
- Some advanced reset functions vary by vehicle
4. FOXWELL NT510 Pro for GM Scan Tool
Built specifically for GM vehicles—Chevrolet, Buick, Cadillac, and GMC—the FOXWELL NT510 Pro offers a 2-in-1 diagnostic solution that combines full-system scanning with a 12-volt battery tester. This is particularly relevant for transmission temperature monitoring because charging system voltage directly affects TCM behavior and shift quality.
The NT510 Pro supports full-system diagnostics covering engine, transmission, ABS, airbags, TPMS, and more. It includes over 20 reset services such as crankshaft relearn, EPB reset, oil reset, airbag light reset, throttle body relearn, and ABS bleeding. The crankshaft position sensor relearn is essential on GM platforms after transmission or engine work to restore proper timing correlation.
Bi-directional testing allows component activation for doors, fuel pumps, sunroofs, and wipers to pinpoint fault locations. The 4.3-inch Linux-based touchscreen provides a crisp interface, and lifetime free Wi-Fi updates keep the tool current. Compatibility is limited to 1996-2025 GM models, so verify your specific vehicle before purchasing.
What works
- GM-specific transmission and system diagnostics
- Integrated 12V battery and charging system tester
- 20-plus reset services including crankshaft relearn
What doesn’t
- Limited to GM vehicles only
- Bidirectional control not available on all modules
5. iCarsoft E660 2025 Version 4 Systems OBD2 Scanner
The iCarsoft E660 covers Engine, ABS, SRS, and Transmission systems across more than 59 vehicle makes from 1996 to 2023. The transmission diagnostic capability includes reading and clearing TCM trouble codes, viewing live data streams, and recording real-time PID information for later analysis—a strong feature set at a mid-range investment level.
Six reset services—Oil Reset, EPB, BMS, ETC, SAS, and TPMS Reset—allow routine maintenance tasks without dealer visits. The 4-inch color screen presents 118-plus real-time data parameters with graph view support, making it easy to spot transmission temperature spikes during a test drive. The PC connectivity allows data printing and report generation for documentation.
Lifetime free updates via PC ensure the tool stays compatible with newer models, and the multi-language support (15 languages) broadens usability. Coverage varies by vehicle, so iCarsoft recommends emailing your VIN and required services before purchase to confirm full transmission system access.
What works
- Transmission TCM read/clear with 118+ live PIDs
- 6 reset services for routine maintenance
- Broad vehicle coverage across 59 makes
What doesn’t
- Transmission access varies by vehicle make
- No bidirectional control for active testing
6. Autel OBD2 Scanner AutoLink AL549
The Autel AutoLink AL549 is an upgraded version of the AL519/AL529 that adds ABS code reading and a universal battery and charging system test to the standard OBD2 function set. While it does not provide transmission-specific diagnostics, the battery test feature is relevant because low system voltage causes erratic TCM behavior and transmission shift complaints.
The tool supports all 10 OBD2 test modes including I/M readiness, live data, freeze frame, O2 sensor test, and on-board monitor testing. The TFT color display with built-in speaker provides visual and audible alerts, and the one-click I/M readiness check simplifies emissions testing preparation.
The ABS diagnostic function works on OBD2-standard vehicles manufactured between 1996 and 2020—covering most domestic and Asian/European makes—but does not support Subaru or Mitsubishi ABS systems. The battery test requires following on-screen guidance for accurate starting and charging system evaluation.
What works
- ABS diagnostic and code clearing capability
- Integrated battery and alternator testing
- All 10 OBD2 modes with one-click I/M readiness
What doesn’t
- No transmission system diagnostics
- ABS function limited to pre-2020 vehicles
7. KONNWEI KW206 OBD2 HUD Digital Meter Gauge
The KONNWEI KW206 takes a different approach by functioning as a head-up display that shows real-time engine parameters—including water coolant temperature, RPM, speed, fuel consumption, and voltage—directly on a 3.5-inch color screen. It reads and clears engine fault codes, making it a combined gauge display and basic diagnostic tool.
For transmission temperature monitoring, the KW206 displays engine coolant temperature (ECT) which correlates with transmission heat buildup, especially during towing or prolonged idling. The four-parameter alarm system—RPM, vehicle speed, ECT, and voltage—can be configured to alert when coolant temperature exceeds safe thresholds, serving as an indirect transmission overheat warning.
The unit works on all 2003 and newer OBD2-certified gas and diesel vehicles, automatically entering sleep mode when the engine is off to preserve the vehicle battery. The 0-100 speed-up test and unit switching (metric/imperial) add practical utility, though it remains primarily a viewing tool rather than a deep diagnostic scanner.
What works
- Continuous real-time HUD display while driving
- Adjustable alarms for coolant temp and voltage
- Plug-and-play with auto sleep mode
What doesn’t
- No direct transmission temperature or TCM data
- Only reads engine DTCs, not system-specific codes
8. FOXWELL HD500 Heavy Duty Truck Scanner
The FOXWELL HD500 is built for heavy-duty diesel applications—Cummins, Detroit, Caterpillar, Paccar, International, and Hino engines found in semi-trucks, buses, and heavy equipment. It includes multiple adapters (6-pin, 9-pin, CAT-9-pin, CAT-14-pin, and 16-pin) to connect to commercial vehicle diagnostic ports that differ from standard passenger car OBD2.
For transmission temperature on heavy trucks, the HD500 covers the Engine, ABS, SRS, Park Brake Controller, and DPF systems, communicating via J1587, J1939, J1708, and J27145 protocols. The live data streaming includes transmission-related parameters available through the J1939 data link, which is the standard for commercial vehicle TCM communication.
The DPF regeneration, cylinder cutoff testing, and speed limit adjustment functions are specific to diesel platforms. Lifetime free updates and broad protocol support make it a long-term investment for fleet maintenance. Allison transmission support is not currently included but is under development.
What works
- Heavy-duty protocol support (J1939, J1587, J1708)
- DPF regeneration and injector cutoff testing
- Multiple adapter set for various truck ports
What doesn’t
- Allison transmission not currently supported
- No bidirectional control or VGT calibration
9. ANCEL HD7000 Elite Heavy Duty Truck Scanner
The ANCEL HD7000 Elite targets commercial heavy-duty trucks with a 7-inch rugged touchscreen and Android 5.1.1 operating system. It is designed for Freightliner, Kenworth, Peterbilt, Volvo, Mack, and International trucks equipped with Cummins, Detroit, Paccar, and Caterpillar engines. This tool is specifically not for pickup trucks—Ford, Ram, Chevrolet, GMC, and Nissan diesel owners should look elsewhere.
Parked DPF regeneration can be performed from the cab with on-screen step-by-step guidance, eliminating dealer visits for this routine maintenance. The idle speed and speed limit adjustment features allow fleet managers to set parameters for fuel efficiency and compliance, directly affecting engine and transmission load conditions.
The live network topology map displays the entire vehicle communication network graphically, making it faster to locate faulty modules or broken connections. Full-system scans cover engine, ABS, transmission, and body systems. Lifetime free Wi-Fi updates support both 2.4 GHz and 5 GHz networks, and the tool is vehicle-powered with no internal battery to fail.
What works
- Cab-performed DPF regeneration with guidance
- Idle speed and speed limit adjustment for fleet use
- Network topology map for fast module fault location
What doesn’t
- Not compatible with diesel pickup trucks
- Advanced service functions vary by engine platform

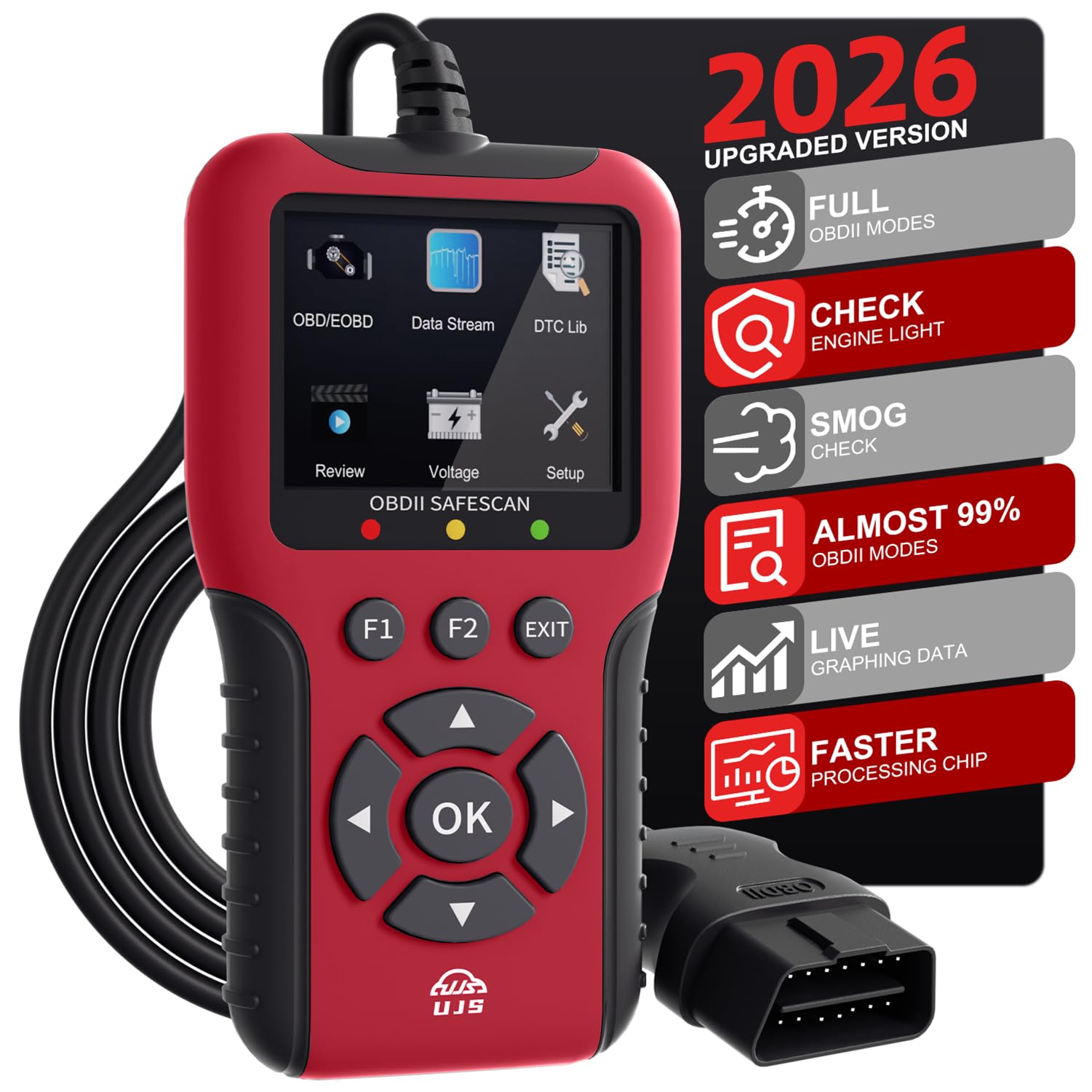

10. UJS Enhanced Universal OBD2 Scanner SAFESCAN
The UJS SAFESCAN is an entry-level code reader that focuses on engine diagnostics with a 65,000-plus built-in DTC lookup library, freeze frame data viewing, I/M readiness checks, and oxygen sensor testing. It includes real-time battery voltage monitoring, which can alert users to electrical system fluctuations that indirectly affect transmission performance.
The 2.8-inch HD color screen with adjustable brightness and red/green/yellow status indicators provides quick vehicle health assessment. Customizable F1/F2 shortcut keys put code reading and clearing at your fingertips, and the tool completes a full engine health scan in approximately 60 seconds.
This scanner explicitly states it only supports engine fault codes and does NOT diagnose ABS, SRS, or transmission systems. For users who need only basic engine code reading and emissions readiness checks at a minimal investment, the SAFESCAN delivers reliable performance, but it is not suitable for transmission temperature monitoring.
What works
- Fast 60-second engine scan with large DTC library
- Adjustable brightness and color-coded status
- Lifetime free software updates included
What doesn’t
- No transmission, ABS, or SRS diagnostics
- Engine-only coverage limits diagnostic scope
11. UJS OBD2 Scanner for iOS & Android ROCCO
The UJS ROCCO shifts the diagnostic experience to your smartphone via Bluetooth 5.4, using AI intelligence to analyze live data and freeze frame information into easy-to-understand vehicle health reports. Weighing just 0.98 ounces, the mini scanner plugs into the OBD2 port and stays there for continuous connectivity without cables or batteries.
The companion app displays real-time data graphs for RPM, coolant temperature, oxygen sensor voltage, and other engine parameters. The “Full Vehicle Scan” feature produces a simple Pass/Fail result for quick system checks, and the tool can read and clear check engine lights immediately after repairs.
With a library of 35,901-plus fault codes and free lifetime app updates for iOS and Android, the ROCCO offers modern convenience for basic engine diagnostics. However, like the SAFESCAN, it is limited to engine-related data and does not provide transmission-specific TCM access or transmission temperature PID monitoring.
What works
- Ultra-compact design stays plugged in always
- AI-generated health reports with plain-language advice
- Free lifetime app updates for iOS and Android
What doesn’t
- No transmission system or TCM diagnostics
- Requires smartphone connection for operation
Hardware & Specs Guide
Transmission Control Module Access
The primary distinction between a basic code reader and a transmission diagnostic tool is TCM access. Scanners that advertise “4-system” or “full-system” coverage typically include Engine, ABS, SRS, and Transmission. However, actual TCM read/clear capability depends on the vehicle manufacturer’s protocol implementation. Some tools only access transmission DTCs on specific makes, while others offer universal TCM PID support. Always verify compatibility with your vehicle’s control module architecture before purchasing.
Live Data Sampling Rate
Transmission temperature changes rapidly under load—during towing, hill climbs, or stop-and-go traffic. A scanner with a slow polling rate may miss peak temperature spikes that indicate impending failure. Look for tools that offer configurable PID selection and refresh rates of at least 10 samples per second per channel. Graphing and recording capabilities allow you to review data trends after a test drive rather than trying to watch the screen while driving.
Protocol and Connector Compatibility
Passenger car OBD2 scanners use the standard 16-pin connector, but heavy-duty trucks require 6-pin, 9-pin, or proprietary round connectors (Deutsch, CAT, etc.). Commercial vehicle communication relies on J1939, J1587, and J1708 protocols rather than the passenger car CAN bus. If you work on both light and heavy vehicles, consider a tool that includes multiple adapter cables and supports both OBD2 and HD protocol families.
Reset and Service Functions
Transmission-related service functions—such as adaptive learning reset, shift point recalibration, and transmission fluid temperature monitoring during fluid changes—require more than basic code reading. Tools with integrated service reset menus (EPB, SAS, BMS, throttle relearn, ABS bleed) reduce reliance on dealership visits. Some high-end scanners also support transmission adaptation reset, which clears learned shift behaviors after fluid changes or mechanical repairs.
FAQ
Can any OBD2 scanner read transmission temperature?
What is the normal transmission temperature range?
Do I need a bidirectional scanner for transmission work?
Why does transmission temperature matter for diagnostics?
Final Thoughts: The Verdict
For most buyers, the best obd2 scanner for transmission temperature winner is the XTOOL D5 because it combines genuine TCM diagnostics, live data graphing, and 10 essential reset functions at a mid-premium investment level without subscription fees. If you need bidirectional transmission control and a tablet form factor, grab the Innova SDS43. And for heavy-duty diesel fleet maintenance, nothing beats the FOXWELL HD500 with its J1939 protocol support and DPF regeneration capability.
