Selecting the right intake for a 5.3 LS engine is a decision that directly impacts airflow distribution, throttle response, and how power is delivered across the RPM band. A mismatched manifold can choke a built motor or leave a stock bottom end feeling lethargic.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach relies on cross-referencing technical specifications, material quality, seal design, and long-term owner feedback to separate genuine performance parts from components that look good in photos but fail under real-world operating conditions.
This guide covers eleven distinct intake designs for the 5.3 L family. After extensive market analysis, I selected the best intake manifold for 5.3 ls based on build quality, airflow design, and verified owner feedback.
How To Choose The Best Intake Manifold For 5.3 LS
An intake manifold is the central air-distribution hub for your LS. Choosing the wrong one means leaving power on the table or fighting fitment issues during installation. Focus on these four criteria to narrow your options.
Material and Construction
Plastic manifolds resist heat soak and save weight but can crack under boost or high underhood temperatures. Aluminum sheet-metal manifolds handle forced induction and high heat without deformation, though they transfer more heat into the intake charge. TIG-welded T6061 aluminum with 3mm wall thickness is the durability benchmark for LS builds.
Runner Design and Plenum Volume
Dual-plane designs like the traditional Performer series favor low-end torque and are ideal for daily drivers and trucks. Single-plane or sheet-metal plenums with short runners shift power higher in the RPM range. For a 5.3 LS with stock displacement, a manifold that flows well between 2,000 and 6,000 RPM delivers the best real-world balance.
Fuel Rail and Injector Compatibility
Many budget manifolds include fuel rails that do not align with stock truck injector heights or require spacers. Verify that the rail mounting brackets match your injector length before you buy. Aftermarket rails from Holley or similar brands often resolve fitment issues but add cost to the total package.
Throttle Body Sizing and Hood Clearance
A 92mm to 102mm throttle body opening is common on aftermarket LS intakes. Ensure your throttle body matches the manifold bore size and that the overall manifold height clears your hood — especially in swapped vehicles that already have tight engine bay tolerances.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| TEMSONE 92mm Black | Sheet Metal | Complete bolt-on with TB | 92mm opening, anodized finish | Amazon |
| FAST LSXr 102mm | Polymer | Max power, heat rejection | 102mm, removable runners | Amazon |
| TEMSONE 102mm Silver | Sheet Metal | Complete kit with 102mm TB | 102mm, includes TPS/IAC | Amazon |
| Pateyney Low Profile LS3 | Fabricated | LS3/L92 builds, tight hoods | 6.3in height, MAP port | Amazon |
| YESHMA 92mm Silver | Sheet Metal | Budget swap, cathedral port | 92mm, T6062 alloy | Amazon |
| HTRACING 92mm Silver | Sheet Metal | Boost builds up to 30 lb | 92mm, 3mm wall, TIG welded | Amazon |
| PUZZLEDEER 102mm Black | Sheet Metal | Budget 102mm, LS swaps | 102mm, rear MAP port | Amazon |
| YIUIY Low Profile 92mm | Sheet Metal | Foxbody swaps, low hood | 92mm, stock height 180mm | Amazon |
| Edelbrock 2701 Performer | Aluminum Dual-Plane | Carbureted small block Chevy | Dual-plane, idle-5500 RPM | Amazon |
| A-Team Performance Tall | Sheet Metal | Tall plenum, universal LS | 102mm TB, black fuel rails | Amazon |
| Dorman 615-380 OE Fix | Plastic OEM | Direct OE replacement | Nylon polymer, includes gaskets | Amazon |
In‑Depth Reviews

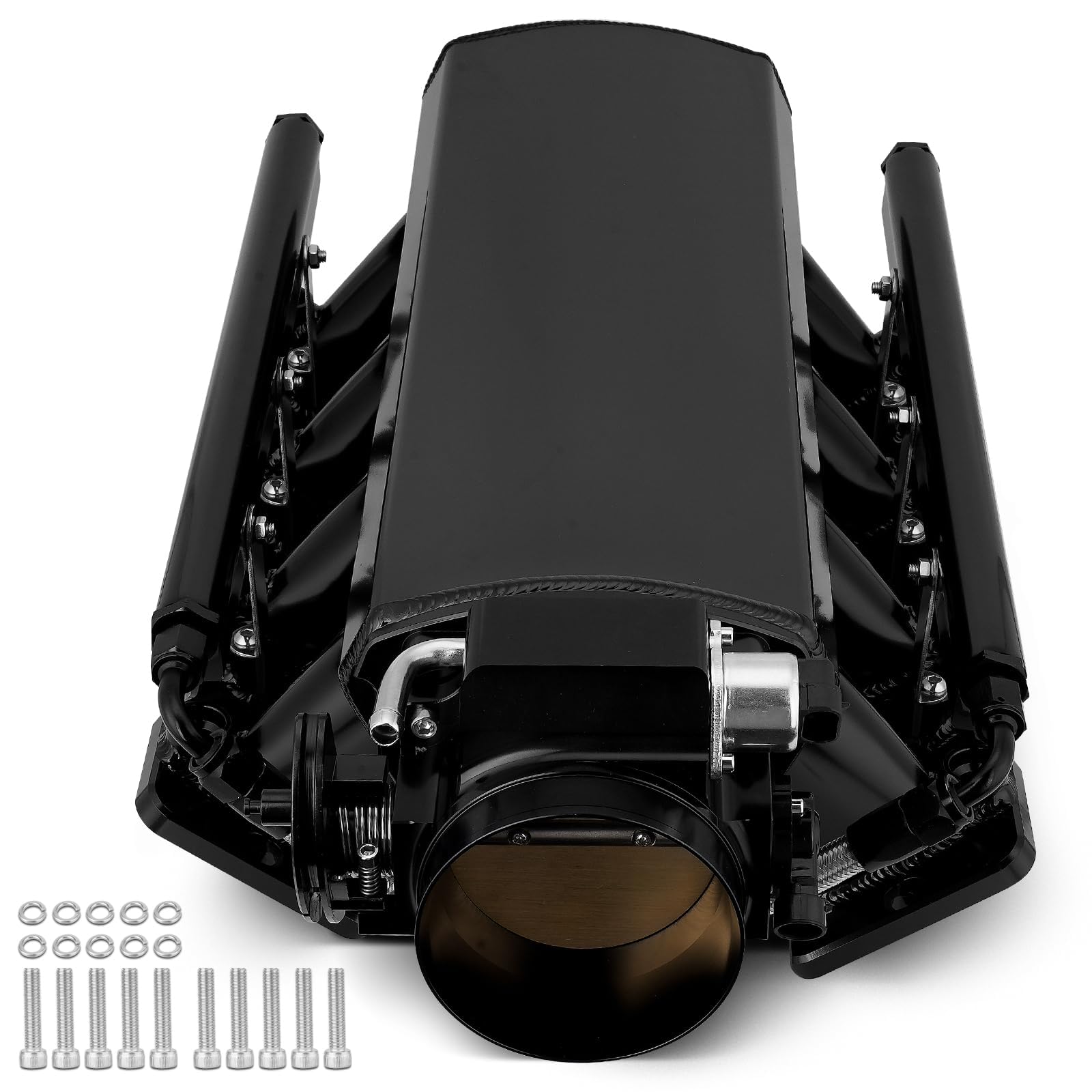

1. TEMSONE 92mm Black Intake Manifold
This TEMSONE kit bundles a 92mm sheet-metal intake with a matching throttle body that includes both the TPS and IAC sensors. The manifold is fabricated from 3mm T6061 aluminum with a MAP sensor port located at the rear, which simplifies wiring routing on swaps. The anodized black finish resists corrosion and looks uniform under the hood without the need for paint.
Owner reports indicate the throttle body is well built and that the included gaskets and O-rings cover the essentials for a straightforward installation. Several builders noted that the manifold works cleanly on cathedral-port LS heads and that the overall fitment aligns well with stock bolt patterns. The anodized surface is a plus compared to powder-coated alternatives that can chip during installation.
A minority of users found that fuel rail clearance with certain aftermarket injectors required minor bracket adjustment. One review mentioned needing to source separate Holley rails when the stock rails did not match their injector setup. For those running standard GM-style injectors, the package functions as intended without extra parts.
What works
- Complete kit includes throttle body, TPS, and IAC ready to run
- Anodized black finish holds up better than powder coat
- Rear MAP sensor port keeps engine bay wiring tidy
- Good alignment with stock cathedral-port bolt holes
What doesn’t
- Fuel rails may not clear all aftermarket injector heights without modification
- Some users needed to purchase separate fuel rails for proper injector fit
2. FAST LSXr 102mm Intake Manifold
The FAST LSXr represents the top tier of LS intake design. Its advanced polymer composite construction delivers the thermal insulation properties of plastic with the structural integrity to handle boosted applications. The 102mm inlet feeds long, modular runners that are removable for porting or cleaning without replacing the entire assembly.
Owners running this manifold on LS2 and LS3 platforms consistently report a noticeable gain in mid-range pull and improved top-end airflow compared to factory castings. The unit is lighter than aluminum alternatives and stays significantly cooler underhood, reducing intake air temperature during extended driving. The CARB approval (D-279-8) is a bonus for those in regulated markets.
Installation requires some planning: the MAP sensor port needs to be drilled and tapped, and the kit does not include port gaskets. A few C6 Corvette owners noted the harness required slight extension. Once dialed in, the LSXr delivers the broadest power curve of any manifold in this comparison.
What works
- Polymer construction resists heat soak and reduces intake temperature
- Modular removable runners allow easy porting and maintenance
- Significant power gains across the 2,000–7,000 RPM range
- Lightweight design compared to fabricated aluminum
What doesn’t
- No port gaskets included in the box
- MAP sensor requires drilling, and harness extensions may be needed
- Premium price that exceeds all other options in this guide

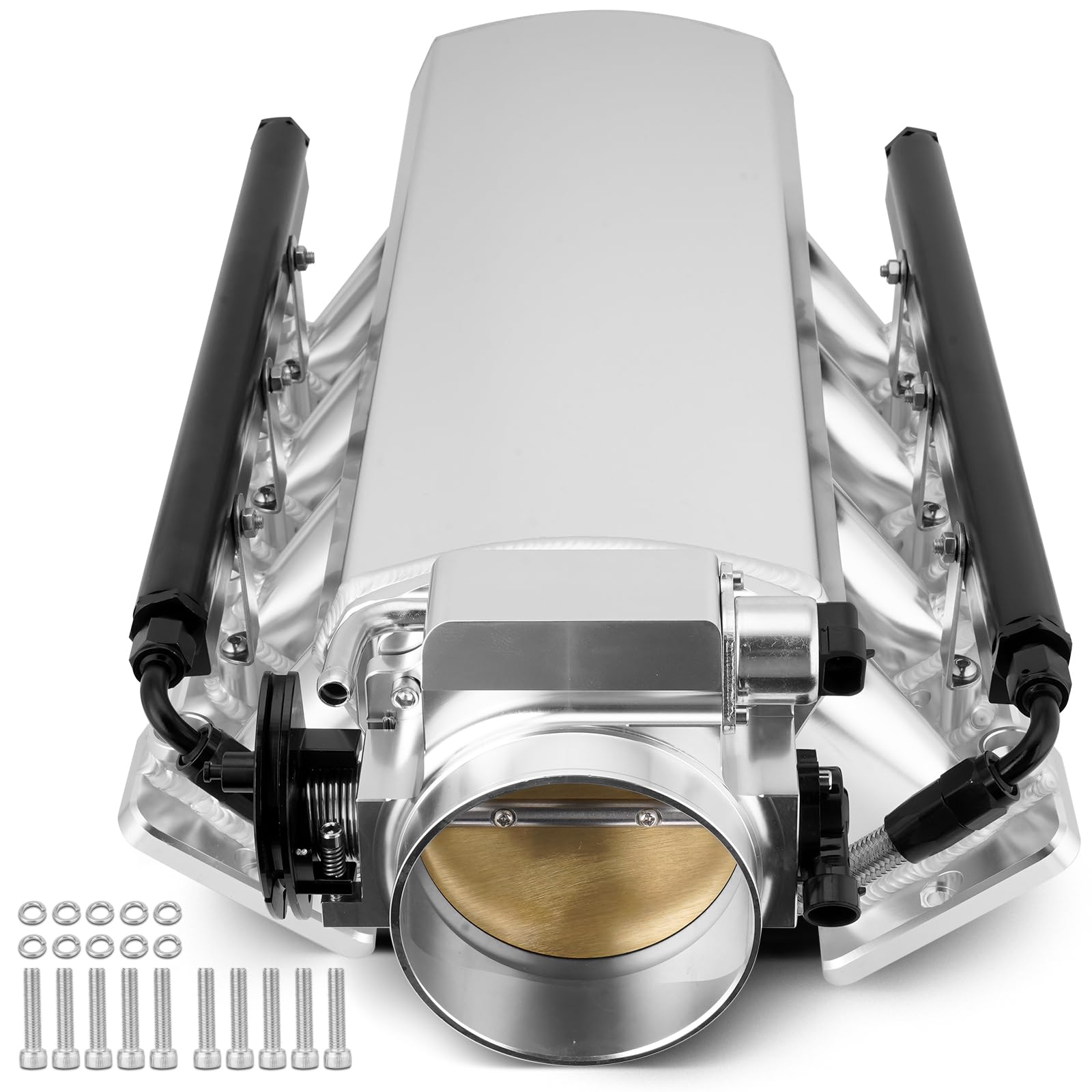

3. TEMSONE 102mm Silver Intake Manifold
This TEMSONE variant steps up to a 102mm throttle body opening while retaining the same 3mm T6061 sheet-metal construction as the 92mm version. The kit includes the intake, throttle body, TPS, IAC, gaskets, fuel rails, and crossover line — everything needed for a full swap without sourcing individual components.
Builders working on LS swaps report that the manifold fits cathedral-port heads correctly and that the included throttle body opens cleanly without binding. The MAP sensor port at the rear is a well-executed detail that keeps the engine bay looking organized. The silver finish matches standard aluminum engine accessories and reflects heat more effectively than dark coatings.
Some users encountered fuel rail bracket height issues: the brackets sit too tall for standard GM injectors, requiring either spacers or a switch to Ford-style injectors. One review noted the manifold does not clear a stock alternator position without a relocation bracket. Plan for minor ancillary modifications during installation.
What works
- Complete system with throttle body, sensors, and fuel rails included
- 102mm bore supports high-flow builds
- Rear MAP port for clean routing
- Sturdy 3mm aluminum resists boost and vacuum loads
What doesn’t
- Fuel rail brackets do not fit all injector heights out of the box
- Alternator relocation likely required for stock LS truck brackets
4. Pateyney Low Profile LS3 102mm Intake Manifold
Designed specifically for LS3 and L92 heads with rectangular ports, this Pateyney intake keeps the overall height at just 6.3 inches. The low-profile package is a strong option for swapped vehicles where hood clearance is a hard constraint. The 102mm opening and 2,200–6,800 RPM operating range place it firmly in the mid-to-top-end power band.
Fabrication quality on these units is reportedly consistent, with clean TIG welds and properly aligned gasket surfaces. Owners running the manifold on LS3 engines note that injectors fit the fuel rails correctly and that the included hardware and O-rings seal without leaks. The black finish is applied evenly and does not show signs of peeling.
A single review raised concern about the aluminum thickness being marginal for high-boost forced induction applications. For naturally aspirated builds or mild boost levels, the manifold functions reliably. One user also mentioned that the fuel rail brackets required slight trimming for perfect injector alignment.
What works
- Low 6.3-inch height aids hood clearance in tight swaps
- Clean TIG welds and good gasket alignment
- Fuel rails fit LS3 injectors without modification
- Includes MAP sensor port at rear
What doesn’t
- Aluminum may be too thin for high-boost forced induction
- Some owners had to trim fuel rail brackets
5. YESHMA 92mm Silver Intake Manifold
The YESHMA intake targets the budget-conscious builder who wants a fabricated aluminum manifold without the premium price tag. Constructed from 3mm T6062 sheet aluminum with TIG-welded seams, this 92mm unit supports cathedral-port LS heads including the 5.3, 5.7, and 6.0 L families. The package includes fuel rails, crossover line, and gaskets.
Multiple owners confirmed the manifold is straight out of the box — no warping or uneven flanges. Two users purchased this unit and found consistent quality between both, with all four head-bolt holes sitting flat against the heads without gaskets during test fitting. The rear MAP port is standard, and the fuel rails are serviceable for standard injectors.
Truck 5.3 Vortec owners need to be aware that stock injectors sit about half an inch shorter than the rail brackets, requiring spacers. The manifold is not recommended for turbo setups because the IAT sensor reads high temperatures. One user reported leaking fuel rails across multiple injector sets, indicating inconsistent QC on the supplied rails.
What works
- Affordable entry into fabricated aluminum intakes
- Flat gasket surfaces with consistent quality across units
- Rear MAP port for clean installation
- Includes fuel rails and crossover line
What doesn’t
- Truck injectors require spacers to reach fuel rail height
- Not suitable for turbo builds due to IAT heat soak
- Inconsistent fuel rail quality reported by some users
6. HTRACING 92mm Silver Intake Manifold
HTRACING markets this 92mm manifold as a boost-ready option for cathedral-port LS engines, including the 4.8, 5.3, 5.7, and 6.0 L variants. The 3mm T6061 aluminum is TIG welded, and the manufacturer rates the structure to handle up to 30 pounds of boost without flexing or cracking. The silver finish is clean and the rear MAP port is positioned to hide wiring well.
One builder running this intake on a turbocharged daily driver reported passing an 18-psi pressure test with no leaks, confirming the structural integrity for moderate boost levels. The welds are described as nice, and the anodized black version has a uniform appearance. The kit includes fuel rails, crossover line, and gaskets for a near-complete installation.
The manifold uses a square-port plenum that flares to cathedral port openings, which some owners noted may cause a minor power loss on naturally aspirated builds compared to a true cathedral-port design. Injector fitment was problematic for one user whose O-rings broke during installation, and the fuel rail braces did not align with the bolt holes. C5 Corvette owners should be aware that this manifold does not clear the cowl without cutting.
What works
- Rated for 30 lb boost, verified at 18 psi by owners
- Clean TIG welding and good structural integrity
- Rear MAP port simplifies wiring
- Includes fuel rails and gaskets
What doesn’t
- Square-to-cathedral port transition may reduce NA power
- Does not fit C5 Corvette without cowl modification
- Inconsistent injector fitment and rail alignment
7. PUZZLEDEER 102mm Black Intake Manifold
PUZZLEDEER offers a 102mm cathedral-port intake that targets builders who want a large-bore manifold at a budget-friendly price point. The black anodized finish gives it a custom appearance, and the included fuel rails, crossover, and gaskets make it a near turnkey solution. The manifold covers the full range of cathedral-port LS engines including the 4.8, 5.3, 5.7, and 6.0 L.
One owner swapped this onto a 5.3-powered Ford Ranger and found that the compact profile cleared both the firewall and hood where the tall truck manifold would not fit. Another builder compared this unit to Summit and Jegs house-brand offerings and rated the quality as equivalent at roughly half the cost, calling it the cost-performance winner for stock rebuilds.
The injector holes on some units are reportedly undersized, causing O-ring damage during installation. Fuel rail brackets arrived misaligned on one example, and the injector holes did not fit stock 2004 truck injectors without modification. The hardware is low grade; several owners recommend replacing bolts and brackets with American-made stainless steel components during installation.
What works
- Large 102mm bore supports high-flow applications
- Fits tight swaps where truck manifolds are too tall
- Quality comparable to name-brand options at lower cost
- Includes fuel rails and all gaskets
What doesn’t
- Injector holes may be undersized on some units
- Fuel rail brackets arrive misaligned in some cases
- Hardware quality is low; replacement recommended
8. YIUIY Low Profile 92mm Intake Manifold
This YIUIY manifold is engineered to match the stock LS intake height of 180mm, making it one of the lowest profile fabricated options available. The 1/8-inch T6061 sheet aluminum is TIG welded, and the 92mm opening supports standard cathedral-port LS heads. The low height is a specific advantage for Foxbody Mustang swaps and other chassis with minimal hood clearance.
One owner confirmed that this intake clears a stock Foxbody hood without any modifications, which is a rare claim among fabricated manifolds. The welds are solid, the gasket surfaces are flat, and the unit fits straight out of the box. The rear MAP port is included, and the fuel rails and crossover line are present in the package.
Truck injector users need adapters (GM part 551371) and LS1 injectors to achieve proper fitment — stock Vortec injectors are too short for the rail brackets. One customer reported that the gaskets did not match the port openings, the welds leaked under pressure, and the seller was unresponsive. Fuel rail brackets on some units are too long and require cutting for proper bolt tightening.
What works
- Stock-height profile clears tight hoods, including Foxbody
- Solid TIG welds and straight gasket surfaces
- Rear MAP port for tidy engine bay
- Includes fuel rails, crossover, and most hardware
What doesn’t
- Requires adapters or LS1 injectors for truck applications
- Some units arrived with leaking welds and mismatched gaskets
- Fuel rail brackets may need trimming
9. Edelbrock 2701 Performer Intake Manifold
The Edelbrock 2701 Performer is a dual-plane aluminum intake designed for small block Chevy engines with standard deck height. It is not a direct fit for Gen III/IV LS engines — this manifold serves the traditional Gen I small block platform commonly swapped into older vehicles. The satin finish is classic Edelbrock, and the square-bore flange accepts standard four-barrel carburetors.
Owner feedback confirms this is a high-quality, name-brand intake that fits stock to mild Gen I builds. The RPM range of idle to 5,500 RPM pairs well with factory cams and Performer Plus cam kits. The 14.3-pound weight is moderate for an aluminum dual-plane, and the casting quality is consistent with Edelbrock’s reputation.
TBI-to-carburetor conversion builders should note that this manifold does not have a mechanical fuel pump lobe provision for factory roller camshafts — an external electric pump is required. The 90-day warranty is shorter than the lifetime coverage offered by some competitors. This intake is ideal for carbureted small block projects rather than modern EFI LS builds.
What works
- Proven dual-plane design for strong low-end torque
- High-quality aluminum casting with consistent finish
- Ideal for Gen I small block Chevy carbureted builds
- Brand reputation backed by decades of use
What doesn’t
- Not compatible with Gen III/IV LS engines
- No mechanical fuel pump lobe for roller cams
- Only 90-day manufacturer warranty
10. A-Team Performance Tall Sheet Metal Intake
A-Team Performance delivers a tall plenum sheet-metal intake with a 102mm drive-by-cable throttle body included. The universal fitment targets LS1, LS2, and LS6 cathedral-port engines. The black fuel rails and crossover line give it a cohesive look, and the 3mm aluminum construction offers solid structural integrity for both naturally aspirated and boosted applications.
Early impressions from owners are positive regarding the appearance and build quality. One builder described it as looking well built and was eager to see it installed on their motor. The comprehensive kit concept is appealing — the throttle body, rails, and gaskets are all in one box, reducing the number of separate purchases needed.
Several owners discovered the kit lacks a fuel pressure regulator and AN fittings, requiring up to additional cost in extra parts to make it functional. Factory injectors are too tall for the included rails, and the fuel rail brackets arrived undrilled for injectors on one example. The throttle body IAC passage edges are sharp and produce a high-pitch whistle that requires porting to correct. Customer service responsiveness was inconsistent.
What works
- Tall plenum design improves airflow potential
- Includes 102mm throttle body and fuel rails
- 3mm aluminum construction resists flex
- Visually appealing black fuel system components
What doesn’t
- Missing fuel pressure regulator and AN fittings
- Factory injectors do not fit without modifications
- Throttle body IAC passage may need porting
- Inconsistent customer support
11. Dorman 615-380 Patented Plastic Intake Manifold
The Dorman 615-380 is an OE-replacement nylon polymer intake designed for select Buick and Chevrolet models with the 1.4L turbo engine — not a direct 5.3 LS performance manifold. It belongs in this guide as a reference point for owners of the 1.4L platform who need a reliable OEM-grade replacement. The redesigned PCV system corrects a known failure point in the original GM casting.
Owners of Chevy Cruze, Sonic, and Buick Encore 1.4L turbo models report that this manifold is a direct fit and solves the recurring orange valve failure that caused excessive oil consumption. The kit includes port gaskets, throttle body gasket, injector O-rings, MAP sensor O-ring, and screws — everything needed for a complete replacement.
The plastic construction is not suitable for high-performance modifications or boosted applications beyond factory levels. The injector bolts are fragile and can snap if over-torqued. This manifold is strictly an OE-level repair part for the 1.4L Ecotec family, not a performance upgrade for the 5.3 LS platform that is the primary focus of this guide.
What works
- Direct OE replacement for 1.4L engines with known PCV failure
- Includes all gaskets and O-rings for a complete install
- Redesigned PCV improves durability over original design
- Lifetime limited warranty
What doesn’t
- Plastic construction does not support performance modifications
- Not compatible with 5.3 LS engines
- Injector bolts are fragile and break easily
Hardware & Specs Guide
Cathedral Port vs. Square Port
The LS engine family uses two distinct intake port shapes. Cathedral ports, found on LS1, LS2, LS6, and truck 4.8/5.3/6.0 L engines, have a D-shaped opening at the cylinder head. Square or rectangular ports, used on LS3 and L92 heads, offer a larger cross-section for higher airflow. Choosing a manifold that matches your head port shape is mandatory — mixing cathedral manifolds with square heads or vice versa causes severe misalignment and leaks.
Manifold Height and Hood Clearance
Fabricated sheet-metal intakes vary significantly in overall height. Tall plenum designs improve top-end power but often require hood modifications or a raised cowl. Low-profile options like the YIUIY and Pateyney intakes maintain stock height (around 180mm or 6.3 inches) and clear unmodified hoods. Measure your available engine bay space before selecting a tall manifold, especially in swapped vehicles with non-standard engine placement.
FAQ
Will a truck 5.3 intake manifold fit a car LS swap?
What size throttle body should I use on a 5.3 LS?
Do aftermarket LS intakes come with fuel rails?
Can I use stock truck injectors with an aftermarket intake manifold?
Final Thoughts: The Verdict
For most buyers, the best intake manifold for 5.3 ls winner is the TEMSONE 92mm Black because it delivers a complete ready-to-run package with a quality throttle body, solid fabrication, and an anodized finish at a fair price point. If you want the ultimate power potential and heat rejection, grab the FAST LSXr 102mm. And for a tight-budget swap that still looks the part, nothing beats the value of the YESHMA 92mm.
