A fuel pump that starves for voltage is a fuel pump that fails when you need it most. Undersized wiring, corroded connectors, and missing relays are the quiet culprits behind pressure drops that leave you stranded or, worse, leaning out at wide-open throttle. The right harness solves all of that before it starts.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing wiring harness specifications, comparing relay contact ratings, and aggregating real-world owner feedback across hundreds of automotive fuel system builds.
Whether you are swapping an LS into a classic chassis or upgrading a daily driver to handle more power, the wiring between the battery and the pump determines reliability. A dedicated relay wiring circuit prevents voltage drop, fuel starvation, and electrical damage — that’s what the best fuel pump wiring harness delivers.
How To Choose The Best Fuel Pump Wiring Harness
Fuel pump wiring harnesses vary from simple relay-and-socket kits to full vehicle looms that include pump circuits. Knowing what separates a reliable setup from a headache saves time and keeps your fuel system delivering consistent pressure under load.
Wire Gauge and Current Capacity
Thicker wire carries more current with less voltage drop. Most electric fuel pumps draw between 8 and 15 amps continuously, but startups and high-pressure systems can spike higher. A 10-gauge power wire is the gold standard for aftermarket pumps that support over 400 horsepower. Kits using 12-gauge or 14-gauge wire may suffice for stock replacements but risk voltage sag in demanding builds. Always match the wire gauge to the pump’s peak draw, not just the cruising amperage.
Relay Quality and Sealing
The relay is the switch that takes the load off your factory wiring. A 30-amp or 40-amp rated relay with a waterproof housing prevents corrosion and ensures reliable switching in wet environments. Standard open-frame relays work inside the cabin but degrade quickly when mounted near wheel wells or under the chassis. Look for relays with copper contacts and a sealed base — they handle repeated cycling without pitting or resistance build-up.
Included Components and Installation Hardware
A complete kit saves trips to the parts store. The best harnesses include pre-crimped terminals, heat-shrink tubing, a fuse or circuit breaker, and labeled wires that match a printed diagram. Kits that omit the fuse holder or supply only bare terminals force you to source those parts separately. Pre-looms and split-loom tubing also make for a cleaner installation that resists abrasion over time.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Aeromotive 16307 | Relay Kit | High-horsepower builds | 20 ft 10 AWG power wire, 30A relay | Amazon |
| QFS 340LPH Kit | Pump & Harness | 600 HP support | 340 LPH turbine pump, install kit | Amazon |
| Painless Performance 50102 | Relay Kit | Simple plug-and-play install | 30A relay, circuit breaker, crimp terminals | Amazon |
| QFS 255LPH Kit | Pump & Harness | Drop-in replacement with harness | 255 LPH pump, wiring pigtail included | Amazon |
| ZOZOMOTORS 30247 | Relay Kit | Budget DIY installs | 40A waterproof relay, 10 AWG wires | Amazon |
| Mr. Gasket 40205G | Relay Kit | Show-quality engine bays | Chrome relay, 30A rating | Amazon |
| Auto Parts Prodigy 21 Circuit | Full Harness | Complete vehicle rewiring | 21 circuits, GM color-coded, GXL 125 wire | Amazon |
In‑Depth Reviews

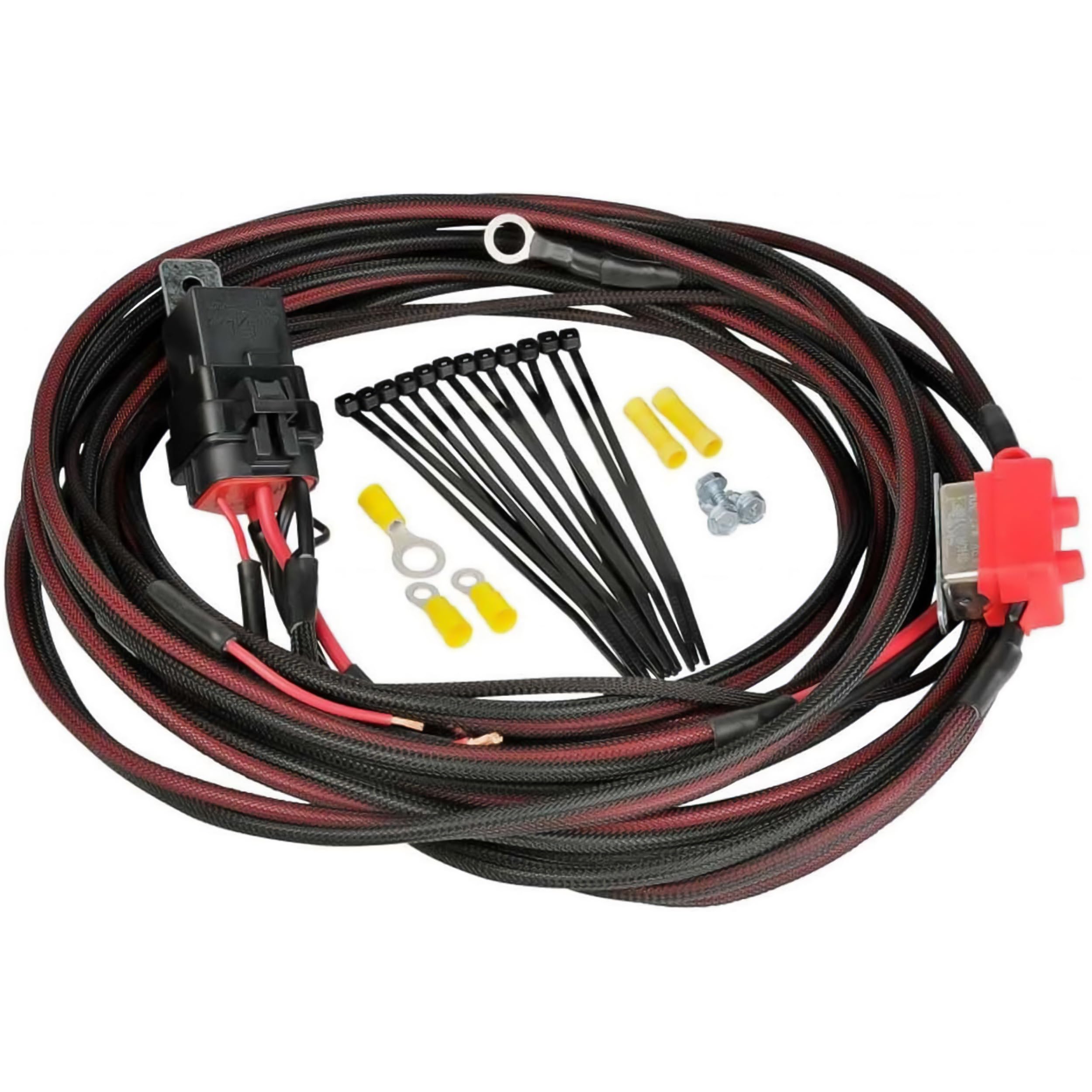

1. Aeromotive 16307 — 30 Amp Fuel Pump Relay Kit
The Aeromotive 16307 is the benchmark for dedicated fuel pump relay kits. It ships with a full 20 feet of 10-gauge power and ground wire, a 30-amp automotive relay, and a circuit breaker instead of a fuse — meaning no spare fuse hunting if it trips. The harness arrives pre-looped and 70% terminated, so you only need to crimp the pump-side connections and bolt the power lead to the battery.
Owner feedback across LS swaps, turbo builds, and Aeromotive brushed and brushless pump setups consistently highlights the elimination of voltage drop. Users report seeing full battery voltage at the pump after installation, even in vehicles with long chassis runs. The silver-contact relay handles repeated cycling without resistance creep, and the included mounting screws and cable ties simplify a secure install.
At this price point, the 16307 competes with kits that skip the circuit breaker or use thinner wire. For anyone building a performance vehicle where consistent fuel pressure is non-negotiable, the extra cost delivers tangible electrical headroom and a much cleaner installation process.
What works
- Full 10 AWG power and ground for minimal voltage drop
- Pre-looms and heat shrink for a factory-grade appearance
- Circuit breaker resets automatically — no fuses to replace
What doesn’t
- Premium price compared to basic relay-only kits
- Overkill for stock-replacement pumps under 15 amps
2. QFS 340LPH High-Performance Fuel Pump Kit
The QFS 340LPH kit pairs a high-output turbine pump with a wiring pigtail, strainers, hose, and clamps — everything needed to upgrade an in-tank fuel system for serious power. The pump itself uses a 38 mm offset inlet design that drops into the same space as a standard Walbro GSS342 or AEM 50-1000, making it a direct-fit upgrade for countless domestic, import, and European EFI vehicles.
Owner reports from LS swaps, turbocharged 5.3-liter builds, and supercharged Bonnevilles confirm the pump delivers consistent volume up to the 600 HP mark. Several users noted a measurable decrease in injector pulse width after installation, indicating the pump was supplying more fuel volume than the stock unit. The included wiring pigtail requires soldering for a permanent connection, but the kit supplies enough wire and connectors to route cleanly.
For builders targeting 500 to 600 HP on gasoline, this kit provides the fuel delivery headroom without the expense of a full return-style system. The stainless steel body resists corrosion from ethanol blends, and the turbine impeller operates quieter than gerotor-style pumps at idle.
What works
- Drop-in dimensions compatible with Walbro-style mounting
- Multiple strainer and sleeve options for fitment flexibility
- Quiet turbine operation with consistent pressure
What doesn’t
- Universal fit requires cutting and soldering the harness
- No proof of rated 340 LPH flow in some user reports
3. Painless Performance 50102 Fuel Pump Relay Kit
Painless Performance has a long reputation in the hot-rod and off-road world for no-nonsense wiring products, and the 50102 relay kit follows that tradition. It includes a 30-amp relay, relay base with pre-attached wire harness, a 30-amp circuit breaker, crimp-on terminals, and mounting hardware. The wires are labeled and color-coded, and the included instructions are straightforward enough for a first-time installer.
User feedback across 1969 C10 builds, 63 GMC V6 swaps, and general 12-volt accessory wiring emphasizes how complete the kit feels straight out of the box. The wires are long enough to route the relay under the dash or inside the engine bay without splicing in extensions. One reviewer noted the trigger wires are 18-gauge and the power wires are 12-gauge rather than the advertised 10-gauge, but that still exceeds the requirements for most stock-replacement pumps.
What makes the 50102 a strong value is the combination of brand reliability and included circuit breaker. Many budget kits omit the breaker or supply only a fuse holder. Painless includes everything except the dielectric grease. It is not waterproof, so mounting location matters, but for cabin or protected installs it performs flawlessly.
What works
- Complete kit with circuit breaker, relay, and all hardware
- Labeled wires with ample length for most vehicles
- Proven brand with strong owner satisfaction
What doesn’t
- Not waterproof — avoid exterior mounting
- Power wire is 12 AWG, not 10 AWG as some expect
4. QFS 255LPH Performance Fuel Pump with Installation Kit
The QFS 255LPH kit is designed as a complete drop-in replacement package for vehicles needing moderate fuel flow upgrades. It delivers 255 liters per hour at 43.5 psi with a low 9.45 amp draw, making it compatible with factory wiring on many applications. The kit includes the pump, strainer, fuel hose, hose clamps, a wiring harness pigtail, foam sleeve, and rubber boot so you have everything needed for a full installation without additional trips to the parts store.
Owner reports from 97 Grand Cherokee builds, Crown Victoria Police Interceptors, and Ford Rangers show that the kit can be installed without dropping the fuel tank in many cases. Several users commented that the wiring pigtail made it easy to crimp or solder directly to the factory harness. A few noted that the included strainer retaining clip was difficult to seat on certain sending units and suggested having epoxy or an alternative clamp ready during installation.
For those replacing a tired stock pump in a daily driver or mild performance build, this kit offers a smart balance of flow capacity and included parts. The turbine impeller design is noticeably quieter than worn vane-type pumps, and the included hardware reduces guesswork during the swap.
What works
- Low amp draw works with many factory harnesses
- Comprehensive kit with pump, wiring, and mounting parts
- Quiet turbine operation compared to stock pumps
What doesn’t
- Strainer clip fitment can be finicky on some modules
- Universal design may require minor modifications
5. ZOZOMOTORS 30247 Electric Fuel Pump Relay Kit
The ZOZOMOTORS 30247 is a budget-conscious relay kit that does not cut corners on the essentials. It uses a 40-amp waterproof relay and a 30-amp inline fuse holder, paired with 10-gauge red power wire (10 feet), 10-gauge orange pump wire (6 feet), and 16-gauge trigger and ground wires. All wires are color-coded and labeled, and the package includes a printed wiring diagram, relay base, mounting screws, heat-shrink ring terminals, and wire connectors.
Owner feedback from K-swap Integra builds, EG Civic projects, and Walbro 450 pump installations confirms the kit delivers reliable power without the relay overheating. Several users noted that the kit solved voltage drop issues that had been causing intermittent pump operation on previous wiring setups. The waterproof casing on both the relay and fuse holder means the kit can be mounted in exposed locations under the vehicle without corrosion concerns.
For the price, this kit competes with options that ship thinner wire or omit the waterproof relay. The only missing item is dielectric grease and heat-shrink tubing for extra weatherproofing on the connections — minor additions that most builders already have on hand.
What works
- Full 10 AWG power and pump wires for low voltage drop
- Waterproof relay and fuse holder for exterior mounting
- Color-coded wires with printed diagram simplifies installation
What doesn’t
- No dielectric grease or shrink tubing included
- Trigger wire is 16 AWG — adequate but not overbuilt
6. Mr. Gasket 40205G 30 Amp Fuel Pump Relay Kit
The Mr. Gasket 40205G takes a different approach by focusing on aesthetics as much as function. The relay features a chrome-plated housing that stands out in a show-quality engine bay, while the copper contacts ensure reliable switching up to 30 amps. The kit includes a relay socket with pre-attached wires and a selection of crimp-on terminals, but it does not include a fuse or circuit breaker — the built-in 30-amp circuit breaker is integrated into the relay base.
User reports from an LS-swapped 1969 C10 and general performance applications praise the clean look and straightforward installation. However, several reviewers noted that the wire gauge is lighter than expected — the power wires are 12-gauge rather than 10-gauge, and the trigger wires are 18-gauge. This is adequate for pumps drawing under 20 amps but may not suit high-current aftermarket pumps. The included instructions are minimal and generic, which some users found frustrating.
For a mild street build or a restoration where engine-bay appearance matters, the chrome finish adds visual appeal that standard black relays cannot match. Just verify that your pump’s peak draw stays within the 30-amp relay capacity and consider upgrading the wire if you are running a high-pressure aftermarket pump.
What works
- Chrome finish adds show-quality appearance
- Copper contacts for reliable switching
- Includes relay socket with pre-attached wires
What doesn’t
- Power wire is 12 AWG, not 10 AWG
- Generic instructions with limited detail
7. Auto Parts Prodigy 21 Circuit Universal Wiring Harness
The Auto Parts Prodigy 21 Circuit Harness is a full vehicle wiring solution that includes a dedicated circuit for an electric fuel pump alongside circuits for headlights, taillights, gauges, horn, wipers, radio, air conditioning, power windows, and more. It uses GXL 125 high-temperature cross-linked polyethylene wire that resists grease, oil, gas, and acid — ideal for engine-bay routing in classic car restorations and hot-rod builds.
Owner feedback from a 1953 Chrysler New Yorker rewiring and a 1955 Chevrolet Belair project highlights the value compared to premium brands at three to four times the cost. The wires are GM color-coded and printed with circuit labels every few inches, though some users noted that the darker-colored wires could use white ink for better visibility. The included instructions have specific pages for GM, Ford, and Mopar wiring, but the generic fuse block connections may require slight massaging for a perfect fit.
For someone undertaking a full chassis rewiring — not just a fuel pump harness upgrade — this kit provides every circuit needed at a fraction of the cost of Painless or American Autowire equivalents. The fuel pump circuit is pre-wired and ready to connect, making it a viable option for custom builds that need both a new wiring system and reliable pump power.
What works
- Complete 21-circuit coverage for full vehicle rewiring
- GXL 125 wire resists heat, oil, and fuel exposure
- GM color-coding with printed labels simplifies routing
What doesn’t
- Fuse block connections feel less robust than premium brands
- Headlight circuit is 16 AWG — needs relay for high-wattage bulbs
Hardware & Specs Guide
Relay Ratings and Wire Gauge
Relays are rated by continuous current capacity — 30 amps and 40 amps are the two common standards. A 30-amp relay supports most stock-replacement and mild aftermarket pumps drawing 8 to 15 amps, while a 40-amp relay provides headroom for high-pressure pumps like the Walbro 450 or Aeromotive brushless units that can spike near 20 amps during prime. Wire gauge directly affects voltage drop: 10 AWG copper wire loses approximately 3 percent voltage over 20 feet at 15 amps, while 12 AWG loses nearly 5 percent under the same load. Thinner wire forces the pump to work harder, reducing pressure and shortening pump life. Always pair the relay rating and wire gauge to the pump’s peak current draw, not its average running amperage.
Circuit Protection and Installation Hardware
A fuse or circuit breaker between the battery and the relay protects the wiring from short circuits. Circuit breakers have the advantage of resetting automatically after a fault clears, while blown fuses must be replaced on the roadside. Most kits use a 30-amp fuse or breaker as standard, matching the relay capacity. Installation hardware — pre-crimped terminals, heat-shrink tubing, split-loom conduit, and zip ties — determines how clean and durable the final installation looks. Kits that include a printed wiring diagram reduce wiring errors, especially for first-time installers. Waterproof relay housings and sealed fuse holders are essential for any mounting location exposed to rain, road spray, or undercarriage moisture.
FAQ
What wire gauge do I need for a fuel pump wiring harness?
Do I really need a relay for my electric fuel pump?
What is the difference between a relay kit and a full wiring harness?
Can I mount a fuel pump relay kit in the engine bay?
Final Thoughts: The Verdict
For most buyers, the best fuel pump wiring harness winner is the Aeromotive 16307 because it combines a fully loomed 10-gauge harness, a silver-contact 30-amp relay, and a resettable circuit breaker into a package that eliminates voltage drop in high-horsepower builds. If you want a complete pump-and-wiring solution for a 600 HP target, grab the QFS 340LPH kit. And for a budget-friendly relay kit that still uses proper 10 AWG wire and a waterproof relay, nothing beats the ZOZOMOTORS 30247.
