A seized fuel pump lock ring can turn a straightforward replacement into a whole-day ordeal. Many DIYers and even experienced mechanics discover too late that a universal two-point tool simply cannot deliver the torque needed without slipping or damaging the nylon retaining ring.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing market trends, poring over technical specifications, and cross-referencing owner reports to identify which tools deliver real-world performance and which fall short.
After analyzing specs and owner feedback from hundreds of users, the right best fuel pump replacement tool depends on your vehicle’s lock ring design.
How To Choose The Best Fuel Pump Replacement Tool
Selecting the right tool for fuel pump work requires understanding three core factors: the lock ring engagement style, the material durability under high torque, and the overall tool type needed for the specific repair stage. A mismatch in any of these areas can lead to stripped rings, damaged fuel tank flanges, or hours of wasted labor.
Lock Ring Compatibility and Size Range
Not all lock rings are the same. Some vehicles use plastic rings with fine-pitch threads, while others rely on metal serrated rings that require a specific jaw profile. An adjustable four-jaw tool with a wide range — typically 3.3 to 7.2 inches — offers the broadest coverage. Confirm the tab thickness your tool can handle, as many universal tools max out at 0.4-inch tabs. For vehicles with recessed or angled lock rings, a double-angled tool or a compact design becomes essential.
Build Materials and Torque Capacity
Fuel pump lock rings often corrode or seize after years of exposure to road grime and fuel vapors. A tool made from nickel-plated alloy steel or chrome-vanadium steel resists bending under high torque from a breaker bar or impact wrench. Look for smooth, rounded edges that protect surrounding components and a centered drive socket that keeps force aligned with the ring. Tools that rely on thin stamped steel or plastic components may flex or break under the load required for stubborn rings.
Tool Type: Removal vs. Diagnostic vs. Disconnect
A complete fuel pump service often requires more than just a lock ring wrench. Fuel line disconnect tools are needed to safely separate quick-connect fittings without damaging the lines. A fuel pressure tester verifies system health before and after the pump swap. And a relay bypass kit allows you to energize the pump for testing or to drain the tank safely. Choosing a comprehensive kit that addresses multiple stages of the job often provides better value than buying individual tools piecemeal.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Lisle 63000 | Lock Ring Tool | Broad vehicle coverage | 4″ to 7-1/4″ adjustable range | Amazon |
| Orion Motor Tech 26pc | Disconnect Kit | Complete line disconnect solution | 26 pieces, color-coded | Amazon |
| BETOOLL Pro | Pressure Tester | Fuel pressure diagnostics | 0-140 PSI gauge | Amazon |
| OEMTOOLS 24398 | Lock Ring Tool | Domestic trucks and vans | Fits Ford, Chrysler, GM | Amazon |
| Orion Motor Tech Removal | Lock Ring Tool | DIY fuel pump swaps | 3.3″ to 7.2″ 4-jaw design | Amazon |
| Frienda 3 Piece Set | Lock Ring Set | Multi-vehicle versatility | 3 tools, adjustable 38-185mm | Amazon |
| IPA 9038 | Diagnostic Tool | Electrical system diagnostics | 6-piece relay bypass kit | Amazon |
In‑Depth Reviews
1. Lisle 63000 Fuel Tank Lock Ring Tool
The Lisle 63000 is widely regarded as the benchmark for adjustable lock ring tools, combining robust machining with a channel design that keeps the drive centered during high-torque applications. Owner reports consistently note its ability to handle both traditional metal serrated rings and the newer smaller GM serrated rings without slipping or damaging the ring. The tool also accommodates some Subaru plastic rings, broadening its coverage beyond typical domestic and Asian applications.
What stands out in user feedback is the tool’s ability to grip the full rib length of plastic lock rings, distributing force evenly and preventing the stripping that often occurs with cheaper two-point tools. The central hex head accepts a 1/2-inch drive impact wrench, which is a significant advantage for mechanics dealing with corroded or overtightened rings. Several reviews highlight its use on Toyota and Lexus models from 2004 onward, where the fuel tank access lid requires a specific tool profile.
While the Lisle 63000 carries no superfluous features, its machined exterior finish and solid construction justify its position as a long-term investment for both professionals and serious DIYers. The limited lifetime warranty further reinforces its durability credentials.
What works
- Centered drive socket keeps torque aligned and prevents slipping
- Adjustable legs with channel design fit 4″ to 7-1/4″ rings
- Accepts impact wrench for stubborn or seized rings
What doesn’t
- No included carrying case or storage pouch
- Limited compatibility with some European lock rings
2. Orion Motor Tech 26pc Master Quick Disconnect Tool Kit
This master kit from Orion Motor Tech addresses the often-overlooked step of safely disconnecting fuel lines before the pump can be removed. The 26-piece set includes six aluminum clip removers, seven fuel line removers, four spring lock removers, two oil cooler line removers, and a scissor-style disconnect tool — all organized in a blow-molded case. The inclusion of fuel and AC disconnect pliers with extended handles sets this kit apart for accessing lines in cramped engine bays.
Owner feedback highlights the value of the color-coded design, which simplifies tool identification during complex repairs. The anodized aluminum components feature clear diameter markings, allowing quick match-up to specific line sizes without trial and error. The set covers commonly needed SAE sizes and includes specialized tools for late-model GM trucks, Fords with automatic transmissions, and the unique tubing found in 4.0L V6 Rangers and Explorers.
Some users note that the pliers do not fit snugly into the provided case slots, and a few components felt less precise than professional-grade equivalents. However, for the breadth of coverage and the convenience of having every disconnect tool in one package, this kit represents a smart addition to any fuel system repair arsenal.
What works
- Comprehensive 26-piece coverage for most domestic vehicles
- Color-coded tools with clear diameter markings
- Includes specialized pliers for tight-space access
What doesn’t
- Pliers fit loosely in the blow-molded case
- Some tools lack the precision of higher-end equivalents
3. BETOOLL Pro Fuel Injection Pressure Tester Kit 0-140 PSI
Diagnosing a failing pump requires measuring fuel pressure before condemning the pump, and the BETOOLL Pro kit delivers a practical solution with a dual-scale gauge reading 0-140 PSI and 0-10 bar. The kit includes three hose adapters in 6.30 mm, 7.89 mm, and 9.49 mm sizes, which cover SAE 1/4-inch, 5/16-inch, and 3/8-inch fittings respectively. This range accommodates most fuel injection systems on cars and trucks worldwide.
Reviews from professional users emphasize the tool’s reliability in daily shop use, with several noting the included bleed valve reduces fuel spillage during disconnection. The kit has been successfully used on Polaris RZR 900 side-by-sides, demonstrating its versatility beyond standard automotive applications. The plastic housing is functional, though the main internal o-ring has been reported to tear after initial use on some units.
Compared to tool-truck brands that charge significantly more, this kit offers a practical balance of fitting variety and build quality at a reasonable investment. The manufacturer’s willingness to replace defective components, as noted in some owner interactions, adds a layer of purchase confidence for those relying on the tool for regular diagnostic work.
What works
- Dual-scale gauge for precise pressure readings
- Bleed valve minimizes fuel mess during disconnection
- Wide adapter set covers global fuel systems
What doesn’t
- Internal o-ring prone to tearing on first use
- Plastic housing feels less durable than all-metal alternatives
4. OEMTOOLS 24398 Fuel Tank Lock Ring Tool
OEMTOOLS designed the 24398 specifically for the popular Ford, Chrysler, and GM platforms that dominate North American driveways. The ergonomic curved body provides a comfortable grip while transmitting torque from a 1/2-inch drive ratchet or breaker bar directly to the lock ring. The tool’s compact dimensions — 7.8 x 4.1 x 3.6 inches — make it easy to store in a service cart or tool bag, and the rust-resistant alloy steel finish holds up against occasional fuel exposure.
User reports confirm its effectiveness on applications ranging from 2004-and-up Ford F-150s to Chrysler PT Cruisers and Chevy half-ton trucks. Several owners note that the tool handles the high torque required for stubborn rings when paired with a 24-inch breaker bar. However, a recurring observation is that the tabs are slightly too long and require grinding down for a precise fit on certain lock ring designs. This modification is straightforward for anyone with a bench grinder but adds an extra step before first use.
Despite this minor fitment issue, the OEMTOOLS 24398 remains a popular choice for those who work primarily on domestic vehicles. Its lower investment point compared to the OTC 6599, which it closely mirrors in function, makes it an attractive alternative for budget-conscious shops and DIY owners alike.
What works
- Ergonomic curved design for comfortable operation
- Works with 1/2″ drive ratchet or breaker bar
- Compact and easy to store
What doesn’t
- Tabs may need grinding for precise fit on some rings
- Limited to Ford, Chrysler, and GM applications

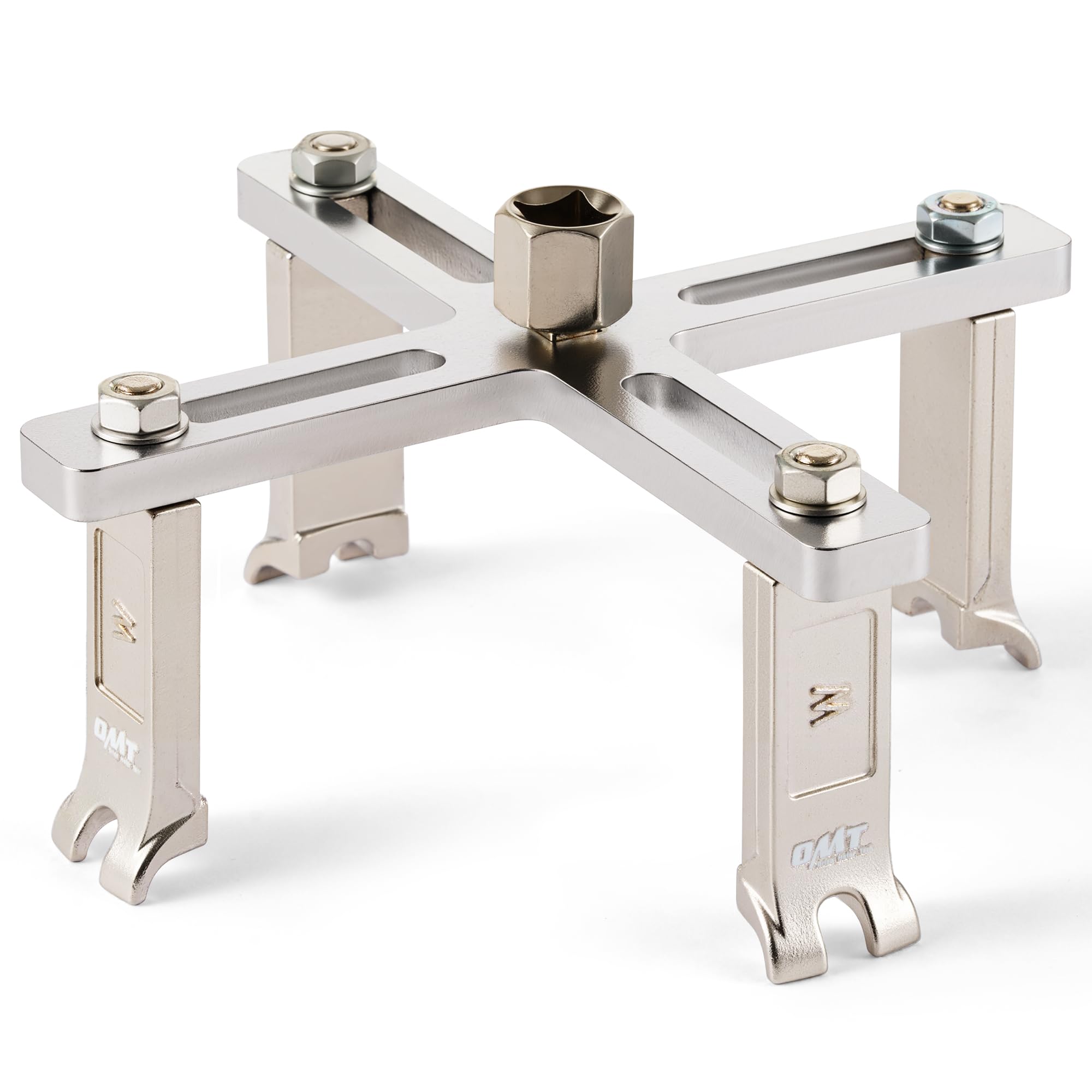

5. Orion Motor Tech Fuel Pump Removal Tool 4-Jaw
Orion Motor Tech’s 4-jaw removal tool distinguishes itself with a design philosophy centered on even force distribution. The four independently adjustable jaws grip the lock ring at four points rather than two, significantly reducing the risk of bending or scratching the ring during removal. The working range spans 3.3 to 7.2 inches, and the tool accepts a 1/2-inch drive ratchet or pry bar for applying torque. The package includes gloves and a cross-arm assembly, making it ready for immediate use out of the box.
Owner experiences confirm its effectiveness on a variety of platforms, including Porsche Boxsters and Volkswagen R32s, where the adjustable fingers accommodated the retaining nuts without issue. One review highlights its performance on a 21-year-old Ford fuel pump ring that was seized from corrosion — the 4-jaw design maintained downward pressure under high torque from a breaker bar, something two-point contact tools could not achieve. The nickel-plated alloy steel construction resists corrosion and has held up across multiple uses.
Some users note that the tool is a bit cumbersome to set up initially, as each jaw must be adjusted independently before engagement. The rough edges on the initial production run were addressed with the inclusion of gloves, but a smoother finish would improve the user experience further. Overall, this tool provides a solid middle-ground option for those wanting 4-jaw stability without paying premium prices.
What works
- 4-jaw design distributes force evenly to prevent ring damage
- Wide adjustment range from 3.3″ to 7.2″
- Includes gloves and cross-arm for immediate use
What doesn’t
- Jaw adjustment is time-consuming to set up
- Rough edges require included gloves for safe handling
6. Frienda 3 Piece Universal Fuel Pump Removal Tool Set
Frienda’s three-piece set takes a multi-tool approach, providing an adjustable two-claw spanner, a three-claw spanner, and a dedicated lock ring wrench in one package. The two-claw spanner adjusts from 38 mm to 168 mm, while the three-claw version covers 135 mm to 185 mm, offering overlap for different lock ring sizes. The chrome-vanadium steel construction provides corrosion resistance without the brittleness that can affect lower-grade alloys, and the powder-coated finish adds a layer of durability.
Professional users in the field report that this kit bailed them out of difficult situations where a single dedicated tool was not available. On a 2001 Mitsubishi Eclipse GT, the tool enabled pump removal in roughly 20 minutes, and it has held up well in repeated professional use. The curved foot design on the spanners helps maintain contact with the pump cover mounting surface, reducing the chance of slipping during high-torque turns. Some owners mention that the tools initially feel lightweight and somewhat fragile, but real-world abuse has proven them more capable than first impressions suggest.
The main limitation is that none of the three tools match the brute-force capability of a single high-end lock ring wrench for extremely seized rings. For routine pump replacements and moderately stubborn rings, however, the flexibility of having three different engagement patterns makes this set a practical addition to any toolbox, especially for those who work on multiple vehicle brands.
What works
- Three tools provide multiple engagement options
- Curved foot design reduces slipping during operation
- Chrome-vanadium steel resists corrosion
What doesn’t
- Tools feel lightweight and may not suit extremely seized rings
- Powder-coated finish may chip with heavy use
7. Innovative Products of America 9038 Fuel Pump Relay Bypass Master Kit
The IPA 9038 addresses a critical diagnostic step that many DIYers overlook: verifying that the fuel pump receives power before condemning the pump itself. This six-piece relay bypass master kit allows you to bypass the fuel pump relay and energize the pump directly, enabling quick identification of electrical faults versus mechanical pump failure. The kit also works for bypassing AC compressor relays, adding HVAC diagnostic capability beyond fuel system work.
Owner feedback emphasizes the time saved compared to using manual jumper wires, especially when diagnosing intermittent no-start conditions. The included instruction guide provides a clear reference for connecting the bypass to different relay configurations, which is particularly helpful for novice technicians. Several reviewers note that the kit halved their diagnostic time and helped them avoid unnecessary dealership visits for what turned out to be simple relay or wiring issues.
The compact design weighs only 3.2 ounces and can be stored in a glove box or tool pouch without taking up meaningful space. While the kit is not a standalone fuel pump replacement tool, it is an essential companion to any lock ring wrench or disconnect kit. For anyone performing fuel system diagnostics, the ability to quickly rule out electrical problems makes this a worthwhile addition to the toolbox.
What works
- Simplifies electrical diagnostics and saves diagnostic time
- Compact and portable design
- Works for both fuel pump and AC relay bypass
What doesn’t
- Limited to relay bypass functionality only
- Not a standalone solution for mechanical fuel pump issues
Hardware & Specs Guide
Lock Ring Tool Jaw Configuration
The jaw design determines how force is transferred to the retaining ring. Four-jaw tools distribute torque evenly across the ring circumference, reducing the risk of deformation or stripping. Two-jaw tools are simpler but concentrate stress on opposing points, which can cause nylon or plastic rings to crack under high torque. Adjustable jaws offer versatility across different ring diameters, while fixed-profile tools provide a more secure fit for specific applications.
Material and Finish Types
Nickel-plated alloy steel and chrome-vanadium steel represent the two most common materials in this category. Nickel plating provides excellent corrosion resistance against fuel and moisture, while chrome-vanadium offers higher tensile strength for resisting bending under heavy loads. Powder-coated finishes add a layer of protection but can chip over time. Machined or smooth finishes reduce the risk of damaging fuel tank flanges and surrounding components during operation.
Drive Size Compatibility
Most fuel pump lock ring tools accept a 1/2-inch drive ratchet or breaker bar, which provides sufficient torque for even the most stubborn rings. Some tools also accept 3/8-inch drives through included adapters. The ability to use an impact wrench is a significant advantage for professional mechanics, as it dramatically reduces the time needed for ring removal. Impact-rated tools should be clearly marked to avoid safety hazards during power-assisted operation.
Diagnostic and Disconnect Tool Integration
A complete fuel pump replacement workflow often requires multiple tool types beyond the lock ring wrench. Quick disconnect tool kits with color-coded picks and pliers allow safe separation of fuel line fittings without damaging O-rings. Fuel pressure testers with dual-scale gauges provide verification of pump output and regulator function. Relay bypass kits enable electrical system testing before mechanical disassembly. Evaluating these complementary tools as part of a total system approach prevents workflow interruptions during the repair.
FAQ
What is a fuel pump lock ring tool and why do I need one?
Can one universal lock ring tool fit all vehicles?
How do I know if I need a fuel pressure tester or a relay bypass kit?
What is the difference between a 2-jaw and a 4-jaw lock ring tool?
Are fuel line disconnect tools necessary for pump replacement?
Final Thoughts: The Verdict
For most buyers, the best fuel pump replacement tool winner is the Lisle 63000 because it combines a centered drive socket, wide adjustability, and impact-wrench compatibility in a single machined tool that handles both plastic and metal rings. If you want comprehensive line disconnect coverage for multiple vehicle brands, grab the Orion Motor Tech 26pc Master Quick Disconnect Tool Kit. And for diagnosing pump electrical issues before you break out the wrenches, nothing beats the Innovative Products of America 9038 Relay Bypass Kit.
