A leaking transmission seal is one of those problems that starts as a minor annoyance and quietly turns into a major repair bill if ignored. The hardest part isn’t the install — it’s knowing which seal actually fits your specific transmission and won’t start weeping after a few hundred miles. Too many DIYers grab the cheapest option only to find themselves dropping the pan again a month later.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach to seal selection relies on cross-referencing manufacturer specifications, material composition data, and long-term owner feedback across hundreds of vehicle applications to separate genuine quality from packaging that looks the part.
Every seal in this roundup was vetted for fit accuracy, material integrity, and real-world leak prevention. After researching countless products and owner reviews, I’ve selected the best front transmission seal options that deliver reliable long-term performance.
How To Choose The Best Front Transmission Seal
Picking the wrong seal means doing the job twice. Transmission seals are precision components that must match the shaft diameter, housing bore depth, and material requirements of your specific unit. Understanding a few key variables will save you time, money, and a messy garage floor.
Application Specificity is Non-Negotiable
A seal listed for a Chevy Silverado might not fit a GMC Sierra with the same transmission code. Always verify the OEM part number against your vehicle’s VIN or transmission tag. Cross-reference the manufacturer’s fitment data rather than relying solely on Amazon’s compatibility checker, which occasionally returns false positives. The difference between a seal that seats perfectly and one that leaks immediately often comes down to a fraction of a millimeter in the outer diameter.
Material Composition Determines Service Life
Polyacrylate seals handle high temperatures and EP lubricants well but have limited cold-flexibility. Silicone seals resist ozone and oxidation but can tear more easily during installation. Nitrile rubber is the budget standard for moderate temperature ranges. The best seal for your application depends on your transmission’s operating temperature range and the type of fluid it uses. Matching the material to the environment is just as important as matching the dimensions.
Design Features That Prevent Future Leaks
Spring-loaded lips maintain constant contact pressure as the seal wears, extending service life. Multi-lip designs add secondary barriers against contaminants. Some premium seals include an integral dust lip that protects the primary sealing surface from road grit. A metal outer casing provides rigid installation support and prevents distortion during pressing. These design elements separate a seal that lasts 50,000 miles from one that fails at 10,000.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| GM Genuine 24232325 | OEM Replacement | GM Trucks & SUVs | GM OE Specification | Amazon |
| CT Solutions CT9083 | Repair Kit | TH400 Leak Repair | Includes Bushing, Gasket & O-ring | Amazon |
| Phoenix TH400 Seal Set | Seal Set | TH400 Full Rebuild | Front & Rear Seals Included | Amazon |
| CT Solutions CT3994 | Seal Kit | TH350 Rebuild | Pump & Extension Housing Seals | Amazon |
| Timken 5200 | Output Shaft Seal | 4L60E / 4L65E | Multi-Lip Spring Loaded | Amazon |
| Timken 4333N | Transfer Case Seal | Wide Application Range | Fits 100+ Vehicle Models | Amazon |
| National 710709 | Output Shaft Seal | Ford Escape | Spring Loaded Multi-Lip | Amazon |
| Honda Genuine 91205-P0X-005 | OEM Axle Seal | Honda / Acura | 40 x 56 x 9mm Silicone | Amazon |
| ACDelco Gold 4762N | Crankshaft Seal | GM Front Seals | OE Equivalent Fit | Amazon |
| National 223830 | Torque Converter Seal | Toyota 4Runner | Polyacrylate Spring Loaded | Amazon |
| REPLACEMENTKITS.COM | Hydro Gear Seal | Lawn Mower Transaxles | Fits Hydro Gear Units | Amazon |
In‑Depth Reviews
1. GM Genuine Parts 24232325
The GM Genuine Parts 24232325 is manufactured to GM OE specifications and represents the exact seal that ships on GM transmissions from the factory. It fits the 4L60E, 4L65E, and several other GM automatic transmissions found in Silverados, Sierras, Tahoes, and Suburbans from the mid-90s through the late 2000s. The integrated dust lip on the outer face provides an extra layer of protection against road contaminants that often accelerate standard seal wear.
Owner feedback consistently highlights the drop-in fitment and immediate leak resolution. Several owners report that aftermarket seals failed within months on their 4L60E, while this genuine GM part held tight beyond the two-year mark. The machined exterior finish ensures proper seating in the housing bore without the need for excessive force or sealants. It is manufactured in the United States and carries the quality control standards expected from a Tier-1 OEM supplier.
The price point sits slightly above generic aftermarket seals, but the reliability data strongly supports the premium. For anyone working on a GM light truck or SUV with a 4L60E-family transmission, this seal removes all guesswork. It is the benchmark that other seals in this category are measured against for fit precision and long-term leak prevention.
What works
- Exact OEM fit with no adaptation required
- Integrated dust lip extends service life
- Proven track record across thousands of GM vehicles
What doesn’t
- Limited to GM transmission applications
- Higher cost than generic aftermarket alternatives

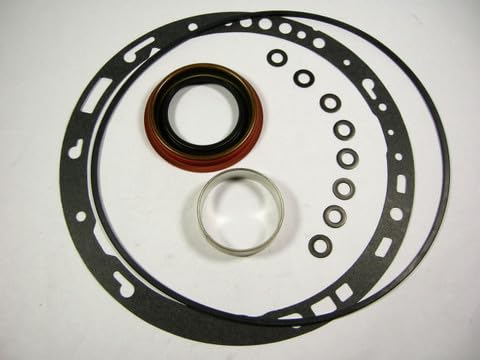

2. CT Solutions CT9083 TH400 Front Pump Leak Sealing Kit
The CT Solutions CT9083 is not just a seal — it is a comprehensive front pump sealing kit for the TH400 transmission that includes a metal-clad seal, bushing, O-ring, gasket, and bolt washers. This is the right answer for TH400 owners who discover that the front pump area is leaking and want to address all potential failure points in one service interval. TH400 transmissions manufactured from 1965 onward are compatible with this kit.
Reviews from owners of classic GM trucks and muscle cars confirm that the kit stops front-of-transmission leaks completely. The inclusion of the bushing is significant because a worn front pump bushing is often the root cause of seal failure — replacing the seal alone without addressing bushing play guarantees a return visit. The metal-clad seal design provides rigid installation support and resists distortion during pressing.
This is a niche product that serves a specific transmission family exceptionally well. It is not a universal solution, but for TH400 owners, it is the most complete and reliable option available. The kit format eliminates the need to source individual components, and the quality control from CT Solutions has earned consistent praise from the classic car and truck community.
What works
- All-in-one kit covers all front pump leak paths
- Includes bushing to address root cause of seal wear
- Proven performance on 1965-up TH400 units
What doesn’t
- Only compatible with TH400 transmissions
- Higher upfront cost than a standalone seal
3. Phoenix Transmission Parts TH400 Front and Rear Seal Set
Phoenix Transmission Parts offers this dedicated front and rear seal set for the Turbo 400 transmission, covering both ends of the unit with precision-manufactured seals. The kit includes part numbers 35151 and 34743A, which correspond to the front pump seal and the extension housing seal respectively. This is a targeted solution for anyone performing a full reseal on a TH400 during a rebuild or leak remediation project.
The seals are manufactured to match OEM dimensions exactly, and owner reports confirm they seat properly without modification. Several reviewers noted that the fit was perfect on first attempt and that transmission leaks stopped immediately after installation. The kit format ensures that both high-wear seal points are addressed simultaneously, preventing the common scenario where fixing one leak reveals another.
For TH400 owners who prefer to buy OEM-equivalent components in a single package rather than sourcing seals individually, this set delivers reliable value. The parts are backed by Phoenix Transmission Parts’ reputation in the transmission rebuild industry.
What works
- Includes both front and rear seals for complete coverage
- OEM-equivalent dimensions for accurate fit
- Trusted transmission parts supplier
What doesn’t
- TH400-specific, no cross-applicability
- Does not include bushing or gaskets
4. CT Solutions CT3994 TH350 Front and Rear Seal Kit
The CT Solutions CT3994 kit provides both the front pump seal and the extension housing seal for the Turbo 350 transmission in a single package. This allows TH350 owners to address the two most common external leak points during a single service interval. The TH350 is a widely used GM transmission found in countless trucks, vans, and passenger cars from the 1970s through the 1990s, and this kit covers the standard seal dimensions required for that platform.
The front pump seal in this kit is designed to handle the operating pressures and temperatures typical of the TH350, while the extension housing seal provides the proper fit for the output shaft area. CT Solutions specializes in transmission components, and the CT3994 is manufactured to match OE specifications. The kit format is practical for rebuilders who want both seals ready at hand.
For anyone servicing a TH350, this kit represents a cost-effective way to complete a thorough reseal without hunting for individual part numbers. It is a purpose-built solution for a specific transmission platform, which eliminates fitment uncertainty.
What works
- Covers both common TH350 leak points
- OE-spec dimensions for accurate fit
- Practical kit format for rebuilds
What doesn’t
- Limited to TH350 applications only
- Does not include gaskets or hardware
5. Timken 5200 Seal
The Timken 5200 is a well-regarded output shaft seal that has earned a strong reputation among DIYers and professional transmission builders alike. It is commonly used on GM 4L60E and 4L65E transmissions as an extension housing seal, though its application range extends to other platforms. The multi-lip design with a spring-loaded primary lip provides consistent sealing pressure as the seal undergoes normal wear over time.
Owner reviews frequently mention that the Timken 5200 outlasts the AC Delco seal it replaced. Multiple owners reported that aftermarket seals failed within two months while the Timken held tight past six months with zero leakage. The painted exterior finish resists corrosion, and the overall build quality reflects Timken’s manufacturing standards. The seal measures 3.4 x 3.4 x 1.8 inches and weighs just over 3 ounces.
For anyone replacing a 4L60E output shaft seal who wants a step up in durability without stepping up dramatically in cost, the Timken 5200 is a proven upgrade. It is one of the most frequently recommended seals in online transmission forums for good reason.
What works
- Multi-lip design with spring-loaded primary lip
- Consistently outlasts other brands in owner reports
- Strong reputation in the transmission community
What doesn’t
- Fitment verification required for non-GM applications
- Painted finish can chip during heavy-handed installation

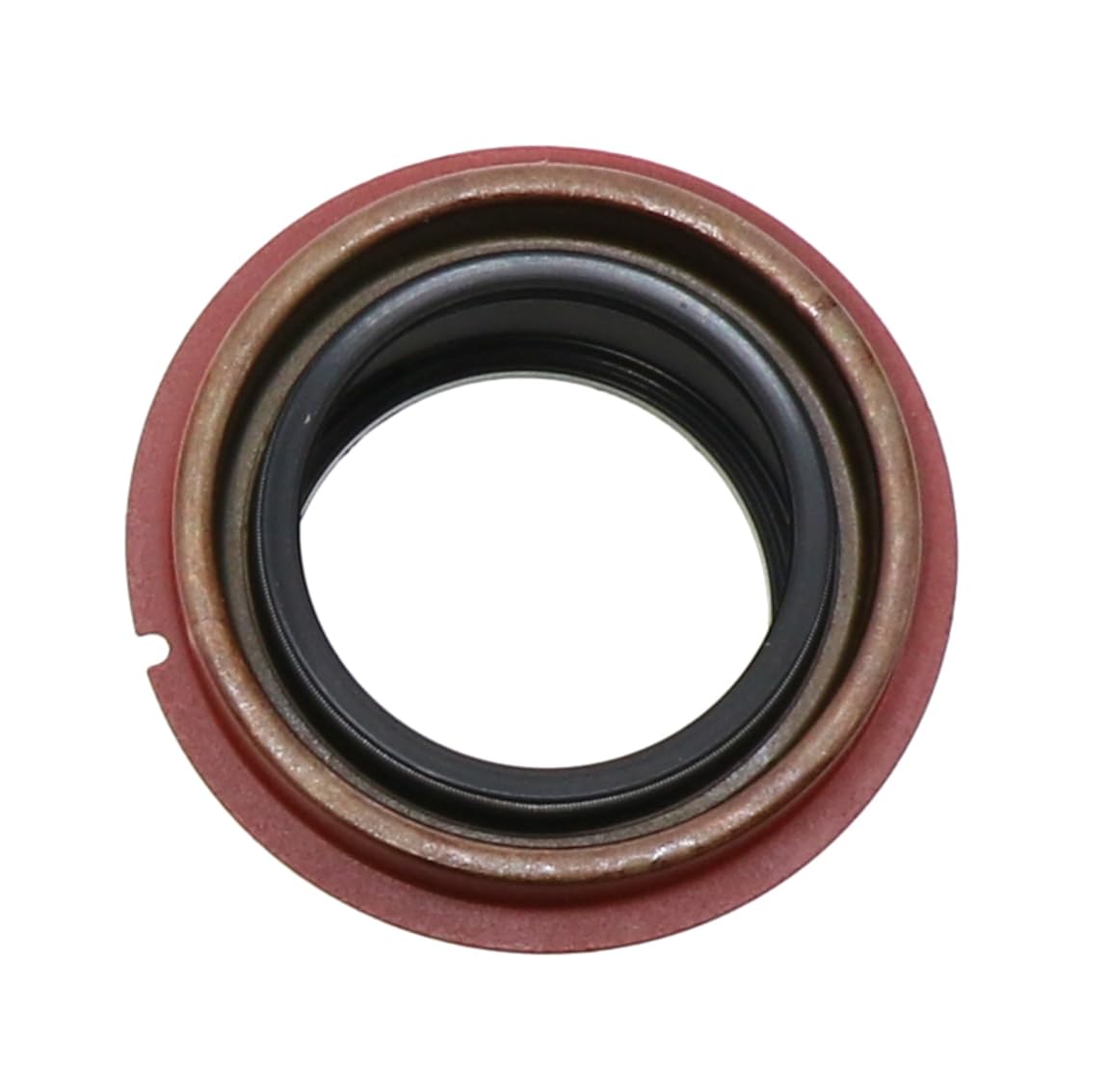

6. Timken Seal 4333N
The Timken 4333N covers an enormous range of vehicle applications — over 100 different models across GM, Ford, Dodge, Jeep, and Lincoln platforms. This includes Chevrolet Silverado and Suburban, Ford F-150 and Expedition, Dodge Ram, and Jeep Cherokee, among many others. The seal measures 3.25 x 3.25 x 2.5 inches with a machined exterior finish that promotes a consistent press fit into the housing bore.
Owner feedback reveals that the 4333N is primarily used as a transfer case output shaft seal rather than a transmission tail shaft seal. Several reviewers cautioned that it does not fit the 2WD automatic transmission extension housing — those applications require a different GM part number. When used in the correct application, however, the seal performs flawlessly and matches or exceeds OEM durability.
The wide application range makes this a useful seal to have on hand for shops that service multiple vehicle brands. Just be certain about your specific application before purchasing, as the fitment data requires careful cross-referencing.
What works
- Covers over 100 vehicle models across multiple brands
- Machined exterior for accurate press-fit installation
- Timken quality and durability standards
What doesn’t
- Transfer case seal, not for 2WD transmission output
- Fitment data can be misleading without cross-referencing
7. National 710709 Automatic Transmission Output Shaft Seal
The National 710709 is a spring-loaded, multi-lip output shaft seal designed primarily for Ford Escape and related Ford platform applications. It operates across a temperature range of -30°F to 325°F, which covers the thermal demands of modern automatic transmissions in both cold-start and fully warmed conditions. National is a well-established brand in the seal manufacturing industry, and this model reflects their engineering focus on thermal and chemical resistance.
The rubber material formulation provides good abrasion resistance and dry-running capability, which is beneficial during the initial startup period after installation before full lubrication reaches the seal surface. Owner reviews confirm that the 710709 fixes transmission leaks effectively when installed in the correct application. The seal measures 2.75 inches in length with a width of 0.69 inches.
For Ford Escape owners dealing with an output shaft leak, this seal is the correct dimensional match and material specification for the application. It is not a universal seal, but within its intended application range, it performs reliably.
What works
- Wide temperature range covers all operating conditions
- Good abrasion and dry-run characteristics
- Trusted National brand quality
What doesn’t
- Narrow application range (primarily Ford Escape)
- Occasional defective units reported by owners
8. Honda Genuine 91205-P0X-005 Drive Axle Oil Seal
The Honda Genuine 91205-P0X-005 is the factory OEM axle oil seal for the driver-side transmission output on many Honda and Acura models, including the Ridgeline, Odyssey, and Element. The dimensions are 40mm inner diameter by 56mm outer diameter by 9mm thickness. It is made from silicone material that resists ozone and oxidation while maintaining flexibility across a wide temperature range.
Owner feedback strongly emphasizes the importance of using genuine Honda seals rather than aftermarket alternatives. Multiple owners report that non-OEM seals failed within months, while the Honda genuine part held perfectly beyond the one-year mark with no signs of leakage. The seal comes in genuine Honda packaging and is manufactured to Honda’s exact specifications for fit and material durometer.
A critical detail noted by owners is that the passenger-side seal on many Honda models uses a different part number and is significantly more difficult to access. This specific seal (91205-P0X-005) is for the driver side. For Honda owners, paying the premium for the genuine part eliminates the risk of a repeat repair job.
What works
- Exact OEM fit for Honda/Acura transmissions
- Silicone material resists ozone and oxidation
- Proven to outlast aftermarket alternatives
What doesn’t
- Driver side only — passenger side requires different part
- Premium pricing compared to generic seals
9. ACDelco Gold 4762N (19340212) Crankshaft Front Oil Seal
The ACDelco Gold 4762N is an OE-equivalent front crankshaft oil seal that also functions in certain transmission sealing applications where the dimensional specifications align. ACDelco is the OEM parts supplier for General Motors, and the Gold series represents their high-grade aftermarket line that matches factory specifications for fit, form, and function. The seal is manufactured in Taiwan and weighs 0.15 pounds.
Owner reviews indicate that the seal fits perfectly when matched to the correct vehicle application. Several buyers noted that it appears to be genuine OEM quality, with one reviewer specifically confirming it as genuine ACDelco. The painted exterior finish provides basic corrosion resistance, and the seal design incorporates the standard lip configuration expected for its application class.
For GM owners who want an OEM-quality seal without paying the dealership premium, the ACDelco Gold line is the standard go-to. This particular seal is application-specific, so verifying fitment via your VIN is recommended before purchasing.
What works
- OE-equivalent quality at a reasonable cost
- Trusted ACDelco brand with GM backing
- Painted exterior for basic corrosion protection
What doesn’t
- Vehicle-specific fit requires VIN confirmation
- Limited feedback on long-term durability in transmission use
10. National 223830 Auto Trans Torque Converter Seal
The National 223830 is a spring-loaded, multi-lip torque converter seal made from polyacrylate material. Polyacrylate offers high resistance to oxidation and ozone along with low swell in hydrocarbon fluids, making it suitable for automatic transmission environments where EP lubricants operate at elevated temperatures. The temperature range spans -20°F to 300°F, covering the typical operating window for most automatic transmissions.
Owner reviews are generally positive, with users reporting successful installations on 2001 Toyota 4Runner, Volvo AW71 tail shaft applications, and 2003 Toyota RAV4 rear drive shaft positions. One reviewer noted that the seal was an exact OEM match for the 4Runner. However, one report indicated the seal did not fit a 2005 Tacoma as described, highlighting the importance of verifying fitment before purchase.
For Toyota owners seeking a torque converter or rear drive shaft seal, this National product offers reliable performance at a practical price point. The polyacrylate formulation is well-suited for the thermal and chemical conditions inside an automatic transmission.
What works
- Polyacrylate material resists heat and chemical degradation
- Spring-loaded multi-lip design for consistent sealing
- Known OEM match for several Toyota applications
What doesn’t
- Fitment not universal despite some listings
- One report of incorrect sizing for Tacoma

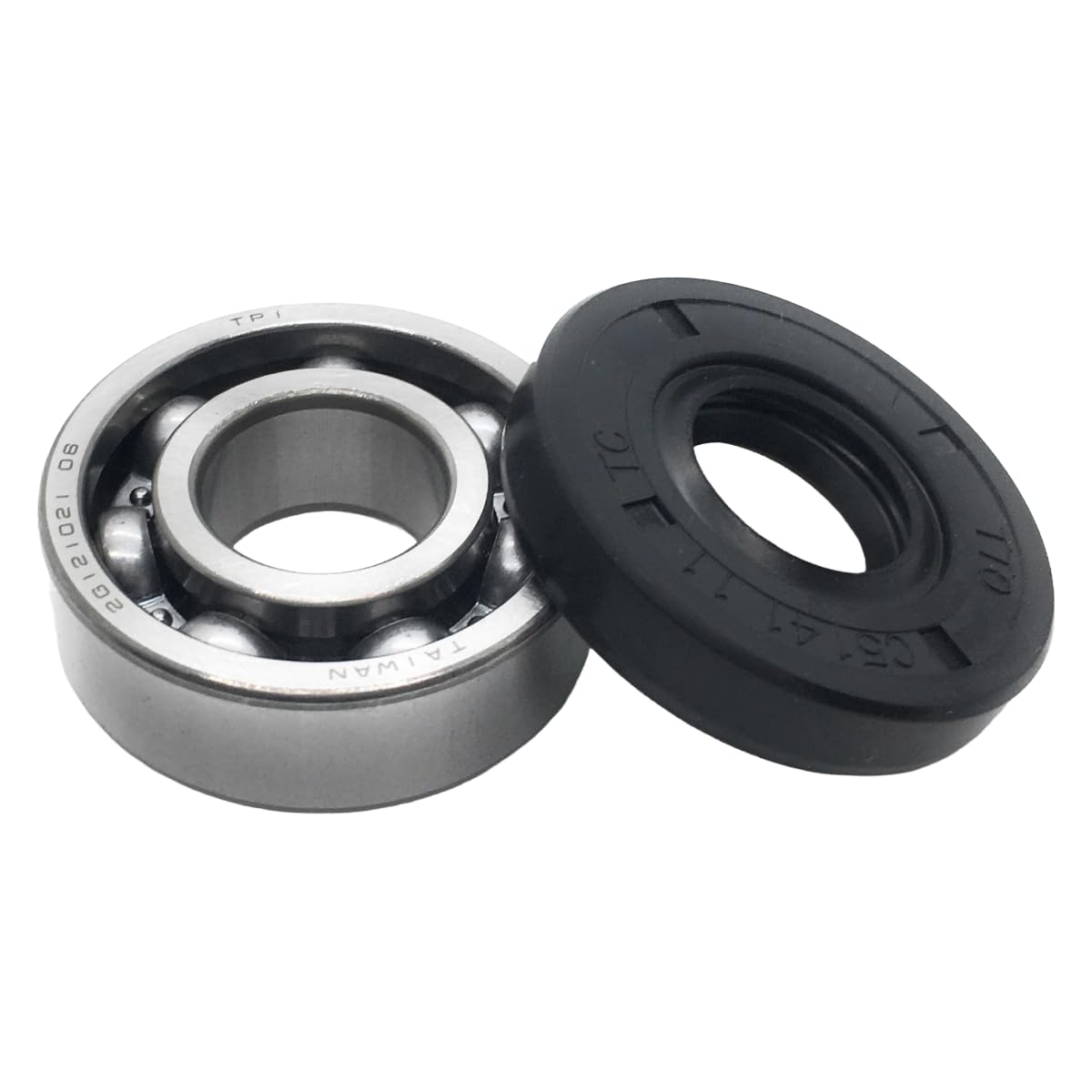

11. REPLACEMENTKITS.COM Input Shaft Seal & Bearing Kit for Hydro Gear
The REPLACEMENTKITS.COM input shaft seal and bearing kit is designed specifically for Hydro Gear hydrostatic transmissions commonly found in residential and commercial lawn mowers. It replaces OEM part numbers 9008000-0128 and 2003043. This is a specialized application that falls outside the automotive transmission category but serves the small-engine power equipment market where hydrostatic drive systems are prevalent.
Owner reviews from Scag mower owners confirm that the parts fit perfectly and restored proper function to the hydro gear unit. The kit includes both the input shaft seal and the bearing, allowing for a complete rebuild of the input shaft area. The kit is manufactured by an American-owned company focused on aftermarket power transmission components.
For anyone servicing a Hydro Gear hydrostatic transmission on a mower or similar equipment, this kit provides the correct seal dimensions and bearing specifications. It is not relevant to automotive transmissions but is included here for readers maintaining equipment with hydrostatic drive systems.
What works
- Complete kit with seal and bearing for full repair
- Exact fit for Hydro Gear transmissions
- American-owned company with quality focus
What doesn’t
- Limited to Hydro Gear applications only
- No automotive transmission use case
Hardware & Specs Guide
Seal Material Options
Polyacrylate seals offer high resistance to EP lubricants and oxidation with low swell in hydrocarbon fluids, making them ideal for automatic transmissions that run hot. Silicone seals provide excellent ozone resistance and flexibility at low temperatures but can tear more easily during installation. Nitrile rubber is the most common budget material, suitable for moderate temperature ranges below 250°F. The material choice should match your transmission’s operating temperature and fluid chemistry for maximum service life.
Spring-Loaded vs. Multi-Lip Design
Spring-loaded seals incorporate a garter spring that maintains constant lip pressure against the shaft as the seal wears, compensating for minor surface irregularities. Multi-lip designs add secondary sealing edges that prevent contaminants from reaching the primary lip. Many premium seals combine both features — a spring-loaded primary lip with a secondary dust lip. This dual approach provides the best balance of leak prevention and contamination resistance for transmission applications.
Temperature Rating and Fluid Compatibility
Transmission seals must withstand continuous exposure to hot transmission fluid while maintaining their dimensional stability. Standard operating ranges span from -30°F to 325°F. Seals rated for higher temperatures typically use polyacrylate or silicone base materials. EP (Extreme Pressure) lubricants used in modern transmissions can cause swelling or degradation in incompatible seal materials, making chemical resistance a critical selection factor alongside temperature range.
Metal Case Construction and Bore Fit
The outer metal case of a transmission seal provides structural support during installation and maintains the seal’s position in the housing bore. Machined exterior finishes offer more consistent press-fit tolerances compared to painted or raw finishes. The interference fit between the seal’s outer diameter and the housing bore must be precise — too loose causes leaks, too tight can distort the seal lip. Always measure the housing bore and compare it to the seal’s specified outer diameter before installation.
FAQ
How do I know which front transmission seal fits my vehicle?
Can I replace a front transmission seal without removing the transmission?
How long does a front transmission seal typically last?
What tools do I need to install a front transmission seal?
Is an OEM seal always better than an aftermarket seal?
Final Thoughts: The Verdict
For most buyers, the front transmission seal winner is the GM Genuine Parts 24232325 because it delivers factory-perfect fitment and proven longevity for GM transmissions at a reasonable price. If you want a complete front-of-transmission rebuild kit, grab the CT Solutions CT9083 for your TH400. And for Honda or Acura owners who need a reliable axle seal, nothing beats the Honda Genuine 91205-P0X-005.
