A failed water pump on a Ford Flex is not just a cooling system fault — it is an internal engine event that can dump coolant into the oil pan and destroy the timing chain assembly. This guide cuts through the noise to identify the pumps that deliver reliable flow, correct sprocket engagement, and leak-free sealing for the 3.5L and 3.7L Cyclone V6 engines.
I’m Amir — the founder and writer behind Four Wheel Ask. I spend my days dissecting OEM engineering specs, cross-referencing part interchange numbers, and analyzing hundreds of owner-reported failure points to separate durable aftermarket parts from short-lived imitations.
After reviewing build materials, customer longevity data, and fitment reports across multiple production years, this article ranks the top contenders to help you select the best ford flex water pump for a lasting repair that keeps coolant in the radiator where it belongs.
How To Choose The Best Ford Flex Water Pump
Choosing the correct water pump for a Ford Flex is not a simple buy-it-and-bolt-it task. The pump is buried behind the timing cover and driven by the chain, meaning a failure often leads to coolant mixing with engine oil, bearing noise, or complete seizing. Focus on these three factors to avoid a repeat repair.
Single Sprocket vs. Double Sprocket
Early Flex models (2009–2010) use a single-sprocket pump driven directly by the timing chain on one side. The 2011–2019 models upgraded to a double-sprocket design that offers a stronger, more stable drive. Installing a single-sprocket pump in a double-sprocket car will not work, and the reverse creates fitment issues. Always verify the sprocket configuration of your engine before purchasing.
Impeller Material
Original equipment pumps sometimes used a plastic or composite impeller. Over time, these can crack or shear off the shaft, stopping coolant flow entirely and causing immediate overheating. A steel or cast-iron impeller eliminates this failure mode. Every pump on this list uses a metal impeller, but the alloy quality and vane count vary. More vanes generally mean better coolant circulation at low RPM.
Gasket and Seal Integrity
The pump housing gasket and the shaft seal are the most common leak points. A high-quality gasket resists compression set over heat cycles, while a coated or PTFE shaft seal reduces startup weeping. Several pumps in this guide include the gasket in the box, which saves a separate trip to the parts store. Never reuse an old gasket on a new pump — the mating surface will likely fail within weeks.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Motorcraft PW538 | OEM Premium | Factory-Level Longevity | OEM spec, USA made | Amazon |
| ACDelco Gold 252-955 | Premium Aftermarket | Double-Sprocket Durability | Stainless steel, dual row | Amazon |
| TRQ WPA07409 | Mid-Range Trusted | DIY Video Support | All metal, direct fit | Amazon |
| BOXI Double-Row | Mid-Range Value | 2011-2019 Flex Models | Double sprocket, 1 yr | Amazon |
| A-Premium APWP0043 | Budget-Friendly | Early Gen Flex (2009-2010) | Single sprocket, steel | Amazon |
| KAX AW6023 | Budget Entry | Quick Replacement | Aluminum, metal impeller | Amazon |
| OAW F9060 | Budget Single | Edge/Taurus Cross-Use | Single sprocket, 1 yr | Amazon |
In‑Depth Reviews
1. Motorcraft PW538 Engine Water Pump
The Motorcraft PW538 is the genuine Ford replacement part, and for the Flex owner planning to keep the vehicle long-term, this is the safest choice. Manufactured in the United States, it matches the exact casting and sealing geometry of the original pump. Owner data shows original Motorcraft pumps routinely lasting over 200,000 miles on the 3.5L V6 before exhibiting any leakage.
This pump uses a metal impeller and a robust bearing assembly that handles the side load from the timing chain well. The gasket material is an integrated multi-layer steel design that resists coolant creep far better than composite gaskets found on budget pumps. One owner reported replacing the original at 214,000 miles simply due to a weep-hole leak, not a catastrophic failure.
The only drawback is the premium cost, but when you factor in the labor — the timing cover must come off and the chains must be retimed — the added expense of an OEM unit becomes a worthwhile insurance policy against premature failure. Buyers should verify they are receiving the current production run, as a small number of complaints about non-genuine packaging have surfaced.
What works
- Identical to factory original casting and bearing quality
- Proven multi-year service life from owner reports
- Includes proper multi-layer steel gasket
What doesn’t
- Premium pricing requires significant upfront investment
- Some units have been reported as counterfeit if sold by third-party sellers

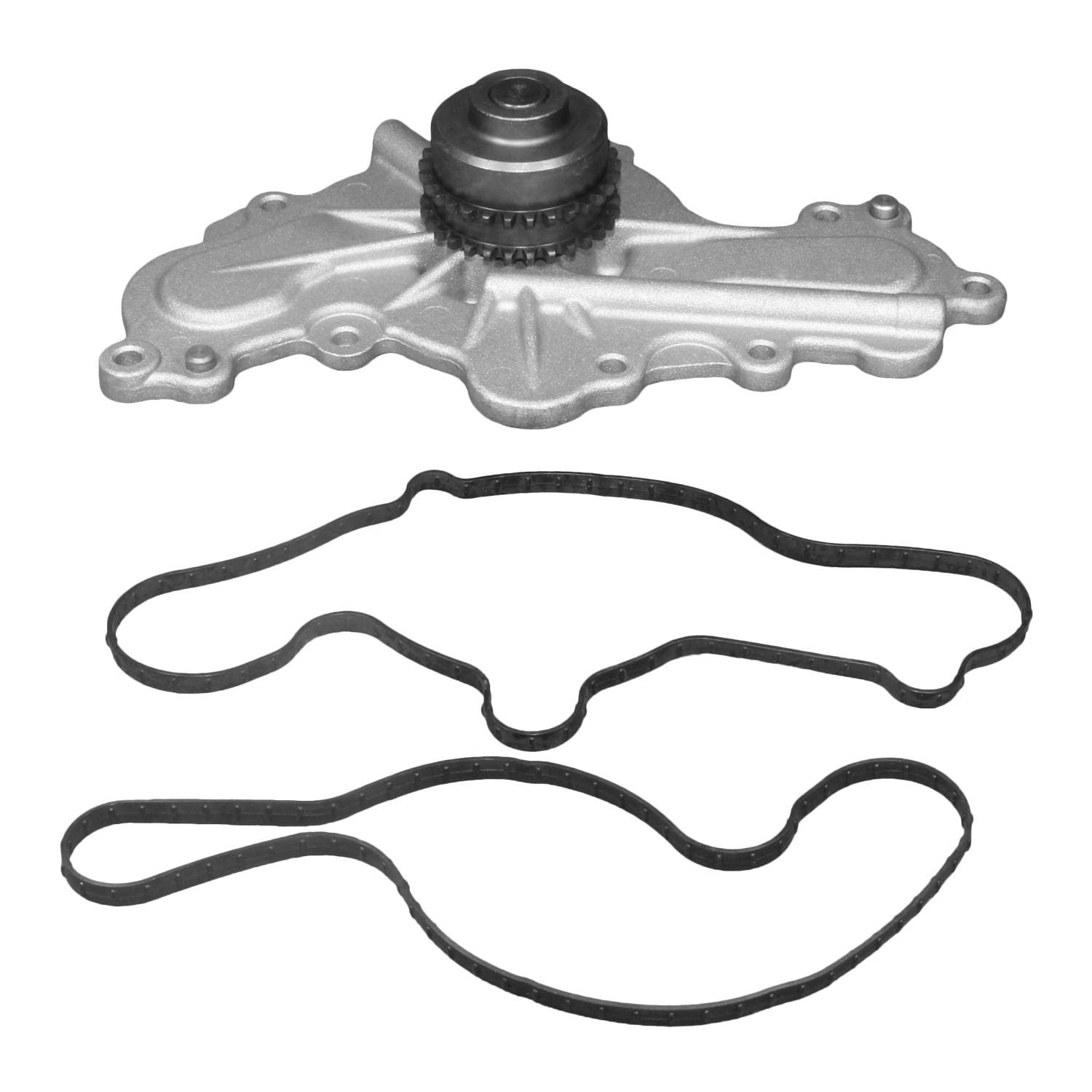

2. ACDelco Gold 252-955 Engine Water Pump
ACDelco Gold is the premium aftermarket line from General Motors, but its 252-955 pump fits the late-model Ford Flex (2011–2019) 3.5L and 3.7L engines perfectly. The double-row sprocket aligns exactly with the timing chain, and the stainless steel impeller construction sets it apart from standard steel or aluminum designs. Corrosion resistance is a genuine advantage in regions with non-distilled coolant or infrequent flushes.
Owner reviews consistently highlight the machining quality of the mating surface. The pump body is a precise casting with no flashing or rough edges that could cause gasket misalignment. Several owners noted that this pump solved coolant loss issues that plagued the original equipment. The shaft seal design includes a coated lip that reduces cold-start seeping.
The downside is the part interchange confusion. While the ACDelco box says “All Makes,” the fitment is specific to the Cyclone V6 produced after 2011. Buyers with a 2009–2010 Flex must confirm their sprocket configuration before ordering. A small number of units arrived with minor packaging damage, but the pump itself remained functional.
What works
- Stainless steel impeller resists corrosion and shearing
- Precision housing ensures leak-free seal
- Excellent value for a premium double-sprocket pump
What doesn’t
- Not compatible with pre-2011 single-sprocket Flex engines
- Packaging could be more protective during shipping

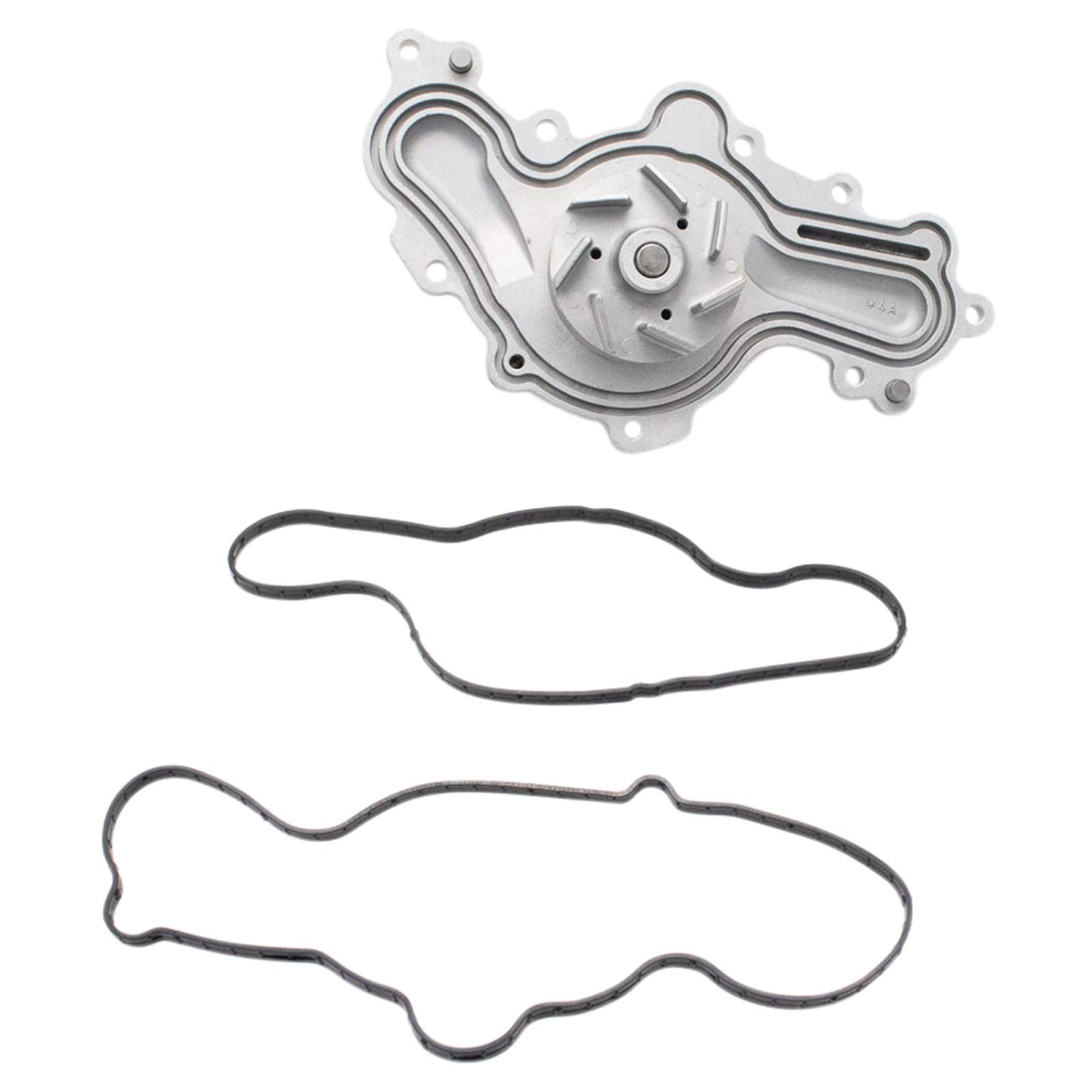

3. TRQ WPA07409 Engine Water Pump
TRQ has built a reputation in the DIY community by supporting its parts with detailed installation videos. The WPA07409 is an all-metal pump — no plastic impeller, no composite housing — designed for the 2009–2012 Flex and its platform siblings. The aluminum body dissipates heat evenly, and the steel impeller provides the shear strength needed for chain-driven applications.
The included gasket is adequate for most installs, but several owners recommend applying a thin layer of RTV to the mating surface for extra insurance. The pump itself bolts on without any modifications. One owner reported successful installation with over 10 months of leak-free operation before selling the vehicle. The two-year warranty adds a layer of confidence for the mid-range price point.
Not every experience was perfect. One unit failed within 10 months, though it is difficult to determine if that was an installation error or a manufacturing defect. The gasket packaging is another weak point — some units arrived with a bent gasket that still sealed, but the presentation does not inspire confidence.
What works
- All-metal construction eliminates plastic failure risk
- Access to free DIY video guides for installation
- Two-year warranty covers manufacturing defects
What doesn’t
- Gasket can arrive folded or bent in the box
- Mixed longevity reports from owner community
4. BOXI Engine Water Pump Double-Row Sprocket
The BOXI double-row sprocket water pump is a designated mid-range option for the 2011–2019 Flex 3.5L and 3.7L engines. The double-sprocket design distributes chain load more evenly, reducing stress on the pump bearings over the long term. The pump body is a clean aluminum casting, and the impeller is steel — a combination that matches the basic requirements of the Cyclone platform.
Fitment feedback is generally positive. Owners report that the unit lines up with the timing chain guides without the need for spacer modification. One DIY installer shared a detailed account of the job, noting that the pump worked correctly after indexing the timing chain per the service manual. The 1-year warranty is standard for this price bracket.
The main concern is quality control. A handful of owners received pumps with an interference issue — the pump housing contacted the engine block when torqued down, preventing rotation. This is a critical failure that would necessitate returning the part. Additionally, several buyers found the fitment chart inaccurate for certain model year variations, so double-checking part interchange is essential.
What works
- Double sprocket design for enhanced bearing durability
- Affordable entry into double-sprocket replacement
- Steel impeller vane structure for consistent flow
What doesn’t
- Inconsistent quality control on housing dimensions
- Fitment chart errors require buyer to verify part numbers

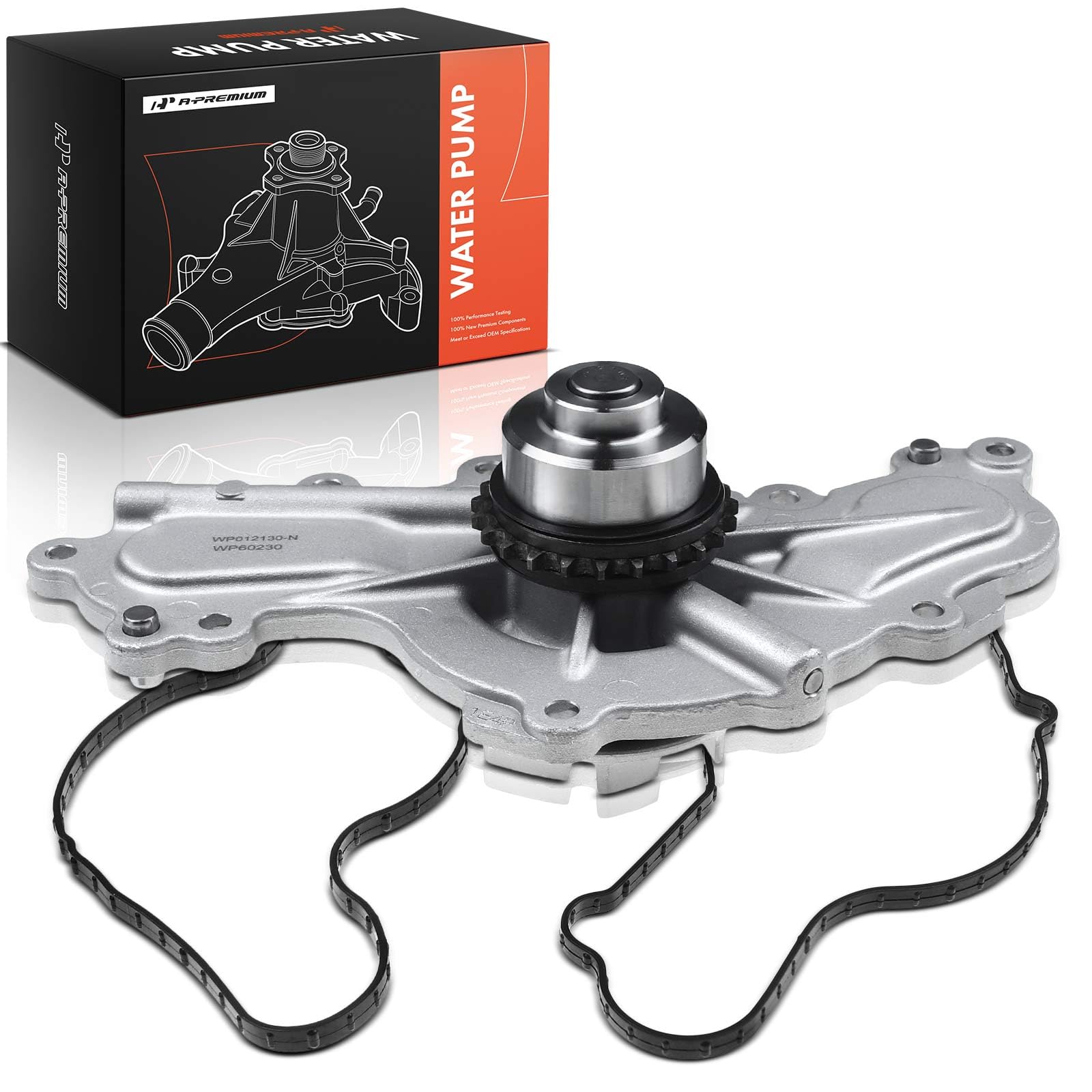

5. A-Premium APWP0043 Engine Water Pump
A-Premium positions the APWP0043 as a value-oriented direct replacement for the 2009–2010 Ford Flex with the single-sprocket timing chain. The rear-drive pump (driven off the cam pulley) is unique to this early generation, and the A-Premium unit matches the 11-vane steel impeller design required for proper coolant circulation. The reverse-rotation impeller is a critical spec for these engines — standard rotation pumps will not work.
Owner reports on the 2008–2010 Lincoln MKX and Ford Edge confirm that the pump fits without shimming and that the included gasket seals effectively. One mechanic noted that the metal impeller was a significant upgrade over the plastic impeller found on some original units. The one-year unlimited-mileage warranty is fair for the price point.
The primary failure point for this listing is fitment confusion. Several customers ordering for a 2012 Flex received a pump with an incorrect sprocket. The listing clearly states compatibility for 2009–2010 Flex, but the product page’s fitment filter occasionally suggests broader compatibility. Always rely on the reference number AW6023 rather than the year-range dropdown.
What works
- Correct reverse-rotation impeller for early Flex engines
- Steel impeller is a direct upgrade over factory plastic options
- Affordable pricing for budget-conscious repairs
What doesn’t
- Fitment filter can mislead buyers with newer Flex models
- Gasket material is basic and may require additional sealant

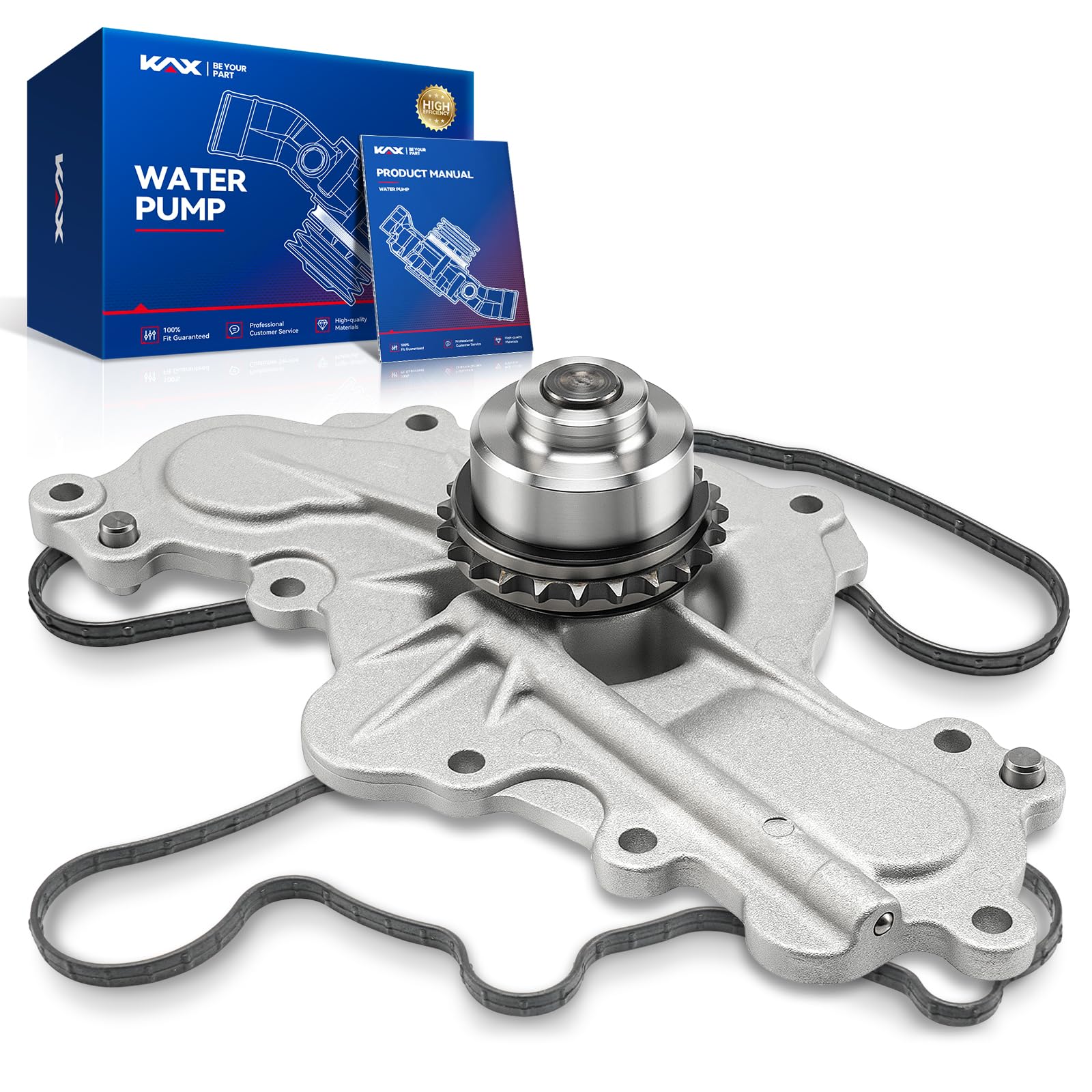

6. KAX AW6023 Engine Water Pump with Gasket
The KAX AW6023 is the entry-level option for the 2009–2010 Flex, designed to cross-reference with the single-sprocket AW6023 standard. The aluminum housing with a steel impeller covers the basic durability requirements, and the inclusion of a gasket in the box removes the need for a separate purchase. The 2-year warranty is unexpectedly generous for a budget-tier part.
Initial owner feedback is positive. The pump arrived clean, the mounting holes aligned, and the impeller rotated freely. One buyer installed it on a 2007 Ford Edge with a 3.0L engine and reported that the metal impeller and gasket made for a straightforward swap. Another noted the value proposition — a functional water pump for a fraction of the dealer price.
The risk here is consistency. Being a newer SKU with limited long-term reviews, the long-term bearing and seal durability are unproven. The pump is rated for a wide range of Ford and Mazda applications, including the Mazda CX-9 and Ford Fusion, which suggests a generic fitment strategy rather than a platform-specific design. Budget buyers should monitor coolant levels closely after installation.
What works
- Extremely competitive pricing for a metal-impeller pump
- Two-year warranty surpasses most budget aftermarket parts
- Includes gasket for immediate installation
What doesn’t
- Limited long-term reliability data from owners
- Generic fitment list may cause confusion with sprocket type
7. OAW F9060 Engine Water Pump
The OAW F9060 is a single-sprocket water pump covering the 2007–2012 Ford Edge, 2009–2010 Flex, and other Ford/Mazda platforms with the 3.5L and 3.7L engines. It is designed to be an interchangeable cross-reference for part numbers 125-9060 and AW6023. The pump arrives as a bare unit with no installation hardware beyond the gasket, which matches the no-frills budget approach.
Installation feedback from owners is mixed but predominantly functional. A 2008 Ford Edge owner reported a clean fit and normal operation for the month they kept the vehicle after the swap. The pump uses standard-quality aluminum and steel construction — no novel materials, but nothing obviously deficient either. The 1-year warranty provides a basic safety net.
Unfortunately, the reliability track record is concerning. One owner reported a catastrophic failure within 300 miles, with the pump seizing and requiring a full re-repair. Another received a unit that was seized on arrival due to a manufacturing defect. When you account for the 8–12 hours of labor required to replace a water pump on the Flex, a failure this early makes the budget savings meaningless.
What works
- Lowest entry point for standard single-sprocket replacement
- Covers a broad cross-section of pre-2011 Ford/Lincoln models
- Simple design with basic gasket included
What doesn’t
- Quality control issues including seized bearings on arrival
- Early failures within a few hundred miles reported by owners
Hardware & Specs Guide
Impeller Vane Count and Material
Most aftermarket pumps for the Flex 3.5L V6 use either 11 or 12 vanes. Higher counts provide better coolant velocity at idle. Steel or cast iron vanes are essential — composite vanes can shatter when the timing chain tension changes during cold starts. The Motorcraft and ACDelco units use the highest-quality steel alloys with precision-balanced vanes.
Sprocket Configuration (Single vs. Double)
The 2009–2010 Flex uses a single-row sprocket that fits onto a single timing chain guide. The 2011–2019 Flex uses a double-row sprocket that engages both chains. Installing the wrong configuration will cause chain misalignment, rapid bearing wear, and eventual pump seizure. Always inspect the old pump before ordering a replacement.
Gasket and Seal Design
Multi-layer steel (MLS) gaskets provide the best resistance to heat cycling and coolant pressure. Composite gaskets are cheaper but can degrade over time, especially with extended coolant intervals. The shaft seal on premium pumps often includes a PTFE coating that reduces the initial weep seen on many aftermarket units during the first heat cycle.
Bearing Quality and Lubrication
The water pump bearing supports the impeller shaft and handles side load from the timing chain. Premium pumps use sealed, permanently lubricated bearings that prevent coolant ingress. Budget bearings may use a basic grease pack that degrades faster. The ACDelco and Motorcraft units use high-load bearings rated for the Cyclone engine’s chain tension.
FAQ
How often should I replace the water pump on a Ford Flex?
Can I use a single-sprocket pump on a 2012 Ford Flex?
What are the signs of a failing water pump on a Flex?
Is an OEM Motorcraft pump worth the higher cost?
Final Thoughts: The Verdict
For most buyers, the best ford flex water pump winner is the ACDelco Gold 252-955 because it balances a stainless steel impeller, double-sprocket durability, and a much lower cost than an equivalent Motorcraft unit. If you want absolute OEM-level certainty, grab the Motorcraft PW538. And for a budget-conscious repair on a 2009–2010 Flex, nothing beats the A-Premium APWP0043 for correct single-sprocket fitment at a low entry price.
