A standard 2-ton floor jack simply won’t reach the frame rails of a lifted truck. That extra 4 to 6 inches of suspension lift turns a routine tire rotation into a dangerous balancing act, forcing owners to stack wood blocks or risk unstable jack stands. The right high-lift hydraulic unit changes everything, providing a safe, single-pump solution for clearance that stock jacks cannot deliver.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing the hydraulic specs, saddle extension ranges, and frame stability of dozens of floor jacks designed for modified trucks, cross-referencing manufacturer data with thousands of owner experiences to separate the gear that works from the gear that wobbles.
This guide focuses on units with a maximum lift height of at least 20 inches and a capacity of 3 tons or more, ranking them by build quality and real-world clearance. Whether you are swapping tires on a 6-inch lift or need a shop jack that doubles for off-road recovery, these are the best floor jack for lifted trucks available today.
How To Choose The Best Floor Jack For Lifted Trucks
Lifted trucks create two distinct challenges for a floor jack: the frame sits higher off the ground, and the suspension travel changes the jacking points. Choosing the wrong unit means you either cannot reach the frame or you lift the vehicle off its suspension before the tires leave the ground, creating an unstable situation.
Minimum Lift Height and Saddle Reach
The absolute minimum saddle height for a lifted truck is 20 inches, but 24 inches or more is preferable for trucks with 6 to 8 inches of lift. Pay attention to the saddle itself — some jacks include a removable extension or a quick-change adapter that adds another 3 to 8 inches of reach, turning a shop jack into a true off-road unit.
Load Capacity and Frame Clearance
A 3-ton (6,000 lb) capacity is the baseline for a full-size lifted truck like a Ford F-250 or Ram 2500. If you drive a lighter-duty truck like a Tacoma or Colorado with a modest 3-inch lift, a 2-ton (4,000 lb) unit with sufficient reach can work. Overloading a jack beyond its rated capacity risks seal failure and hydraulic bypass, which is dangerous under a 6,000-pound vehicle.
Construction Material: Steel vs. Aluminum
Steel jacks are heavier (90 to 105 pounds) but more durable for daily shop use and less prone to flexing under heavy loads. Aluminum jacks are lighter (75 to 90 pounds) and easier to transport for trail use, but they can be less stable on uneven terrain without a wide footprint. Some premium jacks use a hybrid steel-and-aluminum frame to balance weight and strength.
Stability on Uneven Surfaces
If you work on gravel, dirt, or paved driveways, look for a wide wheelbase, large rear swivel casters, and a full-length steel skid plate. The skid plate distributes the jack’s weight and prevents it from sinking into soft ground. A jack with small 2-inch casters will dig into gravel and tip, while 4.5-inch or larger wheels roll smoothly over rough terrain.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ARCAN A20016 | Mid-Range | Professional shop lifts | Max height 24 inches | Amazon |
| ROAD DAWG AT830006XDL | Premium | Off-road mud and gravel | Large composite wheels | Amazon |
| Strongway Off-Road Jack | Premium | Soft terrain stability | 29-inch max lift height | Amazon |
| VEVOR 4 Ton | Mid-Range | Budget high-lift | Max height 20.98 inches | Amazon |
| YELLOW JACKET 4 Ton | Mid-Range | Heavy-duty 4-ton capacity | Max height 19.88 inches | Amazon |
| BIG RED AT84007R | Mid-Range | Fast dual-piston lifting | Max height 20 inches | Amazon |
| ROAD DAWG ATZ830027HD | Mid-Range | Extreme high-lift 30 inches | Max height 30.12 inches | Amazon |
| CAT 240330 | Premium | Hybrid build for stability | 7.75-inch saddle adapter | Amazon |
| ROADTEK 3 Ton Electric | Premium | Hands-free electric operation | Max height 24.25 inches | Amazon |
In‑Depth Reviews
1. ARCAN XL2T A20016
The ARCAN A20016 is a 2-ton low-profile jack with a 24-inch maximum lift height, making it a rare unit that clears the frame of a lifted truck while still fitting under a standard-height sedan. The dual pump pistons bring the saddle to contact height in just a few strokes, reducing the strain of repetitive shop work. Its steel construction is rated for professional use, and the rubber saddle pad provides a non-marring contact surface against aluminum or painted frames.
At 97 pounds, this jack is heavy and not designed for portable off-road use, but its stability on concrete is exceptional. The wide steel frame and large casters make it feel planted even when lifting the rear axle of a lifted F-150. The foam-covered handle adds a thoughtful touch for impact protection, though some owners report the saddle height is still borderline for trucks with more than 8 inches of lift.
Where this jack truly excels is in a shop environment where you need a single unit to service everything from a lowered sports car to a moderately lifted 4×4. The 24-inch reach and low 2.75-inch minimum height create one of the widest working ranges in this segment, eliminating the need for a separate high-lift jack. Just keep in mind the 2-ton limit — full-size diesel trucks will push this unit to its capacity.
What works
- Excellent 24-inch maximum height covers most lifted trucks up to 6 inches of lift
- Dual pump pistons bring saddle up fast, reducing repetitive pumping effort
- Low 2.75-inch minimum height allows service of standard and lowered vehicles
What doesn’t
- 2-ton capacity limits use with heavy diesel trucks and large commercial chassis
- Heavy steel frame weighs nearly 100 pounds, not ideal for mobile/off-road use
- Saddle height may still be insufficient for trucks with 8+ inches of lift

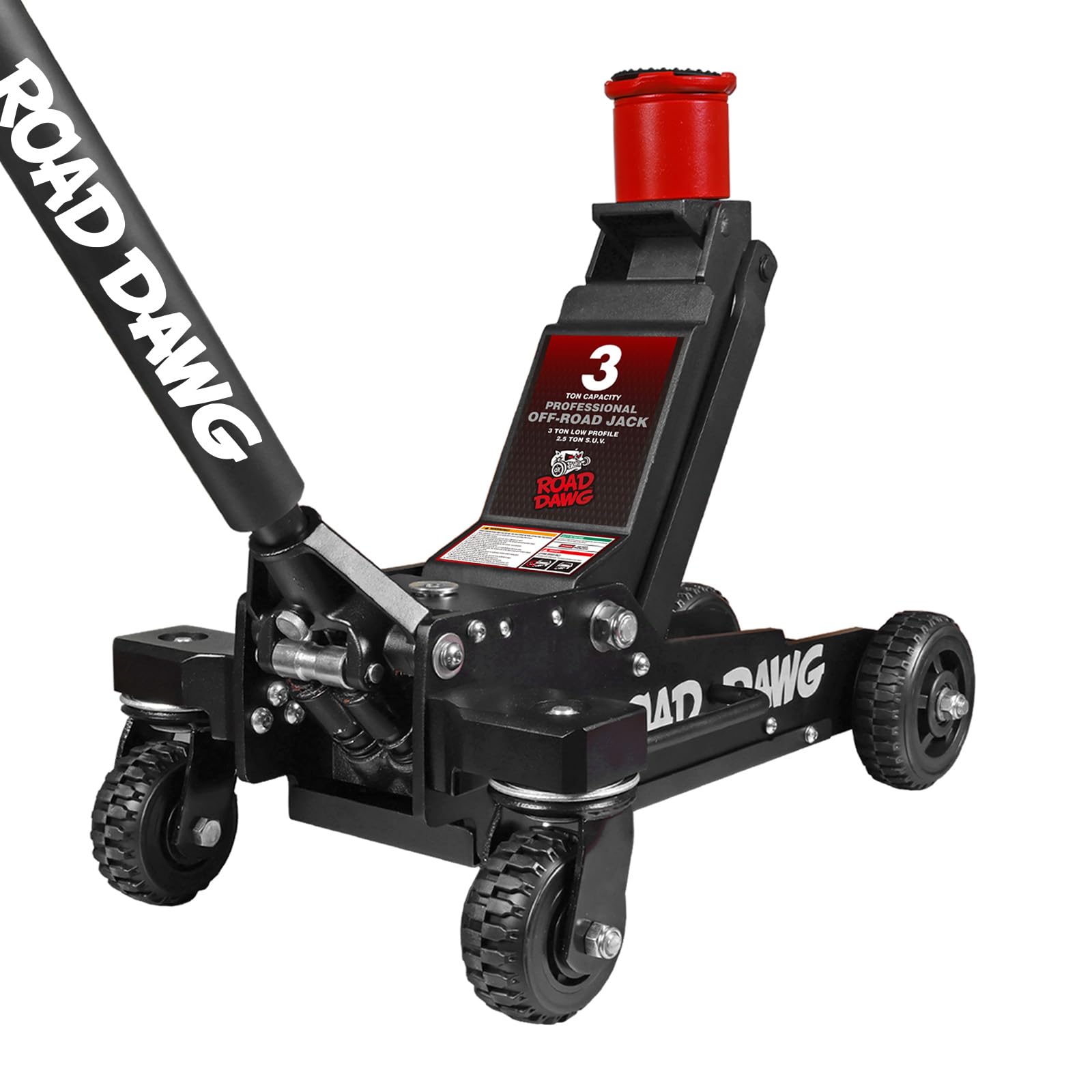

2. ROAD DAWG AT830006XDL
The ROAD DAWG AT830006XDL is purpose-built for off-road environments with large composite wheels that resist sinking into mud and gravel. This 3-ton jack combines an aluminum and steel frame to keep weight at 79 pounds while maintaining structural integrity under 6,000-pound loads. The dual piston pump lifts the saddle to a maximum of 20.87 inches without the adapter and 23.86 inches with the included SUV adapter, providing the necessary reach for lifted trucks.
The anti-slip bottom frame and 360-degree swivel rear casters make positioning on rough terrain straightforward. The front wheels are straight for directional stability, while the rear casters allow easy pivoting around a vehicle. The 6-stroke pump-to-full-height design is fast enough for trail use, and the 2-year warranty provides peace of mind for frequent off-roaders who beat up their gear.
The biggest strength here is the hybrid material choice — you get the durability of steel in the frame with aluminum components that shave off 15 to 20 pounds compared to an all-steel unit. That weight savings matters when you are loading the jack into the bed of a truck after a day on the trail. The main trade-off is the 5,000-pound capacity when using the adapter, which slightly limits its application with full-size diesel HD trucks.
What works
- Large composite wheels resist sinking into mud and soft trail surfaces
- Hybrid aluminum-steel construction saves weight without sacrificing strength
- Lifts to 23.86 inches with included SUV adapter
What doesn’t
- Capacity drops to 5,000 pounds when using the saddle adapter
- Maximum height without adapter (20.87 inches) is tight for heavily lifted trucks
- Composite wheels may not hold up as well as steel on sharp rocks
3. Strongway Off-Road Jack
The Strongway Off-Road Jack is the tallest unit in this lineup with a maximum lift height of 29.06 inches when using the quick-change saddle adapter. That extra reach is critical for trucks with 6 to 8 inches of lift where a standard 20-inch jack still leaves the tires on the ground. The full-length steel skid plate distributes the jack’s 90-pound weight across a wide footprint, preventing it from sinking into sand, gravel, or mud during trail recovery.
The dual piston pump brings the saddle to working height efficiently, and the quick-change saddle system allows you to switch between the standard flat pad and the taller extension adapter without tools. The 4.5-inch 360-degree swivel casters with sealed bearings roll smoothly over dirt and uneven pavement, and the dual side handles make positioning under a truck’s frame straightforward. The aluminum frame keeps weight manageable for a 3-ton-capacity unit.
For trail use, the skid plate is the standout feature — it prevents the jack from tipping or shifting when set up on loose surfaces. The rubber saddle and foam handle provide vehicle protection, and the 29-inch maximum height with the adapter means this jack can service trucks with extreme lift heights. The only downside is the price point, which places it in the premium tier, but for owners who need a dedicated off-road jack that also works in the garage, it justifies the investment.
What works
- 29-inch maximum lift height with saddle adapter is the highest in this segment
- Full-length steel skid plate prevents sinking on soft ground
- Quick-change saddle and extension adapter switch without tools
What doesn’t
- Premium pricing positions it as a dedicated investment for off-road use
- Aluminum frame is lighter but may flex more than all-steel jacks at extreme loads
- Not low-profile enough for standard cars (minimum height 6.14 inches)
4. VEVOR 4 Ton Low Profile
The VEVOR 4 Ton is a heavy-duty steel jack with an 8,800-pound capacity and a maximum lift height of 20.98 inches, making it suitable for lighter duty lifted trucks and SUVs. The dual parallel pump system lifts the saddle to full height in seven strokes, and the 52-inch handle uses leverage to reduce effort. The rubber saddle and foam bumper protect vehicle surfaces, while the 360-degree rotatable saddle can be detached and replaced if worn
The steel construction gives this jack a solid feel at 93 pounds, and the ASME PALD-2014 compliance confirms the safety overload system works as intended. The two-piece handle design allows for compact storage, which is useful for garage organization. The minimum height of 3.94 inches is low enough for most cars, but the key spec for lifted truck owners is the 20.98-inch maximum — sufficient for moderate 3 to 4 inch lifts, but tight for taller builds.
Where this jack shines is value: you get a 4-ton capacity for a mid-range price, and the build quality is consistent with other Torin-manufactured units. The sealing system is robust enough for long-term use, and the CE and UKCA certifications indicate proper hydraulic testing. The main limitation is the 20.98-inch height — if you have a 6-inch or higher lift, you will need a taller jack or a saddle extension block.
What works
- 4-ton capacity provides ample safety margin for full-size trucks
- Raises to nearly 21 inches in seven strokes with dual parallel pumps
- ASME PALD-2014 certified with a robust safety overload system
What doesn’t
- 20.98-inch maximum height is borderline for trucks with 6+ inches of lift
- Low-profile design has a 3.94-inch minimum, not suitable for lowered vehicles
- Steel casters may struggle on gravel without additional surface support
5. YELLOW JACKET 4 Ton
The YELLOW JACKET 4 Ton is a straight-ahead heavy steel jack with an 8,800-pound capacity and a 19.88-inch maximum lift height. It is built for lifting heavier trucks and SUVs, and the 87-pound steel chassis gives it a solid footprint on shop concrete. The dual pumps provide gradual lifting, and the large surface area on the saddle ensures even contact with the load.
The minimum height of 4.31 inches means this is not a true low-profile jack, but that is less critical for lifted truck owners who are not trying to reach severely lowered chassis. The detachable handle aids storage, and the yellow powder coating is durable enough to resist chipping during shop use. The safety overload valve provides overload protection, and the 1-year warranty covers defects.
The primary limitation is the 19.88-inch maximum height. For a truck with a 3-inch lift, this usually works, but trucks with 6 inches or more of suspension lift will need a jack with a taller saddle or an extension adapter. The 4-ton capacity is a strong selling point, giving you a safety margin even with a heavy diesel pickup. The price point is entry-level compared to premium jacks, making it a solid budget-friendly choice for moderate lift heights.
What works
- 4-ton capacity provides an excellent safety margin for heavy trucks
- Uncomplicated design with reliable hydraulic pump and overload valve
- Heavy steel construction feels stable and durable under load
What doesn’t
- 19.88-inch maximum height limits use to trucks with 3 to 4 inches of lift
- Not a low-profile jack, minimum saddle height is 4.31 inches
- Basic steel casters are less maneuverable on rough surfaces
6. BIG RED AT84007R
The BIG RED AT84007R is a 4-ton hydraulic jack from Torin’s popular BIG RED line, designed for universal fit across cars, trucks, and SUVs. The dual piston pump lifts loads five times faster than a single-pump unit, minimizing the time spent pumping between lifts. The lifting range spans 4 to 20 inches, providing enough clearance for a moderately lifted 3/4-ton truck.
The wide stance adds lateral stability, which is critical when lifting heavy axles, and the two 360-degree swivel rear casters allow tight maneuvering in a shop environment. At 100.8 pounds, it is one of the heaviest jacks in this lineup, but the weight translates to a planted feel under load. The ASME safety rating and overload system offer basic protection, and the 1-year warranty covers the hydraulic components.
The 20-inch maximum height is exactly the minimum most lifted truck owners consider acceptable. It works for trucks with 3 to 4 inches of lift, but if your truck sits 6 inches higher than stock, you are cutting it close. The dual piston speed is genuinely useful in a busy shop, and the 8,000-pound capacity means you are not worrying about the hydraulic limit when lifting a full-size SUV or heavy pickup.
What works
- Dual piston pump lifts to height significantly faster than single-piston models
- Wide stance and heavy 100-pound frame provide exceptional stability
- 4-ton capacity handles nearly any consumer truck or SUV
What doesn’t
- 20-inch maximum height is the minimum acceptable for lifted trucks
- Very heavy at 100.8 pounds, not portable for off-road use
- Basic steel casters are not suited for gravel or dirt driveways
7. ROAD DAWG ATZ830027HD
The ROAD DAWG ATZ830027HD is a 3-ton foldable floor jack with an astronomical 30.12-inch maximum lift height, making it the clear choice for extreme lifted trucks with 8 to 10 inches of suspension lift. The folding arm design with reinforced structural U-channel side plates provides rigidity even at full extension, and the dual pistons still lift quickly despite the extended travel range.
The adjustable safety pins on the lifting arm and the extendable saddle bar add an extra layer of stability control during high lifts. The minimum height of 3.86 inches is low enough for most passenger cars, so this jack can technically cover everything from a Honda Civic to a 12-inch lifted Super Duty. The 102-pound weight is substantial, but the two-piece handle and foldable arm make storage slightly more manageable than a fixed-frame jack of similar size.
This jack is not for everyday light use — it is built for serious shop work where extreme lift heights are a regular requirement. The stainless steel construction resists corrosion, and the 2-year warranty indicates confidence in the hydraulic system. The main limitation is that the 30-inch height is overkill for most lifted trucks (4 to 6 inches of lift), and the extra pumping stroke length may slow down repetitive lifting. But if you need to lift a truck that sits exceptionally high, this unit delivers.
What works
- 30.12-inch maximum height is the highest in this review, suitable for extreme lifts
- Foldable design with adjustable safety pins for controlled high lifts
- Low minimum height of 3.86 inches makes it versatile for all vehicles
What doesn’t
- 30-inch reach is overkill for moderate lift heights and slows pumping cadence
- Weighs 102 pounds, one of the heaviest units in this category
- Foldable mechanism introduces additional points of long-term wear
8. CAT 240330
The CAT 240330 is a 3-ton hybrid steel-and-aluminum big wheel off-road jack that offers a 21.5-inch maximum lift height, plus a 7.75-inch adapter that pushes total reach to over 29 inches. The bottom skid plate provides stability on uneven terrain, and the dual piston pump reaches full height in seven strokes. The extra-large wheels are designed to roll over obstacles without sinking, making it a strong option for trail use.
Weighing 89.5 pounds, it splits the difference between all-steel jacks and lightweight aluminum units. The hybrid construction uses steel for the frame and load-bearing components while aluminum is used for non-structural parts, optimizing weight without compromising strength. The adapter increases the overall max lift height significantly, and it is included with the jack, so you do not have to purchase a separate extension.
The main trade-off is the base lift height of 21.5 inches without the adapter — you will need to use the adapter to clear truly tall lifts. The adapter adds height but also raises the minimum lift point, so you must position the saddle carefully under the frame. The CAT brand name carries weight in the tool industry, and the build quality is solid, but the price reflects the premium positioning and heavy-duty construction.
What works
- Hybrid steel-aluminum frame balances durability with reduced weight
- Large big wheels and skid plate allow stable operation on uneven ground
- Included 7.75-inch adapter boosts total reach to over 29 inches
What doesn’t
- Requires the adapter for full lift height, adding an extra setup step
- Base height of 21.5 inches without adapter is average for this category
- Premium pricing positions it as a specialized off-road tool
9. ROADTEK 3 Ton Electric
The ROADTEK 3 Ton Electric Floor Jack introduces a different approach: a 20V lithium battery-powered hydraulic system that eliminates manual pumping entirely. With a one-touch electric lift and a maximum height of 24.25 inches, it delivers the reach needed for lifted trucks without any physical effort. The low-profile minimum height of 3.375 inches makes it compatible with standard cars too, and the 24.25-inch maximum covers most moderate lift trucks.
The high-capacity battery is rated for 15 to 20 lifts on a pickup truck or 25 to 30 lifts on a sedan per charge, with a 2-hour recharge time. The gradual release valve ensures a slow, controlled descent, which is safer for brake work and tire changes. The heavy-duty big wheel with ball bearings provides stability on rough terrain, and the industrial-grade DC motor and piston pump are rated for twice the service life of a manual hydraulic jack.
This is the most expensive unit in this review, but the premium is justified for owners who value speed and convenience, particularly those with physical limitations that make manual pumping difficult. The 3-ton capacity handles most consumer trucks, though heavy diesel pickups push the limit. The electric system introduces additional failure points (motor, battery, controller), but the build quality appears robust, and the 1-year warranty covers the power unit.
What works
- Electric one-button lift eliminates manual pumping effort entirely
- 24.25-inch maximum height is suitable for moderately lifted trucks
- Slow, controlled descent valve improves safety during brake and tire work
What doesn’t
- Highest price point in this review, a significant investment
- 3-ton capacity limits use with heavy diesel HD trucks
- Electric system adds components that may require eventual servicing
Hardware & Specs Guide
Minimum Saddle Height
This is the height of the saddle when fully lowered. Most jacks for lifted trucks have a minimum height of 3.5 to 6 inches. A lower minimum height is important if you also service cars or lowered vehicles in the same shop. For trucks, the minimum height is less critical, but a jack with a 4-inch minimum is more versatile than one that bottoms out at 6 inches. A lower minimum also allows you to slide the saddle under a truck near the frame without first lifting the vehicle with a bottle jack.
Maximum Lift Height & Saddle Adapter
The maximum saddle height is the single most important spec for a lifted truck jack. You need at least 20 inches to clear a 3-inch lift on a full-size truck, and 24 inches or more to safely lift trucks with 6 inches or more of suspension lift. Saddle adapters add 3 to 8 inches of reach, but they also raise the minimum contact height, meaning you must align the saddle carefully. Look for jacks with quick-change adapters that do not require tools to switch between configurations.
Load Capacity and Frame Weight
For lifted trucks, 3 tons (6,000 pounds) is the minimum recommended capacity. A 4-ton (8,000 to 8,800 pounds) jack provides a wider safety margin and handles diesel HD trucks without worry. The jack’s own frame weight correlates to stability: heavier jacks (90+ pounds) feel more planted on smooth concrete, while lighter jacks (75 to 90 pounds) are easier to transport for off-road use. Hybrid steel-aluminum designs offer a compromise between portability and stability.
Pump System: Single vs. Dual Piston
Single-piston jacks require more strokes to reach full height, which is acceptable for occasional use but frustrating in a shop environment where you lift multiple vehicles per day. Dual-piston jacks lift the saddle to contact height in three to seven strokes, reducing effort and time. For lifted trucks, where the saddle travels further to reach the frame, dual-piston systems are almost essential unless you are willing to pump significantly more. Some electric jacks eliminate pumping entirely, using a motor-driven pump and battery.
FAQ
What is the minimum lift height needed for a lifted truck floor jack?
Can I use a standard car floor jack on a lifted truck?
Are aluminum or steel floor jacks better for lifted trucks?
How do I safely position a floor jack under a lifted truck?
Final Thoughts: The Verdict
For most buyers, the best floor jack for lifted trucks winner is the ARCAN A20016 because it delivers a 24-inch maximum lift height with dual piston speed in a shop-grade steel frame, covering the majority of lift heights up to 6 inches without needing a saddle adapter. If you primarily work off-road and need stability on loose terrain, grab the Strongway Off-Road Jack. And for extreme lift heights above 8 inches, nothing beats the ROAD DAWG ATZ830027HD with its 30-inch maximum reach.
