Compressing a coil spring without the right tool turns a straightforward suspension job into a genuine safety hazard. A single slip under tension can send a spring flying across the garage, which is why choosing a properly rated compressor matters as much as the repair itself.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach to suspension tools relies on comparing load ratings, thread quality, hook geometry, and safety features across dozens of models while aggregating real owner feedback to separate the reliable designs from the risky ones.
After analyzing dozens of models and owner reports, our pick for best external coil spring compressor balances safety, capacity, and ease of use.
How To Choose The Best External Coil Spring Compressor
Selecting a coil spring compressor comes down to four factors: load rating, jaw range, thread quality, and safety locks. A tool that looks sturdy on the shelf can still fail if the threads strip under tension or the hooks slip off the coil. Understanding these specs before you buy saves both time and risk.
Load Capacity and Vehicle Fit
The most overlooked spec is the per-pair load rating. Many budget compressors claim a high number but use thin threaded rods that bind under load. For passenger cars, a 1000‑lb rating per pair often suffices. Full-size trucks and SUVs with heavy‑duty springs need at least 2200 lb to maintain a safety margin. Always match the tool’s rating to the heaviest spring you plan to compress rather than the vehicle’s curb weight.
Thread Quality and Lubrication Needs
Heat‑treated steel rods with clean, consistent threading resist galling and binding during compression. Zinc or nickel plating adds corrosion resistance, but the real durability comes from the core material — #45 carbon steel or chromoly are common benchmarks. Most compressors require grease on the threads before each use; skipping this step accelerates wear and can cause uneven loading that forces the spring sideways.
Safety Features That Matter
Locking rings at the hook mouth prevent the clamp from walking off the spring during compression. Adjustable safety brackets keep the threaded rods parallel, which stops the spring from bowing out and releasing unexpectedly. Some premium kits include a stabilizer bar that bridges the two compressors for even more lateral stability. These additions add a few dollars to the cost but dramatically reduce the chance of a sudden release.
Jaw Range and Hook Design
Look for a jaw opening that covers at least 0.9 inches to 11 inches to accommodate both small strut springs and large truck coils. Forged hooks with a wide contact surface distribute clamping force better than flat‑stamped hooks. Plastic or rubber protectors on the hook faces prevent marring the spring coating, which matters if you are reusing the original springs on a restored vehicle.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ReluxGo 2‑Piece | Premium | Full-size trucks and SUVs | 2200 lb capacity, 1.4–11 in jaw range | Amazon |
| Orion Motor Tech | Mid-Range | Sedans and light trucks | 2200 lb capacity, 0.9–11 in range | Amazon |
| Shankly Heavy Duty | Premium | Large trucks and repeated shop use | 2200 lb per pair, forged hooks | Amazon |
| Powerbuilt 5‑Piece Kit | Complete Kit | Classic cars and Double‑D shafts | Center screw design, storage case | Amazon |
| Tusk Motorcycle Set | Specialty | Motorcycle and light ATV springs | Chromoly hooks, 17 mm hex drive | Amazon |
| VEVOR 2‑Piece | Budget | DIY owners on a budget | 2646 lb capacity, safety locking ring | Amazon |
| Powerbuilt 2‑Piece Kit | Value | Basic spring removal and install | Chrome vanadium steel, blow‑molded case | Amazon |
In‑Depth Reviews
1. ReluxGo Coil Spring Compressor Set
The ReluxGo set hits the sweet spot between load capacity, safety hardware, and ease of use for a broad range of vehicles. Each pair is rated at 2200 lb, which covers full‑size trucks like the Ram 1500 and heavy SUVs such as the 5th‑Gen 4Runner without straining the threads. The drop‑forged hooks are heat‑treated #45 steel with a galvanized finish that resists corrosion better than basic black oxide.
What sets this kit apart is the adjustable safety bracket that maintains parallel alignment between the two threaded rods during compression — a detail that prevents the spring from bowing sideways under load. The locking ring on each jaw adds an extra layer of security, and the included 19 mm hex socket and Allen wrench mean you do not need to hunt for tools mid‑job. Owners report compressing Eibach 2‑inch lift coils and Polaris ATV springs without any hook slippage.
The storage case keeps the pair organized, though the case is a soft‑side design rather than a rigid blow‑molded shell. Several users noted that the included gloves are a thoughtful addition for grip during compression. Overall, this kit provides the safety margin and build quality that make it a confident choice for both DIYers and occasional shop use.
What works
- Forged, heat‑treated hooks resist bending under heavy truck springs
- Safety bracket keeps rods parallel during compression
- Locking ring on each jaw prevents spring detachment
- Includes 19 mm hex socket and Allen wrench
What doesn’t
- Soft storage case provides less protection than a blow‑molded shell
- Jaw range may require careful positioning on very tall off‑road coils
2. Orion Motor Tech 2‑Piece Set
The Orion Motor Tech compressor delivers a strong 2200‑lb per‑pair rating with a focus on precision alignment. The adjustable safety brackets are designed to keep the threaded rods moving in parallel, which is critical when compressing stiff springs on Mercedes W164 or Ford F‑250 platforms. The reinforced lock ring at each jaw mouth adds security against spring walk‑off during compression.
The heat‑treated carbon steel body with a zinc‑plated finish offers good corrosion resistance for a mid‑range price point. Owners consistently highlight how easily the tool handles Toyota Tacoma Old Man Emu coils and heavy SUV springs without any sign of thread binding. The jaw range extends from 0.9 to 11 inches, covering most sedan and light‑truck applications without needing to swap hardware.
Several users noted that the first unit they received had bent threaded rods, which suggests occasional quality‑control gaps in packaging or handling. The replacement units performed flawlessly, so inspecting the threads and rods immediately upon arrival is wise. For the price, this set competes well with options costing significantly more, provided you verify straightness before the first use.
What works
- Strong 2200‑lb capacity handles heavy truck and SUV springs
- Precision threads remain smooth with proper lubrication
- Lightweight enough to maneuver in tight wheel wells
- Competitive price for the rated load capacity
What doesn’t
- Inconsistent quality control — inspect rods for straightness on arrival
- Zinc plating may wear faster than nickel or galvanized finishes
3. Shankly Heavy Duty Spring Compressor
The Shankly compressor positions itself as a rugged option for frequent suspension work, with a 1000‑kg (2200‑lb) per‑pair rating and forged hooks that resist spreading under high tension. The wide jaw capacity — 23 mm to 280 mm — accommodates everything from compact car struts to full‑size truck coils. The frame is noticeably thicker than entry‑level units, which reduces flex when compressing stiff springs from GMC Sierra or Ford F‑150 platforms.
Owner reports consistently praise the sturdy feel and smooth thread operation when lubricated properly. Several users successfully compressed 2025 4Runner and 2019 Silverado springs without the tool showing any strain. The slim profile of the compressor body is a practical advantage on European cars with tight strut clearance, such as BMW models where space is limited.
However, a notable minority of buyers reported jaw breakage after limited use, particularly on the middle set of gripping teeth. These failures appear to relate to hardness inconsistencies in the casting. The tool also lacks a stabilizer bar, which means you must rely entirely on manual alignment to keep the rods parallel. For heavy‑duty shop use, the jaw durability concern is worth factoring into the decision.
What works
- Thick frame minimizes flex under high spring tension
- Wide jaw range covers compact cars to large trucks
- Slim profile fits tight strut towers on European vehicles
- Smooth thread operation with routine lubrication
What doesn’t
- Reports of jaw breakage after limited use on heavy springs
- No included stabilizer bar for parallel alignment
- Manufacturer explicitly warns against impact gun use

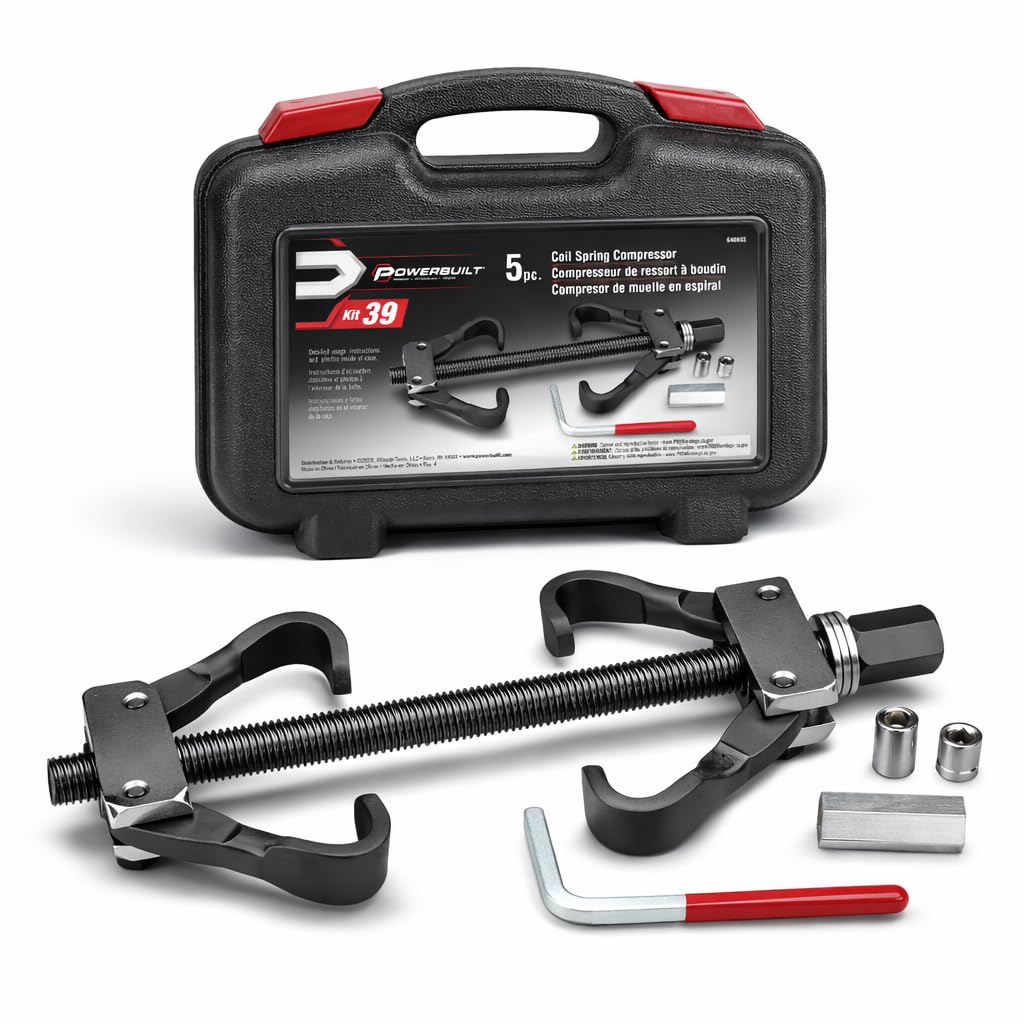

4. Powerbuilt 5‑Piece Coil Spring Compressor Kit
The Powerbuilt 5‑piece kit takes a different approach from the hook‑style compressors above — it uses a center‑screw design with deep spring hooks that work on both straight and curved coils. This configuration is especially useful for classic cars and older domestic vehicles with Double‑D shaped shock shaft stems, where hook‑type compressors struggle to find purchase. The kit includes specialty sockets and a heavy‑duty steel center shaft that meets ANSI standards.
Owners report excellent results on 1965 Mustang front springs and Honda Odyssey strut bearings, noting the tool makes suspension work straightforward even for first‑time DIYers. The included blow‑molded case has usage photos printed directly on the interior, which is a helpful reference when you are mid‑job and need a quick visual reminder of the setup sequence.
The main trade‑off is that the center‑screw design can be cumbersome on vehicles with limited overhead clearance. Some users found it necessary to cut the threaded rod by several inches to prevent contact with the vehicle frame. Additionally, the rubber insulators that come with the kit tend to shift during compression and may require adhesive to stay in place. For classic car restorers, the versatility of the 5‑piece set outweighs these minor inconveniences.
What works
- Center‑screw design handles curved and straight springs equally well
- Double‑D shaft compatibility for older domestic vehicles
- Blow‑molded case with printed usage photos for quick reference
- ANSI standard compliance for peace of mind
What doesn’t
- Cumbersome in tight engine bays with limited vertical space
- Rubber insulators shift during compression and may need adhesive
- Some users had to cut the threaded rod for frame clearance
5. Tusk Motorcycle Shock Spring Compressor Set
The Tusk compressor set is purpose‑built for motorcycle and light ATV shock springs, with a compact form factor that hook‑style automotive units cannot match. The hardened chromoly steel hooks and stainless steel outer body provide corrosion resistance that matters when the tool lives in a damp garage or sees frequent use on muddy trail bikes. The 17 mm wrench or 3/8‑inch ratchet drive allows controlled, incremental compression without needing oversized handles.
Owners consistently report excellent fitment on Kawasaki Mule front springs, snowmobile suspension coils, and standard motorcycle shock springs. The included plastic covers protect the spring coating from scratches — a detail that matters for show bikes and restored classics. The blow‑molded steel storage case keeps the pair organized and protected during transport, and the set weighs just over two pounds, making it easy to pack for trailside repairs.
The tool is explicitly not recommended for heavy UTV or HD truck springs, so its application range is narrower than the automotive compressors in this guide. Some users noted that the jaw opening requires careful positioning on taller spring coils, and the plastic covers were discovered only after use, which led to minor coating scratches. For anyone working exclusively on motorcycles or light ATVs, this set offers the most refined fit.
What works
- Compact size fits motorcycle and ATV shock springs perfectly
- Chromoly hooks and stainless body resist corrosion
- Plastic protectors prevent spring coating damage
- Lightweight and portable with a rugged steel case
What doesn’t
- Not rated for heavy UTV, truck, or large SUV springs
- Jaw opening requires careful positioning on taller coils
- Plastic protectors are easy to overlook before first use
6. VEVOR Coil Spring Compressor Tool 2‑Piece
The VEVOR compressor enters the market with the highest raw load rating in this lineup — 2646 lb per pair — at a price point that undercuts most competitors. The #45 steel construction with heat‑treated threading and a nickel coating offers respectable corrosion protection for the price. The adjustable safety brackets cover a range of 8.6 to 12.2 inches, and the compressive stroke measures 11 inches, which is sufficient for most passenger cars and light trucks.
Owner feedback is predominantly positive, with successful applications on 2018 BMW X3, 2014 F‑150, and Ford Expedition springs. Several users noted that the tool handled large SUV springs without bending or slipping, and the included carrying case keeps the pair organized. The locking ring at the clamp mouth adds a safety layer that is often absent from entry‑level tools at this price point.
The main concern is thread durability over repeated heavy use — the rods are functional but do not have the same precision fit as mid‑range options. A few owners reported that the threaded rods required frequent cleaning to prevent binding, and the instructions strongly advise against impact wrenches. For the DIYer performing a one‑time suspension job on a sedan or light SUV, the VEVOR delivers impressive value. For frequent shop use, the threads may wear faster than premium alternatives.
What works
- Highest load rating in the group at a budget price
- Safety locking ring on each clamp enhances security
- Carrying case included for organized storage
- Nickel coating resists rust better than basic black oxide
What doesn’t
- Thread precision is lower than mid-range and premium sets
- Not recommended for impact wrench use
- Threads may bind if not cleaned and lubricated between uses

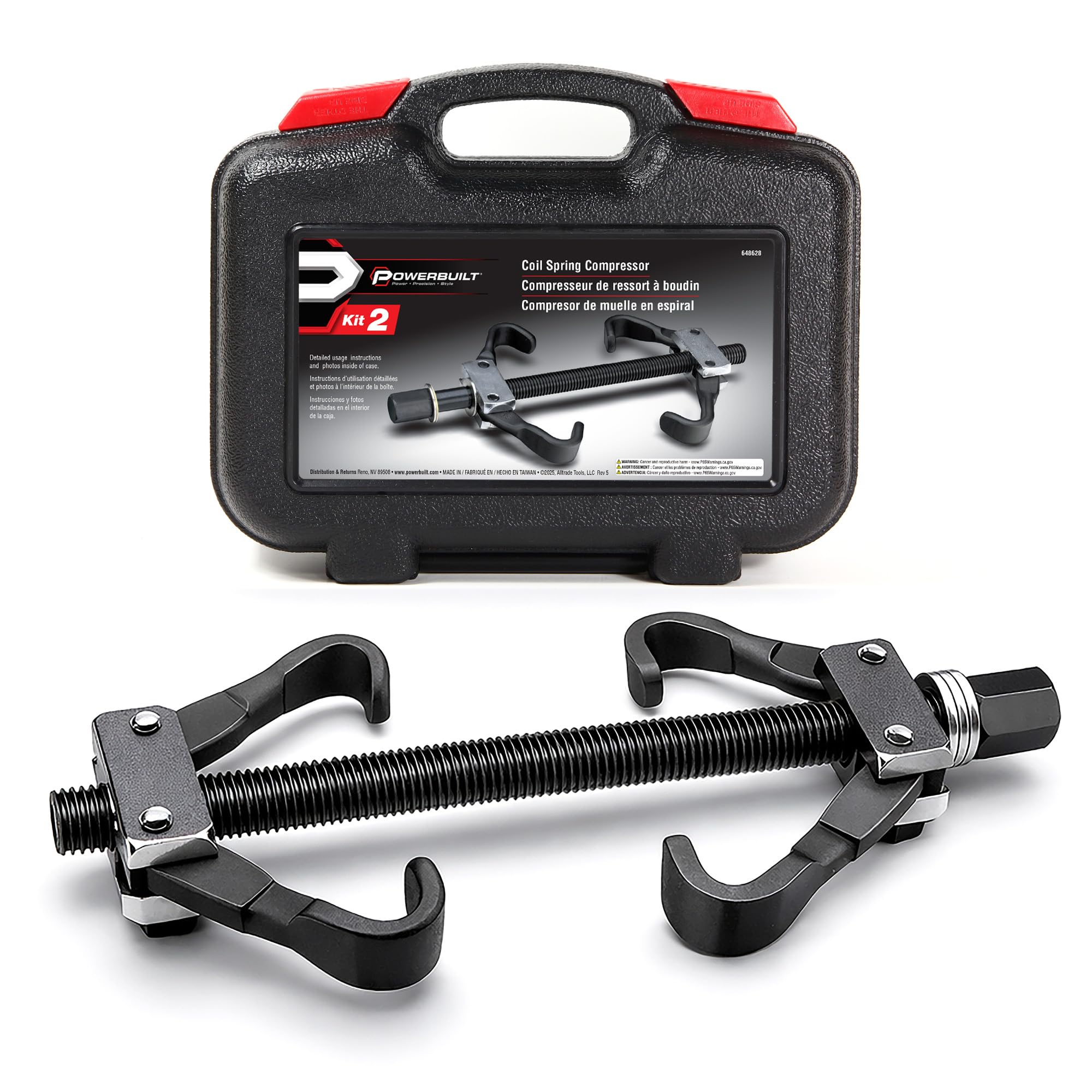

7. Powerbuilt Coil Spring Compressor Kit 2‑Piece
The Powerbuilt 2‑piece kit is a straightforward, no‑frills compressor built around chrome vanadium steel arms with a black oxide and chrome finish. It handles straight or curved coil springs made of wire up to 3/4‑inch diameter, covering the majority of passenger cars and light trucks. The ANSI standard compliance provides a baseline assurance of safe construction, and the blow‑molded case includes usage photos for quick reference.
Owners have used this kit successfully on 1970 El Camino front springs, classic car rebuilds, and Honda Odyssey struts. The tool is relatively lightweight at 4.55 pounds, which makes it easier to maneuver in confined spaces compared to bulkier twin‑rod designs. The instructions are printed clearly and include step‑by‑step photos that help first‑time users avoid common mistakes.
The tool does require frequent lubrication and cleaning to maintain smooth thread operation, and some owners noted that the arms tend to slip on freshly painted springs if the paint has not fully cured. The compact size also means the jaw range is more limited than the VEVOR or ReluxGo sets, making it less suitable for oversized truck coils. For budget‑conscious DIYers working on standard cars and classic vehicles, this kit offers a reliable entry point into safe spring compression.
What works
- Chrome vanadium steel offers good strength for the price
- Lightweight design improves handling in tight spaces
- ANSI standard compliance for construction quality
- Blow‑molded case with illustrated instructions
What doesn’t
- Limited jaw range struggles with large truck coils
- Arms may slip on freshly painted spring surfaces
- Requires consistent lubrication and cleaning to prevent thread wear
Hardware & Specs Guide
Load Rating Per Pair
The combined capacity of both compressors working together is the true safety limit. A 2200‑lb rating covers most truck and SUV springs, while 1000‑lb units are adequate for compact sedans. Always use the per‑pair figure rather than per‑tool ratings to avoid exceeding the system’s safe working load. The VEVOR set claims 2646 lb per pair, which provides the widest safety margin for heavy‑duty applications, but thread quality still dictates real‑world durability.
Thread Material and Finish
Heat‑treated #45 carbon steel and chromoly are the dominant materials for threaded rods because they resist galling under repeated compression cycles. Zinc, nickel, and galvanized finishes each add corrosion protection, with galvanized offering the best long‑term outdoor storage behavior. Black oxide finishes look professional but require oiling to prevent rust. Avoid uncoated or painted threads — they wear quickly and can bind mid‑compression.
Safety Locking Mechanisms
Locking rings at the hook mouth physically prevent the clamp from sliding off the spring coil during compression. Adjustable safety brackets bridge the two threaded rods to maintain parallel alignment — without them, uneven tightening can cause the spring to bow outward and release unpredictably. A stabilizer bar, found on some premium kits, adds lateral rigidity. Tools without any locking mechanism should be reserved for very low‑tension springs only.
Jaw Range and Hook Geometry
The jaw opening determines which spring diameters the tool can grip securely. A minimum range of 0.9 to 11 inches covers most sedan and SUV applications. Forged hooks with a wide, textured contact surface distribute clamp force evenly and resist spreading under load. Flat‑stamped hooks are cheaper but can deform against stiff truck coils. Plastic or rubber jaw protectors are valuable for preserving spring paint on restored vehicles.
FAQ
Can I use an impact wrench with a coil spring compressor?
How do I know if a compressor is safe for my truck or SUV?
Why do the threaded rods need grease before each use?
What is the difference between a hook‑style and a center‑screw compressor?
Final Thoughts: The Verdict
For most buyers, the best external coil spring compressor winner is the ReluxGo 2‑Piece Set because it combines a 2200‑lb capacity, forged hooks, and a locking safety bracket at a price that undercuts premium brands while outperforming budget options. If you need a compact tool for motorcycle and light ATV work, grab the Tusk Motorcycle Set for its chromoly hooks and corrosion‑resistant stainless body. And for classic car restorers who need Double‑D shaft compatibility and a complete kit, nothing beats the Powerbuilt 5‑Piece Kit.
