A dual quad air cleaner isn’t just engine jewelry—it’s the gatekeeper between your carburetors and the atmosphere. Choose wrong, and you are suffocating a healthy V8 with laminar flow restrictions and undersized inlet area. The right one breathes deep at wide-open throttle, keeps the fuel curves stable, and clears your hood line without a blister.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve mapped the airflow dynamics, material grades, and flange compatibility across dozens of aftermarket assemblies, translating real-world owner data from street-driven big-blocks to show-tuned small-blocks into a tight recommendation framework.
This guide breaks down the critical specs, base-drop geometry, and filter media you need to compare before ordering a dual quad air cleaner that actually fits your manifold and delivers measurable flow at the throttle bores.
How To Choose The Best Dual Quad Air Cleaner
Picking the right assembly starts with your manifold’s carb flange spacing and the total height available under the hood. A dual quad air cleaner bridges two carburetors, so the base must align the inlet necks precisely to the 5‑1/8″ patterns without obstructing the choke towers or fuel line fittings.
Flange Size and Carb Spacing
Most dual quad applications use a 5‑1/8″ diameter flange for each carburetor, but some vintage units may use the smaller 4‑1/2″ opening. Measure the air horn diameter on your carburetors and confirm the base plate cutouts match. The lateral center-to-center distance between the two carburetors also varies by manifold model—a standard spread is roughly 7 inches, but always verify against your intake before ordering.
Drop Base and Hood Clearance
A drop base lowers the filter element relative to the carb flange, buying critical clearance under a stock hood or low-profile scoop. The depth of the drop, typically 1‑1/4″ or 1‑1/2″, moves the lid closer to the carb top. If the drop is too aggressive, the lid can restrict air entry at the outer edge of the filter; too shallow and the cleaner may not clear a low hood. Measure from the air horn surface to the underside of your hood at the planned location to determine the maximum assembly height you can run.
Filter Media and Element Height
Paper filter elements offer solid filtration but must be replaced periodically. Washable synthetic or foam elements can be cleaned and reused, reducing long-term costs. The element height—most common are 3‑inch and 3‑1/2‑inch—directly translates to media surface area; taller elements flow more air with a lower pressure drop. For high-compression big-blocks pulling heavy CFM at 6,000+ RPM, a taller element with low-restriction synthetic media is the safer choice.
Construction Materials and Housings
Steel housings finished in triple chrome plating or crinkle black paint offer durability and a traditional look. Polished aluminum saves weight and resists corrosion, particularly in coastal or high-humidity environments. The lid design also matters—a flow-thru lid that pulls air from both the top and the sides dramatically increases the effective inlet area compared to a solid top lid.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Racing Power Street Scoop | Premium Dual/Single | High‑flow oval‑track or show builds | 20″ length, 5‑1/8″ flange, polished aluminum | Amazon |
| Edelbrock 43661 Pro‑Flo Chrome | Premium Drop Base | Muscle cars needing hood clearance | 3‑1/2″ element, steel chrome housing | Amazon |
| Edelbrock 43662 Pro‑Flo Black | Premium Drop Base | Factory‑styled engine bays | 3‑1/2″ element, steel crinkle housing | Amazon |
| Spectre SPE‑47623 Xtraflow | Mid‑Range Oiled Media | Race‑oriented dual quad applications | 14×3″, 1‑1/4″ drop base, red synthetic element | Amazon |
| ProForm 141‑752 Red Bowtie | Mid‑Range Branded Look | Chevy builds with a stock appearance | 14×3″, black crinkle base, red logo lid | Amazon |
| Holley 120‑102 Chrome | Value Chrome Entry | Budget street rebuilds | 14″ round, triple chrome plate, paper filter | Amazon |
| A‑Team Performance 47632 | Budget Red Kit | Entry‑level dual quad on a tight build | 14×3″, flow‑thru lid, red washable element | Amazon |
In‑Depth Reviews
1. Racing Power Street Scoop Air Cleaner Assembly
The Racing Power Street Scoop is the undisputed heavy hitter on this list. Stretching 20 inches in length, this polished aluminum assembly handles both dual and single 5‑1/8″ carb flanges, making it uniquely adaptable for tunnel‑ram manifolds or inline big‑block scoops. The all‑aluminum construction sheds nearly 13 pounds compared to a steel assembly, reducing unsprung mass on the intake valley.
The scoop design channels incoming air directly over the dual carburetor inlets, creating a ram‑air effect at speed. The polished exterior is show‑ready straight out of the box, though it will show fingerprint smudges quickly if handled without gloves. The integrated base is rigid enough to support the gasket seal across both carburetors without warping under heat cycling.
Fitment requires careful measurement—this is a large piece that needs a functional hood scoop or a raised bubble to clear. For builds that demand maximum frontal inlet area and a dramatic under‑hood statement, the Racing Power unit is in a class above the rest of the field.
What works
- 20‑inch length provides massive filter surface area for high‑CFM engines
- Polished aluminum resists corrosion and weighs far less than steel housings
- Dual flange configuration suits tunnel‑ram or single‑carb conversions
What doesn’t
- Overall height and length demand a functional hood scoop or cowl induction
- Polished finish requires regular maintenance to prevent spotting
2. Edelbrock 43661 Pro‑Flo Air Cleaner
The Edelbrock 43661 brings serious hood‑clearance engineering to the table. Its 3‑1/2″ tall element is paired with a drop base that tucks the assembly closer to the carburetors, making it one of the few premium units that can fit beneath a stock Corvette hood or low‑profile scoop. The steel housing wears a deep triple‑chrome finish that mirrors the factory show‑car standard.
Edelbrock designed this unit with a generous base drop that clears choke towers and fuel inlet fittings on Holley and Edelbrock carburetors. The filter element is a high‑flow paper media that balances filtration efficiency with airflow—adequate for street‑driven 454s and 455s that see occasional track passes. A reusable aftermarket element can be swapped in for higher CFM builds.
The steel construction gives it a weight penalty against polished aluminum options, but the chrome plating is thick enough to resist pitting in daily‑driver conditions. For enthusiasts who want a clean, period‑correct look with real drop‑base function, this Edelbrock delivers where cheaper chrome clones fall short.
What works
- Drop base design improves hood clearance for low‑profile applications
- 3‑1/2″ tall element offers good surface area without excessive height
- Triple chrome plating matches high‑end show finishes
What doesn’t
- Steel housing is noticeably heavier than aluminum alternatives
- Paper filter element requires periodic replacement

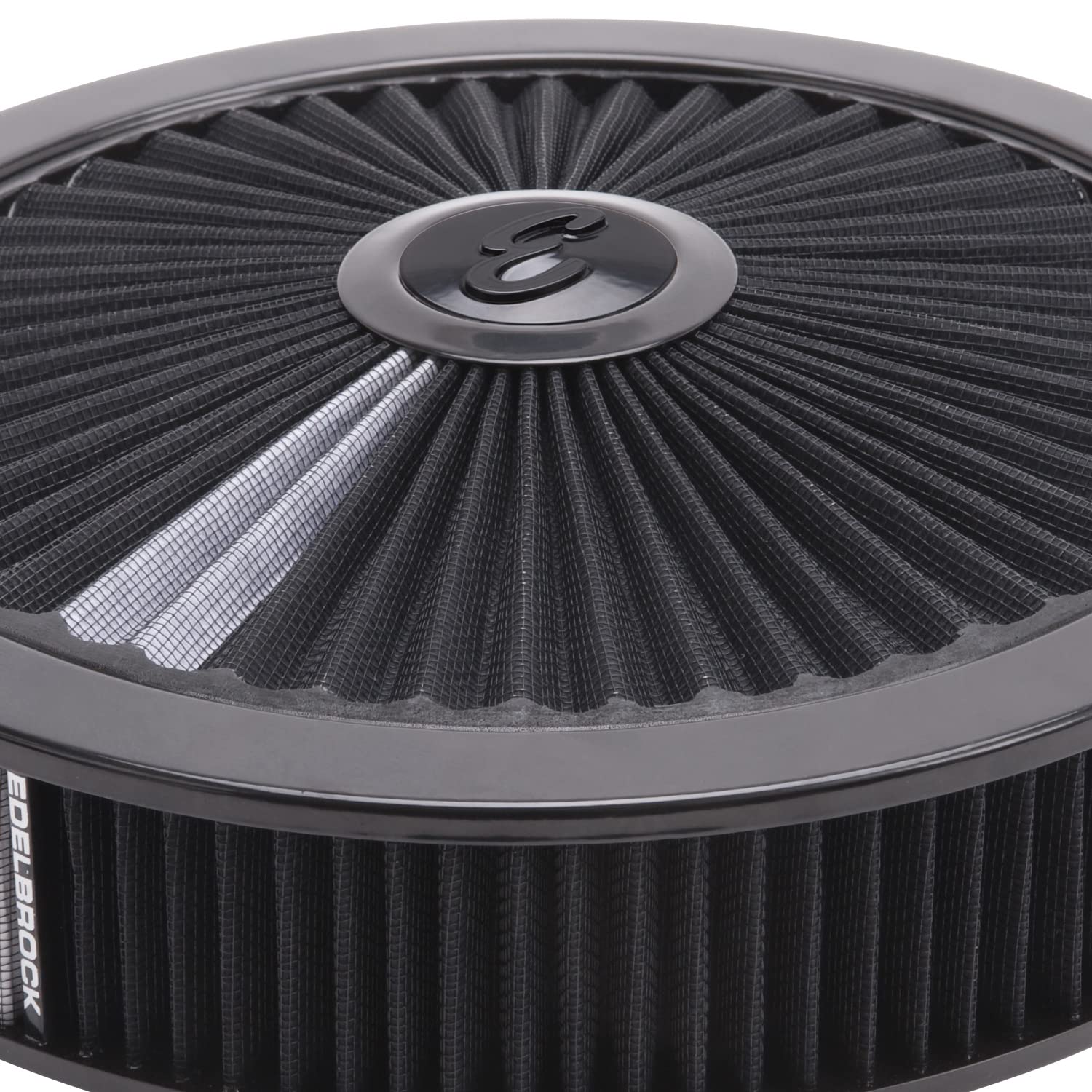

3. Edelbrock 43662 Pro‑Flo Air Cleaner
Identical in functional geometry to the chrome 43661, the Edelbrock 43662 swaps the mirror finish for a black crinkle powder coat. This texture hides fingerprints, engine bay grime, and minor scratches far better than a polished surface, making it the smarter choice for daily‑driven or garage‑kept restomods that actually turn wrenches regularly.
The crinkle coating has solid heat tolerance—no discoloration reported even on engines with headers running close to the intake valley. The drop base and 3‑1/2″ element packaging are identical, so you retain the same hood‑clearance advantage. The black lid also reduces glare off the windshield on sunny days, a minor but real ergonomic plus on street cars.
Pair this unit with a corresponding black air cleaner base and a crinkle‑coated valve cover set for a cohesive monochrome engine bay. The only trade‑off is that the crinkle texture is harder to clean if oil or grease splatters onto it; degreaser and a stiff brush are usually needed to restore the original look.
What works
- Black crinkle finish hides dirt and wear far better than chrome
- Drop base profile retains the same hood‑clearance specs as the chrome variant
- Cohesive look for monochrome or factory‑style engine builds
What doesn’t
- Crinkle texture traps grease and needs aggressive cleaning
- Same heavy steel construction as the chrome counterpart
4. Spectre SPE‑47623 Xtraflow Air Cleaner
The Spectre SPE‑47623 is the only unit in this mid‑range class to ship with a synthetic media filter element from the factory. That red open‑cell foam element is washable, oilable, and designed to flow significantly more air than equivalent paper elements—critical for a dual quad setup where two carburetors are demanding high total CFM through the same single filter assembly.
The built‑in 1‑1/4″ drop base positions the filter lower relative to the carburetor flanges, which helps fit under tighter hoods. Spectre specifies a minimum 2.9 inches of clearance above the carburetor flange when installed, so measure carefully before buying. Zinc plating on the base provides decent corrosion resistance, though it isn’t as tough as chrome or powder coat in salty environments.
The Xtraflow lid pattern pulls air from both the top and the sides, multiplying the effective inlet area. This makes the Spectre a strong candidate for a street/strip dual quad big‑block that runs at sustained high RPM. The synthetic element also resists dirt loading better than paper, extending service intervals between cleanings.
What works
- Synthetic media element is washable and flows more air than typical paper
- Xtraflow lid design dramatically increases total inlet surface area
- Drop base aids hood clearance on many classic car applications
What doesn’t
- Minimum clearance requirement of 2.9″ above carb flange limits extremely low hoods
- Zinc base finish is less durable than chrome or powder coat over time
5. ProForm 141‑752 Red Bowtie Air Cleaner
The ProForm 141‑752 plays the styling card hard with a red Chevrolet Bowtie emblem embossed on the top lid and a black crinkle base that matches Edelbrock’s industrial look at a lower entry cost. The assembly is a 14‑inch round, 3‑inch tall configuration with a steel housing that feels solid for the mid‑range price tier.
Fitment targets Chevrolet applications—the drop base geometry is cut to clear Holley and Edelbrock carburetors with a 5‑1/8″ flange, but the base plate may require minor spacing if your carburetors have aftermarket fuel bowls or side‑hung floats. The included paper filter is adequate for a mild small‑block, but serious dual quad setups should plan to swap in a higher‑flow element. (This product was originally scanned in the raw data as a single‑carb unit; verify dual quad flange spacing before purchase.)
The red logo lid adds instant visual identity under the hood for brand‑loyal builders. If your engine bay already wears Chevy orange or red accents, this unit ties the scheme together without requiring paint or powder coat work.
What works
- Red Chevrolet logo lid offers instant brand identity
- Black crinkle base hides grime and matches other black engine components
- Solid steel construction for the price point
What doesn’t
- Base plate may need modification for dual quad throttle body spacing
- Stock paper element is restrictive for high‑flow applications
6. Holley 120‑102 14″ Chrome Air Cleaner
The Holley 120‑102 is the entry‑level chrome standard against which other budget air cleaners are measured. Its 14‑inch diameter steel housing wears triple chrome plating that looks surprisingly good for the sub‑ tier, and the open‑element design eliminates the restricted air paths found in older closed‑lid assemblies. For a weekend street rebuild that doesn’t need maximum CFM, this unit delivers a clean look and reliable filtration.
The low‑restriction paper filter inside is a drop‑in serviceable element that Holley designed to be replaced rather than cleaned. Base clearance is generous enough to clear a single carburetor fuel inlet, but dual quad setups will need to verify the base plate will seat across two 5‑1/8″ flanges without interference from the linkage or crossover fuel line.
At just under five pounds, the Holley is lightweight for a steel assembly. The chrome finish will develop micro‑blisters over time if exposed to road salt or aggressive engine degreasers, so keep it wiped down and dry for best longevity. It is the sensible pick for a budget build where a name‑brand carburetor manufacturer backing is more important than exotic filter media.
What works
- Triple chrome plating punches above its price tier for appearance
- Lightweight design for a steel housing
- Holley brand heritage ensures gasket and filter replacement part availability
What doesn’t
- Paper filter element is not washable and needs periodic replacement
- Chrome finish can pit with exposure to harsh chemicals or salt
7. A‑Team Performance 47632 High‑Flow Air Cleaner
The A‑Team Performance 47632 is the budget dark horse that refuses to compromise on airflow features. For a price well below its competitors, you get a 14×3‑inch assembly with a flow‑thru lid—the same design principle that Spectre and high‑end units charge triple for—and a red synthetic filter element that is washable and reusable. That makes this kit a serious value for a first‑time dual quad build.
The kit includes the chrome top, chrome base, gasket, red element, and a star‑wing nut stud kit for quick installation. The 5‑1/8″ neck flange fits most two‑barrel and four‑barrel carburetors, but dual quad spacing must be field‑measured—the base is designed for universal fit and may not align both carb inlets perfectly without manual adjustment or a spacer plate.
Durability is where the cost savings show: the chrome plating is thinner than Holley’s or Edelbrock’s, so expect earlier wear if the engine bay sees moisture or road grit. The synthetic element does filter well but should be oiled lightly to maximize its particle‑trapping ability. For a budget‑minded builder who values washable media and a flow‑thru lid over chrome depth, this A‑Team kit is the smartest dollar spent.
What works
- Flow‑thru lid increases air intake from top and sides for better flow
- Washable red synthetic filter element reduces replacement costs
- Complete kit includes gasket and mounting hardware
What doesn’t
- Chrome finish is thinner and less durable than premium brand options
- Universal base may require modification for precise dual quad flange alignment
Hardware & Specs Guide
Drop Base Depth
Drop base depth determines how far the filter element sits below the carburetor air horn. A 1‑1/4″ drop is common and helps a 14‑inch round assembly clear low factory hoods on cars like the Chevelle, Camaro, and Nova. Deeper drops of 1‑1/2″ or more require careful measurement to avoid the lid contacting the throttle linkage or choke housing. Always measure from the carburetor mounting pad to the underside of the hood at the filter centerline, then subtract the assembly’s total height above the pad to confirm clearance.
Filter Element Height
A 3‑inch element gives about 85 square inches of media area in a 14‑inch diameter. A 3‑1/2″ element jumps that to roughly 100 square inches—a meaningful gain for high‑CFM engines. Taller elements also lower the pressure drop across the filter at a given airflow, meaning your carburetors see a slightly higher effective pressure at the float bowls. For dual quad setups moving over 800 CFM total, step up to the 3‑1/2″ element if hood clearance allows.
Filter Media Types
Paper filter elements (dry) are low‑cost and filter well at the expense of flow restriction and disposability. Synthetic oiled elements (typically polyester or foam) flow more air and can be cleaned and re‑oiled, but require periodic maintenance to remain effective. Foam elements flow the highest CFM per square inch but offer the least particle filtration. For a street dual quad car, a quality synthetic or high‑flow paper element is the best balance of protection and performance.
Material and Finish
Mild steel housings with chrome plating are the most common and offer a classic look at an affordable price. Chrome thickness varies—quality triple‑plate jobs resist corrosion longer. Polished aluminum saves weight (roughly 30‑40% lighter than steel) and won’t rust, but the polished surface requires regular care to prevent oxidation. Powder‑coated crinkle black finishes hide abuse well and are popular for monochrome engine bays, though they can be harder to clean if contaminated with oil or grease.
FAQ
What is the correct flange diameter for a dual quad air cleaner base?
Can I use a drop base air cleaner with a dual quad tunnel ram manifold?
How often should I clean a synthetic washable dual quad air filter?
Does a flow‑thru lid really improve performance on a dual quad setup?
Final Thoughts: The Verdict
For most buyers, the dual quad air cleaner winner is the Racing Power Street Scoop because its 20‑inch polished aluminum design provides maximum filter surface area and dual‑flange versatility, making it the top choice for serious big‑block builds or show cars. If you need aggressive hood clearance on a street‑driven classic, grab the Edelbrock 43661 Pro‑Flo Chrome with its 3‑1/2″ element and drop base. And for the budget builder who still wants a washable synthetic element and a flow‑thru lid, nothing beats the value of the A‑Team Performance 47632.
