A melted fuse box or a no-start condition on a Chevy Malibu usually traces back to the battery junction block. The component handles high current for the ECM, cooling fans, and ABS, and when it fails, the symptoms range from intermittent electrical glitches to a completely dead vehicle. Replacing it with the right unit restores reliability without a trip to the dealer.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach combines deep market research, cross-referencing OEM part numbers, and analyzing hundreds of owner reports to separate durable replacements from parts that cause repeat failures.
Through research and owner feedback, the most reliable best chevy malibu fuse box options match OEM quality and solve electrical faults permanently.
How To Choose The Best Chevy Malibu Fuse Box
Selecting the correct fuse box for your Malibu requires matching the part to your generation and engine option. The 2013-2015 models use a different battery junction block than the 2016-2023 generation. Mixing them leads to connector mismatches and electrical faults. Start by confirming your model year and looking for the stamped part number on your existing block — that single step eliminates most fitment headaches.
Full Assembly vs. Internal Module
Some Malibu years allow you to replace only the internal fuse module rather than the entire distribution box. The module option costs less and requires less labor. However, if the plastic housing shows signs of melting or terminal corrosion, a full assembly replacement is the safer bet. Assess the condition of your current box before deciding.
Build Material and Heat Resistance
Engine compartment fuse boxes endure constant thermal cycling. Parts made from reinforced ABS plastic or PBT with metal terminal inserts handle heat better than all-plastic budget units. Look for units that specify flame-resistant materials and include a protective cover to shield contacts from moisture and road debris.
Compatibility Verification
Always cross-check the product listing against your Malibu’s trim level and engine — the 1.5L turbo and 2.0L turbo share some fuse blocks but not all. Parts that list multiple OEM cross-reference numbers (84131629, 84335366, 20914309, etc.) generally indicate broader compatibility, but you still need to verify fitment for your specific VIN range before purchasing.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Nirakoka 84131629 | Fuse Box Terminal | Overall reliability for 2016-2023 Malibu | 4.7 stars, direct fit with cover | Amazon |
| WATERWICH 84131629 | Fuse Box Terminal | Durable build for 2016-2018 1.5L/2.0L | ABS + metal, includes cover | Amazon |
| Fokes 84335366 | Distribution Block | 2016-2018 Malibu direct swap | 30-pole, 14V, screw terminals | Amazon |
| Nirakoka 601-700 | Internal Module | 2014-2016 Malibu module-only fix | Copper contacts, clamp/screw mount | Amazon |
| LLYZFED 23223079 | Full Assembly | Complete 2014-2016 fuse box replacement | Pre-loaded fuses, plug-and-play | Amazon |
| JEEFHO 20914309 | Fuse Box Terminal | Budget-friendly for 2013-2016 Malibu | Metal construction, through-hole mount | Amazon |
| X AUTOHAUX 20914309 | Fuse Box Terminal | Value pick for 2013-2015 Malibu | ABS + metal, includes cover | Amazon |
| Snlazp 12V Fuse Block | Universal Block | Custom auxiliary fuse setups | 12-circuit, LED indicators, 100A max | Amazon |
In-Depth Reviews
1. Nirakoka 84131629 Fuse Box Battery Terminal
This Nirakoka unit carries a 4.7-star rating across 18 reviews and replaces part numbers 84131629, 84692223, 84335366, 23316249, 23316250, and 84043589. Owner feedback consistently highlights the direct-fit nature — the block drops into the engine bay without requiring any wiring modifications. One reviewer noted that it came with the positive cable cover that other aftermarket options omit, a small detail that protects the terminal from accidental shorts.
The metal construction and through-hole mounting design provide solid mechanical retention in the engine compartment. Multiple owners report successful installations on 2018 and 2021 Malibu models, with the car starting immediately after the swap. The fusion of OEM-grade materials and a quarter of the dealer price makes this the most balanced option for 2016-2023 Malibu owners who want reliability without overspending.
Installation is straightforward for anyone comfortable disconnecting battery cables and swapping plugs. The block matches the original footprint, so the factory cover fits without interference. For Malibu owners dealing with melted terminals or intermittent electrical failures, this replacement addresses the root cause directly.
What works
- Direct bolt-in with no wiring changes needed
- Includes the often-missing positive terminal cover
- OEM-grade build quality at a fraction of the price
What doesn’t
- Limited to 2016-2023 model years only
- Customer review sample is still relatively small

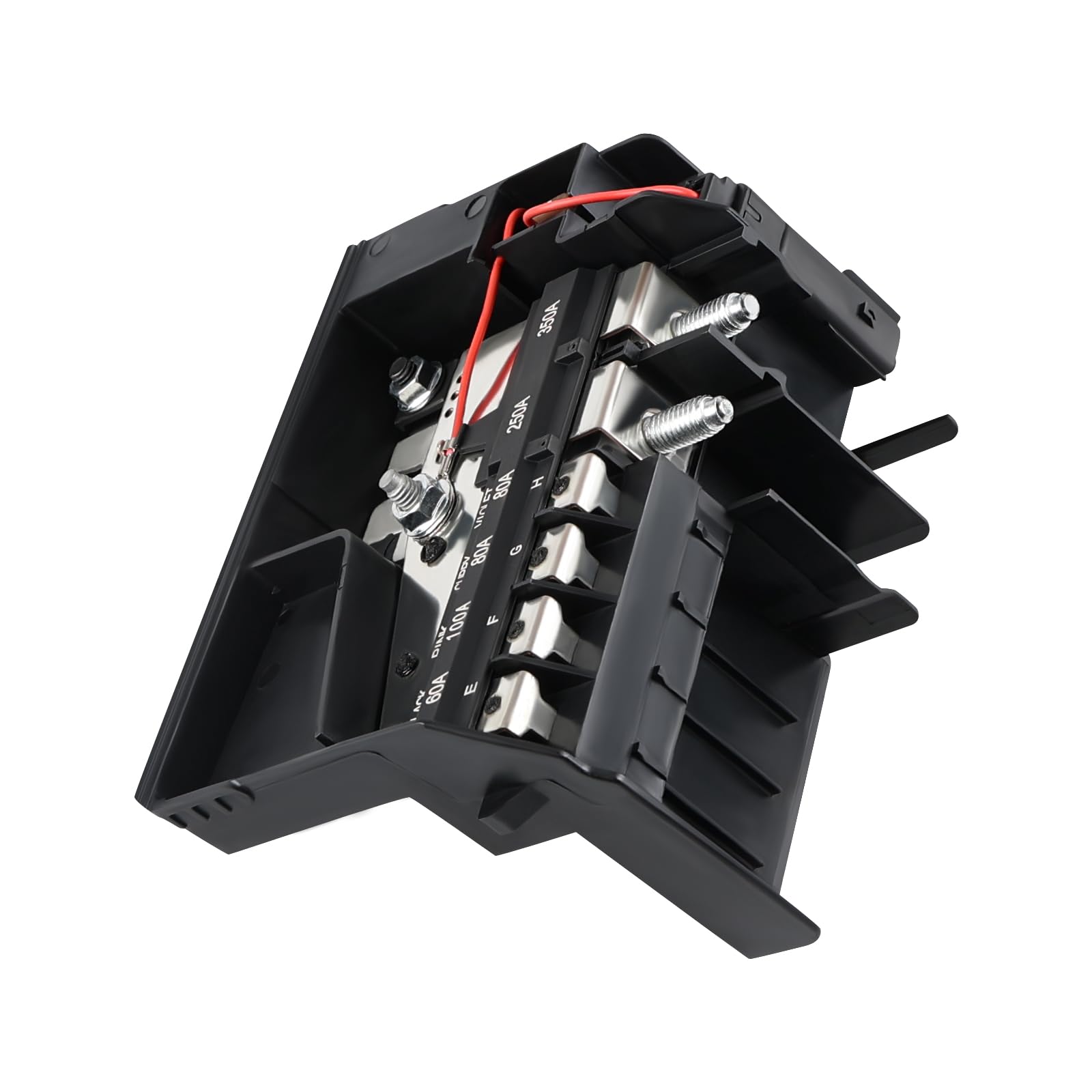

2. WATERWICH 84131629 Fuse Box Terminal
The WATERWICH fuse box posts a 4.6-star average from 27 reviews and targets the 2016-2018 Chevrolet Malibu with both 1.5L and 2.0L engine options. The housing uses ABS plastic reinforced with metal terminal inserts, a combination that provides better thermal stability than all-plastic budget alternatives. Several reviewers mention the packaging and build quality as indistinguishable from the OEM unit.
Owners report that the included battery terminal cover snaps on securely and keeps dirt and moisture away from the connection points. The direct-replacement design means no cutting or splicing — unplug the old block, transfer the cable positions, and install the new one. One reviewer noted a fast shipping experience and confirmed that the part fixed their Malibu’s no-start issue immediately.
The unit measures 7.68 x 5.71 x 3.35 inches, matching the factory junction block dimensions. Waterwich lists corrosion resistance and high-temperature tolerance as key material properties, which matters in the engine bay where heat cycles degrade lesser plastics over time. For owners who want a step up from entry-level pricing without jumping to premium assembly costs, this represents a solid middle ground.
What works
- Reinforced ABS housing resists engine bay heat
- Snap-fit cover protects terminals from contaminants
- Positive feedback on packaging and overall fit
What doesn’t
- Compatibility limited to 2016-2018 model years
- Long-term durability data is still emerging
3. Fokes 84335366 Distribution Block
The Fokes 84335366 distribution block replaces part numbers 84131629 and 84335366 for the 2016-2018 Chevrolet Malibu. Every single one of the five available customer reviews rates it five stars, with owners describing it as identical to the OEM unit in appearance and function. One reviewer noted it was still working perfectly after nearly a year of daily driving.
This is a full distribution block with 30 contact positions and screw-type terminals rated for 14 volts. The plastic housing is new-old-stock quality rather than recycled material, and the labeling matches factory markings closely. Owners highlight that the swap takes about ten minutes and resolves the check-engine light and start-stop system faults that often accompany a failing fuse block.
One important caveat from the manufacturer: the fuse ratings on the replacement may differ from the original part. Buyers should verify the amperage values printed on their existing fuses and transfer them if needed. For Malibu owners who want a drop-in replacement that restores full electrical function without surprises, this block delivers consistent results.
What works
- Perfect five-star consensus from verified buyers
- Factory-matched labeling and terminal layout
- Resolves P305F and start-stop electrical issues
What doesn’t
- Fuse amperages may differ from original specs
- Limited compatibility to 2016-2018 Malibu only
4. Nirakoka 601-700 Fuse Block Module
This Nirakoka module addresses a different failure scenario: instead of replacing the entire junction box, it replaces only the internal module that houses the main fuse links. It fits the 2014-2015 Chevrolet Malibu and the 2016 Malibu Limited. The approach saves money when the plastic housing is still intact but the internal conductor path has corroded or failed.
The module uses copper contact material and offers clamp or screw mounting, matching the factory retention method. Owner reviews describe it as a seamless OEM replacement that restores electrical function without the expense of a full distribution block. One reviewer with a 2014 Malibu confirmed that it eliminated intermittent electrical glitches and the check-engine light associated with auxiliary battery faults.
There is one reported instance where the module did not function out of the box, which resulted in a refund. Quality control can vary with aftermarket electrical components, so verifying function immediately after installation is prudent. For Malibu owners whose main distribution box housing is sound but the internal module has failed, this targeted fix saves both money and labor time.
What works
- Cost-effective fix when the housing is still good
- Copper contacts provide reliable current transfer
- Direct swap with no rewiring required
What doesn’t
- Only applies to 2014-2016 Malibu models
- One reported dead-on-arrival unit
5. LLYZFED 23223079 Full Fuse Block Assembly
The LLYZFED 23223079 is the most complete solution in this guide — a full engine compartment fuse block assembly that includes all fuses pre-installed. It fits the 2014-2016 Chevrolet Malibu and the 2016 Malibu Limited. The assembly replaces part number 23223079 and covers the 601-700 internal module range with a one-piece distribution block.
Owners report that the included wiring diagram simplifies installation, and the block includes all necessary accessories so no additional purchases are needed. One owner with a 2016 Malibu LT confirmed a perfect fit and an immediate start after installation, noting that the check-engine light and automatic start-stop function returned to normal. The assembly uses ABS plastic construction with screw-type panel-mount terminals rated for robust current handling.
There is one report of a unit arriving non-functional, which highlights the importance of testing immediately after installation. For Malibu owners who want a complete, pre-loaded solution and prefer not to source fuses separately, this assembly bundles everything into one box. The premium pricing reflects the all-in-one convenience and the elimination of guesswork.
What works
- Complete assembly with all fuses pre-installed
- Includes wiring diagram for accurate installation
- Resolves P305F codes and start-stop faults
What doesn’t
- One report of a non-functional unit received
- Limited to 2014-2016 Malibu generation
6. JEEFHO 20914309 Fuse Box Terminal
The JEEFHO 20914309 is an aftermarket replacement compatible with the 2013-2016 Chevrolet Malibu, as well as several Buick and Cadillac models that share the same GM platform. It carries a 4.4-star average across 60 reviews, making it the most-reviewed product in this guide. The metal construction provides good mechanical strength for the battery terminal connection point.
Multiple owners report successful fixes for no-start conditions caused by a melted fuse box. One reviewer detailed how the original block melted and left the car undriveable, and the JEEFHO unit restored function immediately. The replacement covers part numbers 84237808 and 84509531, and the through-hole mount design secures the block firmly to the engine bay bracket.
Several buyers note that this is an aftermarket part rather than genuine GM, but they describe the quality as equivalent to OEM. The value proposition is clear: a functional fix at a budget-friendly price point. For 2013-2016 Malibu owners who need a reliable replacement without paying for brand-name markup, the JEEFHO terminal block offers a proven track record.
What works
- Over 60 reviews with a strong 4.4-star average
- Metal construction for terminal durability
- Cross-compatible with multiple GM models
What doesn’t
- Aftermarket part, not genuine GM
- Limited compatibility to 2013-2016 model years
7. X AUTOHAUX 20914309 Fuse Box Terminal
The X AUTOHAUX fuse box terminal covers part numbers 20914309 and 84499606 and fits the 2013-2015 Chevrolet Malibu plus the 2016 Malibu Limited. It also extends to the Cadillac ATS, XTS, Buick Regal, and LaCrosse, making it a versatile GM platform part. The 4.2-star average from 57 reviews reflects generally positive owner experiences with some variability in fitment.
One reviewer with a 2010 Buick LaCrosse described this as half the price of local auto parts store equivalents and identical to the OEM unit. Another Malibu owner confirmed that it eliminated a persistent electrical issue that had already cost them a battery, auxiliary battery, and alternator. The mixed ABS and metal construction balances impact resistance with current-carrying capacity.
There is one report of fitment failure on a listed compatible model, which underscores the importance of confirming your specific VIN before purchase. The package includes the cover, which shields the terminal connections from moisture. For owners of earlier Malibu generations who want a cost-effective alternative to dealer parts, this unit delivers a functional solution with broad cross-platform coverage.
What works
- Broad GM platform compatibility beyond Malibu
- Identical to OEM according to multiple owners
- Significant savings vs. local parts stores
What doesn’t
- One verified fitment failure reported
- Slightly lower average rating than competitors
8. Snlazp 12 Volt Fuse Block Universal
This Snlazp fuse block is a universal auxiliary panel, not a direct Malibu replacement. It provides 12 ATC/ATO fuse circuits with a negative bus bar, making it suitable for adding aftermarket accessories such as auxiliary lighting, audio amplifiers, or compressor systems. The maximum rating is 30 amps per circuit and 100 amps total, with a 32V DC operating limit.
The enclosure uses flame-resistant PBT material with a lockable clear cover. Red LED indicators illuminate next to any blown fuse, which simplifies troubleshooting in tight engine bay spaces. The package includes 25 fuse blades across five amperage ratings, along with terminals, screws, and a safety clip. Owners describe it as well-suited for trailers, marine applications, and custom vehicle electrical expansions.
One reviewer noted that the battery power terminals could be more substantial for high-current applications. This block works best as a supplementary distribution point rather than a primary replacement for the factory Malibu junction block. For owners who need to add circuits without tapping into the OEM harness, this panel offers a clean and organized solution.
What works
- Clear cover locks securely with LED indicators
- Includes assorted fuses and hardware
- Flame-resistant PBT housing material
What doesn’t
- Not a direct replacement for factory Malibu block
- Power input terminals feel undersized for high draw
Hardware & Specs Guide
Battery Junction Block Construction
The fuse box in a Chevy Malibu is more than a simple holder — it’s a current distribution hub that directs power from the battery to the ECM, cooling fans, ABS pump, and body control module. Most OEM-style replacements use a combination of ABS or PBT plastic for the housing and tin-plated copper or brass for the internal conductors. The material quality directly affects the block’s resistance to thermal cycling and corrosion. Units with metal reinforcement at the main terminal lugs tend to outlast all-plastic designs, especially in the 2016-2023 generation where the junction block sits near the hot engine bay firewall.
Module vs. Full Assembly Tradeoffs
GM designed the Malibu’s fuse box in two configurations: a monolithic assembly (2013-2015) and a two-piece design with a removable internal module (2014-2016). The two-piece setup allows replacing just the 601-700 module when the outer housing is intact, which lowers part cost significantly. However, if the plastic tray shows any sign of melting, cracking, or terminal push-out, the full assembly replacement is the correct fix. Attempting to re-use a damaged housing with a new module risks recurring failures. Always inspect the tray condition before deciding which path to take.
Part Number Cross-Reference
Malibu fuse boxes carry multiple OEM and aftermarket part numbers depending on the production year and running change level. The most common numbers are 20914309 (2013-2016), 84131629 (2016-2018), 84335366 (2016-2018), and 23223079 (2014-2016). These numbers are stamped on the existing block and should be matched exactly. Parts that list multiple cross-references generally indicate a superseded design that covers a wider range. Verifying against your VIN through a dealer or online catalog is the only way to guarantee compatibility for high-tolerance electrical components.
Fuse Ratings and Circuit Protection
The Malibu junction block uses mini and ATO-style fuses depending on the circuit location and year. Key circuits include the ECM (10-15A), cooling fan (30-40A), ABS pump (40-50A), and starter solenoid (30A). When replacing the fuse box, transfer the existing fuses from the old block if the new unit does not come pre-loaded. Pay close attention to the fuse amperage values — aftermarket blocks sometimes ship with different ratings than the factory specifications. Installing a fuse with a higher amperage than the circuit is designed for can damage wiring before the fuse blows.
FAQ
How do I know if my Chevy Malibu fuse box is bad?
Can I replace just the fuse module instead of the whole box?
What does the P305F code mean on a Chevy Malibu?
Will a Malibu fuse box from a different engine fit my car?
Do I need to disconnect the battery before replacing the fuse box?
Final Thoughts: The Verdict
For most buyers, the best chevy malibu fuse box winner is the Nirakoka 84131629 because it combines direct-fit convenience, a protective cover, and proven 4.7-star reliability at a balanced price point. If you want a premium build with reinforced ABS and a secure cover, grab the WATERWICH 84131629. And for a complete pre-loaded assembly that eliminates guesswork, nothing beats the LLYZFED 23223079.
