An oil trail under the bellhousing means one thing: the rear main seal is failing. That slow drip not only stains the driveway but also starves the bearings of oil pressure over time. Choosing the right replacement determines whether the repair lasts five thousand miles or fifty thousand.
I’m Amir — the founder and writer behind Four Wheel Ask. My focus is on analyzing seal material composition, owner-reported longevity data, and cross-referencing OEM fitment specifications to identify the most reliable repair solutions.
After thorough analysis of owner feedback and seal materials, we’ve identified the best chevy 350 rear main seal options for durable, long-lasting repairs.
How To Choose The Best Chevy 350 Rear Main Seal
The rear main seal sits at the back of the crankshaft and sees constant heat, rotation, and oil pressure. Selecting the right unit comes down to material type, seal design style, and whether you need just the seal or a full cover assembly. Below are the three factors that separate a temporary fix from a permanent solution.
Seal Material: Rubber, Silicone, or PTFE
Standard rubber seals (nitrile or Viton) are affordable and work well on daily drivers with moderate mileage. Silicone seals offer better heat resistance and flexibility at low temperatures but can tear more easily during installation. PTFE (Teflon) seals handle high heat and high RPM applications best, though they require a perfectly smooth crank surface and precise installation to avoid premature failure.
One-Piece vs. Two-Piece Design
Chevy 350 engines were produced with both one-piece and two-piece rear main seal configurations depending on the block generation. One-piece seals are common on later one-piece rear main seal blocks and are simpler to install. Two-piece seals fit early blocks and require careful alignment of both halves to prevent leakage at the split line. Verifying your block type before ordering prevents returns and wasted labor.
Seal-Only vs. Complete Cover Kit
A seal-only replacement is the budget-friendly option when the existing cover is in good condition and the sealing surface is clean. A complete cover kit includes the housing, gasket, and new fasteners. This option is recommended when the original cover is warped, corroded, or has worn dowel pin holes that compromise seal alignment.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| FEL-PRO BS 40656 | Premium Seal | Best Overall | Rubber/Elastomer | Amazon |
| A-Premium Engine Rear Main Seal Cover Kit | Complete Kit | Most Coverage | 2.7 in ID | Amazon |
| labwork Rear Main Seal Kit | Cover Kit | Value Pick | Updated Design | Amazon |
| FEL-PRO BS 40520 | Seal Kit | Budget Pick | OEM Specs | Amazon |
| FEL-PRO BS 40666 | Seal Kit | Entry Level | Metal/Rubber | Amazon |
In‑Depth Reviews
1. FEL-PRO BS 40656 Engine Crankshaft Seal Kit
This Fel-Pro seal represents the standard for small block Chevy rear main replacements. The BS 40656 uses a rubber elastomer compound that maintains flexibility over temperature cycles while resisting hardening from engine heat. The application-specific design ensures a precise fit against the crankshaft flange without requiring modification.
Cross-referencing owner reports shows consistent leak-free performance when installed on a properly prepared sealing surface. The seal meets or exceeds original equipment specifications and has been validated for fit, form, and function across multiple GM and Isuzu applications dating from the mid-1990s through the early 2000s.
For builders seeking a seal that delivers OEM-level reliability without an inflated price tag, this Fel-Pro unit strikes the right balance between material quality and dimensional accuracy. The lightweight packaging raises a minor question about shipping protection, but the seal itself holds a strong reputation in the field.
What works
- Proven rubber elastomer compound retains flexibility over time
- Consistent OEM-level fitment across multiple GM platforms
What doesn’t
- Extremely light item weight raises packaging concerns
- Not a complete cover kit — seal only

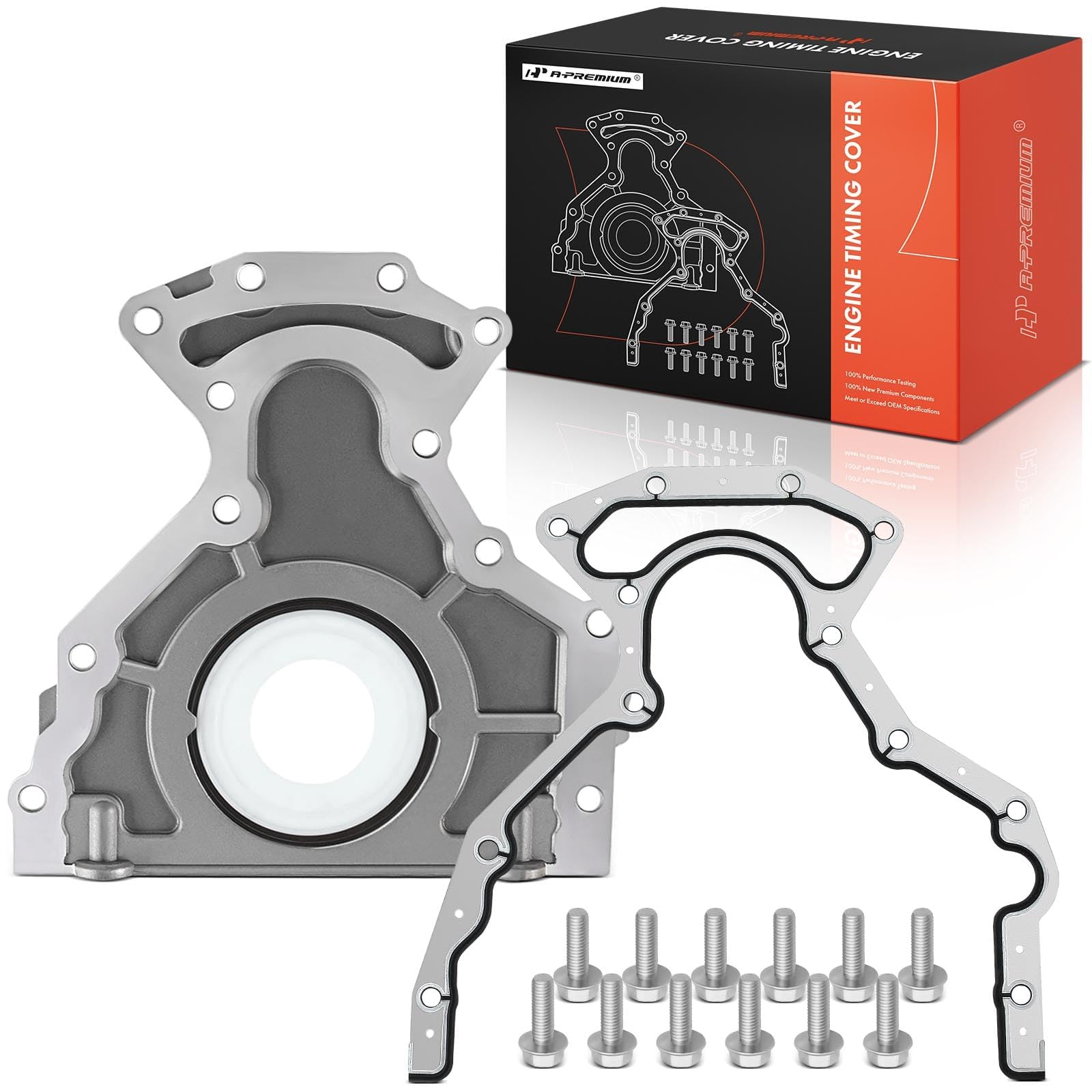

2. A-Premium Engine Rear Main Seal Cover Kit
The A-Premium kit offers the most comprehensive coverage for GM Gen III and Gen IV small block engines. This cover kit includes the housing, gasket, and all necessary hardware for a complete installation. With an inside diameter of 2.7 inches, it directly replaces the factory cover assembly on a massive range of Chevy, GMC, Cadillac, and Hummer models.
The cross-reference list spans from the 1998 Camaro through the 2020 Silverado 3500 HD, making this kit a strong choice for fleet operators and shops working across multiple GM platforms. The updated seal design includes explicit installation guidance about centering the cover before tightening fasteners to prevent binding.
Buyers gain the advantage of a single part number that covers both light-duty trucks and heavy-duty vans, reducing inventory complexity. The one-year unlimited-mileage guarantee provides additional peace of mind for those investing in a complete cover replacement rather than just a seal swap.
What works
- Complete cover assembly with gasket and hardware included
- Extensive vehicle cross-reference simplifies ordering
What doesn’t
- Higher entry point compared to seal-only alternatives
- Aftermarket brand lacks long-term owner history

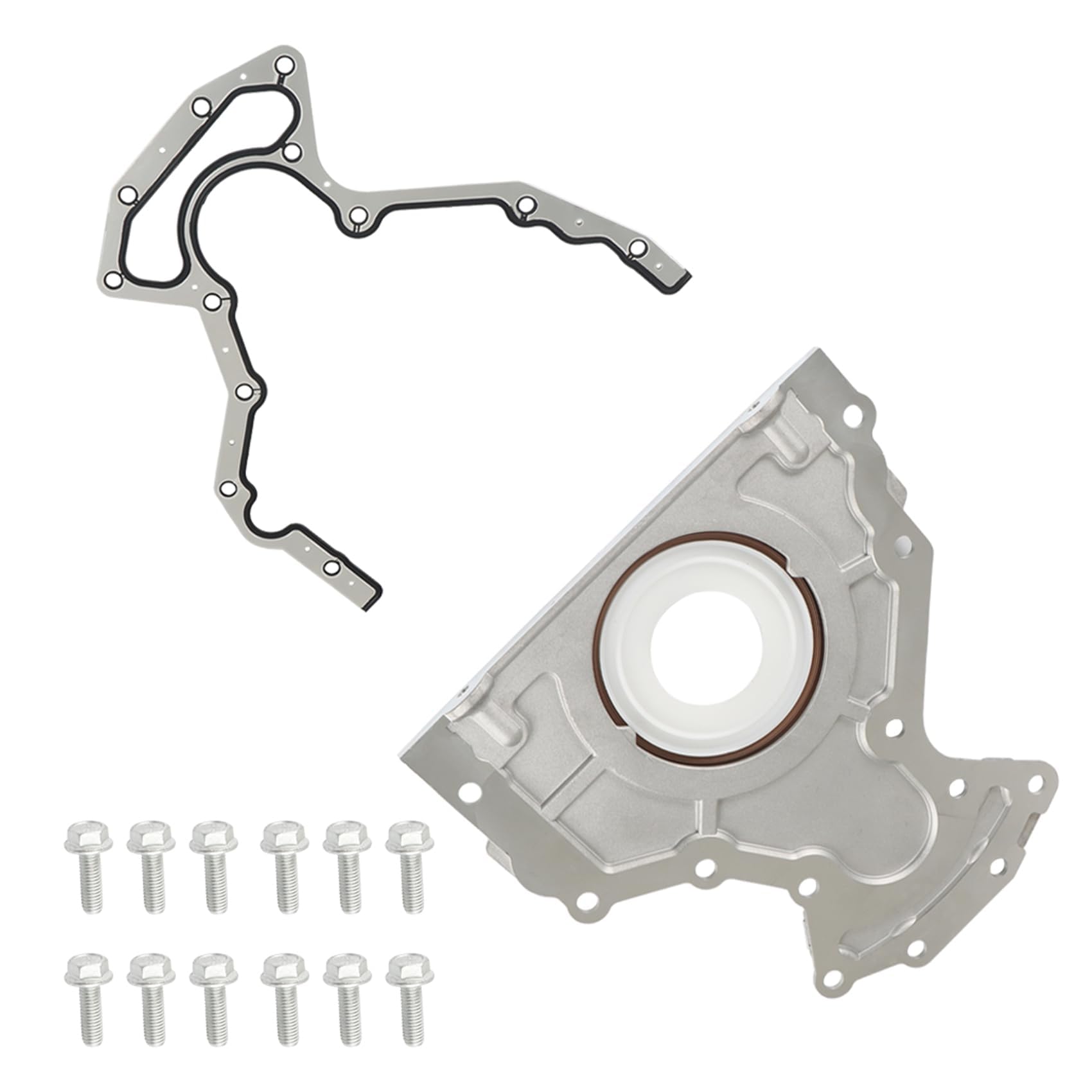

3. labwork Rear Main Seal Kit
The labwork kit provides a practical middle-ground option that includes the seal cover, gasket, and mounting hardware. It targets late-model GM trucks including the 2013 Silverado 1500, Express vans, and the GMC Sierra and Savana lines. Part numbers 635-518 and 126335791 cross-reference directly to OEM components.
The updated seal geometry aims to address common leak points seen in earlier factory designs. The kit includes an explicit warning about ensuring the timing cover body and flange shaft share the same center before final tightening — a critical step that is often overlooked during rushed installations.
For owners who need a complete seal cover assembly rather than just the rubber insert, this kit offers a cost-effective solution that reduces the risk of reusing a warped or corroded original cover. The 2.66-pound package weight reflects the substantial metal housing included in the box.
What works
- Complete kit with gasket, cover, and hardware
- Updated seal geometry targets known failure points
What doesn’t
- Limited long-term owner feedback available
- Brand recognition trails established manufacturers
4. FEL-PRO BS 40520 Engine Crankshaft Seal Kit
The Fel-Pro BS 40520 is the most accessible entry point for Chevy 350 rear main seal replacement from a trusted brand. It covers applications ranging from the 1986 Buick Regal to the 1996 Buick Roadmaster, along with Isuzu NPR and AM General Hummer platforms that share the same small block architecture.
The rubber material construction meets or exceeds original equipment specifications and has been validated for fit, form, and function. The 3.2-ounce package weight suggests substantial material content compared to other seal-only options in this category.
For a straightforward seal replacement on a budget build or daily driver where the existing cover is in good shape, this Fel-Pro unit provides brand reliability without stretching the repair budget. The included rear main gasket set adds value by covering both the seal and the mating surface in one package.
What works
- Fel-Pro brand reputation at an accessible entry point
- Includes rear main gasket set along with the seal
What doesn’t
- Seal and gasket only — no cover or hardware
- Limited to older generation vehicle fitments
5. FEL-PRO BS 40666 Rear Main Seal Set
The Fel-Pro BS 40666 combines metal and rubber construction for structural rigidity at the seal lip. The application-specific design meets or exceeds original equipment specifications, consistent with Fel-Pro’s engineering validation process for fit, form, and function.
The compatibility listing spans Subaru platforms including the WRX, WRX STI, Forester, Outback, and Baja from 1993 through 2020, along with the B9 Tribeca and early Impreza models. The metal carrier provides dimensional stability during installation, reducing the risk of distortion.
Buyers should verify fitment against their specific engine application before purchasing, as the intended application range covers boxer engine families. The Fel-Pro manufacturing quality and OEM-spec compliance remain consistent with the brand’s broader reputation.
What works
- Metal and rubber composite construction for stability
- Fel-Pro manufacturing and quality control standards
What doesn’t
- Compatibility primarily covers Subaru boxer engines
- Not designed for traditional Chevy V8 configurations
Hardware & Specs Guide
Seal Material Composition
The rear main seal material directly dictates longevity under heat and pressure. Rubber elastomer compounds (used in most Fel-Pro seals) offer good flexibility and oil resistance for street-driven engines. Metal-reinforced rubber seals add structural rigidity at the lip contact point, reducing the chance of distortion during installation. Full PTFE seals handle extreme heat and high RPM best but require a polished crank surface and careful handling to avoid tearing the lip during fitting.
Fitment and Compatibility
Chevy 350 engines exist in both one-piece and two-piece rear main seal configurations. One-piece seal blocks (1986 and later) use a single seal that slides onto the crankshaft from the rear. Two-piece seal blocks require careful alignment of upper and lower halves at the block split line. Always verify the block casting number or the existing seal type before ordering. Cover kits generally fit later Gen III and Gen IV small blocks and include the housing, gasket, and hardware for a complete replacement.
FAQ
How do I know if my Chevy 350 needs a one-piece or two-piece rear main seal?
Can I replace the rear main seal without removing the engine?
How long should a rear main seal last after replacement?
Final Thoughts: The Verdict
For most buyers, the best chevy 350 rear main seal winner is the FEL-PRO BS 40656 because it combines proven rubber elastomer material with OEM-level fitment at a reasonable investment. If you want the convenience of a complete cover assembly with extensive vehicle coverage, grab the A-Premium Engine Rear Main Seal Cover Kit. And for a budget-friendly seal replacement with a trusted brand name, nothing beats the FEL-PRO BS 40520.
