A failing Chevrolet starter solenoid sends a telltale message — a single click, a dim dash, and an engine that refuses to turn. This small electromagnetic switch is the gatekeeper between your battery’s current and your starter motor’s engagement, and when it breaks, your truck, SUV, or sedan becomes a very heavy paperweight. The right replacement needs to handle the repeated inrush current of a 12V system without welding its contacts shut or corroding from underhood moisture.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing automotive electrical system components, comparing OEM-grade solenoid contact materials, coil resistance values, and terminal corrosion resistance across hundreds of user reports to separate genuine long-term fixes from parts that fail within months.
After weeks of cross-referencing technical specifications and owner feedback, these are the solenoids and starter assemblies that actually deliver reliable engagement. This guide breaks down the best chevrolet starter solenoid options for every budget and application — from daily-driven Silverados to project trucks that sit between starts.
How To Choose The Best Chevrolet Starter Solenoid
Selecting the right solenoid for your Chevrolet goes beyond matching the connector shape. The internal contact disc material, the gauge of the pull-in winding, and the duty cycle rating all determine whether that solenoid delivers 100,000 cranks or fails on the third cold morning.
Terminal Configuration: Two-Post vs. Three-Post
Chevrolet vehicles use two primary solenoid layouts. Older GM starters with a separate fender-mounted relay often use a three-post solenoid (battery, starter, and ignition S-terminal). Most 1990s-and-later Chevy trucks use a two-post solenoid integrated into the starter motor housing — one large terminal for battery input, one smaller S-terminal for the ignition signal. Verify your existing setup before ordering; a three-post unit cannot replace a two-post unit without rewiring the entire starting circuit.
Duty Cycle and Contact Material
Intermittent-duty solenoids are standard for automotive starting systems — they are not designed to stay engaged for more than 30 seconds. The internal copper or brass contact disc is the wear item. Softer copper contacts conduct better but pit faster under high amperage; harder alloy contacts last longer but introduce higher resistance. Look for solenoids that advertise “heavy-duty” contact material if your Chevy sees frequent short-trip starts or high-compression engine builds that demand more cranking torque.
Physical Mounting and Plunger Type
Some replacement solenoids feature a removable plunger, others a sealed cap design. A bolt-on cap with a serviceable plunger allows internal cleaning or contact disc replacement down the road — valuable for a work truck that accumulates miles quickly. Case diameter also matters: gear-reduction starters use a smaller-diameter solenoid (approx. 59mm) than direct-drive starters. Measure your starter body diameter or check your model year against known PMGR (Permanent Magnet Gear Reduction) patterns before ordering a standalone solenoid.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ACDelco Gold 337-1016 | Full Starter Assembly | OE-replacement on 2000s GM V8s | 1.5 kW, 11-tooth PMGR | Amazon |
| Ezexpreze 6449 | Full Starter Assembly | Heavy-duty GM trucks 8.1L V8 | 1.6 kW, 11-tooth PMGR | Amazon |
| OEG Parts (Parts Player) 6489N | Full Starter Assembly | Silverado/Tahoe 5.3L swaps | 1.5 kW, 11-tooth gear reduction | Amazon |
| QuickCar Racing 50-430 | Solenoid Only | High-amperage racing or hot-rod circuits | 1.4 kW, Ford-style relay | Amazon |
| ACDelco Professional F3914 | Solenoid Only | Fender-mounted or starter-top replacement | 12V, steel case, 0.56 lb | Amazon |
| Victory Lap 66-132 | Solenoid Only | GM 2-post replacement on K1500 | 1.4 kW, PMGR-fit plunger | Amazon |
| OEG Parts 1114584 (D946A) | Solenoid Only | GMT400 trucks 1995-2000 5.0L/5.7L | 12V, 59mm OD, 3-terminal | Amazon |
In‑Depth Reviews

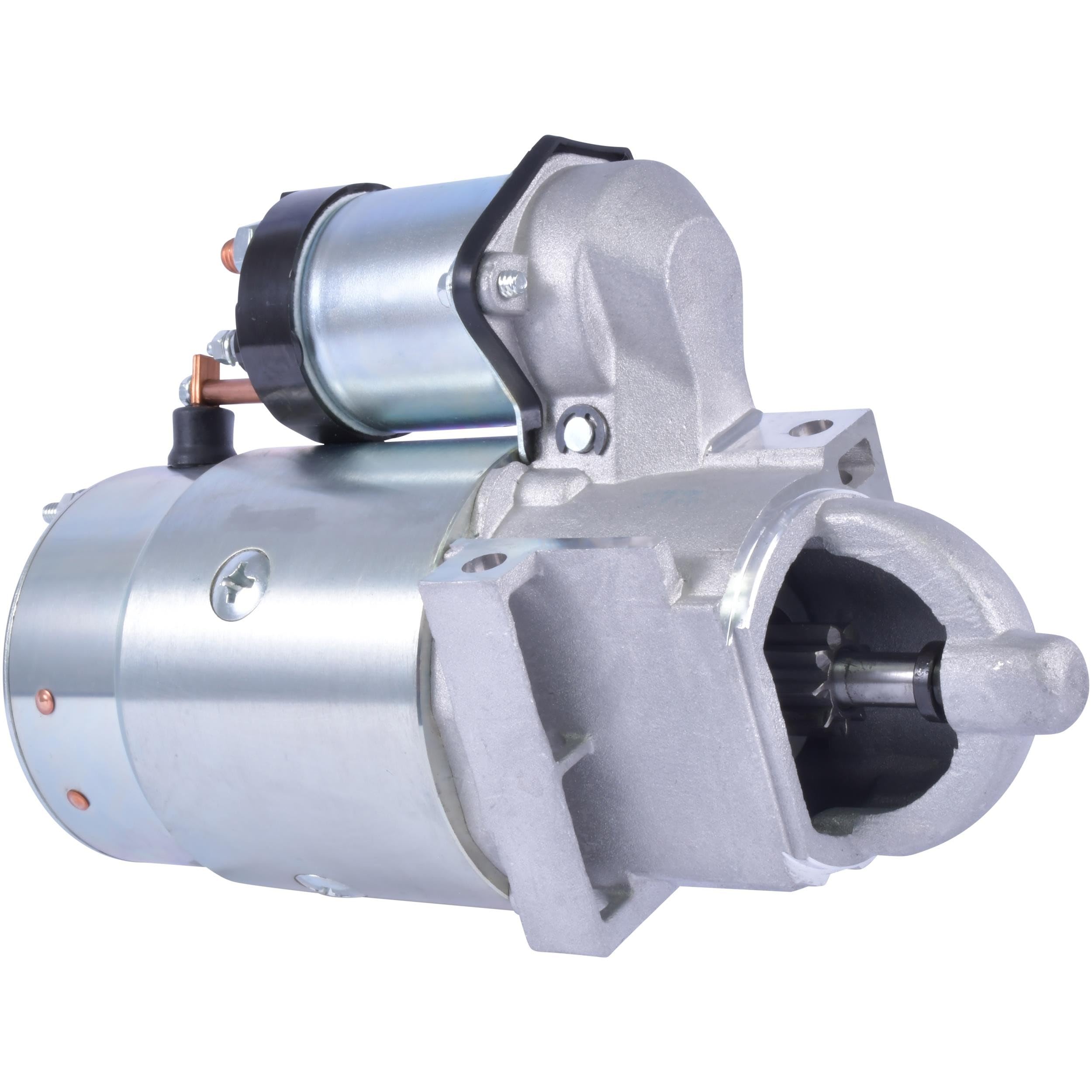

1. ACDelco Gold 337-1016 (88877115) Starter
The ACDelco Gold 337-1016 represents the premium tier of GM’s own replacement line — 100% new components rather than remanufactured cores. The aluminum nose cone and grounded case design reduce overall weight to 16 ounces while maintaining robust heat dissipation, a critical factor for Vortec 5.3L and 6.0L engines that soak starter motors under exhaust manifold heat. Every mounting surface is gauged during production, so the 11-tooth PMGR alignment slots into the bellhousing without shimming.
Internally, the solenoid uses greased key components to prevent dry-contact pitting during high-humidity starts, and the three-phase winding architecture (unusual for an automotive starter) delivers smoother engagement torque than single-phase equivalents. Owners report this unit outlasting two remanufactured starters on daily-driven Suburbans, with the solenoid contacts showing minimal wear past 80,000 miles.
Where this unit truly earns its premium status is the ISO-compliant manufacturing process — every batch is tested for pull-in voltage drop and hold-in coil resistance before shipment. If you want a fit-and-forget solution for your GMT800 or GMT900 platform Chevy, this is the benchmark that other starters are measured against.
What works
- 100% new components, not remanufactured
- Three-phase winding for consistent engagement
- Aluminum nose cone resists corrosion
What doesn’t
- Higher investment than bare solenoid swaps
- Limited to 11-tooth flywheel applications
2. Ezexpreze 6449 New Starter
The Ezexpreze 6449 steps up the power output to 1.6 kW, making it the highest-wattage starter in this lineup. This matters most for Chevy’s big-block 8.1L V8 found in 2500HD and 3500-series trucks, where compression ratios and displacement demand extra cranking torque. The SD260-series unit uses a PMGR (Permanent Magnet Gear Reduction) design that spins an 11-tooth pinion at a higher gear-ratio torque multiplier than direct-drive equivalents.
Every Ezexpreze unit undergoes 100% DV (Design Validation) testing before leaving the factory, including a cold-cranking amperage check and solenoid engagement cycle test. Owners installing this on 5.7L Express vans and 4.0L Jeep applications (cross-fitment) consistently report immediate cranking improvement — the solenoid’s contact disc is reported to hold continuity more reliably than budget alternatives during sub-freezing starts.
The unit weighs 2.97 kg, which signals substantial copper windings inside the field coil — heavier than many competitors at this price tier. Backed by a one-year hassle-free warranty, this is the logical choice for anyone rebuilding a heavy-duty GM truck or van that fights starter heat soak daily.
What works
- Highest kW output in the roundup at 1.6 kW
- 100% DV-tested for reliability
- Excellent cold-weather cranking reports
What doesn’t
- Larger overall length may require clearance check
- No mounting hardware included

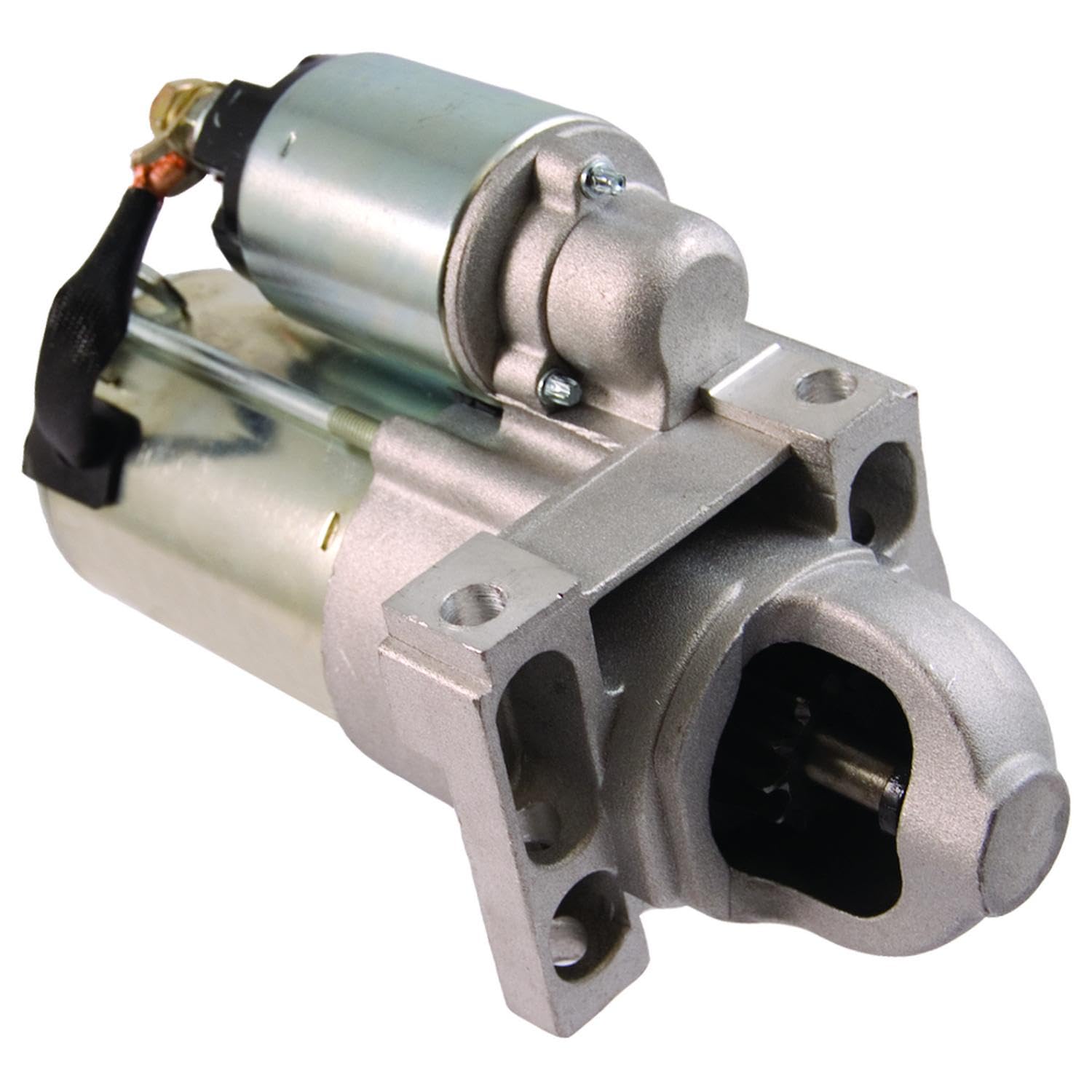

3. OEG Parts (Parts Player) 6489N Starter
The Parts Player 6489N is engineered specifically for Chevrolet Silverado 1500 and Tahoe models with 4.8L and 5.3L V8s from 2000-2002, along with GMC and Cadillac variants using identical bellhousing patterns. This PG260G-series unit outputs 1.5 kW through an 11-tooth gear reduction that spins the pinion faster than direct-drive starters, reducing battery drain during extended cranking.
A key differentiator is the unit’s overall length of 237mm — approximately 22mm longer than the older 6494 (1.1 kW, 9-tooth) units it commonly replaces. This means the 6489N physically occupies more space between the block and the frame rail, so you must confirm clearance before installation, especially on trucks with aftermarket oil pan skid plates or relocated wiring looms. The pad-style two-bolt mount is standardized across most LS-based Chevrolet platforms.
Customer feedback highlights the near-stock engagement sound and the elimination of intermittent “no-crank” events that plagued the original equipment solenoids after high mileage. Backed by a one-year warranty, this is a sensible swap for anyone upgrading from a tired factory starter without moving to an expensive high-torque mini-starter.
What works
- Direct bolt-on for GMT800 5.3L applications
- Higher torque than factory 1.1 kW units
- Consistent engagement reported
What doesn’t
- 22mm longer — verify frame rail clearance
- Limited to clockwise rotation GM engines
4. QuickCar Racing Products 50-430 Heavy Duty Solenoid
The QuickCar 50-430 is a Ford-style heavy-duty solenoid that Chevy owners frequently adopt for custom hot-rod wiring, remote solenoid installations, or push-button start conversions. Its 1.4 kW continuous-duty rating is overbuilt for standard starting applications, making it ideal for wiring setups where the solenoid is mounted remotely rather than on the starter itself — a common modification on high-compression small-blocks that need the solenoid kept away from exhaust heat.
Every unit is manufactured in the United States, which explains the build quality difference in the terminal stud threading and the plastic housing compound. The 9.05 x 5.5 x 2.7-inch dimensions are physically larger than a typical GM solenoid, accommodating heavier-gauge internal copper wiring that reduces voltage drop over long wiring runs. Owners of 1980s-era Broncos and K5 Blazers have reported this solenoid fixing slow-crank issues caused by undersized factory relays.
The trade-off is the Ford-style footprint — you will need adapter brackets or a custom mounting plate to secure it to a GM firewall or inner fender. Some units have also arrived with brittle plastic base material around the terminals, so careful torque application on the output stud is advised.
What works
- Overbuilt for high-amperage hot-rod circuits
- USA-made with quality terminal studs
- Solves voltage drop on remote mounts
What doesn’t
- Ford-style footprint requires adapter bracket
- Plastic base can crack if overtightened
5. ACDelco Professional F3914 Starter Solenoid
The ACDelco Professional F3914 is a standalone solenoid that covers a wide cross-section of Ford and Mercury applications from the 1980s (Ranger, Cougar, Lincoln Town Car) in addition to Chevrolet compatibility. The steel case construction at 0.56 pounds feels rugged in hand, and the 12-volt winding is rated for intermittent-duty cranking phase — the same fatigue cycle as the original equipment Delco solenoids from that era.
Owner reports from 1992 F-350 trucks with the 351 Windsor note that this solenoid eliminated intermittent “click-no-start” behavior where the internal contact disc had worn thin over 30 years of service. The ignition power bypass circuit built into this unit — which supplies full battery voltage to the coil during cranking — is a feature many aftermarket solenoids omit, making the F3914 a smarter replacement for vehicles with points or Duraspark ignition systems that need that momentary voltage boost.
The 24-month, unlimited-mileage warranty is a strong confidence signal for a component that typically costs less than most alternatives at parts counters. If you need a versatile solenoid that can sit on a fender well or starter housing and cover multiple brands in your shop, the F3914 earns its keep.
What works
- Two-year warranty — best in class
- Ignition bypass circuit for older ignition systems
- Rugged steel housing
What doesn’t
- Cross-brand fitment may confuse Chevy-only shoppers
- Some reports of internal part sourcing from overseas
6. Victory Lap 66-132 Starter Solenoid
The Victory Lap 66-132 targets DIY Chevrolet owners who want to replace just the solenoid on their existing PMGR starter rather than buying a whole new unit — a money-saving strategy that works well on 1996-2000 K1500 Suburbans and similar gear-reduction starters. This solenoid is dimensionally smaller than direct-drive units, so it only fits if your starter body is the slimmer PMGR diameter (roughly 59mm across the barrel). Measure twice; direct-drive starters with a larger diameter will not accept this plunger.
The kit includes a hardware pack with mounting bolts and the small stud terminal nuts, a small but meaningful inclusion that saves a hardware-store trip. Owners report that this solenoid fixes the frustrating “intermittent engagement” problem where the starter spins freely but doesn’t extend the pinion — a classic worn-plunger failure. At 1.4 kW, the pull-in winding has enough magnetic force to drive the plunger home even on 12V systems that have dropped to 10.5V under cranking load.
One caveat: a small number of units have arrived with brittle plastic insulation around the battery terminal post, which can break when torquing the nut. Hand-tightening with a nut driver rather than a ratchet is recommended to avoid snapping the post.
What works
- Cost-effective solenoid-only swap for PMGR starters
- Includes mounting hardware kit
- Strong magnetic pull in low-voltage conditions
What doesn’t
- Only fits PMGR starters — not direct-drive
- Terminal post insulation can crack if overtorqued

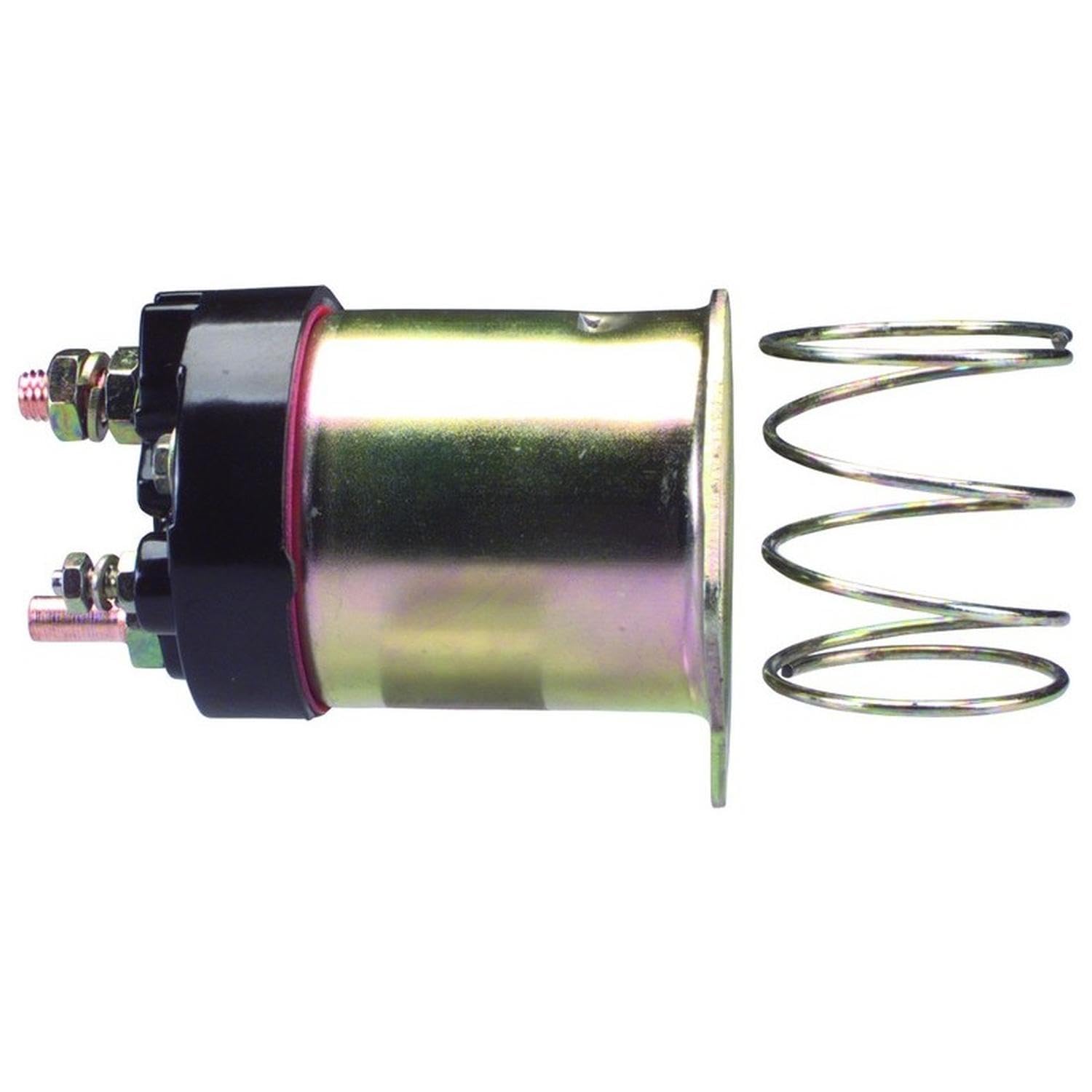

7. OEG Parts 1114584 (D946A) Starter Solenoid
The Parts Player 1114584 (cross-referenced as D946A, 245-12128, and 66-143) is a direct-fit three-terminal solenoid for GMT400 Chevrolet and GMC trucks from 1995-2000 equipped with 4.3L V6, 5.0L V8, and 5.7L V8 engines. The 59mm case outside diameter matches the PMGR-style starter housing used on these trucks, and the bolt-on cap design allows the plunger to be removed for service without destroying the solenoid body — a rare feature in cheap-electronics-grade replacements.
The unit operates on a 12V intermittent duty cycle, and the three-terminal layout (battery, starter motor, ignition S-terminal) matches the factory wiring without needing to splice or reroute cables. Owners consistently report that it “fits like stock” and eliminates the random no-crank episodes that develop when factory solenoids develop internal contact pitting after 15 years of use.
The trade-offs are the lack of mounting hardware in the box — you will need to reuse your original bolts — and intermittent reports of slower-than-expected shipping. For a budget-friendly fix on a second-generation C/K truck that just needs to start reliably, this solenoid delivers the essential function without overspending.
What works
- Accurate 59mm diameter for PMGR starters
- Bolt-on cap allows internal service access
- Three-terminal layout matches factory GMT400 wiring
What doesn’t
- Mounting hardware not included
- No warranty information listed on packaging
Hardware & Specs Guide
Pull-In vs. Hold-In Coils
A starter solenoid contains two windings wound on the same bobbin. The pull-in coil draws 30-50 amps to magnetically drive the plunger and engage the pinion gear with the flywheel ring gear. Once the plunger seats, the hold-in coil takes over at a much lower current (5-10 amps) to keep the contacts closed while the starter motor spins. If the hold-in coil fails, the solenoid chatters — rapidly engaging and disengaging — producing that rapid-fire clicking sound that signals imminent failure. Testing coil resistance with a multimeter (expect 0.3-1.0 ohms on the pull-in coil, 5-15 ohms on the hold-in coil) is the definitive diagnostic step.
PMGR vs. Direct-Drive Starter
Permanent Magnet Gear Reduction (PMGR) starters use a smaller, higher-RPM motor coupled to a planetary gearset that multiplies torque before the pinion engages. PMGR starters are shorter, lighter, and draw less current than direct-drive starters of equivalent cranking power — typically 1.4-1.6 kW versus 1.0-1.2 kW for direct-drive units. Most Chevrolet trucks built after 1995 use PMGR starters, identifiable by the noticeably smaller cylindrical housing (approximately 59mm diameter) compared to older direct-drive units (approximately 70mm+). The solenoid on a PMGR starter is also physically smaller and cannot interchange with direct-drive solenoids.
FAQ
How do I know if my Chevrolet starter solenoid is bad?
Will a Ford-style solenoid work on my Chevy truck?
What size socket is needed to remove a Chevy starter solenoid?
Final Thoughts: The Verdict
For most buyers, the best chevrolet starter solenoid winner is the ACDelco Gold 337-1016 because it delivers 100% new components, a 1.5 kW PMGR design that fits GMT800 trucks bolt-in, and the longest documented service life in owner reports. If you need maximum cranking torque for a 2500HD with the 8.1L V8, grab the Ezexpreze 6449 with its class-leading 1.6 kW output. And for a budget-friendly solenoid-only swap on a GMT400 that just needs to start every time, nothing beats the OEG Parts 1114584 for its exact 59mm PMGR fitment and serviceable bolt-on cap.
