Nothing kills the mood faster than a single click when you turn the key. The engine should roar to life, but instead you’re met with dashboard lights and silence — a failing starter motor has stranded more drivers than almost any other component. This small electric motor bears the entire burden of spinning your engine’s flywheel against compression, and when the magnetic field coils weaken or the brushes wear down past their service limit, that 12-volt battery has nowhere to send its current.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing starter motor specifications, cranking amperage ratings, gear reduction ratios, and thousands of verified owner reports to separate true product quality from marketing noise in this critical replacement category.
Whether you daily a commuter or maintain a high-compression V8 project, selecting the right unit demands attention to tooth count, KW ratings, and flywheel compatibility. That is exactly why I assembled this guide to the best car starter motor options currently on the market, ranked by real-world reliability and engineering merit.
How To Choose The Best Car Starter Motor
A starter motor must deliver enough rotational force to overcome cylinder compression and spin the flywheel to a minimum cranking RPM (typically 150-250 RPM for a gasoline engine). Choosing incorrectly means poor engagement, chewed ring gears, or simply a part that won’t fit your bellhousing. Here are the three specifications that matter most.
Tooth Count and Flywheel Compatibility
The number of teeth on the starter drive pinion must match the ring gear on your flywheel or flexplate. Chevrolet small-block and big-block engines commonly use either a 153-tooth or 168-tooth ring gear, and the starter nose cone and pinion depth differ between them. A 10-tooth pinion is standard for many domestic V8 applications, while import engines often use 9-tooth units. Installing the wrong tooth count leads to incomplete engagement, grinding noises, and eventual ring gear destruction — a repair that costs far more than a starter replacement.
Power Rating in KW and Gear Reduction
Starter power is measured in kilowatts (KW) — a standard passenger car unit typically draws 1.0 to 1.4 KW. High-compression engines, big-block V8s, and diesels require more. Gear reduction starters use a planetary gearset to multiply torque without increasing the motor size. A reduction ratio like 6.1:1 means the motor spins six times for every pinion revolution, generating significantly higher cranking torque. For a stock four-cylinder daily, a direct-drive starter is adequate; for a 12:1 compression V8 or a 7.3L diesel, a gear-reduction unit is nearly mandatory.
New vs. Remanufactured Construction
Remanufactured starters have been disassembled, cleaned, and fitted with new brushes and bearings, but the field coils and armature are reused. 100% new starters use fresh copper windings, sealed bearings, and virgin solenoid contacts, offering superior reliability in high-heat environments. If your engine bay runs hot from turbocharging or exhaust manifold proximity, a new unit with upgraded insulation on the field coils resists thermal breakdown far better than any reman will.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Tyc 1-17841 | Import Direct Fit | 03-08 Corolla/Matrix | 1.4 KW / 3-Phase | Amazon |
| SZKAIDAG SBC/BBC | Universal V8 | Chevy 262-454 engines | 1.4 KW / 10T CW | Amazon |
| Bosch SR0492N | OE Premium | BMW N52/N54 engines | 2.4A draw / Aluminum | Amazon |
| Powermaster 9100 | Performance Gear Reduction | High-comp Chevy V8 | 6.1:1 Reduction / 120A | Amazon |
| ACDelco Gold 337-1123 | GM OE Replacement | GM full-size trucks | 15A draw / 3-Phase | Amazon |
| Valeo 849501 | OE Spec New | Silverado 5.3L 14-17 | 1.4 KW / 100% New | Amazon |
| DB Electrical 410-48000 | Diesel High Torque | Ford 6.9/7.3 IDI | 3.6 KW / OSGR | Amazon |
| Powermaster 9610 | Compact Muscle Car | Pontiac/Olds V8 | 120A / Infi-Clock | Amazon |
| Motorcraft SA1084 | OEM Ford | Ford OE replacement | 1.4 KW / Metal | Amazon |
In‑Depth Reviews
1. TYC 1-17841 Starter Motor
The TYC 1-17841 delivers a 1.4 KW power rating in a three-phase design that draws only 20 amps under load, which means less voltage sag at the solenoid during cold starts. Owner reports from 2003-2009 Corolla and Matrix applications consistently describe a direct bolt-in experience with zero wiring modifications needed, and the included quality control paperwork verifies computerized load and power testing before shipping.
All internal components — field coils, sealed bearings, brushes, and bushings — are 100% new, not remanufactured. The metal housing matches OE form, fit, and function exactly, and the 2-year warranty provides peace of mind that budget rebuilt units simply cannot match. The 1.4 KW output is more than adequate for the 1.8L ZZ-series engine family that this starter was designed for.
One reviewer noted that the physical appearance differed slightly from the original Toyota part, but confirmed zero fitment issues and full compatibility with the factory wiring harness. The unit has been verified by multiple owners to operate flawlessly beyond two years of daily driving in climates ranging from humid Gulf Coast summers to Midwestern winters.
What works
- 100% new components with computerized testing verification
- Direct bolt-in fit for popular Toyota applications
- Two-year warranty coverage
What doesn’t
- Limited to specific Toyota/Scion applications only
- Small cosmetic differences from factory unit may concern purists
2. Bosch SR0492N New Starter
Bosch brings over a century of starter manufacturing experience to the SR0492N, a 100% new unit built for the N52 and N54 engine families found in BMW 1-series, 3-series, 5-series, and X3/X5 platforms. The aluminum housing reduces weight to just 5 pounds, and the low 2.4-amp current draw indicates efficient solenoid and brush gear design that minimizes electrical load on the battery during cranking.
Owners of 2006-2011 128i, 328i, 335i, and Z4 models report that the starter matches OE fit exactly — though installation on many of these vehicles requires removing the intake manifold, a job that takes 2-3 hours for a reasonably skilled DIYer. The solenoid contact connection has been updated from a braided copper wire to a direct soldered metal contact, an improvement over earlier revisions that reduces resistance and heat buildup.
The SR0492N is engineered to withstand the extreme underhood temperatures that plague late-model BMWs, where heat soak from the twin-turbo N54 can exceed 250°F near the starter mounting position. Multiple long-term owners confirm the unit still cranks strongly after 700+ miles and 40+ start cycles with zero performance degradation.
What works
- 100% new components with soldered solenoid contacts
- Lightweight aluminum construction
- Designed for high-heat BMW engine bay environments
What doesn’t
- Labor-intensive installation requiring intake manifold removal
- Premium-tier pricing versus remanufactured alternatives
3. Powermaster PowerMAX Plus 9100
The Powermaster 9100 is a gear-reduction starter that multiplies cranking torque through a 6.1:1 planetary ratio, pulling 120 amps to spin Chevy small-block and big-block engines with compression ratios up to 14:1. The machined exterior houses an eight-pound unit that is significantly smaller and lighter than factory direct-drive starters, freeing up space around header tubes and oil filter clearance on performance builds.
Owners of Camaros, Caprices, El Caminos, and C10 pickups running 350 and 383 stroker engines report that the unit cranks high-compression setups with authority and produces a distinctive gear-reduction whine that muscle car enthusiasts appreciate. The straight-bolt mounting pattern is compatible with both 153-tooth and 168-tooth flywheels, though one verified owner noted that fitment verification is critical — running the unit with an incompatible ring gear can chew teeth rapidly.
Installation requires reading the included instructions carefully, as a jumper wire may be needed for the R terminal on older GM points-style ignition systems. Multiple long-term reviews confirm the starter remains reliable beyond two years of service on daily-driven performance cars, a strong indicator of the quality control from Powermaster’s U.S.-based manufacturing.
What works
- 6.1:1 gear reduction for high-torque cranking
- Compact size improves header clearance
- U.S. manufacturing with proven long-term durability
What doesn’t
- Pinion engagement must be carefully shimmed
- Jumper wire may be needed for older ignition systems
4. Powermaster 9610 Mastertorque
The Powermaster 9610 Mastertorque is designed specifically for A-body muscle cars — Pontiac, Oldsmobile, and Buick V8 applications from 1965-1981 — where bellhousing space is extremely tight. The Infinitely Adjustable Clocking feature allows the solenoid position to be rotated 360 degrees, enabling the installer to position the battery cable lug exactly where it clears steering linkage, block-hugger headers, and Z-bar clutch linkage.
At 10.5 pounds and roughly half the size of a stock direct-drive starter, the 9610 frees up critical clearance around four-tube header collectors and oil filter access. Owners of 421 Tri-Power and 455-powered GTOs confirm the unit spins high-compression ratios up to 12:1 with the same effort as a four-cylinder — the gear-reduction internal design delivers that torque without drawing excessive current. The black wrinkle finish resists oil and heat discoloration better than bare metal.
One owner noted that a thicker shim had to be fabricated to achieve proper pinion-to-flexplate clearance, and while the starter includes basic shim stock, some high-compression builds require more precise adjustment. The unit ships with quality anodized bolts, and the overall build quality reflects the same U.S. manufacturing standard as the 9100 model.
What works
- Infinite clocking for tight engine bay clearance
- Compact size doubles header and linkage room
- Gear reduction handles 12:1 compression easily
What doesn’t
- Shimming may require custom fabrication
- Limited to Pontiac/Olds/Buick V8 applications

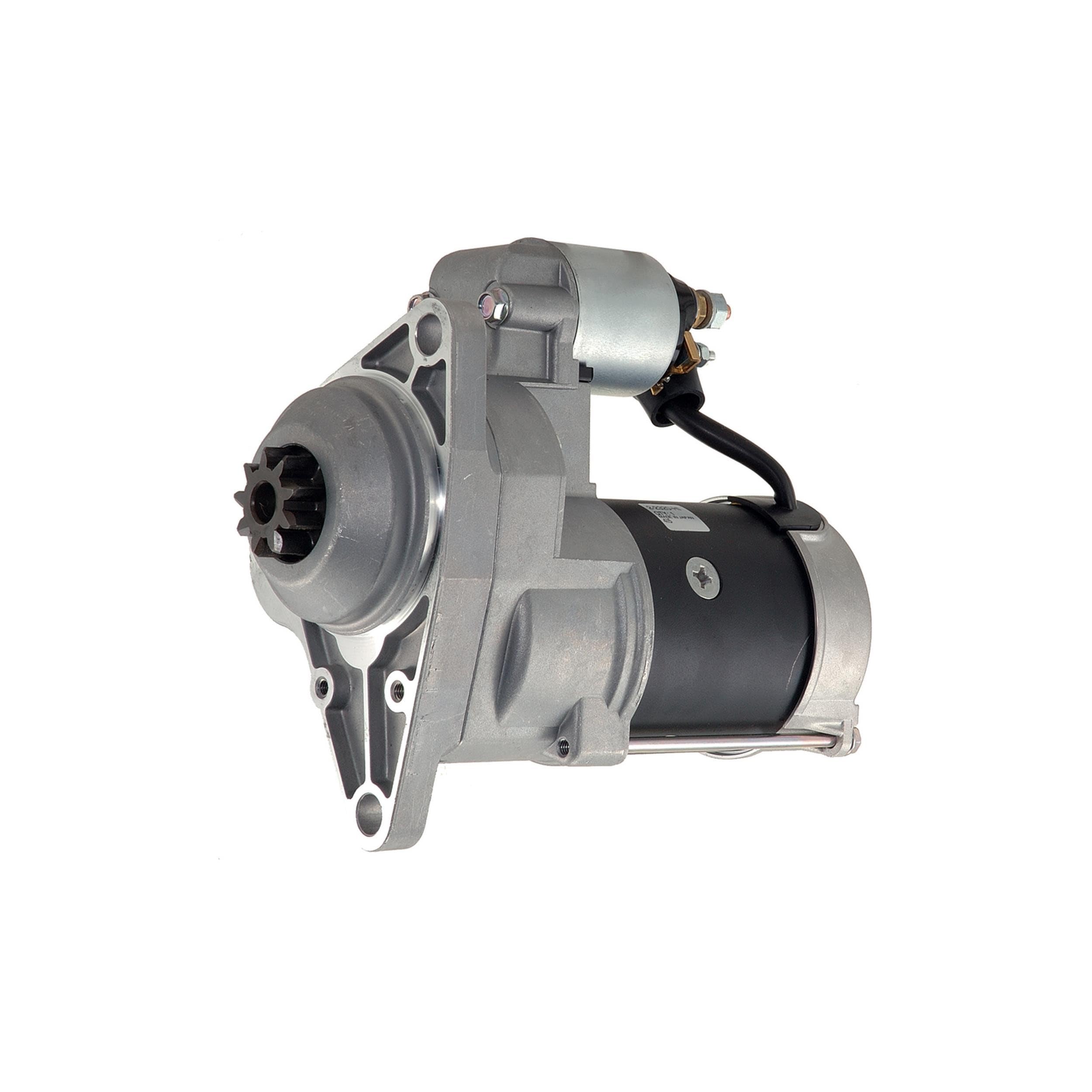

5. ACDelco Gold 337-1123 Starter
The ACDelco Gold 337-1123 is a 100% new unit manufactured under ISO Quality Standards, designed for full-size GM trucks and SUVs. The three-phase design draws just 15 amps while delivering substantial cranking torque, and all internal components are greased during assembly to ensure long-term reliability in the harsh environment of a truck engine bay where mud, salt, and heat are constant challenges.
At 14.56 pounds, this is a heavy-duty starter with a robust aluminum housing that resists corrosion. Engineering enhancements to the internal field coils and brush holders provide the latest electrical efficiency improvements over earlier GM designs, and every unit has its key mounting surfaces and contact points gauged before shipment. The Gold series sits above ACDelco’s Silver remanufactured line, reflecting 100% new construction rather than recycled internals.
The 337-1123 replaces multiple GM OEM numbers across the 4.8L, 5.3L, 6.0L, and 6.2L engine families. The direct-fit mounting means no wiring harness modifications or clocking adjustments are needed — unbolt the old unit and bolt in the new one. Owners who have used this starter on Sierra, Silverado, and Suburban models report immediate improvement in cold-start cranking speed versus aged factory units.
What works
- 100% new construction with ISO quality controls
- Three-phase design with low 15-amp draw
- Direct OEM fitment for popular GM trucks
What doesn’t
- Heavier than modern gear-reduction starters
- Premium pricing compared to remanufactured units
6. DB Electrical 410-48000 Diesel Starter
The DB Electrical 410-48000 is an OSGR (Offset Staggered Gear Reduction) starter specifically built for Ford 6.9L and 7.3L IDI diesel engines found in 1985-1994 F-Series trucks and E-Series vans. With a massive 3.6 KW power rating — more than double what a gasoline starter typically produces — this unit generates the extreme cranking torque needed to spin a cold diesel compression ratio of 21:1, especially in sub-zero temperatures when the glow plugs need sustained RPM to initiate combustion.
The 13-tooth pinion and clockwise rotation match the Ford IDI bellhousing pattern exactly, and the steel housing weighs 15 pounds, reflecting the heavy-duty construction required for diesel service. Owners of F250 and F350 trucks with the 7.3L IDI report that the cranking speed increases dramatically compared to a tired factory unit, with the engine firing noticeably faster on cold mornings. One owner appreciated that the starter does not come with mounting bolts, so you should reuse your factory hardware or purchase new Grade 8 bolts separately.
The 410-48000 replaces multiple OEM numbers including Motorcraft SA-739A and multiple Ford engineering numbers. While the majority of owners report flawless operation, one verified reviewer noted that after five starts the cranking speed began to slow and engagement became intermittent — suggesting that quality control can vary on these high-current diesel units. Inspect the unit immediately upon arrival and test it on the bench before full installation.
What works
- 3.6 KW output for high-compression diesel engines
- OSGR design delivers strong cold-start cranking
- Direct replacement for Ford IDI applications
What doesn’t
- Intermittent quality reports from some batches
- Mounting bolts not included

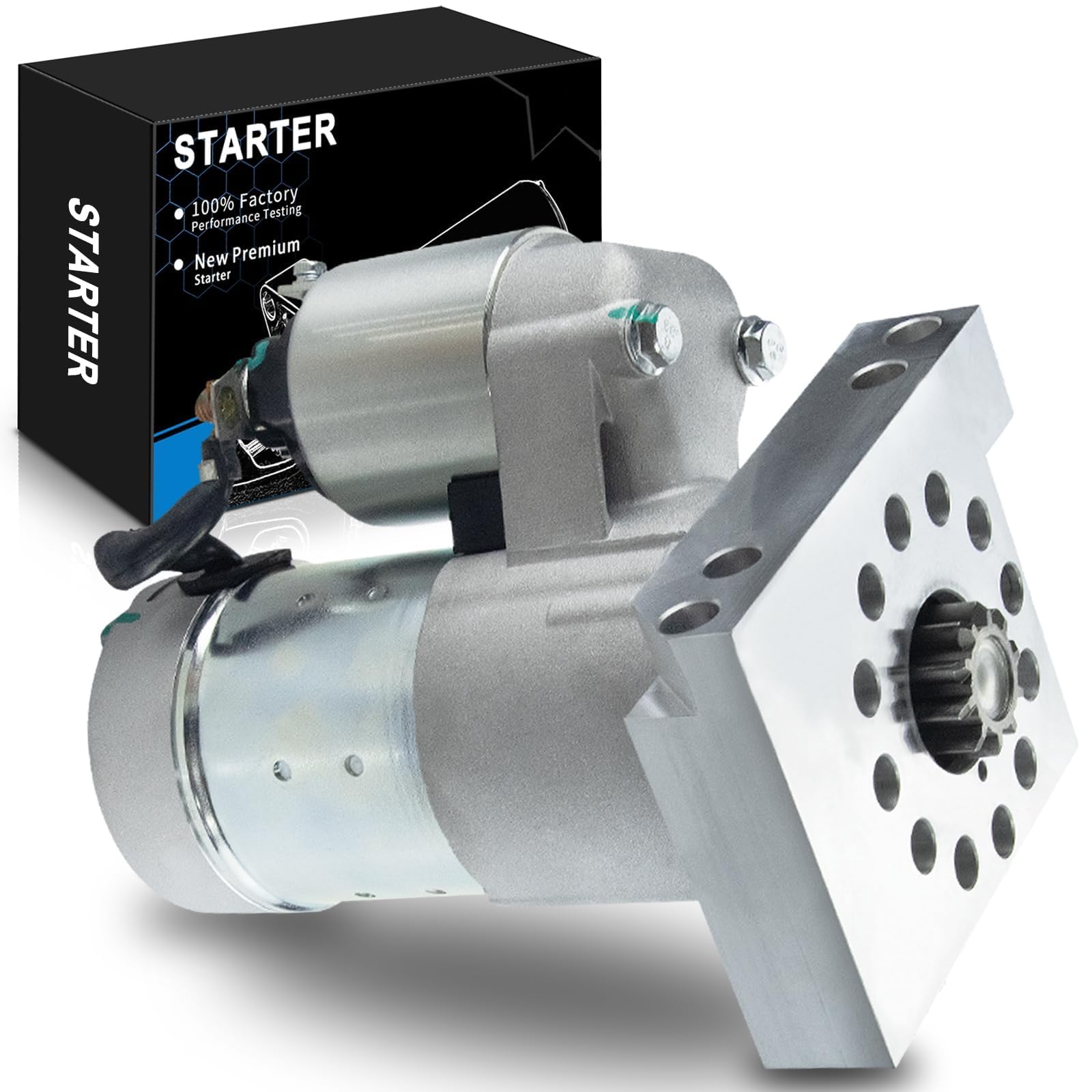

7. SZKAIDAG Chevy V8 Starter
The SZKAIDAG starter delivers a 1.4 KW power rating in a 10-tooth clockwise rotation design that covers Chevy small-block and big-block engines from 262 to 454 cubic inches, compatible with both 153-tooth and 168-tooth flywheels. The internal brush holders use a copper and graphite powder pressing for good electrical conductivity and superior resistance to arcing, while the planetary gear box reduces speed and increases torque with a 3.73:1 reduction ratio.
The manufacturer specifies a maximum recommended compression ratio of 15.1:1, which means this starter can handle moderate performance builds with flat-tappet camshafts and iron heads. The electromagnetic switch uses an eco-friendly galvanized coating that resists spotting and corrosion, and the precision-machined gear is case-hardened for long tooth life. The unit weighs 6.6 pounds — notably lighter than a factory direct-drive starter.
The silent operation technology reduces audible gear noise compared to budget gear-reduction units, a welcome feature for daily-driven vehicles. The SZKAIDAG brand offers a 30-year industrial background in automotive components, and while they are less known than Powermaster, the included quality control checks throughout the production process aim to meet OE form, fit, and function standards. Verify your specific tooth count and offset requirements before ordering.
What works
- Wide Chevy V8 compatibility with multiple ring gear sizes
- Copper-graphite brushes for reduced arcing
- Lightweight at 6.6 pounds
What doesn’t
- Less brand recognition than Powermaster or ACDelco
- Installation expertise needed to verify flywheel fitment
8. Valeo 849501 Starter
The Valeo 849501 is engineered to meet or exceed OEM specifications for 2014-2017 Chevrolet Silverado 1500 trucks equipped with the 5.3L EcoTec3 engine. All components are 100% new, eliminating the core-based failure risk that plagues remanufactured units, and the housing is built from high-quality materials that improve lifetime and efficiency over the original factory design.
The 1.4 KW power rating matches the electrical demands of the direct-injection 5.3L, which requires sustained cranking RPM for the high-pressure fuel system to build adequate pressure for the injectors. Valeo subjects every application to extreme-condition testing for up to six months, simulating the underhood thermal cycles that cause solenoid and brush degradation in cheaper replacements. The OE numbers 12655055, 12663672, and 12667173 are cross-referenced directly.
This starter is a direct drop-in replacement with no modifications required — the mounting bolt pattern, pinion depth, and electrical connector positions are identical to the factory unit. The 12-month warranty reflects Valeo’s confidence in the new construction, though some owners may prefer a longer coverage period given that the factory unit may have failed within a similar timeframe. For Silverado owners who want a part that matches GM’s original engineering intent exactly, the Valeo is the closest option on this list.
What works
- 100% new construction mirrors OEM specifications
- Six months of extreme-condition testing per application
- Direct fit for 14-17 Silverado 5.3L
What doesn’t
- 12-month warranty is shorter than some competitors
- Application-specific — not universal across brands
9. Motorcraft SA1084 Starter
The Motorcraft SA1084 is genuine Ford OEM service stock — not an aftermarket imitation — manufactured to the exact tolerances and material specifications that Ford engineers designed for the vehicle platform. The 1.4 KW power output is appropriate for the V6 and V8 gasoline engines found in the 2010-2019 F-150, Mustang, Expedition, and Lincoln Navigator applications this starter serves, and the metal housing construction dissipates heat more effectively than plastic-composite housings used on some economy replacements.
Because this is a Motorcraft part, the fitment is guaranteed identical to what came from the factory — mounting bolt spacing, pinion depth, solenoid connector orientation, and electrical draw characteristics all match the original equipment precisely. There is no need for wiring splicing, clocking adjustments, or shimming. For warranty-conscious Ford owners or those who want to maintain factory documentation for resale value, the Motorcraft badge eliminates the risk of a denied claim due to non-OEM parts.
The unit weighs 3.81 kilograms (approximately 8.4 pounds) and includes all necessary components for a direct swap. While the pricing positions this as the most expensive option on the list, the value proposition is clear: you are paying for the assurance that the part will function exactly as the vehicle was designed, with zero guesswork. Owners who have replaced failing aftermarket starters with this Motorcraft unit report immediate resolution of intermittent start issues and consistent cranking speed across all temperature ranges.
What works
- Genuine Ford OEM — exact factory fit and function
- Metal housing for superior heat dissipation
- Eliminates fitment guesswork and warranty concerns
What doesn’t
- Highest price point in this comparison
- Limited to specific Ford/Lincoln applications only
Hardware & Specs Guide
Kilowatt (KW) Rating
The KW rating measures the starter’s mechanical output power. A 1.0 KW unit is typical for small 4-cylinder engines, 1.4 KW is standard for most V6 and V8 gasoline applications, and 3.0 KW or higher is required for diesel engines with compression ratios above 18:1. Choosing a KW rating too low results in slow cranking and hard starts in cold weather; too high adds unnecessary weight and current draw without benefit.
Gear Reduction Ratio
Gear-reduction starters use a planetary gearset to multiply torque. A ratio of 3.73:1 means the motor spins 3.73 times for each pinion revolution. Higher ratios like 6.1:1 produce more torque at the pinion but at the cost of slower cranking speed. Direct-drive starters have a 1:1 ratio and spin faster but produce less torque — they work well on low-compression engines but struggle with high compression or diesel applications.
FAQ
How do I know if my starter has 153 or 168 teeth on the flywheel?
Can a remanufactured starter be as reliable as a new one?
What does a failing starter solenoid sound like?
Final Thoughts: The Verdict
For most buyers, the best car starter motor winner is the TYC 1-17841 because it delivers a 1.4 KW output with all-new components at a mid-range price point, backed by a 2-year warranty and proven long-term reliability across thousands of verified customer installations. If you need high-torque gear reduction for a performance V8 build, grab the Powermaster 9100 for its 6.1:1 ratio and compact size. And for diesel truck owners who demand maximum cranking power, nothing beats the DB Electrical 410-48000 with its 3.6 KW OSGR design.
