An axle with differential is the mechanical nucleus that splits engine torque between two wheels while allowing them to rotate at different speeds during turns. Choose a poor match, and you face premature bearing failure, gear whine, or outright breakage under load. Get the right assembly, and your vehicle pulls smoothly, corners predictably, and delivers thousands of trouble-free miles.
I’m Amir — the founder and writer behind Four Wheel Ask. Over the past decade I have compared hundreds of differential assemblies, analyzed gear material specs, and aggregated owner feedback to identify which units hold up under real driving conditions and which fall short.
The aftermarket now offers purpose-built carriers, complete posi packages, and CV axles designed for specific chassis and axle tube dimensions. Choosing the right best axle with differential requires matching spline count, gear ratio, housing size, and intended use to avoid costly rework or driveline vibration.
How To Choose The Best Axle With Differential
Selecting a differential assembly is not a one-size-fits-all decision. Housing width, axle tube diameter, spline count, gear ratio, and carrier type all interact. Start by identifying your vehicle’s rear-end model — GM 8.5-inch 10-bolt, Ford Sterling 10.5, Dana 30 or 44 — then match the differential to your power level and tire size.
Gear Ratio and Final Drive
Lower numerical ratios such as 3.08 or 3.27 improve fuel economy at highway speed. Higher ratios like 4.10 or 4.88 multiply torque for off-road crawling or towing heavy loads. A ratio mismatch forces the transmission to operate outside its efficient RPM window, which wastes fuel and accelerates wear.
Spline Count and Axle Shaft Strength
Axle shafts transfer torque from the differential side gears to the wheels. Common spline counts are 28, 30, and 31. Higher spline counts distribute stress over a larger surface area, reducing the risk of twisting under high torque. Always verify that the differential side gears match your existing axle shaft splines.
Carrier Type: Open, Limited-Slip, or Locker
Open differentials send torque to the wheel with the least resistance — fine for dry pavement but poor in low-traction conditions. Limited-slip units use clutch packs or cones to bias torque toward the wheel with more grip. Lockers physically couple both wheels for maximum traction, but they can induce understeer on hard surfaces.
Bearing and Seal Quality
The differential carrier rides on tapered roller bearings that support the ring gear and absorb lateral loads. Timken and Koyo are industry benchmarks. Subgrade bearings generate noise within 10,000 miles and often fail catastrophically. A quality overhaul kit includes matched bearing sets, races, pinion seals, and crush sleeves.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Yukon Gear Chevy 8.5″ Posi Package | Posi Unit | GM truck & muscle car rear-end upgrade | 30-spline, 3.73 ratio, master bearing kit | Amazon |
| Yukon Gear & Axle JK 4.88 Gear & Install Kit | Gear Package | Jeep JK re-gear for larger tires | Front/rear 4.88 R&P plus master overhaul kits | Amazon |
| East Lake Axle Polaris Front Differential | UTV Diff | Polaris Ranger / RZR / General replacement | Hardened aluminum sprague, 1333112 OE cross | Amazon |
| NEWZQ Rear Differential Axle Carrier 3.27 | Carrier Assy | Cadillac ATS AWD 2013-2019 direct replacement | 3.27 ratio, 77 lb cast-iron housing | Amazon |
| Yukon Master Overhaul Kit Ford 10.5″ | Rebuild Kit | Ford Sterling 10.5″ full rebuild | Timken bearings, shim kit, pinion seal | Amazon |
| TRQ CV Axle Assembly Set 2-Piece | CV Axle Set | Toyota Tacoma / 4Runner ADD front axles | Neoprene boots, direct-fit LH/RH pair | Amazon |
| DOFOCH Limited-Slip Differential Locker | Limited-Slip | GM 8.5/8.6 10-bolt budget posi upgrade | 30-spline, 2.73-up ratio, composite clutches | Amazon |
| A-Premium Front CV Axle Shaft Assembly | CV Axle Set | Jeep Wrangler JK Dana 186 mm front swap | 27/32-spline, grease-able U-joint, nuts included | Amazon |
In-Depth Reviews
1. Yukon Gear & Axle Chevy 8.5″ Posi Package
The Yukon Dura-Grip clutch-type posi unit has a well-documented track record across GM 8.5-inch 10-bolt rearends found in Chevrolet and GMC trucks, SUVs, and muscle cars. This package bundles the posi carrier with a matching 3.73 ring-and-pinion set and a master bearing/installation kit, which eliminates the guesswork of sourcing compatible components separately.
Owner reports highlight quiet gear operation when setup backlash and pattern are correctly dialed in — several users noted the Richmond gear set runs with minimal whine even after thousands of miles. The master kit includes carrier bearings, pinion bearings, races, shims, and a crush sleeve, providing everything needed for a complete regear in one box. A few owners of 99-06 trucks found the included carrier bearings have a smaller OD than the factory RA-321-C size, requiring a separate bearing purchase for those specific housing variants.
For GM truck owners who want a proven clutch-type posi without mixing aftermarket parts from different suppliers, this all-in-one Yukon package delivers reliable traction and predictable rear-end behavior. The 3.73 ratio strikes a strong balance between everyday drivability and moderate towing or off-road capability.
What works
- Complete package with posi, gears, and bearings eliminates part hunting
- Yukon Dura-Grip clutch design provides predictable slip-and-grip behavior
- Richmond gear set runs quiet when installed correctly
- Strong aftermarket support and rebuild parts availability
What doesn’t
- Carrier bearings do not fit 99-06 GM truck housing without substitution
- Requires skilled setup knowledge for proper gear pattern and preload
- Clutch packs need periodic replacement under heavy use
2. Yukon Gear & Axle JK 4.88 Gear & Install Kit
Jeep JK owners who move to 35-inch or larger tires need a deep regear to restore acceleration and keep the transmission in its optimal RPM band. This Yukon package covers both axles — front Dana 30 and rear Dana 44 — with matched 4.88 ring-and-pinion sets and complete master overhaul kits for each differential.
Owner feedback spanning multiple years of use indicates the gears hold up well in off-road environments, with several reports noting that axle shafts tend to break before the ring-and-pinion fails under aggressive crawling. The master kits include Timken bearings, races, pinion seals, shim packs, ring gear bolts, and marking compound. One owner reported 2.5 years of use on 37-inch tires with a locker before pinion tooth loss occurred, attributing the failure to lock ring contact from an aftermarket locker rather than gear quality.
For JK owners committed to larger tires and serious trail use, this Yukon package provides a matched set that simplifies procurement and ensures compatible gear geometry across both differentials. Professional installation with proper pinion depth and backlash measurement is strongly recommended to realize the full service life.
What works
- Complete front-and-rear package with both gear sets and rebuild kits
- 4.88 ratio restores performance with 35-inch and larger tires
- Yukon metallurgy holds up to locker use and off-road loads
- Includes marking compound and thread locker for proper setup
What doesn’t
- High ratio reduces highway fuel economy and increases RPM
- Requires experienced mechanic for correct gear pattern setup
- Pinion depth may need adjustment with aftermarket lockers
3. East Lake Axle Polaris Front Differential
Polaris Ranger, RZR, and General owners frequently encounter front differential failure from hard impacts or inadequate internal clearances. East Lake Axle addresses this with a direct-fit replacement that incorporates a heavy-duty hardened aluminum sprague and upgraded pinion bearing. The unit cross-references a wide range of OEM numbers including 1333112, 1333344, 1333579, and 1333597.
User reports describe a noticeable improvement in four-wheel-drive engagement compared to the stock unit — several owners noted that the upgraded sprague provides more positive locking feel when switching into 4WD. One customer experienced a defect on the first unit, but the company quickly sent a replacement that has performed without issues since. The differential matches OEM dimensions, so installation does not require any mounting bracket modifications.
For Polaris UTV owners who ride in rocky terrain or mud, this East Lake Axle differential offers a stronger internal architecture than the factory unit without increasing complexity. The hardened sprague reduces the risk of sudden engagement failure that can strand a vehicle miles from the nearest trailhead.
What works
- Hardened aluminum sprague improves 4WD engagement durability
- Direct fit with broad OEM number compatibility
- Customer service responds quickly to defective units
- Noticeably better engagement feel than stock differential
What doesn’t
- Some units arrive with manufacturing defects requiring replacement
- Does not include axle shafts or CV joints
- Must verify model-specific OEM number before ordering
4. NEWZQ Rear Differential Axle Carrier 3.27
Cadillac ATS AWD models from 2013 to 2019 use a specific rear differential carrier assembly that houses the ring gear, pinion gear, and spider gears in a cast-iron housing. The NEWZQ replacement unit carries a 3.27 gear ratio and cross-references OEM numbers 23156305, 84110753, 2993015, and 22927263, making it a direct swap for the factory carrier.
Owner reports from ATS AWD owners confirm the carrier fits properly and holds up under daily driving conditions. One user reported over 40,000 miles on the unit after following the recommended break-in oil change at 500 miles and subsequent 50,000-mile service intervals. At 77 pounds, this is a substantial piece of hardware that requires careful handling during installation — professional help is advisable given the weight and the need to properly seat the carrier bearings.
For ATS AWD owners facing a failed rear differential, the NEWZQ carrier removes the need to source a used OEM unit or pay dealer prices for a new assembly. It is a complete housing with gearing installed, which simplifies the swap compared to rebuilding the existing carrier.
What works
- Complete carrier assembly with gearing pre-installed
- Direct replacement for multiple Cadillac ATS AWD model years
- Cast-iron construction matches OEM durability
- Long-term owner reports exceed 40,000 miles with proper maintenance
What doesn’t
- Very heavy unit makes solo installation difficult
- Requires GL-5 75W-90 gear oil and break-in service
- Some units arrived with damaged packaging, though part was functional
5. Yukon Master Overhaul Kit Ford 10.5″
The Ford Sterling 10.5-inch rear axle found in Super Duty trucks from 1999 to 2007 is a robust platform, but the pinion and carrier bearings eventually wear out, producing a telltale whine. Yukon’s master overhaul kit replaces every wearable component: Timken carrier and pinion bearings with races, pinion seal, complete shim set, ring gear bolts, pinion nut, crush sleeve, thread locker, marking compound, and a new gasket.
Owner feedback confirms the kit restores quiet operation — one F-250 owner reported the bearing whine disappeared completely after the rebuild. The Timken bearings are widely recognized as industry standard for differential applications. One nuance involves the inner rear pinion bearing race: the kit as sold on Amazon may contain a race that does not fit certain 2000 F-350 Super Duty examples, and Yukon’s own website lists a different kit number (BK F10.5) for that application.
For DIY owners rebuilding a Ford Sterling 10.5, this Yukon kit provides all the wear parts in one box at a fraction of the cost of a dealer overhaul. Verifying the specific bearing race dimensions against your axle’s build date before disassembly is a worthwhile precaution.
What works
- Complete kit includes all wear items for a full differential rebuild
- Timken bearings provide OEM-level or better durability
- Eliminates bearing whine when correctly installed
- Shim kit allows precise carrier and pinion depth adjustment
What doesn’t
- Inner pinion race may not fit certain 2000 F-350 Super Duty units
- Amazon listing does not differentiate between early and late Sterling variants
- Requires specialized tools for pinion bearing removal and preload setting

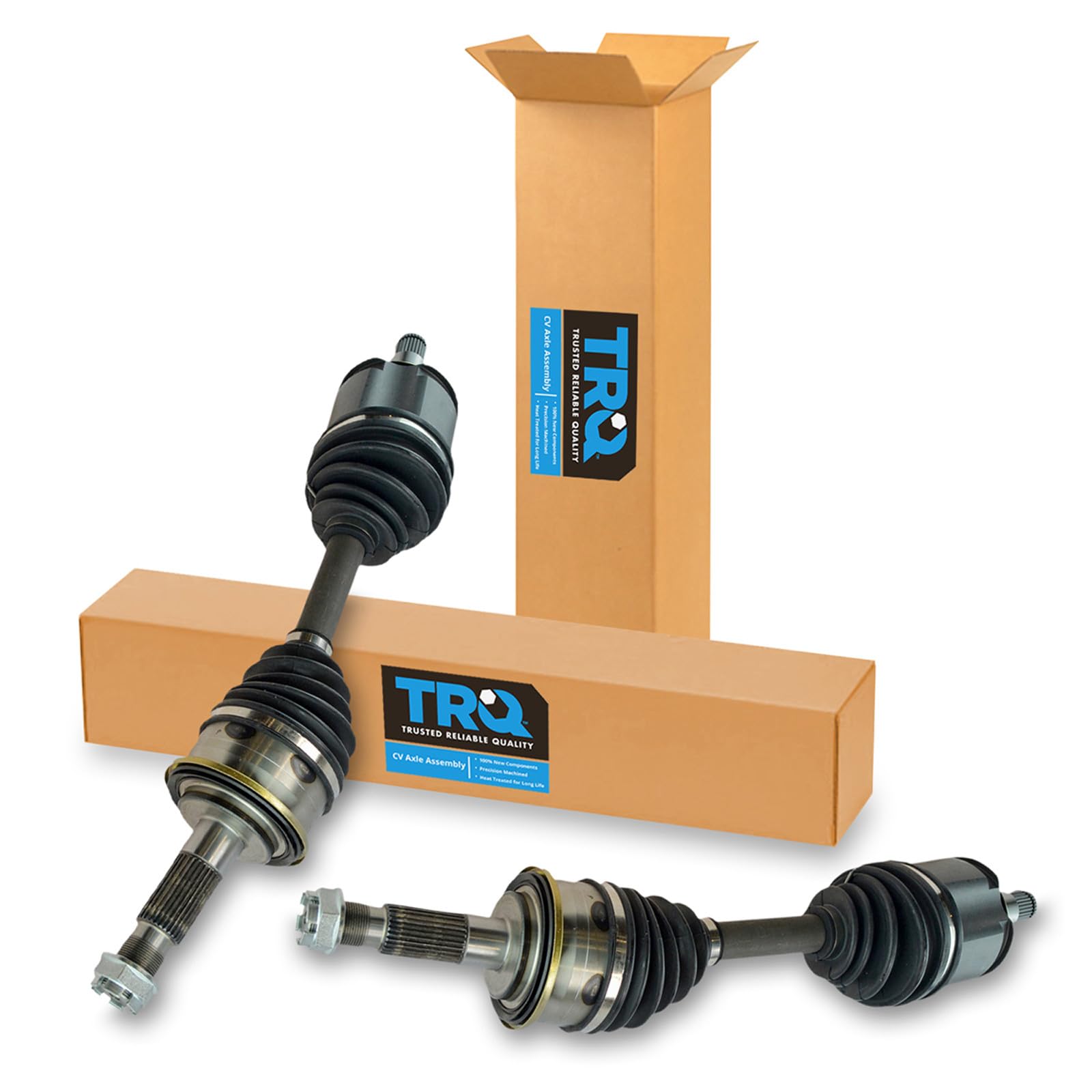

6. TRQ CV Axle Assembly Set 2-Piece
The TRQ set delivers two front CV axle assemblies for Toyota Tacoma and 4Runner models equipped with an automatic disconnecting differential. Each axle is built with neoprene boots that resist ozone cracking better than standard rubber, and the assemblies are pre-greased and ready to install out of the box. The reference number cross includes 4343004020 and 4343035030.
Owner reports are mixed. Several users reported perfect fitment on Subaru Crosstrek, Nissan Titan, and Mercedes E350 4Matic applications with smooth operation and no vibration. However, one Nissan Maxima owner reported complete failure within six months, with clicking noises followed by the axle losing seating in the transmission, leading to a costly repair. TRQ offers a large library of DIY installation videos, which helps first-time installers avoid common mistakes.
For Tacoma and 4Runner owners who need a budget-friendly pair of front CV axles, the TRQ set offers convenience and boot durability improvements over basic replacements. Checking fitment carefully with the Amazon Garage tool and inspecting for any manufacturing defects before installation is recommended.
What works
- Direct-fit pair with neoprene boots for extended boot life
- Pre-assembled and greased for quick installation
- Extensive DIY video library supports home mechanics
- Compatible with multiple Toyota and Nissan applications
What doesn’t
- Reported premature failure in some applications within six months
- Quality control appears inconsistent across production batches
- Not a performance upgrade — designed as OE replacement only
7. DOFOCH Limited-Slip Differential Locker 19559-010
The DOFOCH 19559-010 is a composite-clutch limited-slip carrier designed for GM 8.5-inch and 8.6-inch 10-bolt axles with 30-spline shafts and gear ratios of 2.73 and up. It comes with composite clutch discs, two carrier bearings, and bearing races, aiming to provide a budget entry point into limited-slip performance for Chevrolet and GMC trucks.
Owner experiences are sharply divided. A 2000 Silverado 5.3 owner reported the unit fit well on the original sprocket after the factory G80 locker self-destructed, calling it a solid replacement. However, multiple owners noted that the included carrier bearings have a 45mm hub with a large race assembly that does not fit the 8.5-inch housing — the correct bearing set is LM102949/LM102911. One owner reported a complete failure within two months that damaged the ring gear and pinion, resulting in additional repair costs. The seller claims a one-year warranty, but reviewers reported difficulty contacting the company.
For budget-conscious GM truck owners who are comfortable sourcing the correct bearings separately, this DOFOCH carrier can work as an affordable limited-slip upgrade. Factor in the cost of proper bearings and the risk of a potentially long warranty claim process before purchasing.
What works
- Low entry price for limited-slip functionality
- Works with 2.73 and higher gear ratios
- Direct fit on 30-spline axles when bearings are corrected
- Composite clutches provide smooth engagement
What doesn’t
- Included bearings do not fit 8.5-inch housing correctly
- Reported catastrophic failure in under 2 months on one installation
- Warranty support contact information is difficult to locate
- Requires additional parts purchase for proper installation
8. A-Premium Front CV Axle Shaft Assembly
A-Premium offers a pair of front CV axle shafts for Jeep Wrangler JK models from 2007 to 2018 equipped with a Dana 186 mm axle and Dana 30 differential. The set includes both driver and passenger side shafts with grease-able U-joints, axle nuts, and a rust-preventive coating. Compressed lengths measure 25.1 inches on the left and 40.79 inches on the right with input shaft spline count of 27 and output spline count of 32.
User feedback includes successful installations where the axles fit properly and the grease-able U-joints were appreciated as an upgrade over sealed units. One JK owner described the axle as solid for the price, noting the splines were well-lubricated. However, one report detailed a driver-side shaft that leaked severely after professional installation because the shaft diameter was slightly larger than OEM, preventing the seal from seating. Another owner pointed out that the axle nut contact surface is poorly designed, placing stress on the hex points rather than the bearing surface.
For JK owners replacing worn or damaged front CV axles on a tight budget, the A-Premium set provides a functional option with the useful addition of grease-able U-joints. Inspecting the shaft diameter and nut interface before installation can help avoid seal leakage and premature wear.
What works
- Both front axles included with axle nuts and coating
- Grease-able U-joints allow periodic lubrication
- Direct fit for JK Dana 186 mm axle applications
- Competitive pricing for a complete axle pair
What doesn’t
- Oversized shaft diameter on some units prevents seal seating
- Axle nut contact design places stress on hex rather than bearing surface
- Quality varies between production batches
Hardware & Specs Guide
Carrier Bearings and Race Fitment
The carrier bearing journal diameter and race OD must match the axle housing bore. GM 8.5-inch and 8.6-inch housings use a 2.891-inch bearing OD in most applications, but 99-06 trucks require a 3.062-inch OD bearing (RA-321-C). Installing the wrong bearing allows carrier movement under load, which accelerates gear wear and generates noise.
Ring Gear Bolts and Torque Specs
Ring gear bolts stretch during torquing and should never be reused. Aftermarket overhaul kits include new bolts with a thread-locker pre-applied. OEM torque values for 8.5-inch GM ring gear bolts range from 70 to 80 ft-lb, while Ford 10.5-inch bolts typically require 85 to 95 ft-lb. Incorrect torque allows the ring gear to shift relative to the carrier.
Pinion Depth and Crush Sleeve Preload
Pinion depth sets the contact pattern between ring and pinion teeth. Aftermarket crush sleeves provide a controlled collapse to establish rolling torque preload. Used crush sleeves lose their elasticity and must be replaced. A pinion that is too deep or too shallow causes premature tooth wear and gear whine within the first 1,000 miles.
Gear Oil and Break-In Procedure
New ring-and-pinion sets generate fine metallic particles during the first 500 miles as the gear teeth wear into their final contact pattern. GL-5 75W-90 is the standard fill weight for most passenger truck differentials. A break-in oil change at 500 miles and a magnetic drain plug inspection help catch early wear debris before it circulates through the bearings.
FAQ
What is the difference between an open differential and a limited-slip differential?
Can I install a differential with a different gear ratio than my factory ratio?
How do I know which spline count my axle shafts have?
What causes differential bearing whine after a rebuild?
Are aftermarket differential carriers stronger than OEM units?
Final Thoughts: The Verdict
For most buyers, the best axle with differential winner is the Yukon Gear Chevy 8.5″ Posi Package because it bundles a proven clutch-type posi, matched 3.73 gears, and a master bearing kit into one reliable package for GM trucks. If you need a complete front-and-rear regear for a lifted Jeep JK, the Yukon Gear & Axle JK 4.88 Gear & Install Kit provides matched components for both axles with no ratio mismatch risk. And for UTV owners who push their Polaris through rough terrain, the East Lake Axle Polaris Front Differential delivers a noticeably stronger engagement with its hardened aluminum sprague.
