Automotive bulb sockets seem like trivial hardware until a corroded connector leaves you without brake lights at a critical moment or a loose-fit housing causes intermittent failures that defy diagnosis. These small but vital components carry the full burden of your vehicle’s lighting circuit, and the wrong choice introduces reliability risks that no bulb upgrade can fix.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach to automotive lighting components involves deep cross-referencing of OEM specifications, connector material science, and long-term owner feedback to separate parts that deliver lasting connection integrity from those that degrade after a single season of weather exposure.
After analyzing dozens of socket designs across multiple vehicle platforms, focusing on contact retention force, insulator thermal ratings, and corrosion resistance data, these represent the best automotive bulb sockets for both stock replacements and custom lighting upgrades.
How To Choose The Best Automotive Bulb Sockets
Selecting the right bulb socket goes beyond matching the bulb base shape. The socket’s terminal metal, insulator material, wire gauge, and sealing method all determine whether your lighting circuit maintains stable voltage and resists corrosion over thousands of miles of vibration, temperature cycling, and moisture exposure.
Base Type Compatibility and Pin Configuration
Every bulb family uses a distinct base geometry — bayonet (BA15D, BAY15D), wedge (T10, W5W), or twist-lock (3157, 7443). Verify that the socket’s internal contact arrangement matches your bulb’s pins precisely. A BAY15D socket has offset bayonet lugs to prevent reverse installation, while BA15D lugs are symmetrical. Forcing the wrong base type damages both socket and bulb terminals permanently.
Wire Gauge and Insulation Quality
Factory lighting circuits typically use 18 AWG to 20 AWG wire. Aftermarket sockets with thinner 22 AWG wire introduce measurable voltage drop, especially on longer runs to tail lamps or fog lights. Look for copper-core wire with PVC or cross-linked polyethylene insulation rated for continuous engine bay temperatures. Pre-wired harnesses with integrated relays for high-current applications like fog lamps add critical circuit protection.
Terminal Material and Retention Force
Brass or copper terminals maintain spring tension far longer than plated steel. Over time, steel terminals lose retention force, allowing the bulb to vibrate loose or create intermittent contact. High-quality sockets use beryllium copper or phosphor bronze contacts with positive locking tabs that audibly click when the bulb is fully seated.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| RED WOLF 3156 3157 Harness | Pre-Wired | GM truck brake/tail replacement | 4-pcs, nylon socket, copper core | Amazon |
| ACDelco Gold LS244 | OEM Grade | Multi-purpose threaded socket | Heavy-duty assembly, moisture protection | Amazon |
| Tresound T10 W5W Pre-Wired | Wedge Base | Universal cab marker / clearance | 5-pack, 194-compatible, nylon housing | Amazon |
| Bstenky BAY15D 1157 Holder | Bayonet | Brake/tail/turn signal extension | 6-pack, clip-on mount, iron construction | Amazon |
| NSLUMO H11 Fog Light Harness | Fog Light Kit | Tacoma fog lamp upgrade w/ switch | H8/H11/H9/880/881, 40A relay | Amazon |
In‑Depth Reviews

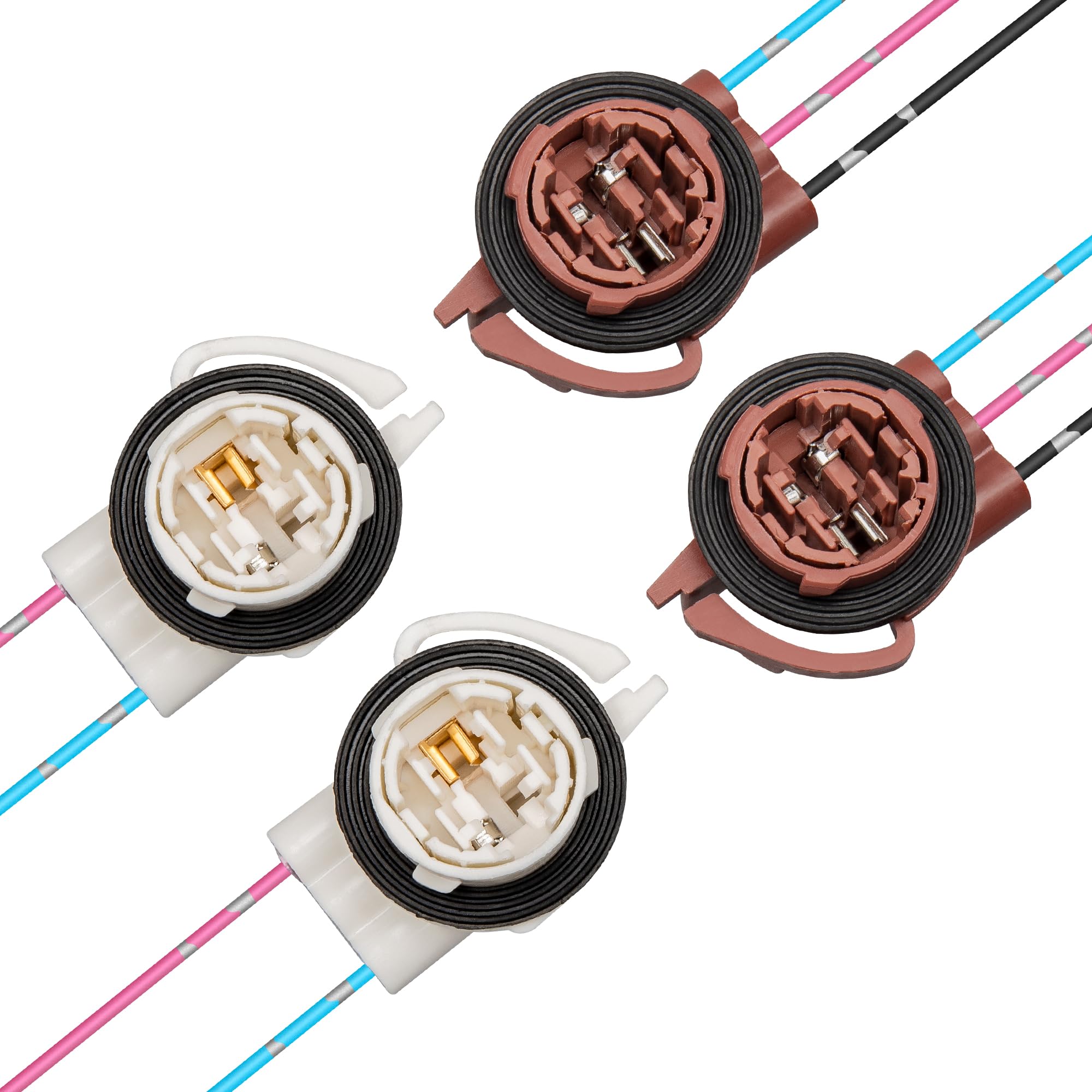

1. RED WOLF 3156 3157 Pre-Wired Harness Pigtail Socket Connector
The RED WOLF harness set addresses a notorious weak point on Chevrolet Silverado and GMC Sierra trucks from the 1999–2007 generation: the factory bulb sockets that become brittle and lose contact over time. This 4-piece kit replaces the brake, tail, and turn signal sockets with pre-wired nylon housings and professional-grade copper-core wire that maintains full current delivery to the bulb terminals without the voltage drop seen in generic pigtails.
Compatibility spans a wide range of GM platforms including the Tahoe, Suburban, Avalanche, Colorado, and Venture, plus GMC Sierra and Envoy models through 2007. The socket accepts all 3157, 3057, 3156, 3456, 3757, 4057, 4114, 4157 and related bulb families, making it a versatile replacement for any application using the standard 3157 twist-lock base. The nylon construction resists thermal deformation better than the original plastic, and the positive-lock terminal design eliminates the intermittent flickering that plagues worn factory connectors.
Owner reports highlight the no-splice installation as a major time saver — the harness plugs directly into the existing wiring without cutting or crimping. The included 3.9-inch pigtail length provides enough slack for repositioning the socket into the housing. For anyone restoring a GMT800-era GM vehicle or converting driving lights to turn signals, this kit delivers OEM-grade fit without dealer pricing.
What works
- Direct plug-and-play installation without cutting any factory wiring
- Copper core conductors eliminate voltage drop compared to steel-core alternatives
- Broad bulb compatibility covers all common 3157-family variants
What doesn’t
- Limited to GM trucks and SUVs from a specific generation — not universal
- Pigtail length may be too short for some custom mounting locations

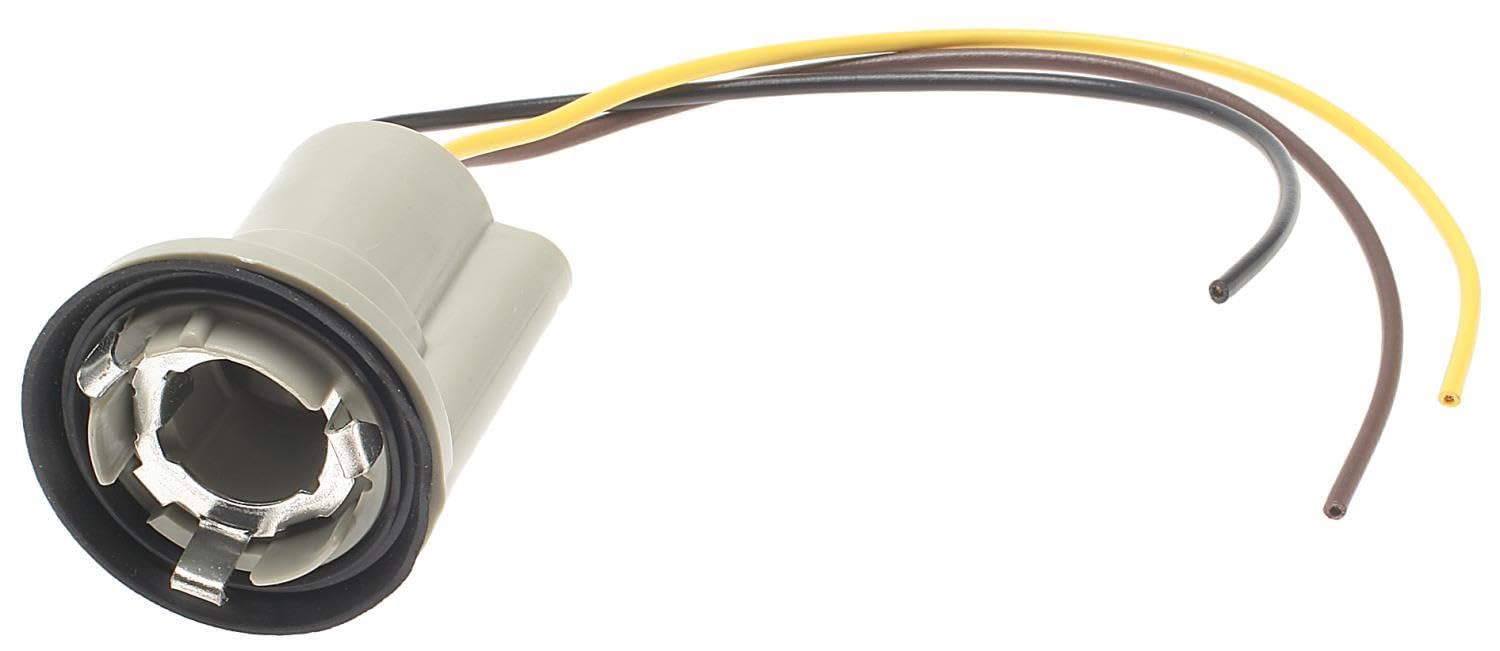

2. ACDelco Gold LS244 (88862184) Tail Lamp Connector
When only an OEM-level replacement will do, the ACDelco Gold LS244 stands apart as a threaded-mount multi-purpose socket engineered to GM’s original specifications. Unlike universal sockets that rely on friction fits or zip-tie mounting, this unit threads securely into the lamp housing, creating a vibration-resistant seal that prevents the socket from backing out over rough roads. The candelabra base configuration accommodates a range of small indicator and license plate bulbs common to GM, Ford, and Chrysler platforms.
The heavy-duty assembly includes a protective outer covering that shields the contacts from moisture intrusion and road salt corrosion — a critical advantage in northern climates where standard sockets fail within two winters. ACDelco’s engineering validation includes thermal cycling tests from -40°F to 257°F, ensuring the plastic housing resists embrittlement and the brass terminals maintain spring tension through extreme temperature swings. At just 22.68 grams, it is a lightweight but robust component.
Installation requires only a gentle twist into the threaded housing cavity, and the socket accepts standard candelabra-base bulbs for tail, parking, or interior applications. The single-piece construction eliminates the separate gasket or O-ring found in cheaper designs, simplifying replacement. For restorers and DIY owners who prioritize OE fit and long service life over absolute lowest cost, this socket represents the gold standard for threaded-mount applications.
What works
- Threaded mounting provides secure retention that resists vibration loosening
- Protective outer covering delivers exceptional moisture and corrosion resistance
- Engineering validation to GM thermal and durability standards
What doesn’t
- Single-unit package limits value for multi-socket replacements
- Candelabra base limits application range compared to wedge or bayonet designs
3. Tresound T10 W5W 194 LED Bulbs Sockets Pre-wired Connector (Pack of 5)
The Tresound T10 socket set delivers five pre-wired nylon harness assemblies that cover the most common wedge-base bulb sizes in a single purchase. Compatibility extends across the entire 168, 194, 2825, W5W, and 921 bulb family — the same footprint used in cab marker lights, side markers, license plate lamps, and interior dome lights on virtually every truck, SUV, and RV on the road. The nylon housing provides better heat resistance than the polypropylene used in budget sockets, reducing the risk of melting when used with higher-wattage incandescent bulbs.
Each socket arrives pre-wired with approximately 6 inches of 18 AWG wire, terminated with bare ends for splicing or crimp-connecting into your existing harness. The plug-and-play prep eliminates the need to extract and replace individual terminals from the factory connector. The wire color-coding (typically black for ground, white or red for positive) simplifies polarity matching, though the T10 base is non-polarized for most applications. Tresound’s quality control inspection includes continuity testing on every unit before packaging.
Owner feedback consistently notes the robust retention force of the wedge socket — bulbs insert with a firm click and do not loosen even under the vibration of heavy-duty diesel trucks. The 5-pack format makes this an economical choice for fleet maintenance or restoring multiple clearance lights simultaneously. For anyone retrofitting LED marker lamps that require a dedicated socket rather than the original twist-in base, this harness set provides a clean, professional solution.
What works
- Five-socket pack provides excellent value for multi-point replacements
- Nylon housing resists heat deformation better than standard plastic sockets
- Broad bulb compatibility covers 194, 168, W5W, 921 and many others
What doesn’t
- Bare wire ends require splicing or crimp connectors — no plug-and-play connector
- Universal design may need minor modification for some specific vehicle housings
4. Bstenky 6Pc BAY15D 1157 LED Light Bulb Socket Holder with Wire Connector
The Bstenky BAY15D socket pack addresses a specific but common need: replacing or extending the factory socket for dual-filament 1157 brake/tail bulbs that use the offset bayonet base. Unlike the symmetrical BA15D base, the BAY15D has one taller lug that forces correct polarity alignment — critical for LED conversions where reverse polarity can damage the bulb’s internal driver circuit. Each socket measures approximately 25.7mm in height with a bracket width of 35.2mm, matching the dimensions of most GM and Asian-market tail light housings.
The clip-on mounting design allows these sockets to snap into existing sheetmetal openings without threaded retainers or adhesives. The iron construction provides a rigid body that resists cracking during installation — a notable advantage over all-plastic holders that can split when pressed into tight housings. The 10cm wire leads offer sufficient length for splicing into the vehicle’s harness without excessive slack. Each socket is pre-tested for continuity and lug alignment before packaging.
Users running LED 1157 bulbs will appreciate that the BAY15D keying prevents the common mistake of installing the bulb 180 degrees out of phase, which causes the dimmer filament circuit to power the brighter brake circuit and vice versa. The 6-pack quantity makes this an affordable choice for restoring multiple trailers, classic cars, or fleet vehicles with uniform tail light configurations. For applications requiring only the socket body without wire, the terminals are accessible for re-pinning.
What works
- BAY15D offset keying prevents reverse polarity installation errors
- Clip-on mounting snaps securely into standard housing openings
- Rigid iron body resists cracking during press-fit installation
What doesn’t
- Short 10cm leads may require extension for some vehicle applications
- Iron construction adds weight and may corrode in coastal environments
5. NSLUMO H11 H8 880 881 Fog Light Wiring Harness for Toyota Tacoma w/ OEM Style Switch
The NSLUMO fog light harness delivers a complete wiring solution for adding factory-style fog lamps to 2005–2022 Toyota Tacoma models, integrating an OEM-style dashboard switch and a 40-amp relay that protects the vehicle’s electrical system from overload. Unlike generic universal harnesses that require cutting into the factory fuse box, this kit connects directly to the battery with an inline fuse holder and uses dedicated H11, H8, H9, 880, and 881-compatible sockets that match the most common fog light bulb families.
The copper-core conductors are insulated with PVC and cross-linked polyethylene, rated for the high underhood temperatures experienced during off-road use or stop-and-go driving. The 40A relay triggers from a low-current signal, allowing the switch to route through the factory dash opening without overheating the thin OEM switch wiring. The harness includes protective loom wrapping at potential chafe points, and the sockets feature a positive-lock tab that prevents bulbs from vibrating loose on rough trails.
Installation follows a straightforward layout: mount the relay near the battery, route the switch wire through the firewall grommet, connect the pre-wired sockets to the fog light housings, and plug into the bulb. The OEM-style switch fits into the factory blank plate on the dash, maintaining a clean, stock appearance. For Tacoma owners seeking a plug-and-play fog light upgrade without the dealer-installed harness cost, this kit provides all the necessary components in one package.
What works
- Complete kit includes relay, fuse, switch, and pre-wired sockets — no additional parts needed
- OEM-style switch integrates cleanly into factory dash blank location
- Copper core and PE insulation rated for high underhood temperatures
What doesn’t
- Specifically designed for Tacoma — fitment on other Toyota models may require modification
- H11/H8 socket configuration not compatible with 9006 or H7 bulb families
Hardware & Specs Guide
Base Type Identification
The bulb base determines socket compatibility. BA15D uses symmetrical bayonet lugs for single-filament bulbs. BAY15D has offset lugs for dual-filament 1157-style bulbs. T10/W5W uses a wedge base retained by friction. 3156/3157 uses a twist-lock collar with two flat pins. Matching the base type exactly prevents terminal damage and ensures correct polarity alignment.
Wire Gauge and Current Capacity
Factory lighting circuits typically use 18 AWG wire rated for 16 amps at 12 volts. Aftermarket sockets with 20 AWG or thinner wire create measurable voltage drop that dims bulb output. For fog light or high-beam circuits drawing 10+ amps, 16 AWG wire with a dedicated relay is recommended. Copper-core wire carries current more efficiently than copper-clad aluminum (CCA).
Terminal Material and Contact Retention
Phosphor bronze terminals maintain spring tension over tens of thousands of insertion cycles, while brass offers good conductivity with moderate retention. Steel terminals lose tension faster and can cause intermittent contact. Look for sockets with independent terminal retention fingers rather than stamped single-piece contacts, as these maintain consistent pressure as the socket ages.
Environmental Sealing and Corrosion Protection
Sockets exposed to road spray require sealed back ends where wires enter the housing. Dielectric grease applied to terminals before installation displaces moisture and prevents galvanic corrosion between dissimilar metals. Nylon and high-temperature thermoplastic housings resist UV degradation better than standard polypropylene. Threaded or bayonet-mount sockets with O-ring seals provide the best moisture barrier.
FAQ
What is the difference between BA15D and BAY15D sockets?
Can I use an LED bulb in any standard automotive socket?
How do I test if a bulb socket has lost its retention force?
Final Thoughts: The Verdict
For most buyers, the best automotive bulb sockets winner is the RED WOLF 3156 3157 Pre-Wired Harness because it combines copper-core conductors, broad GM truck compatibility, and tool-free installation into a package that outperforms both universal pigtails and dealer-priced OEM connectors. If you need a threaded-mount replacement with premium moisture sealing, grab the ACDelco Gold LS244. And for a complete Tacoma fog light upgrade with relay and OEM switch integration, nothing beats the NSLUMO H11 Harness Kit.
