When your ATV sinks hub-deep in muck halfway up a trail, the difference between a long hike out and a five-minute self-recovery comes down to one piece of gear: the winch. But not all winch kits deliver the same pulling confidence — line type, gear ratio, motor power, and waterproofing all determine whether your rig gets unstuck or whether the winch itself becomes the next thing that breaks. You need a kit built for the actual abuse of mud, creek crossings, and dead-weight pulls, not one that looks good in the box.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years digging through powertrain specs, gear reduction ratios, line-load testing data, and long-term owner feedback from serious off-roaders to separate the winch kits that hold up from those that fold under the first real load.
Whether you ride a midsize ATV or a heavy utility UTV, the right recovery gear keeps you moving. This guide breaks down the top-performing models on the market to help you find the atv winch kit that matches your machine, your terrain, and your budget.
How To Choose The Best ATV Winch Kit
An ATV winch kit is more than just a motor spinning a drum. You need to consider pulling capacity relative to your vehicle weight, line material, gear reduction, environmental sealing, and the controls that let you operate safely from a distance or from inside the cab. Here are the critical factors that separate a dependable trail-side tool from a frustration waiting to happen.
Pulling Capacity and Vehicle Weight
The golden rule is to select a winch with a rated line pull at least 1.5 times the gross vehicle weight of your loaded ATV or UTV. A 4500 lb winch comfortably handles most midsize ATVs and smaller UTVs, while a 6000 lb unit gives overhead margin for heavy utility machines or when you are pulling uphill through deep mud. Never guess — check your machine’s wet weight plus gear and cargo.
Synthetic Rope versus Steel Cable
Synthetic rope has become the default choice for serious off-road recovery. It is significantly lighter, floats, will not rust, and — most importantly — does not store dangerous kinetic energy if it snaps. Steel cable can kink, rust, and whip back with lethal force if it breaks under tension. Synthetic rope also spools more evenly on the drum and is far easier to handle with bare hands on the trail.
Gear Ratio and Line Speed
A three-stage planetary gear set with a ratio around 166:1 delivers a strong balance of pulling torque and acceptable line speed. Higher ratios like 200:1 or more produce immense pulling force but spool painfully slowly — fine for stationary pulls but frustrating when you need to reel rope back under no load. Motors in the 1.3 HP to 2.2 HP range paired with a 166:1 reduction provide the practical punch most ATV riders want.
Waterproofing and Environmental Sealing
Winches live on the front of your machine where they take direct hits from mud, rain, creek crossings, and pressure washers. Look for an IP67 or IP68 rating, which guarantees the motor, gear housing, and solenoid are sealed against dust ingress and water immersion. A winch without a genuine waterproof rating will corrode internally within one muddy season and fail exactly when you need it most.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| WARN VRX 45-S | Premium | Heavy recovery & wet conditions | 4500 lb / IP68 / 3-stage planetary | Amazon |
| WARN 101030 VRX 35-S | Premium | Smaller ATVs & snow plow duty | 3500 lb / IP68 / all-metal gears | Amazon |
| SuperATV 4500 Black Ops | Mid-Range | Complete kit for UTVs | 4500 lb / 166:1 / dash rocker switch | Amazon |
| SuperATV 3500 Black Ops | Mid-Range | Trail riding & light recovery | 3500 lb / 1.2 HP / synthetic rope | Amazon |
| OPENROAD 6000 | Mid-Range | Heavy UTVs & utility work | 6000 lb / 166:1 / 2.7 HP motor | Amazon |
| Rough Country 4500 ProSeries | Mid-Range | Mud & dust protection | 4500 lb / IP67 / 166:1 ratio | Amazon |
| OPENROAD 4500 | Value | Budget-conscious ATV riders | 4500 lb / 1.9 HP / wireless remote | Amazon |
| VIPER Midnight 4500 | Value | All-weather trail recovery | 4500 lb / IP68 / wireless remote | Amazon |
| VEVOR 4500 | Budget | Entry-level & light towing | 4500 lb / 2.2 HP / IP55 rating | Amazon |
In‑Depth Reviews
1. WARN VRX 45-S Powersport Winch
The WARN VRX 45-S sets the benchmark for reliability in powersport winching. Its IP68-rated sealed construction means every electrical component and gear cavity is fully protected against mud, rain, and complete water submersion — a crucial advantage when your winch spends half its life submerged in creek crossings. The 4,500 lb rated pull handles heavier UTVs and utility machines with authority, and the all-metal three-stage planetary gear train delivers smooth engagement without the plastic internals found in many budget kits.
Synthetic rope comes standard, reducing weight by several pounds compared to a steel equivalent and eliminating the rust and kinking issues that plague cable winches on salty or wet trails. The handlebar-mounted rocker switch gives you direct control while seated, and the mechanical load-holding brake keeps tension locked when you stop mid-pull. WARN backs the mechanical gear train with a limited lifetime warranty and the electrical system with one year — a reflection of the build quality that has defined this brand for decades.
Where the VRX 45-S demands a trade-off is the initial investment, which sits at the premium end of the market. You also need to purchase a vehicle-specific mounting plate separately, adding both cost and an extra step to installation. For riders who expect their recovery gear to last through years of hard trail use without failure, the price premium buys genuine peace of mind that cheaper kits simply cannot match.
What works
- True IP68 sealing for total water immersion protection
- All-metal planetary gear train with lifetime mechanical warranty
- Synthetic rope standard — lighter and safer than steel
- Mechanical brake holds load securely mid-pull
What doesn’t
- Premium price requires larger upfront commitment
- Mounting plate sold separately for most machines

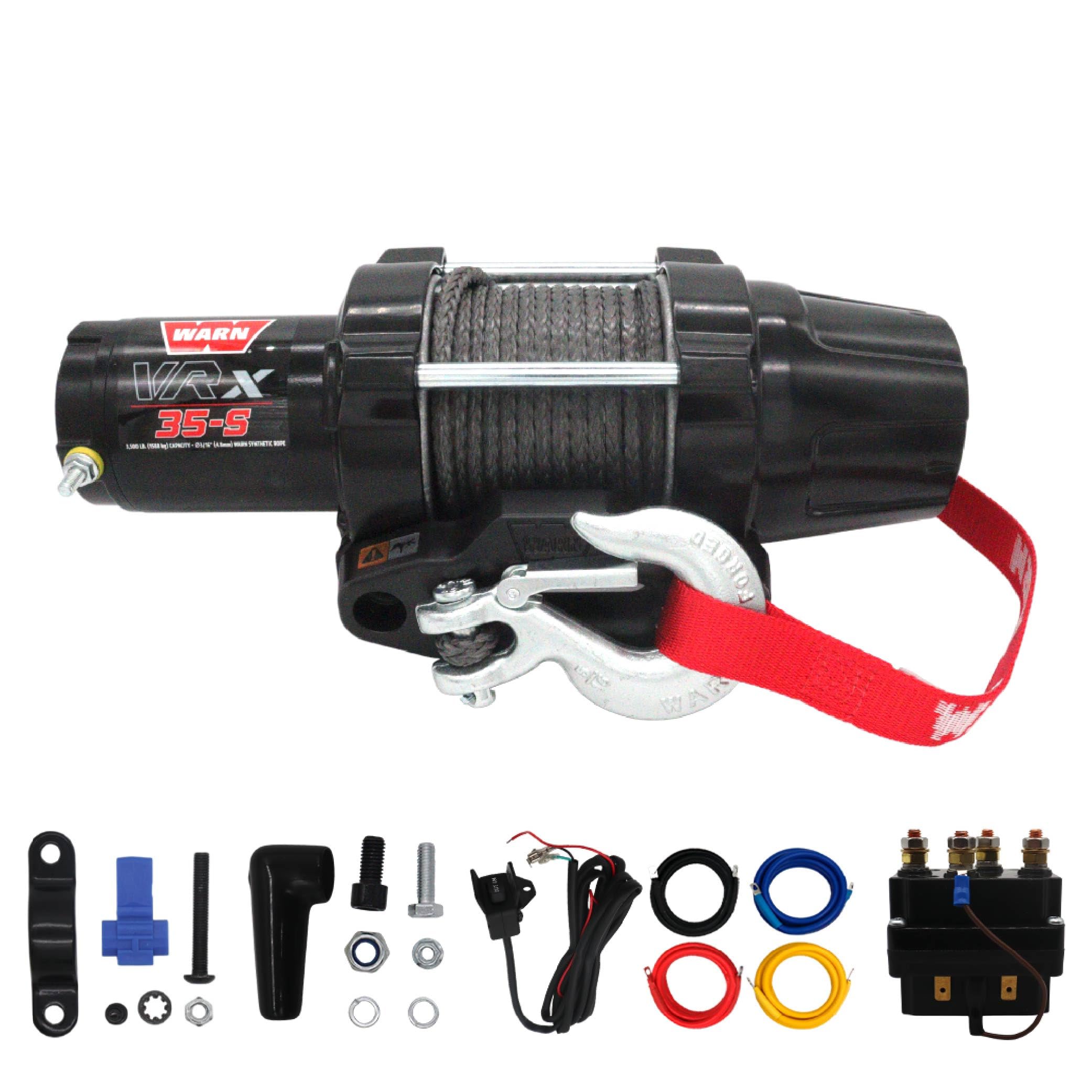

2. WARN 101030 VRX 35-S Powersport Winch
The VRX 35-S is the ideal match for smaller ATVs and quads that do not need the full 4,500 lb overhead but still demand the same WARN build quality. Rated at 3,500 lbs with a 1.75-ton capacity, this kit delivers plenty of headroom for machines in the 600 to 900 lb wet weight range. The IP68-rated waterproof housing is identical in construction to its larger sibling, so you get the same peace of mind when your front end disappears into a puddle.
The 50-foot synthetic rope with a 7/32-inch diameter spools easily on the compact drum, and the included aluminum hawse fairlead eliminates the friction and corrosion issues of a roller fairlead. All-metal three-stage planetary gears provide smooth engagement, and the powder-coated black finish resists trail rash and UV degradation. The handlebar-mounted rocker switch integrates cleanly with most ATV handlebar layouts, keeping your controls centralized.
Some users have noted that the included hawse fairlead is the larger 6-inch version intended for UTV bumpers, which may require a separate purchase of a narrower ATV fairlead for a flush fit on smaller front racks or brush guards. Additionally, at 3,500 lbs, this kit will feel underpowered if you ever upgrade to a heavy UTV or side-by-side. It is purpose-built for the lighter end of the powersport spectrum and excels there.
What works
- True IP68 sealing in a compact package
- All-metal construction with powder-coated finish
- Synthetic rope eliminates rust and kinking
- Mechanical brake provides safe load holding
What doesn’t
- Fairlead may be oversized for some ATV bumpers
- 3,500 lb capacity limits use with heavy UTVs
3. SuperATV 4500 lb Black Ops Winch Kit
The SuperATV 4500 Black Ops winch kit is a well-rounded package designed specifically for UTV and larger ATV applications. Its 1.3 HP permanent magnet DC motor combined with a 166:1 three-stage planetary gear ratio delivers a balance of pulling torque and line speed that works well for both quick recoveries and controlled loads. The synthetic 50-foot rope is standard, and the waterproof solenoid ensures the electrical heart of the system survives trail-side mud baths.
One of the strongest selling points is the completeness of the kit. SuperATV includes the wired dash rocker switch, aluminum hawse fairlead, fairlead support bracket, heavy-gauge extended wiring long enough for four-seat UTVs, and a hook pull strap. The automatic brake engages on the drum whenever the motor stops or a load is applied, so your vehicle stays put even on a slope mid-pull. Customer feedback highlights the fit on machines like the Polaris Ranger and Honda Pioneer, with repeat buyers praising the consistent performance over multiple seasons.
The downsides center on installation diligence. Some units arrive with screws slightly loose from shipping, so a full once-over with a T-handle and thread-locker before mounting is strongly recommended. A few owners have reported solenoid pairing issues with aftermarket wireless remotes, though the included wired remote works reliably. Also, SuperATV requires a separate mounting plate for most machines, adding cost and complexity to the install.
What works
- Complete kit with extended wiring for four-seat UTVs
- 166:1 gear ratio delivers strong pulling torque
- Waterproof solenoid protects electrical components
- Automatic brake holds load without operator input
What doesn’t
- Screws can loosen during shipping — thread-locker advised
- Mounting plate sold separately
- Wireless remote pairing can be finicky
4. SuperATV 3500 LB Black Ops Winch Kit
SuperATV’s 3500 lb Black Ops winch brings the same build philosophy as its 4500 lb sibling but in a smaller footprint that suits lightweight ATVs and trail machines where every pound counts. The 1.2 HP motor is adequately matched to machines weighing up to about 2,300 lbs gross, giving you a comfortable safety margin for light mud holes and slope recoveries. The synthetic rope is standard here too, and the aluminum hawse fairlead eliminates the wear issues associated with steel-on-steel roller fairleads.
The kit prioritizes simplicity. You get the winch, synthetic rope, a wired in-cab switch, and the fairlead hardware — no unnecessary extras that add cost or clutter. The sealed solenoid and motor housing provide basic water protection for trail riding in wet conditions, though you should avoid intentional deep submersion as the IP rating is not explicitly stated at the same level as WARN’s IP68 standard. Owners running light utility quads and youth ATVs report the 3,500 lb rating provides more than enough pull for daily trail use.
The primary limitation is the same as the larger Black Ops kit: you must purchase a SuperATV mounting plate separately for your specific machine. This adds roughly 20% to the total cost and requires verifying bolt pattern compatibility — the winch uses a 3.0 x 6.6 inch mounting pattern. For riders on a very tight budget, the plate expense may push the total past the price of a completely packaged budget kit with mounting hardware included.
What works
- Lightweight and compact — ideal for smaller ATVs
- Synthetic rope is easy to handle and won’t rust
- Direct bolt-on pattern with SuperATV plates
- Wired dash switch included for hands-free cab control
What doesn’t
- Mounting plate sold separately increases total cost
- No explicit IP waterproof rating stated
- 1.2 HP motor is underpowered for heavy UTVs
5. OPENROAD 6000 lbs UTV Winch
The OPENROAD 6000 lb winch is built for riders who need extra headroom for heavy utility UTVs, trailers, or implements. Its 2.0 kW / 2.7 HP permanent magnet motor paired with a 166:1 three-stage planetary gear drive produces substantial low-end torque for pulling loaded machines out of deep ruts. The 19.8 feet-per-minute no-load line speed is reasonable for a winch in this pulling class, though fully loaded speed drops to 2.9 feet per minute — slow and steady, but reliable.
The package includes two wireless remotes along with a wired remote, giving you redundancy if one remote battery dies on the trail. A mounting plate is included in the box, which eliminates the separate purchase hassle that plagues many premium kits. Owners of Honda Pioneer 1000-6 and Polaris General machines report smooth installation and strong performance in real recovery situations, with the synthetic rope handling abuse without fraying. The IP67 waterproofing on the solenoid provides genuine protection against rain and pressure washing.
The main drawbacks are size and weight. At 32.1 pounds and with dimensions that require a larger front bumper space, this winch will feel bulky on a standard ATV and is best suited to UTVs with dedicated winch mount space. The included mounting plate uses a specific bolt pattern (3-inch by 6-5/8 inch), so you should confirm your bumper or bracket matches before ordering. A few users have noted the wireless remote range is shorter than the advertised 50 feet in dense brush or when the receiver is behind the machine.
What works
- 2.7 HP motor delivers high pulling torque
- Mounting plate included — no extra purchase needed
- Two wireless remotes provide backup control
- IP67 solenoid holds up to mud and rain
What doesn’t
- Heavy and large — not ideal for standard ATVs
- Loaded line speed is very slow at 2.9 ft/min
- Wireless range can be shorter than spec in brush

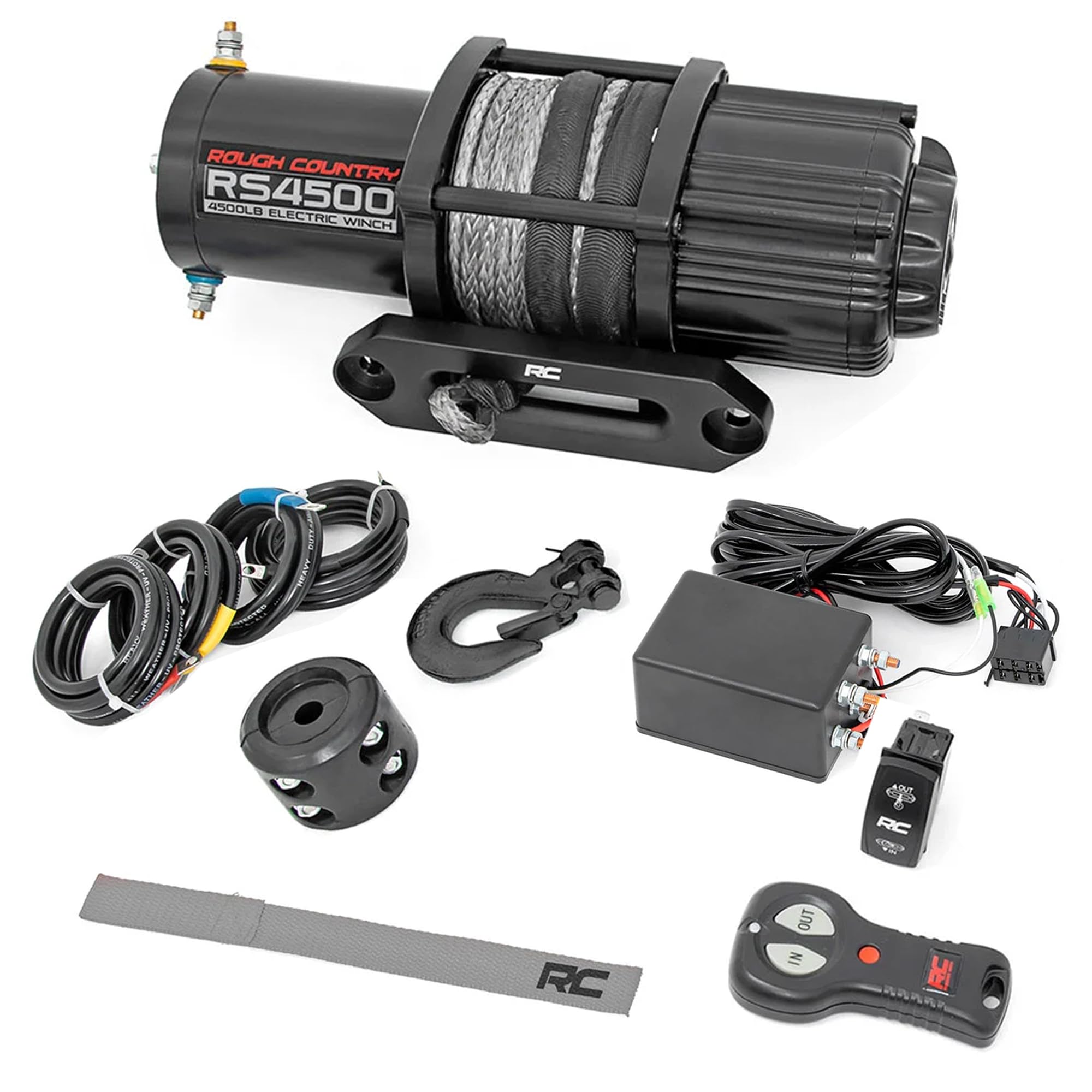

6. Rough Country 4,500 LB ProSeries Winch
Rough Country’s ProSeries 4,500 lb winch combines a proven brand name in off-road suspension and accessories with a strong mid-range winch package. The 1.4 HP motor driving a 166:1 planetary gear reduction gives it excellent pulling power for its size — capable of dragging a midsize UTV through thick mud without straining. The IP67 waterproof and dustproof rating ensures the motor, solenoid, and wiring loom survive repeated water crossings and trail grit.
The package includes a wireless remote, a dash-mounted rocker switch, and an automatic braking system for safe operation. The 50-foot synthetic rope is strong under tension and significantly safer than steel cable in the event of a break. Rough Country includes an aluminum hawse fairlead and clevis hook, so the kit is essentially complete out of the box for most UTVs. The heavy-gauge wiring extends far enough to reach batteries in four-seat machines, reducing the need for splice work during installation.
One area where the ProSeries trails premium competition is in overall fit and finish. A few early owners have reported minor cosmetic imperfections in the powder coating and slight play in the drum bushing that does not affect performance but reduces the precision feel. The wireless remote is functional but uses a basic fob design without a range indicator. For riders who want a solid, dependable winch from a major brand without paying WARN-level prices, this kit hits a comfortable sweet spot.
What works
- IP67 sealing provides genuine dust and water protection
- 166:1 gear ratio delivers strong pulling torque
- Complete kit with wireless and dash controls
- Heavy-gauge wiring long enough for four-seaters
What doesn’t
- Powder coating can show minor imperfections
- Drum bushing has slight play compared to premium builds
- Wireless remote is basic without range feedback
7. OPENROAD 4500 lb ATV/UTV Winch
The OPENROAD 4500 lb winch delivers impressive specs for its value tier, with a 1.3 kW / 1.9 HP permanent magnet motor driving a three-stage planetary transmission. The no-load line speed of 25 feet per minute is noticeably faster than many competitors in this pulling class, which makes re-spooling the synthetic line between recoveries much less tedious. The dynamic brake and all-weather sealed solenoid provide trail-ready protection against moisture and debris.
The kit comes with both wireless and wired remotes, giving you control options without extra purchases. The wireless remote pairs via a simple button-hold procedure and maintains connection up to 50 feet in open terrain. OPENROAD lists a comprehensive compatibility chart covering most Polaris, Can-Am, Honda, Kawasaki, and Yamaha UTV models, so fitment confidence is higher than with generic kits. The one-year warranty with lifetime technical support provides a solid safety net for budget-focused buyers.
The trade-offs are in refinement rather than capability. The mounting hardware uses standardized bolts that may need minor hole slotting to align with some machine-specific brackets. The synthetic rope does not include a rubber stopper or protective sleeve at the fairlead entry point, so careful winching technique is required to prevent rope abrasion against the fairlead edge. For ATV riders who want honest pulling power and a reasonable feature set without overspending, this is one of the strongest value plays in the 4,500 lb class.
What works
- Fast 25 ft/min no-load line speed saves re-spool time
- 1.9 HP motor provides strong pulling reserve
- Wireless and wired remotes both included
- Good machine compatibility across major UTV brands
What doesn’t
- Mounting hardware may need slight alignment adjustment
- No rope protection sleeve at fairlead entry
- Build finish lacks the polish of premium kits
8. VIPER Midnight 4500lb Winch
The VIPER Midnight 4500 lb winch, designed by MotoAlliance, has earned a reputation over several years as a budget option that punches above its weight class. The IP68 waterproof rating is a standout feature at this price level — most value-oriented winches offer IP55 or no rating at all, leaving them vulnerable to internal corrosion. The 1.8 HP motor paired with steel planetary gears provides reliable pulling force for mud recovery and rock crawling situations that would tax lesser units.
The wireless remote extends range up to 100 feet, which is double the typical distance of many competitors and allows you to operate from a safer vantage point during a high-tension pull. The kit also includes a second wired switch that can be dash-mounted or handlebar-mounted for quick access. MotoAlliance is a USA-based powersports company with over 20 years in the industry, and the customer support team is reachable by phone for installation and tech questions — a meaningful advantage over no-name imports.
Real-world owner feedback from five-plus years of use on Polaris RZR and Kawasaki Mule machines consistently reports the winch performing well through dozens of recovery cycles without failures. The primary complaints center on the instruction booklet, which reviewers describe as minimally translated and short on detail — you will likely need to reference wiring diagrams online. The included battery cables also run short on some large UTVs, requiring a separate purchase of longer gauge wire for four-seat chassis layouts.
What works
- IP68 waterproof rating rivals premium winches
- 100-foot wireless remote range is industry-leading
- USA-based company with phone tech support
- Steel planetary gears for long-term durability
What doesn’t
- Poorly translated instruction booklet
- Battery cables may be too short for large UTVs
- Wire boots missing for some connector pins
9. VEVOR 4500 lb ATV Winch
VEVOR’s 4500 lb winch enters the market as the most budget-oriented option in this comparison, and its headline spec — a 2.2 HP permanent magnet copper motor — is genuinely competitive with units that cost multiple times as much. The 128.2:1 gear ratio provides sufficient pulling torque for recovering a stuck ATV from deep mud or towing a disabled machine back to the trailer. The synthetic 12-strand HDPE rope with bright red markings on the final five wraps gives a clear visual warning when you are near the end of the spool.
The IP55 water resistance rating is the bare minimum for a winch that will see outdoor use. It can handle rain, mud splatter, and pressure washing at a distance, but it is not designed for creek crossings where the winch body becomes fully submerged. The inclusion of both wired and wireless controls adds convenience, and the wiring harness comes color-coded with labels to simplify installation. The matte black finish provides cosmetic corrosion resistance that helps the winch survive several seasons of trail use.
The compromises are predictable at this price point. The IP55 rating means you must take care to mount the solenoid in a location that avoids direct water spray, and the overall build quality — particularly the plastic end caps and lighter-duty fasteners — does not inspire the same confidence as WARN or SuperATV. If you ride exclusively in dry conditions or light mud and need a winch for occasional use on a utility quad or trailer, the VEVOR delivers functional recovery capability at the lowest entry point available.
What works
- 2.2 HP motor provides surprising pulling power for price
- Synthetic rope with visual wear indicators
- Both wireless and wired remotes included
- Color-coded wiring simplifies basic installation
What doesn’t
- IP55 rating limits deep water crossing capability
- Plastic end caps and fasteners feel less durable
- Gear ratio slower than premium competitors
Hardware & Specs Guide
Gear Ratio and Planetary Stage Count
The gear ratio determines the multiplication of motor torque at the drum. Most modern ATV winches use a three-stage planetary gear set with ratios between 128:1 and 166:1. A 166:1 ratio delivers roughly 30% more line pull than a 128:1 ratio with the same motor, but spools rope slower under no load. Three-stage designs are quieter and more efficient than two-stage or spur-gear alternatives, and they distribute load across multiple gear contact patches for longer life.
Motor Horsepower and Duty Cycle
Permanent magnet DC motors ranging from 1.2 HP to 2.7 HP power most ATV winches in the 3,500 to 6,000 lb class. Higher horsepower provides faster line speed and greater reserve torque for sustained pulls. However, no electric winch can run continuously — the duty cycle is typically 30 seconds of pulling followed by a 3-minute cooling period. Exceeding the duty cycle overheats the motor windings and can melt the plastic gear housing bushing. Always pause between pulls to let the motor cool.
FAQ
What size winch do I need for my ATV?
Is synthetic rope better than steel cable for an ATV winch?
What does IP67 or IP68 waterproof rating mean on a winch?
Can I install a winch on any ATV or UTV?
Why does my winch need a breaker or solenoid fuse?
Final Thoughts: The Verdict
For most buyers, the atv winch kit winner is the WARN VRX 45-S because its IP68 waterproof construction, all-metal planetary gears, and synthetic rope deliver genuine trail reliability that matches the premium price. If you want a complete kit with extended wiring and a strong 166:1 gear ratio, grab the SuperATV 4500 Black Ops. And for budget-conscious riders who still need IP68 protection and a 100-foot wireless range, nothing beats the VIPER Midnight 4500.
