An ATV receiver hitch adapter turns your utility machine into a true work platform — moving trailers, carrying cargo racks, or mounting a winch plate without permanent modifications. The wrong choice leads to sloppy fit, rattling connections, or capacity limits that fail when you need them most.
I’m Amir — the founder and writer behind Four Wheel Ask. I spend my time comparing build specs, analyzing owner feedback across dozens of models, and evaluating weld quality, material grades, and real-world fit data to separate the lasting designs from the disposable ones.
Whether you need to tow, haul, or mount accessories, choosing the right best atv receiver hitch adapter transforms your machine into a versatile workhorse for any job.
How To Choose The Best ATV Receiver Hitch Adapter
Selecting the right hitch adapter for your ATV or UTV requires matching mechanical specs to your actual use patterns. Capacity ratings, mounting geometry, and corrosion protection all play a role in long-term satisfaction.
Hitch Class and Towing Capacity
ATV hitch adapters are not rated under the same Class system as full-size truck hitches (Class I–V). Instead, each adapter lists a Gross Trailer Weight (GTW) and tongue weight (TW) limit. Compare these numbers against your machine’s own towing rating — overshooting the adapter capacity alone is pointless if the ATV frame or brakes cap lower. For heavy loads, look for adapters with GTW ratings above 3,000 pounds and welded, not bolted, ball mounts.
Receiver Tube Dimensions and Shank Fit
Standard ATV receivers use a 2-inch square tube opening, but the pin hole center-to-center distance differs from automotive hitches — 2-1/4 inches versus 2-1/2 inches. Some adapters are built specifically for ATV geometry and include a shorter shank to reduce lever arm stress. Measure your current receiver depth and pin hole alignment before ordering to avoid return hassles.
Material, Weld Quality, and Finish
Heat-treated carbon steel with a powder coat or matte black finish resists corrosion and maintains structural integrity under repeated load cycles. Inspect weld beads on the ball mount or winch plate — robotic welding with full penetration around the tube joint indicates a design that won’t separate at the seam. Avoid bare steel or thin-wall construction if you ride in wet or salty conditions.
Mounting Style and Suspension Compatibility
ATVs with independent rear suspension (IRS) often require a bracket-based adapter that bolts to the frame rather than sliding into a receiver tube. These kits use U-bolts or metal straps and must clear the swingarm and final drive access. For solid-axle machines, a standard receiver tube bolted or welded to the frame offers the simplest installation path.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Curt 45038 ATV Starter Kit | Complete Kit | All-in-one towing setup | 2″ ball, clevis pin, D-ring, 2″ receiver tube | Amazon |
| REDTEE Multi-Purpose Adjustable Hitch | Ball Mount | Dual-ball towing versatility | 1-7/8″ & 2″ balls, 5/8″ clevis hole, 5,000 lb GTW | Amazon |
| Guide Gear ATV Hitch Cargo Carrier | Cargo Rack | Hauling gear and supplies | 48″ x 19.25″ platform, 300 lb capacity | Amazon |
| Kolpin 85100 Universal IRS Hitch | Frame Mount | IRS ATV bolt-on receiver | 2″ receiver tube, U-bolt mounting, 12.8 oz | Amazon |
| TOPTOW Tri-Ball Hitch Mount | Multi-Ball | Multiple trailer ball sizes | 1-7/8″, 2″, 2-5/16″ balls, 10,000 lb shackle | Amazon |
| KFI Products 101280 ATV Hitch | Frame Mount | Direct-fit replacement hitch | 2″ receiver, U-bolt mount, 5.6 lb, painted finish | Amazon |
| Rigid Hitch ATV Winch Mounting Plate | Winch Plate | Winch mounting for 2″ receivers | 8-1/2″ x 5″ plate, 8mm grade 8 bolts, USA made | Amazon |
In‑Depth Reviews

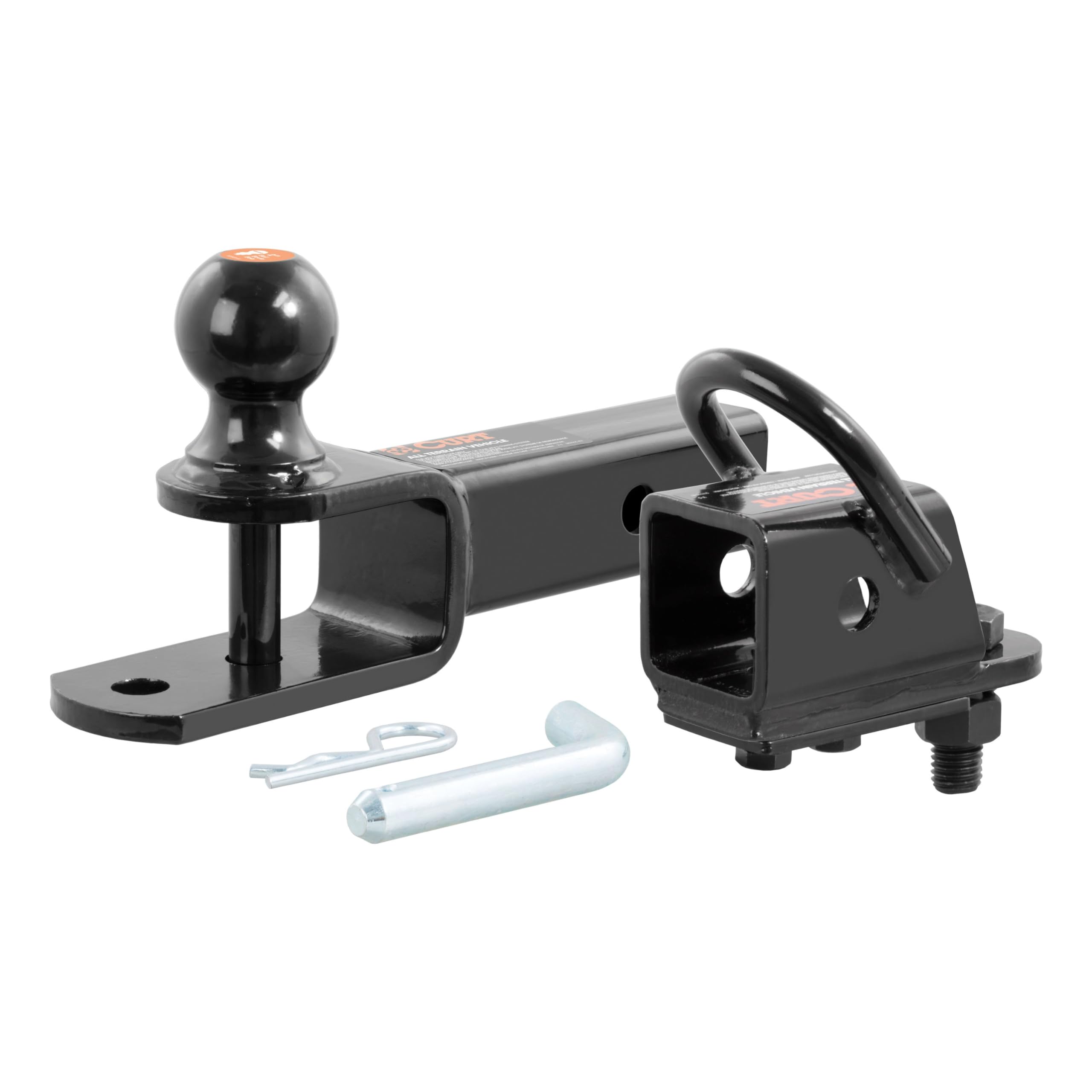

1. Curt 45038 ATV Starter Kit
The Curt 45038 bundles everything you need for basic ATV towing into a single, well-engineered package. It includes a 2-inch trailer ball, a clevis pin hole, a welded D-ring for tow straps, and a 2-inch receiver tube that bolts onto the ATV tongue. The gloss powder-coated carbon steel construction resists corrosion, and the no-swivel design keeps the coupling solid during turns.
Owner feedback consistently highlights the straightforward installation and the quality of the welds. Users on Honda Rancher and John Deere tractors report a secure fit with no rattling. The kit’s versatility — ball mount, clevis point, and recovery ring — makes it a complete solution for riders who want one adapter to cover trailers, straps, and hooks.
The limited lifetime warranty (one year on finish and parts) adds confidence. Some owners wish the ball mount didn’t rotate under heavy trailer tongue weight, but the no-swivel feature on the receiver side minimizes that issue. For a universal kit that works across ATVs, UTVs, and even lawn tractors, this is the most balanced option available.
What works
- Complete kit with ball, clevis, and D-ring
- No-swivel receiver for stable coupling
- Limited lifetime warranty backing
- Universal fit across ATV, UTV, and tractors
What doesn’t
- Ball mount can still rotate under extreme tongue loads
- May need shims for a perfectly tight receiver fit

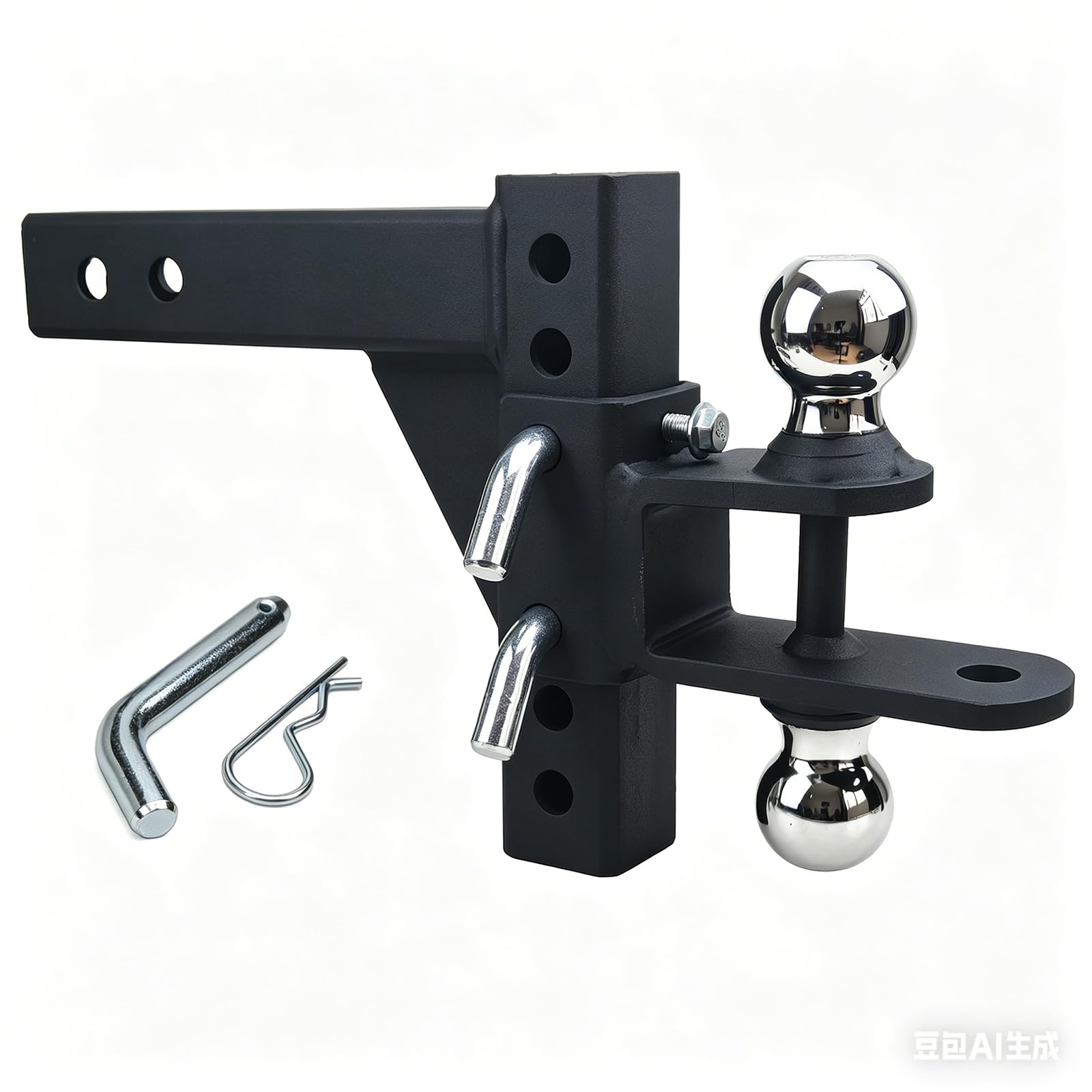

2. REDTEE Multi-Purpose Adjustable ATV/UTV Trailer Hitch Ball Mount
The REDTEE hitch offers two welded trailer balls — 1-7/8-inch rated at 2,000 pounds GTW and 2-inch rated at 5,000 pounds GTW — plus a 5/8-inch clevis pin hole for tow strap loops. The 2-inch square shank fits standard receivers, and the matte black powder coat over carbon steel provides corrosion resistance. Polished chrome plating on the balls reduces rust from road salt and moisture.
Reviews note that the adjustable-height design accommodates different trailer coupler heights, which is especially useful when switching between utility trailers and campers. The rounded shank slides easily into the receiver, and the included pin and clip secure installation without tools. Owners report stable towing with no noticeable wobble at moderate speeds.
A few buyers mention the welded balls are fixed position — you cannot swap to a different size ball if your trailer uses a non-standard coupler. The 5,000-pound GTW rating exceeds most ATV tow limits, so the adapter itself will not be the weak link in the system. For riders who tow multiple trailer types, the REDTEE delivers premium flexibility at a fair cost.
What works
- Dual ball sizes cover most trailer couplers
- Adjustable height matches varied trailer levels
- Chrome-plated balls resist corrosion well
- Tool-free installation with included pin and clip
What doesn’t
- Welded balls cannot be replaced individually
- No 1-1/2-inch ball for smaller lawn trailers
3. Guide Gear ATV Hitch Cargo Carrier Rack Mount
The Guide Gear cargo carrier transforms a 2-inch receiver into a flat hauling platform measuring 48 inches long by 19.25 inches wide. The 300-pound load capacity handles coolers, firewood, hunting gear, or contractor supplies. Side rails keep items secure and provide multiple tie-down points, while the 26.8-pound rack weight keeps the overall package manageable for one-person installation.
Assembly is straightforward — the steel tubing slides together with minimal hardware. Owners on UTVs and trucks report the rack sits level and stable once installed. The powder-coated finish resists scratches and corrosion from brush contact and rain. Several users mention using it on Cub Cadet UTVs and full-size SUVs, confirming the universal 2-inch receiver compatibility.
A small number of buyers experienced misaligned bolt holes on the back bar that required a ratchet strap to coax into alignment. Once assembled, the carrier held loads securely with no flex. If your primary need is hauling bulky items rather than towing trailers, this rack delivers exceptional utility at a budget-friendly investment.
What works
- Large 48-inch platform handles bulky loads
- 300-pound capacity suits heavy gear
- Side rails with tie-down points secure cargo
- Light enough for one-person assembly
What doesn’t
- Occasional hole misalignment during assembly
- Not designed for towing — cargo only
4. Kolpin 85100 Universal ATV IRS 2″ Receiver Hitch
The Kolpin 85100 is purpose-built for ATVs with independent rear suspension, using four U-bolts to clamp the receiver bracket to the frame. This design raises the receiver opening for improved ground clearance and reduces the risk of jack-knifing compared to factory hitches. The alloy steel construction with powder coat finish provides solid rust protection for trail use.
Installation on Yamaha Kodiak and Grizzly models takes roughly five minutes according to owner reports. The aftermarket fit often exceeds OEM hitch quality — users note better clearance and no more broken bolts from the original equipment. The raised receiver position also simplifies trailer hookup because the coupler sits higher off the ground.
A few owners point out that the hitch makes checking final drive fluid more difficult due to reduced access to the fill hole. Large-handed riders may find the space tight. The universal design works across many IRS models, but some Grizzly 660 owners needed minor modification for proper alignment. For IRS ATV owners wanting a rugged, clearance-friendly receiver, the Kolpin delivers a smartly designed solution.
What works
- Improved ground clearance over OEM hitches
- Reduces jack-knife tendency during turns
- Quick 5-minute U-bolt installation
- Sturdy welds with durable powder coat
What doesn’t
- Blocks final drive fill plug access
- May need modification for some Grizzly models
5. TOPTOW Trailer Hitch Tri-Ball Hitch Mount
The TOPTOW tri-ball mount integrates three hitch balls (1-7/8-inch, 2-inch, and 2-5/16-inch) plus a 3/4-inch tow shackle and a tactical recovery hook into a single 15.6-pound assembly. The 360-degree swivel base rotates to bring the correct ball into position, while the matte black heat-treated carbon steel construction withstands heavy loads. Capacity ratings range from 2,000 pounds on the smallest ball to 10,000 pounds on the shackle and hook.
Owners consistently praise the build quality and visual design. Robotic welding around the balls and swivel base ensures the joints remain sound under repeated use. The hollow shank measures 7-1/2 inches usable length with a 12-inch overall, fitting standard 2-inch receivers. Installation is straightforward — slide in and secure with a hitch pin.
The main limitation is clearance. One owner could not use this mount on a Ford Bronco because the spare tire interfered. On ATVs with limited rear space, the swivel mechanism and multiple balls may protrude further than a standard single-ball mount. For riders who tow varying trailer sizes and want recovery capability in one unit, the TOPTOW provides exceptional versatility.
What works
- Three ball sizes cover utility to heavy trailers
- Swivel base for quick ball changes
- Robotic welds with high structural integrity
- Integrated recovery shackle and tow hook
What doesn’t
- Large profile may contact spare tires
- Heavier than single-ball mounts
6. KFI Products 2″ ATV Receiver Hitch Rear 101280
The KFI 101280 is a no-nonsense frame-mount receiver hitch designed for ATVs with a painted carbon steel finish and U-bolt attachment. The 5.6-pound unit uses four U-bolts to clamp securely to the ATV frame, providing a standard 2-inch receiver opening for trailers, cargo carriers, or accessories. Manufactured in the United States, the hitch offers a cost-effective alternative to OEM branded options.
Installation feedback is overwhelmingly positive — owners report 5 to 15 minute fitment on Yamaha Grizzly 700, Kodiak 700, and Polaris models. The U-bolt design avoids metal band clamps that can damage frame tubes. Several users note the painted finish matches the stock appearance of their ATV and holds up well under normal trail conditions.
Fitment is not universal across all years and models. One owner found the 2006 Grizzly 660 required significant modification. Pre-running the bolts to clear paint from threads is recommended for smooth installation. For riders with compatible machines, the KFI delivers reliable performance at a budget-friendly entry point.
What works
- Quick 5-15 minute U-bolt installation
- Strong clamping without frame damage
- Made in the United States
- Affordable OEM alternative
What doesn’t
- Not compatible with all Grizzly model years
- Painted finish less durable than powder coat
7. Rigid Hitch ATV/UTV Winch Mounting Plate for 2 Inch Receivers
The Rigid Hitch winch mounting plate turns any 2-inch ATV receiver into a winch station. The plate measures 8-1/2 inches wide by 5 inches deep, fitting most standard winch footprints. It includes 8mm x 1.25 x 25mm grade 8 bolts with nylon lock nuts for the fairlead mount, plus a hitch pin and clip for receiver attachment. The alloy steel construction is powder coated for corrosion resistance, and the hollow 2-inch shank allows wiring pass-through.
Critical design detail: this plate uses the ATV-specific 2-1/4-inch pin hole spacing rather than the automotive 2-1/2-inch standard. Owners report perfect alignment on utility ATVs and UTVs. The plate accepts winches from Harbor Freight, Superwinch, and other major brands with matching bolt patterns. Welds appear strong with full penetration at the shank-to-plate joint.
A small number of users experienced a 1/4-inch misalignment with the pin hole, requiring minor grinding to fit. Made in the USA with domestic alloy steel, the build quality justifies the premium over imported alternatives. For ATV owners who need a portable winch solution that transfers between machines, the Rigid Hitch plate offers a purpose-engineered, heavy-duty answer.
What works
- ATV-specific pin spacing for proper fit
- Grade 8 hardware for fairlead mounting
- Made in the USA with quality steel
- Compact plate fits most winch footprints
What doesn’t
- Occasional pin hole misalignment
- Not compatible with automotive 2-1/2-inch receivers
Hardware & Specs Guide
Towing Capacity and Ball Sizes
ATV receiver hitch adapters carry gross trailer weight ratings from 2,000 pounds up to 10,000 pounds depending on the ball size and shank design. Smaller 1-7/8-inch balls typically max at 2,000 pounds GTW, while 2-inch balls support up to 6,000 pounds. The 2-5/16-inch balls on multi-ball mounts can reach 10,000 pounds, though the ATV itself usually caps below that. Always match the adapter rating to your machine’s tow limit, not the other way around.
Receiver Tube and Shank Dimensions
Standard ATV receivers use a 2-inch square tube opening with a pin hole center-to-center distance of 2-1/4 inches — different from the 2-1/2-inch automotive standard. Shank length typically ranges from 7 to 9 inches usable, with overall lengths around 12 inches. A shorter shank reduces the lever arm on the receiver and minimizes wobble. Measure your current receiver depth and pin spacing before ordering.
Finish and Corrosion Resistance
Powder coating and matte black finishes provide the best corrosion resistance for trail conditions. Chrome plating on ball surfaces resists rust from road salt and moisture. Painted finishes offer adequate protection for dry climates but may chip and rust faster in wet or salty environments. Heat-treated carbon steel with a corrosion-resistant coating handles repeated load cycles without fatigue.
Mounting Hardware and Installation
Frame-mount hitches use U-bolts or metal bands to clamp around the ATV frame. U-bolt designs distribute clamping force evenly and avoid frame damage. Receiver-mount adapters slide into the tube and secure with a hitch pin and clip. IRS-compatible brackets raise the receiver for better ground clearance. Most installations complete in under 30 minutes with basic hand tools.
FAQ
What size receiver does my ATV need?
Can I use a standard automotive hitch on my ATV?
How much weight can an ATV receiver hitch adapter hold?
Do I need special tools to install an ATV hitch adapter?
Final Thoughts: The Verdict
For most buyers, the best atv receiver hitch adapter winner is the Curt 45038 ATV Starter Kit because it bundles a ball mount, clevis pin, and D-ring into a single no-swivel package with limited lifetime warranty backing. If you want dual-ball versatility for different trailers, grab the REDTEE Multi-Purpose Adjustable Hitch. And for hauling bulky gear instead of towing, nothing beats the Guide Gear ATV Hitch Cargo Carrier with its 48-inch platform and 300-pound capacity.
