Deep mud, creek crossings, and relentless trail slop push your ATV’s cooling system to the limit. When the stock radiator sits low and forward, it packs with debris fast, sending your engine temperature needle into the red before you even realize there’s a problem. A relocation kit moves the radiator up and out of the firing line, letting air flow freely and keeping coolant temps where they belong.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years digging into ATV parts design, studying bracket geometry, material thickness, and hose routing patterns across dozens of aftermarket kits, and cross-referencing owner feedback to separate the bolt-on winners from the modified-to-fit headaches.
Not every relocation bracket delivers the same protection or ease of install. The difference between a clean afternoon project and a weekend of frustration comes down to steel gauge, powder-coat quality, and how well the mounting holes align with your frame. After analyzing build quality, fitment data, and owner feedback, I’ve identified the best atv radiator relocation kit for keeping your machine running cool in the nastiest conditions.
How To Choose The Best ATV Radiator Relocation Kit
Selecting the right relocation kit means looking past the photos and understanding how the bracket mounts, what it’s made of, and whether the hose routing actually keeps coolant flowing. The wrong choice can leave you stranded or force you to drill new holes in your frame.
Fitment and Model Specificity
Not all kits labeled for a brand will fit every year or trim. Manufacturers often change frame geometry, rack designs, and front-end plastic between model years. A kit designed for a 2018 machine may not clear the headlight housing on a 2022. Always cross-reference the part number with your exact year, engine size, and whether you have a metal or plastic front rack.
Bracket Material and Finish
Powder-coated steel provides the best balance of strength and corrosion resistance for the money. Look for at least 3/16-inch thickness on mounting plates. Thinner brackets can flex under trail vibration, leading to cracked hose fittings or misaligned fan clearance. Avoid kits that rely on zinc-plated hardware without anti-seize treatment in wet environments.
Hose Routing and Coolant Flow
A well-designed relocation kit keeps hose paths as short and straight as possible. Tight bends restrict flow and create air pockets that trap heat. Check whether the kit includes formed hoses or requires you to cut custom lengths. Factory-molded hoses reduce the chance of kinking compared to universal straight sections bent around frame tubes.
Hardware Quality and Instructions
Brackets only work when the hardware holds them tight. Kits with grade 8 bolts, stainless steel clamps, and nylon locking nuts hold up better over repeated heat cycles. Basic hardware that rusts or strips on the first removal turns a simple service job into a frustrating battle. Clear instructions with torque specs also separate the well-engineered kits from the rushed ones.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Wild Boar Can-Am | Relocation Kit | Can-Am Outlander 450/500/570 | Black powder coat, steel bracket | Amazon |
| Can‑Am OEM 715001930 | OEM Relocation | Factory-grade Can-Am Outlander | Engineered bleeding system, OEM fit | Amazon |
| Wild Boar Honda | Relocation Kit | Rancher 420 / Foreman 500 | Powder-coated steel, direct bolt-on | Amazon |
| KUAFU Polaris | Relocation Kit | Sportsman 400/450/500/570 | Metal construction, shock-resistant | Amazon |
| Wild Boar Suzuki | Relocation Kit | King Quad 500/700/750 | Black powder coat, heavy-duty steel | Amazon |
| SuperATV Winch Mount | Mounting Plate | Polaris winch mounting | 3/16 steel plate, dual bolt pattern | Amazon |
| WARN ZEON Pack | Control Relocation | WARN winch control pack | 31-inch harness, bracket included | Amazon |
In‑Depth Reviews
1. Wild Boar Radiator Relocation Kit for Can-Am Outlander 450/500/570
Wild Boar’s relocation kit for the Can-Am Outlander 450/500/570 range strikes a strong balance between price, construction quality, and ease of installation. Owners consistently report that the bracket aligns with factory mounting points without forcing or drilling, and the black powder-coat finish matches the look of OEM components. The steel construction provides the rigidity needed to keep the radiator stable during hard trail use.
Feedback from riders running 2022 models confirms that the kit includes all necessary hardware and fits both L-model and metal-rack variants. The hose routing positions the radiator high enough to clear mud buildup while still allowing access for routine cleaning. Several users noted that the fit and finish rival factory Can-Am parts at a more accessible price point.
The main areas of criticism center on the included hose fittings. A number of owners recommend replacing the plastic fittings with brass or galvanized alternatives before the first ride, as the stock fittings have been reported to blow off under pressure. This is a straightforward preventive swap that adds reliability to an otherwise well-engineered kit.
What works
- Bolts directly to frame without modification
- Durable powder-coat finish resists trail debris
- Clean design fits metal-rack Outlander models
What doesn’t
- Plastic hose fittings should be upgraded immediately
- Some hardware clamps reported bending on rough terrain
2. Can-Am New OEM Outlander Radiator Relocator Kit 715001930
When nothing less than factory engineering will do, the Can-Am OEM 715001930 kit delivers the most refined relocation solution for Outlander models. This is the same kit you would get from a Can-Am dealer, designed by the engineers who built the machine. Every bracket, hose, and clamp matches the frame geometry exactly, with no guesswork or trimming required.
The kit includes a purpose-engineered cooling system bleeding feature that simplifies air removal after installation. That detail saves significant time compared to aftermarket kits where burping the system can be tedious. Owners report that the kit arrives with everything needed and installs cleanly on 2023 850 models as well as earlier Outlander generations.
The premium investment reflects the fit-and-forget reliability of genuine OEM parts. Several buyers noted that ordering through this listing saved money compared to walking into a dealership. The trade-off is a higher entry cost, but for anyone planning to keep their machine for years and run serious mud, the factory-backed fitment eliminates variables that cheaper kits introduce.
What works
- Perfect OEM fitment without any modifications
- Engineered bleed system speeds up installation
- Includes all brackets and hardware from factory
What doesn’t
- Premium price limits it to committed Can-Am owners
- Digital instructions only — no paper manual included
3. Wild Boar Radiator Relocation Kit for Honda Rancher 420 & Foreman 500
For Honda Rancher 420 and Foreman 500 riders, this Wild Boar kit offers a straightforward way to move the radiator out of the mud zone without breaking the budget. Multiple verified buyers report that installation is quick and the bracket fits the Foreman 500 frame precisely. The black powder-coat finish blends well with the stock chassis appearance.
The kit’s simplicity is both its strength and its limitation. Owners who had a smooth install praised the direct bolt-on design and noted that the radiator stays clean even after deep water crossings. The lightweight construction at five pounds makes it easy to handle during installation, and the package dimensions are compact for shipping.
However, the most critical review highlights a hardware issue — missing or incorrect bolts in some shipments, plus instructions that are too basic to be helpful. One owner reported having to modify the bracket with different hardware to get a secure fit. This suggests that the kit benefits from a thorough inventory check before installation and a willingness to source your own grade 8 bolts if the included ones fall short.
What works
- Affordable entry point for Honda owners
- Simple bolt-on design for most models
- Lightweight and easy to handle during install
What doesn’t
- Hardware quality inconsistent across units
- Instructions are too sparse for first-timers

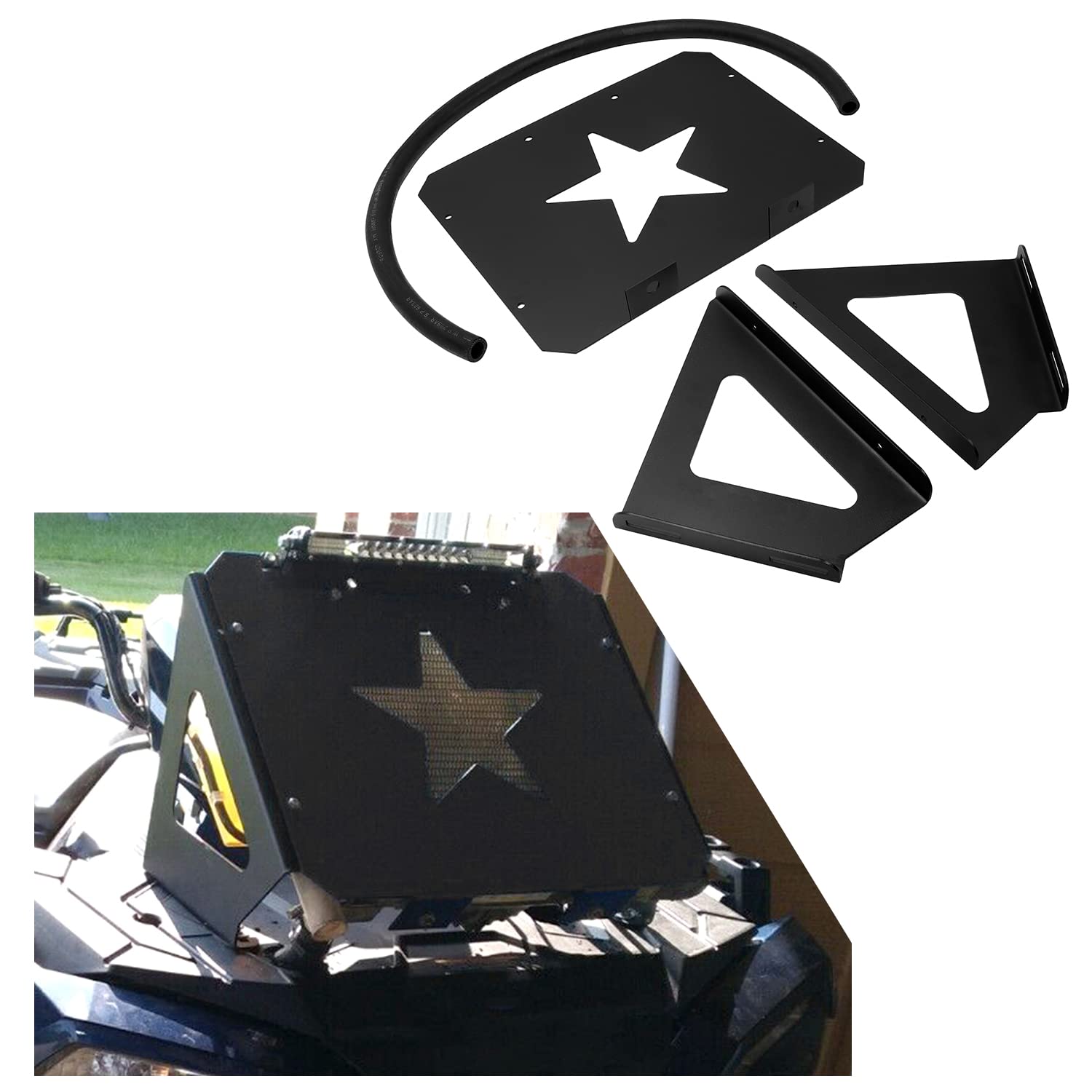

4. KUAFU Steel Radiator Relocation Kit for Polaris Sportsman 400/450/500/570
KUAFU’s steel relocation kit covers a wide swath of Polaris Sportsman models from 400 up to 570, spanning all years. The all-metal construction and powder-coated exterior give it a rugged feel that matches the demands of trail riding. At over 15 pounds, the kit has a solid presence that suggests durability rather than lightweight cost-cutting.
The design prioritizes direct replacement of the factory components, and the mounting points are engineered to align with the stock frame locations. The manufacturer emphasizes shock resistance and weatherproofing, which matters for riders who regularly push through rock gardens and creek beds. The dimensions indicate a front-mounted position that keeps the radiator protected behind the machine’s nose.
One consideration is the lack of verified owner feedback online. While the specifications look promising and the material choice is appropriate, the absence of long-term usage reports makes it harder to confirm the hardware quality and hose routing details. Buyers should plan to inspect every bolt and clamp before installation and ensure the kit matches their specific Sportsman variant.
What works
- Heavy-duty steel construction for durability
- Compatible with multiple Sportsman engine sizes
- Powder-coated finish resists trail corrosion
What doesn’t
- Limited user reviews to validate long-term fit
- Heavier than some competing steel brackets
5. Wild Boar Radiator Relocation Kit for Suzuki King Quad 500/700/750
Suzuki King Quad owners from 2005 onward have a dedicated relocation option with this Wild Boar kit. Designed specifically for the King Quad 700 and 750 models from 2005 through 2009, it provides the same powder-coated steel construction found in the brand’s other kits. The 14-pound weight indicates substantial steel thickness for long-term durability.
The kit focuses on moving the radiator away from the front-end mud accumulation zone that plagues King Quads in wet terrain. By repositioning the radiator higher, the kit allows airflow to remain unobstructed even when the front end is caked with trail debris. The design follows the same bracket-and-hardware approach as Wild Boar’s other offerings, which helps keep installation familiar for anyone who has worked on similar kits.
As with many Wild Boar products, the parts are built to a price that makes them accessible without feeling flimsy. That said, the same hardware caution applies — checking and potentially upgrading the included fittings and bolts before the first ride is a smart move. The kit has been on the market since 2014, so replacement parts and support are established.
What works
- Dedicated fitment for King Quad 500/700/750
- Substantial steel bracket with powder coating
- Moves radiator out of the primary mud zone
What doesn’t
- Limited to 2005-2009 King Quad models
- Hardware quality requires pre-install inspection
6. SuperATV Winch Mounting Plate for Polaris Models
While not a radiator relocation kit, the SuperATV winch mounting plate deserves attention from Polaris owners who are reorganizing their front-end layout. Made from 3/16-inch laser-cut and CNC-bent steel, this plate provides a secure anchor point for winches from 3500 to 6000 pounds. The dual bolt pattern accommodates Warn, Superwinch, and OEM winches, making it a versatile foundation for front-end accessories.
The powder-coat finish protects against corrosion, and the gusseted design adds strength where winch loads are highest. Installation uses the vehicle frame mount points and includes all required hardware. For riders planning a full front-end refresh that includes both winch and radiator repositioning, this plate coordinates well with other SuperATV components.
One fitment note — 2017 and later Polaris models require the 3500-pound winch configuration, so verify compatibility before purchasing. The plate weighs nine pounds and measures 16 by 12 inches, giving it a solid footprint. It solves the specific problem of finding a clean mounting point without drilling into the frame.
What works
- Thick 3/16 steel with gusseted reinforcement
- Dual bolt pattern fits multiple winch brands
- Powder-coated finish resists trail corrosion
What doesn’t
- Limited to 3500-lb winch on 2017+ Polaris
- Not a radiator relocation component
7. WARN 89970 ZEON Control Pack Relocation Kit
The WARN 89970 ZEON Control Pack Relocation Kit serves a different purpose — it moves the winch control pack to a remote location for better weight distribution and easier access. The 31-inch wiring harness and included mounting bracket allow you to reposition the control pack away from the winch drum, freeing up space around the front of the machine and protecting the electronics from mud and impact.
This kit is specifically designed for WARN ZEON winches and includes the short cable assembly with bracket. For installations that need a longer reach, WARN offers a separate long kit without the bracket. The plastic material on the control pack itself is weather-resistant, and the relocation keeps the solenoid and connections drier during deep water crossings.
While not a direct radiator relocation part, this kit complements a full front-end reorganization. Moving the winch control pack out of the way can create clearance for relocated radiators or auxiliary coolers. The four-pound weight and compact dimensions make it easy to mount in tight spaces. Buyers with non-WARN winches will need to verify compatibility before purchasing.
What works
- Frees up front-end space for other components
- Includes mounting bracket and 31-inch harness
- Protects control pack from mud and debris
What doesn’t
- Designed only for WARN ZEON winches
- Not a radiator relocation kit
Hardware & Specs Guide
Bracket Material and Thickness
The foundation of any relocation kit is the bracket itself. Powder-coated steel in the 3/16-inch to 1/4-inch range provides the best combination of strength, weight, and corrosion resistance. Thinner brackets can flex under trail vibration, while thicker ones add unnecessary weight without meaningful strength gains. Look for laser-cut or CNC-bent construction for precise mounting hole alignment.
Powder-Coat vs. Paint Finishes
Powder-coat finishes bond at the molecular level, creating a surface that resists chipping from gravel impact and peeling from pressure washing. Painted brackets may look similar at first but often fail after a season of mud and thermal cycling. Quality powder-coat also improves corrosion resistance around bolt holes and weld joints, where rust typically starts.
Hose Routing and Fitting Quality
Short, straight hose paths minimize flow restriction and reduce the chance of air pockets. Kits that use pre-formed hoses are less likely to kink than those requiring custom-cut universal sections. The fittings themselves should be brass, galvanized steel, or stainless steel — plastic barb fittings can soften under heat and blow off under coolant pressure.
Hardware Grades and Fastener Types
Grade 8 bolts provide higher tensile strength than standard hardware and resist stretching under thermal expansion. Nylon locking nuts prevent vibration-induced loosening, and stainless steel clamps hold hoses securely without corroding. Kits that skimp on hardware often cause the most post-installation headaches, so a pre-install hardware upgrade is a cheap insurance policy.
FAQ
Why would I need to relocate my ATV radiator?
Will a relocation kit fit my specific ATV model?
Is installation of a relocation kit a DIY job?
Can I use my existing radiator with a relocation kit?
Will relocating the radiator affect my ATV’s cooling performance?
Final Thoughts: The Verdict
For most buyers, the best atv radiator relocation kit winner is the Wild Boar Can-Am Outlander kit because it delivers model-specific fitment, durable steel construction, and proven owner satisfaction at a reasonable investment. If you want the absolute best factory-engineered solution, grab the Can-Am OEM 715001930. And for a budget-friendly Honda Rancher or Foreman option, nothing beats the value of the Wild Boar Honda Rancher/Foreman kit.
