A failing alternator bracket introduces more than just a rattle under the hood — it throws belt tension off, robs charging output, and can leave you stranded without warning. Choosing a replacement means navigating material grades, bolt patterns, and mounting configurations that vary widely across engine families.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing aftermarket automotive hardware, comparing metallurgy data, fitment tolerances, and long-term owner feedback to separate parts that hold up from those that don’t.
When your bracket fails, finding the best alternator mounting bracket means prioritizing material quality and precise fitment over the lowest upfront cost.
How To Choose The Best Alternator Mounting Bracket
An alternator bracket is a simple part with a critical job — it holds the alternator at the correct height and angle for proper belt alignment while resisting engine vibration and thermal cycling. Choosing the wrong one leads to belt slip, premature alternator bearing wear, or broken ears on the alternator case itself.
Material & Build Quality
Stamped steel brackets are the OE standard on many older platforms — they work but corrode over time and can fatigue at the mounting ears. Billet aluminum brackets offer superior stiffness-to-weight ratios, resist corrosion, and often include machined slots for precise belt tensioning without relying on a separate tensioner pulley. For high-mileage daily drivers or performance builds, billet is the safer long-term investment.
Vehicle-Specific Fitment vs Universal Kits
Some brackets are designed for a narrow range of OEM applications (Honda V6, Chevy small block) and bolt directly to factory accessory mounts. Others are universal or swap-oriented, requiring you to drill, tap, or use adapter spacers. Always verify the clocking position — the alternator must clear the water pump, intake manifold, and frame rail while keeping the belt within the plane of the crank pulley.
Tensioning Design
Fixed brackets rely on a separate tensioner pulley or a slotted adjustment arm. Integrated slotted brackets let you tension the belt by rotating the alternator itself — simpler and lighter, but you lose the damping a separate tensioner provides. For serpentine conversions with a single belt driving multiple accessories, a dedicated tensioner is strongly recommended regardless of bracket style.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ICT Billet 551672E | Billet Aluminum | SBC Long Water Pump V-Belt | Slotted tension design, 36.5″ belt | Amazon |
| RJSPHH LS Serpentine Kit | Conversion Set | LS Swap Serpentine System | Anodized aluminum, PS pump included | Amazon |
| ICT Billet 551667-2 | Factory Low Mount | 98-02 Camaro / Firebird LS1 | Aerospace billet, driver side low | Amazon |
| Distance Powersports 0052-001 | Heavy Duty Stay | Honda / Acura 3.0L-3.5L V6 | OEM fit, includes 3 bolts | Amazon |
| Spectre Performance 47293 | Chrome Plated Steel | SBC 283-350 Show / Street | Triple chrome, two-piece set | Amazon |
| Dorman 926-099 | OEM Replacement | Acura / Honda 4-Cylinder | Alloy steel, 3″ depth | Amazon |
| TEANTECH SBC Bracket | Polished Aluminum | SBC 350 Budget Build | Polished billet, integrated turnbuckle | Amazon |
In‑Depth Reviews
1. ICT Billet SBC Alternator Bracket 551672E
This ICT Billet bracket replaces the stamped steel factory unit that often becomes unusable when you switch to an electric water pump. Machined from aerospace-grade billet aluminum in Wichita, Kansas, it offers substantially higher stiffness and corrosion resistance than any pressed metal alternative on the market.
The slotted tension design allows you to rotate the alternator for precise belt tension without needing a separate idler pulley. It is engineered specifically for V-belt systems on Chevrolet small blocks with a long water pump, using a 36.5-inch belt with factory-size pulleys — a configuration that has proven reliable across thousands of street and strip builds.
All necessary mounting bolts and hardware are included in the kit, so there are no last-minute trips to the hardware store. The satin finish is understated but durable, and the entire assembly stays rigid under sustained high-RPM operation — something the thin steel brackets simply cannot match.
What works
- American-made aerospace billet aluminum construction
- Slotted tensioner eliminates separate idler pulley
- Includes all hardware for bolt-on installation
What doesn’t
- Designed for electric water pump only — not for stock pump setups
- V-belt specific, not compatible with serpentine conversions
2. RJSPHH LS Engine Serpentine Bracket Set
This complete serpentine conversion bracket set from RJSPHH is designed for Chevrolet LS engines — including LS1, LS2, LS3, LS6, LS7, and truck/SUV blocks from 4.8L to 6.2L. It relocates the power steering pump closer to the block and rotates the alternator 180 degrees for a cleaner layout that clears most aftermarket LS intake manifolds.
The brackets are made from high-quality aluminum with a black anodized finish that resists corrosion, fading, and aging far better than painted steel. The set organizes the entire front accessory drive into a single serpentine system, reducing the number of belts and simplifying the swap process for engine conversions.
Fitment data shows consistent alignment across multiple LS variants, though some builders have noted that belt routing may require a custom-length belt depending on the specific balancer and pulley combination used. The 1-year warranty provides a safety net for first-time swappers.
What works
- Complete serpentine conversion with alternator and PS pump brackets
- Fits a wide range of LS displacements from 4.8L to 6.2L
- Anodized finish resists corrosion and looks clean in the bay
What doesn’t
- Belt length may vary — not a one-size-fits-all routing
- Some users report needing minor clearancing on certain intake combos
3. ICT Billet LS1 Camaro Low Mount Bracket 551667-2
This ICT Billet bracket mounts the alternator low on the driver side of 1998-2002 Camaro and Firebird LS1 engines, restoring a factory-style appearance while freeing up space on the passenger side. It is machined from aerospace-grade billet aluminum in Wichita, Kansas, and designed to use existing holes in aluminum LS blocks for a truly bolt-on installation.
Owners of iron-block LS engines will need to use the drill guide (sold separately) to tap the boss on the outer edge of the block — a one-time modification that adds about twenty minutes to the install. The bracket is intended for alternator-only setups with no power steering, so a belt-pulley kit is required to complete the front accessory drive.
This kit fits truck and 98-02 Camaro alternators with the standard bolt pattern. Corvette, CTS-V, and 2010-up Camaro alternators use a larger pattern and will require the adapter — a detail worth verifying before ordering. The natural aluminum finish blends well with raw engine blocks.
What works
- Precise low-mount position for cleaner engine bay layout
- American-made aerospace billet holds alignment at high RPM
- Bolt-on for aluminum LS blocks with no drilling
What doesn’t
- Iron block users must drill and tap — drill guide sold separately
- No power steering provision — requires separate PS bracket

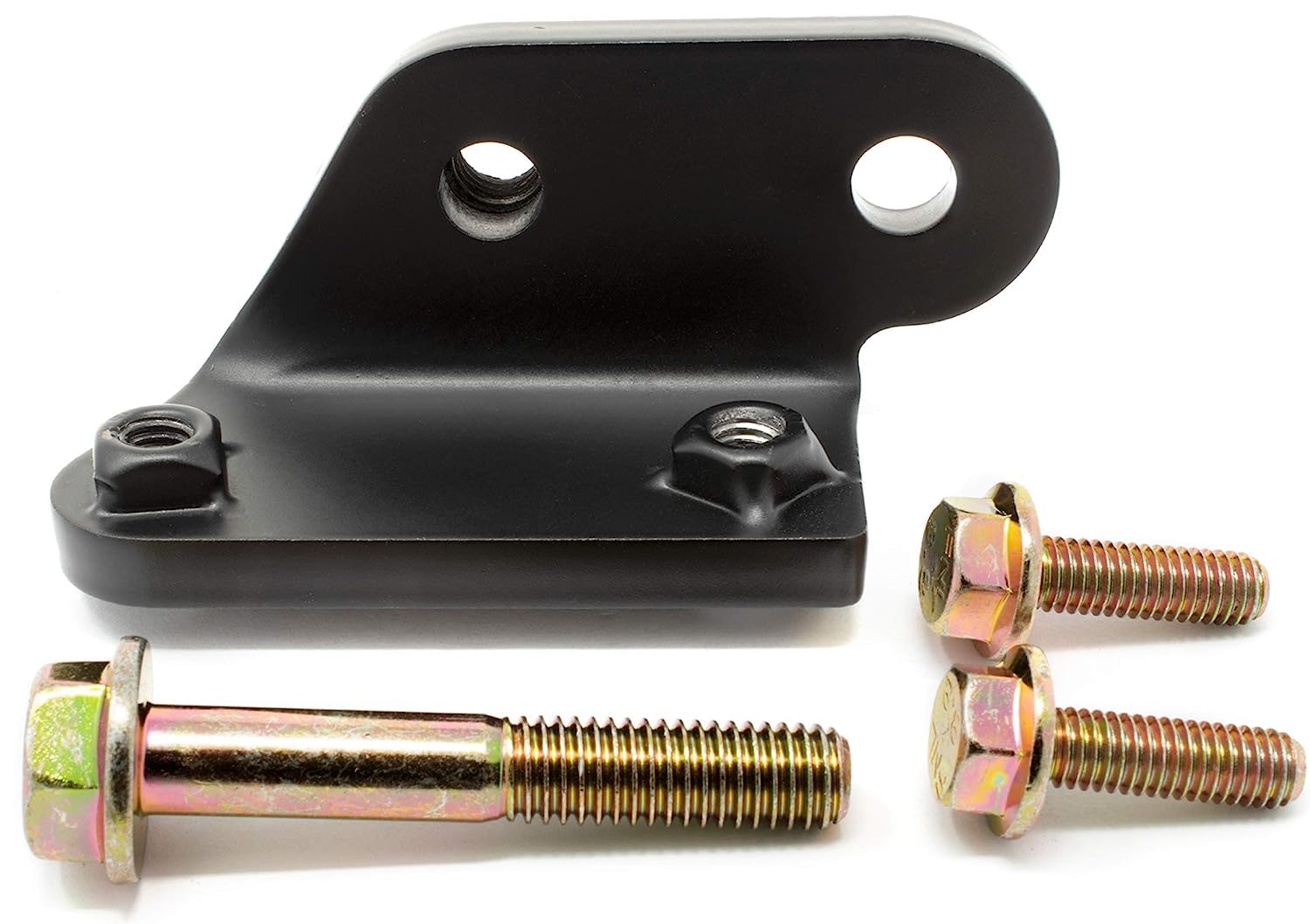

4. Distance Powersports 0052-001 Heavy-Duty Bracket Stay
This heavy-duty alternator bracket stay from Distance Powersports is purpose-built for 1997-2004 Honda and Acura V6 engines in the 3.0L, 3.2L, and 3.5L families. It replaces the factory stay bracket that commonly cracks or fatigues over time, especially on higher-mileage vehicles where chassis flex puts additional stress on the accessory mount.
The bracket is designed as a direct OEM-fit replacement — it matches the original dimensions and bolt spacing exactly, so no modification or adapters are needed. Three bolts are included in the package, which eliminates the common frustration of reusing corroded factory hardware that may snap during reassembly.
Owner reports indicate a noticeable reduction in alternator wobble and belt squeal after installation, particularly on vehicles with over 100,000 miles. The sturdy construction feels substantially more rigid than the factory pressed-metal stay, though it is not compatible with engine swaps or non-OEM accessory configurations.
What works
- Direct OEM replacement — no modification required
- Includes all three mounting bolts in the kit
- Reduces alternator vibration and belt noise on high-mileage cars
What doesn’t
- Limited to specific Honda/Acura V6 applications only
- Not designed for high-performance or modified engine setups
5. Spectre Performance 47293 Alternator Bracket Kit
Spectre Performance brings a vintage aesthetic to this two-piece alternator bracket set designed for 1969-1986 small block Chevrolet engines with long water pumps. The triple chrome plating delivers a mirror-like finish that complements show cars, street rods, and resto-mod builds where engine bay appearance matters as much as function.
The two-piece design separates the upper and lower bracket sections, allowing independent adjustment for belt alignment. All necessary mounting hardware is included in the kit, so you can bolt it directly to the cylinder head and water pump without sourcing extra fasteners.
While the chrome finish is visually striking, it is worth noting that the brackets are made from steel rather than aluminum, making them heavier than billet alternatives. The 3-month warranty is shorter than what most premium brackets carry, but for a part primarily aimed at low-mileage show vehicles, the trade-off in weight and coverage is acceptable.
What works
- Triple chrome plating offers excellent corrosion resistance and shine
- Two-piece design enables fine belt alignment adjustment
- Hardware included — no additional purchases needed
What doesn’t
- Steel construction adds weight compared to billet aluminum
- Limited 3-month warranty may not suit long-term daily drivers

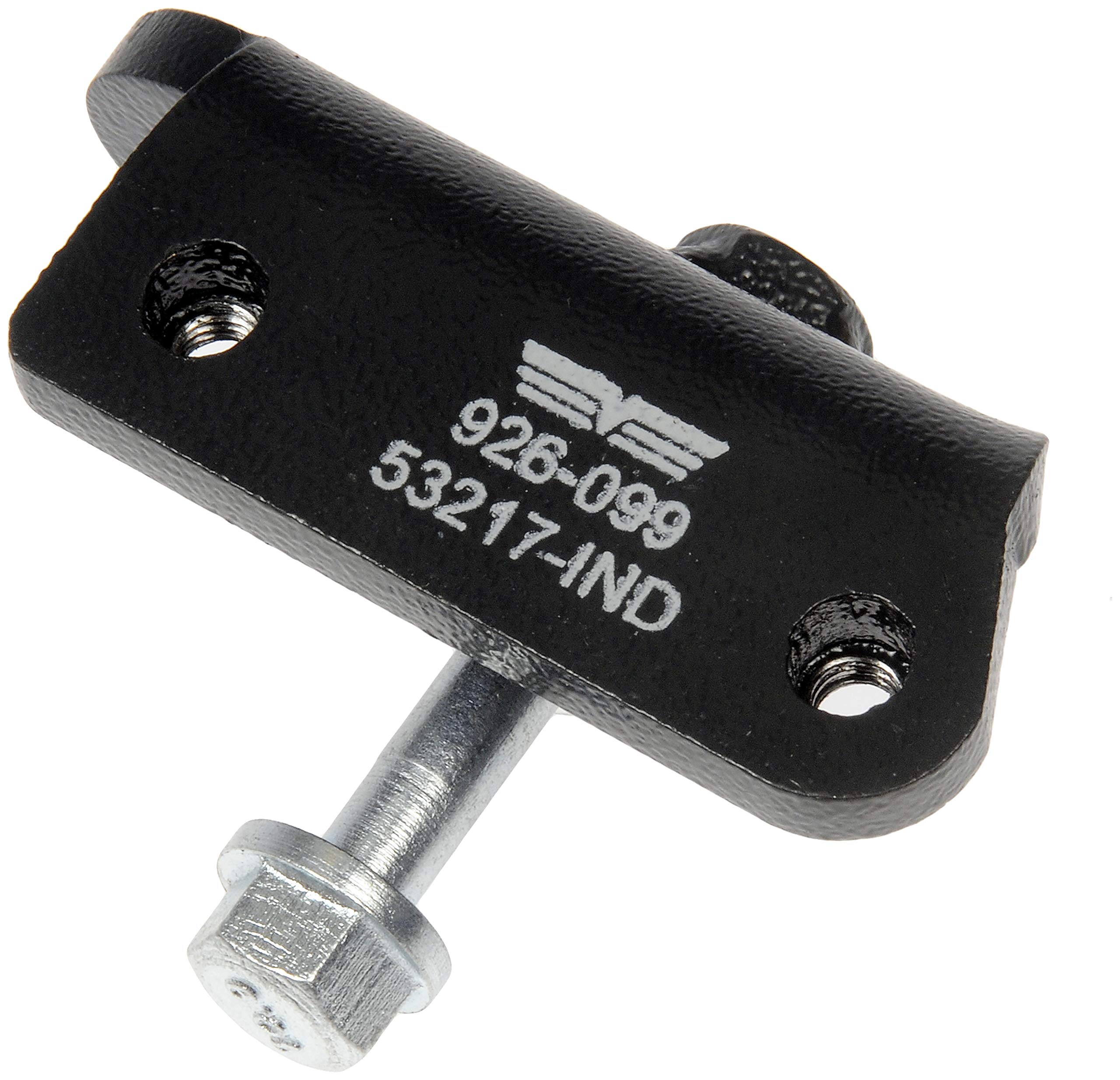

6. Dorman 926-099 Alternator Stay Bracket
Dorman’s 926-099 alternator stay bracket is a direct OEM replacement for select Acura and Honda models, engineered to match the fit and function of the original factory part. It is constructed from a blend of alloy steel and carbon steel, finished in black to resist underhood corrosion and blend with surrounding components.
The bracket comes as a single stay with one bolt, covering the lower support position for the alternator on compatible four-cylinder applications. Dorman backs this part with over a century of automotive experience and a team of product experts in the United States, making it a safe choice for owners who want a no-surprises replacement.
Fitment verification is straightforward — using the Amazon garage tool with your vehicle’s make, model, and trim confirms compatibility before purchase. The compact 3-inch depth makes it easy to install in tight engine bays, though the steel construction means it will not offer the weight savings of an aluminum upgrade.
What works
- Direct fit for specific Acura/Honda models — no guesswork
- Durable alloy and carbon steel construction with black finish
- Backed by Dorman’s long-standing automotive reputation
What doesn’t
- Steel construction is heavier than aluminum alternatives
- Application range is narrow — verify fitment before buying
7. TEANTECH SBC Alternator Bracket Kit (Polished)
This TEANTECH bracket kit brings polished billet aluminum to budget-conscious small block Chevy builders. It is designed for 350 engines with long water pumps and mounts the alternator on the upper passenger side using a 90-degree water supply fitting for clearance.
The bracket integrates a turnbuckle-style tensioner that keeps the V-belt tight without requiring a separate idler pulley. The polished chrome surface resists fading and staining while adding visual appeal to the front of the engine — a detail that matters on open-engine builds or show cars.
Compatibility extends to serpentine or V-belt applications, though the turnbuckle design is best suited to V-belt systems where belt stretch is more predictable. Some users have noted that the mounting holes require careful alignment during installation, and the included instructions are minimal, so prior small block experience helps.
What works
- Polished billet aluminum at an accessible price point
- Integrated turnbuckle tensioner keeps the V-belt secure
- Compatible with both V-belt and serpentine pulley setups
What doesn’t
- Minimal instructions — installation requires mechanical familiarity
- Mounting hole alignment can be fussy on some engine blocks
Hardware & Specs Guide
Material Types: Steel vs. Billet Aluminum
Stamped steel brackets are cost-effective and match OEM geometry but are prone to corrosion, fatigue cracking, and weight penalties. Billet aluminum brackets are CNC-machined from solid stock, offering higher stiffness, lower weight, and better corrosion resistance. For daily-driven vehicles subject to thermal cycling and vibration, billet aluminum provides a measurable reliability advantage that justifies the higher upfront cost.
Mounting Configurations & Belt Systems
V-belt systems use a single-groove belt and rely on the bracket or a separate tensioner for proper belt tension. Serpentine systems use a multi-rib belt routed around several accessories — the bracket must position the alternator precisely within the belt plane to avoid edge wear and noise. When performing a serpentine conversion, ensure the bracket kit includes all necessary spacers and aligns with your specific crankshaft balancer and water pump pulley combination.
FAQ
Can I use a V-belt alternator bracket with a serpentine belt system?
How do I know which alternator clocking position I need?
Do aftermarket alternator brackets require drilling into the engine block?
Final Thoughts: The Verdict
For most buyers, the best alternator mounting bracket winner is the ICT Billet 551672E because it combines American-made aerospace billet aluminum with a practical slotted tension design that works flawlessly on small block Chevy V-belt applications. If you need a complete serpentine conversion for an LS swap, grab the RJSPHH LS Serpentine Kit. And for a direct OEM replacement on Honda or Acura V6 vehicles, nothing beats the straightforward fit of the Distance Powersports 0052-001.
