A loose front end, wandering steering, or a persistent clunk over bumps all point to the same culprit: worn ball joints. These pivoting links connect your control arms to the steering knuckles, and when the factory clearances open up, alignment goes out the window and tire wear accelerates. Replacing them with quality aftermarket parts restores the tight, predictable feel you expect from a well-maintained vehicle.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach to aftermarket suspension components relies on cross-referencing OEM engineering specs, analyzing material composition and seal design data, and aggregating thousands of verified owner feedback reports to separate parts that merely fit from those that genuinely endure.
The aftermarket landscape offers everything from budget-friendly rebuilds to heavy-duty chromoly upgrades, and choosing incorrectly can lead to premature wear or safety issues. After analyzing thousands of owner reports and suspension specs, I’ve identified the best aftermarket ball joints that restore steering precision and eliminate premature wear.
How To Choose The Best Aftermarket Ball Joints
Selecting the right ball joint goes beyond matching a part number. The stud material, seal type, greaseability, and the joint’s load rating all determine how long the component will hold up under your driving conditions. A joint that works fine on a pavement-only commuter may fail quickly on a heavy truck used for towing or off-road duty.
Stud Material and Heat Treatment
The ball stud is the most stressed part of the joint. Most OE-spec replacements use SAE 1045 or 1541 steel with case hardening. Premium aftermarket joints often upgrade to SAE 4140 chromoly steel with through-hardening, which offers substantially higher tensile strength and fatigue resistance. Heat treating depth matters: shallow case hardening can wear through on high-load applications, leading to stud separation.
Greaseable Versus Sealed Designs
Sealed (non-greaseable) joints are maintenance-free but cannot be flushed of contaminants once the boot admits moisture or grit. Greaseable joints with a Zerk fitting let you purge old grease and water regularly, extending service life significantly. However, the grease channel can create a stress riser in the stud if not properly machined — a detail that separates quality designs from cheap knockoffs.
Press-Fit Tolerances and Spline Engagement
A ball joint that fits loosely in the control arm bore will spin or walk out of position, destroying the joint and the arm. Quality aftermarket parts control the outer housing OD to tight tolerances and may feature knurled or grooved splines that lock into the knuckle or arm. Minimal installation force with no slop after pressing indicates correct bore fitment.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Rough Country 10642 | Premium | Jeep TJ/XJ/YJ/ZJ off-road | Chromoly stud, polyurethane boot | Amazon |
| MOOG K6696 | Mid-Range | Chevy/GMC truck steering | Greaseable, heat-treated stud | Amazon |
| DV8 Offroad D-JKBLJNT-01 | Premium | Jeep JK heavy-duty use | SAE 4140 chromoly, greaseable | Amazon |
| Metrix 98830MT | Mid-Range | Kia/Hyundai minivan/SUV | Pre-greased, IATF certified | Amazon |
| ILONPA BUCT0013S | Premium | GM 1500 truck front end | Forged control arms w/ joints | Amazon |
| labwork 10pc Kit | Mid-Range | Santa Fe/Sorento full rebuild | Complete suspension kit | Amazon |
| KDSA K6694 K6711 | Mid-Range | Chevy/GMC van 2500-4500 | 4-piece upper/lower set | Amazon |
| ILONPA BUCT0015S | Premium | GM 1500 full front rebuild | 13pc kit w/ control arms | Amazon |
| DHA PSA053 | Tool | DIY press-fit installation | 10pc heavy-duty press kit | Amazon |
| A-Premium APCA2889 | Budget | VW/Audi daily driver | Pre-greased, alloy steel | Amazon |
| HHCM K500062 | Budget | Toyota/Lexus/Scion family | 2pc front lower kit | Amazon |
In-Depth Reviews
1. Rough Country Heavy Duty Replacement Ball Joints for Jeep TJ/XJ/YJ/ZJ – 10642
Rough Country’s 10642 kit delivers a one-piece set of four ball joints — two upper and two lower — engineered for Dana 30 and Dana 44 axles found in classic Jeeps. The studs are machined from chromoly steel, a material choice that significantly raises the tensile strength ceiling compared to the SAE 1541 blanks used in most OE-grade replacements. The polyurethane dust boots resist tearing from trail debris far better than standard rubber, and the metal-on-metal joint design includes a documented break-in period of 100 to 500 miles during which steering return-to-center may feel heavier.
Owner feedback over multiple years of use on TJ, XJ, YJ, and ZJ platforms indicates these joints effectively cure death wobble when paired with a properly maintained steering linkage. The fitment into Dana 30 and 44 knuckles is tight, requiring a press for installation and typically some persuasion to remove the old joints. Several users note that installing the grease fittings immediately after pressing the joints into the knuckle is critical, as clearance becomes extremely tight once the steering knuckle is reassembled.
Rough Country backs this kit with a limited lifetime replacement warranty, which adds a layer of confidence for off-road buyers who expect to punish their front end. The main trade-off is the break-in period, which can feel unsettling for drivers accustomed to immediate self-centering behavior. Once bedded in, the steering feel is notably tighter than factory, with no perceptible slop even after thousands of miles of mixed driving.
What works
- Chromoly studs offer exceptional strength for off-road loads
- Polyurethane boots resist tearing from debris better than rubber
- Lifetime replacement warranty covers long-term ownership
- Direct fit for Dana 30 and 44 axles with no modifications
What doesn’t
- 100-500 mile break-in period with heavy steering feel
- Grease fittings must be installed before full assembly
- Metal-on-metal design produces more initial friction than sealed joints
2. MOOG Steering Drag Link – Heavy Duty Ball Joint for Chevrolet Silverado – K6696
MOOG’s K6696 is a front drag link ball joint designed primarily for Chevrolet Silverado and GMC Sierra trucks, though its compatibility extends across multiple GM full-size platforms. The stud is heat-treated and features a metal bearing support system that distributes load across a wider surface area, reducing point stresses that cause premature wear. A greaseable design with a pressed cover plate allows periodic lubrication to flush contaminants, and the anti-corrosion treatment on the housing adds resistance against road salt and moisture intrusion.
Installation reports from owners of 2000-2006 GM trucks show that the K6696 matches factory bore tolerances closely, requiring moderate press force without excessive slop after seating. The castle nut thread specification is consistent with OEM, allowing reuse of factory cotter pins. Users on Suburban 2500 and Silverado 1500 platforms report that the joint restored like-new steering feel, eliminating the wandering sensation that develops as factory joints accumulate mileage.
Long-term feedback spanning multiple years indicates that regular greasing every oil change extends service life well beyond sealed OE joints, with many owners reporting 60,000 to 80,000 miles before any perceptible looseness returns. The joint’s pressed cover plate design does require careful alignment during installation to avoid binding, but the precision tolerances mitigate this risk for DIY installers using a proper ball joint press.
What works
- Greaseable design extends life with routine maintenance
- Heat-treated stud resists fatigue in heavy truck applications
- Precision tolerances for accurate steering alignment
- Proven 60K+ mile service life in real-world use
What doesn’t
- Pressed cover plate requires careful alignment during install
- Not designed for extreme off-road or lifted applications

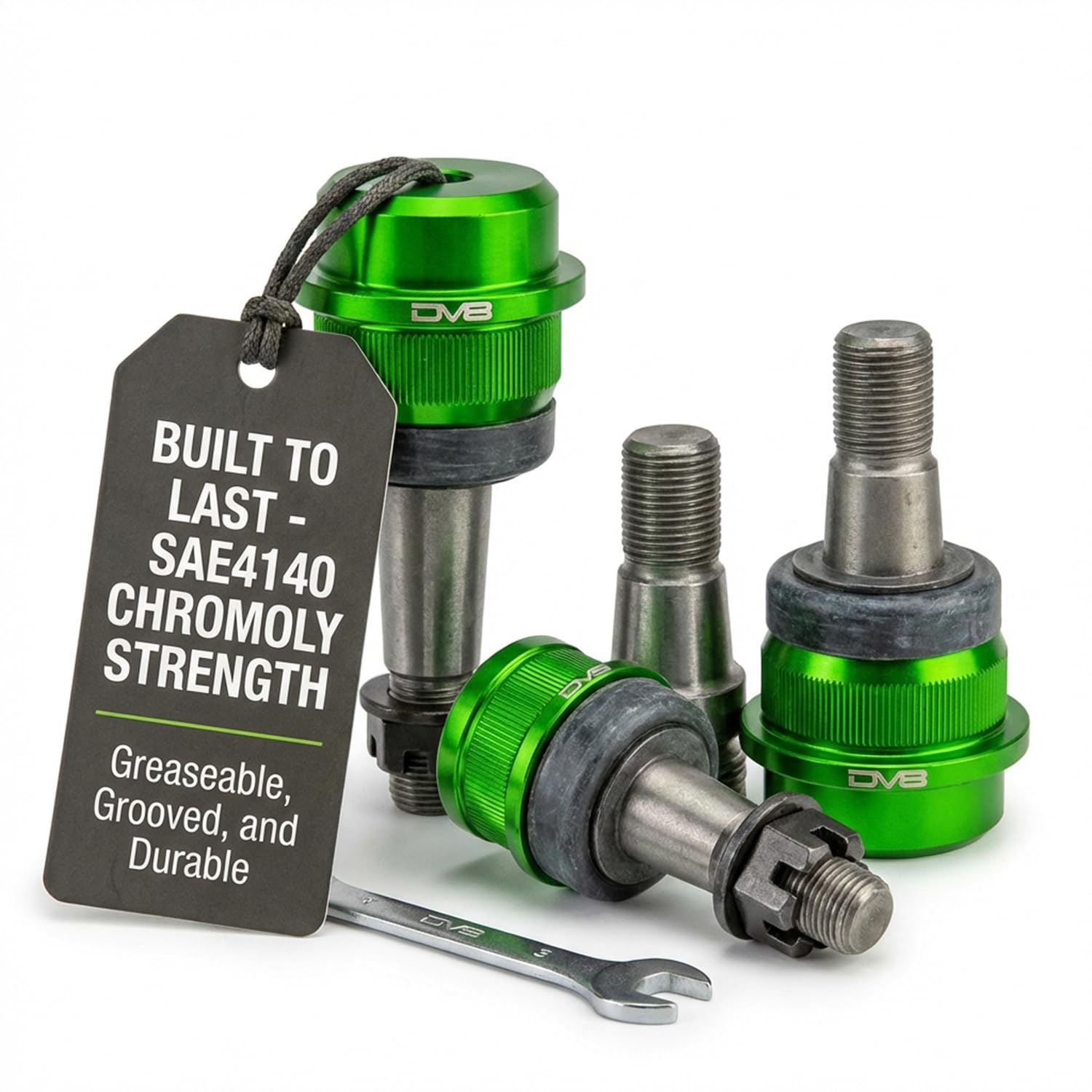

3. DV8 Offroad Upgraded Ball Joint Set for Jeep Wrangler JK 2007-2018 – D-JKBLJNT-01
DV8 Offroad’s D-JKBLJNT-01 is a complete front upper and lower ball joint kit for Jeep Wrangler JK models from 2007 to 2018, engineered for Dana 30 and Dana 44 axles. The studs are machined from SAE 4140 chromoly steel with through-heat treatment, a significant upgrade over the case-hardened lower-grade steels found in budget replacements. The housings use SAE 1045 steel with aggressively machined grooved splines that bite into the knuckle bore, addressing the common JK complaint of housing spin-out under load.
Owner reports from JK owners running 35-inch tires and one-ton steering conversions indicate that these joints maintain zero perceptible slop even after extended trail abuse. The integrated Zerk fittings allow regular grease flushing, which is critical for off-road vehicles that frequently submerge the front axle in water and mud. Several users with over a year of daily driving and weekend wheeling report no degradation in steering feel, suggesting the chromoly stud and hardened housing combination resists the brunt forces that cause faster wear in OE-grade joints.
Installation requires a standard ball joint press and takes roughly two to four hours for a complete front axle overhaul. The kit includes all four joints and necessary hardware, with no additional parts required. The main consideration is that the aggressive spline design can make removal more difficult if the joints ever need replacement, but this is a deliberate trade-off for the security of knowing the housing will not spin in service.
What works
- SAE 4140 chromoly studs provide superior tensile and fatigue strength
- Grooved splines lock housing securely in knuckle bore
- Greaseable design with Zerk fittings extends service life
- Proven reliability under 35-inch tires and heavy steering loads
What doesn’t
- Aggressive splines make future removal more difficult
- Premium pricing reflects the upgraded material specification
4. Metrix Premium Chassis Parts 2 PC Front Lower Ball Joint Kit K500073
Metrix’s K500073 front lower ball joint kit covers Kia Sedona, Hyundai Entourage, and Hyundai Veracruz models with a design philosophy focused on exceeding OEM specifications rather than simply matching them. The joints are manufactured in Europe under IATF 16949 and ISO 9001 certification, which imposes stricter process controls on material consistency, heat treatment, and final inspection than typical aftermarket production. The housing is precision-machined steel, and each joint arrives pre-greased for immediate installation.
Fitment data from owners of the compatible vehicles indicates that the K500073 joints press into the control arm bores with minimal resistance and achieve full seating without excessive force. The pre-greased design eliminates the step of packing the joint before installation, reducing the chance of contamination during assembly. Several owners who replaced worn factory joints at around 80,000 miles reported that the Metrix joints restored factory-level steering precision with no perceptible play after the first alignment.
The three-year or 36,000-mile limited warranty provides a meaningful safety net for a component that typically sees wear over a similar interval. The main limitation is the relatively narrow vehicle application range, but for owners of these specific Kia and Hyundai models, the Metrix kit offers a compelling blend of manufacturing quality assurance and real-world fitment consistency that budget alternatives often lack.
What works
- IATF 16949 and ISO 9001 certified manufacturing
- Pre-greased for clean, ready-to-install assembly
- 3-year / 36,000-mile limited warranty
- European production with tight process controls
What doesn’t
- Narrow vehicle fitment coverage
- Sealed design lacks grease fittings for extended service
5. ILONPA Front Upper Control Arms Forged Steel with Lower Ball Joints Suspension Kit for Chevy GMC Silverado Suburban Sierra 1500 (4pc Set)
ILONPA’s BUCT0013S combines two forged steel upper control arms with two lower ball joints into a single front suspension kit for GM 1500 trucks and SUVs from 2007 to 2014. The upper control arms are constructed from forged alloy steel rather than stamped or aluminum alternatives, which provides a higher strength-to-weight ratio and better resistance to flex under load. The lower ball joints included in the kit are designed as direct replacements for the factory units, with OEM-equivalent part numbers K80669, K80670, and K6541.
Owner feedback from Silverado 1500, Tahoe, and Yukon applications highlights that the forged arms eliminate the bushing compliance that develops in stamped factory arms over time. The pre-installed ball joints on the upper arms save significant labor time compared to pressing separate joints into reused arms. However, one critical owner report documented a lower ball joint stud snapping after only two weeks of use, which raises concerns about material consistency or heat treatment quality on some production batches.
Fitment notes specify compatibility only with forged steel spindle configurations, not stamped steel or aluminum setups, so verifying your truck’s front knuckle material before ordering is essential. The kit’s value proposition is strong for a complete front suspension refresh, as the forged arms alone often cost more individually at local parts suppliers.
What works
- Forged steel upper arms eliminate bushing compliance
- Pre-installed ball joints save installation labor
- Complete kit for front suspension overhaul
- Strong value versus individual part purchases
What doesn’t
- Not compatible with stamped or aluminum spindles
- Isolated report of premature lower joint failure

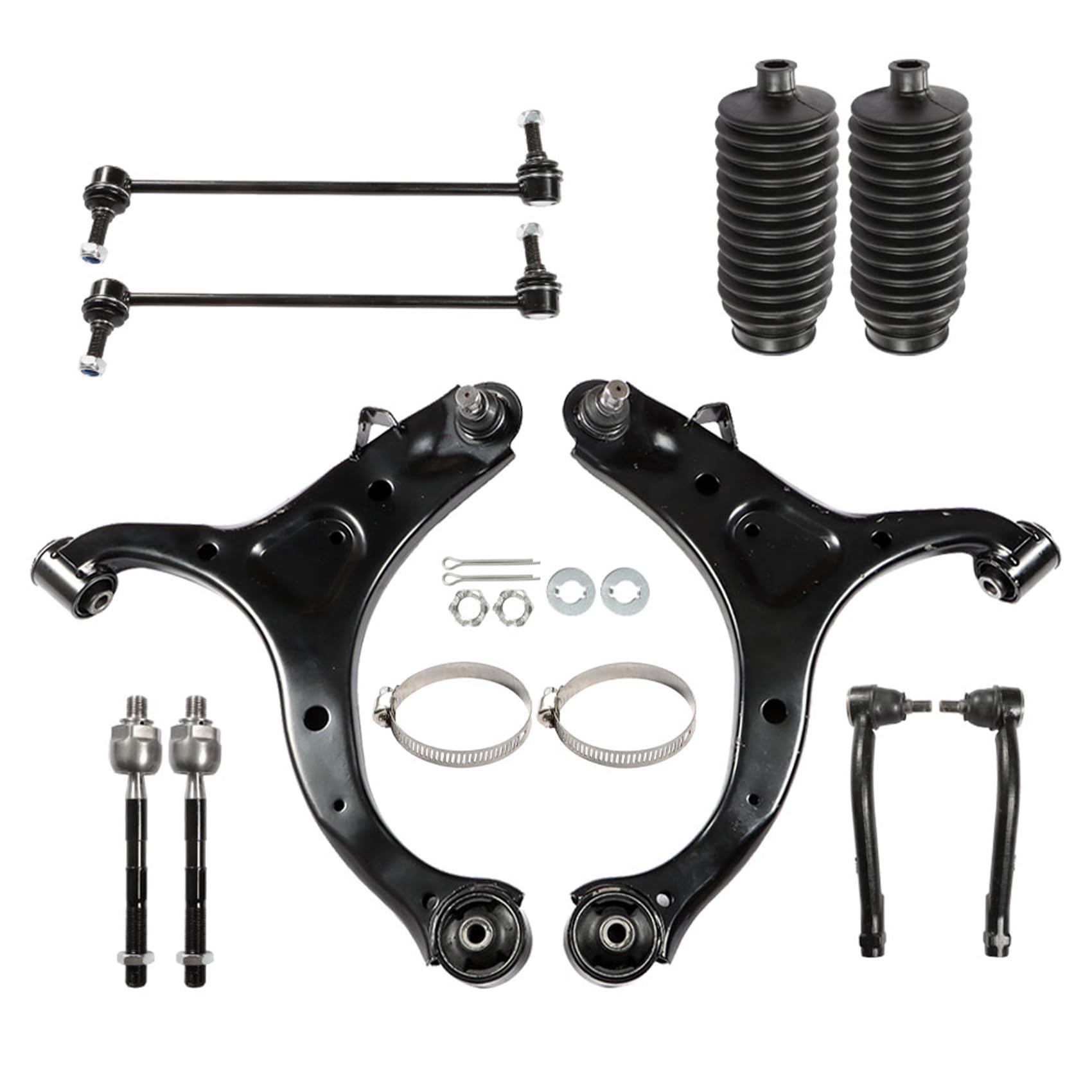

6. labwork 10Pc Front Suspension Kit Front Lower Control Arms Ball Joint Assembly for Santa Fe 2007-2012
The labwork 10-piece front suspension kit provides a comprehensive refresh for Hyundai Santa Fe 2007-2012 and Kia Sorento 2011-2013 models. The kit includes front lower control arms with ball joints pre-installed, tie rod ends, and sway bar links — everything needed to restore the front end without pressing individual components. The ball joints are housed in the control arm assembly, eliminating the risk of bore damage that can occur when hammering or pressing separate joints into worn arms.
Installation experiences shared by owners indicate that the complete kit reduces total labor time significantly, as the control arms with pre-loaded ball joints bolt directly into the chassis without the need for a press. One detailed account from a 2013 Kia owner noted that the inner tie rod boots were slightly shorter than the factory boots, requiring reuse of the original boots, but all other components fit correctly and eliminated front-end noise and tire wear issues.
Quality assessments from mechanics who installed the kit on customer vehicles describe the metal thickness and bushing durometer as consistent with mid-range aftermarket standards. The 90-day manufacturer warranty is shorter than some competitors, but the convenience of a single kit containing all front suspension wear items makes this an attractive option for DIY owners aiming to restore a worn Santa Fe or Sorento without multiple orders.
What works
- Complete 10-piece kit replaces all front wear items
- Pre-installed ball joints save pressing labor
- Restores normal tire wear and eliminates noise
- Good value compared to piecemeal replacements
What doesn’t
- Inner tie rod boots may not match factory length
- 90-day warranty is shorter than premium alternatives

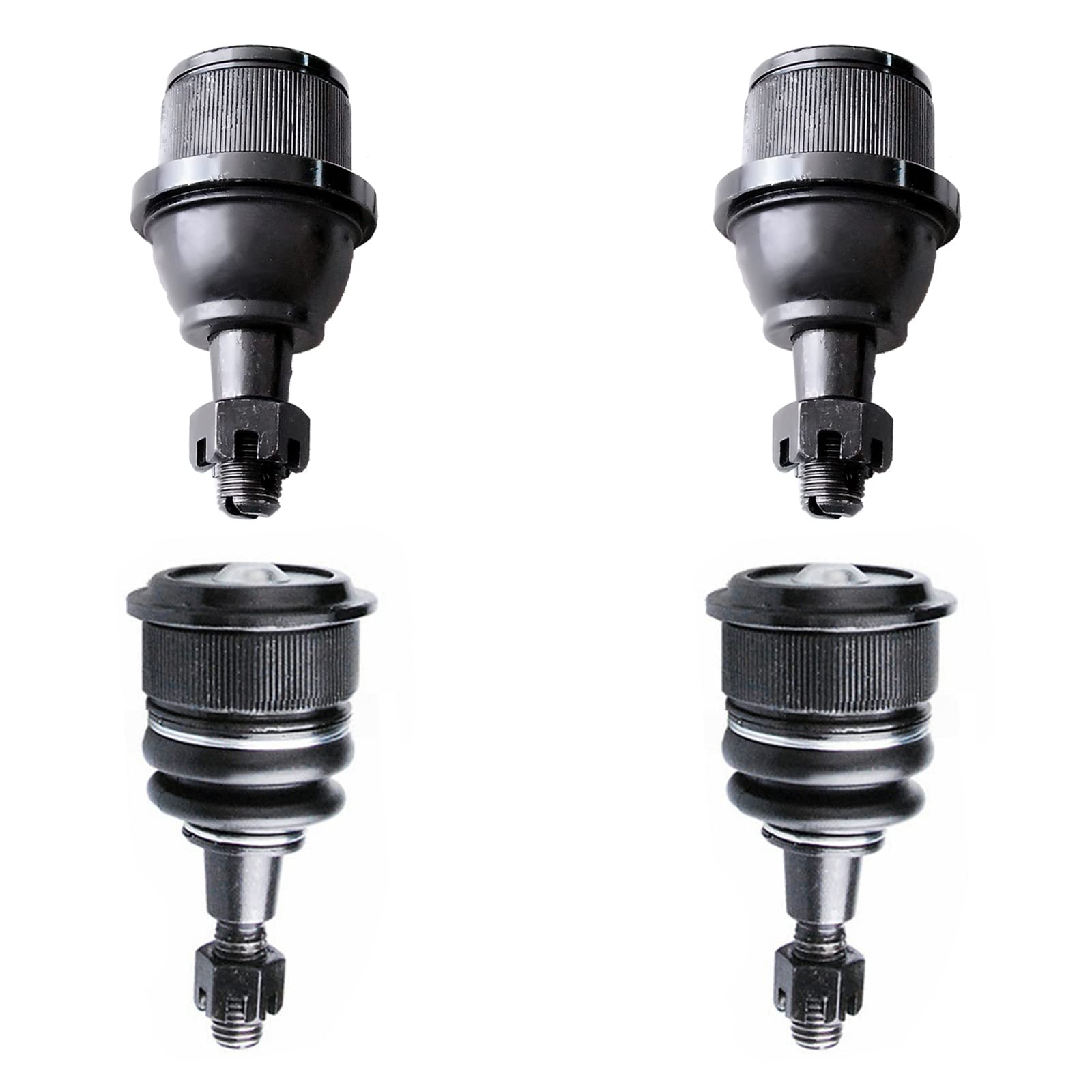

7. KDSA 4PC Front Lower and Upper Ball Joint Set for Chevy Express 2500 3500 / GMC Savana 2500 3500
KDSA’s K6694 K6711 set provides four ball joints — two upper and two lower — for Chevrolet Express and GMC Savana vans in the 2500, 3500, and 4500 GVWR classes. The joints are produced in a Taiwan facility that follows international original factory standards, which typically means tighter quality control than unbranded budget alternatives. The set includes a mix of greaseable and sealed fittings depending on the specific position, matching the OE configuration for these heavy van platforms.
Owner reports from fleet and personal-use Express and Savana owners indicate that the joints press into the control arms with consistent resistance and no loose-fit issues. Several users described them as indistinguishable from OEM equivalents in terms of stud taper and housing dimensions, with one owner noting they appeared better finished than the factory parts they replaced. The kit restored stable steering feel on vans with over 150,000 miles, eliminating the wandering and clunking that prompted the replacement.
The primary limitation is that KDSA is a less established brand than MOOG or AC Delco, so long-term durability data beyond one or two years is limited. However, the one-year warranty provides a reasonable safety net, and the price point for a complete set of four joints makes this a practical option for owners of these heavy vans who want to avoid the markup at local auto parts stores.
What works
- Complete 4-piece upper and lower set
- Consistent press-fit tolerances matching OE
- Fraction of local auto parts store pricing
- Taiwan production with factory-standard quality
What doesn’t
- Limited long-term durability data available
- Less established brand compared to MOOG or AC Delco
8. ILONPA 4WD Front Upper Control Arms w/Ball Joints Tie Rods Suspension Kit for 1999-2006 Chevy/GMC Trucks (13pc Set)
ILONPA’s BUCT0015S is an extensive 13-piece front suspension kit covering GM 1500 trucks and SUVs from 1999 to 2006, including Silverado, Sierra, Tahoe, Yukon, Suburban, Avalanche, and Escalade models. The kit includes two upper control arms with pre-installed ball joints, two lower ball joints, four tie rod ends, two sway bar links, a pitman arm, an idler arm bracket assembly, and grease. This all-in-one approach eliminates the need to source individual components and ensures all wear items are replaced simultaneously.
Owner experiences from multiple GM truck platforms confirm that the kit restores steering precision and eliminates front-end play when installed with a proper alignment. The pre-installed ball joints on the upper arms are a meaningful time saver, and all components feature grease fittings for ongoing maintenance. One detailed account from a 2005 Silverado 1500 4WD owner noted that after installation and alignment, steering feel was noticeably tighter with reduced play and no clunking over bumps.
The kit’s value is exceptional when compared to purchasing each component individually from national parts chains. The hardware finish is functional rather than show-quality, and the included pitman arm requires a puller for removal of the factory arm — a step that can be challenging without the proper tool. Several owners with over 250,000 miles on their trucks reported that the kit represented a cost-effective alternative to scrapping the vehicle, restoring confident highway handling at a fraction of the cost of dealer repairs.
What works
- 13-piece kit replaces entire front end in one order
- All components are greaseable for extended life
- Pre-installed upper ball joints save labor
- Exceptional value versus individual part purchases
What doesn’t
- Hardware finish is functional, not show-quality
- Pitman arm removal requires proper puller tool
- Long-term durability above 50K miles not yet widely documented
9. DHA Ball Joint Press Kit Heavy Duty 4×4, 10pc Ball Joint Removal Tool Kit
DHA’s PSA053 is a 10-piece heavy-duty ball joint press kit designed for DIY owners and light professional use on 2WD and 4WD cars, SUVs, and light trucks. The kit centers around a hardened carbon steel C-clamp forcing screw that delivers the compressive force needed to remove and install press-fit ball joints, U-joints, control arm bushings, and brake anchor pins. The included adapters cover a range of diameters for American domestic and imported vehicles, including Ford, GM, Dodge Ram, Jeep, and IHC applications.
User feedback from owners who performed ball joint replacements on Ford F-150, Chevy Yukon, and various 4×4 platforms confirms that the C-clamp provides adequate force for both removal and installation tasks. One detailed account from a 2018 F-150 owner noted that removal of the old joints required hammering in addition to the press, but installation of the new joints went smoothly with the included adapters. A 99 Yukon 4×4 owner reported that the kit handled both upper and lower joints without issue, emphasizing the importance of lubricating the threaded rod for smooth operation.
The kit’s limitations become apparent under repeated heavy use. One owner who pressed five U-joints reported significant wear on the forcing screw threads, including mushrooming and slop, indicating the kit is better suited for occasional DIY projects than full-time professional service. The carrying case provides organized storage, and the instruction manual is included, though some owners found they needed to modify an adapter for use with aluminum control arms.
What works
- Complete 10-piece set covers most domestic and import vehicles
- Carbon steel C-clamp provides sufficient force for DIY jobs
- Compact carrying case for organized storage
- Works for ball joints, U-joints, and bushings
What doesn’t
- Threads show wear under heavy or repeated use
- Not designed for continuous professional application
- Some adapters require modification for aluminum arms
10. A-Premium 2 x Front Lower Ball Joint Compatible with VW/Audi Models
A-Premium’s APCA2889 kit includes two front lower ball joints covering a broad range of Volkswagen and Audi models, including Jetta, Passat, Beetle, Golf, GTI, Tiguan, Eos, and A3/Q3 Quattro variants. The ball studs are constructed from alloy steel, and the joints arrive pre-greased with rubber bushings designed to absorb noise and dampen vibration. The reference part numbers K80662 and K80663 cross-reference with multiple OE applications, making this a versatile option for VW/Audi owners.
Long-term owner feedback from a 2012 Volkswagen Eos owner who logged over a year of driving on these joints indicates that they continue to perform without developing play or noise. Several Golf and Jetta owners reported that the joints cured the common symptoms of loose steering, clunking over bumps, and uneven tire wear. The one-year unlimited-mileage warranty covers the part cost but does not include installation labor or related expenses, which is standard for parts in this price tier.
Installation fitment is vehicle-specific, and the joints include the necessary mounting hardware as shown in the product images. The pre-greased design eliminates the need to pack the joint before assembly, though the lack of grease fittings means the joints are sealed and cannot be serviced once installed. For owners of compatible VW/Audi models looking for a cost-effective solution to restore front suspension integrity, these joints represent a functional entry point.
What works
- Covers extensive VW/Audi model range
- Pre-greased and ready to install
- One-year unlimited-mileage warranty
- Proven one-year durability in real-world use
What doesn’t
- Sealed design cannot be re-greased
- Warranty excludes labor and related costs

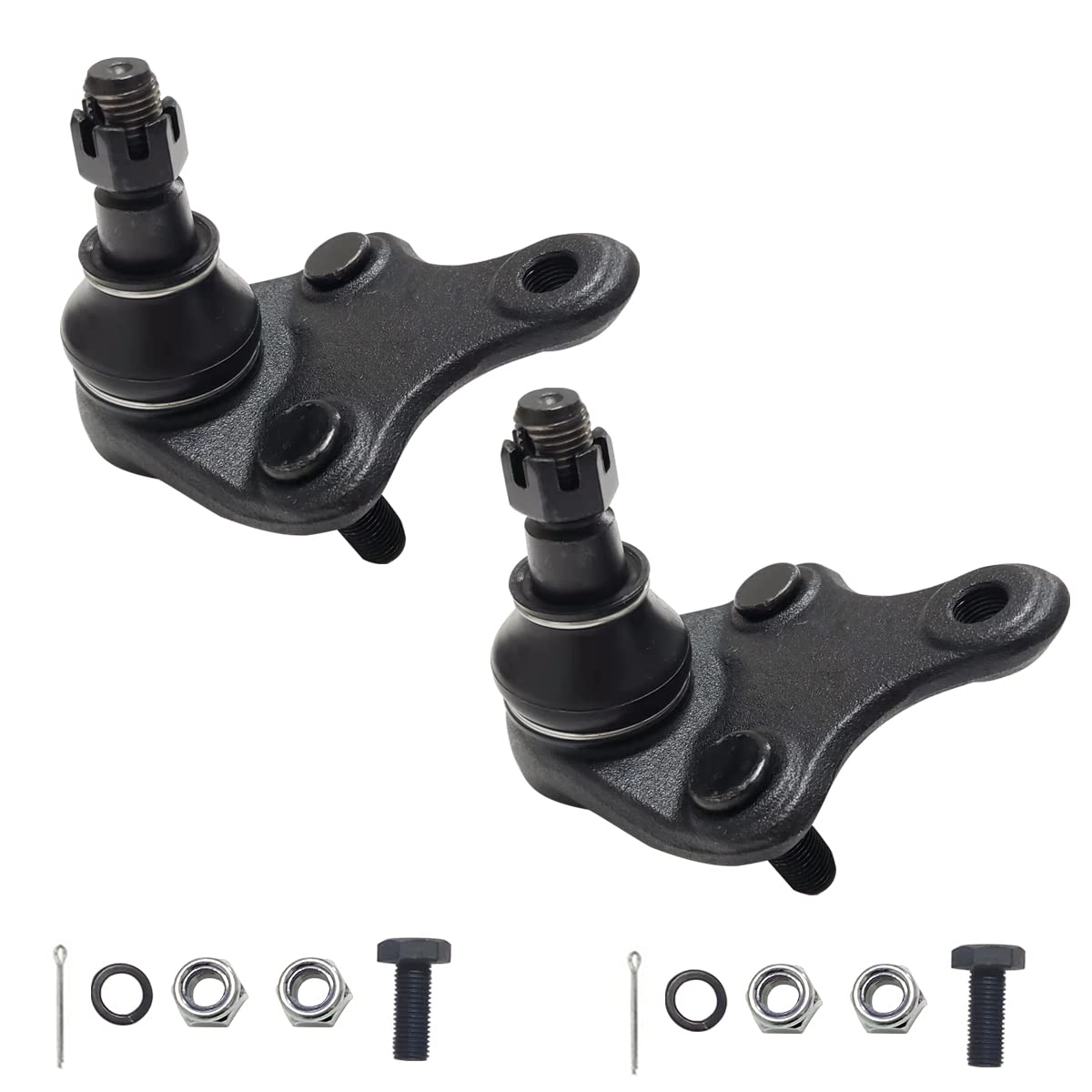

11. HHCM Front Lower Ball Joint Kit 2pc K500062 for Toyota/Lexus/Scion Models
HHCM’s K500062 front lower ball joint kit covers a wide swath of Toyota, Lexus, and Scion models, including RAV4, Camry, Avalon, C-HR, ES300h, ES350, SCION TC, and XB. The manufacturer cites over 30 years of experience and builds these joints to international factory standards, with quality checks focused on material composition and dimensional accuracy. The two-piece kit replaces both front lower ball joints and includes mounting hardware.
Owner reports indicate that the joints fit correctly into the control arm bores of compatible models, with one user noting that the castle nut thread differed slightly from OEM, preventing reuse of the original nut. The kit includes new nuts, bolts, and washers, which mitigates this issue. Another owner who installed them on a 2007 Honda Civic Hybrid reported the joints were comparable to OEM with only minor dimensional differences, though the fitment chart should always be verified before ordering.
The 12-month warranty provides basic coverage, and customer service responsiveness has been positively noted by several buyers. The pre-greased construction means installation is straightforward, but the sealed nature of the joint precludes future lubrication. For owners of the extensive list of compatible Toyota and Lexus models, the HHCM kit offers an accessible entry point for restoring worn front suspension components without the premium charged by dealership parts counters.
What works
- Broad compatibility across Toyota/Lexus/Scion lineup
- Includes new mounting hardware
- Pre-greased for clean installation
- 12-month warranty with responsive customer service
What doesn’t
- Castle nut thread may differ slightly from OEM
- Sealed design prevents future regreasing
Hardware & Specs Guide
Ball Stud Materials
The stud is the load-bearing element of any ball joint. Entry-level joints typically use SAE 1045 or 1541 medium-carbon steel with case hardening that penetrates only a few millimeters. Premium joints upgrade to SAE 4140 chromoly steel with through-heat treatment, which provides uniform hardness throughout the stud cross-section. Chromoly’s higher fatigue limit makes it the preferred material for lifted trucks, off-road vehicles, and any application where unsprung weight or larger tire diameter increases cyclic loading on the joint.
Seal Types
The boot or seal protects the bearing surface from contamination. Standard nitrile rubber boots are adequate for pavement driving but degrade quickly when exposed to mud, salt, or UV radiation. Polyurethane boots offer superior tear resistance and chemical resilience, making them the better choice for off-road and harsh weather environments. Some premium joints incorporate a metal shield behind the boot to deflect debris that could otherwise cut the seal from the back side.
Greaseability
Sealed (non-greaseable) joints are factory-packed and designed for the life of the component with no maintenance access. Greaseable joints include a Zerk fitting that allows the user to purge old grease and introduce fresh lubricant, which flushes out water and abrasive particles that enter past the boot. The trade-off is that the grease channel requires precise machining to avoid creating a stress concentration point in the stud. Quality greaseable joints use a cross-drilled passage that exits at a low-stress region of the stud shank.
Housing Retention Features
A ball joint that spins in its bore destroys both the joint and the control arm. Factory-style smooth bores rely entirely on press-fit interference. Aftermarket upgrades often include knurling, spiral grooves, or axial splines on the outer diameter of the housing that bite into the knuckle bore material and resist rotation under load. The aggressiveness of these features varies: light knurling suits aluminum knuckles, while aggressive splines are preferred for steel bores in heavy-duty applications.
FAQ
How do I know if my ball joints are worn out?
What is the difference between sealed and greaseable ball joints?
Can I replace just the ball joint or do I need the whole control arm?
How long should aftermarket ball joints last?
Do I need an alignment after replacing ball joints?
Final Thoughts: The Verdict
For most buyers, the best aftermarket ball joints winner is the Rough Country 10642 because it combines genuine chromoly stud strength with polyurethane boot protection and a lifetime warranty at a price that undercuts many inferior designs. If you want a maintenance-friendly greaseable joint for a full-size GM truck, grab the MOOG K6696. And for a complete front-end rebirth on a Jeep JK where off-road abuse is guaranteed, nothing beats the DV8 Offroad D-JKBLJNT-01.
