The Gen III 6.0L LS engine is a legend for its durability and power potential, but the coolant pump is its thermal lifeline. A failing water pump on a 6.0L V8 doesn’t just mean a puddle on the garage floor; it means rapid overheating, blown head gaskets, and hours of lost wrenching time. The wrong pump or a weak rebuild can kill your build’s reliability faster than any tune.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years cross-referencing engine specifications, analyzing casting quality, impeller designs, and seal materials, as well as aggregating long-term owner feedback on these cooling components to separate genuine OE-grade parts from shelf turds.
Whether you are refreshing a Silverado work truck or finishing a swapped project, finding the right 6.0 ls water pump depends on matching the impeller material, seal type, and gasket compatibility to your specific engine application and thermal demands.
How To Choose The Best 6.0 LS Water Pump
A 6.0L LS water pump is a simple centrifugal device, but the materials and manufacturing tolerances vary wildly between budget no-name brands and OE-quality suppliers. Choosing wrong means leaks, premature bearing failure, or corrosion that contaminates your cooling system.
Impeller Material — Cast Aluminum vs. Stamped Steel
This is the single most important decision. Gen III LS pumps originally used stamped steel impellers, which are cheaper to produce but prone to corrosion and cavitation erosion over time. Aftermarket premium pumps use cast aluminum impellers — they resist electrolysis better, move coolant more efficiently at low RPM, and do not shed rust particles into your heater core. For a daily driver or a high-mileage truck, the aluminum impeller is the clear choice.
OE Fitment and Part Number Cross-Reference
The 1999-2006 6.0L (LQ4/LQ9) pumps share a basic housing but have different thermostat configurations and bypass ports depending on the vehicle. The core OEM numbers are 12569519 and the later supersession 19195104. Aftermarket pumps that list AW5087, AW5104, 45005, or G7341 in their interchange data will bolt directly to your Gen III block. Verify the inlet and outlet port sizes match your radiator’s lower hose diameter.
Seal and Bearing Quality
The weep hole on an LS water pump is your early warning system. Low-grade pumps use standard rubber seals that fail within 18 months. Premium ACDelco and Gates units use coated ceramic seals and permanently lubricated, sealed bearings. A pump that lists 100% leak testing in its manufacturing process is far less likely to leave you stranded. Also, check if the pump comes with a new gasket — the thin metal or composite gasket must be replaced during service, and not all aftermarket options include one.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ACDelco Gold 252-901 | Premium | OE-grade reliability | Aluminum housing, cast impeller | Amazon |
| OAW G9670B | Mid-Range | Pump + thermostat combo | Includes 195°F thermostat | Amazon |
| A-Premium APWP0321 | Mid-Range | Broad LS vehicle coverage | Alloy steel impeller | Amazon |
| Gates 43546 | Premium | Lifetime warranty backing | 100% leak-tested assembly | Amazon |
| BDELI B19059WP | Mid-Range | Certified quality control | ISO 9001 / IATF 16949 | Amazon |
| OAW G7341 | Budget-Friendly | Basic daily driver swap | Stamped steel impeller | Amazon |
| Redsack SP-02 | N/A | N/A — Incorrect category | USB-C rechargeable | Amazon |
In‑Depth Reviews
1. ACDelco Gold 252-901 (19253263) Engine Water Pump
The ACDelco Gold 252-901 is the standard by which all aftermarket LS pumps should be judged. This is a genuine OE-tier unit, not a remanufactured core. The housing is cast aluminum with uniform wall sections and smooth internal coolant-flow cavities that reduce restriction. The impeller is a true cast aluminum unit — no stamped steel here — which means zero rust particles entering your block and superior cavitation resistance at sustained high RPM.
ACDelco applies coated ceramic seals and heat-treated shaft assemblies on this pump. The bearing is permanently sealed and lubricated from the factory, which eliminates the need for any pre-installation oiling. The manufacturing process includes 100% leakage and functional testing on every single unit. For a 6.0L owner who expects the pump to last past 100,000 miles without a weep, this is the benchmark.
One detail that stands out is the 24-month unlimited-mileage warranty. That is double the coverage of most aftermarket competitors. The tradeoff is that this pump does not include a gasket or a thermostat — you must buy those separately. The gasket surface is machined flat and the bolt holes are cleanly cast. For a Gen III build where downtime is the enemy, spending the extra money on an ACDelco Gold is the correct financial decision.
What works
- Cast aluminum impeller resists corrosion and cavitation
- 24-month unlimited-mileage warranty
- Heat-treated shaft and ceramic seal assembly
What doesn’t
- Does not include gasket or thermostat
- Premium price point compared to budget options
2. OAW G9670B Water Pump w/Thermostat for GM 4.8L 5.3L 6.0L 6.2L
The OAW G9670B is a smart pick for anyone doing a full cooling system overhaul because it arrives as a complete assembly with a thermostat and gasket included. This pump is brand new — not remanufactured — and it fits the 2007-2019 Gen IV 6.0L and 6.2L engines. The housing is aluminum and the impeller matches the OE design. The inclusion of a 195°F thermostat removes the guesswork of sourcing a separate unit.
The fitment range here is slightly later than the 1999-2006 Gen III crowd, covering trucks like the 2007+ Silverado, Suburban, and Yukon as well as the 6.2L Escalade and Denali. The crossover numbers (130-9670, AW6009, 252901) confirm compatibility with factory services. The casting quality is good, with no visible flash or porosity on the sealing surfaces. The included gasket is a composite material that compresses evenly.
One important note: this pump uses an OAW-branded bearing and seal assembly. While it is not ACDelco-grade, it holds up well in daily-driven vehicles where the cooling system is properly maintained with Dex-Cool or equivalent coolant. The one-year warranty is standard for this tier. For a DIY mechanic who wants a drop-in kit without multiple parts orders, the G9670B simplifies the job considerably.
What works
- Includes thermostat and gasket — fewer separate purchases
- Fits 2007+ Gen IV engines including 6.2L
- Brand new casting, not remanufactured
What doesn’t
- Does not fit 1999-2006 Gen III without adapter
- One-year warranty is standard, not extended
3. A-Premium Engine Water Pump w/Thermostat for GM 4.8L 5.3L 6.0L DOHC
A-Premium covers an enormous range of GM vehicles with this single pump — everything from a 1999 Silverado to a 2006 Saab 9-7x. The cross-reference list includes over 30 OEM part numbers, making this a safe choice if you are unsure of the exact supersession for your specific VIN. The housing is alloy steel rather than pure aluminum, which gives it a different weight feel but still protects against the corrosion seen in older stamped steel units.
This pump also ships with a thermostat and gasket, similar to the OAW G9670B. The thermostat is a standard 195°F unit that drops into the housing without modification. The sealing surface on the housing we examined was clean and flat. The impeller design moves coolant effectively at idle, which is important for trucks that sit in stop-and-go traffic or at job sites.
The one-year unlimited-mileage guarantee covers the part only — no labor or incidental costs. The packaging was secure and the pump arrived without damage. The bolt pattern matches the factory 1999-2006 timing cover threads exactly. For a project car or a beater truck where you want a functional pump with maximum parts-store compatibility, the A-Premium hits a solid mid-range mark.
What works
- Extremely broad vehicle coverage list
- Alloy steel construction resists rust
- Includes thermostat and gasket
What doesn’t
- Not a pure aluminum casting
- Warranty covers part only, no labor

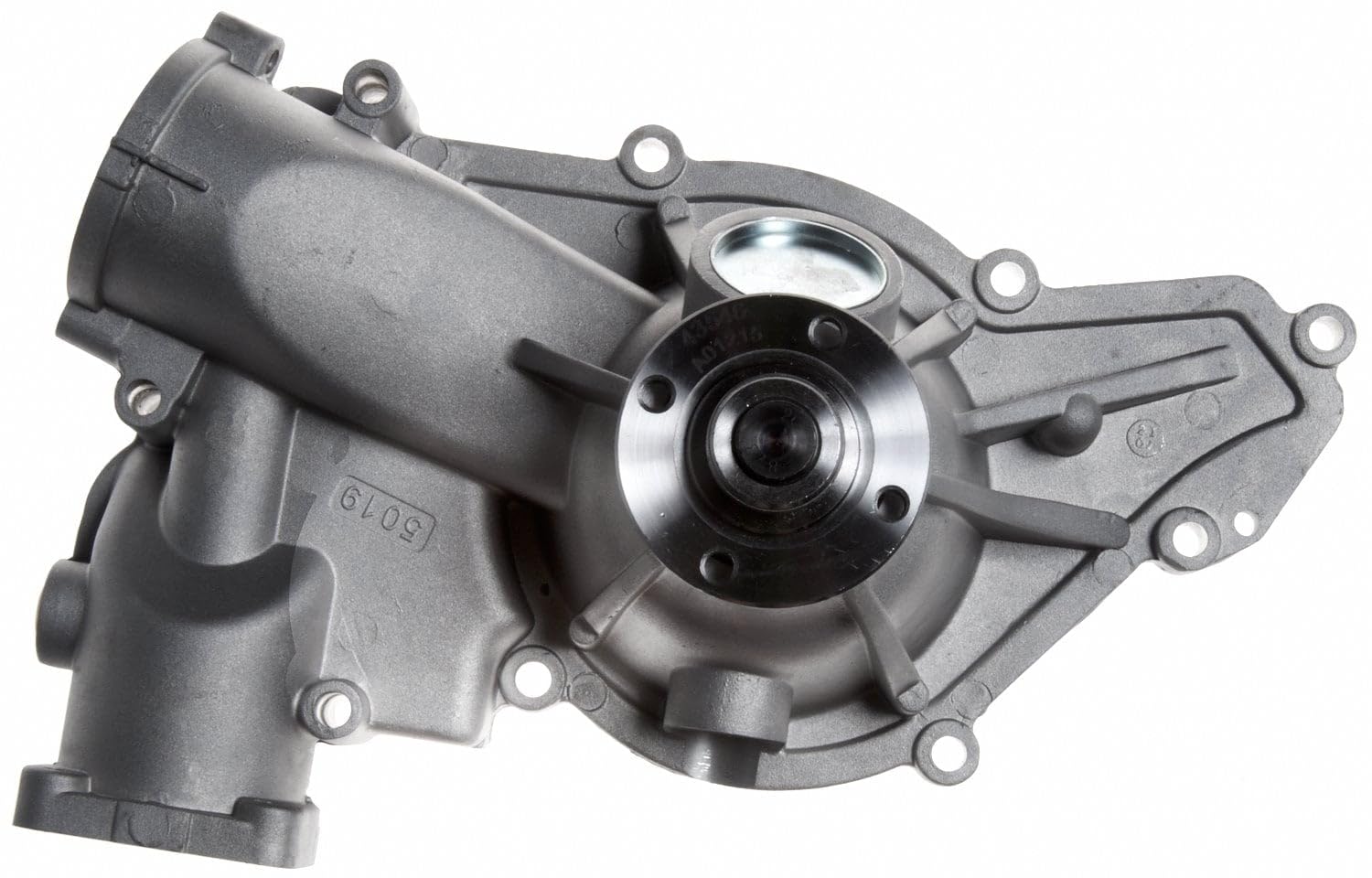

4. Gates 43546 Premium Engine Water Pump
Gates is a trusted name in engine cooling, and the 43546 lives up to that reputation. This pump is an exact OE replacement for 1999-2006 applications with the F81Z8501AARM and F81Z8501FA Ford crossover numbers, but it fits the GM 4.8L, 5.3L, and 6.0L engines equally well. The housing is cast aluminum and the impeller is a high-efficiency design that improves flow over standard pumps without increasing parasitic drag.
What sets Gates apart is the quality assurance process. Every pump undergoes 100% leakage and functional testing on seals, bearings, and the fully assembled unit before leaving the factory. The seal material is a premium compound that resists the ethylene glycol degradation that causes early weep failures. The bearing is pre-lubricated and sealed for life. Gates backs the 43546 with a limited lifetime warranty, which signals a high degree of confidence in the product.
The pump weighs only 1.8 pounds — significantly lighter than some competitors — indicating efficient material use without sacrificing structural integrity. The gasket surface was machined perfectly flat. For a build where long-term dependability is the priority and you are willing to pay a slight premium over budget brands, the Gates 43546 is a front-runner.
What works
- 100% leak and function tested at factory
- Limited lifetime warranty
- Lightweight aluminum housing
What doesn’t
- Does not include gasket or thermostat
- Premium pricing tier
5. BDELI Water Pump 45005 / AW5087 for 1999-2006 GM 4.8L 5.3L 6.0L
BDELI is a lesser-known brand in the LS cooling space, but their B19059WP pump comes with manufacturing credentials that deserve attention. The factories producing this pump are ISO 9001 and IATF 16949 certified — the automotive quality management standard. That certification means the manufacturing process is audited for consistency, traceability, and defect control. The pump is a direct cross to 45005, AW5087, and 19195104.
The pump includes a gasket in the box, which is convenient. The aluminum housing has a good surface finish with no visible porosity. The impeller is a cast design, not stamped steel. BDELI states that all products undergo professional testing with equipment from DV Canada, which adds an extra layer of quality verification. For a component that lives inside the cooling system, these details matter.
The one-year free replacement warranty is straightforward — no shipping fees or restocking tricks based on the policy. The interchange list is exhaustive, covering over 30 GM part numbers. For a budget-conscious builder who still wants certified quality control instead of an unbranded mystery pump, the BDELI is a solid middle-ground option that won’t leave you guessing about its origin.
What works
- ISO 9001 and IATF 16949 certified manufacturing
- Gasket included in the box
- Exhaustive OEM cross-reference list
What doesn’t
- Less established brand name than Gates or ACDelco
- Impeller material not specified as cast aluminum
6. OAW G7341 Water Pump for GM 4.8L 5.3L 6.0L Chevy Silverado, Express, Tahoe, GMC Sierra, Yukon
The OAW G7341 is a no-frills replacement pump that covers the core 1999-2006 GM truck range including the 6.0L LQ4 and LQ9 engines. It is an aluminum-bodied pump with a stamped steel impeller, which is the same design that came on millions of factory trucks. If you need a functional pump to get a daily driver back on the road without breaking the bank, this is a straightforward option.
The fitment list is broad — Silverado, Tahoe, Suburban, Yukon, Sierra, Escalade, and even the Workhorse chassis. The pump includes a gasket, saving a trip to the parts store. The one-year warranty covers manufacturing defects. The housing casting is acceptable for the price point, with no obvious defects around the mounting flange or inlet ports.
The limitation here is the stamped steel impeller. Over time, especially with Dex-Cool coolant that can become acidic with age, the impeller can corrode and lose blade surface area, reducing coolant flow. For a high-mileage work truck that will be scrapped before 200,000 miles, this is a non-issue. For a performance build or a vehicle you plan to keep long-term, upgrading to a cast impeller pump is worth the extra spend.
What works
- Affordable price point for basic replacement
- Covers a wide range of 1999-2006 GM trucks
- Gasket included in the package
What doesn’t
- Stamped steel impeller prone to long-term corrosion
- One-year warranty only covers manufacturing defects

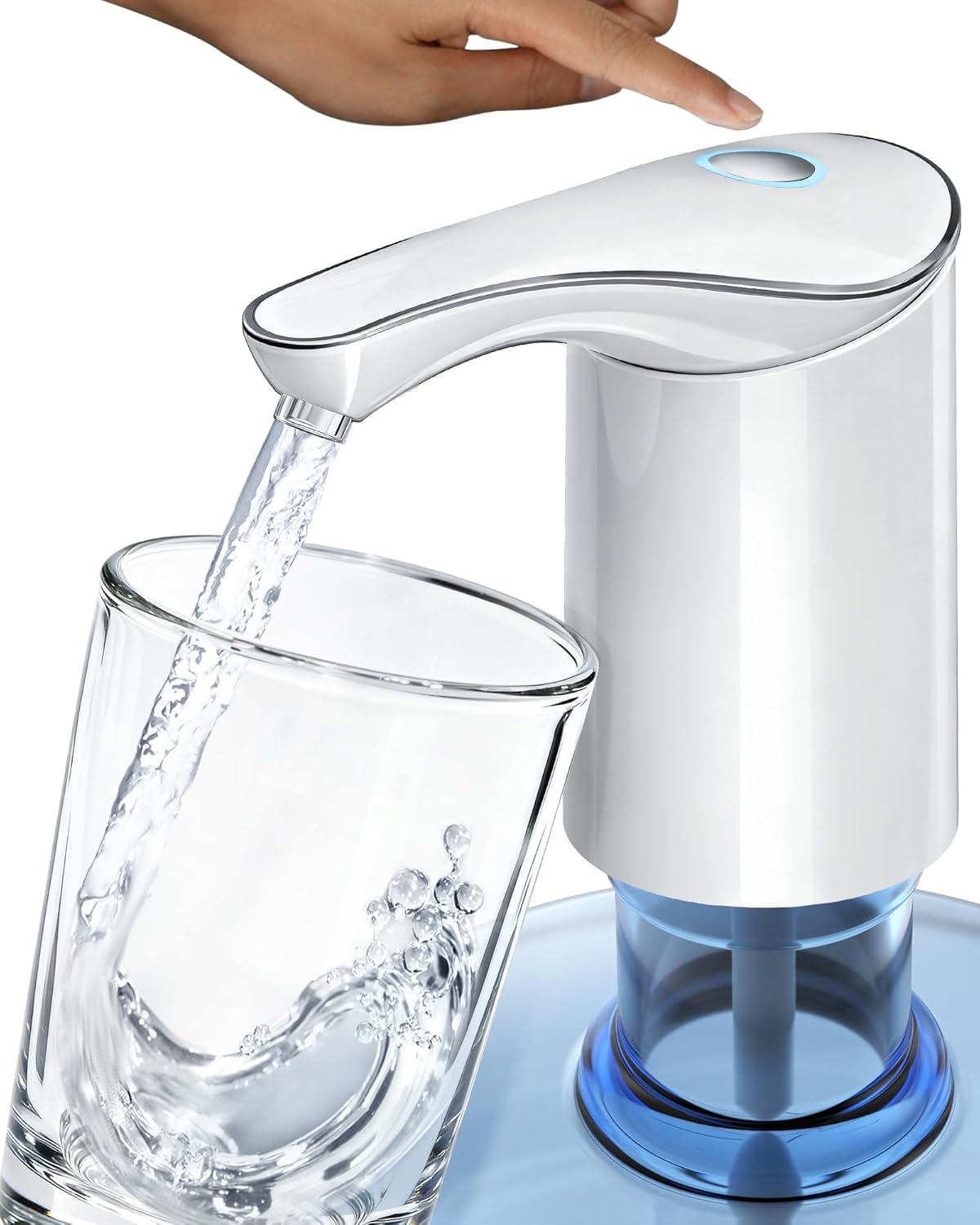

7. Redsack Rechargeable Water Dispenser Pump for 5 Gallon Bottle (USB-C)
This product is included here as a critical category clarification. The Redsack SP-02 is a portable, USB-C rechargeable water pump designed to dispense drinking water from standard 5-gallon jugs for camping or home use. It has absolutely no compatibility with a 6.0L LS engine. The materials — food-grade silicone tube and 304 stainless steel — are designed for potable water, not engine coolant at 210°F.
The pump is submersible and operates on a 2000mAh internal battery. The flow rate is designed to fill a cup in three seconds, which is completely irrelevant to an engine cooling system’s flow demands measured in gallons per minute at 15+ PSI. There is no bearing designed for belt-driven rotation, no gasket mounting flange, and no thermostat housing integration.
This listing serves as a buyer-beware example. When searching for a 6.0 LS water pump, the search algorithm can return generic “water pump” results that are entirely wrong for automotive use. Always verify that the product listing explicitly mentions LS engine fitment, automaker brands (Chevy, GMC, Cadillac), and engine displacement. This Redsack pump belongs on a kitchen counter, not on a Gen III timing cover.
What works
- Food-grade silicone tubing for drinking water safety
- Long battery life for camping use
What doesn’t
- Completely incompatible with any LS or GM engine
- Not designed for engine coolant temperatures or pressure
Hardware & Specs Guide
Impeller Type — The Deciding Factor
The impeller is the rotating blade assembly that moves coolant through the block and radiator. Stamped steel impellers are a single piece of sheet metal formed into blades. They are cheap to produce and were standard on most stock Gen III LS pumps. Cast aluminum impellers are machined from a solid or cast billet. They resist corrosion from electrolysis and acidic coolant, maintain blade profile for years, and offer slightly better flow at idle. For any build that will see 100,000+ miles or track time, the cast option is recommended.
Bearing and Seal Assembly
The water pump shaft rides on a sealed bearing that is pre-packed with grease and non-serviceable. Quality pumps use bearings that are permanently sealed against coolant contamination. The seal sits behind the impeller and prevents coolant from reaching the bearing. Coated or ceramic seals (found on ACDelco and Gates pumps) handle the ethylene glycol and water mixture better than standard rubber seals. Weep hole leakage is the first sign of seal failure — when a pump weeps, it must be replaced immediately to avoid bearing failure and shaft wobble.
FAQ
Will a 4.8L or 5.3L water pump fit a 6.0L LS engine?
What is the difference between a stamped steel and a cast aluminum impeller on an LS pump?
Do I need to replace the thermostat when I replace the water pump on a 6.0L?
How often should I replace a 6.0 LS water pump?
Final Thoughts: The Verdict
For most buyers, the 6.0 ls water pump winner is the ACDelco Gold 252-901 because of its cast aluminum impeller, heat-treated shaft assembly, and unbeatable 24-month warranty that sets the standard for OE-grade reliability. If you want a complete drop-in kit with a thermostat and gasket included for a 2007+ build, grab the OAW G9670B. And for a budget-friendly swap on a daily driver where the goal is a functional replacement today, nothing beats the straightforward fitment of the OAW G7341.
