Swapping a carburetor onto a 5.3 LS engine is one of the most effective ways to simplify a swap, ditch the factory computer harness, and gain a mechanical fuel metering system that responds instantly to throttle input. The intake manifold you choose determines whether that 5.3 pulls hard through the mid-range or chokes on airflow past 5,000 RPM.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve analyzed dozens of cathedral-port intake designs, cross-referencing airflow bench data, TIG weld quality, gasket alignment reports, and hundreds of owner fitment accounts to separate the manifolds that deliver from those that leak.
Whether you’re building a budget-friendly swap for a street truck or a high-winding race motor for a dedicated track car, choosing the right 5.3 ls carburetor intake comes down to runner length, plenum volume, and throttle body compatibility against your specific cam and head combination.
How To Choose The Best 5.3 LS Carburetor Intake
Selecting an intake for a 5.3 LS carb conversion involves more than just picking a manifold that bolts to the cylinder heads. Runner geometry, plenum volume, throttle body compatibility, and the mount for the ignition controller all affect whether the engine runs cleanly from idle to redline.
Runner Length and Plenum Volume
Long runners and a large plenum build low-end torque but can kill top-end horsepower in a 5.3 that wants to rev past 5,500 RPM. Short-runner single-plane designs shift the power band higher, often requiring a looser converter or more gear. For a street-driven truck or car on a 5.3 short block, a dual-plane or medium-runner intake provides the best driveability without sacrificing peak power.
Square-Bore Carb Flange Versus Spread Bore
Most LS carburetor intakes use a square-bore flange designed for a standard Holley 4150 or 4160 pattern. Verify that your carburetor — whether an old Quadrajet or a modern 650-750 cfm model — matches the flange. The gasket must also seal perfectly around the plenum opening; a mismatch produces an air leak that leans out the front two cylinders.
Throttle Body Port Size and Sensor Provisions
Some aftermarket intakes accept a 92mm or 102mm throttle body, while dedicated carburetor manifolds omit the throttle body entirely in favor of a carburetor. If you plan to run a carburetor, skip the throttle body style and choose a true carburetor intake with a 4-barrel flange. Also check for a rear-mounted MAP sensor port if your ignition controller requires one — many budget-friendly aftermarket manifolds omit this provision.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Edelbrock 7118 Performer LS1 | Carburetor Intake | Street rod / muscle car conversion | Square bore, 1,500–6,500 RPM range | Amazon |
| FAST LSXr 102mm (146302B) | EFI / Carb Adaptable | High-horsepower aspirated builds | 102mm inlet, removable runners | Amazon |
| FAST LSXrt 102mm (146602B) | Truck EFI / Race | 4.8/5.3/6.0L truck cathedral port | 102mm inlet, polymer construction | Amazon |
| FAST 54039B LSX 92mm Black | EFI / Carb Adaptable | Street performance with 92mm TB | 92mm inlet, modular runner design | Amazon |
| GM Genuine Parts 12638038 | OEM Truck Intake | OE replacement or budget carb base | OEM cast aluminum, 16.1 lbs | Amazon |
| A-Premium Cathedral Port Single Plane | Carburetor Intake | Budget-friendly carb swap 5.3/6.0 | 4-barrel square bore, single plane | Amazon |
| HTRACING LS Cathedral Port (Silver 92MM) | EFI-Style Manifold | LS swap with 92mm electronic TB | 3mm T6061 aluminum, TIG welded | Amazon |
| YESHMA LS Intake Manifold (92MM Black) | EFI-Style Manifold | Cathedral port with 92mm TB | 3mm T6061 aluminum, gaskets included | Amazon |
| PUZZLEDEER LS Intake Manifold (102mm Black) | EFI-Style Manifold | Cathedral port with 102mm TB | 102mm inlet, polished exterior | Amazon |
In‑Depth Reviews
1. Edelbrock 7118 Performer LS1 Intake Manifold
Edelbrock’s 7118 remains the reference point for a true carbureted LS intake. It is designed specifically for cathedral port heads and includes a unique ignition control module that fires the engine using OEM sensors, eliminating the need for a standalone ECU. The power band from 1,500 to 6,500 RPM matches a mild to moderate 5.3 cam profile perfectly.
The satin finish reduces heat soak compared to a polished aluminum manifold, and the included throttle and transmission bracket works with 700-R4, TH350, and TH400 transmissions — a major convenience for swap builders. The square-bore flange accepts a standard Holley 4150/4160 pattern carburetor without adapter plates.
At 23.4 pounds, this is a heavy cast unit, but the mass contributes to intake charge temperature stability. Fitment on a factory 5.3 iron block is bolt-on with standard cathedral port gaskets. The 90-day warranty is short for the premium price, but owner feedback consistently reports leak-free sealing out of the box.
What works
- True carburetor intake built for LS cathedral port heads
- Includes ignition control module for standalone operation
- Throttle and transmission bracket fits common GM auto transmissions
What doesn’t
- Heavy cast construction at over 23 pounds
- Limited 90-day manufacturer warranty
2. FAST LSXr 102mm Intake Manifold (146302B)
The FAST LSXr is an EFI-style intake designed for cathedral port heads, but its modular removable runner design and 102mm inlet make it a favorite among builders who run a carburetor adapter or a large throttle body. The longer runners deliver added horsepower over the stock truck intake while preserving low-RPM torque — critical for a 5.3 that pulls hard from off-idle.
The advanced polymer material is significantly lighter than aluminum and runs cooler, reducing intake air temperature by 10–15 degrees in real-world testing. The sleek black finish looks factory under the hood of a swapped C10 or third-gen F-body, and the C.A.R.B. approval (D-279-8) means it is street-legal in emissions-regulated states.
Removing the runners allows easy porting access without damaging the manifold, a feature that engine builders appreciate. The trade-off is that this manifold is not a true carburetor intake — you will need an adapter plate to mount a carburetor, which adds height and can create hood clearance issues on low-profile swaps.
What works
- Removable runners simplify porting modifications
- Lightweight polymer reduces heat soak and weight
- C.A.R.B. approved for street-legal use
What doesn’t
- Requires carb adapter plate for true carburetor use
- Adapter adds height affecting hood clearance
3. FAST LSXrt 102mm Intake Manifold (146602B)
Designed specifically for late-model GM 4.8, 5.3, and 6.0L truck engines with cathedral port heads, the LSXrt retains factory fitments while accepting a 102mm throttle body. The multi-layer modular design with removable runners enables easy disassembly for cleaning or porting — a practical advantage for builders who want to fine-tune airflow on the engine stand.
The advanced polymer construction keeps the intake charge cooler than cast aluminum, which translates to denser air and improved power output on a naturally aspirated 5.3. The 102mm inlet works with 90, 92, or 102mm throttle bodies, giving you flexibility to match the manifold to your existing induction setup without buying a new throttle body.
Owner reports confirm that this manifold clears stock truck hoods and cowl inducted swaps alike. The main constraint is cost — this is a premium piece that makes sense only when the rest of the rotating assembly can support the airflow increase. On a stock 5.3 with a small cam, the gains are modest relative to the investment.
What works
- Factory fitment for 4.8/5.3/6.0L truck engines
- Removable runners allow easy porting access
- Polymer construction reduces intake air temperature
What doesn’t
- High price tag for moderate gains on stock builds
- Requires large cowl clearance for 102mm throttle body
4. FAST 54039B LSX Black 92mm Intake Manifold
The FAST 54039B offers the same modular runner design as the 102mm LSXr but in a 92mm inlet format that fits tighter engine bays. This intake is ideal for a 5.3 LS swapped into a smaller chassis like an S10 or a Miata where hood clearance is at a premium. The black finish hides dirt and oil residue better than bare aluminum.
At roughly 10 pounds, this is one of the lightest LS intake options on the market, reducing overall engine weight by nearly 8 pounds compared to a full cast-aluminum manifold. The modular runners are removable for port matching or cleaning, and the polymer body resists heat transfer significantly better than metal counterparts.
The universal fit type requires the builder to verify throttle body and fuel rail compatibility before assembly. The packaging dimensions are large, so confirm that the manifold physically fits in your chassis before ordering. Owner feedback is split between those who love the weight savings and those who prefer a direct carburetor flange instead of adapting to EFI.
What works
- Extremely lightweight at approximately 10 pounds
- Modular runners facilitate porting and cleaning
- Compact 92mm inlet fits tighter engine swaps
What doesn’t
- Universal fit requires builder verification of throttle body compatibility
- Not a true carburetor intake without an adapter
5. GM Genuine Parts 12638038 Intake Manifold Assembly
The GM Genuine Parts 12638038 is the factory intake for late-model 5.3 truck engines. It is a machined aluminum assembly designed for EFI, so it requires an adapter plate to mount a carburetor. Its primary value is as a known-good baseline — it bolts directly to factory cathedral port heads with zero alignment issues and includes the correct gasket sealing surface.
At 16.1 pounds, the OEM intake is heavier than aftermarket polymer units but delivers predictable airflow for a stock or mildly cammed 5.3. The factory fuel rail mounting points and sensor ports make it simple to retain an electronic fuel system if you are not converting to a carburetor immediately. The OEM part number 12638038 cross-references directly with ACDelco cataloging.
The machined exterior resists corrosion and cleans up well for a fresh engine build. The trade-off for using an OEM intake is the lack of flow optimization — you are paying for reliability and fitment certainty, not peak horsepower. Expect to spend additional money on an adapter and gaskets to complete the carburetor conversion.
What works
- Direct factory fitment for 5.3 cathedral port heads
- Proven reliability with correct gasket sealing surface
- Includes fuel rail mounting and sensor ports
What doesn’t
- Designed for EFI, requires adapter for carburetor use
- Heavier and less flow-optimized than aftermarket alternatives
6. A-Premium Cathedral Port Single Plane Intake Manifold
The A-Premium intake is one of the few budget-friendly options built with a true 4-barrel square-bore carburetor flange. The single-plane design shifts the power band higher, making it suitable for a 5.3 with a performance cam and light vehicle weight. The part reference number 28097 helps cross-reference compatibility with stock cathedral port heads.
Weighing 19.06 pounds, the cast aluminum construction feels solid in hand. The smooth inner walls reduce air flow resistance, which translates to measurable throttle response improvement over a factory truck intake. The gasket mating surface appears flat and true across the full port opening — a common failure point on cheaper intake castings.
The one-year unlimited-mileage guarantee provides meaningful buyer protection that most budget intakes lack. Fitment on a 5.3 with factory cathedral port heads is direct, but aftermarket cylinder heads with raised runners can cause port mismatch. Professional installation is recommended because the single-plane design reduces low-RPM torque noticeably in heavier vehicles with stock stall converters.
What works
- True square-bore carburetor flange without adapter required
- One-year unlimited-mileage warranty for budget confidence
- Smooth inner walls reduce air flow restriction
What doesn’t
- Single-plane design reduces low-RPM torque on street builds
- Port mismatch possible with aftermarket cylinder heads
7. HTRACING LS Cathedral Port Intake Manifold (Silver 92MM)
The HTRACING intake is a T6061 sheet aluminum manifold built with 3mm wall thickness and TIG-welded seams to handle boost applications up to 30 pounds. It is designed for cathedral port heads on 4.8, 5.3, 5.7, and 6.0L LS engines and accepts a 92mm throttle body. The silver finish provides a clean look under the hood while reflecting engine bay heat.
The package includes gaskets, hardware, fuel rails, and a fuel crossover line — everything needed to mount the manifold on a fresh build except the throttle body and injectors. The rear MAP sensor port is already drilled and tapped, saving the builder from having to modify the manifold for an ignition controller. The 16.81-pound weight is competitive for an all-aluminum unit.
Owner feedback consistently mentions that the TIG welding is clean with full penetration at each joint, which is critical for boost retention. The main limitation is that this is an EFI manifold — to run a carburetor, you need an adapter plate that increases stack height and may create hood clearance issues on low-profile swaps.
What works
- TIG-welded T6061 aluminum handles boost up to 30 lbs
- Includes fuel rails, gaskets, and crossover line
- MAP sensor port pre-drilled for ignition controller
What doesn’t
- EFI design requires adapter for carburetor conversion
- Adapter plate increases height for clearance concerns

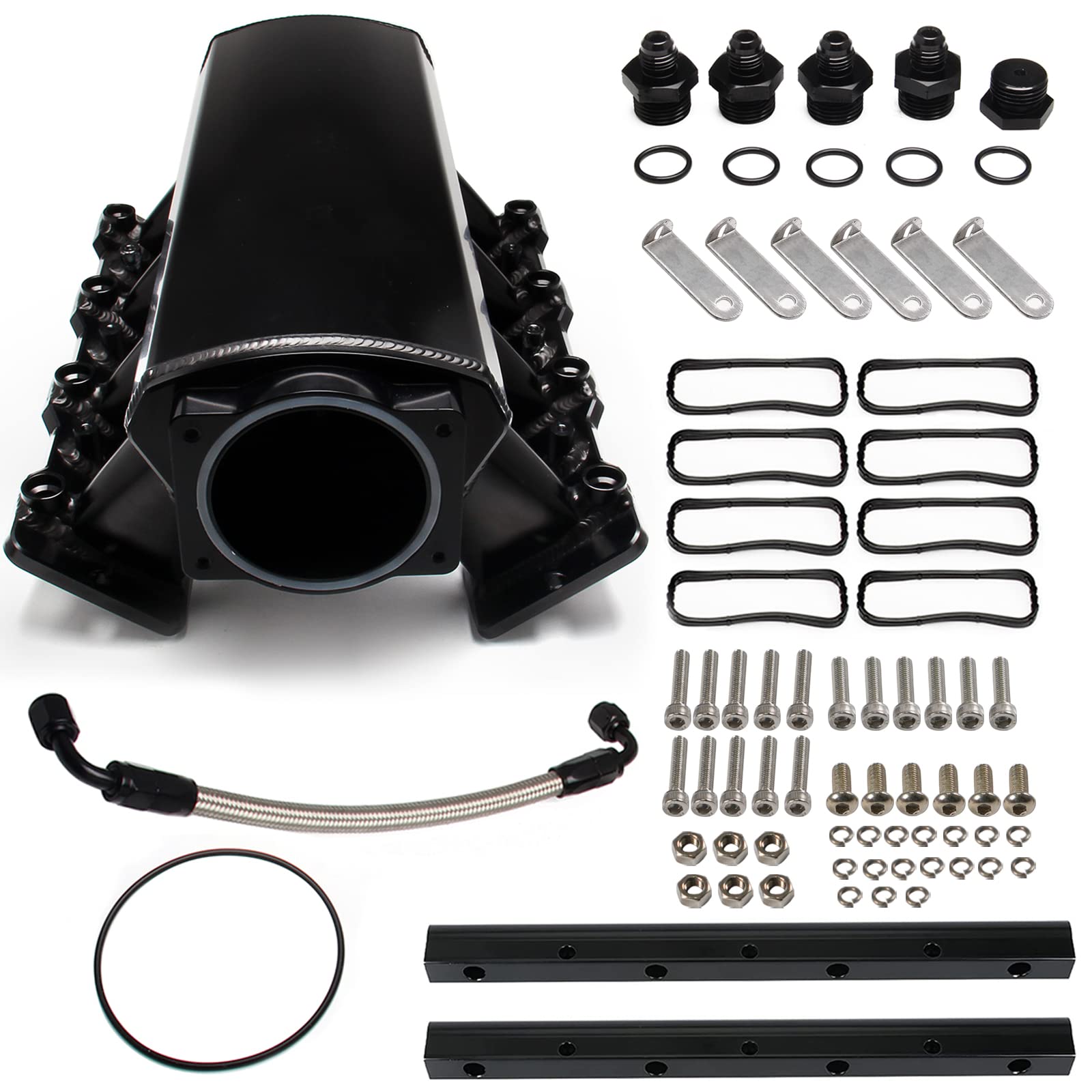

8. YESHMA LS Intake Manifold (92MM Black)
The YESHMA 92mm intake manifold is nearly identical in construction to the HTRACING unit but available in a black powder-coated finish. The 3mm T6061 sheet aluminum construction with TIG welding provides the same boost-handling capability, making it suitable for a 5.3 LS that may receive forced induction later in the build process.
The kit includes the manifold, gaskets, hardware, fuel rails, and fuel crossover line. The black finish appeals to builders who prefer a stealth under-hood appearance and helps mask oil residue and dust. The MAP sensor port is positioned at the rear of the manifold for compatibility with aftermarket ignition controllers like the MSD or Holley systems.
Professional installation is recommended because no written instructions are included in the package — the builder familiar with LS intake swaps will have no issues, but first-timers should budget for a shop to handle the torque sequence and fuel line routing. The fitment list covers Chevy Corvette 97-07, Firebird, Trans AM, TrailBlazer SS, and Cadillac CTS-V among others.
What works
- 3mm T6061 aluminum resists boost applications
- Rear MAP sensor port for ignition controller compatibility
- Complete kit with fuel rails and gaskets included
What doesn’t
- No installation instructions included in package
- EFI manifold requires carb adapter for carburetor builds
9. PUZZLEDEER LS Intake Manifold (102mm Black)
The PUZZLEDEER intake offers the largest 102mm inlet of the budget-friendly EFI-style manifolds in this list. It is designed for cathedral port heads on 4.8, 5.3, 5.7, and 6.0L LS engines and includes gaskets, hardware, fuel rails, and a fuel crossover line. The polished exterior gives it a show-car appearance that stands out under bright engine bay lighting.
The smooth inner wall reduces air flow resistance and improves intake capacity, which translates to a sharper throttle response when combined with a matching 102mm throttle body. The list of compatible vehicles includes the Chevy Corvette 97-07, Firebird, Trans AM, Cadillac CTS-V, TrailBlazer SS, and Saab 9-7X Aero through 2011.
The main fitment note involves LS2 applications that may require bracket modification or additional gaskets. Aftermarket cylinder heads can cause oil port misalignment, so verifying head geometry before assembly is essential. The builder should also note that injectors and throttle body are not included, and professional installation is strongly recommended.
What works
- Largest 102mm inlet for maximum airflow potential
- Polished finish for show-quality engine bay appearance
- Smooth inner walls improve throttle response
What doesn’t
- LS2 fitment may require bracket or gasket modification
- Aftermarket cylinder heads can cause oil port misalignment
Hardware & Specs Guide
Cathedral Port Geometry
All LS cathedral port heads share the same basic intake port shape, but port size varies between 4.8L (LR4), 5.3L (LM7, L33), and 6.0L (LQ4, LQ9) castings. The intake manifold gasket surface must align perfectly with the head port opening — a 1mm mismatch can reduce airflow by 5–10 percent and create a turbulence zone that disrupts fuel atomization.
Square Bore Versus Spread Bore Flange
A square-bore flange measures 5.125 inches wide by 4.625 inches tall and uses four equally spaced bolt holes. Spread-bore flanges are narrower at the front and wider at the rear, commonly found on Quadrajet carburetors. Most LS carburetor intakes use the square-bore pattern. Using a spread-bore carb on a square-bore manifold requires an adapter that adds 0.75 inches of height.
Bolts and Torque Specifications
Cathedral port intake manifolds use M8 bolts with a torque specification of 89 inch-pounds (approximately 7.4 foot-pounds) applied in three progressive passes using a cross-pattern sequence. The factory intake gaskets are reusable but aftermarket gaskets with integrated rubber seals provide better compression retention on aluminum manifolds that expand at a different rate than the iron block.
Vacuum Port and Sensor Provisions
A carbureted LS needs a MAP sensor port for ignition timing control unless using a distributor conversion. Most aftermarket intakes include a 1/8-inch NPT port on the rear plenum. Some budget-friendly manifolds omit this port and require drilling and tapping. The PCV valve port should be routed to a valley cover vent rather than a ported vacuum source for stable idle quality.
FAQ
Can I use a factory 5.3 intake manifold with a carburetor?
Will a 102mm intake manifold fit under a stock hood on a swapped S10 or Fox body Mustang?
Which carburetor size works best on a 5.3 LS with cathedral port heads?
Final Thoughts: The Verdict
For most buyers, the 5.3 ls carburetor intake winner is the Edelbrock 7118 Performer LS1 because it is the only purpose-built carburetor intake on this list that includes an ignition control module, throttle bracket, and square-bore flange designed specifically for cathedral port heads. If you want a lightweight modular design that accepts a 102mm throttle body for future upgrades, grab the FAST LSXr 102mm. And for a budget-friendly carburetor conversion without an adapter plate, nothing beats the A-Premium Cathedral Port Single Plane.
