A hydraulic hose that fails under load does not just cost time — it creates safety hazards, fluid loss, and equipment downtime that compounds fast. The 3/4-inch size sits at a critical intersection in many agricultural, construction, and industrial systems, handling flows that demand both burst integrity and fitting compatibility. Choosing wrong means chasing leaks, replacing crimps, or derating your entire circuit.
I’m Amir — the founder and writer behind Four Wheel Ask. My approach to hydraulic components comes from years of cross-referencing manufacturer spec sheets, studying failure modes in owner-reported data, and comparing construction details like wire braid layers, cover abrasion ratings, and temperature tolerances across hundreds of aftermarket assemblies.
This guide breaks down eleven 3/4-inch hose options by construction quality, pressure ratings, and real-world fit feedback. After analyzing pressure ratings, material construction, and owner feedback, the best 3/4 hydraulic hose options become clear for any hydraulic application.
How To Choose The Best 3/4 Hydraulic Hose
A 3/4-inch hydraulic hose connects high-energy fluid power between pumps, valves, and actuators. Selecting the wrong one introduces leak paths, pressure drops, or catastrophic burst risks. Understanding three core parameters — pressure ratings, reinforcement construction, and fitting interface — removes the guesswork.
Working Pressure vs. Burst Pressure
Working pressure is the continuous operating limit the hose can sustain without degradation. Burst pressure is typically four times the working pressure and represents the hydraulic failure threshold. Your system’s relief valve should be set at or below the hose working pressure, never at burst. A 3118 PSI working pressure hose with a 5800 PSI burst rating provides a healthy margin for impulse spikes common in mobile hydraulics.
Reinforcement Layers: Wire Braid vs. Textile Braid
Two-wire braid reinforcement (common in SAE 100R2AT designs) handles higher pressures and resists abrasion better than single-wire or textile-braided hoses. Textile-reinforced hoses like SAE 30R7 work for low-pressure fuel and oil return lines but should not be spec’d for high-pressure hydraulic circuits. For implement circuits, log splitters, and tractor remotes, two-wire steel braid is the minimum benchmark.
End Fittings: JIC, NPT, and Push-Lock
JIC 37-degree flare fittings seal on a metal-to-metal cone surface and are common in medium-pressure hydraulic systems. NPT fittings use tapered pipe threads that require thread sealant and can crack female ports if over-tightened. Push-lock hoses eliminate crimp fittings but are limited to lower-pressure applications — typically under 250 PSI. Matching the hose assembly to your existing port type avoids adapters that introduce leak points.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Hydraulics Direct FA-UFW12-JIC | Premium | High-flow implement circuits | 4350 PSI, 2-wire, MSHA cover | Amazon |
| Apache 98398368 | Premium | Log splitters & compressors | 2250 PSI, SAE 100R2AT | Amazon |
| Haichy 15611-12-12-36 | Mid-Range | Excavator thumb lines | 3118 PSI, NPT male ends | Amazon |
| Autovo 26711-12-12-RW | Mid-Range | Pressure gauge tees | 3118 PSI, JIC swivel | Amazon |
| Generic HaiChi 26711-12-12-RW | Mid-Range | Tractor rear remotes | 3118 PSI, JIC swivel | Amazon |
| Heroson 26711-12-12RW | Mid-Range | Loader hydraulic lines | 3118 PSI, 72-inch JIC | Amazon |
| Byredio 3/4 Push On Hose | Value | Fuel & oil return lines | 150 PSI, SAE 30R9 | Amazon |
| EVIL ENERGY 3/4 Fuel Hose | Value | Classic car fuel systems | 200 PSI, SAE 30R7 | Amazon |
| CHOIMOON 3/4 Oil Cooler Hose | Value | Radiator & oil cooler lines | 150 PSI, nylon construction | Amazon |
| KOUTIANWU 50Ft Kit | Kit | Field repair & custom builds | 5800 PSI, 20-piece fitting set | Amazon |
| CAMUUN 50Ft Kit | Kit | DIY hydraulic replacements | 5800 PSI, 20-piece fitting set | Amazon |
In‑Depth Reviews
1. Hydraulics Direct FA-UFW12-JIC-84 Inch
This assembly from Hydraulics Direct uses Titan Ultraflex 2SNK hose, which exceeds SAE 100R2, R16, and R17 standards. The 4,350 PSI working pressure and MSHA-certified high-abrasion cover make it the most robust option in this lineup for continuous-duty hydraulic circuits. The 84-inch length with 3/4-inch female JIC ends suits log splitters, backhoe lines, and tractor loader applications where flexibility at high pressure is non-negotiable.
Owner feedback emphasizes the cover durability and straight-ship packaging — the hose arrives coiled without the memory kinks that plague lesser assemblies. Multiple buyers noted zero leaks after installation on equipment running well above 3,000 PSI. The red cover also improves visibility in low-light engine bays and under-chassis routing, a small but practical detail for field service.
The trade-off is weight. At nearly five pounds for the 84-inch assembly, the two-wire reinforcement adds heft that may feel excessive for short, low-pressure jumper lines. Additionally, the longer lead time some buyers reported suggests this is a production item rather than a Prime-stocked impulse buy. For spec-driven buyers who prioritize burst margin and abrasion resistance, this is the hose to beat.
What works
- Exceeds multiple SAE hose standards for broad application compatibility
- High abrasion cover resists wear in dirty, rugged environments
- Consistent crimp quality with no pull-out reported in owner data
What doesn’t
- Heavier than single-wire or textile-braid alternatives
- Limited to female JIC — not available with swivel or NPT ends
- Lead time can be longer than in-stock generic options
2. Apache 98398368 3/4″ x 24″ 2-Wire Assembly
Apache’s 98398368 is a no-frills 2-wire braid hydraulic assembly that meets SAE 100R2AT specifications. With a working pressure of 2,250 PSI and an operating range from -40°F to 212°F, it is well-suited for medium-pressure circuits like log splitter cylinders, air compressor lines, and light-duty implement hydraulics. The male NPT ends simplify installation on equipment with standard threaded ports, though the lack of swivel fittings requires careful alignment during tightening.
Buyer reports highlight the hose’s heavy-duty feel and competitive pricing compared to local hydraulic shop quotes. One application involved connecting a 5 HP compressor to a copper pipe cooling system, where the 2-wire reinforcement handled the thermal cycling without softening. Another owner used it on a non-pressure feed line from tank to pump, noting the flexibility advantage over rigid steel or nylon tubing.
The biggest limitation is the fixed 24-inch length with no swivel option. Installations where both ends must rotate independently will need a union or swivel adapter, adding cost and potential leak paths. A few owners also noted the absence of protective caps on the ends during shipping, though no damage was reported. For simple, straight-run connections at moderate pressure, this assembly delivers solid value.
What works
- Exceeds SAE 100R2AT for proven medium-pressure reliability
- High-tensile steel wire braid resists impulse fatigue
- Oil-resistant cover holds up to hydraulic fluid exposure
What doesn’t
- No swivel fittings require precise alignment during install
- Limited to 24-inch length with no longer options available
- Male NPT ends may need thread sealant for leak-free seal
3. Haichy 15611-12-12-36 Hydraulic Hose
The Haichy 15611 series brings a 3,118 PSI working pressure in a compact 36-inch assembly with male NPT ends. The two-layer high-strength steel wire reinforcement and synthetic rubber cover match the specifications found on many OEM backhoe and mini-excavator hoses. The temperature range of -40°F to 212°F covers most outdoor hydraulic applications, including cold-weather startups that can crack inferior covers.
Real-world use cases range from CAT 303C thumb installations to general backhoe hose replacements. Owners consistently note the crimp quality and cleanly finished NPT threads. One detailed review highlighted that the hose shipped straight rather than tightly coiled, which prevented the set-induced kinking that plagues bulk roll hoses. No-leak installation reports dominate the feedback, with several buyers stating the fit was exact for their application.
The main consideration is the fixed 36-inch length. Custom routing with bends that require more or less hose will need careful measurement before purchase. The generic branding also means no direct manufacturer support for specialized application questions. For standard high-pressure lines on compact equipment, this assembly punches well above its price point.
What works
- Clean NPT threading with no burrs or debris noted
- Shipped straight to prevent coil memory kinking
- Two-wire steel braid handles full excavator circuit pressure
What doesn’t
- Fixed 36-inch length limits routing flexibility
- Generic brand with no technical support hotline
- NPT ends require sealant and careful torque
4. Autovo 26711-12-12-RW Hydraulic Hose Swivel Assembly
Autovo’s 26711-12-12-RW uses female JIC swivel ends on both sides, a configuration that dramatically simplifies installation in tight engine bays or skid-steer compartments where the hose must rotate during connection. The 3,118 PSI working pressure and two-wire steel braid construction match the Haichy offering but add the swivel convenience. At 48 inches, this assembly covers medium-length runs for loaders, backhoes, and auxiliary circuits.
Owner reviews emphasize the heavy-duty feel and perfect fitment. One buyer used it to tee into a pressure gauge system, noting the swivel ends allowed precise alignment without stressing the crimp. Another replaced an OEM hose on a tractor implement and described the Autovo as more heavy-duty than the original. The outer synthetic rubber cover resists weather checking, a key factor for outdoor-stored equipment.
The only pattern issue in feedback is the lack of length variety — 48 inches is the sole option. For shorter runs, buyers must shop alternative models. Additionally, the swivel adds a small amount of rotational play that some operators may notice on high-vibration circuits. For installations where alignment freedom saves time and reduces fitting stress, this swivel assembly is a smart choice.
What works
- Swivel JIC ends simplify alignment and reduce hose stress
- Two-wire reinforcement handles full mobile hydraulic pressure
- Weather-resistant cover suitable for outdoor exposure
What doesn’t
- Only available in 48-inch length
- Swivel adds minor rotational play under load
- Generic brand limits application-specific support
5. Generic HaiChi 26711-12-12-RW Swivel Assembly
This HaiChi-manufactured swivel assembly mirrors the Autovo design with female JIC fittings on both ends and a 3,118 PSI working pressure. The 48-inch length suits tractor rear remote installations, rollback hydraulics, and auxiliary circuits. Two-layer high-strength steel wire braid provides the reinforcement backbone, and the synthetic rubber cover resists oil and weather exposure.
Owner feedback is generally positive, with multiple buyers confirming fitment on tractor remotes and off-road equipment. The hose worked well for extending onboard air lines in Jeeps, demonstrating versatility beyond pure hydraulic circuits. Pricing relative to local shop fabrication was cited as a major advantage, with several owners stating they would buy again for future repairs.
A critical minority report raises concerns about crimp integrity. One owner documented two hoses failing at the crimp joint within two months on a farm loader operating near 2,800 PSI. Another hose showed signs of pulling out of the fitting. This pattern, while not universal, suggests that quality control may vary between production batches. For critical lift circuits or continuous-duty applications, inspect the crimp area carefully before installation.
What works
- Swivel JIC ends make alignment straightforward
- Priced well below hydraulic shop custom fabrication
- Versatile for both hydraulic and pneumatic systems
What doesn’t
- Isolated reports of crimp failures in high-cycle use
- Batch quality control appears inconsistent
- Not recommended for safety-critical lift circuits without inspection
6. Heroson 26711-12-12RW Hydraulic Hose Swivel Assembly
The Heroson 72-inch assembly brings a longer reach option to the 26711-12-12RW platform, maintaining the 3,118 PSI working pressure and female JIC swivel ends. The extended length is particularly useful for loader bucket cylinders, mower deck lift circuits, and any application where the hose must traverse a pivot point or suspension joint. Two-wire steel braid and synthetic rubber construction match the established specification.
Owner reviews highlight the perfect fit for a Mahindra 1538 tractor loader, with one buyer noting the hose matched the original equipment routing exactly. The swivel ends received praise for easing installation in confined spaces. Another owner used the assembly for a custom hydraulic setup and reported no issues during the first weeks of operation. The pricing was widely described as excellent for the quality delivered.
A notable failure report exists: one Mahindra 1538 owner experienced a catastrophic blowout at the end fitting while moving gravel, describing the hose as failing under load. This single report contrasts with otherwise positive feedback but warrants attention for buyers planning continuous heavy use. Inspecting the crimp quality and considering derating for high-shock applications would be prudent.
What works
- 72-inch length accommodates long-reach and pivot-point routing
- Swivel JIC ends simplify tight-space installation
- Strong value proposition versus custom shop fabrication
What doesn’t
- One report of end fitting failure under load
- Crimp quality should be verified before critical use
- Limited performance data for high-shock applications
7. Byredio 3/4 Push On Fuel & Transmission Hose
Byredio’s 3/4-inch push-on hose targets low-pressure fuel, oil, coolant, and transmission return line applications rather than high-pressure hydraulic circuits. With a working pressure of 150 PSI and burst pressure of 600 PSI, this hose is designed for gravity-fed or low-pressure pump systems. The NBR rubber construction with braided polyester reinforcement exceeds SAE 30R9 standards, meaning it handles ethanol, biodiesel, and high-temperature exposure up to 302°F.
Owner feedback confirms the hose’s flexibility and ease of cutting to custom lengths. One buyer replaced a rotted steel fuel line with this hose, describing the installation as straightforward with a leak-free result. Another used it for transmission cooler lines and noted the 3/4-inch ID matched standard cooler barbs without excessive stretching. The 4 mm wall thickness provides good puncture resistance for engine bay routing where abrasion against sheet metal is a concern.
This hose is not rated for hydraulic implement circuits or any application exceeding 150 PSI continuous. The push-on design requires barbed fittings and hose clamps — crimp fittings are not compatible. For buyers seeking a bulk fuel and oil line solution that can be cut to exact lengths, this delivers strong value. Over-specifying it for hydraulic duty would be a mistake.
What works
- Exceeds SAE 30R9 for ethanol and biodiesel compatibility
- Flexible with tight 3.3-inch bend radius for tight routing
- Can be cut to custom lengths with standard tools
What doesn’t
- 150 PSI working pressure limits use to low-pressure circuits
- Push-on design requires barbed fittings and clamps
- Polyester braid lacks the burst margin of steel wire reinforcement

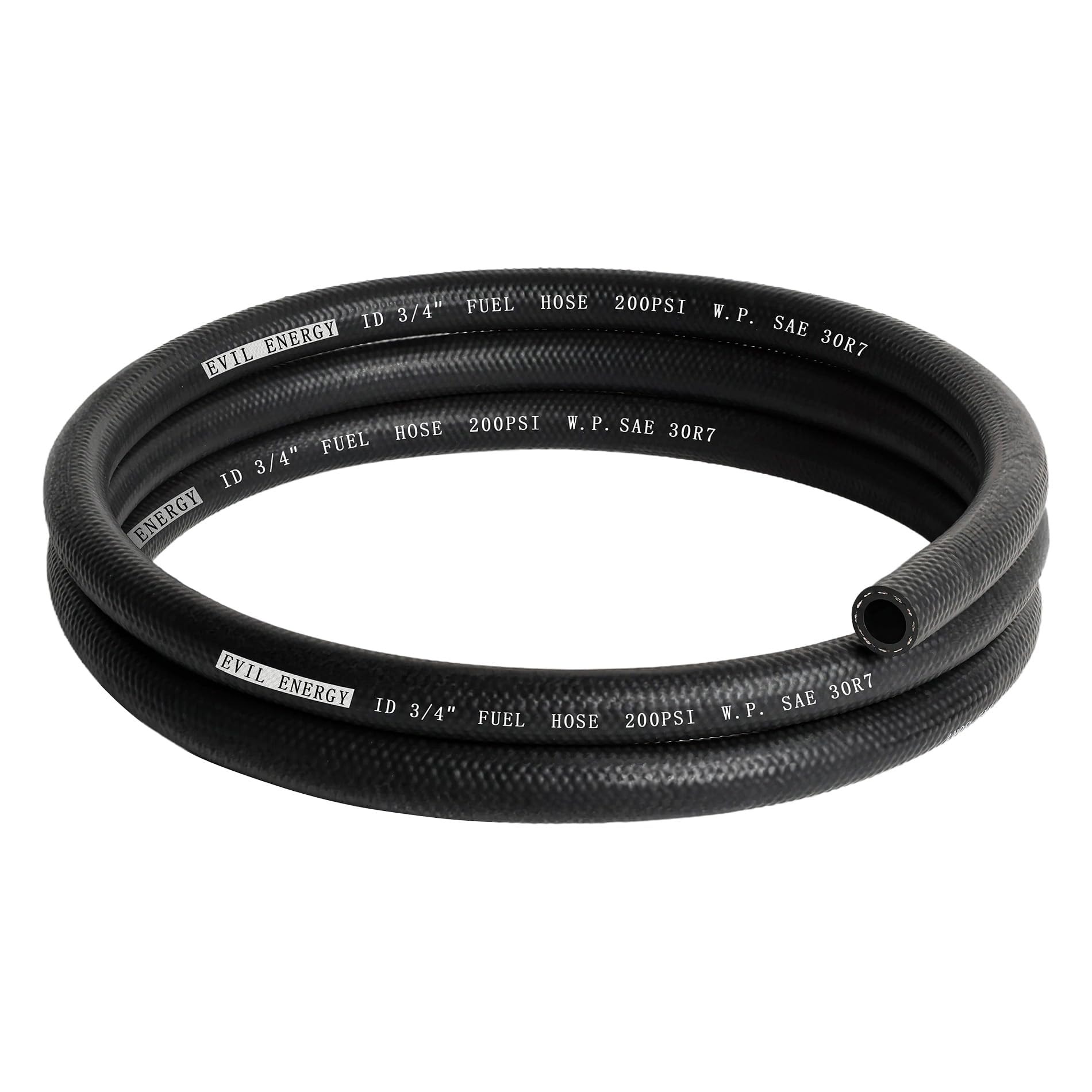

8. EVIL ENERGY 3/4 Fuel Hose Push Lock NBR
EVIL ENERGY’s 3/4-inch push-lock hose offers a slight pressure upgrade over basic fuel hose with a 200 PSI working pressure and 800 PSI burst rating. The NBR rubber compound with braided polyester fiber reinforcement meets SAE 30R7 standards, making it suitable for fuel systems, oil cooling circuits, and steam emission lines. The 5-foot length provides enough material for multiple short runs or one medium replacement.
Buyer reports are overwhelmingly positive, with one owner using multiple sizes from EVIL ENERGY to replace all fuel lines on a sports car that sat for 25 years, reporting no leaks after completion. The flexibility was praised by another user who noted that competitive hoses collapsed under vacuum while this one maintained its shape even in extreme heat conditions in Kuwait. The hose holds air pressure during leak testing, confirming the cover integrity.
The 200 PSI ceiling means this hose should not be used for main hydraulic circuits on tractors or excavators. Its intended role is fuel supply, oil cooler bypass, and low-pressure hydraulic return lines where push-lock convenience saves time. The 3 mm wall is thinner than some alternatives, so routing near sharp edges requires protective sleeving. For automotive fuel and oil systems, this is a capable and cost-effective choice.
What works
- 200 PSI rating higher than basic fuel hose options
- Flexible without collapsing even at elevated temperatures
- Compatible with diesel, gasoline, biodiesel, and oil
What doesn’t
- Not suitable for high-pressure hydraulic circuits
- 3 mm wall thinner than premium fuel hose alternatives
- Polyester braid limits burst pressure ceiling
9. CHOIMOON 3/4 Oil Cooler Push Lock Hose
CHOIMOON’s 10-foot oil cooler hose uses a nylon material construction with 4 mm wall thickness, targeting the same low-pressure fuel, oil, and coolant applications as the Byredio hose. The 150 PSI working pressure and 600 PSI burst rating match expectations for push-lock hose in return and bypass circuits. The nylon inner layer resists corrosion and ethanol permeation better than some rubber compounds, extending service life in alcohol-blend fuels.
Owner applications include radiator overflow pipes on vintage tractors and engine oil priming circuits. One buyer used it to connect an oil pump for pre-lubing a rebuilt engine, confirming the hose held pressure without ballooning. The flexibility was noted as exceptional, with the 84 mm minimum bend radius allowing tight routing around engine accessories without kinking. Some buyers paired it with EVIL ENERGY fittings for a complete push-lock system.
The primary concerns from owner feedback relate to the included crimp-style clamps. Multiple users reported these clamps can pop off after heat cycles, recommending screw-type hose clamps instead. The nylon material also feels stiffer than rubber at cold temperatures, requiring careful bending below freezing. For oil cooler and fuel return circuits where hose clamp compatibility is understood, this is a solid 10-foot solution.
What works
- Nylon construction resists corrosion and ethanol permeation
- Excellent flexibility with tight bend radius
- 10-foot length covers long runs or multiple circuits
What doesn’t
- Included crimp clamps unreliable after thermal cycling
- Nylon stiffens noticeably in cold weather
- 150 PSI ceiling limits hydraulic circuit compatibility
10. KOUTIANWU 50 Ft 3/4 Hydraulic Hose with Fittings Kit
KOUTIANWU’s bulk hose kit combines 50 feet of 3/4-inch two-wire steel braid hydraulic hose with ten JIC 37-degree female fittings and ten NPT male fittings. The 5,800 PSI working pressure places this in the high-pressure category, suitable for mobile equipment hydraulics, compact excavators, and heavy agricultural implements. The hose uses synthetic rubber inner and outer layers with two high-tensile steel wire braid reinforcements between them.
Owner feedback highlights the cost savings versus buying individual assemblies from hydraulic shops. One buyer who owns a crimper reports saving thousands per year by fabricating custom hoses for his equipment fleet. The zinc-plated carbon steel fittings resist corrosion, and the 20-piece assortment covers common JIC and NPT configurations. The straight-coil packaging helps prevent kinks during storage, though the hose still has natural coil memory that must be worked out during installation.
The kit does not include a crimping tool, so buyers must already own or purchase a hydraulic crimper. The lack of printed crimp specifications means users must source crimp diameter data from the hose manufacturer independently. A buyer noted the instructions are minimal, requiring some hydraulic knowledge to achieve reliable crimps. For experienced DIYers or farm shops with existing crimping capability, this kit offers exceptional value per foot.
What works
- High 5800 PSI working pressure suits heavy equipment circuits
- Includes both JIC and NPT fittings for application flexibility
- Bulk roll allows custom-length fabrication
What doesn’t
- Requires separate purchase of hydraulic crimper
- No crimp specification sheet included
- Kit weight nearly 40 pounds makes handling cumbersome

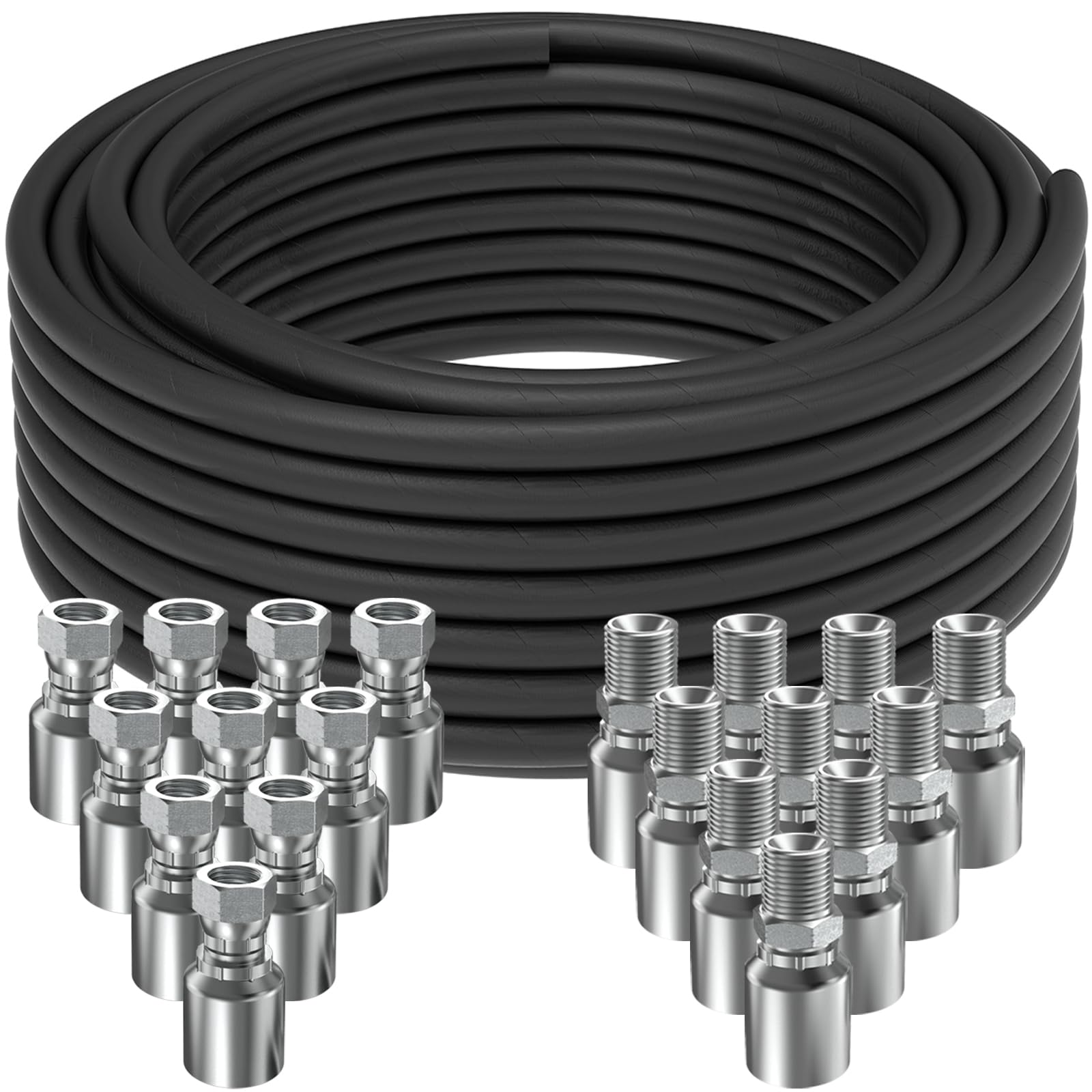

11. CAMUUN 50 Ft 3/4 Hydraulic Hose with Fittings Kit
CAMUUN’s bulk kit mirrors the KOUTIANWU package with 50 feet of 3/4-inch two-wire steel braid hose rated at 5,800 PSI, plus ten JIC 37-degree female and ten NPT male fittings. The construction uses synthetic rubber inner and outer layers with external fabric covering protecting the steel wire braid. The operating range spans -40°F to 250°F, covering all-season outdoor use. The permanent crimp design requires a crimping machine for secure, leak-free connections.
Owner feedback indicates strong satisfaction with the hose quality for non-critical attachment hoses. One buyer described this as what should have come standard on camper hydraulic leveling systems. Another confirmed the hose and fittings produced reliable connections when crimped correctly. The kit pricing relative to buying components individually was highlighted as a major advantage for farm and ranch operations.
Fitting compatibility issues surfaced in one review, where the buyer received mismatched sizes — 1/2-inch fittings mixed into a 3/4-inch kit. This quality control miss suggests batch inspection before installation is essential. The lack of detailed crimp specifications is a shared limitation with the KOUTIANWU kit. For buyers with access to a crimper who verify fitting sizing upon arrival, this kit provides bulk hydraulic hose capability at a fraction of local shop rates.
What works
- 5800 PSI rating suitable for high-pressure hydraulic circuits
- 20-piece fitting assortment covers common configurations
- Bulk length enables custom hose fabrication on demand
What doesn’t
- Quality control reports of mismatched fitting sizes
- No crimp specification data included in packaging
- Requires separate hydraulic crimper investment
Hardware & Specs Guide
Wire Braid Reinforcement
Two-wire steel braid is the standard for high-pressure hydraulic hoses (SAE 100R2AT, R16, R17). The braid angles and wire tensile strength determine the hose’s impulse life. Hoses with visible fabric covering over the wire braid add abrasion protection. Single-wire braid or textile braid is acceptable for return lines and low-pressure circuits but will fail prematurely in full hydraulic duty.
Working Pressure vs. Burst Pressure
Every hydraulic hose has a rated working pressure (continuous duty) and a burst pressure (typically 4x working). Never exceed working pressure in operation — the system relief valve should be set at or below this number. Burst pressure is the hydraulic equivalent of a safety fuse; exceeding it even momentarily can cause catastrophic hose failure.
Fitting Types
JIC 37-degree flare fittings seal on a metal cone interface and are standard in medium-pressure mobile hydraulics. NPT fittings use tapered pipe threads that require thread sealant and precise torque. Push-lock fittings use barbed stems and do not require crimping, but are limited to lower pressures. Swivel ends allow the fitting to rotate independently of the hose, simplifying alignment during installation.
Cover Abrasion Resistance
Hoses used in agricultural, construction, and mining environments are exposed to dirt, rocks, and constant flexing. MSHA-certified covers offer the highest abrasion resistance. Synthetic rubber covers with high tensile strength resist weather checking and oil degradation. Textile or fabric-covered hoses are more susceptible to cover wear and should be protected with sleeving in abrasive routing paths.
FAQ
What is the difference between SAE 30R7 and SAE 30R9 hydraulic hose?
Can I use a push-lock hose for my tractor’s hydraulic circuit?
How do I measure the correct hose length for a replacement?
What does the 2 in SAE 100R2AT mean for hose construction?
Can I mix JIC and NPT fittings on the same hydraulic circuit?
Final Thoughts: The Verdict
For most buyers, the best 3/4 hydraulic hose winner is the Hydraulics Direct FA-UFW12-JIC because it combines the highest working pressure, MSHA-certified abrasion resistance, and consistent crimp quality that exceeds multiple SAE standards. If you want swivel convenience for tight-space installations, grab the Autovo 26711-12-12-RW. And for bulk custom fabrication with a hydraulic crimper, nothing beats the value of the KOUTIANWU 50-foot kit.
