By the time you hit 100,000 miles on your 2017 Silverado, those factory headlights have already lost half their usable light output due to UV haze and reflector fade — a well-documented degradation curve that leaves you overdriving your low beams at highway speeds without realizing it. Restoring full nighttime visibility on these GMT K2 trucks requires navigating the specific fitment quirks of the 2016-2018 generation, where trim levels dictate everything from bulb type (D5S HID vs. halogen) to connector pins and housing depth.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve tracked over 4,000 buyer reviews across Chevrolet lighting platforms, focusing specifically on the K2 platform’s DRL failure rates, seal integrity over 40,000 miles, and beam pattern complaints to separate the aftermarket winners from the fog-prone failures.
The truck’s aging lamp sockets and heat-cycled housings demand a precise replacement strategy that balances beam focus with weatherproofing. That’s precisely where this guide to the 2017 chevy silverado headlights comes into play, analyzing nine real-world options across housings and bulbs to match your specific trim and budget.
How To Choose The Best 2017 Chevy Silverado Headlights
Your Silverado 1500’s lighting system is trim-dependent—LT and LTZ trucks left the factory with HID projectors using D5S bulbs, while lower trims used halogen reflectors. Buying the wrong bulb type or housing version will leave you with a non-functional DRL plug or a beam pattern that fails inspection. Focus on three variables before clicking buy.
D5S HID vs. Halogen – Know Your Factory Socket
The D5S bulb is a gas-discharge capsule with an integrated igniter, used exclusively in factory HID projectors from 2016-2018. If your truck has a chrome housing with a projector lens, you need D5S-compatible housings or D5S replacement bulbs. If your housing uses a standard H11 or 9005 bulb, you’re on the halogen reflector system and need the corresponding housings. Checking your existing bulb’s base (twist-lock D5S vs. blade-style H11) takes ten seconds and prevents a mistake.
Seal Quality and UV-Stabilized Lenses
Aftermarket housings fail most often because of poor lens adhesion. Repeated thermal cycles cause micro-cracks, letting moisture condense inside the lens. Look for housings that explicitly mention IP67 or IP68 sealing and use polycarbonate lenses with UV coating — the coating prevents the yellowing that plagues cheaper acrylic units within 18 months. OEM-grade ABS backing shells with reinforced mounting tabs also resist the vibration that causes beam misalignment.
LED DRL Integration and Load Resistor Requirements
Many aftermarket housings include integrated LED daytime running light strips or switchback functions. These often require a load resistor or CANbus decoder to prevent hyper-flash on the turn signal circuit, especially on trucks with factory LED tail lamps. If the product description doesn’t mention CANbus compatibility, plan on buying a separate decoder harness — or risk having your DRLs strobe or your turn signals flash triple-speed.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| TUSDAR Projector Housing | Housing | Factory HID replacement | D5S projector; polycarbonate lens | Amazon |
| FIONE Full LED Housing | Housing | Modern full-LED look | Integrated LED DRL & projector | Amazon |
| ZSTOPCL D5S Bulbs | Bulbs | OEM output upgrade | 24000 lumens; 6000K; Canbus-ready | Amazon |
| SEALIGHT S7S Bulbs | Fog/Driving | Fog light upgrade | 120000 lumens; twin fan cooling | Amazon |
| LSAILON Housing | Housing | Budget pair replacement | Direct fit; DOT/SAE compliant | Amazon |
| LBRST Housing | Housing | Entry-level pair | Acrylic lens; LED DRL strip | Amazon |
| Duolctrams Chrome Housing | Housing | Passenger side only | IP67; chrome HID projector | Amazon |
| AnzoUSA 111366 | Housing | 2500HD/3500HD upgrade | Switchback DRL; projector lens | Amazon |
In‑Depth Reviews

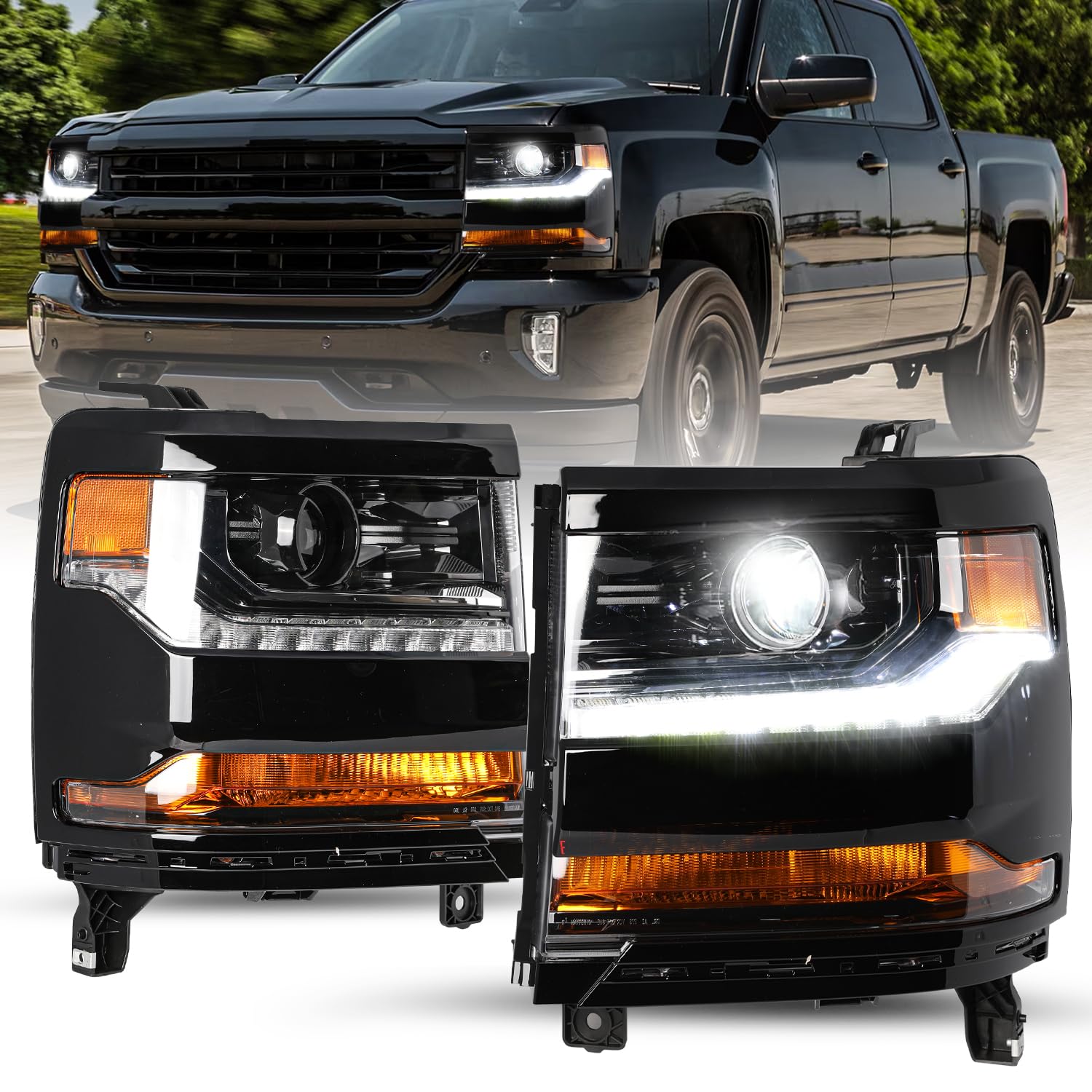

1. TUSDAR Projector Headlight Assembly
The TUSDAR housing hits the sweet spot for 2017 Silverado owners with factory HID systems. It’s designed specifically for the D5S projector architecture, meaning your OEM ballasts and igniters are a direct swap — no cutting or adapter harnesses required. The polycarbonate lens is UV-coated and the housing is sealed against moisture, addressing the two most common failure points for aftermarket replacements on these trucks.
Beam focus is sharp with a defined cutoff, and the integrated LED DRL adds a modern lighting signature without looking aftermarket. The black housing and clear lens combination matches the factory LTZ appearance closely. Buyers report the fitment is identical to stock, with all three mounting points aligning without shimming or bending the core support brackets.
The one catch: bulbs are not included, and the description specifies compatibility with factory HID models only — halogen trucks cannot use these housings without converting the entire electrical system. You’ll also need to reuse the plastic trim bezel from your old assembly, as TUSDAR does not include it in the box. For the price point, the build quality and warranty coverage make this the most reliable drop-in option for HID-equipped trucks.
What works
- Perfect D5S projector alignment with factory cutoff
- UV-stabilized polycarbonate resists yellowing
- 1-year replacement warranty with prompt support
What doesn’t
- Does not include D5S bulbs
- Only compatible with factory HID trucks

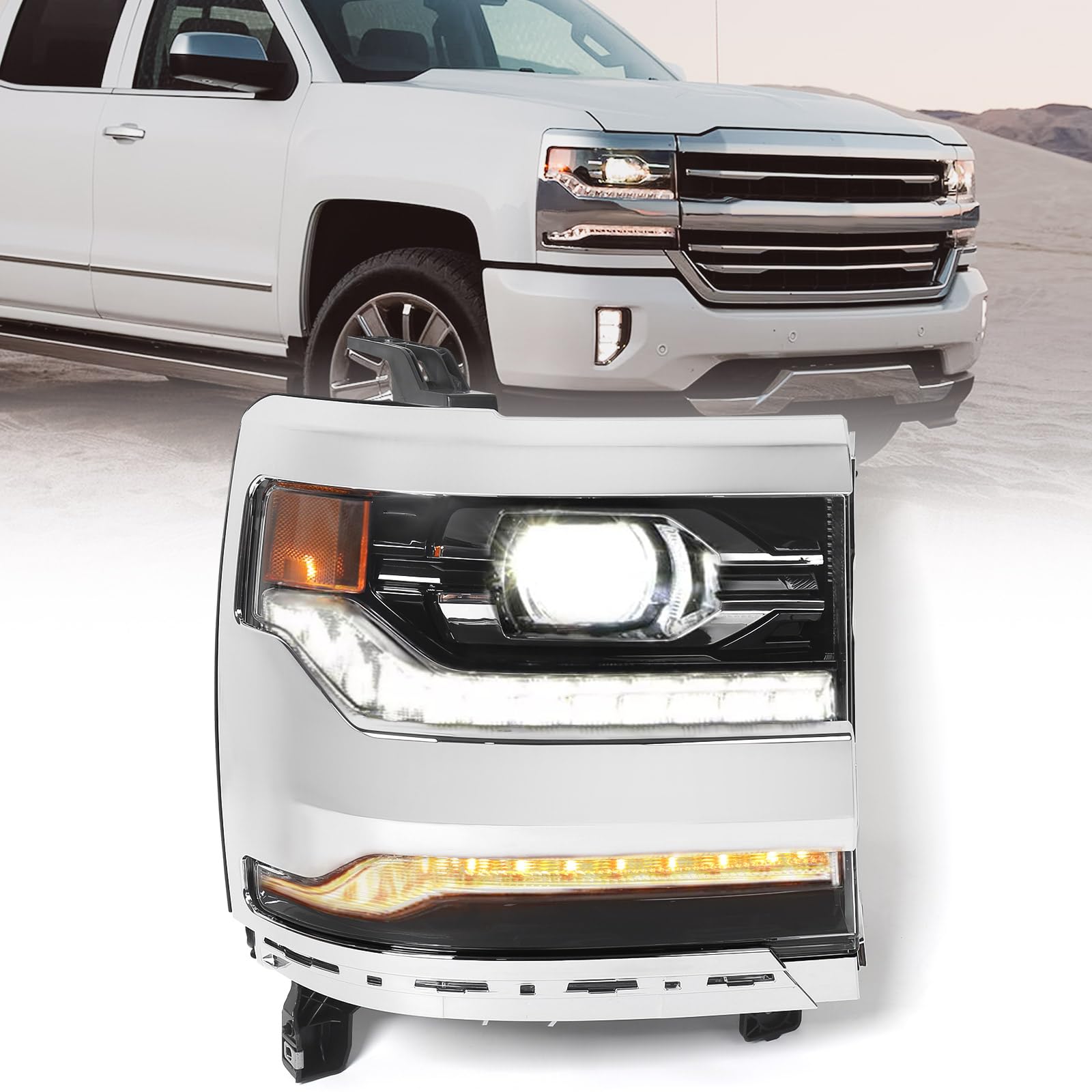

2. FIONE Full LED Headlight Assembly
FIONE’s full LED housing is the go-to for Silverado owners who want a true LED headlight experience without swapping to an aftermarket projector retrofit. The housing uses integrated LED chips for both low and high beams, paired with a chrome reflector housing and a dedicated LED DRL strip. The light output is significantly whiter and wider than the halogen or HID stock pattern, with a 6000K color temperature that closely matches modern luxury trucks.
Installation is plug-and-play for trucks originally equipped with halogen bulbs — the housing includes the correct H11/9005 connectors. However, the unit is not serviceable: if the internal LED board fails, the entire assembly must be replaced. Some buyers have reported intermittent issues with the turn signal function requiring a load resistor, though most trucks operate without a decoder.
Build quality is above average for the price bracket, with a thick polycarbonate lens and a gasketed backplate that has held up well in wet climates. The chrome housing finish is matte rather than high-gloss, which catches some owners off guard but pairs well with chrome grilles. Given the integrated LED design, this is best viewed as a long-term upgrade rather than a disposable replacement.
What works
- True full LED output with no separate bulbs
- Plug-and-play for halogen trucks
- Sharp modern appearance with chrome accent
What doesn’t
- Non-serviceable LED board — entire housing must be replaced if a chip fails
- Matte chrome finish, not glossy

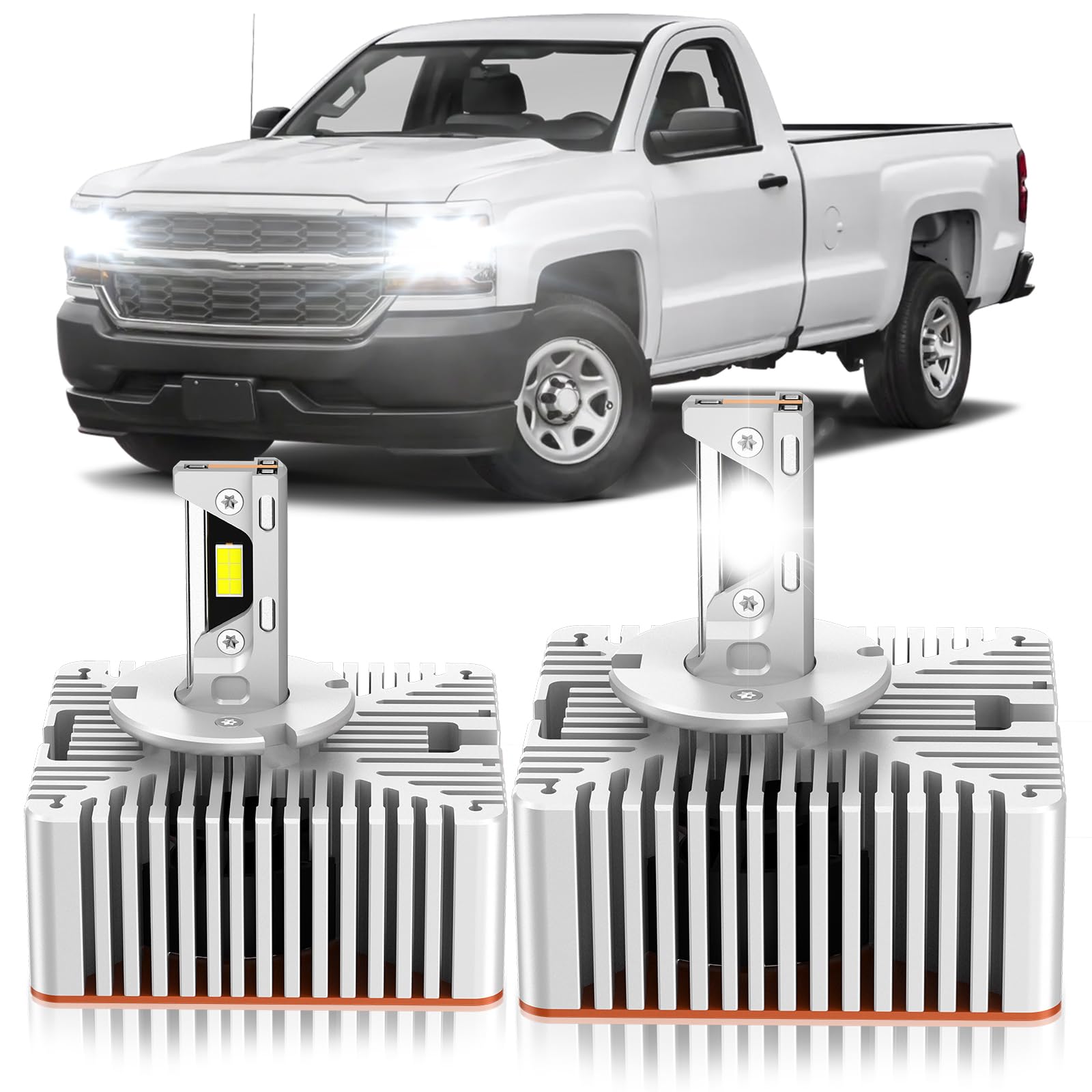

3. ZSTOPCL D5S HID Replacement Bulbs
If your 2017 Silverado already has factory D5S projectors but the bulbs have dimmed to a warm yellow, the ZSTOPCL D5S replacements are a straight-forward brightness upgrade. Claiming 24,000 lumens per set — roughly six times the output of aging OEM HID capsules — these bulbs use dual-sided CSP chips to maximize usable light within the projector’s focal plane.
The 1:1 form factor means they drop into the factory D5S socket without adapters. The built-in Canbus decoder prevents the flicker and error codes that plague universal HID retrofits on GM’s CANBUS system. Thermal management uses an aluminum body with three copper heat pipes and a 15,000 RPM fan, keeping the capsule at optimal temperature for the rated 60,000-hour lifespan.
Beam pattern tests show a sharp cutoff with no foreground scatter, which is critical for avoiding glare in the Silverado’s tall driving position. The 6000K color temperature is a crisp white with a faint blue tint. Note that these are for D5S systems only — owners with halogen housings will need a complete housing swap rather than a bulb replacement.
What works
- Massively brighter than worn factory D5S bulbs
- Plug-and-play with OEM HID projectors
- Canbus decoder prevents error codes
What doesn’t
- Incompatible with halogen reflector housings
- Fan cooling introduces a slight operational noise
4. SEALIGHT S7S H11/9005 Fog Light Bulbs
Don’t neglect the fog lights — the SEALIGHT S7S bulbs are a high-quality LED upgrade for the lower bumper fog housings on 2016-2018 Silverados. Available in the H11 and 9005 base configurations, these bulbs use CSP chips in a 1:1 halogen beam pattern, meaning the light is focused into the factory fog housing without scattering into oncoming lanes.
The IP68 rating ensures the bulb chambers remain dry even during pressure-washing or deep fording, and the dual silent cool fans prevent overheating in the cramped fog light cavity. The 6500K color output matches modern HID and LED headlight color closely, creating a uniform front lighting signature. The Canbus-ready driver means no flickering or dash warnings on vehicles with bulb-out detection.
Installation takes under three minutes per side — the bulb base twists directly into the factory socket with the same orientation as the old halogen. These work best as a pair, providing a wide, low beam that fills in the gap directly in front of the bumper. The 10-year lifespan claim is aggressive, but the solid aluminum body and fan cooling give them a higher chance of reaching it than unventilated designs.
What works
- 1:1 beam pattern prevents glare in fog housings
- IP68 waterproof for all-weather reliability
- Quick 3-minute per side installation
What doesn’t
- Requires removing lower skid plate for full access
- 6500K color may appear too blue for some tastes

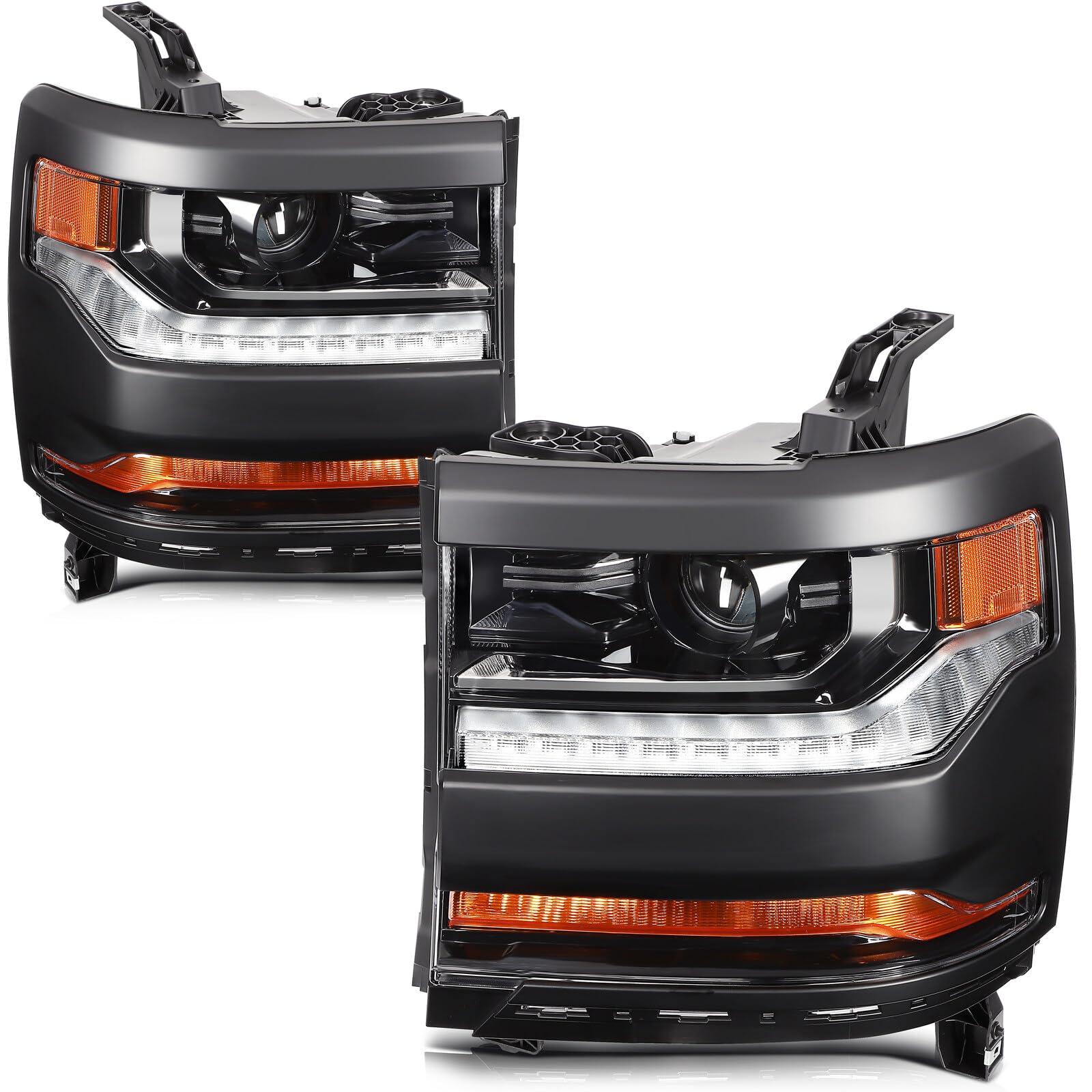

5. LSAILON Headlight Assembly Pair
For Silverado owners on a tighter budget who need a pair of complete housings, the LSAILON assembly delivers impressive quality for its price point. The black housing with clear lens mimics the factory look, and the D5S projector chambers accept both high and low beam capsules without modification. The housing comes pre-sealed with tested gaskets that clear temperature, humidity, and fog ingress tests before shipping.
Buyer reviews consistently note that the fitment is spot-on — the three mounting tabs align with the core support, and the headlight adjusters work smoothly to set beam aim. The ABS housing material feels dense enough to resist cracking if a stone strikes it on the highway. One minor step: you need to swap the captive nut plates from your old headlights because the included ones have smaller thread sizes that don’t accept the factory 10mm bolts.
The LSAILON does not include bulbs, so budget an additional set of D5S capsules or LED equivalents. The DOT and SAE compliance stamps mean it should pass state inspections without an issue. For a full pair at this price, the consistent feedback around fit and sealing makes it a solid mid-range choice.
What works
- Excellent direct fit with minimal adjustment
- DOT/SAE compliant for inspection legality
- Rigorous factory pre-testing for seal integrity
What doesn’t
- Requires swapping captive nut plates from old housings
- No bulbs or DRLs included

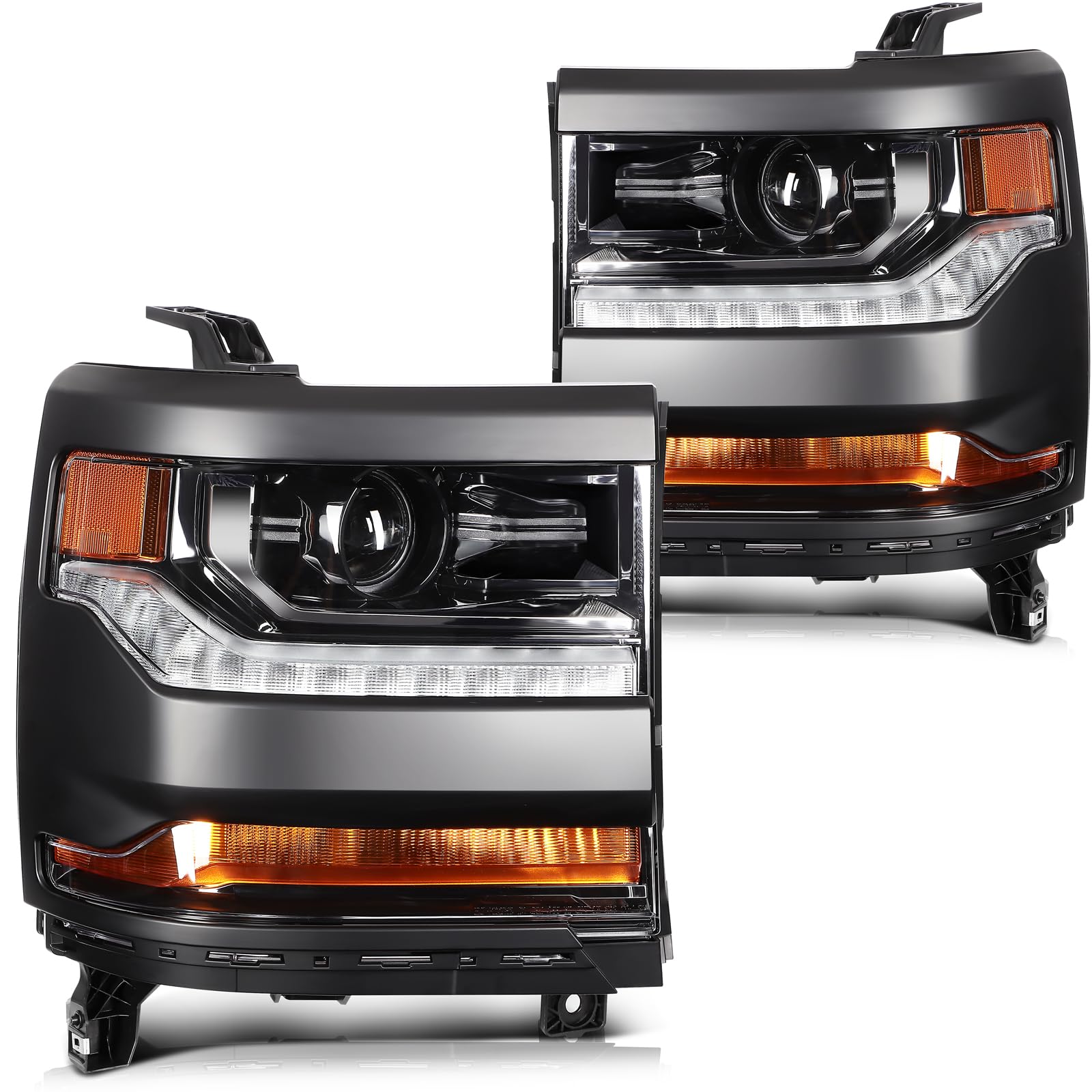

6. LBRST Headlight Assembly Pair
The LBRST housing is the entry-level option for owners who simply need a working set of headlights without the brand premium. The assembly uses an acrylic lens rather than polycarbonate, which is lighter but more susceptible to UV yellowing over time. The black housing includes an integrated LED DRL strip that adds a modern appearance, though the light output from the DRL is more cosmetic than functional.
Fitment is standard for the 2016-2018 platform, and the D5S bulb sockets are pre-wired for both high and low beams. The factory sealing process is checked before shipment, though buyers should monitor for fogging during the first few weeks — any moisture ingress typically settles after the housing heat-cycles a few times. The backshell is impact-resistant ABS with decent thermal stability for the price tier.
The main tradeoff is durability: acrylic lenses are more prone to hazing than polycarbonate, especially in sunbelt states. If you plan to keep the truck for more than two years, the cost savings might be offset by earlier replacement. For a short-term solution or a work truck that lives under a roof, the LBRST pair offers functional lighting at the lowest entry point.
What works
- Lowest-cost pair of housings available
- LED DRL adds visual upgrade
- Pre-sealed and pressure tested before shipment
What doesn’t
- Acrylic lens will yellow faster than polycarbonate
- Fogging may occur during first heat cycles

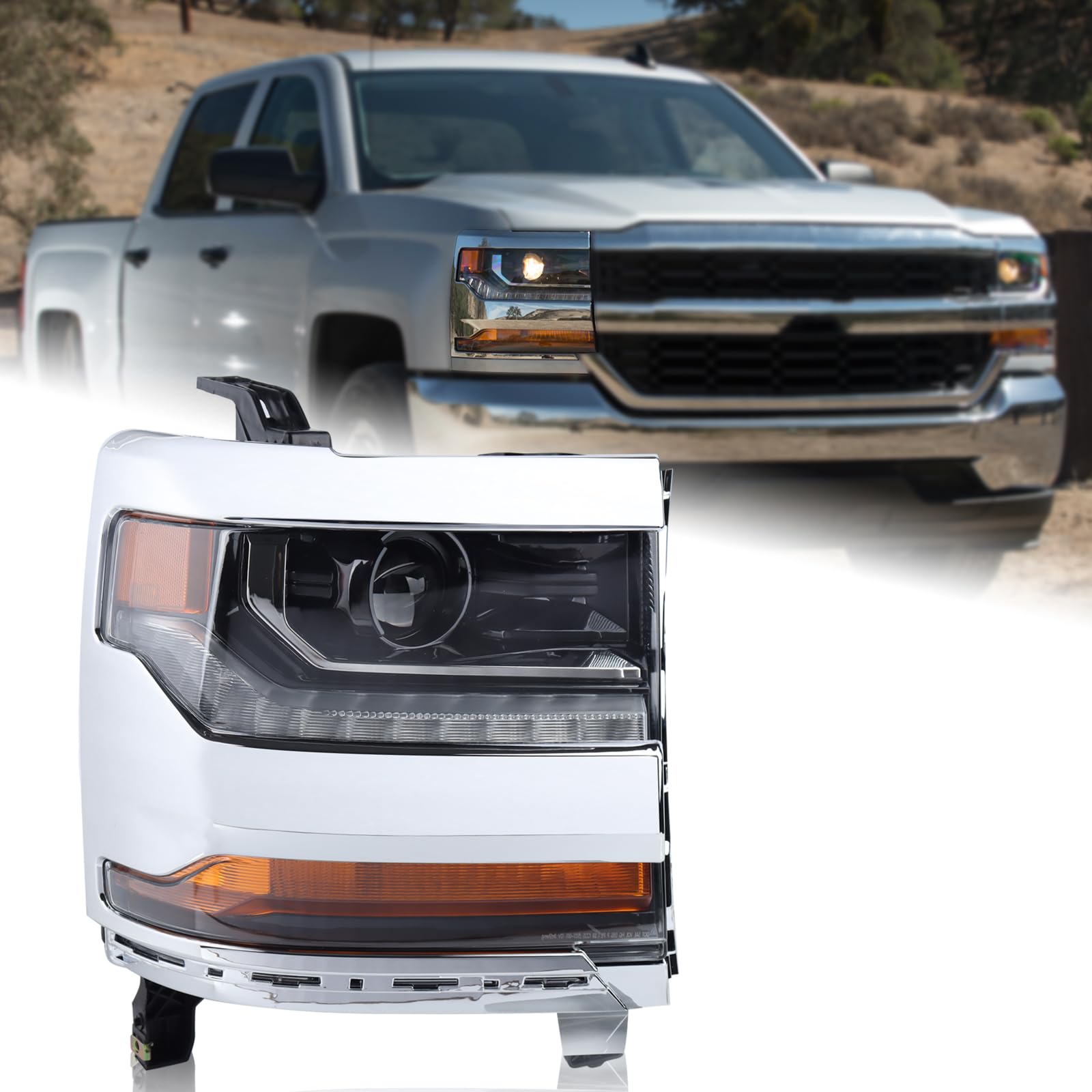

7. Duolctrams Chrome HID Projector Housing
If you only need to replace the passenger-side housing after a collision or crack, the Duolctrams chrome projector assembly fits the bill perfectly — but only for that side. This is a right-side-only unit for 2016-2018 Silverado 1500 and 2019 1500 LD trucks equipped with factory HID or xenon systems. The chrome housing with clear lens matches the OEM appearance of LTZ trims exactly.
The housing uses an OE-style mounting pattern that bolts directly to the core support without gaps. The IP67 waterproof seal covers the back of the housing, preventing moisture from reaching the projector bulb chamber. One important note: the product does not include high or low beam bulbs — you must reuse the original D5S capsule and igniter from your damaged housing.
The polycarbonate lens has UV resistance and the ABS shell has good impact strength for debris strikes. The DOT/SAE compliance stamp is molded into the lens. Since this is a single-side purchase, it works best as a one-for-one replacement for a damaged OEM unit. Buying two units would give you a matching pair, but the total cost exceeds that of a dedicated pair set from other brands.
What works
- Exact OE shape with no fitment gaps
- IP67 seal keeps projector chamber dry
- DOT/SAE compliant for legal road use
What doesn’t
- Passenger side only — no matching driver side in this model
- Requires reusing original D5S bulb and igniter
8. AnzoUSA 111366 Projector Switchback Headlight
The AnzoUSA 111366 is designed specifically for the heavy-duty Silverado chassis — 2500HD and 3500HD trucks from 2015 through 2019. This is not a 1500 part, so double-check your truck’s classification before clicking. The assembly features a chrome projector housing with a switchback DRL function that illuminates white while driving and transitions to amber when the turn signal is activated.
The projector lens is designed for H11 halogen bulbs, not HID or LED capsules. The reflector bowls are precision-molded to create a defined beam cutoff with the stock halogen output. While you can retrofit LED bulbs into the projector, the beam pattern may scatter without a bulb shield. The housing is made in Taiwan with polycarbonate lens material and the chrome finish is high-gloss.
Installation is direct-fit for HD trucks, reusing the factory mounting points and wiring connectors. The weight of the unit — 28 pounds per box — reflects the beefier construction needed to survive the vibration and road shock of a heavy-duty truck. The switchback DRL module is integrated into the housing, so no separate controller is required. For HD owners wanting a cleaner look than the factory chrome reflector, this is a premium option with proven durability.
What works
- Switchback DRL seamlessly transitions white to amber
- Built for HD chassis vibration and weight demands
- Projector housing provides better beam focus than reflector
What doesn’t
- Will not fit Silverado 1500 models
- Halogen-only bulb socket — LED retrofit may scatter pattern
Hardware & Specs Guide
D5S HID Capsule — The Factory Standard
The 2017 Silverado 1500’s D5S bulb is a gas-discharge lamp with an integrated igniter, running at approximately 35 watts with a color temperature around 4300K from the factory. The capsule uses a twist-lock base that twists 90 degrees into the projector socket. These bulbs degrade naturally — after 2,500 operating hours, output typically drops to 70% of original. Replacement D5S capsules like the ZSTOPCL and the factory-style units boost output to 24000 lumens by using CSP LED chips positioned at the same focal point as the original arc tube.
Polycarbonate vs. Acrylic Lens Materials
Polycarbonate lenses dominate premium housings because they resist UV yellowing and impact cracking better than acrylic. A polycarbonate lens will survive a stone impact at highway speed that would crack an acrylic unit. The tradeoff is weight: polycarbonate is denser. Lower-cost housings like the LBRST use acrylic to reduce material cost, but owners in high-sun climates often see lens haze within 18-24 months. UV coating is applied as an extra layer — look for “UV-stabilized” in the product description to ensure the coating is part of the molding process, not just a surface spray that wears off.
Seal Classes: IP67 vs. IP68
An IP67-rated housing is tested for dust ingress and immersion in one meter of water for 30 minutes. IP68 extends that to deeper immersion and longer duration, but the practical difference for automotive use is minimal — both prevent rain, car wash pressure, and road splash. The critical failure point is the rear seal cap where wiring exits. Housings that include a grommeted backplate or silicone-filled connector cavity are less likely to develop internal condensation. If you live in a region with high humidity, look for housings that note “pressure tested” or “anti-fog venting.”
CANBUS Decoding for GM Trucks
GM’s Body Control Module monitors headlight and signal circuits for resistance changes. When you swap from halogen to LED, the lower resistance of the LED triggers a bulb-out warning or hyper-flash. Bulbs and housings labeled “Canbus-ready” include a built-in resistor to match the expected load. Without this, you need an external resistor harness. Some Silverado owners also report DRL circuit issues with aftermarket housings — the BCM detects the LED DRL draw as an error and shuts off the daytime running lights until the vehicle cycles ignition. A Canbus decoder integrated into the housing eliminates this quirk.
FAQ
How do I know if my 2017 Silverado uses D5S HID or halogen bulbs?
Will aftermarket headlight assemblies pass state safety inspection?
Why do my new headlights fog up inside after a rain?
Can I install LED bulbs in a housing designed for D5S HID?
Final Thoughts: The Verdict
For most buyers, the 2017 chevy silverado headlights winner is the TUSDAR Projector Housing because it directly replaces factory HID units with perfect fitment, UV-stabilized polycarbonate, and a 1-year warranty. If you want maximum brightness from your existing projectors, grab the ZSTOPCL D5S Bulbs. And for a full modern LED conversion on a halogen truck, nothing beats the FIONE Full LED Housing.
