Choosing the wrong oil filter for a 5.4L Triton V8 can lead to restricted oil flow, premature engine wear, and costly repairs down the road. With so many options claiming extended mileage and superior filtration, separating genuine engineering from marketing noise requires a closer look at the spec sheet and real owner feedback.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years analyzing filtration media, bypass valve designs, and gasket materials across dozens of automotive aftermarket components to help owners make informed maintenance decisions.
The 5.4L in the 2010 F-150 demands a filter that maintains consistent pressure under heavy load and resists collapse during cold starts. After evaluating filtration efficiency, build quality, and real-world durability data, the best 2010 f-150 5.4 oil filter choice becomes clear.
How To Choose The Best 2010 F-150 5.4 Oil Filter
The 5.4L Triton V8 is a high-output, three-valve engine that places real demands on the oiling system. A filter that works fine on a four-cylinder commuter may struggle to maintain adequate flow and pressure under the heat and load this engine generates. Understanding three key criteria will make the selection process straightforward.
Filtration Media & Micron Rating
The media is the heart of any oil filter. Cellulose media offers baseline protection but breaks down faster under heat and extended intervals. Synthetic-blended or full synthetic media traps smaller particles — typically down to 20–25 microns — while maintaining flow. For the 5.4L, a filter with at least 99 percent efficiency at 25 microns or finer is the recommended threshold for protecting the cam phasers and timing chain components.
Anti-Drainback Valve & Bypass Valve Quality
A silicone anti-drainback valve holds oil in the filter after shutdown, preventing a dry start and the associated metal-to-metal contact on the upper valvetrain. The 5.4L is especially sensitive to delayed oil delivery because of its overhead cam design. The bypass valve must also open at the correct pressure differential — typically 8–11 psi — to ensure oil flows even when the filter is clogged or during cold-start viscosity spikes.
Burst Strength & Canister Construction
Severe service conditions — towing, off-road, extended idling, or high-RPM operation — increase internal filter pressure. A filter with a burst strength rating above 200 psi and a double-rolled seam or heavy-gauge steel canister provides a safety margin. Filters with a stamped steel or stamped hex nut (like the K&N nut design) also simplify removal without damaging the canister, a practical consideration during tight-interval maintenance.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Motorcraft FL-500-S (2‑Pack) | OEM | Factory-grade fit and reliability | Synthetic blend media; silicone ADBV | Amazon |
| K&N Premium HP-7037 | Premium | Easy wrench-off removal and high flow | Synthetic-blend media; 20k‑mile interval | Amazon |
| WIX XP 57899XP | Performance | Extended intervals with synthetic oil | 99% eff. at 23 microns; 20k‑mile rating | Amazon |
| PurolatorBOSS PBL24651 | Value | Maximum protection at a mid-range cost | SmartFUSION media; 20k‑mile; EPDM gasket | Amazon |
| Motorcraft FL500SB12‑12PK | Fleet | Bulk OEM for fleet or multi-vehicle use | OEM spec; 12‑pack; stainless steel | Amazon |
In‑Depth Reviews
1. Motorcraft FL-500-S (2‑Pack)
The Motorcraft FL-500-S is the same filter specified by Ford for the 5.4L Triton V8 from the factory. That alone carries weight — Ford engineers selected this filter after validating oil pressure, flow, and contamination control across the entire engine operating range. The synthetic-blend media provides a meaningful improvement over basic cellulose while keeping the price well within reach for owners who want a known quantity.
This two-pack delivers genuine OEM quality at a per-unit cost that undercuts many aftermarket single-filter purchases. The silicone anti-drainback valve holds securely after shutdown, which matters for the 5.4L’s overhead cam layout where gravity drains oil from the filter housing. The bypass valve calibration matches Ford’s specifications, ensuring the filter never restricts flow during cold starts or heavy load situations.
Owner feedback consistently highlights the straightforward installation and the peace of mind that comes from using the exact part the powertrain was designed around. The FL-500-S is tested and retested under extreme conditions at Ford’s lab, and the filter meets the longer service intervals modern synthetic oils permit without sacrificing filtration efficiency.
What works
- Direct OEM replacement for the 5.4L with no fitment guesswork
- Silicone anti-drainback valve prevents dry starts and protects valvetrain
- Two-pack format offers genuine Ford quality at a better per-unit value
What doesn’t
- Media is synthetic-blend, not full synthetic — slight edge to premium competitors
- No nut on the canister dome for easy wrench-off removal
2. K&N Premium Oil Filter HP-7037
The K&N HP-7037 stands out immediately because of the welded hex nut on the dome — a small feature that saves significant frustration during removal, especially if the filter is overtightened or has been on the engine for a full oil-change interval. The synthetic-blend filtration media is pleated to maximize surface area, providing high flow rates that keep the 5.4L well-supplied during sustained highway cruising or towing climbs.
K&N rates this filter for up to 20,000 miles when used with synthetic oil, which aligns well with the extended drain intervals many F-150 owners adopt. The filter is compatible with conventional, synthetic, and blended oils, so there is no need to switch media types if you change oil grades between seasons. The silicone anti-drainback valve holds oil in place, and the canister is built with a heavy-duty steel shell that resists deformation under high internal pressure.
Laboratory testing confirms strong burst strength and consistent bypass valve operation across a wide temperature range. Owners who perform their own maintenance appreciate the convenience of the nut, and the filter’s compatibility with the FL-500-S thread pattern means it screws on without adapters. The HP-7037 is a well-engineered option for anyone prioritizing service ease and flow capacity.
What works
- Welded hex nut enables easy removal without slipping or crushing the canister
- High-flow pleated synthetic-blend media supports extended intervals up to 20k miles
- Rugged steel canister resists bursting under severe-duty pressure spikes
What doesn’t
- Premium price per filter when compared to standard OEM or value options
- Some owners report the nut can interfere with tight engine bay clearances on certain Ford models
3. WIX XP 57899XP
WIX XP filters are built for severe service conditions, and the 57899XP is a direct fit for the 5.4L Triton. The media uses a proprietary blend of natural fibers and synthetic material that removes 99 percent of contaminants at 23 microns — a spec that beats many entry-level full-synthetic filters. The wire backing commonly found in cheaper filters is eliminated here because the media has enough structural integrity to hold its pleat shape under pressure.
This filter is engineered specifically for synthetic oil and carries a 20,000-mile service interval rating. The silicone anti-drainback valve and the high-strength steel canister are designed for the thermal cycles and vibration levels typical of a full-size pickup used for towing, off-road, or fleet duty. The bypass valve opens at a calibrated pressure that matches Ford’s specifications, so oil flow is never compromised during cold starts or high-RPM operation.
WIX publishes detailed filtration data, which gives the informed buyer confidence in the performance claims. Owner reports consistently note that the XP series maintains oil pressure readings better than standard filters over long intervals, and the filter threads onto the 5.4L block smoothly without cross-threading concerns. For those who drive the F-150 hard and run extended oil-change schedules, the WIX XP is a data-backed choice.
What works
- 99% filtration efficiency at 23 microns — one of the best in this category
- Rated for 20,000-mile intervals, ideal for synthetic oil users on severe schedules
- Silicone ADBV and high burst strength handle towing and stop-and-go duty
What doesn’t
- No welded nut or grip texture on the canister, making removal potentially tight
- Premium pricing per unit relative to standard WIX or Motorcraft base filters

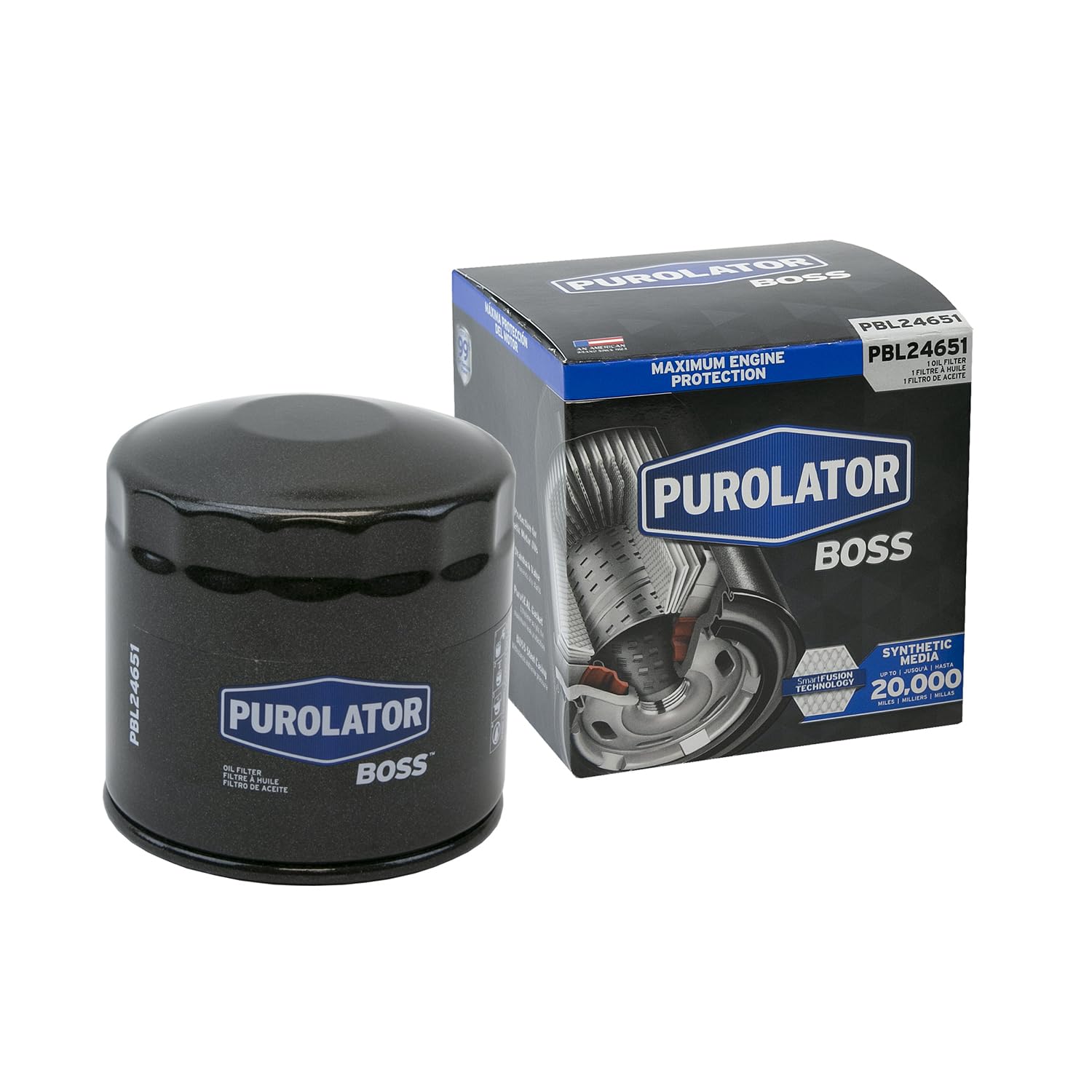

4. PurolatorBOSS PBL24651
The PurolatorBOSS PBL24651 brings full synthetic media technology to a price point that undercuts many premium competitors. SmartFUSION media delivers over 99 percent dirt removal efficiency, and the filter is rated for 20,000-mile protection when paired with synthetic oil. For owners who want the extended interval capability without paying a premium per filter, this represents a strong balance of performance and cost.
The EPDM gasket (PuroSEAL) is a standout feature — ethylene acrylic rubber resists heat, ozone, and compression set better than standard nitrile gaskets, which means fewer leaks and a tighter seal over the entire service life. The silicone anti-drainback valve keeps the filter primed after shutdown, and the double-helix metal center tube adds crush resistance under high-pressure events like cold starts in winter or sustained high-RPM running.
The heavy-duty steel casing withstands extreme pressure without deforming, and the filter is compatible with a wide range of Ford, Chrysler, General Motors, Land Rover, and Mazda applications. Owners who maintain multiple vehicles in the household can stock one filter for several platforms. The BOSS series is backed by Purolator’s warranty program, which provides additional assurance for those concerned about engine damage from a filter failure.
What works
- Full synthetic SmartFUSION media at a competitive price per filter
- EPDM gasket resists leaks better than standard rubber gaskets over long intervals
- Double-helix metal center tube adds structural integrity under pressure spikes
What doesn’t
- Some owners report slightly looser thread engagement compared to OEM filters
- No nut or grip feature for removal — standard spin-off method required
5. Motorcraft FL500SB12‑12PK
The Motorcraft FL500SB12-12PK is the same FL-500-S filter sold in a bulk 12-pack format. For owners who plan to keep their 2010 F-150 for many years or who manage a small fleet of compatible Ford vehicles, this pack simplifies inventory and reduces the per-filter cost compared to buying singles or two-packs at retail intervals. Each filter meets Ford’s exact OEM specifications for thread pitch, bypass valve calibration, and gasket dimensions.
The stainless steel construction noted in the materials spec points to a corrosion-resistant canister, which matters in regions where road salt or coastal humidity accelerates rust on standard steel filters. The filter fits the 5.4L Triton as well as other Ford platforms using the FL-500-S application — including the 3.5L EcoBoost, 5.0L Coyote, and 6.2L Boss — making it a versatile stock-up option for households with multiple Ford models in the driveway.
Owner feedback on the bulk pack centers on convenience and cost predictability. Having a case of OEM filters on the shelf means no last-minute parts store runs and no risk of receiving a counterfeit or off-spec aftermarket filter. The packaging is straightforward and industrial, which is exactly what you expect from a fleet-oriented product. For high-mileage drivers or those who perform their own oil changes on multiple Ford vehicles, this is the most practical long-term solution.
What works
- Bulk 12-pack delivers the lowest per-unit cost for OEM-grade filters
- Compatible with multiple Ford platforms beyond the 5.4L — great for multi-vehicle owners
- Stainless steel canister offers superior corrosion resistance in harsh climates
What doesn’t
- Higher upfront investment compared to buying a single filter
- Same media as standard Motorcraft — no upgrade in filtration efficiency over the base FL-500-S
Hardware & Specs Guide
Filtration Media Types
Cellulose media is the budget standard — adequate for conventional oil at standard intervals but breaks down under heat and extended use. Synthetic-blend media (used in the Motorcraft FL-500-S and WIX XP) adds durability and finer particle capture without the cost of full synthetic. Full synthetic media (found in the PurolatorBOSS) offers the highest efficiency and longest service life, making it the best match for severe-duty schedules on the 5.4L Triton.
Bypass Valve Calibration
Every oil filter includes a bypass valve that opens when the filter becomes clogged or when cold oil viscosity creates excessive pressure drop. For the 5.4L, the valve should open between 8 and 11 psi. A valve that opens too early allows unfiltered oil into the engine; one that opens too late risks oil starvation at startup. OEM and premium aftermarket filters publish these specs — always verify before purchasing.
Anti-Drainback Valve Material
The ADBV prevents oil from draining out of the filter when the engine is off. Silicone ADBVs (used on all five filters reviewed here) maintain their shape and sealing ability far longer than nitrile rubber. A failed ADBV leads to a dry start, which causes momentary metal-on-metal contact in the 5.4L’s cam phasers and timing chain tensioners — a failure mode that accelerates wear and can trigger timing-related diagnostic codes.
Burst Strength & Canister Integrity
Burst strength measures the internal pressure the filter can withstand before the canister ruptures. A rating above 200 psi provides a generous safety margin for the 5.4L under towing, high-RPM, or cold-start conditions. Filters with double-rolled seams (WIX XP, PurolatorBOSS) or heavy-gauge steel shells (K&N, Motorcraft) resist deformation better than basic economy filters, reducing the risk of leaks or catastrophic failure.
FAQ
What is the exact Motorcraft filter number for a 2010 F-150 5.4L?
How often should I change the oil filter on a 5.4L Triton?
Can I use a filter from a different Ford platform on the 5.4L?
What happens if I use a cheap oil filter on the 5.4L?
Final Thoughts: The Verdict
For most buyers, the best 2010 f-150 5.4 oil filter winner is the Motorcraft FL-500-S (2‑Pack) because it delivers the exact OEM fit, silicone ADBV, and synthetic-blend media the engine was designed around at a very reasonable per-filter cost. If you want the convenience of a welded nut and high flow capacity for extended intervals, grab the K&N Premium HP-7037. And for severe-duty towing or off-road use where filtration data and burst strength matter most, nothing beats the WIX XP 57899XP.
