Choosing the right set of wheels for a 2009 Silverado means balancing bolt-pattern accuracy, offset clearance, and load capacity — one wrong spec and the truck drives like a completely different machine. The aftermarket is flooded with options that look good in photos but cause rubbing, vibration, or premature hub wear once installed.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years combing through fitment data sheets, load-test results, and thousands of owner-reported compatibility notes to separate the wheels that genuinely work from those that just look the part.
We analyzed hundreds of owner reports and fitment data to bring you the most dependable best 2009 chevy silverado wheels for daily driving and weekend hauling.
How To Choose The Best 2009 Chevy Silverado Wheels
Selecting wheels for a 2009 Silverado goes far beyond picking a style you like. The 1500 models use a 6×139.7mm bolt pattern (often called 6×5.5 inches), while the 2500 and 3500 HD trucks step up to an 8×6.5-inch pattern. Offset, backspacing, hub bore, and load rating all factor into whether a wheel bolts on cleanly or fights against the suspension geometry. Understanding these specs before you shop saves time, money, and the headache of returns.
Bolt Pattern & Offset Fundamentals
The 2009 Silverado 1500 requires a 6-lug wheel with a 139.7mm pitch circle diameter. Offset determines how far the wheel sits inward or outward relative to the hub mounting surface. A positive offset pulls the wheel closer to the suspension, while a negative offset pushes it outward for a wider stance. For a stock-height Silverado, offsets between +24mm and +31mm keep the tire centered in the wheel well without rubbing on the frame or fender liner.
Wheel Size, Material & Load Capacity
Factory Silverado wheels range from 16 to 20 inches, but 18-inch wheels offer the best balance of tire sidewall compliance and steering response for daily driving. Steel wheels are heavier and more affordable, making them a solid choice for work trucks or winter sets. Aluminum alloy wheels reduce unsprung weight, improve braking feel, and resist corrosion longer. Always verify the load rating — a wheel rated below 2,100 pounds per corner risks failure under towing or heavy payload conditions.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| RockTrix RT111 | Aftermarket Alloy | Aggressive off-road stance | 18×9, -12mm offset, 2,500 lb load rating | Amazon |
| OE Wheels CV98B | Premium Alloy | Large-diameter street presence | 22×9, 24mm offset, 6×139.7 bolt pattern | Amazon |
| New 16×6.5 Polished | Factory HD Alloy | Heavy-duty towing replacement | 16×6.5, 8×6.5 bolt pattern, 116.7mm hub bore | Amazon |
| Factory Replacement 18×8.5 | OEM-Spec Alloy | Clean OEM+ upgrade | 18×8.5, 24mm offset, 78.1mm hub bore | Amazon |
| Road Ready 18 Machined | OEM Replacement | Direct OEM-style swap | 18×8, 31mm offset, 6×139.7 bolt pattern | Amazon |
| Dorman 939-100 | Steel OEM | Budget-friendly spare or winter set | 15-inch steel, 100mm PCD, 18.2 lb weight | Amazon |
In-Depth Reviews
1. RockTrix RT111 18×9 Matte Black
The RockTrix RT111 is engineered specifically for 6-lug GM trucks with a 6×139.7mm bolt pattern and a -12mm offset that pushes the wheel outward for a noticeably wider track. This eliminates the need for wheel spacers while providing the clearance necessary for larger tires and aftermarket suspension components. The 18×9 sizing hits the sweet spot between aggressive off-road capability and daily-driver practicality.
Each wheel is tested to SAE J2530 standards with a 2,500-pound load rating, making it one of the few aftermarket options in this price tier that backs up its claims with certified testing data. The matte black finish resists corrosion and brake dust buildup better than gloss or machined surfaces, which matters for trucks that see mud, salt, or frequent trail miles. Owner fitment reports confirm compatibility with 32-inch tires after a leveling kit and minimal fender trimming.
The conical-seat lug nut requirement means you will need to swap out factory lug nuts, but this is standard for aftermarket wheels with this bolt seat design. The wheel accepts factory TPMS sensors without modification, preserving your tire pressure monitoring function.
What works
- Certified 2,500-pound load rating exceeds many competitors
- Aggressive -12mm offset provides true stance without spacers
- Durable matte finish resists corrosion on job sites and trails
What doesn’t
- Requires aftermarket conical-seat lug nuts
- May need fender trimming or lift for tires above 33 inches
2. OE Wheels CV98B 22×9 Gloss Black
The OE Wheels CV98B is a 22-inch snowflake-style wheel that brings a refined, large-diameter look to the 2009 Silverado 1500 without requiring complex hub rings or adapters. The 78.1mm hub bore matches the factory hub diameter, and the 6×139.7mm bolt pattern lines up directly with the stock mounting points. This wheel is designed for the owner who wants a visual upgrade to a wheel-and-tire package that fills the wheel wells completely.
With a 24mm offset, the CV98B sits very close to the factory suspension geometry, meaning it clears the upper control arms and brake calipers on most 1500 models without rubbing. The gloss black finish is applied over cast aluminum construction, keeping weight reasonable for a 22-inch rim while maintaining the structural integrity needed for daily driving. Owner reports consistently note that balancing is straightforward and vibration-free when installed properly.
Lug nuts, center caps, and TPMS sensors are not included with the single-rim purchase, so factor those costs into your total budget. The 22-inch diameter also significantly reduces tire sidewall height, which will firm up the ride and require low-profile tires rated for the load.
What works
- Factory-correct 78.1mm hub bore eliminates centering issues
- Snowflake spoke design stands out from traditional mesh patterns
- Gloss black finish offers a clean show-truck aesthetic
What doesn’t
- Larger diameter reduces tire sidewall for a firmer ride
- Center caps and lug hardware sold separately
3. New 16×6.5 Polished Aluminum (8-Lug HD)
This 16×6.5-inch polished aluminum wheel is a direct OEM-replacement design for the 8-lug 2500 and 3500 HD variants of the 2009 Silverado. It matches the factory specifications exactly — 8×6.5-inch bolt pattern, 28mm offset, and 116.7mm hub bore — so it bolts onto the hub without any centering rings or adapter plates. The polished face with clearcoat replicates the factory PY0 option code appearance.
The 16-inch diameter keeps tire costs low and sidewall height generous, which is ideal for trucks that tow heavy trailers or carry significant payloads. A taller sidewall absorbs road imperfections better and provides more predictable handling under load compared to lower-profile setups. The aluminum construction drops rotational mass compared to factory steel wheels, improving braking response and fuel efficiency slightly.
Each wheel is sold individually without a center cap, lug nuts, or TPMS sensor, but your original hardware transfers directly. The manufacturer offers a one-year limited finish warranty, and the wheels are guaranteed to balance within factory specifications straight out of the box.
What works
- Factory-matched specs for 8-lug HD trucks with no fitment guesswork
- Polished clearcoat finish resists oxidation longer than bare aluminum
- Generous sidewall compatibility absorbs load stress during towing
What doesn’t
- Only fits 8-lug 2500/3500 models, not 1500 trucks
- Center cap and lug nuts must be sourced from original wheels
4. Factory Wheel Replacement 18×8.5 Machined Silver
This 18×8.5-inch wheel from Factory Wheel Replacement carries a machined face with silver painted inserts that closely matches the GM factory style found on later-model Silverado 1500 trucks. The 6×5.5-inch bolt pattern, 24mm offset, and 78.1mm hub bore align with the 2009 Silverado 1500 specifications, making it a direct bolt-on upgrade that fits without hub rings or additional hardware.
The cast aluminum construction keeps each wheel at approximately 30 pounds, which is lighter than a comparable steel wheel and reduces unsprung weight for improved suspension response. The machined face with clearcoat provides a bright, factory-like appearance that resists fading and corrosion better than painted-only finishes. Independent strength testing performed in the United States supports the structural claims.
The wheel is designed to accept your original center caps and TPMS sensors, so there is no need to purchase additional trim pieces. Some owner feedback notes that the machined face can show minor scuffs more readily than a matte or textured finish, but the overall build quality and dimensional accuracy receive consistently positive marks.
What works
- Factory-correct specs for Silverado 1500 with no adapter required
- Lightweight aluminum improves ride quality and brake response
- Accepts OEM center caps and TPMS for seamless integration
What doesn’t
- Machined face may show scratches more easily than painted finishes
- Sold individually without caps, lugs, or sensors

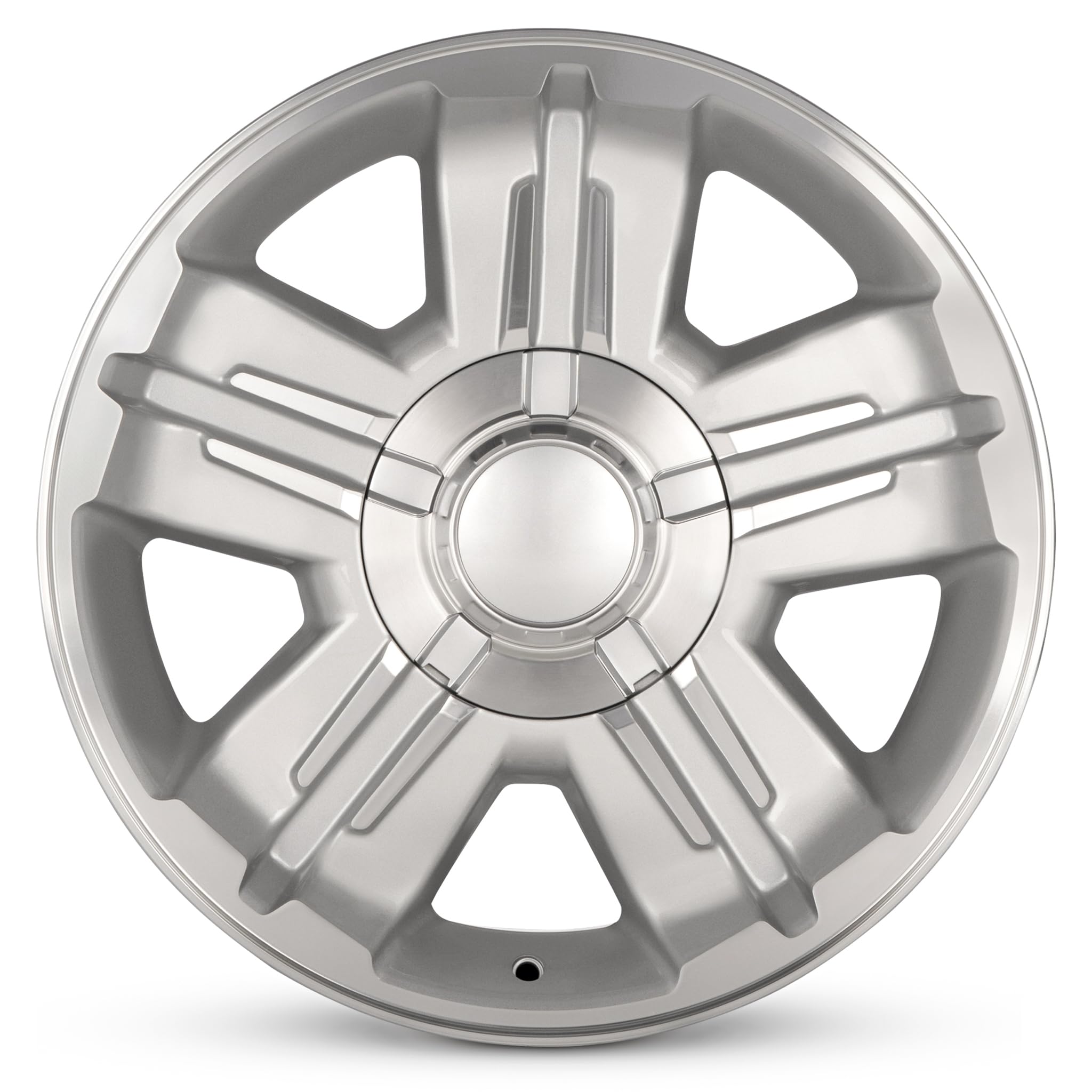

5. Road Ready 18-Inch Machined Face with Silver Inlay
The Road Ready 18-inch wheel is an OEM-direct replacement that uses a machined face with painted silver inlay to match the factory aesthetic of 2007-2013 GM trucks. The 18×8 sizing and 31mm offset position the wheel slightly closer to the suspension than some aftermarket options, keeping the tires tucked neatly under the fenders for a clean, stock-like appearance that clears brake components without interference.
With a load index rating of 2,100 pounds per wheel, this rim supports the weight of a fully loaded Silverado 1500 without concerns about fatigue or deformation over time. The machined finish provides a bright, reflective surface that contrasts well with darker paint colors, while the painted inlay adds a subtle two-tone detail that avoids looking aftermarket or flashy. The wheel is fully compatible with factory TPMS sensors, lug nuts, and valve stems.
This wheel fits the 2007-2013 Chevrolet Avalanche 1500 directly, and based on shared suspension and hub dimensions, it bolts to the 2009 Silverado 1500 without modification. Owner reports confirm the 265/65R18 factory tire size mounts correctly with no clearance issues. The only limitation is that the machined face may require careful cleaning to maintain its reflective finish in winter climates.
What works
- True OEM replacement dimensions with no adapter needed
- 2,100-pound load rating matches factory towing requirements
- Machined face with inlay provides a premium factory look
What doesn’t
- Machined finish needs extra care in salt-belt winters
- 31mm offset sits wheel inward, limiting aggressive tire sizes
6. Dorman 939-100 15-Inch Steel Wheel
The Dorman 939-100 is a 15-inch steel wheel built as a direct structural replacement for specific Chevrolet and Pontiac models that require a 100mm bolt pattern. Dorman has been supplying automotive replacement parts for over a century, and this wheel reflects that engineering history with dynamic radial testing, radial run-out testing, and axial run-out testing performed before shipment to ensure dimensional accuracy.
Steel construction makes this wheel significantly more durable against curb impacts and pothole damage than cast aluminum alternatives. At 18.2 pounds, it is relatively light for a steel wheel, and the 5.5-inch backspacing keeps the tire positioned correctly within the wheel well for models that match the 100mm pitch circle diameter. The black painted finish provides a basic, utilitarian appearance that is well-suited for spare tire duty or winter use where cosmetic damage is likely.
This wheel is designed for vehicles that use a 4x100mm bolt pattern, which differs from the standard 6×139.7mm pattern on most 2009 Silverado 1500 models. Buyers should verify their specific vehicle’s bolt pattern through the garage tool before purchasing. The steel construction and simple finish make it a practical option for buyers who need a functional replacement at the lowest entry cost.
What works
- Century-old brand with rigorous factory testing standards
- Lightweight for steel construction at 18.2 pounds
- Durable steel resists cracking from severe road impacts
What doesn’t
- 100mm bolt pattern does not fit most Silverado 1500 models
- 15-inch diameter limits tire choices and brake clearance
Hardware & Specs Guide
Bolt Pattern & Offset Explained
The 2009 Silverado 1500 uses a 6×139.7mm bolt pattern (6×5.5 inches), meaning six lug nuts arranged on a circle with a 139.7mm diameter. HD 2500 and 3500 models use an 8×6.5-inch pattern. Offset, measured in millimeters, describes how the mounting surface sits relative to the wheel centerline. A +24mm to +31mm offset keeps the tire centered in the wheel well on a stock 1500, while negative offsets like -12mm push the wheel outward for a wider stance and aggressive tire clearance. Choosing an offset outside this range without proper suspension geometry can lead to tire rubbing, bearing wear, and altered steering feel.
Load Rating & Wheel Construction
Every wheel carries a load rating that indicates the maximum weight it can support at a given tire pressure. For a 2009 Silverado 1500 with a gross vehicle weight rating around 6,400 pounds, each wheel should support at least 1,600 pounds. Heavier towing or payload use calls for wheels rated at 2,100 pounds or more. Steel wheels are heavier and more impact-resistant, making them ideal for severe-duty applications. Aluminum alloy wheels reduce unsprung weight, which improves braking distance and ride compliance, but they require careful offset selection to avoid stress fractures under extreme loads.
FAQ
What bolt pattern does a 2009 Chevy Silverado use?
Can I install 22-inch wheels on a 2009 Silverado 1500?
Do aftermarket wheels require different lug nuts?
What offset should I choose for a stock-height 2009 Silverado?
Final Thoughts: The Verdict
For most buyers, the 2009 chevy silverado wheels winner is the RockTrix RT111 because it combines a certified 2,500-pound load rating, aggressive -12mm offset, and corrosion-resistant matte finish into a package that works for daily driving, towing, and off-road use. If you want a factory-refined 18-inch look that accepts OEM center caps and TPMS, grab the Factory Wheel Replacement 18×8.5. And for heavy-duty towing with an 8-lug HD truck, nothing beats the New 16×6.5 Polished Aluminum for its factory-matched specs and durable clearcoat finish.
