A failing battery on a 2006 Toyota Sienna doesn’t just mean a no-start morning — it can trigger erratic dashboard behavior, dim headlights, and even transmission shift hesitation as the vehicle’s computer compensates for voltage sag. The Sienna’s appetite for electrical current, especially with sliding doors, rear HVAC, and entertainment systems, demands a battery with genuine cold-cranking amperage and stable reserve capacity, not just a name that fits the tray.
I’m Amir — the founder and writer behind Four Wheel Ask. My research focuses on cross-referencing manufacturer specifications, owner-reported real-world longevity data, and construction materials to separate batteries that merely fit from those that actually deliver years of reliable service.
After analyzing owner reports and cold-cranking data across multiple brands, I identified the best 2006 toyota sienna battery for reliable performance.
How To Choose The Best 2006 Toyota Sienna Battery
The 2006 Toyota Sienna demands a battery that delivers consistent voltage across its large electrical load. Choosing the wrong group size or chemistry leads to premature failure, dim interior lights, or hard starts in cold weather. Focus on these three factors before buying.
Group Size and Terminal Polarity
The Sienna typically accepts Group 24F or Group 94R (H6) batteries. Group 24F measures roughly 10.75 x 6.81 x 8.98 inches with left-negative, right-positive terminals. Group 94R is longer at 12.4 inches but still fits the factory tray. Always verify your existing battery’s dimensions and terminal orientation — reversing polarity can damage the vehicle’s fuse box and wiring harness.
Cold-Cranking Amps and Reserve Capacity
CCA measures starting power in freezing temperatures. For the 3.3L V6, a minimum of 700 CCA is recommended; 800 or higher provides a healthier margin. Reserve capacity (RC) indicates how long the battery can run essential electronics if the alternator fails. Look for 120 minutes or more to keep the Sienna’s power seats, sliding doors, and rear climate control operational during a breakdown.
AGM vs. Flooded Construction
AGM (Absorbent Glass Mat) batteries are sealed, spill-proof, and handle vibration far better than flooded units. The Sienna’s under-hood location subjects the battery to constant road vibration, making AGM a wise upgrade. AGM also offers faster recharge acceptance for start-stop systems, though the 2006 Sienna does not have start-stop, the added cyclic durability still extends replacement intervals.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Weize Platinum AGM 94R | AGM | Best Overall | 850 CCA, 80 Ah, 140 RC | Amazon |
| Goodyear 24F-AGM | AGM | Premium Pick | 710 CCA, 70 Ah, 120 RC | Amazon |
| Interstate MTX-24F | AGM | Long Life | 710 CCA, 70 Ah, AGM | Amazon |
| OPTIMA 34 REDTOP | AGM | Vibration Resistance | 800 CCA, 50 Ah, SpiralCell | Amazon |
| Weize Platinum AGM 24F | AGM | Solid Value | 710 CCA, 70 Ah, 120 RC | Amazon |
| ACDelco Gold 51RAGM | AGM | Compact Fit | Group 51R, AGM | Amazon |
| Autocessking Group 24F AGM | AGM | Everyday Use | 710 CCA, 70 Ah, 120 RC | Amazon |
| Forgetyo 48-H6-AGM | AGM | Budget Pick | 800 CCA, 70 Ah, 132 RC | Amazon |
| OPTIMA Digital 400+ | Charger | Battery Maintenance | 4A, AGM/LiFePO4 | Amazon |
In‑Depth Reviews
1. Weize Platinum AGM Battery BCI Group 94R
The Weize Platinum AGM Group 94R delivers 850 cold-cranking amps and 80 amp-hours of capacity, making it one of the strongest options for the 2006 Sienna’s electrical demands. Its 140-minute reserve capacity means the van can run its power accessories for an extended period if the alternator fails. The AGM construction is fully sealed and leak-proof, which eliminates the risk of acid corrosion around the battery tray and terminal connections — a common issue with older flooded batteries in the Sienna.
At 12.4 inches long, this Group 94R fits the Sienna’s factory tray without modifications, provided the hold-down bracket accommodates the longer case. The tapered terminals are correctly oriented with left-negative and right-positive polarity. Weize backs this unit with a 36-month warranty, and owner feedback consistently reports three to four years of service life in moderate climates, with strong cold-start performance down to subzero temperatures.
The only trade-off is weight. At nearly 51 pounds, this battery is heavier than standard flooded units, which can make handling during installation slightly cumbersome. Additionally, the 94R form factor may require removing the battery tray or relocating the hold-down clamp in some Sienna trims, so verifying fitment before purchase is essential.
What works
- 850 CCA provides effortless cold starts even in severe winter conditions
- 140-minute reserve capacity keeps electronics running during alternator failure
- 36-month warranty reflects confidence in long-term durability
- Sealed AGM design prevents terminal corrosion and acid leaks
What doesn’t
- Heavier than standard batteries at 51 pounds, harder to maneuver into the tray
- Longer 12.4-inch case may require tray or bracket adjustment in some Sienna trims

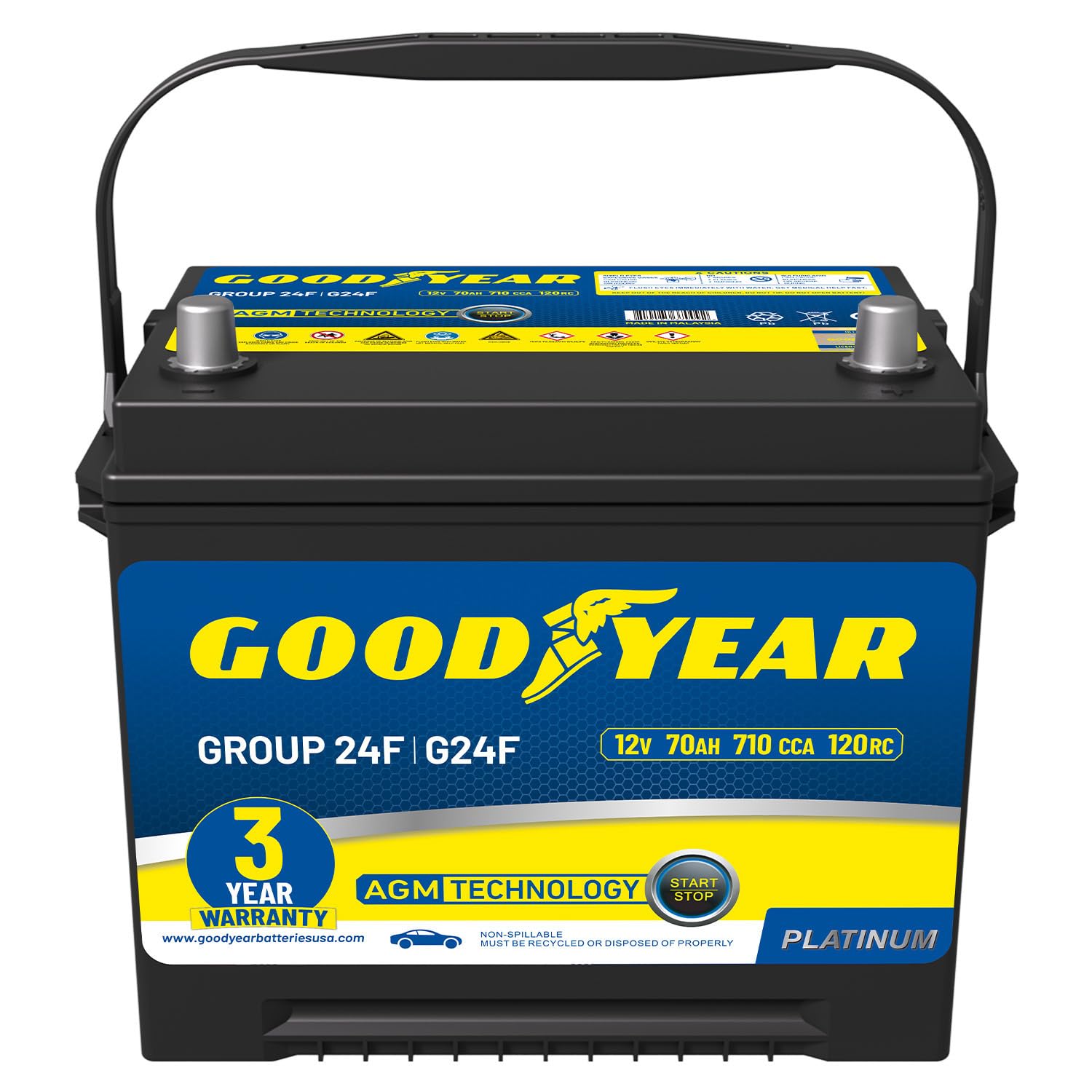

2. Goodyear 24F-AGM Platinum Series
The Goodyear 24F-AGM Platinum Series brings a familiar tire-brand name to the battery segment, but the construction quality stands on its own merits. This Group 24F battery delivers 710 cold-cranking amps and 70 amp-hours of capacity, with a 120-minute reserve rating that meets the Sienna’s baseline electrical needs. The AGM architecture is spill-proof and vibration-resistant, which addresses the under-hood shaking that shortens the life of conventional flooded batteries in these vans.
Fitment is straightforward for the 2006 Sienna because the 24F dimensions (10.5 x 6.75 x 9.0 inches) match the factory battery tray almost perfectly. The terminal polarity — positive on the right, negative on the left — aligns with the Sienna’s cable routing. Goodyear includes a 36-month warranty, and the CE certification indicates compliance with European quality standards for manufacturing consistency.
Some owners note that the 710 CCA rating is adequate for most climates but may feel marginal during extreme cold snaps below -20°F, especially if the Sienna sits unused for several days. The battery also lacks the higher reserve capacity that long-distance drivers or those who frequently run the rear entertainment system may want for peace of mind.
What works
- Direct drop-in fitment for Group 24F Sienna applications
- Spill-proof AGM construction resists vibration damage
- 36-month warranty provides solid coverage
- CE certified for manufacturing quality standards
What doesn’t
- 710 CCA may feel marginal in extreme cold climates below -20°F
- 120-minute reserve capacity is adequate but not exceptional for heavy accessory use
3. Interstate Batteries MTX-24F AGM
The Interstate MTX-24F represents the company’s premium AGM line, using pure lead construction rather than the lead-alloy plates found in many competitors. This pure lead design packs more active material into the same Group 24F footprint, delivering up to three times the service life of a conventional flooded battery according to Interstate’s internal testing. For the 2006 Sienna owner who plans to keep the van for several more years, this battery offers the longest lifespan potential in the Group 24F category.
At 45.3 pounds, the MTX-24F is lighter than some AGM alternatives while still maintaining 710 CCA and a sealed, vibration-resistant case. The top-post terminals are positioned correctly for the Sienna’s cable configuration, and the maintenance-free design eliminates the need for periodic water level checks. Interstate has been a trusted name in automotive batteries for over 70 years, and the MTX series carries that reputation with consistent quality control.
The main drawback is the premium cost, which places it among the higher-priced Group 24F options on the market. Additionally, the 710 CCA rating, while sufficient for most conditions, is not class-leading — drivers in extremely cold regions may want to prioritize higher CCA numbers from other brands in this review.
What works
- Pure lead AGM construction delivers up to 3 times the life of flooded batteries
- Lightweight for an AGM at 45.3 pounds, easier to install
- Trusted Interstate brand with decades of manufacturing experience
- Spill-proof and maintenance-free design
What doesn’t
- Premium pricing places it at the higher end of the category
- 710 CCA rating is adequate but not exceptional for extreme cold starts
4. OPTIMA 34 REDTOP AGM
The OPTIMA 34 REDTOP is arguably the most recognized name in high-performance automotive batteries, and its reputation is built on the patented SpiralCell design that uses 99.99% pure lead rolled into spiral-wound plates. This construction delivers 800 cold-cranking amps from a relatively compact Group 34 case, along with 100 minutes of reserve capacity. For the 2006 Sienna, the REDTOP provides excellent vibration resistance — up to 15 times greater than standard flooded batteries — which is a meaningful advantage given the van’s constant road vibration.
One of the standout features is the versatility of mounting positions. The sealed AGM design allows installation on its side or at an angle, though the Sienna’s tray accommodates upright mounting without issue. The 37.9-pound weight makes this one of the lightest AGM batteries in the comparison, reducing strain on the plastic battery tray. Owners consistently report five to seven years of service life, which offsets the higher upfront investment.
Fitment is the main concern here. The OPTIMA 34 is a Group 34 battery measuring 10.06 x 6.88 x 7.88 inches, which is shorter in height than the standard Group 24F or 94R. This may leave a gap in the battery tray that requires a spacer or foam pad to prevent movement. Some Sienna owners also report needing to modify the hold-down bracket or add a longer J-bolt to secure the battery properly.
What works
- SpiralCell technology with 99.99% pure lead delivers exceptional starting power
- 15 times more vibration-resistant than standard flooded batteries
- Lightweight at under 38 pounds for easier handling
- Long service life of 5-7 years reported by owners
What doesn’t
- Group 34 case is shorter than Sienna’s factory tray, may require spacers
- Hold-down bracket may need modification for secure fitment
5. Weize Platinum AGM Battery BCI Group 24F
The Weize Platinum AGM Group 24F offers the same AGM construction and 36-month warranty as the larger 94R model but in a more compact 24F footprint that fits the majority of 2006 Sienna trims without any tray modifications. With 710 cold-cranking amps, 70 amp-hours of capacity, and 120 minutes of reserve capacity, it delivers all the power the Sienna’s 3.3L V6 needs for reliable starting in most climates. The sealed design eliminates acid leaks and corrosion buildup on the terminal posts.
Heat and cold resistance are strong selling points. The AGM materials maintain performance across a temperature range of -22°F to 158°F, and the low self-discharge rate means the battery retains its charge well during periods of storage or infrequent use. For Sienna owners who occasionally leave the van parked for a week or more, this battery is ready to start without needing a jump or trickle charge.
The 710 CCA may feel insufficient for owners who live in areas that regularly see winter temperatures below -10°F. In those conditions, the battery struggles to crank a cold-soaked 3.3L engine, especially if the oil has thickened overnight. Additionally, the 120-minute reserve capacity, while adequate for short emergencies, does not match the extended runtime offered by the larger 94R model.
What works
- Direct fitment for Group 24F Sienna applications without tray mods
- AGM construction with wide -22°F to 158°F operating range
- 36-month warranty at a competitive value point
- Low self-discharge rate for vehicles parked for extended periods
What doesn’t
- 710 CCA may struggle with cold starts below -10°F
- 120-minute reserve capacity is adequate but not exceptional

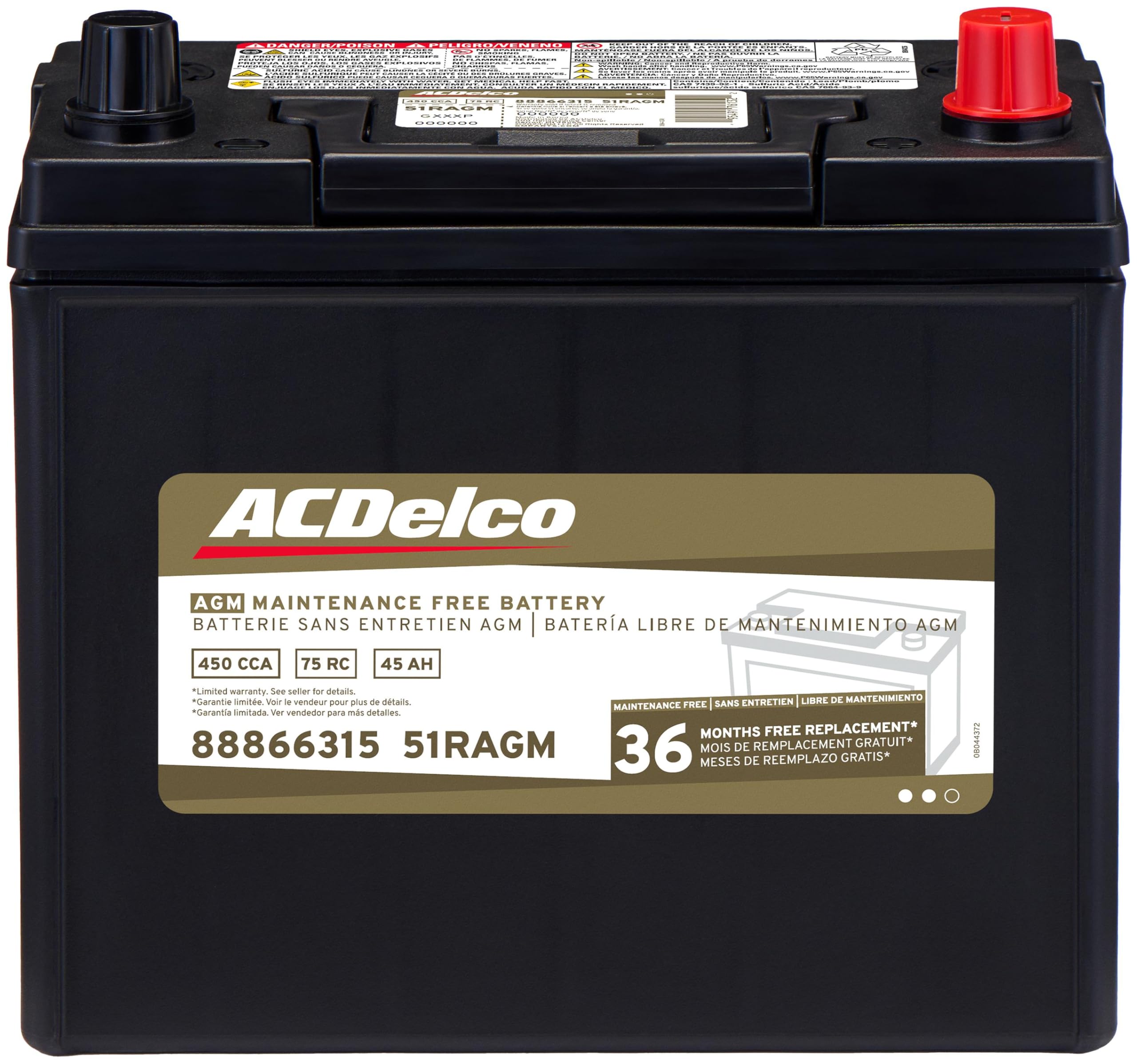

6. ACDelco Gold 51RAGM
ACDelco Gold batteries are designed as premium aftermarket replacements for General Motors vehicles, but the 51RAGM also fits certain Toyota applications, including some 2006 Sienna trims that use the smaller Group 51R case. This battery uses AGM technology for spill-proof operation and enhanced vibration resistance, backed by a 36-month warranty. The Gold series is manufactured to meet or exceed OEM specifications for fit, form, and function.
At 32 pounds, this is the lightest battery in the comparison, which makes installation significantly easier — especially for those working alone in the driveway. The Group 51R case is narrower and shorter than the standard 24F, so it fits Sienna models that have a smaller battery tray or those where the original battery was already a 51R. Owners who have used ACDelco Gold batteries in other vehicles report reliable service life of three to five years with consistent starting performance.
The major limitation is capacity. The 51R group size typically offers lower CCA and reserve capacity than the 24F or 94R options. For the 2006 Sienna, which has a sizable electrical load from power doors, rear climate, and entertainment systems, the 51R may be undersized. Verify that your specific Sienna trim originally came with a Group 51R before purchasing, as installing it in a 24F tray will leave significant gaps and may not secure properly.
What works
- Lightweight 32-pound design for easy installation
- AGM construction with 36-month warranty
- OEM-grade quality from a trusted GM supplier
- Fits Sienna trims that use the smaller 51R group size
What doesn’t
- Lower CCA and capacity than 24F or 94R options
- Only fits Sienna models originally equipped with Group 51R
- May be undersized for vans with heavy accessory loads

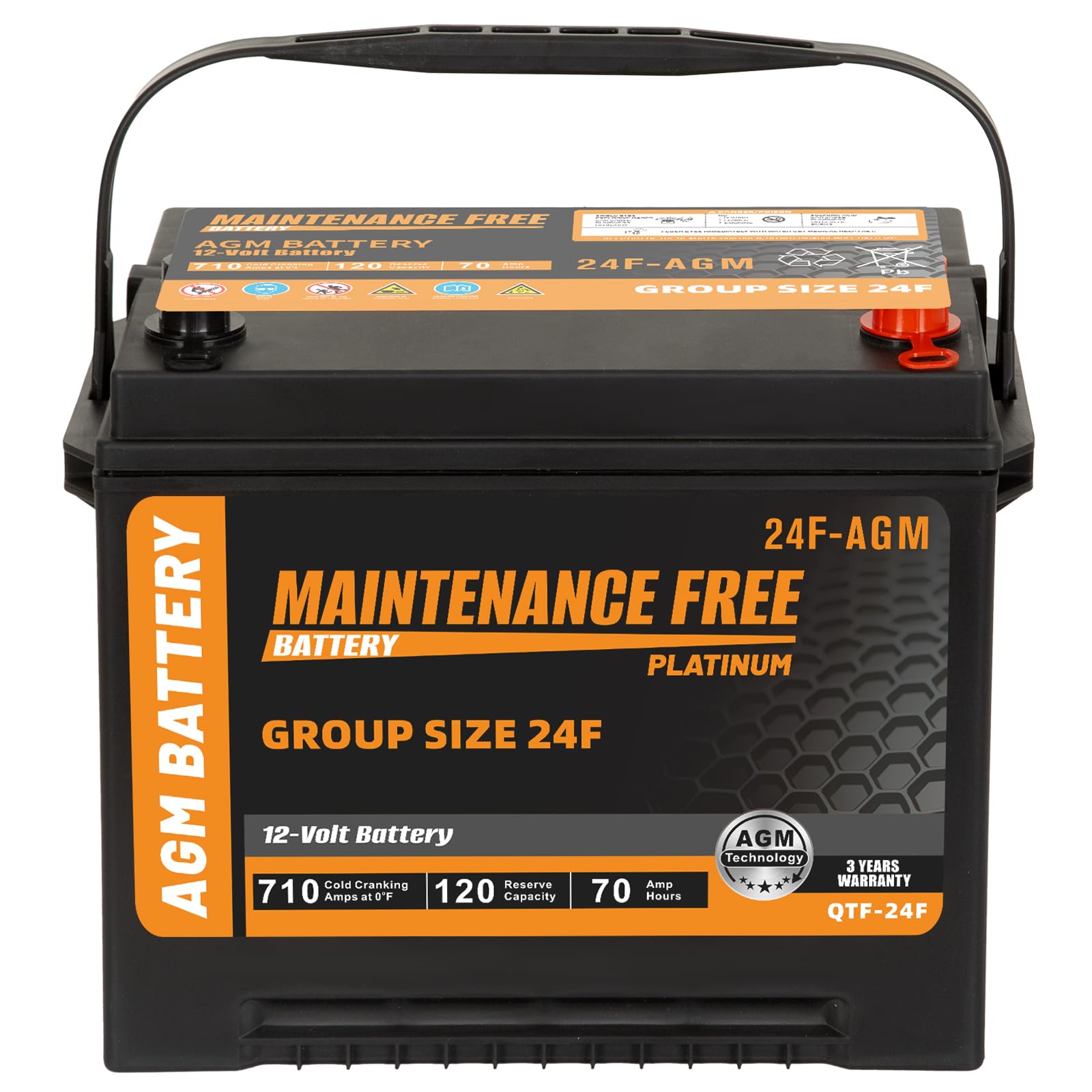

7. Autocessking Group 24F AGM
The Autocessking Group 24F AGM battery delivers 710 CCA and 70 amp-hours of capacity in a standard 24F case that fits the 2006 Sienna without modifications. The AGM construction uses glass fiber mats to suspend the electrolyte, which prevents leaks even if the case is slightly tilted during installation. The 3-year warranty provides basic coverage, and the battery is certified for use as a starting battery in passenger cars and light trucks.
Low self-discharge is a practical advantage for Sienna owners who may not drive daily. The battery retains its charge significantly longer than flooded alternatives when the van sits idle for days or weeks. The vibration-resistant construction also helps it survive the constant shaking of minivan driving, which can accelerate internal plate shedding in conventional batteries over time.
Autocessking explicitly states that this battery is designed for starting applications only and should not be used in deep-cycle roles like RVs or solar systems. Some owners have noted that the 710 CCA, while adequate for most conditions, does not provide the same cold-start authority as higher-rated competitors. Additionally, the brand is less established than Weize or Interstate, which may concern buyers who prefer a longer track record.
What works
- Direct Group 24F fitment for the Sienna without tray modifications
- Low self-discharge rate good for infrequently driven vehicles
- AGM construction with vibration resistance
- 3-year warranty included
What doesn’t
- Brand has less established reputation than major competitors
- 710 CCA is adequate but not outstanding for extreme cold
- Not designed for deep-cycle applications
8. Forgetyo 48-H6-AGM Group 48
The Forgetyo 48-H6-AGM offers an impressive 800 cold-cranking amps and 132 minutes of reserve capacity at a price point that undercuts many competitors with similar specs. This Group 48 (H6) battery measures 10.9 x 6.88 x 7.5 inches and weighs 43 pounds, making it slightly shorter in height than the standard 24F but still compatible with the Sienna’s battery tray in many configurations. The AGM construction is spill-proof and vibration-resistant, matching the performance characteristics of more expensive brands.
The 800 CCA rating provides a meaningful cold-start advantage over 700-CCA batteries, especially for Sienna owners in northern climates. The 132-minute reserve capacity also gives a comfortable buffer for running accessories during short stops or emergencies. Forgetyo backs the battery with a 38-month warranty, which is slightly longer than the 36-month standard offered by most competitors in this price tier.
Fitment requires careful measurement because the Group 48 case dimensions differ from the standard 24F. The terminal orientation is left-negative, right-positive, which matches the Sienna, but the overall length and height may require adjustments to the factory hold-down system. Some users have reported needing to swap the battery tray or add foam padding to eliminate movement. The Forgetyo brand is also relatively new to the automotive battery space, so long-term reliability data is limited compared to established players.
What works
- 800 CCA provides strong cold-start authority at a budget-friendly price
- 132-minute reserve capacity offers good electrical backup
- 38-month warranty exceeds the standard 36-month coverage
- AGM construction resists vibration and prevents acid leaks
What doesn’t
- Group 48 case may need tray modification for secure fitment
- Brand is newer with limited long-term reliability data
- Heavier than some competitors at 43 pounds
9. OPTIMA Digital 400+ Battery Maintainer
The OPTIMA Digital 400+ is a 4-amp automatic battery maintainer and charger designed to work with multiple battery chemistries, including AGM, lithium, and conventional lead-acid. For the 2006 Sienna owner, this unit addresses the problem of battery degradation during periods of inactivity — a common issue for families who may park the van for days between uses. The digital maintenance mode automatically switches to float charging once the battery reaches full capacity, preventing overcharge damage.
The 4-color LED status bar provides clear feedback on Analyze, Charging, Conditioning, and Auto Maintain phases, so the user always knows the battery’s state. Safety features include reverse polarity protection, over-temperature cutoff, and spark-free connection technology. The kit includes both battery clamp cables and ring terminal cables, plus the OPTIMA LiFePO4 POWERLINK cable for those who upgrade to a lithium battery in the future.
The 4-amp charging rate is suitable for maintenance and slow charging but will take several hours to fully recharge a deeply discharged battery. This is not a jump starter or a high-amp charger for emergency situations. Additionally, the maintainer requires access to a 120V AC outlet, which limits its usefulness for on-the-road charging. For garage-kept Sienna vans, however, it is an excellent tool for extending battery life between drives.
What works
- Compatible with AGM, lithium, and flooded batteries for versatile use
- Automatic maintenance mode prevents overcharging and extends battery life
- Safety features include reverse polarity and over-temperature protection
- Includes multiple cable types for different battery connections
What doesn’t
- 4-amp charge rate is slow for deeply discharged batteries
- Requires access to a standard 120V outlet for operation
- Not designed as a jump starter for emergency roadside situations
Hardware & Specs Guide
Group Size and Physical Fitment
The 2006 Toyota Sienna most commonly uses BCI Group 24F (10.75 x 6.81 x 8.98 inches) or Group 94R / H6 (12.4 x 6.89 x 7.48 inches). Group 24F is the direct factory fit for the majority of trims, while the longer 94R requires verifying that the battery tray and hold-down bracket can accommodate the extra length. Group 51R and Group 34 are also found in some Sienna trims but typically require tray modifications or spacers. Always measure your existing battery and note the terminal orientation — left-negative, right-positive — before purchasing.
Cold-Cranking Amps (CCA)
CCA measures a battery’s ability to start the engine at 0°F. The 2006 Sienna’s 3.3L V6 needs a minimum of 700 CCA for reliable starts in moderate climates. For owners in regions that experience winter temperatures below freezing, 800 CCA or higher provides a meaningful safety margin. Batteries with higher CCA also tend to have thicker internal plates, which translates to longer overall service life even in warm climates.
Reserve Capacity (RC)
Reserve capacity is measured in minutes and indicates how long a fully charged battery can deliver 25 amps of current at 80°F before dropping below 10.5 volts. For the Sienna, a reserve capacity of 120 minutes or more is recommended to keep power flowing to the ECU, transmission controller, and essential accessories if the alternator fails. Higher RC ratings also help the battery handle the parasitic draw from the van’s electronic modules during short-trip driving.
AGM vs. Flooded Technology
AGM (Absorbent Glass Mat) batteries use fiberglass mats to hold the electrolyte in place, making them spill-proof and extremely resistant to vibration — a key advantage in a minivan that experiences constant road shaking. AGM batteries also recharge faster and have lower self-discharge rates than flooded units. The main trade-offs are higher upfront cost and weight. Flooded batteries are cheaper but require periodic maintenance and are more prone to internal damage from vibration over time.
FAQ
What group size battery does a 2006 Toyota Sienna take?
Can I use an AGM battery in my 2006 Sienna?
How many cold cranking amps do I need for a 2006 Sienna?
How long should a battery last in a 2006 Toyota Sienna?
Do I need to reset anything after replacing the battery in a 2006 Sienna?
Final Thoughts: The Verdict
For most buyers, the best 2006 toyota sienna battery winner is the Weize Platinum AGM Group 94R because it delivers the highest cold-cranking amps and reserve capacity in a durable AGM package backed by a 36-month warranty. If you want a direct drop-in without tray modifications, grab the Goodyear 24F-AGM. And for premium long-life construction with pure lead plates, nothing beats the Interstate MTX-24F.
