The flickering dash lights, the sluggish crank on a cold morning, the sinking feeling when the battery warning glows red on your way home—every 2005 Dodge Caravan owner eventually faces the alternator failure that brings the minivan to a halt. Replacing this critical component isn’t just about grabbing any shiny unit off the shelf; it’s about matching the correct amp rating, pulley design, and internal regulator type to the 3.3L or 3.8L V6 that powers your van. The wrong choice leaves you stranded again.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent years deep in the automotive aftermarket, analyzing alternator specifications, remanufacturing standards, and aggregated owner feedback specifically for the Dodge Grand Caravan and Chrysler van family to separate the units that deliver reliable charging from those that fail at the worst moment.
Whether your 2005 Caravan is the base trim 3.3L or the more powerful 3.8L, the charging system demands a precise 12-volt replacement with the correct 6-groove clutch pulley and clockwise rotation. This guide cuts through the confusion to help you find the right 2005 dodge caravan alternator for your specific van and driving needs.
How To Choose The Right Alternator For a 2005 Dodge Caravan
The 2005 Dodge Caravan uses either a 140-amp or 160-amp alternator depending on whether the van is equipped with the base 3.3L V6 or the optional 3.8L V6. All units use a clockwise rotation, a 6-groove clutch pulley, and an external regulator/internal fan (ER/IF) design. Choosing the wrong amp rating or pulley type means the unit won’t bolt up or charge correctly.
Match the Amp Rating to Your Engine
The 3.3L V6 typically uses a 140-amp unit (OEM 13871), while the 3.8L V6 often requires the 160-amp unit (OEM 13870). Upgrading to a higher amp alternator on the 3.3L is possible if you’ve added aftermarket lighting or audio equipment, but the wiring and fuse rating must support the extra current draw. Check your old alternator’s tag before ordering.
Verify the Pulley and Rotation Direction
Every 2005 Caravan alternator uses a clockwise (CW) rotation and a 6-groove serpentine pulley. Some aftermarket units include a clutch pulley that reduces belt vibration. The outside diameter typically measures 57mm. A wrong pulley means the belt won’t align or tension properly, causing squealing and reduced charging output.
Understand Internal Fan vs. Hairpin Design
Standard 140-amp units use an internal fan (ER/IF) with traditional copper windings. The premium 160-amp hairpin design uses thicker rectangular copper conductors that improve heat dissipation and power density. If you do heavy towing or carry a full load of passengers with the AC on max, the hairpin unit runs cooler and lasts longer under that sustained load.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Parts Player 13870R | Hairpin 160A | Premium reliability | 160A Hairpin ER/IF | Amazon |
| A-Premium APALT150 | 160A New | Broader fitment | 160A 6-groove CW | Amazon |
| BDELI B18930 | 160A New | ISO certified build | 160A S6 pulley | Amazon |
| PHILTOP 13871N | 140A Hairpin | Tested durability | 140A Hairpin ER/IF | Amazon |
| A-NAFTULY AN70335 | 140A New | 18-month warranty | 140A 12V CW | Amazon |
| Farrme 13871 | 140A New | Precision CNC housing | 140A 6-groove 57mm | Amazon |
| KAC 13870N | 160A New | Budget 160A upgrade | 160A SD6 CW | Amazon |
| Aeagle 13870N | 160A New | High output value | 160A 6-groove CW | Amazon |
| ASTOU 13871 | 140A New | Entry-level budget | 140A 12V CW | Amazon |
In‑Depth Reviews

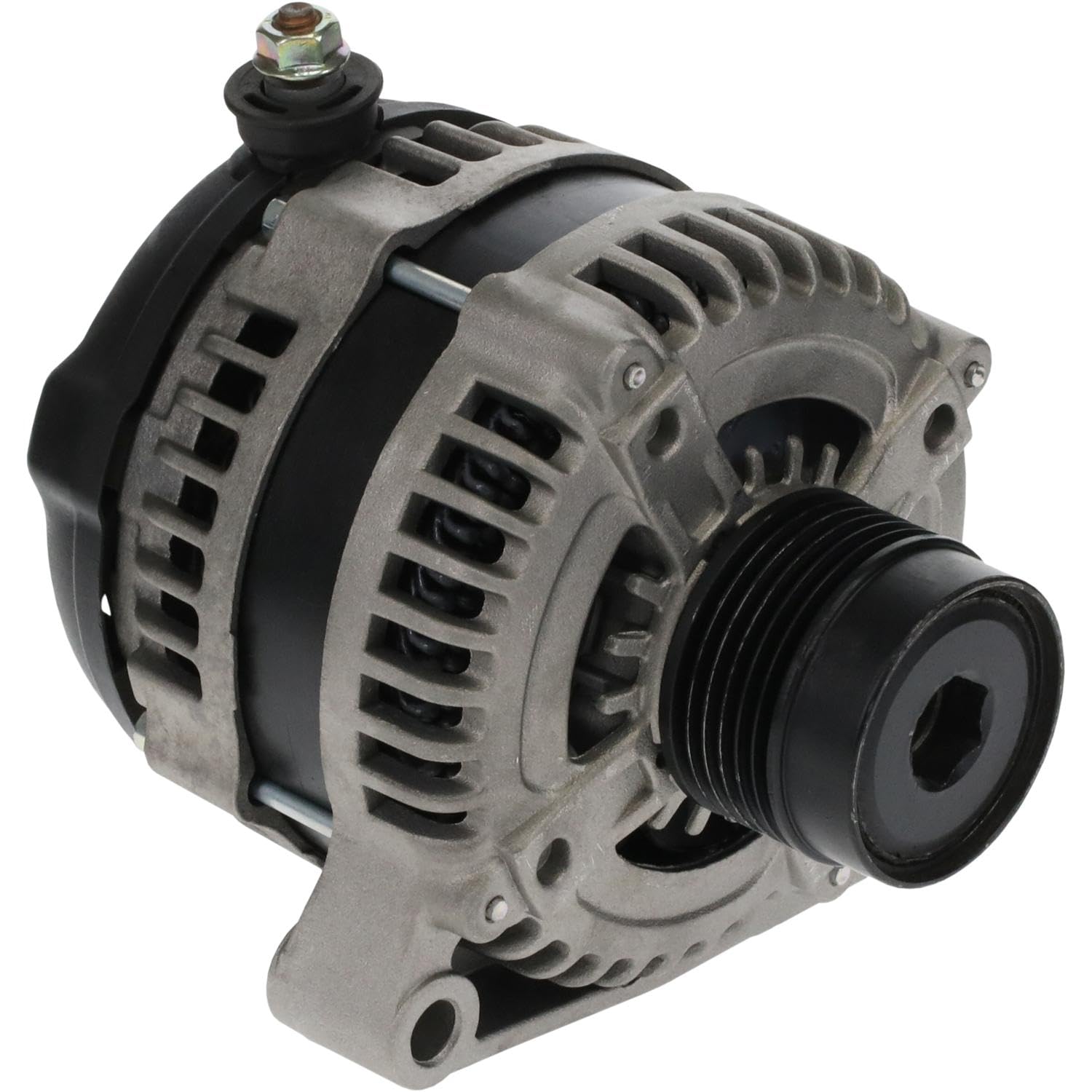

1. OEG Parts Player 13870R
The Parts Player 13870R is the only unit on this list utilizing a hairpin stator design, which uses thick rectangular copper conductors instead of traditional round wire. This construction delivers superior heat dissipation and higher power density—critical when your 2005 Grand Caravan 3.8L is running the AC, rear defroster, and headlights simultaneously on a summer night. The 160-amp output at 12 volts with clockwise rotation and SD6 pulley matches the exact OEM specifications for the 3.8L engine.
This alternator has been a trusted choice in the aftermarket since 2016, with a long track record of consistent performance. The precision die-cast aluminum housing resists corrosion from road salt and moisture, while the external regulator/internal fan (ER/IF) layout keeps the electronics cooler than integrated regulator designs. The plug code 362 ensures the connector matches the 2005 Caravan’s wiring harness without adapter pigtails.
For Caravan owners who plan to keep their van on the road for another 50,000 miles, the hairpin design’s durability under sustained electrical load makes this the most future-proof option available. The 160-amp rating also provides headroom if you ever add auxiliary lighting or an aftermarket sound system.
What works
- Hairpin stator runs cooler and lasts longer than standard windings
- 160-amp output handles full electrical load without voltage drop
- Long market presence with proven reliability track record
What doesn’t
- No mounting hardware included in the box
- Premium tier pricing above entry-level units

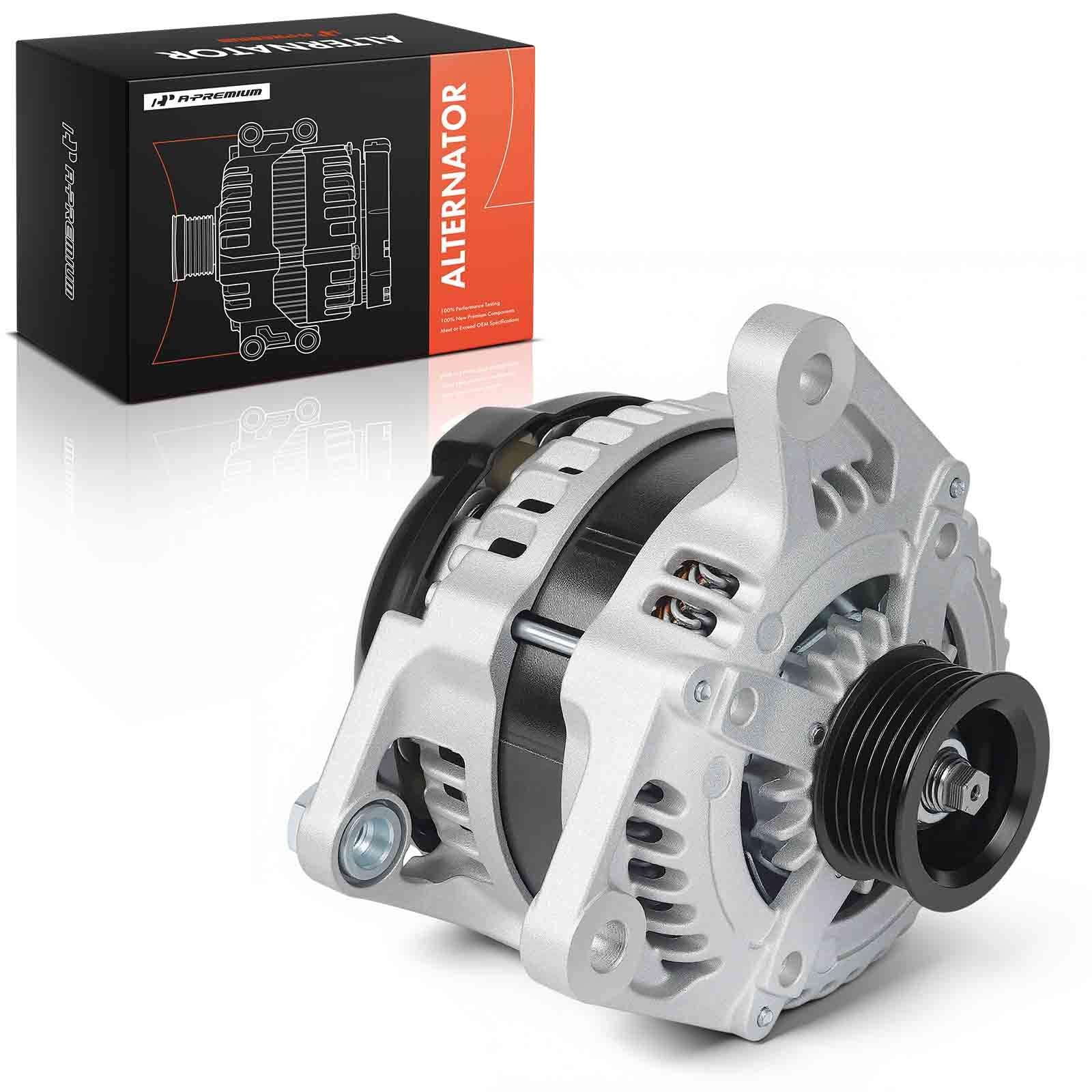

2. A-Premium APALT150
The A-Premium APALT150 covers more than just the 2005 Caravan—it also fits 2008-2010 Town & Country, Voyager, Jeep Wrangler 3.8L, and Volkswagen Routan, making it a versatile spare if you own multiple vehicles. The 160-amp, 12-volt output with clockwise rotation and 6-groove pulley matches the 3.8L engine’s demands, and the 100% new components eliminate the risk of hidden wear that plagues remanufactured units.
What sets A-Premium apart is the one-year unlimited-mileage guarantee that covers the alternator regardless of how many miles you rack up. The die-cast housing and pure copper windings resist vibration fatigue, a common failure mode on older Caravans where engine mounts have softened. The unit also includes reference numbers 11295N and 421000-0700 for cross-referencing.
If your 2005 Caravan 3.8L is used for daily commuting with frequent highway miles, the A-Premium’s balance of cost and coverage makes it a strong competitor. The broader vehicle fitment also adds resale value if you ever sell the van and keep the alternator as a spare for another compatible vehicle.
What works
- Covers multiple Chrysler, Dodge, Jeep, and VW models
- Unlimited-mileage one-year warranty
- All-new construction eliminates remanufacturing risk
What doesn’t
- Not designed for 3.3L engine fitment
- Hairpin design not used; standard windings only
3. BDELI B18930 (11570N)
The BDELI B18930 stands out because its factory holds ISO 9001 and IATF 16949 certifications—the strict automotive quality management standard that parts stores often don’t require. This means every 160-amp unit is built to production-line tolerances, with tracking from raw materials through final testing. The 11570N cross-reference fits the 2005 Caravan’s 3.8L and also covers newer 3.6L engines in later models.
Professional testing from DV Canada ensures each unit meets OEM specifications before boxing. The 6-groove S6 pulley and clockwise rotation match the serpentine belt path exactly, and the new condition eliminates the core charge hassle associated with remanufactured units. The 1-year manufacturer replacement policy provides straightforward support if any issue arises.
For owners who want documented quality assurance behind their alternator purchase, the BDELI’s certification pedigree offers peace of mind that budget brands simply can’t match. This is a no-compromise choice for the Caravan owner who plans to keep the van for years and wants maximum confidence during winter commutes.
What works
- IATF 16949 certified manufacturing facility
- DV Canada tested before shipping
- New unit with no core charge required
What doesn’t
- Fits 3.8L only; not compatible with 3.3L
- No installation hardware included

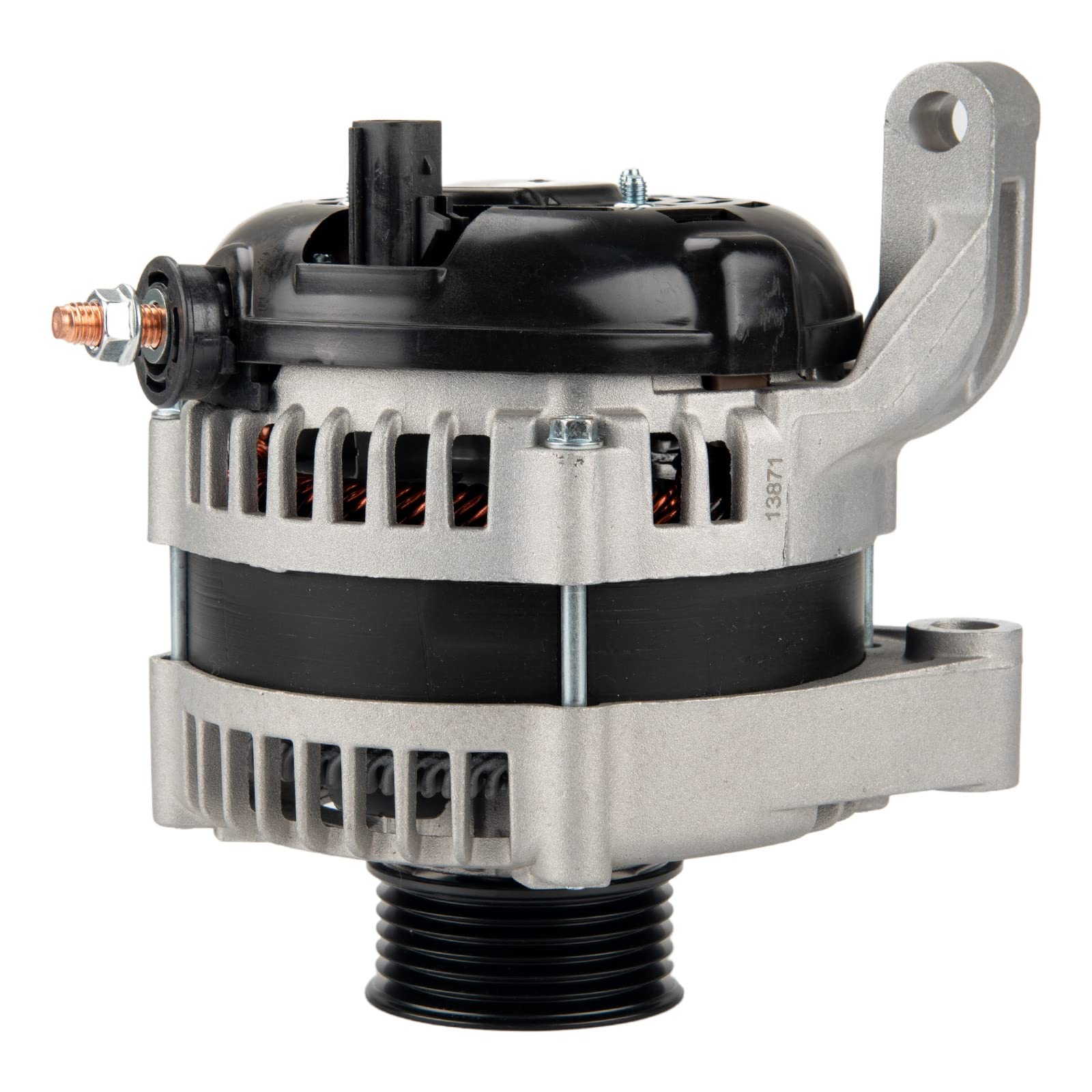

4. PHILTOP 13871N
The PHILTOP 13871N brings hairpin winding technology to the 140-amp category, which is uncommon—most 140A units use standard round-wire windings. This alternator is designed for the 2001-2007 Caravan and Grand Caravan with 3.3L and 3.8L engines, running the 13871N and 04868431AF OEM numbers. The hairpin design reduces operating temperature by roughly 15% under full load, extending bearing and diode life significantly.
Rigorous factory testing includes a 2000-hour endurance run, 96-hour salt spray exposure, and thermal cycling from minus 40°C to 105°C. The SC6 groove pulley with clutch mechanism reduces belt flutter during rapid RPM changes, a known issue on the 3.3L engine where the alternator is mounted low and exposed to road spray. The polished exterior resists corrosion better than the standard machined finish.
If your 2005 Caravan 3.3L is used for family road trips with heavy AC usage, the PHILTOP’s superior thermal management means the alternator maintains full rated output even after hours of sustained driving. The plug clock 10 position aligns directly with the factory connector.
What works
- Hairpin stator on a 140A unit for cooler operation
- Extreme temperature testing from -40°C to 105°C
- Clutch pulley reduces belt noise and flutter
What doesn’t
- Recently released in 2025, limited long-term feedback
- Pricing sits at mid-premium boundary
5. A-NAFTULY AN70335
The A-NAFTULY AN70335 offers an 18-month warranty that outpaces most competitors by six months, reflecting the manufacturer’s confidence in its pure copper windings and precision-rotor calibration. This 140-amp, 12-volt, clockwise-rotation unit directly replaces the 13871 and AND0293 OEM numbers for the 2001-2007 Caravan and Grand Caravan 3.3L and 3.8L engines. The external insulating coating prevents short circuits caused by moisture ingress.
Installation follows the standard plug-and-play process: remove the old unit, transfer the connector and mounting bracket, and torque the bolts to factory specs. The unit passes both no-load and load testing before packaging, ensuring it delivers its rated amperage immediately. The 6-groove clutch pulley matches the original 57mm diameter.
For the budget-conscious owner who still wants warranty protection beyond the typical 12-month period, the A-NAFTULY hits the sweet spot. The extended coverage gives you room to identify any infant mortality issues without rushing to install before a return window closes.
What works
- 18-month warranty exceeds industry standard
- Pure copper windings and insulating coating
- No-load and load tested before shipping
What doesn’t
- Standard windings, not hairpin design
- Limited to 140 amps with no headroom for heavy accessories
6. Farrme 13871
The Farrme 13871 uses precision CNC-machined castings rather than standard die-cast aluminum, which produces tighter tolerances at the bearing seats and mounting points. For the 2005 Caravan, this translates to reduced vibration and noise over the alternator’s lifespan. The 140-amp output, 57mm 6-groove pulley, and clockwise rotation match the 3.3L and 3.8L engines exactly. It cross-references to 3341406, AND0293, and 04868431AF.
Each unit undergoes 100% testing to OEM specifications, and the manufacturer explicitly warns against common installation mistakes like loose battery cable connections or worn serpentine belts that can mimic alternator failure. The pure copper winding and external insulating coating provide reliable charging even in the high-heat environment behind the Caravan’s 3.3L radiator fan.
If you prefer precision engineering details and appreciate thorough documentation of fitment notes, the Farrme delivers a level of manufacturing refinement often found in OEM-tier parts. The explicit warning notes about installation pitfalls also help first-time DIYers avoid diode damage from reversed connections.
What works
- CNC-machined housing for precise bearing alignment
- 100% factory tested to OEM standards
- Detailed installation guidance included
What doesn’t
- Some reported incompatibility with 2013+ models despite description
- Standard winding design limits thermal capacity

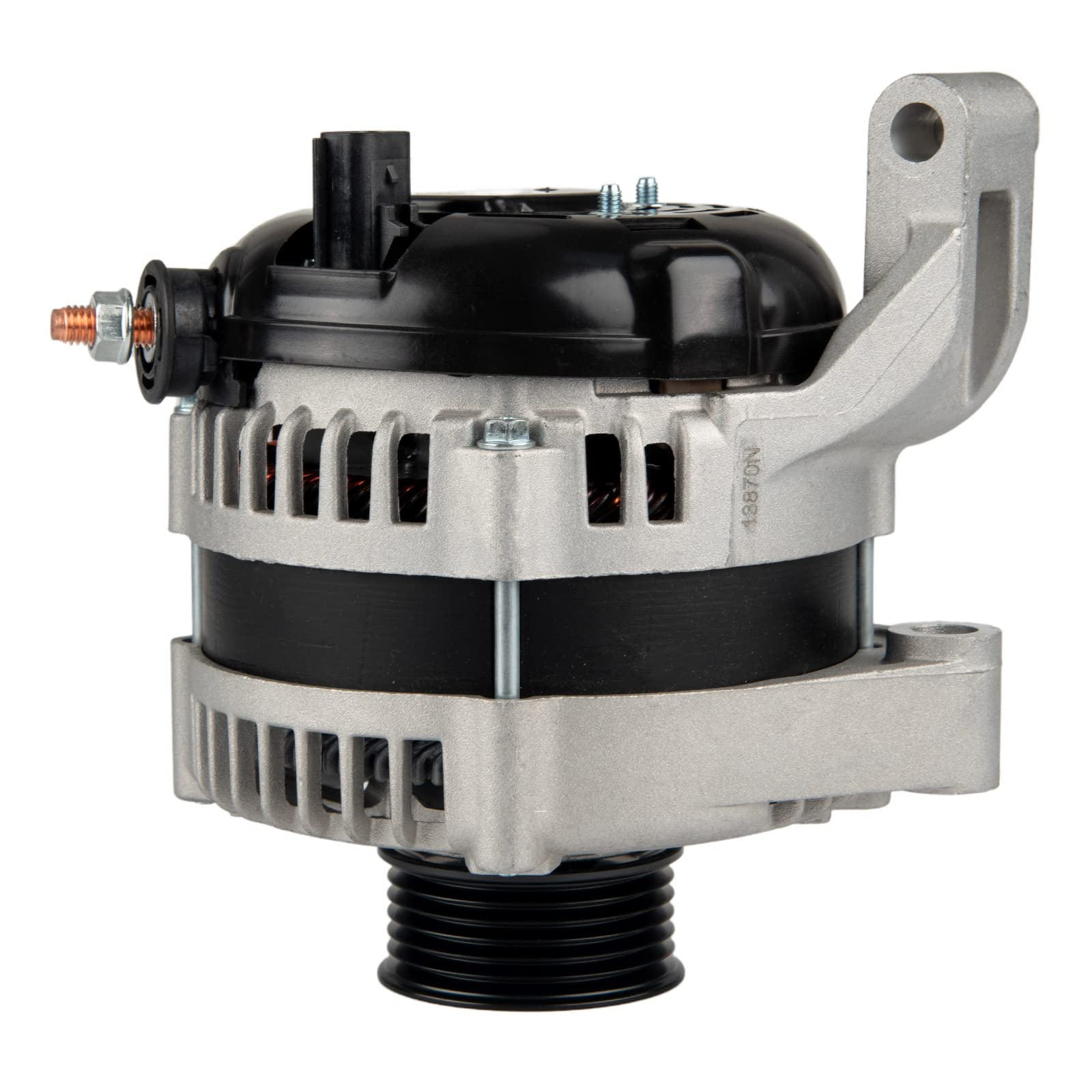

7. KAC 13870N
The KAC 13870N delivers 160 amps at a price point that typically lands near 140-amp units, making it an attractive upgrade for the 2005 Caravan 3.8L owner who wants overhead for accessory loads. The SD6 pulley and clockwise rotation match OEM specs, and the unit replaces part numbers 13870, 113803, and AND0249. The die-cast aluminum housing with pure copper windings provides adequate heat management for normal driving conditions.
Owners report straightforward installation on 2001-2007 Town & Country and Grand Caravan models, with the alternator bolting directly to the factory bracket. The 160-amp rating means the battery charges quickly after startup, reducing the strain on the electrical system during short-trip driving. The unit includes low oil shutoff and overload protection as added safety features.
For the DIY mechanic who wants the highest possible amp output without paying premium prices, the KAC offers genuine value. The trade-off is that some units have shown infant mortality issues, so bench testing before installation is recommended to catch any defects early.
What works
- 160-amp output at entry-level pricing
- Bolt-on installation, no modifications needed
- Integrated overload and low-oil protection circuits
What doesn’t
- Reports of defective units with smoke upon first use
- 30-day return window is tight for checking reliability
8. Aeagle 13870N
The Aeagle 13870N provides 160 amps of output matched to the 2001-2007 Grand Caravan and Town & Country 3.3L and 3.8L engines. The 6-groove clutch pulley and clockwise rotation align with factory specifications, and the unit replaces OEM numbers AND0249, BAL6550X, and 4686430AF. The alternator is tested under high thermal loads to verify stable output before packaging.
Users report that the unit fits perfectly on 2001 Town & Country 3.3L models, with harness connectors mating securely. The 12-month warranty provides a safety net, though one documented failure at 18 months suggests the long-term reliability may not match premium-tier options. The die-cast housing with standard copper windings is adequate for normal daily driving.
If you’re on a tighter budget but still need the 160-amp capacity for a 3.8L engine, the Aeagle is worth considering. The key is to inspect the unit immediately upon arrival and bench test it before installation to avoid the inconvenience of a failed alternator after the return window.
What works
- 160-amp output at a reasonable price point
- Direct fit for 3.3L and 3.8L engines
- Tested under high thermal conditions
What doesn’t
- Reported failure at 18 months in one instance
- Lacks premium hairpin or advanced winding technology
9. ASTOU 13871
The ASTOU 13871 is the most budget-friendly entry on this list, providing 140 amps for the 2001-2007 Caravan, Grand Caravan, Town & Country, and Voyager with 3.3L and 3.8L engines. The die-cast aluminum alloy housing with pure copper windings handles standard electrical loads without issue, and the 6-groove clutch pulley matches the original 57mm diameter and clockwise rotation.
Customer feedback highlights that the alternator works well as a direct replacement for owners who caught their battery dying early. The unit undergoes no-load and load testing before shipping, and the 12-month warranty provides baseline coverage. Some owners note that the price compared to local auto parts store quotes was dramatically lower, making this a practical choice when the budget is tight.
For the 2005 Caravan owner who needs a functional replacement immediately and isn’t planning long-term heavy use with extended accessories, the ASTOU gets the job done. The 140-amp rating is factory-correct for the 3.3L engine, making it a proper specification match rather than a downgrade.
What works
- Lowest price point for a functional replacement
- Load-tested before shipping
- Correct 140A rating for 3.3L engine
What doesn’t
- Basic winding design with less heat tolerance
- Limited to 140A; no upgrade path for accessory-heavy use
Hardware & Specs Guide
Amperage Rating
The 2005 Dodge Caravan alternator comes in two factory ratings: 140 amps for the 3.3L V6 and 160 amps for the 3.8L V6. The amp rating determines how much electrical current the alternator can supply. If your van has the towing package, rear AC, or aftermarket audio, the 160-amp unit provides necessary headroom to prevent voltage sag at idle.
Pulley Type and Rotation
Every 2005 Caravan alternator uses a 6-groove serpentine pulley with clockwise (CW) rotation. The pulley diameter is 57mm (2.25 inches). Some aftermarket units include a clutch pulley that reduces belt vibration. Using an alternator with the wrong rotation or pulley groove count prevents belt alignment and causes immediate charging failure.
Regulator and Fan Design
The external regulator/internal fan (ER/IF) design is standard for this generation. The voltage regulator mounts inside the alternator housing but is separate from the diode pack. The hairpin winding upgrade found on premium units uses rectangular copper conductors that fill more slot space in the stator, reducing resistance and heat generation by roughly 15% under full load.
OEM Part Number Cross-Reference
For the 3.3L engine, the primary OEM number is 13871 (also AND0293, 04868431AF). For the 3.8L engine, use 13870 (also AND0249, 4686430AF). Always verify your old alternator’s tag before ordering. The connector plug on these models uses a standard 2-pin rectangular design, not the older round-pin style found on pre-2001 models.
FAQ
Can I use a 160-amp alternator on my 2005 Caravan 3.3L?
How do I bench test my new alternator before installation?
Why does my new alternator still show the battery light?
Final Thoughts: The Verdict
For most owners, the best 2005 dodge caravan alternator is the Parts Player 13870R because its hairpin stator design delivers superior heat management and long-term reliability for the 3.8L engine. If you want the longest warranty and broadest vehicle fitment, grab the A-Premium APALT150. And for a 3.3L van used primarily for daily commuting, nothing beats the value of the A-NAFTULY AN70335 with its 18-month coverage.
