That single click under the hood when you turn the key means your Silverado’s 4.8L or 5.3L Vortec needs a new starter motor strong enough to crank a cold V8 on a winter morning. The 2002 model uses a gear-reduction design that delivers higher torque at the flywheel than the older direct-drive units, and choosing one with the wrong tooth count or power rating can leave you stranded after installation.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve spent months cross-referencing replacement part numbers, decoding GM’s decade-spanning OE supersessions, and filtering owner feedback to isolate which aftermarket starters actually hold up against the 2002 Silverado’s cranking demands.
The best 2002 chevy silverado starter must match the 11-tooth drive gear, deliver at least 1.4kW of cranking power, and bolt directly to the LS-based engine block without needing adapter shims or modified mounting pads.
How To Choose The Best 2002 Chevy Silverado Starter
Selecting the right replacement isn’t just about grabbing any unit that bolts on. The 2002 Silverado’s LS-based Vortec engine uses a specific gear-reduction starter that differs from older SBC and BBC engines. Matching the tooth count, power rating, and mounting configuration prevents installation headaches and ensures reliable starts for years.
Tooth Count: 9 vs 11 Teeth
The most common mistake is buying a 9-tooth starter when the 2002 Silverado 4.8L and 5.3L engines require an 11-tooth drive gear. A 9-tooth unit may engage the flexplate but will produce a higher-pitched whine and can wear out the ring gear prematurely. Always confirm the tooth count before purchasing — most listings for the 2002 model will specify 11 teeth as the correct spec.
Power Rating: 1.1kW vs 1.5kW
The 2002 Silverado originally shipped with either a 1.1kW or 1.5kW starter depending on the exact production batch. The 1.5kW unit cranks harder and spins the engine faster during cold starts, which is especially beneficial for the 5.3L V8. If your truck has a larger battery or you live in a colder climate, stepping up to the 1.5kW rating provides a noticeable improvement in starting reliability.
New vs Remanufactured
A brand-new starter includes fresh windings, new brushes, and a clean solenoid without the internal wear of a core that was rebuilt. Aftermarket new units from brands like DB Electrical and ACDelco Gold often include upgraded copper contacts and sealed housings that resist oil and moisture intrusion better than older remanufactured designs.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| ACDelco Gold 337-1016 | Premium New | OEM-grade reliability | 15 Amps, 3-phase | Amazon |
| DB Electrical 410-12204 | Premium New | 4.3L V6 applications | Silver/Copper contacts | Amazon |
| SZKAIDAG 10465548 | Premium New | Silent operation | 1.5 kW, 11 tooth | Amazon |
| BDELI 10465548 | Mid-Range New | ISO-certified quality | 1.4 kW, 11 tooth | Amazon |
| ultramindz 12568051 | Mid-Range New | 2003-2008 Silverado fit | 1.1 kW, 9 tooth | Amazon |
| Parts Player PG260G | Budget New | Base 4.8L replacement | 1.5 kW, 11 tooth | Amazon |
| Parts Player PG260L | Budget New | 6.0L V8 cranking | 1.6 kW, 11 tooth | Amazon |
In‑Depth Reviews
5. ACDelco Gold 337-1016 (88877115) Starter
The ACDelco Gold 337-1016 is a 100% new unit built under ISO quality standards, meaning every internal component from the armature windings to the solenoid contacts is fresh rather than reconditioned. The aluminum nose cone reduces weight while maintaining the structural rigidity needed to withstand the 5.3L V8’s cranking torque, and the grounded case design eliminates any potential grounding path issues that can cause intermittent no-starts.
GM engineers designed this starter with engineering enhancements that improve efficiency over the factory original, including greased key components that resist corrosion and thermal breakdown under the hood of a high-mileage Silverado. The 15-amp draw indicates a well-balanced electrical load that won’t strain your battery or alternator during repeated starts.
Installation is straightforward for anyone who has swapped a starter on an LS platform, with all dimensions and mounting surfaces gauged to match the original GM spec exactly. The unit fits 2002 Silverado 1500 models with the 4.8L or 5.3L engine, and the 3-phase design provides smooth engagement that minimizes flywheel ring gear wear over time.
What works
- Factory-level fit and finish identical to dealer replacement
- Consistent cranking even after prolonged heat soak
- Corrosion-resistant coating on housing holds up to road salt
What doesn’t
- Premium price reflects genuine GM licensing
- No mounting hardware included in the box
6. DB Electrical 410-12204 Starter
The DB Electrical 410-12204 is built with upgraded copper and silver contacts that reduce electrical resistance and generate a stronger magnetic field for faster cranking speeds. The sealed housing design prevents oil mist and clutch dust from contaminating the internal brushes, a common failure point on starters mounted near the oil pan on the 4.3L V6.
While this unit is primarily listed for 1999-2004 Chevy and GMC models with the 4.3L Vortec V6, it also fits 1999-2000 Silverado 1500 models with the same engine, making it a solid option for owners hunting for a direct-replacement with improved durability. The 9-tooth drive gear limits its use to applications specifically calling for that count, so double-check your original part number before purchasing.
DB Electrical uses high-quality steel and copper alloys that resist fatigue from repeated engagement cycles, and the 3-phase architecture helps the motor spin up quickly without excessive current draw. The 5-pound weight is slightly heavier than some budget units, reflecting the beefier internal components.
What works
- Silver-plated contacts improve conductivity over stock
- Sealed housing keeps debris away from brushes
- Simple bolt-on installation for 4.3L applications
What doesn’t
- Does not fit 5.3L V8 without adapter changes
- Limited to 9-tooth applications only

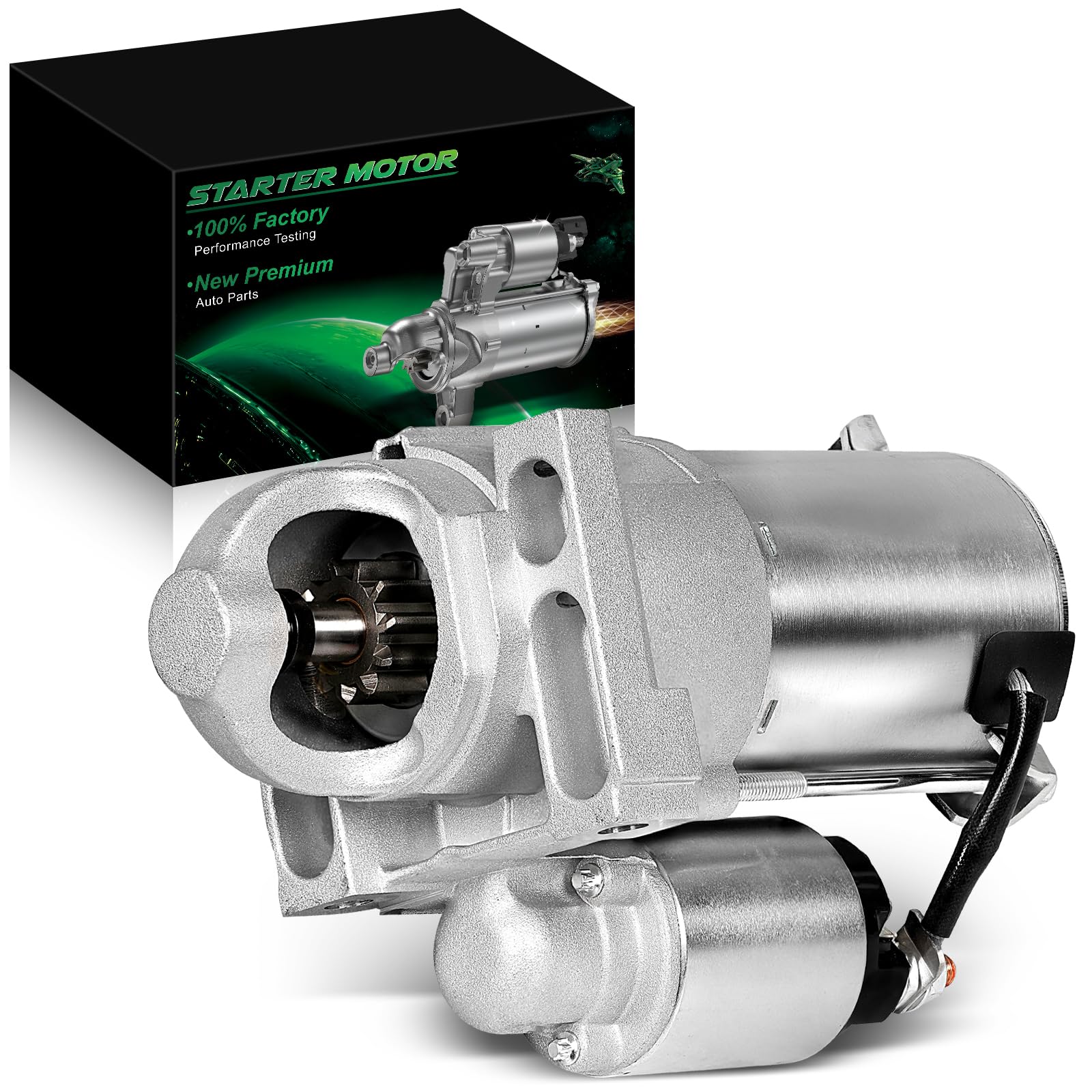

7. SZKAIDAG 10465548 Starter Motor
The SZKAIDAG 10465548 is engineered for quiet operation, using advanced internal damping that reduces the whine typically produced by gear-reduction starters during engagement. The 1.5kW power rating delivers strong cranking performance for the 5.3L V8, spinning the engine fast enough to fire even on cold mornings without the grinding noise some aftermarket units produce.
This starter is built with contacts pressed from copper and graphite powder, a material choice that provides better electrical transfer than standard brass contacts while resisting pitting and arcing over time. The 11-tooth drive gear is correct for the 2002 Silverado 1500 with either the 4.8L or 5.3L, and the clockwise rotation matches the GM LS platform spec exactly.
Installation requires using two long mounting bolts that aren’t included, so plan for that extra hardware. The 6.6-pound weight suggests substantial internal components, and the 30-year manufacturing background from SZKAIDAG provides confidence in quality control processes that include checks throughout the production line.
What works
- Noticeably quieter cranking than the factory original
- Graphite-infused contacts handle high current without wear
- Direct fitment to 2002 Silverado 4.8L and 5.3L engines
What doesn’t
- Mounting bolts are not included
- Slightly bulkier design may require careful positioning
4. BDELI 10465548 Starter Replacement
The BDELI 10465548 is manufactured in ISO 9001 and IATF 16949 certified facilities, ensuring that every unit passes stringent quality management protocols during assembly. The 1.4kW power rating is slightly above the base 1.1kW spec, giving the 5.3L V8 a stronger cranking current without putting excessive strain on the battery cables or solenoid.
Testing conducted with professional equipment from DV Canada verifies that the starter meets its rated output before leaving the factory, reducing the likelihood of receiving a defective unit. The alloy steel and aluminum construction keeps the weight manageable while providing the rigidity needed to handle repeated high-torque engagement cycles.
Replacement part numbers include 10465561, 10465579, and 19136238, covering the full range of 2001-2002 Silverado 1500, Tahoe, and Suburban models with either the 4.8L or 5.3L engine. The 1-year manufacturer replacement warranty backed by both the maker and seller provides double assurance if any issues arise.
What works
- Factory-certified manufacturing processes ensure consistent quality
- Professional DV Canada testing validates performance before shipping
- 1.4kW output is a solid upgrade over 1.1kW base units
What doesn’t
- No mounting hardware included in the package
- Single-phase design may not be as smooth as 3-phase alternatives

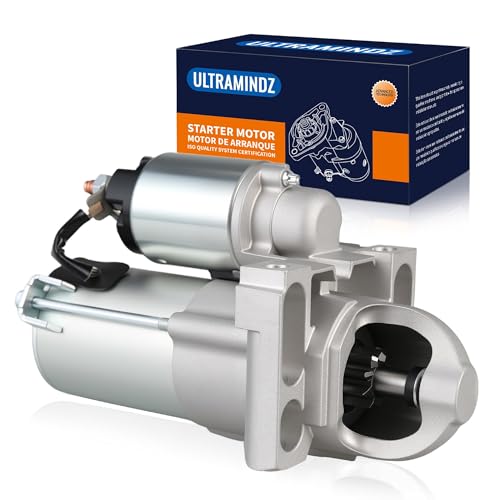

3. ultramindz 12568051 Starter
The ultramindz 12568051 is a PMGR (Permanent Magnet Gear Reduction) starter that produces 1.1kW of cranking power with a 9-tooth drive gear. This configuration is better suited for 2003-2008 Silverado models with the 4.8L or 5.3L V8, but it can also replace a 9-tooth unit on earlier applications that were originally equipped with that spec from the factory.
The 91.67-amp draw indicates a higher current demand than the ACDelco Gold unit, meaning your battery and charging system must be in good health to maintain consistent performance. The all-new construction uses aluminum, copper, and magnet materials rather than reconditioned cores, which eliminates the risk of inheriting internal wear from a previous vehicle.
Replacement part numbers include 88861935, 89017440, and 12568051, making it compatible with a wide range of Chevrolet and GMC trucks from the mid-2000s. The 9-tooth gear produces a tighter engagement sound during cranking, and installation is straightforward for anyone familiar with LS platform starter swaps.
What works
- Brand-new build avoids remanufactured core issues
- Wide compatibility across 2003-2008 GM trucks
- PMGR design reduces weight compared to older direct-drive units
What doesn’t
- 9-tooth gear is incorrect for most 2002 Silverado 5.3L engines
- High amperage draw may challenge older batteries or alternators
1. Parts Player PG260G Starter (OEG Parts)
The Parts Player PG260G is a new gear-reduction starter delivering 1.5kW of power through an 11-tooth drive gear, matching the exact spec required for the 2002 Silverado 1500 with either the 4.8L or 5.3L V8. The 237mm overall length is approximately 22cm longer than the 6494 unit it can replace, so you’ll need to confirm there’s enough clearance in the engine bay before finalizing the install.
Replacement part numbers include 10465561, 10465579, and 12563908, covering the vast majority of 2000-2002 LS-based GM trucks. The 22-amp draw is remarkably low for a 1.5kW starter, meaning this unit converts electrical energy into mechanical rotation very efficiently without pulling excessive current from the battery.
No mounting hardware is included, so retain your original bolts or purchase replacements separately. The entry-level price point makes this an attractive option for those on a tight budget, but the 1-year warranty provides a reasonable safety net for a daily-driven truck.
What works
- 1.5kW power rating cranks the 5.3L V8 without hesitation
- Extensive OEM cross-reference ensures broad compatibility
- Low amperage draw reduces load on factory wiring
What doesn’t
- Longer body may contact headers or block in tight engine bays
- Mounting bolts sold separately adds to total project cost

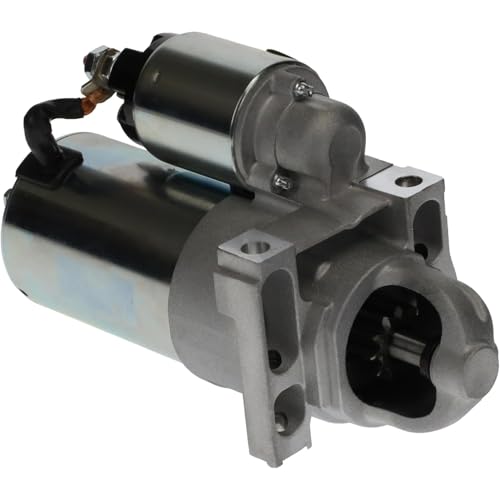

2. Parts Player PG260L Starter (OEG Parts)
The Parts Player PG260L is the higher-output sibling of the PG260G, producing 1.6kW of cranking power through the same 11-tooth gear. This extra 0.1kW makes a tangible difference when starting a 6.0L V8 in the Silverado 2500 HD or Yukon Denali, providing a faster cranking speed that helps the engine catch sooner during cold starts.
Compatibility extends beyond the 2002 Silverado to include 2002-2005 Cadillac Escalade 6.0L and 2003-2005 GMC Yukon XL 1500 Denali models, making it an excellent option for owners who have swapped a 6.0L LQ4 or LQ9 into their 1500 truck. The clockwise rotation and pad mounting type align with the standard GM LS configuration.
Two long mounting bolts are required for installation, and they are not included in the package. The 9.05-pound weight reflects the larger magnet and winding assembly needed to achieve the 1.6kW output, and the three-phase design provides smooth engagement that minimizes starter gear clash.
What works
- 1.6kW output is the strongest in this budget segment
- Fits 6.0L engines from GM trucks and SUVs
- Three-phase design for smoother engagement
What doesn’t
- Heavier than standard 1.5kW units
- Mounting bolts must be sourced separately
Hardware & Specs Guide
Gear Reduction vs Direct Drive
The 2002 Silverado uses a gear-reduction starter that incorporates planetary gears between the motor and the pinion drive. This design allows a smaller, lighter motor to produce higher cranking torque than a direct-drive unit of the same size. Gear-reduction starters also draw less current during cranking, reducing the load on the battery and charging system.
Tooth Count and Flexplate Compatibility
The 2002 Silverado 1500 with either the 4.8L LR4 or 5.3L LM7 engine uses a 168-tooth flexplate paired with an 11-tooth starter drive gear. Using a 9-tooth gear on this flexplate changes the engagement angle and increases the wear rate on both the starter and the ring gear. Always verify tooth count before ordering.
Power Rating and Cold Cranking
1.1kW starters were standard on early production 2002 Silverados, but many owners have upgraded to 1.4kW or 1.5kW units for improved cold-start performance. The higher power rating translates to faster cranking speed, which helps the engine fire more quickly in cold weather. The 1.6kW units are typically reserved for 6.0L engines.
Mounting Hardware and Pad Configuration
All LS-based starters for the 2002 Silverado use a two-bolt pad mounting pattern with a specific bolt spacing. Some aftermarket units require longer bolts due to differences in the nose housing thickness. Before installation, check that your existing bolts are long enough to engage at least 6 full threads into the block.
FAQ
Will a 9-tooth starter damage my 2002 Silverado flexplate?
How do I tell if my Silverado needs a 1.1kW or 1.5kW starter?
Can a bad starter cause slow cranking on a 2002 Silverado?
Final Thoughts: The Verdict
For most buyers, the best 2002 chevy silverado starter winner is the ACDelco Gold 337-1016 because it delivers genuine GM-spec engineering tolerances with 100% new components that guarantee consistent cranking for years. If you want a quieter startup experience with strong 1.5kW power, grab the SZKAIDAG 10465548. And for a budget-conscious 11-tooth replacement that keeps your 5.3L turning over reliably, nothing beats the Parts Player PG260G.
