A fuel pump that stalls mid-transfer, leaks at the seal, or fails to pull from the bottom of a drum turns a routine job into a costly delay. The difference between a pump that lasts a decade and one that dies in a season comes down to rotor material, thermal management, and real-world flow consistency rather than peak GPM claims on a spec sheet.

I’m Amir — the founder and writer behind Four Wheel Ask. My approach to evaluating fuel transfer pumps involves cross-referencing motor winding data, bypass valve design, and corrosion testing results with hundreds of owner reports and fleet maintenance logs to separate marketing promises from engineering substance.

After evaluating thermal protection, flow curve data, and verified owner reports, I know exactly which pump leads the best 15 gpm fuel pump category.

How To Choose The Best 15 GPM Fuel Pump

Selecting a fuel transfer pump involves more than matching a flow number. The pump you choose must handle the fuel type, voltage availability, mounting configuration, and duty cycle demands of your specific operation. Here are the factors that separate pumps that last from those that require early replacement.

Power Source: 12V DC vs. 110V AC

The voltage decision determines where and how you can use the pump. A 12V DC pump connects directly to a vehicle battery or trailer system, making it ideal for mobile refueling in the field, on a job site, or from a truck bed tank. A 110V AC pump requires a generator or shore power but often delivers higher sustained torque and allows for more continuous operation without draw limits. Most fleet operators choose 12V for field flexibility, while shop-based setups favor AC for consistent runtime.

Construction Materials and Corrosion Resistance

Cast iron provides the best long-term durability against the corrosive effects of gasoline, diesel, and ethanol blends. Pumps with cast iron bodies and copper windings resist internal degradation better than aluminum or polymer units. However, aluminum pumps weigh less and resist rust in humid storage conditions. The housing coating — whether electrophoretic, powder-coated, or painted — determines how well the pump withstands weather exposure. Electrophoretic coatings bond at the molecular level and provide superior edge coverage compared to spray-applied paint.

Safety Systems: Thermal Protection, Bypass Valves, and Explosion-Proof Ratings

Thermal overload protection automatically shuts the motor off when internal temperatures exceed a safe threshold, typically around 220°F, preventing winding burnout. A built-in bypass valve relieves pressure when the nozzle closes, reducing strain on the motor and hose assembly. Explosion-proof pumps carry UL or ATEX certifications and are designed with sealed electrical components that prevent spark ignition of fuel vapors. These certifications are essential when transferring gasoline or other volatile fuels in confined spaces.

Kit Completeness and Connection Compatibility

A comprehensive kit reduces installation time and eliminates the need for separate parts shopping. Look for pumps that include a discharge hose, suction pipe, fuel filter, automatic nozzle, and power cable with battery clamps. Port sizes should match your tank bung or suction line — 2-inch NPT bung mounts are standard for drum and tank installations, while 3/4-inch NPT inlet and outlet sizes provide the flow cross-section needed for 15 GPM delivery. Verify that included hoses are rated for the specific fuel types you plan to transfer.

Quick Comparison

On smaller screens, swipe sideways to see the full table.

Model Category Best For Key Spec Amazon
Fill-Rite FR1204H Rotary Vane Long-term fleet use 12V, 8 ft suction, 37 ft discharge, lifetime warranty Amazon
TRUPOW TP0415-1 Rotary Vane Mid-duty with filtration 12V, 1/4 HP, 33 ft lift, includes particulate filter Amazon
GPI M-150S Rotary Gear Low-maintenance commercial 12V, rotary gear design, circuit breaker protection Amazon
VEVOR Fuel Transfer Pump Rotary Vane Complete value kit 12V, 4900 RPM, 34 ft head, 13 ft outlet hose Amazon
Orion Motor Tech 12V Self-Priming Portable refueling 12V, 65.6 ft max lift, auto shut-off, carry case Amazon
BLACKHORSE-RACING 12V Rotary Vane Explosion-proof mobile use 12V, 3200 RPM, 20 ft max lift, thermal protection Amazon
VALYHOOD 110V AC Self-Priming Shop and AC-powered jobs 110V AC, 1/4 HP, 33 ft lift, ethanol/methanol blends Amazon
BreAro 12V Self-Priming Multi-fuel flexibility 12V, 9.8 ft suction, 26 ft discharge, auto shut-off nozzle Amazon
Forged-Fuel Heavy Duty Self-Priming Professional-grade multi-fuel 12V, alloy/aluminum construction, premium filter package Amazon
Ensurix 12V Fuel Pump Rotary Vane Industrial auto shut-off 12V, IP55, pure copper motor, auto shut-off nozzle Amazon
Nakkaa 12V Self-Priming Budget-conscious setup 12V, cast iron/copper internals, ATEX certified Amazon

In‑Depth Reviews

Best Overall

1. Fill-Rite FR1204H 12V 15 GPM Fuel Transfer Pump

Rotary VaneLifetime Warranty

The Fill-Rite FR1204H represents the benchmark that other 15 GPM pumps are measured against, and for good reason. This pump-only unit uses rotary vane technology that maintains flow consistency even as the vanes wear over time, a design advantage that keeps delivery rates stable rather than dropping off after dozens of hours of use. The 8-foot suction depth and 37-foot discharge height provide real-world reach that handles standard tank-to-equipment distances without requiring additional lift stages.

Durability comes from the cast iron housing combined with thermal overload protection that prevents motor damage during extended operation. The removable junction box rotates 180 degrees, which makes wiring installation significantly easier when mounting in tight compartments. User reports from fleet maintenance shops consistently note that these pumps run for years without seal failures or flow degradation, which aligns with the limit-lifetime warranty coverage.

Veteran operators appreciate that the FR1204H is a pump-only unit, meaning you build the system with your preferred nozzle, hose, and filter selection rather than relying on bundled accessories. This approach reduces single-point failure risk because each component can be serviced independently. The pump handles gasoline, diesel, kerosene, ethanol blends, methanol blends, and biodiesel, making it a true multi-fuel workhorse for operations that handle varied fuel types.

What works

  • Rotary vane design sustains flow rate as components wear
  • Cast iron housing with thermal overload protection for long service life
  • Rotatable junction box simplifies installation in confined spaces
  • Multi-fuel compatibility across gasoline, diesel, kerosene, and bio blends

What doesn’t

  • Pump-only configuration requires separate purchase of nozzle, hose, and filter
  • Vehicle-specific fit may require adapter for non-standard tank bungs
Performance

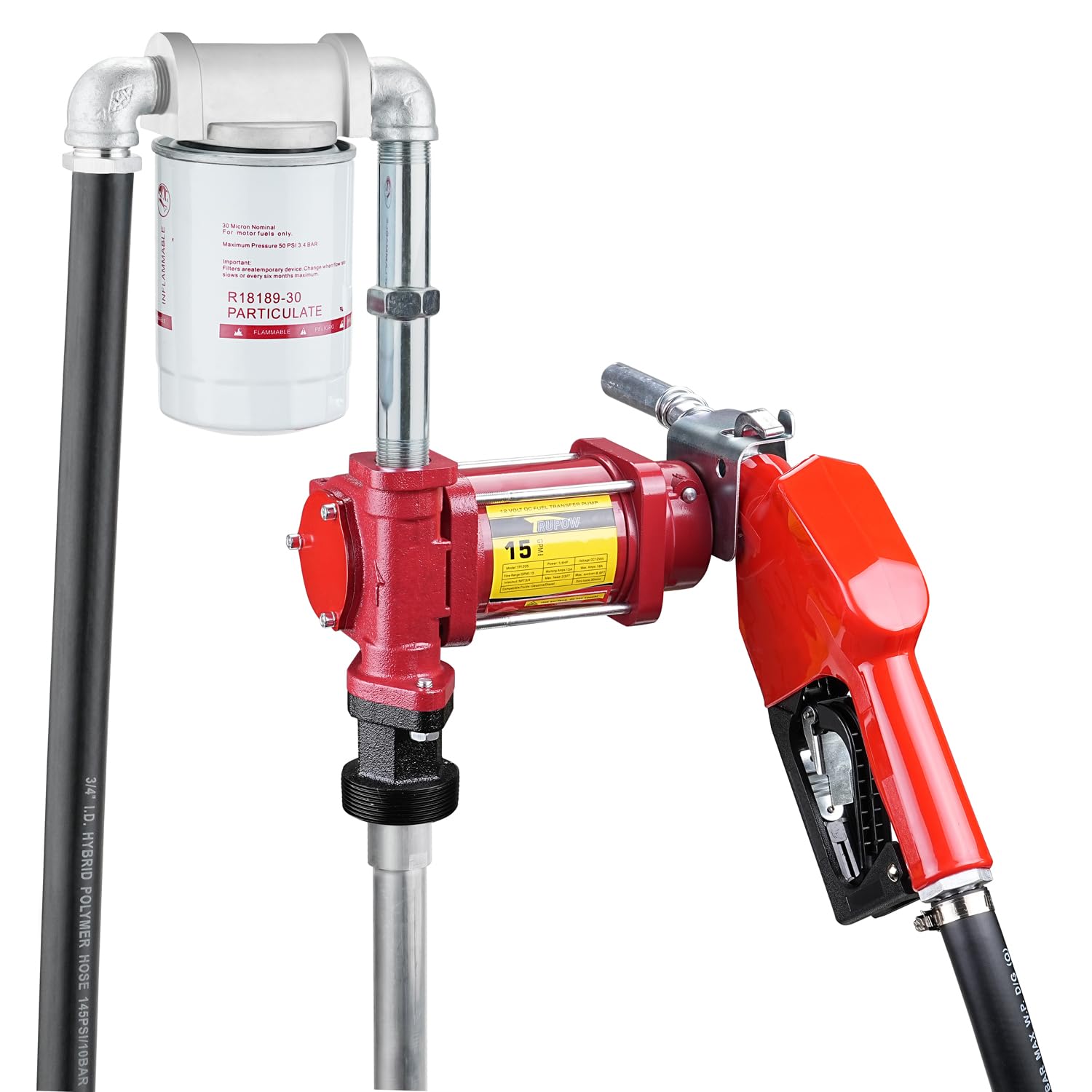

2. TRUPOW 12V DC 15GPM Self-Priming Fuel Transfer Pump Kit

Includes Filter1/4 HP Motor

The TRUPOW TP0415-1 kit arrives as a complete fuel transfer system that includes a particulate filter, automatic nozzle, 13-foot rubber discharge hose, two inlet steel pipes, hose clamps, and sealing tape. The 1/4 HP self-priming motor uses solid copper windings and delivers 15 GPM with a maximum suction length of 6.6 feet and lift capability up to 33 feet. This lift range covers most tank-to-vehicle height differences encountered in farm, construction, and fleet refueling scenarios.

Safety engineering includes explosion-proof components designed to prevent spark generation, plus a thermal protection circuit that automatically stops the motor during overheating events. The internal bypass prevents fuel backflow when the pump is not running, which eliminates the need for a separate check valve in the discharge line. The cast iron pump chamber and stainless steel construction resist corrosion from gasoline, diesel, kerosene, and other light fuels, while the compact frame with a carrying handle improves portability.

The particulate filter is a meaningful inclusion that many competitor kits omit. Fuel contaminants from storage tanks — rust particles, microbial growth, and sediment — are filtered before reaching the engine or equipment being filled. Owner feedback indicates that the filter extends the service life of both the pump and downstream equipment, particularly in diesel applications where microbial contamination is more prevalent.

What works

  • Complete kit with particulate filter, automatic nozzle, hoses, and connectors
  • Explosion-proof design with thermal overload and internal bypass
  • Copper motor windings for efficient power delivery
  • Carrying handle improves site-to-site mobility

What doesn’t

  • 30-minute recommended duty cycle requires cooldown breaks during heavy use
  • Plastic components on nozzle may wear faster than all-metal alternatives
Premium

3. GPI M-150S 15 GPM 12 Volt Fuel Transfer Pump

Rotary GearCircuit Breaker

The GPI M-150S uses a rotary gear design that has fewer moving parts than rotary vane pumps, which directly reduces internal friction and wear over the pump’s service life. This engineering approach translates to minimal maintenance requirements — no vanes to replace and no complex rotor assemblies to rebuild. The aluminum housing provides corrosion resistance while keeping the unit weight manageable for direct tank-mount applications without requiring additional structural support.

Circuit breaker motor protection extends pump life by preventing electrical overload conditions that could damage the motor windings. The direct-mount configuration includes a nozzle holder and fuse assembly, while the strainer and poppet design allows for tool-free access during routine cleaning. This pump is compatible with gasoline blends up to E15, diesel blends up to B20, and kerosene, covering the most common fuel types used in agricultural and fleet operations.

GPI has a strong reputation in the agricultural and commercial fueling sectors, and the M-150S reflects that engineering heritage with consistent flow output and reliable starting even after extended storage. The pump is designed for ground-based refueling applications, and the manufacturer provides clear guidance on aviation fuel compatibility for operators who need to service AVGAS 100LL or Jet A on the ground under NFPA 407 standards.

What works

  • Rotary gear design with fewer wearing parts for reduced maintenance
  • Circuit breaker protects motor from electrical overload
  • Lightweight aluminum housing resists corrosion
  • Tool-free strainer access simplifies field cleaning

What doesn’t

  • Limited to E15 and B20 blends, not compatible with higher ethanol or biodiesel concentrations
  • Aluminum body may be less impact-resistant than cast iron in rough handling
Value

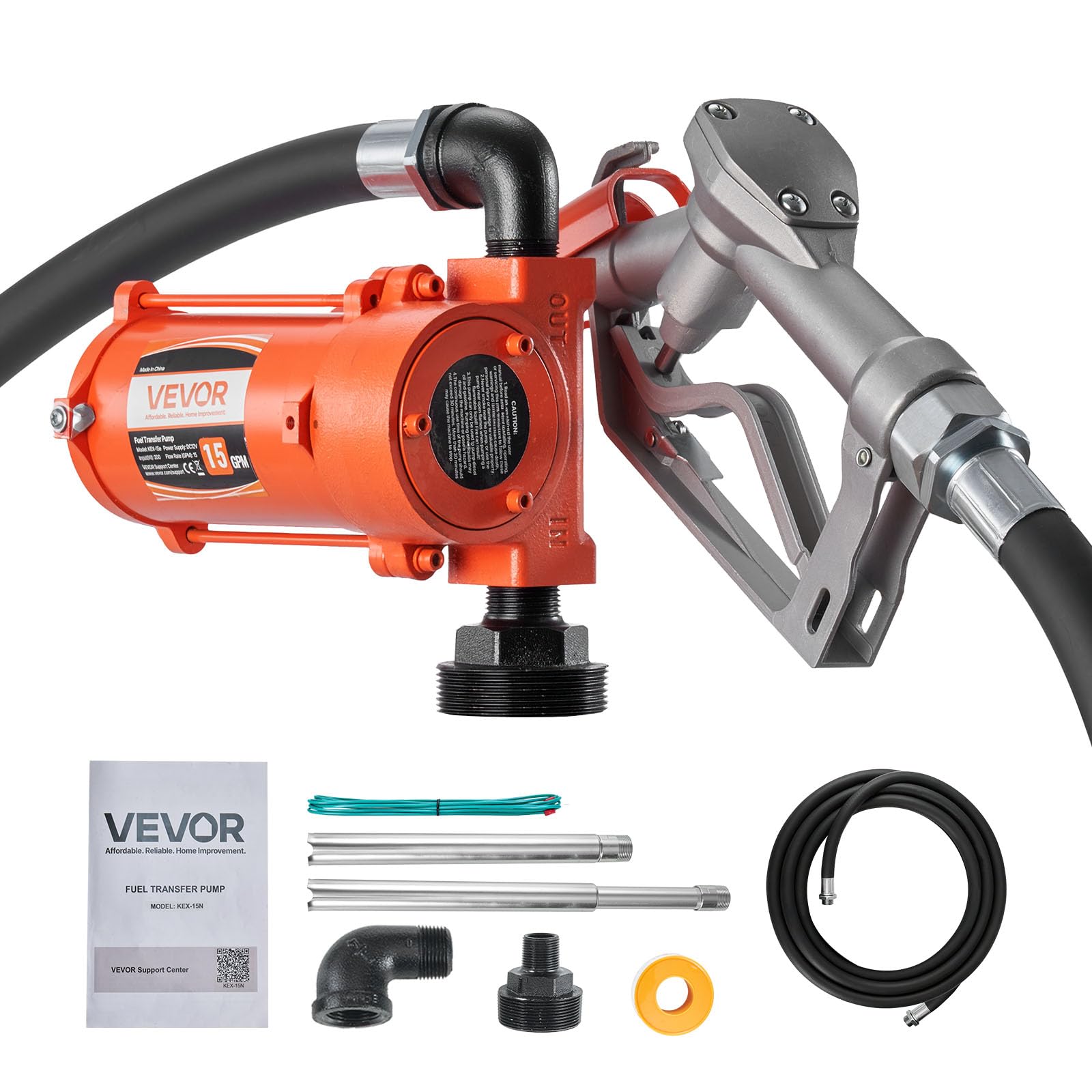

4. VEVOR Fuel Transfer Pump 12V DC 15 GPM

Complete Kit4900 RPM

The VEVOR 15 GPM transfer pump delivers a compelling balance of performance and included accessories at a price point that undercuts many competitors while maintaining cast iron durability. The motor spins at 4900 RPM and achieves a 34-foot maximum head lift with a 7-foot suction lift, which is sufficient for most ground-level tank to elevated equipment fueling applications. The cast iron body receives an electrophoretic coating that bonds at the molecular level for superior corrosion resistance compared to painted housings.

The kit includes a corrosion-resistant aluminum manual nozzle, a 13-foot outlet hose, a 14-to-37-inch adjustable suction pipe, and a power cable with alligator clips. The manual nozzle gives operators precise flow control, and the aluminum construction eliminates the rust issues common with steel nozzles in humid environments. Thermal overload protection prevents the motor from overheating during extended use, and the bung mount design allows for secure direct attachment to standard fuel tank openings.

Fuel compatibility covers gasoline, diesel, and kerosene, making the pump suitable for tractors, generators, trucks, and construction equipment. The adjustable suction pipe is a practical feature that accommodates different tank depths without requiring a separate extension purchase. User reports from farm and ranch operations indicate that the pump delivers consistent flow on the first prime even after sitting unused for weeks.

What works

  • Electrophoretic-coated cast iron body for long-term rust protection
  • Complete kit with aluminum nozzle, hoses, and adjustable suction pipe
  • 4900 RPM motor provides strong head lift for elevated tank setups
  • Adjustable suction pipe fits multiple tank depths

What doesn’t

  • Manual nozzle requires operator attention to prevent overfill
  • Alligator clip power connection may loosen under vibration over time
Design

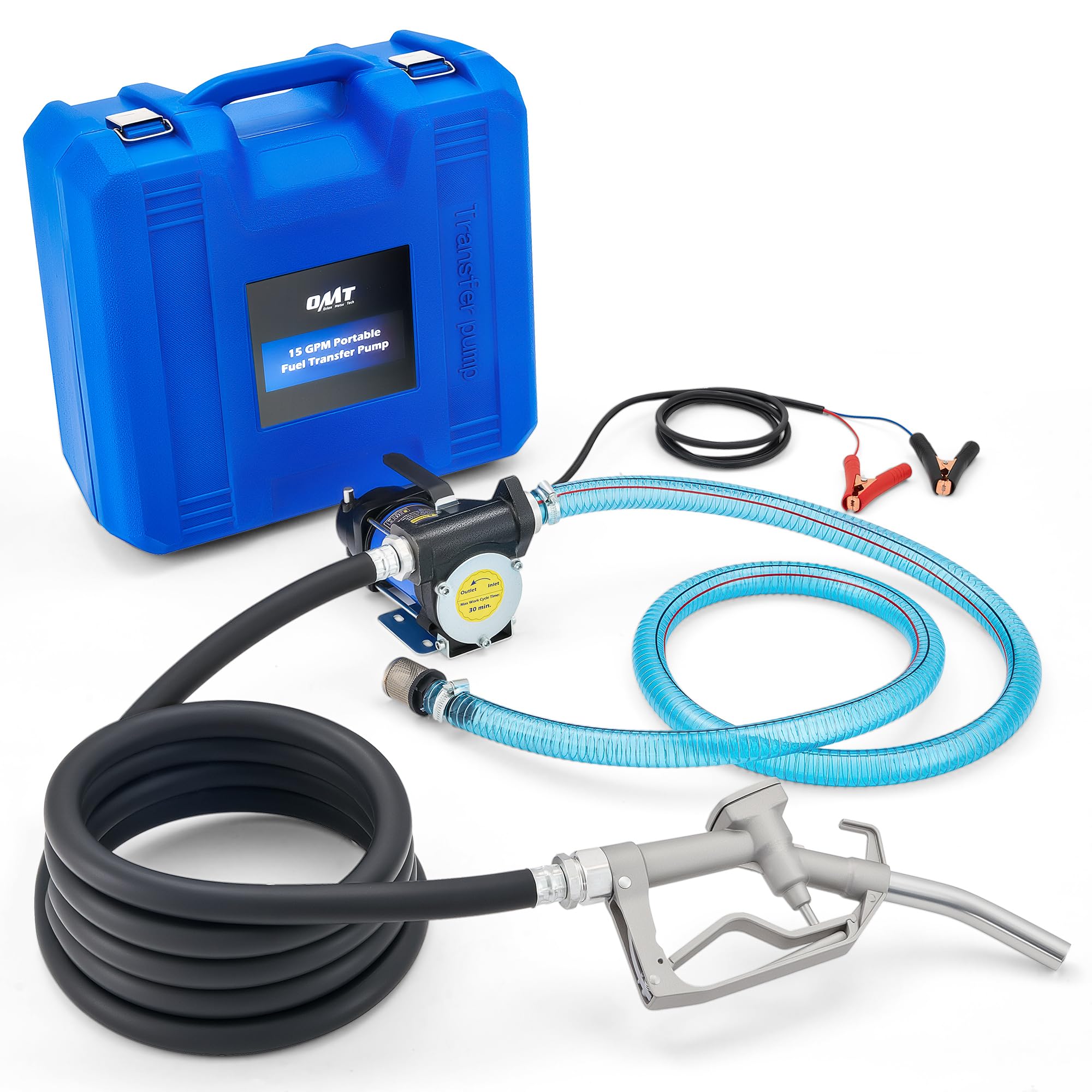

5. Orion Motor Tech 12V 15 GPM Electric Fuel Transfer Pump Kit

Carry Case65.6 ft Lift

The Orion Motor Tech kit stands out for its exceptional 65.6-foot maximum lift capability, which is more than double what most 15 GPM pumps in its class offer. This lift range enables fuel transfer from elevated storage tanks or across longer horizontal distances without flow rate drop-off. The automatic fuel pump uses a self-priming design that handles gasoline, diesel, kerosene, and other light oils, and the included adjustable aluminum nozzle allows operators to customize the flow rate for different container sizes.

Safety systems include a built-in inner bypass valve that prevents excessive pressure buildup when the nozzle is closed, plus overheat protection that automatically shuts the pump down if internal temperatures exceed 220°F. The cast iron pump body receives an electrophoretic coating for corrosion resistance, and the complete kit includes the pump, aluminum nozzle, hoses, and essential accessories in a portable carry case. The case protects the components during transport and storage, which is a meaningful advantage for mobile service trucks and field operations.

The pump can be firmly anchored to the ground during operation to prevent movement during extended fueling sessions, and the lightweight design relative to its lift capacity makes it a strong choice for operators who need both portability and high-head capability. The 30-minute recommended duty cycle with equal cooldown is standard for pumps in this power range.

What works

  • 65.6-foot max lift far exceeds typical 15 GPM pump capability
  • Portable carry case protects components during transport
  • Adjustable aluminum nozzle provides customizable flow control
  • Bypass valve and thermal overload protection for safe operation

What doesn’t

  • Internal bypass may reduce flow rate when pumping at maximum lift heights
  • Carry case adds bulk to overall kit footprint
Battery

6. BLACKHORSE-RACING 12V DC 15 GPM Rotary Vane Fuel Transfer Pump

Class 1 Div 1Thermal Protection

The BLACKHORSE-RACING pump carries a Class 1 Division 1 Group D T4 explosion-proof rating, which means it is certified for use in environments where flammable liquids like gasoline, diesel, kerosene, and mineral spirits are present. This safety certification is critical for operators who transfer fuel in enclosed spaces, near ignition sources, or in compliance with workplace safety regulations. The rotary vane motor spins at 3200 RPM and delivers a self-priming flow rate of 15 GPM with a maximum lift of 20 feet.

Heavy-duty cast iron construction provides the structural integrity needed for long-term use, and the thermal overload protection system includes an automatic stop device that engages when the motor exceeds safe operating temperatures. The compact form factor allows the pump to be mounted on fuel storage tanks or set on the ground, and the simple installation process reduces downtime during setup. The recommended duty cycle is 30 minutes on with a 30-minute power-off cooling phase, which is standard for thermal-protected electric pumps at this flow rate.

The universal fit accommodates cars, trucks, tractors, and agricultural equipment, and the hose barb inlet and outlet connections provide secure hose attachment without requiring specialized tools. Owner reports from agricultural operators note that the pump primes reliably even after extended periods of non-use, and the explosion-proof certification provides peace of mind for diesel and gasoline transfer in barn and shop environments.

What works

  • Class 1 Division 1 explosion-proof certification for safe volatile fuel transfer
  • Rotary vane design delivers consistent flow at 3200 RPM
  • Compact size fits tight mounting locations on tanks and trailers
  • Reliable self-priming even after extended storage periods

What doesn’t

  • 20-foot max lift is lower than many competing 15 GPM pumps
  • Hose barb connectors may require additional clamps for high-pressure setups
Premium

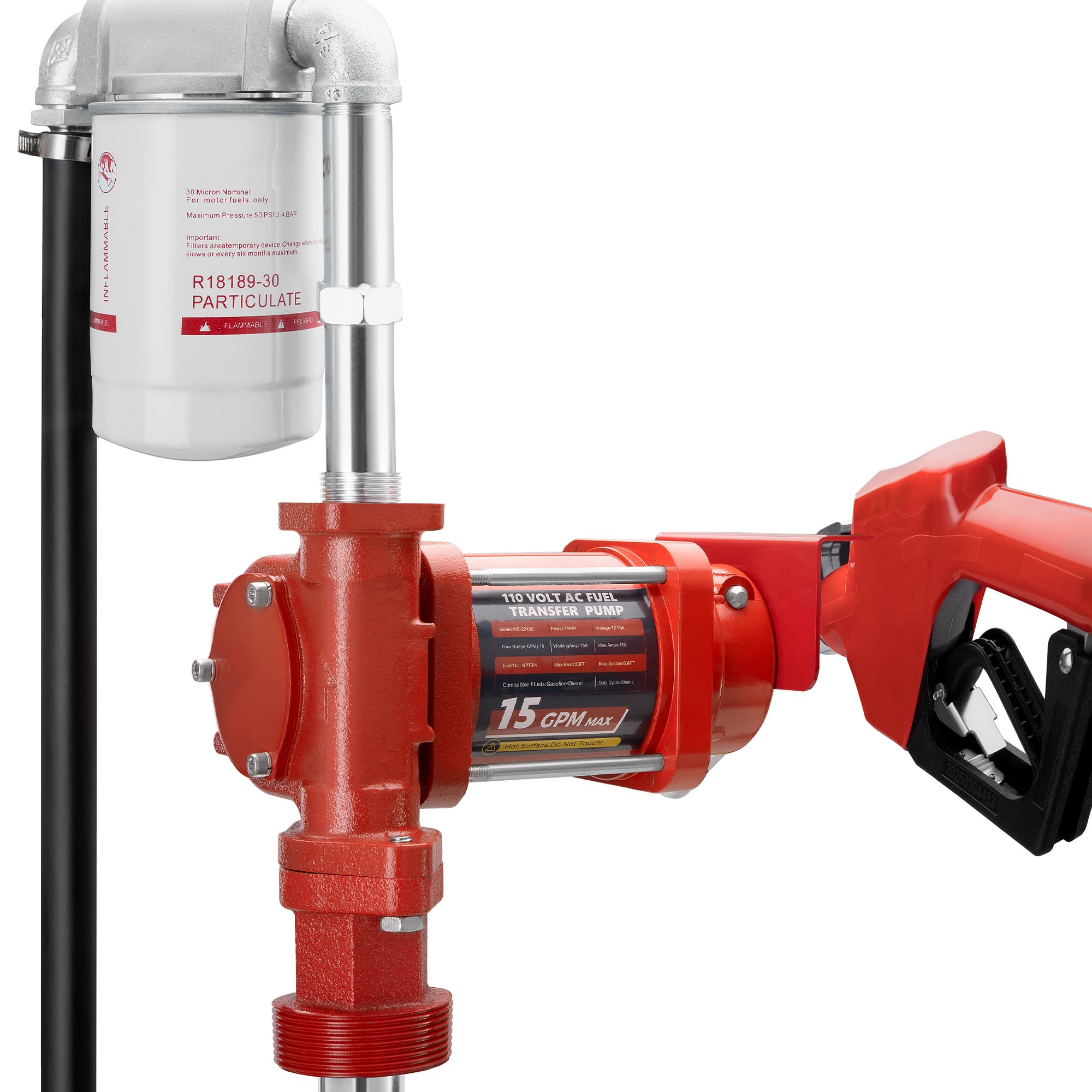

7. VALYHOOD 110V AC 15 GPM Fuel Transfer Pump

110V AC PowerEthanol/Methanol

The VALYHOOD 110V AC pump offers a different power paradigm from the 12V DC options that dominate this category. Running on standard household or generator-supplied 110V AC power, this pump provides 1/4 HP of continuous rated input power without the voltage drop concerns that can affect 12V pumps when battery voltage sags under load. The 15 GPM maximum flow rate is paired with a 6.6-foot suction depth from the container and 33-foot discharge height capability, providing strong reach for shop-based or stationary tank installations.

Heavy-duty cast iron construction with an explosion-proof design eliminates spark risk during operation, and the built-in thermal protection device prevents motor overheating during extended use. The premium filter package included with this pump removes particulate matter that can damage downstream equipment, and the automatic nozzle provides hands-free shut-off when the receiving tank reaches capacity. Fuel compatibility covers gasoline, diesel, kerosene, ethanol blends, methanol blends, and biodiesel, which makes this pump one of the most flexible options for operators who handle multiple fuel formulations.

The 30-minute maximum continuous run time with a cooldown period is consistent with industry standards, but the AC motor typically recovers faster than DC equivalents because of the thermal mass of the cast iron housing. Owners working in shop environments report that the consistent power delivery of the AC motor reduces the priming time compared to battery-powered pumps, especially when drawing from deep tanks or long suction lines.

What works

  • 110V AC power eliminates battery voltage drop issues during extended use
  • Premium filter package protects downstream equipment from contaminants
  • Extensive fuel compatibility includes ethanol and methanol blends
  • Explosion-proof cast iron construction with thermal protection

What doesn’t

  • Requires AC power source, limiting mobile field use without a generator
  • Not suitable for water, urea, or corrosive chemical liquids
Design

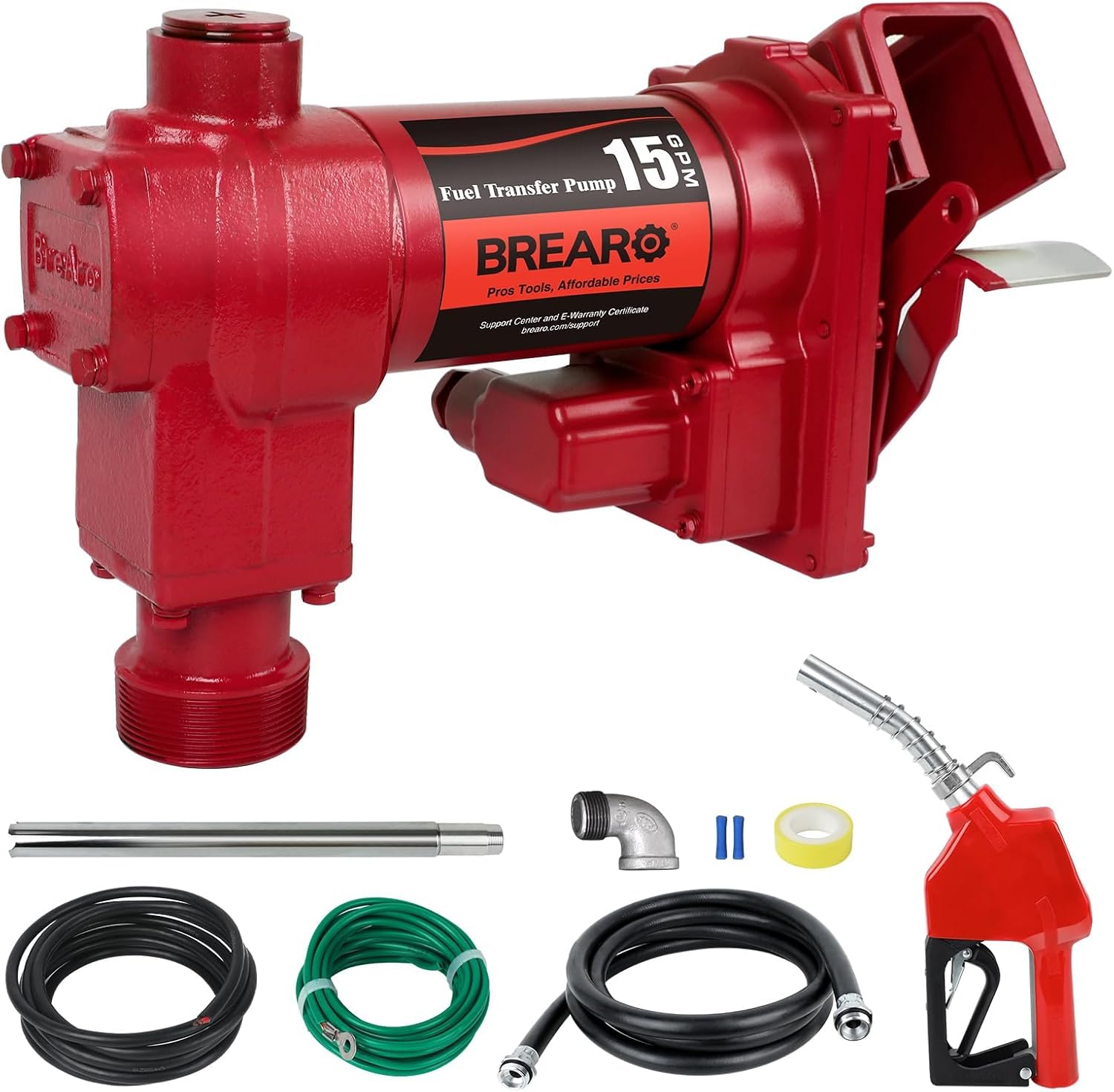

8. BreAro 12V 15 GPM Fuel Transfer Pump with Automatic Nozzle

Auto Shut-OffMulti-Fuel

The BreAro 12V fuel pump distinguishes itself with a generous 9.8-foot suction depth capability and 26-foot discharge height, providing more suction reach than most pumps in its class. This deeper suction allows the pump to draw fuel from nearly empty drums and low-profile tanks that would leave shallower pumps unable to prime. The automatic shut-off nozzle prevents spills and overflows by stopping fuel flow once the receiving tank reaches capacity, reducing waste and eliminating the need for constant operator monitoring.

Premium cast iron construction provides the durability needed for demanding farm, construction, and fleet environments, and the thermal overload protection extends the pump’s lifespan by preventing heat damage during heavy use cycles. Fuel compatibility covers gasoline, diesel, kerosene, E15, E85, biodiesel, and a range of other fuels, giving operators the flexibility to use a single pump across multiple fuel types without cross-contamination concerns. The universal fit accommodates trucks, cars, motorcycles, boats, ATVs, and tractors.

The pump’s suction capability at 9.8 feet depth is a practical advantage for operators who transfer fuel from standard 55-gallon drums or larger bulk storage containers where the fuel level drops near the bottom. Owner feedback from construction site operators highlights the reliable priming even when drawing from partially empty containers, which reduces the time spent repositioning tanks to maintain suction.

What works

  • 9.8-foot suction depth outperforms most 15 GPM competitors
  • Automatic shut-off nozzle prevents spills and overfills
  • Wide fuel compatibility includes E85 and biodiesel blends
  • Cast iron construction with thermal overload protection

What doesn’t

  • Higher price premium over comparable pump-only models
  • Auto shut-off nozzle adds complexity that may require occasional servicing
Premium

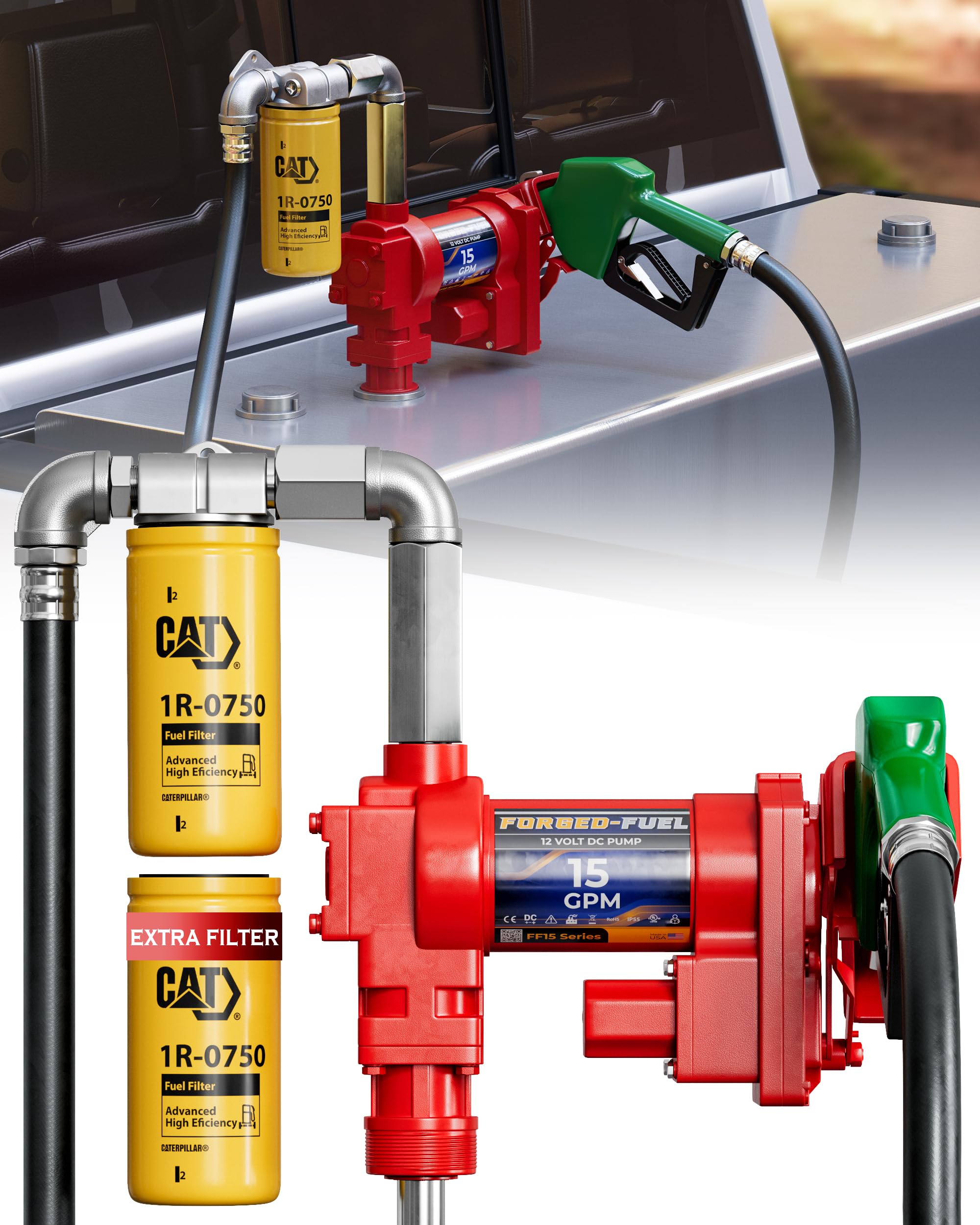

9. Forged-Fuel Heavy Duty 12V 15 GPM Fuel Transfer Pump

Professional GradePremium Filter

The Forged-Fuel heavy duty pump targets professional operators who need a complete, ready-to-use system with minimal assembly. The upgraded premium fuel filter is the standout feature — it provides enhanced filtration that removes contaminants, debris, and particulates before fuel reaches the receiving equipment. This level of filtration is particularly important for diesel applications where microbial growth and rust particles in storage tanks can cause injector damage and fuel system failures in modern high-pressure common-rail engines.

The pump housing uses a combination of alloy steel, aluminum, and heavy-duty plastic components that balance weight reduction with impact resistance. Multi-fuel compatibility covers diesel, gasoline, kerosene, and other compatible fuels, making the pump suitable for farms, fleets, construction sites, workshops, and emergency preparedness setups. The 12V DC electric operation allows for mobile use from any vehicle or trailer battery, and the surface mount configuration provides flexible installation options.

The complete kit design includes all necessary fittings and connections for quick setup, and the corrosion-resistant components and reinforced seals ensure dependable performance in outdoor and industrial environments. Owner reports from commercial trucking operations note that the filter element catches visible particulates during initial tank fills, which prevents those contaminants from reaching expensive diesel particulate filters and injector systems.

What works

  • Premium fuel filter provides superior contaminant removal for diesel and gasoline
  • Alloy steel and aluminum construction balances durability with weight
  • Complete ready-to-use kit with minimal assembly required
  • Corrosion-resistant components for outdoor and industrial environments

What doesn’t

  • Heavy-duty plastic components may be less durable than all-metal construction
  • Surface mount configuration less secure than bung mount for mobile applications
Premium

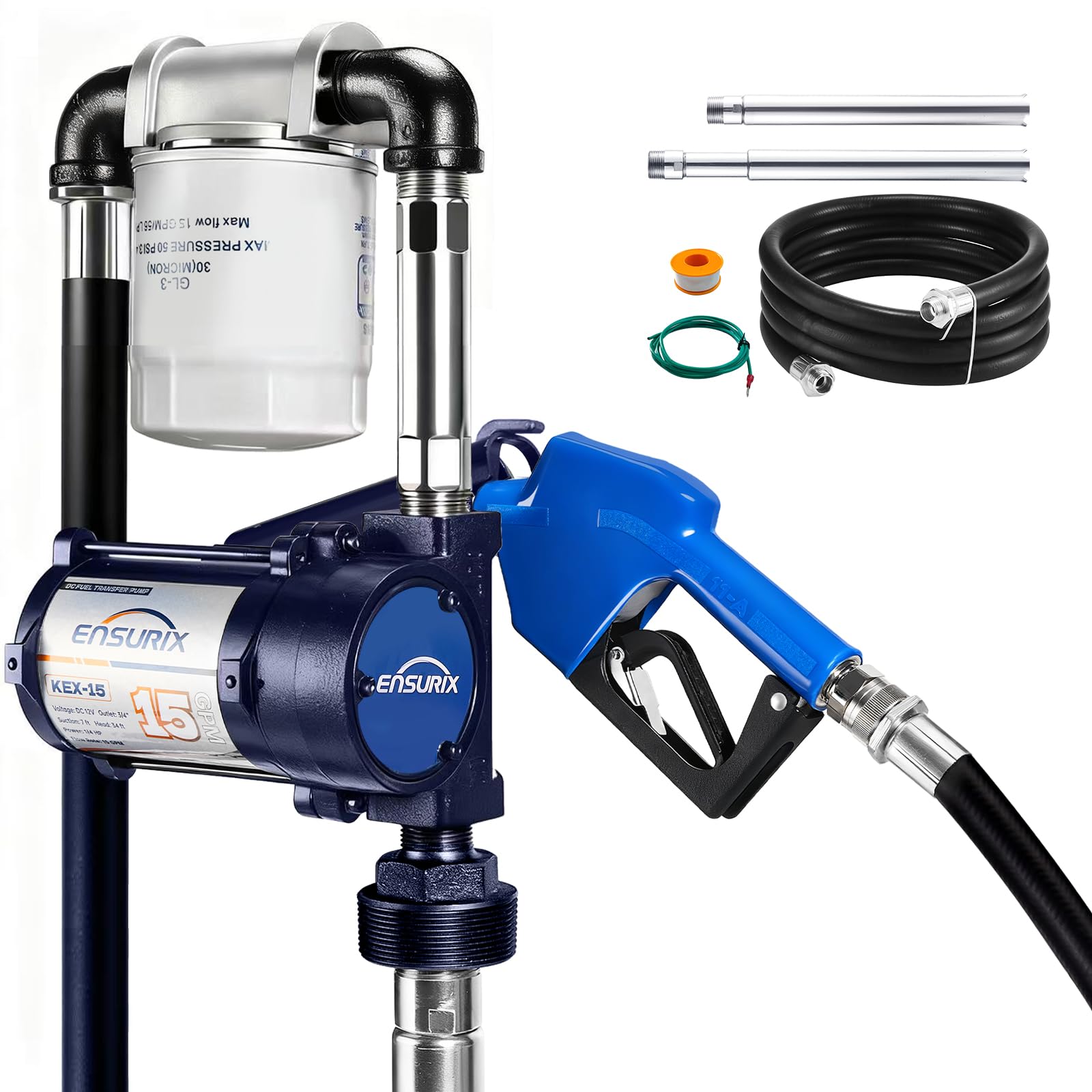

10. Ensurix 12V 15 GPM Industrial Fuel Transfer Pump

IP55 RatedAuto Nozzle

The Ensurix industrial-grade pump delivers 15 GPM through a pure copper motor rated for spark-free, stable performance in harsh environments. The IP55 waterproof housing provides protection against dust ingress and water jets, allowing the pump to operate reliably outdoors in rain, mud, and high-humidity conditions. The operating temperature range spans from -25°C to 50°C, which covers extreme cold and heat conditions encountered across most geographic regions. The 2-inch NPT male adapter enables quick and reliable mounting to standard fuel tank and drum bungs.

The automatic shut-off nozzle with swivel action provides hands-free fueling that stops flow automatically when the tank reaches capacity, preventing spills and reducing operator fatigue during multi-vehicle refueling sessions. The included stainless steel suction pipe, heavy-duty rubber hose, premium fuel filter, nozzle rack, and pre-installed power cord with battery clamps form a complete system that requires no additional part purchases. The integrated nozzle boot keeps the fuel nozzle stored securely and accessible when needed.

The pump runs continuously for 30 minutes without overheating due to the advanced thermal protection system, and the copper motor windings provide efficient power transfer that maintains flow rate even when battery voltage fluctuates. Owner reports from construction fleet managers indicate that the IP55 rating makes a measurable difference in pump survival during rainy season operations compared to unsealed pumps that fail from moisture ingress.

What works

  • IP55 waterproof housing for reliable outdoor operation in wet conditions
  • Pure copper motor with spark-free performance for safety
  • Complete kit with automatic nozzle, filter, hoses, and all mounting hardware
  • Wide temperature range from -25°C to 50°C for extreme environments

What doesn’t

  • Higher price point reflects premium feature set and IP rating
  • Automatic nozzle requires proper battery voltage for reliable shut-off function
Value

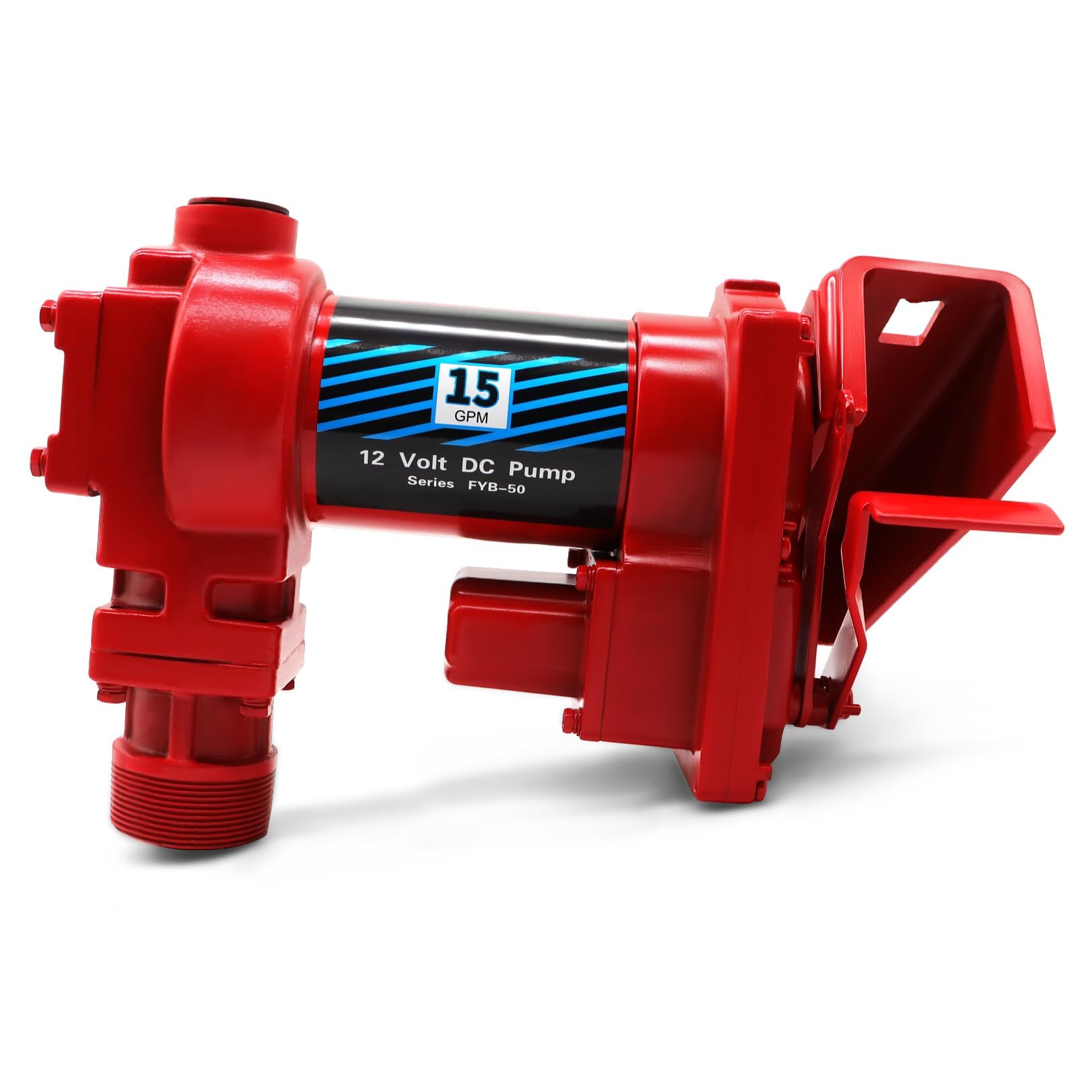

11. Nakkaa 12 Volt 15 GPM Explosion Proof Fuel Transfer Pump

Cast Iron BodyCopper Internals

The Nakkaa 15 GPM pump provides an entry point into high-flow fuel transfer with a cast iron body and copper internal components that deliver durability typically found in more expensive pumps. The advanced pump design and internal construction achieve a steady 15 GPM flow rate that reduces refueling wait times for transport vehicles, agricultural equipment, and marine applications. The explosion-proof design includes ATEX, UL, and cUL certifications, providing verified safety compliance for gasoline, diesel, kerosene, and mineral oil transfer.

The 12V DC power compatibility allows direct connection to standard vehicle and trailer electrical systems without requiring an external power source, making this pump suitable for mobile on-board fueling applications. The cast iron body receives a paint treatment for additional corrosion protection, and the copper internal components resist degradation from fuel exposure better than brass or steel alternatives. The pump design focuses on noise and vibration reduction, which makes it appropriate for use in noise-sensitive environments like marinas, hospital facilities, and residential farm areas.

Low noise and reduced vibration during operation are meaningful advantages for operators who perform nighttime fueling or work in areas with noise restrictions. The universal fit accommodates a wide range of industrial, commercial, and domestic applications, and the NPT inlet and outlet connections provide standardized fitting compatibility. Owners appreciate that the pump delivers near-premium construction materials at a price level that preserves budget for hose, nozzle, and filter purchases.

What works

  • Cast iron body with copper internals provides premium materials at a value price
  • ATEX, UL, and cUL explosion-proof certifications verified safety
  • Low noise and reduced vibration for noise-sensitive environments
  • Universal NPT connections fit standard hose and fitting configurations

What doesn’t

  • Painted body coating less durable than electrophoretic coatings on competitor models
  • No thermal overload protection built into the pump body design

Hardware & Specs Guide

Rotary Vane vs. Rotary Gear Pump Technology

The two dominant internal designs in 15 GPM fuel pumps are rotary vane and rotary gear. Rotary vane pumps use spring-loaded vanes that slide in and out of rotor slots to create expanding and contracting chambers that draw and discharge fuel. As the vanes wear, they self-compensate to maintain seal pressure, which keeps flow rates consistent over thousands of operating hours. Rotary gear pumps use two interlocking gears that trap fuel between gear teeth and the pump housing. Gear pumps have fewer moving parts and produce less internal friction, which reduces maintenance intervals but can result in higher initial cost. Vane pumps generally offer better self-priming performance and the ability to handle slightly contaminated fuel, while gear pumps deliver smoother flow with less pulsation and longer service life between overhauls.

Duty Cycles and Thermal Management

Every electric fuel pump has a rated duty cycle that defines how long it can run continuously before requiring a cooldown period. The standard in the 15 GPM category is a 30-minute on / 30-minute off cycle, though some premium pumps with thermal overload protection can run longer before triggering the automatic shut-off. Thermal overload devices use a bi-metallic strip or thermistor that opens the circuit when internal temperatures exceed approximately 220°F. After the motor cools, the circuit automatically resets, allowing operation to resume without manual intervention. Operators who need extended continuous runtime — for filling large storage tanks or servicing multiple vehicles in sequence — should look for pumps with aluminum or copper motor windings that dissipate heat more efficiently than steel-core alternatives, and consider stepping up to pumps with IP-rated housings that manage heat through conduction to the external surface.

FAQ

What does 15 GPM actually mean for refueling speed?
15 GPM means the pump delivers 15 gallons of fuel per minute at its rated flow rate. A standard 55-gallon drum would take roughly 3.7 minutes to empty under ideal conditions. Actual flow rate depends on suction lift height, discharge head height, hose diameter and length, fuel viscosity, and filter condition. Expect approximately 10-13 GPM in real-world installations with moderate lift and standard 3/4-inch hoses.
Can I use a 15 GPM pump with gasoline in enclosed spaces?
Only use pumps with explosion-proof certifications such as UL, cUL, or ATEX Class 1 Division 1 Group D when transferring gasoline in enclosed or confined spaces. These pumps have sealed electrical components that prevent spark ignition of fuel vapors. Always ensure adequate ventilation and follow NFPA 30 and local fire codes for flammable liquid transfer in enclosed areas.
How do I choose between 12V DC and 110V AC fuel pumps?
Select 12V DC for mobile applications where you need to refuel from a truck, trailer, or vehicle battery in the field without access to grid power. Choose 110V AC for shop, barn, or stationary tank installations where consistent voltage and the ability to run longer duty cycles without battery drain are priorities. Some operators keep one of each for different operational scenarios.
Why does my pump lose prime after sitting for a few days?
Loss of prime typically occurs from a leak in the suction line, a worn seal around the rotor shaft, or a failing check valve. Inspect all hose connections for air leaks, verify that the suction pipe is submerged at least 6 inches below the fuel surface, and check the pump’s internal bypass valve for proper sealing. Pumps with Viton or Buna-N seals generally hold prime longer than those with standard rubber seals.
How often should I replace the filter on my fuel transfer pump?
Replace the filter every 500 gallons pumped or every 90 days, whichever comes first, for diesel and kerosene applications. For gasoline, the filter interval can extend to 1000 gallons because gasoline has better solvency and less microbial growth. If you notice the flow rate dropping or the pump straining audibly, check the filter element first — a clogged filter is the most common cause of reduced performance.

Final Thoughts: The Verdict

For most buyers, the best 15 gpm fuel pump winner is the Fill-Rite FR1204H because its rotary vane design, thermal overload protection, and limit-lifetime warranty set the reliability standard that fleet operators and farmers trust for years of service. If you want a complete kit with filtration built in, grab the TRUPOW TP0415-1. And for a professional-grade system with premium filtering and corrosion-resistant construction, nothing beats the Forged-Fuel Heavy Duty.
