A compression fitting that fails mid-project means torn lines, wasted fluid, and a second trip to the hardware aisle. The difference between a secure seal and a persistent drip often comes down to the brass alloy, ferrule geometry, and thread consistency — details that are invisible in the package but obvious once the system is pressurized.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve analyzed dozens of brass fitting assortments by cross-referencing material specs, customer longevity reports, and dimensional tolerance data to separate the kits that hold pressure from those that invite frustration.
Whether you’re plumbing a fuel system, air line, or water connection, choosing the right kit saves time and prevents leaks. This guide breaks down the five most compelling assortments available, with a sharp focus on build quality, size range, and real-world sealing performance. best 1/8 compression fitting kits balance material integrity with practical size coverage for any shop.
How To Choose The Best 1/8 Compression Fitting
A compression fitting assortment is only as good as its material consistency, size availability, and thread precision. Kits that skimp on ferrule count for smaller diameters force you to buy singles later, defeating the purpose of an all-in-one buy.
Brass Grade and Corrosion Resistance
Not all brass is the same. Higher copper content fittings resist dezincification better in humid or chemical environments. Look for kits that explicitly mention corrosion resistance and ductility at temperature extremes — signs the alloy is suited for fuel, air, or water lines over the long term.
Size Coverage and Piece Distribution
The best assortments offer meaningful quantities across 1/8, 3/16, 1/4, 5/16, 3/8, and 1/2 inch sizes. Some kits load up on larger sizes and shortchange the smaller ones you reach for most often. Check the per-size counts to ensure the kit matches your typical tubing work.
Working Pressure and Temperature Range
Fittings rated for 2000 to 3000 PSI and a temperature range of -65°F to 250°F handle nearly any automotive, pneumatic, or hydraulic task. Kits without published pressure specs should raise a yellow flag for serious applications.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Siptenk 255PCS | Premium | Maximum size coverage | 255 pieces, includes nuts | Amazon |
| Taiidaues 53PCS | Premium | Union fittings & NPT adapters | 53 pieces, includes teflon tape | Amazon |
| Aienxn 230PCS | Mid-Range | Balanced all-around kit | 230 pieces, 6 sizes | Amazon |
| Breezliy 230PCS | Mid-Range | Fuel system work | 230 pieces, 6 sizes | Amazon |
| Breezliy 210PCS | Mid-Range | High pressure applications | 210 pieces, rated 3000 PSI | Amazon |
In‑Depth Reviews
1. Siptenk 255PCS Brass Compression Sleeves Ferrules Inserts Nuts Fittings
The Siptenk kit stands out because it includes nuts alongside sleeves and inserts across all six sizes, which means you can complete a full compression joint without hunting for missing hardware. The 255-piece count is generous, with 20 inserts and 20 sleeves dedicated to the 1/8 size alone, plus 10 matching nuts. The brass material is described as strong and hard with corrosion and rust resistance, aligning with what experienced builders expect from a long-term shop investment.
Customer feedback highlights the convenience of having a comprehensive assortment on hand rather than making emergency runs for single ferrules. The plastic storage container keeps everything organized and protected from moisture. The industrial grade rating suggests the threads and sealing surfaces are machined to tighter tolerances than commodity-grade kits.
One reviewer noted that the brass is slightly softer than premium fittings and recommended an extra quarter turn for optimal sealing. This is not a flaw — it is typical of mid-range brass alloys, and for most air, fuel, and water applications, the fittings perform reliably. The included nuts eliminate the biggest frustration of partial kits.
What works
- Includes nuts, sleeves, and inserts for every size
- Highest piece count at 255
- Comes in a protective plastic storage case
What doesn’t
- Brass alloy is slightly softer than industrial-grade alternatives
- No published working pressure rating
2. Taiidaues 53 Pcs Brass Compression Fittings Assortment Kit
This kit is uniquely built around compression union fittings and male/female NPT adapters rather than just sleeves and inserts. With 6 union connectors, 12 straight male connectors, 2 female connectors, and 2 bushing fittings, it is designed for jobs where you need to transition between tube and pipe threads. The 30 included ferrules cover 1/8, 1/4, and 3/8 sizes, and a roll of teflon tape is a thoughtful addition.
The 2000 PSI maximum working pressure and -65°F to 250°F temperature range match SAE and ASME standards, giving it credibility for brake line, power steering, and fuel system repairs. Customer reports confirm it works for power steering return lines and off-road vehicle repairs where reliability away from home matters. The brass construction is described as high quality with good compressive strength.
The kit is smaller in total piece count than the others here, but the inclusion of threaded adapters makes it a targeted solution for specific repairs. The tip about lead content means it should not be used for potable water, which is standard for most brass fittings in this category.
What works
- Includes union fittings and NPT adapters for pipe-thread transitions
- Published 2000 PSI working pressure rating
- Comes with teflon tape
What doesn’t
- Only three ferrule sizes included
- Limited to 53 total pieces

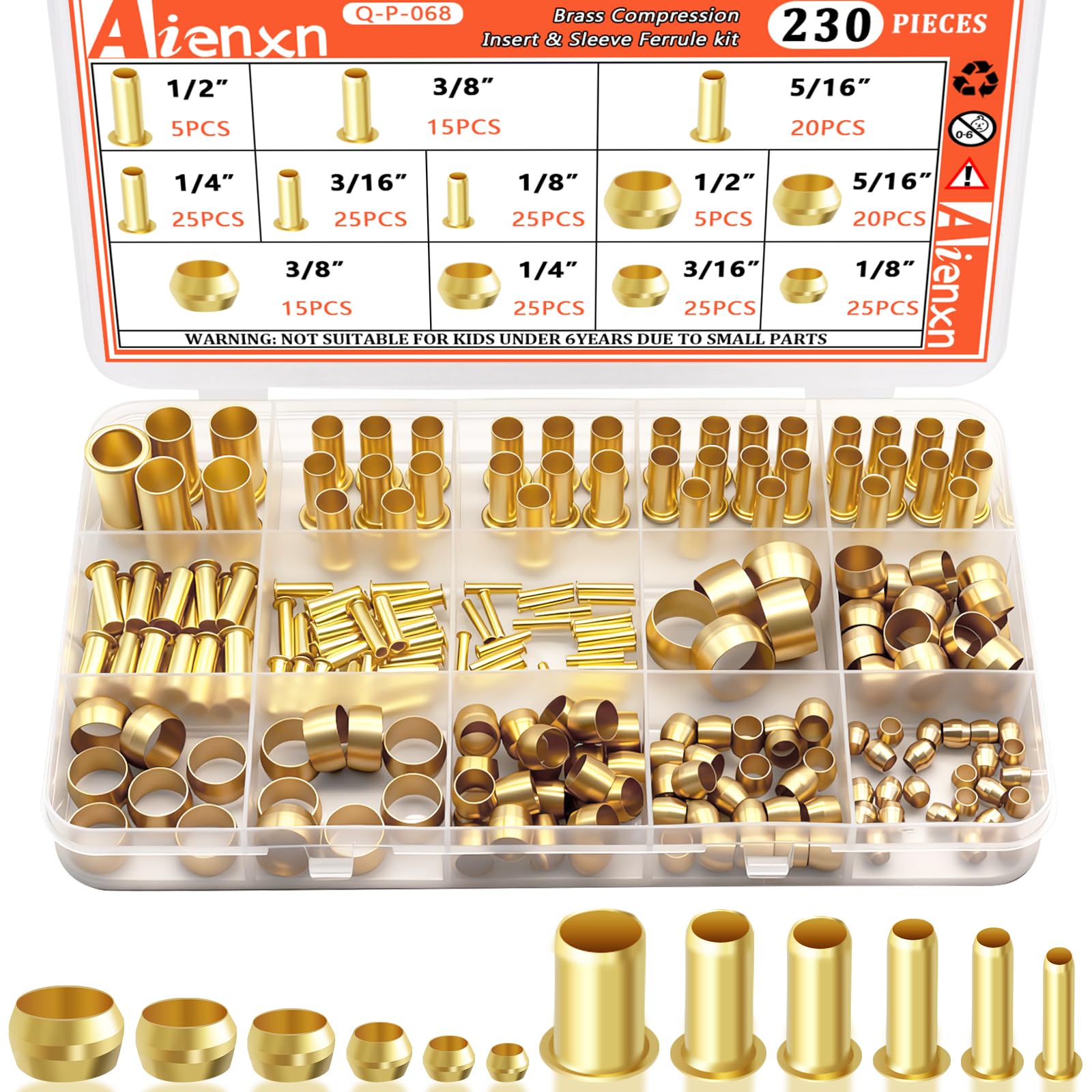

3. Aienxn 230PCS 6 Sizes Brass Compression Fittings Assortment Kit
The Aienxn kit delivers a solid 230-piece count across all six common tubing sizes, with 25 inserts and 25 sleeves for the 1/8 size. The brass construction is described as solid with corrosion resistance, ductility at high temperatures, and low magnetic permeability — all indicators of a properly formulated alloy. The gold finish is consistent with standard brass fittings and looks clean in the organizer box.
Customer reviews praise the fit and finish, with specific mentions of successful use on gas boiler pilot lines and refrigerator ice maker tubing. The 1/4 size fittings worked with standard aluminum tubing for extended pilot lines. The kit covers both the small and large ends of the spectrum well, with 5 inserts and 5 sleeves for the 1/2 size for heavier jobs.
The kit includes only sleeves and inserts — no nuts — so you will need to source nuts separately if you do not already have them. For mechanics who accumulate nuts over time, this is not a dealbreaker, but first-time buyers should factor in the extra step.
What works
- Strong brass alloy with corrosion resistance
- 25 pieces per size for 1/8, 3/16, and 1/4 diameters
- Works with aluminum, copper, and plastic tubing
What doesn’t
- No nuts included in the kit
- No published working pressure specification
4. Breezliy 230PCS Compression Fittings Assortment Kit
This Breezliy kit mirrors the piece count of the Aienxn but with a slightly different distribution: 25 pieces for 1/8, 25 for 3/16, 25 for 1/4, 20 for 5/16, 15 for 3/8, and 5 for 1/2. The emphasis on smaller sizes makes it ideal for fuel systems, pneumatic controls, and refrigeration lines where 1/4 and 3/16 tubing is most common. The brass construction promises corrosion resistance and low magnetic permeability.
Customer reviews consistently highlight successful use on refrigerator water lines and fuel systems. One reviewer specifically mentioned using the 1/4 fittings on a copper water line to a new fridge with no leakage after cutting old terminals and using fresh sleeves. Another confirmed the kit works well on a fuel system, advising attention to thread alignment to avoid cross-threading.
The kit does not include nuts, which is consistent with many mid-range assortments. The brass material is standard grade, and while it holds up well for most applications, the lack of a published pressure rating means you should test the seal before full pressurization on critical systems.
What works
- Heavy bias toward smaller, commonly used sizes
- Proven performance on fuel and water lines
- Easy assembly with no soldering or flaring required
What doesn’t
- No nuts included
- No working pressure rating published
5. Breezliy 210PCS Brass Compression Sleeves Ferrules Assortment Kit
The 210-piece Breezliy kit is the only one in this group with a published working pressure of 3000 PSI and a temperature range of -65°F to 250°F, making it the clear choice for pneumatic and high-pressure hydraulic applications. The size distribution is 40 pieces each for 1/8 and 3/16, 50 for 1/4, 30 for 5/16, 30 for 3/8, and 20 for 1/2 — a generous spread that ensures you will rarely run out of the small sizes.
Customer feedback from a shade-tree mechanic who bought it for toolbox stockpiling confirms the value of having a comprehensive set on hand. Another reviewer used the 1/8 ferrules to repair an old compressor air supply line, saving the unit from disposal. The pure brass construction is described as strong, corrosion-resistant, and solid.
The kit covers sleeves only — no inserts and no nuts. For applications requiring inserts to stiffen plastic tubing, you will need to buy those separately. The 3000 PSI rating gives confidence for critical air and fuel line repairs, but the lack of inserts limits its versatility for softer tubing materials.
What works
- Published 3000 PSI working pressure rating
- 40 pieces each for 1/8 and 3/16 sizes
- Proven on compressor and fuel system repairs
What doesn’t
- No inserts and no nuts included
- Slightly smaller profile reported by some users
Hardware & Specs Guide
Brass Alloy Composition
High-quality compression fittings use brass with sufficient copper content to resist dezincification and maintain ductility across temperature extremes. Kits that explicitly mention corrosion resistance, high-temperature ductility, and low magnetic permeability indicate a well-formulated alloy suitable for air, fuel, oil, and water lines. Softer brass may require an extra quarter turn to seat properly but still seals reliably under standard pressures.
Working Pressure and Temperature
Pressure ratings vary significantly across kits. Basic assortments offer no published rating, while higher-spec kits are rated up to 3000 PSI with temperature ranges from -65°F to 250°F. For pneumatic systems, brake lines, and high-pressure fuel applications, a published rating is essential. For low-pressure water or air lines, unrated kits often perform adequately but should be tested before final pressurization.
Size Distribution and Kit Completeness
The most practical assortments balance piece counts across all six common tubing diameters: 1/8, 3/16, 1/4, 5/16, 3/8, and 1/2. Kits that load up on smaller sizes match real-world usage better than those that skew toward larger diameters. Some kits include only sleeves, while others add inserts and nuts. Full kits with all three components allow complete compression joints without sourcing extra parts.
Thread Compatibility and Standards
Compression fittings in this category typically conform to SAE, ASME, and ASA standards for thread pitch and sealing geometry. Kits that include NPT-threaded male and female adapters add versatility for transitioning between compression tubing and pipe-threaded ports. The thread finish must be smooth and burr-free to prevent galling during assembly, a common failure point in under-machined fittings.
FAQ
What does a 1/8 compression fitting do?
Can these fittings be used for gasoline?
Do I need inserts for plastic tubing?
What is the difference between a ferrule and a sleeve?
Final Thoughts: The Verdict
For most buyers, the best 1/8 compression fitting winner is the Siptenk 255PCS kit because it offers the most complete package — sleeves, inserts, and nuts across all six sizes in a protective case. If you need threaded adapters and union fittings for pipe-thread transitions, grab the Taiidaues 53PCS kit. And for high-pressure pneumatic work where a 3000 PSI rating matters, nothing beats the Breezliy 210PCS kit.
