A small brass or aluminum fitting can make the difference between a system that weeps fluid overnight and one that stays dry for years. The thread taper, the barb grip, and the material hardness all play into whether that connection holds under pressure or vibration.
I’m Amir — the founder and writer behind Four Wheel Ask. I have spent years analyzing product specifications, material properties, and real owner feedback to identify fittings that deliver reliable seals and long service life.
After reviewing material quality and thread compatibility across multiple brands, this guide helps you select the best 1/8-27 female npt thread to barb tygon adapter for your setup.
How To Choose The Best 1/8-27 Female NPT Thread To Barb Tygon Adapter
Selecting the right adapter comes down to thread orientation, material compatibility, and barb sizing. A mismatched fitting can cause leaks, restrict flow, or damage the port over time.
Thread Compatibility — NPT Taper vs. Straight Threads
NPT threads rely on a tapered profile to create a mechanical interference seal. The 1/8-27 designation means 27 threads per inch with a 1/8-inch nominal pipe size. Female NPT ports accept male NPT fittings, and sealing requires PTFE tape or a compatible thread sealant. Straight-thread adapters (like NPS or SAE) use a separate sealing washer and are not interchangeable with NPT.
Material Selection — Brass vs. Aluminum
Brass offers corrosion resistance, ductility, and good sealing characteristics for fuel and water systems. Aluminum alloys such as 6061-T6 provide higher strength-to-weight ratios and work well in performance or cosmetic applications with anodized finishes. Brass is generally preferred for repeated assembly cycles because it resists galling better than soft aluminum.
Barb Size Matching
The barb outer diameter determines which hose ID fits securely. A 1/8-inch barb suits small-diameter tubing found in coolant bypass lines or fuel return systems, while a 1/4-inch or 3/8-inch barb accommodates larger hose sizes. Always confirm the hose ID before selecting the barb dimension to avoid blow-off or flow restriction.
Sealant and Installation
NPT threads require a sealant to fill the spiral leak path inherent in tapered threads. PTFE tape applied in the direction of thread rotation is the most common approach, though pipe dope or anaerobic sealant works for specific fluid types. Over-tightening can crack ports or deform the fitting body, especially with softer aluminum materials.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Joywayus Brass 1/8″ Barb x 1/8″ NPT Female | Brass Fitting | Direct female NPT to 1/8″ barb connection | 5‑pack, forged brass, 1/8″ female NPT | Amazon |
| AFATEBOX 1/8 NPT Female to 1/4 Barb Aluminum | Aluminum Adapter | CNC‑machined lightweight single adapter | 1-piece, 6061-T6 aluminum, black anodized | Amazon |
| LTWFITTING Brass 1/4″ Barb x 1/8″ Female NPT | Brass Fitting | Larger 1/4″ barb in a 5‑pack | 5‑pack, brass, 1/4″ barb x 1/8″ female NPT | Amazon |
| EVIL ENERGY 1/8″ NPT Male to 3/8″ Barb Aluminum | Aluminum Fitting | High‑pressure performance fuel systems | 2‑pack, 6061-T6, 1500 PSI, 3/8″ barb | Amazon |
| Joywayus Brass 1/8″ Barb x 1/8″ Male NPT | Brass Fitting | Volume 10‑pack for multi‑port installations | 10‑pack, forged brass, 1/8″ male NPT | Amazon |
In‑Depth Reviews

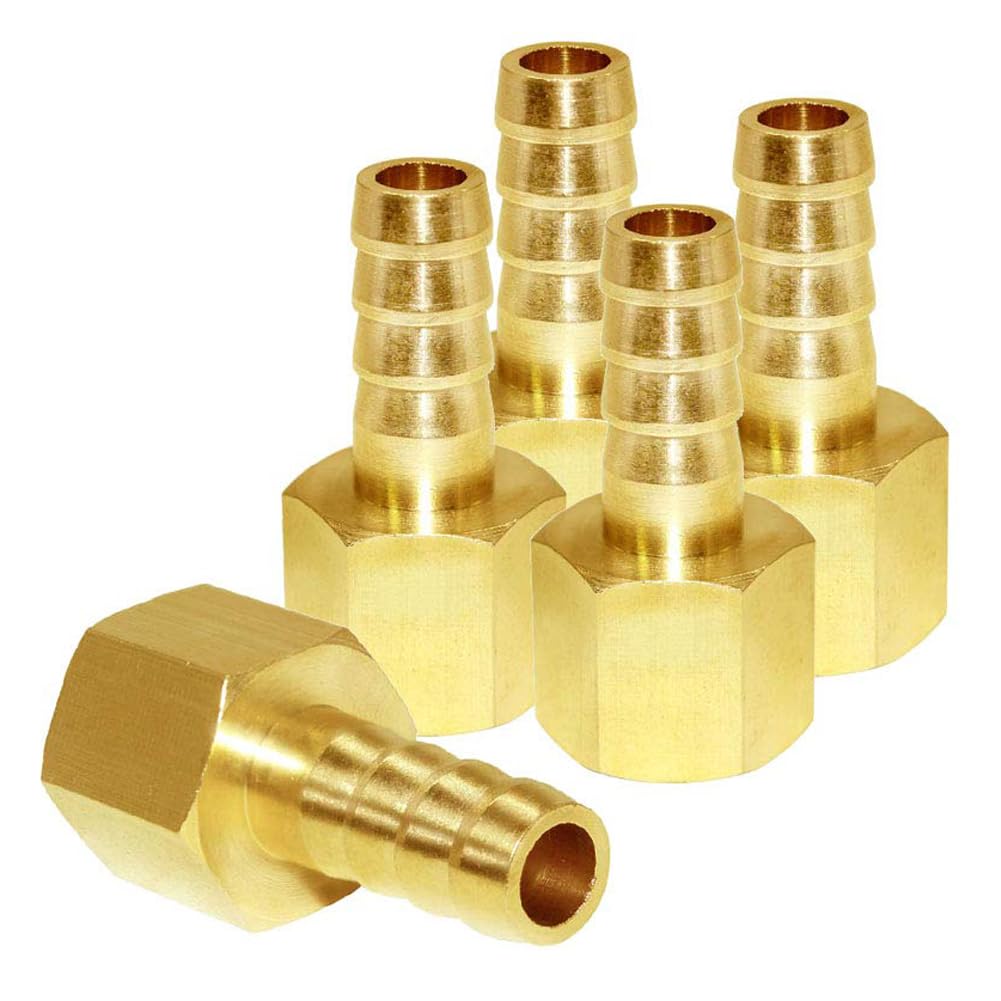

1. Joywayus Brass Hose Barb Fitting, 1/8″ Barb x 1/8″ NPT Female, Pack of 5
This Joywayus set delivers five 1/8-inch female NPT to barb adapters in one package, making it the most direct match for anyone needing a 1/8-27 female thread that connects to small-diameter hose. The forged brass body offers corrosion resistance and ductility at moderate temperatures, properties that matter when the fitting lives in a coolant loop or fuel return system. Owner reports confirm the threads are cleanly cut and free of burrs, allowing a smooth engagement with male NPT ports.
User feedback across multiple projects highlights the value of having five identical fittings on hand. One builder used these to build the cooling system for a two-stroke–swapped lawn mower, noting that the adapters fit the coolant pump perfectly and connected reliably to both the radiator and engine. The brass material provides low magnetic permeability, an advantage in applications where sensor interference or metallic contamination is a concern.
For the price of a single fitting at a local hardware store, this pack covers an entire small installation. The 1/8-inch barb suits standard 1/8-inch ID hose, and the female NPT port accepts any male 1/8-27 thread. For straightforward female-to-barb conversion, this set delivers the best balance of material quality, quantity, and thread accuracy.
What works
- Forged brass resists corrosion well
- Clean thread cutting with no burrs
- Five-piece set offers genuine project value
What doesn’t
- 1/8-inch barb limits tubing size options
- Brass is softer than steel for high-torque tightening

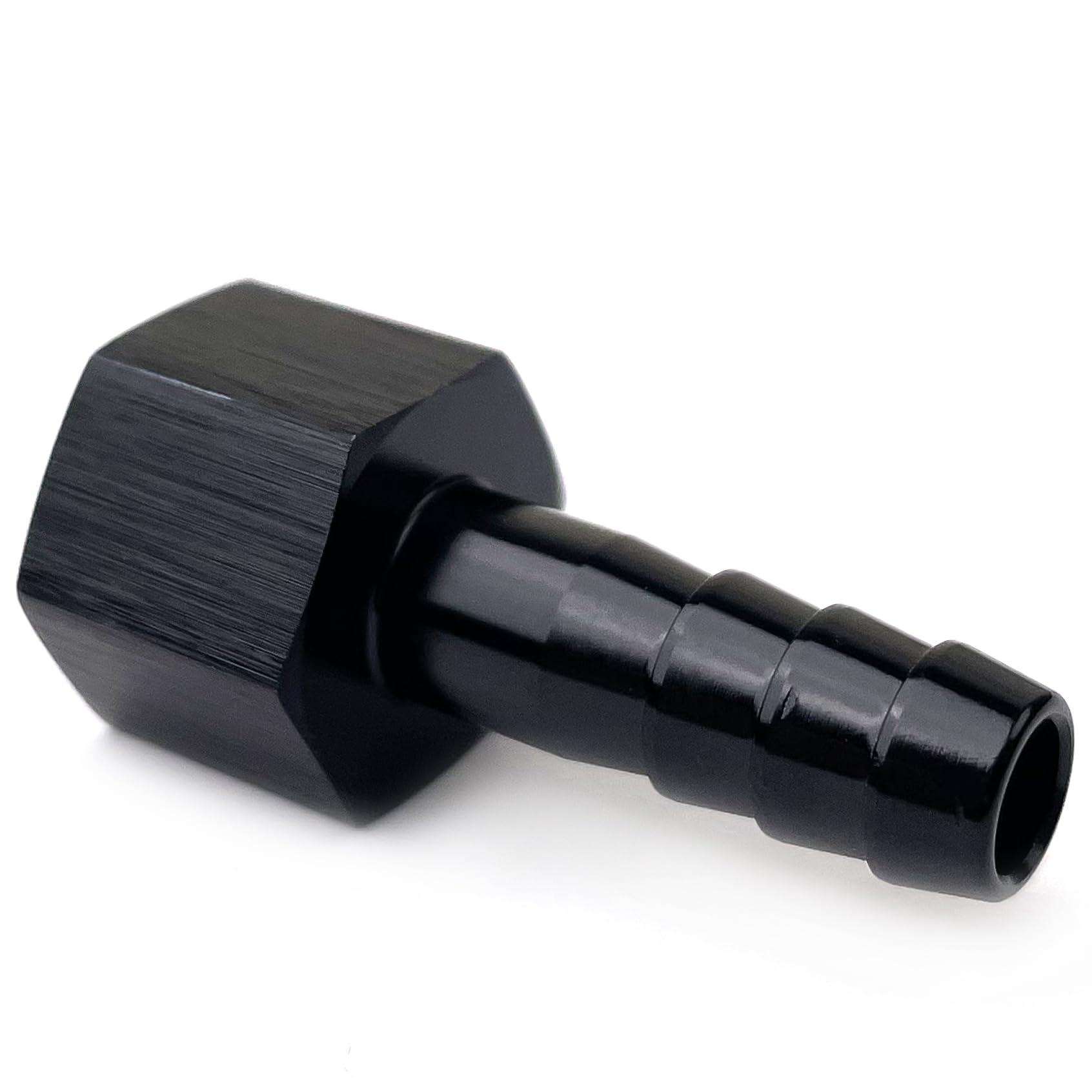

2. AFATEBOX 1/8 NPT Female to 1/4 Barb Hose Fitting, Aluminum Black Anodized
This AFATEBOX adapter steps up to a 1/4-inch barb while keeping a 1/8-inch female NPT thread, making it suitable for applications that require a larger hose ID. The body is CNC machined from 6061-T6 billet aluminum with a black anodized finish that resists fuel and oil exposure while adding a clean under-hood look. The hex head profile allows use with a standard wrench, though the soft aluminum material demands careful torque control.
Verified buyer reports show this adapter used in both automotive and powersports contexts. One owner used it to refill the front differential on a 2016 Mercedes C300, confirming the threads engaged correctly with the drain hole. Another builder installed it in a custom radiator setup where the larger barb provided a secure push-on hose connection. The single-piece construction eliminates any potential leak path between assembled components.
The trade-off with aluminum is lower ductility compared to brass. One owner noted that the barb portion collapsed when accidentally over-tightened with a wrench, though it was easily bent back into shape. For non-structural fluid connections where weight savings and corrosion resistance are priorities, this adapter delivers a precise CNC-machined fit that brass alternatives cannot match at this price point.
What works
- CNC machined for precise thread engagement
- Anodized finish resists fuel and oil
- 1/4-inch barb suits larger hose sizes
What doesn’t
- Single piece only — no spare
- Soft aluminum can deform if over-tightened
3. LTWFITTING Brass Fitting Coupler 1/4-Inch Hose Barb x 1/8-Inch Female NPT, Pack of 5
This LTWFITTING set offers five brass adapters that pair a 1/4-inch hose barb with a 1/8-inch female NPT thread, bridging the gap between small ports and medium-diameter tubing. The brass construction follows industry standards for fuel and water systems, providing reliable corrosion resistance and sufficient ductility for repeated assembly cycles. Each fitting weighs about 12 grams, indicating solid wall thickness without excess material.
Customer reviews consistently describe the machining as precise and the threads as properly formed. One owner noted that the fitting was exactly what was needed at the time it arrived, with quality that matched expectations for a brass commodity part. The 5-pack configuration means you can dedicate one adapter to each connection point without needing to re-use or scavenge from other projects.
The 1/4-inch barb is the key differentiator here — it accepts standard push-on hose sizes that are too large for 1/8-inch barbs but too small for 3/8-inch fittings. If your fuel line, coolant hose, or overflow tube measures 1/4-inch ID, this adapter eliminates the need for a reducing step. For owners who need the larger barb combined with the compact 1/8-inch female thread, this pack offers the best per-piece value.
What works
- 1/4-inch barb fits common medium hose sizes
- Brass construction ensures long-term durability
- Five pieces cover multi-point installations
What doesn’t
- No sealant included in the package
- Barb size mismatch if tubing is 1/8-inch ID

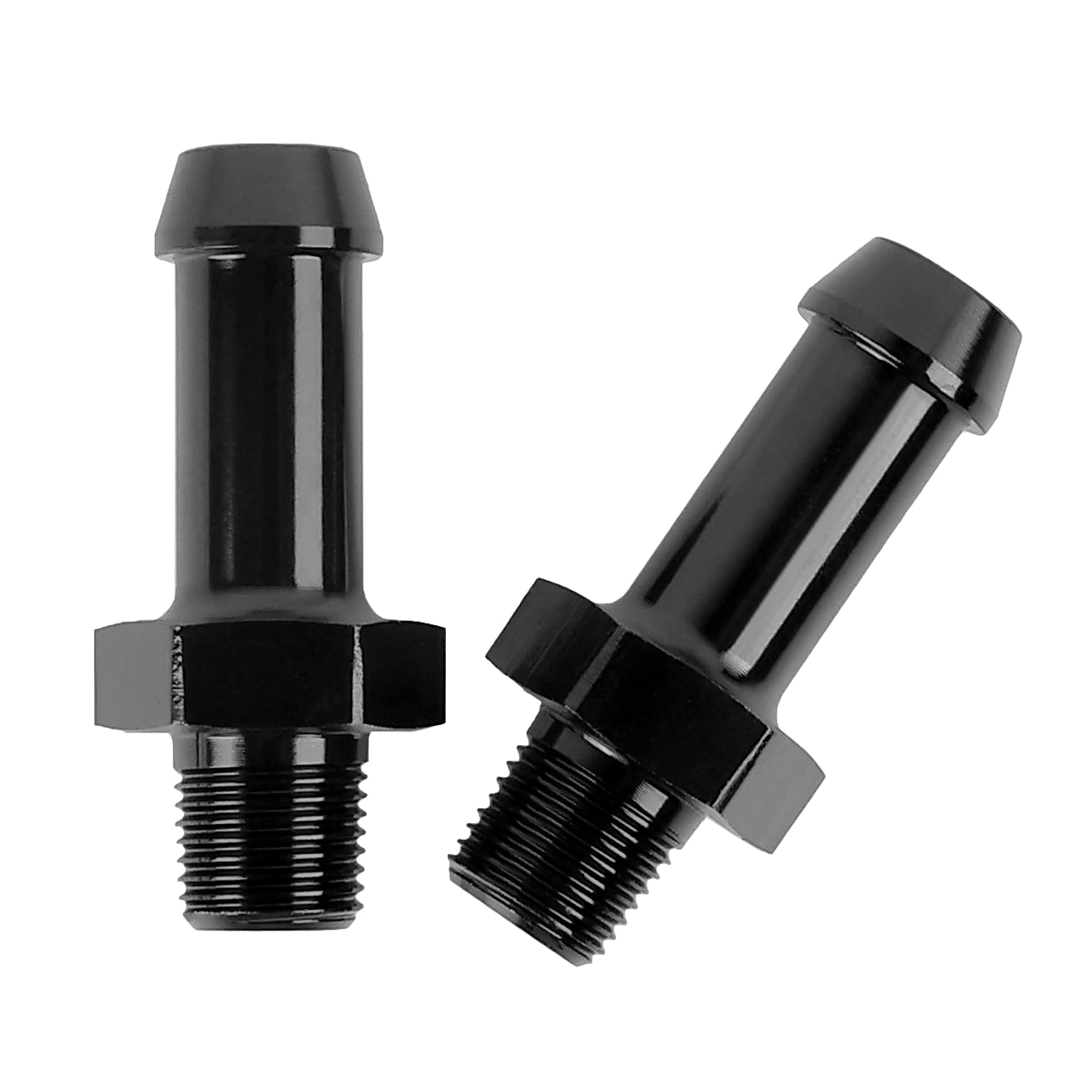

4. EVIL ENERGY 1/8″ NPT Male to 3/8″ Barb Fitting Adapter Straight Aluminum Black, 2PCS
This EVIL ENERGY adapter brings a performance-oriented specification to the table with a 1500 PSI working pressure rating and a wide temperature range of -65°F to 252°F. The 6061-T6 aluminum body with black anodized finish provides a distinct aesthetic that suits engine bay and fuel system builds where appearance matters. The 3/8-inch barb is the largest in this lineup, accommodating heavy-wall hose for high-flow applications.
Owner reports from engine build projects confirm the adapter performs well under real conditions. One LSA build used multiple EVIL ENERGY components, with this fitting adapting the factory side fuel line to a new aftermarket fuel rail. Another owner replaced a broken aluminum nipple in a radiator filler neck by tapping the hole to 1/8-27 NPT and threading this adapter in — the fit was described as easy and perfect.
The 2-pack provides one adapter for immediate use and a spare for future needs. The tapered NPT threads require careful application of PTFE tape or thread sealant to ensure a leak-free connection. Note that this is a male NPT adapter, meaning it threads into a female port rather than accepting a male fitting. For systems that need a 3/8-inch barb from a male-threaded source, this is the most robust option available.
What works
- High 1500 PSI pressure rating
- 3/8-inch barb works with large hose sizes
- Anodized finish resists corrosion and looks clean
What doesn’t
- Male NPT requires a female threaded port
- Aluminum can gall if over-tightened without sealant
5. Joywayus Brass Hose Fittings 1/8″ Hose Barb x 1/8″ Male NPT Adapter, Pack of 10
This Joywayus set offers ten male NPT to barb adapters in a single package, providing the highest raw quantity in this comparison. The forged brass construction mirrors the material quality of the female version, with corrosion resistance and ductility suitable for air, water, oil, and liquefied petroleum applications. The male NPT thread connects into any standard female 1/8-27 port, while the barb accepts 1/8-inch ID hose.
Customer feedback emphasizes the volume discount as the primary advantage. One owner noted paying the same amount for ten fittings as two would cost at the local hardware store, calling it a practical win for anyone stocking a shop or building a multi-point system. Another buyer used a single adapter to save a gas hose, confirming the threads cut cleanly and sealed without issues.
The barb fitting design uses a ridged profile for a tight push-on seal, and the NPT taper ensures a mechanical interference lock when properly torqued with sealant. For projects that require many identical male-threaded adapters — such as manifold builds, distribution blocks, or multi-line routing — this 10-pack eliminates the need to purchase individually. The male orientation means it cannot replace a female-threaded adapter, but for male-to-barb applications it offers unbeatable per-unit cost.
What works
- Ten-piece pack provides exceptional value
- Forged brass construction for long service life
- Clean thread cutting with consistent barb profile
What doesn’t
- Male NPT requires a female threaded port
- 1/8-inch barb limits hose size to small diameter only
Hardware & Specs Guide
Thread Standards — NPT Sealing Mechanics
NPT (National Pipe Taper) threads use a 1-degree 47-minute taper angle per side, meaning the thread diameter decreases along its length. When a male NPT thread engages a female NPT thread, the taper creates an interference fit that mechanically seals the connection. This design differs from straight threads (NPS, SAE, or BSPP) that rely on a separate O-ring or gasket. The 1/8-27 specification indicates a nominal 1/8-inch pipe size with 27 threads per inch. The taper means that overtightening can split a female port or deform a male fitting, so PTFE tape or thread sealant is always recommended to fill the spiral leak path and reduce the torque required for a leak-free joint.
Material Considerations — Brass vs. Aluminum
Brass fittings offer excellent corrosion resistance, ductility for repeated assembly, and low magnetic permeability — important in fuel systems near sensors or electronics. Typical yellow brass (C36000 or C37700) provides tensile strength around 50,000 PSI and good machinability for clean thread cutting. Aluminum alloys like 6061-T6 offer higher strength-to-weight ratios and can be anodized for additional corrosion protection and aesthetic appeal. However, aluminum is more prone to galling when threaded into steel or stainless steel ports, and the barb portion can collapse if over-tightened with pliers. For permanent or semi-permanent installations where weight and appearance matter, aluminum works well. For systems that may be disassembled and reassembled multiple times, brass is the more forgiving material.
FAQ
Do I need PTFE tape on the NPT threads of these adapters?
What size hose fits a 1/8-inch barb fitting?
Can I use an aluminum adapter in a fuel system?
Final Thoughts: The Verdict
For most builders, the best 1/8-27 female npt thread to barb tygon adapter is the Joywayus Brass 5-pack because it directly matches the female thread orientation, provides five pieces at a practical cost, and uses forged brass that seals reliably with standard PTFE tape. If you need a larger 1/4-inch barb, grab the LTWFITTING Brass 5-pack. And for a precise CNC-machined aluminum adapter in a single piece, the AFATEBOX 1/8 NPT Female to 1/4 Barb delivers a clean anodized finish with good thread accuracy.
