Halogen bulbs from 2005 leave you straining to see dark roads, and swapping them every year drains your time and wallet. Upgrading to modern LED technology restores confidence behind the wheel without complicated wiring or expensive shop visits.
I’m Amir — the founder and writer behind Four Wheel Ask. My work focuses on dissecting automotive lighting specifications, comparing build quality across brands, and aggregating real owner feedback to separate marketing claims from real-world performance.
We analyzed spec sheets and owner feedback to find the best 05 toyota camry headlight bulb for brightness, beam focus, and easy installation in a 2025 head‑to‑head comparison.
How To Choose The Best 05 Toyota Camry Headlight Bulb
Your 2005 Camry uses separate bulbs for low beam (HB4/9006) and high beam (HB3/9005). Picking the wrong base will not fit, so knowing your socket is step one. Beyond that, focus on three pillars: brightness that matches factory beam pattern, thermal management that prevents early failure, and error‑free compatibility with the Camry’s electrical system.
Socket Selection: 9006 vs. 9005
The low‑beam slot takes a 9006/HB4 bulb with a rounded twist‑lock base. High beams use a 9005/HB3 with a different tab orientation. Double‑check your existing bulb or owner’s manual before ordering. Many aftermarket bulbs are sold in pairs but only fit one socket, so confirm you are buying the correct type.
Beam Pattern & Glare Control
A bulb that blasts light everywhere compromises your own depth perception and blinds oncoming drivers. Look for 1:1 filament‑replica designs or dual‑panel LEDs with precise 0.03‑inch spacing. These produce a sharp cutoff that matches the Camry’s reflector housing, keeping the road lit without scattering light into the eyes of other motorists.
Thermal Management
LEDs generate heat that needs to be pulled away from the emitter. Most reliable bulbs use an aluminum body paired with either a high‑RPM fan or a fanless design depending on the housing space. Fan‑cooled bulbs work excellently in open housings but can draw dust over years; fanless models run hotter but eliminate moving parts. Choose based on your climate and how long you plan to keep the car.
Canbus & Error Codes
The Camry’s computer monitors bulb resistance. Cheap LEDs often trigger dashboard warnings, dimming, or “bulb out” messages. Bulbs with built‑in Canbus decoders simulate halogen load and prevent flicker. If you experience hyper‑flash or error lights, a decoder‑equipped bulb solves it without additional resistors.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| AUXITO HB4 9006 | Low Beam | Overall performance & lifespan | 30,000 lm, 60,000 hr, Canbus ready | Amazon |
| AUTOONE HB3 9005 | High Beam | Fanless reliability | 600% brighter, 20W, all‑aluminum body | Amazon |
| AUXITO 9005 HB3 | High Beam | Extreme brightness output | 50,000 lm, 50,000 hr, fan cooling | Amazon |
| SEALIGHT HB4 9006 | Low Beam | Extended warranty & low heat | 44,000 lm, 80,000+ hr, silent fan | Amazon |
| rimthin 9006 | Low Beam | Budget entry point | Cool white, 50,000 hr, IP67 waterproof | Amazon |
In‑Depth Reviews
1. AUXITO HB4 9006 Bulbs
The AUXITO HB4 9006 strikes the most balanced combination of real‑world brightness, fitment accuracy, and durability for the 2005 Camry low beam. Its dual‑panel LED design replicates the halogen filament position to a 0.03‑inch tolerance, producing a sharp cutoff that eliminates dark spots without scattering light. The 6500K color temperature delivers crisp white illumination that reduces eye strain on long night drives.
Build quality stands out with an aviation‑grade aluminum housing and a pure copper base that both wick heat away effectively. The built‑in Canbus decoder prevents any flicker or dashboard error messages on the Camry’s sensitive computer. With a claimed 60,000‑hour lifespan, this bulb should outlast the car itself under normal usage.
Installation takes under ten minutes with basic tools — the 1:1 size drops directly into the stock housing without adapters. Owner reports consistently highlight the lack of glare and the significant improvement over halogen output. The only trade‑off is a slightly larger heatsink that may require careful positioning inside tight dust covers, but clearance on the Camry is generous.
What works
- Factory‑matching beam pattern with no dark zones
- Error‑free performance in Camry electrical system
- Excellent heat dissipation for sustained output
What doesn’t
- Bulb base may feel snug on first install
- No high‑beam version included
2. AUTOONE HB3 9005 LED Bulbs
For Camry high‑beam users who want zero moving parts, the AUTOONE HB3 9005 delivers a solid no‑fan solution. The all‑in‑one wireless design eliminates plastic plugs that can loosen over time, and the solid aluminum body does all the cooling work. Each bulb draws only 20 watts while producing six times the light of a standard halogen, which means less strain on the aging wiring harness of a 2005 model.
Beam quality is surprisingly good for a fanless bulb. The CSP chips are arranged to mimic the halogen filament location, and user feedback indicates a clean, focused high‑beam pattern with minimal scatter. The built‑in intelligent IC handles voltage fluctuations and prevents the flicker common with cheaper driver‑less designs.
The main advantage of the fanless architecture is total silence — no whirring noise even at idle. Durability is also higher in dusty environments where fan bearings can fail prematurely. Installation is true plug‑and‑play, though the bulb body is slightly longer than some competitors, so double‑check dust‑cap clearance on the Camry high‑beam housing. For those who keep a car for decades, this longevity‑first approach makes sense.
What works
- Complete silence during operation
- Lower power draw reduces electrical load
- Robust aluminum construction with no loose plastic
What doesn’t
- Runs hotter than fan‑cooled equivalents
- Not as bright as higher‑lumen options

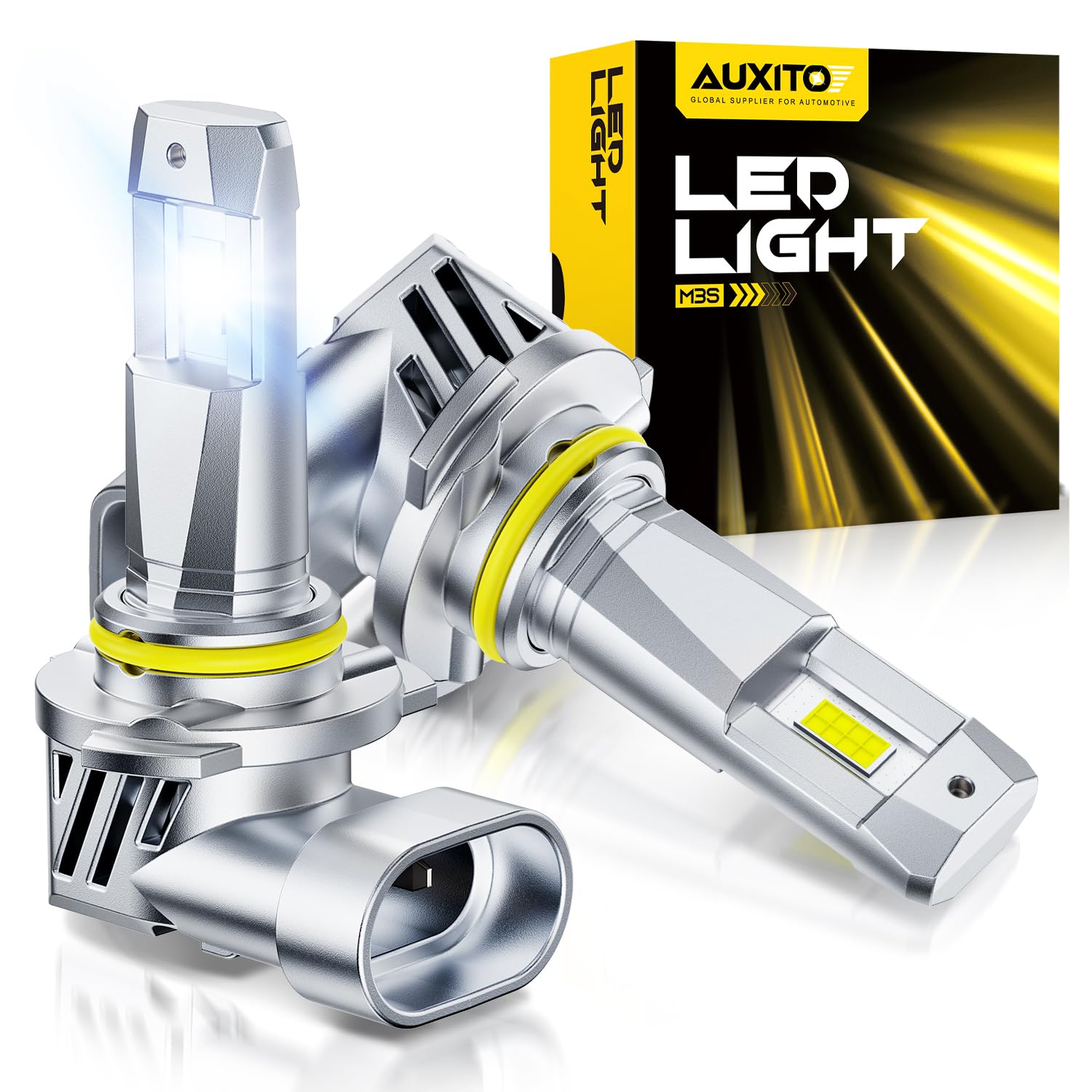

3. AUXITO 9005 HB3 Bulbs
If raw light output is your top priority for Camry high beams, the AUXITO 9005 HB3 delivers a staggering 50,000 lumens per pair — roughly twelve times the output of stock halogens. The sixteen high‑quality chips are arranged to maintain a focused beam, and despite the extreme brightness, the design includes a shielded optic to reduce glare for oncoming traffic when used properly as a high‑beam only.
Cooling is handled by a high‑RPM fan paired with an aluminum housing, keeping the LEDs well within their operating temperature range even during extended use. The 50,000‑hour lifespan matches the best in class, and the plug‑and‑play installation requires no modifications. Error‑free performance is built in, so no CANbus adapter is needed for the Camry.
The main consideration is that this amount of light in high‑beam mode can be overpowering in fog or heavy rain — it is strictly for clear‑night highway use. Some owners note that the fan produces a faint audible whine when the engine is off, but it is unnoticeable while driving. For drivers who frequently travel unlit rural roads, the extra reach and peripheral illumination are transformative.
What works
- Exceptional lumen output for long‑range visibility
- Engineered beam pattern avoids excessive glare
- Quick 5‑minute installation
What doesn’t
- Fan noise may be audible outside the vehicle
- Too bright for low‑beam use in inclement weather
4. SEALIGHT HB4 9006 Bulbs
SEALIGHT’s HB4 9006 bulb offers an outstanding mix of strong output and extreme longevity at a very attractive cost per mile. The 44,000‑lumen output (claimed 900% brighter than halogen) comes with a 6500K color temperature that produces bright white light. The 1:1 size and 0.04‑inch thin chip board help the beam pattern stay true to the factory geometry, reducing the risk of blinding other drivers.
The 80,000‑hour rated lifespan is one of the highest in this category, supported by a 25,000 RPM silent cooling fan and a thermostatic copper plate that manages heat spikes. SEALIGHT backs the bulb with a two‑year warranty, which adds confidence for long‑term ownership. The bulb runs at 40 watts, close to the original halogen draw, making it compatible with the Camry’s electrical system without extra load.
Note that some extremely sensitive vehicle models may require an additional CANbus decoder — the Camry typically does not, but a tiny fraction of owners have reported intermittent flicker. The built‑in driver is compact, so dust‑cap fit is generally fine. For most 2005 Camry owners, this bulb provides the easiest way to get modern light output at a practical price.
What works
- Longest lifespan rating in the group
- Silent fan operation
- Two‑year manufacturer warranty
What doesn’t
- Rare compatibility issues with some models
- Not the highest lumen count

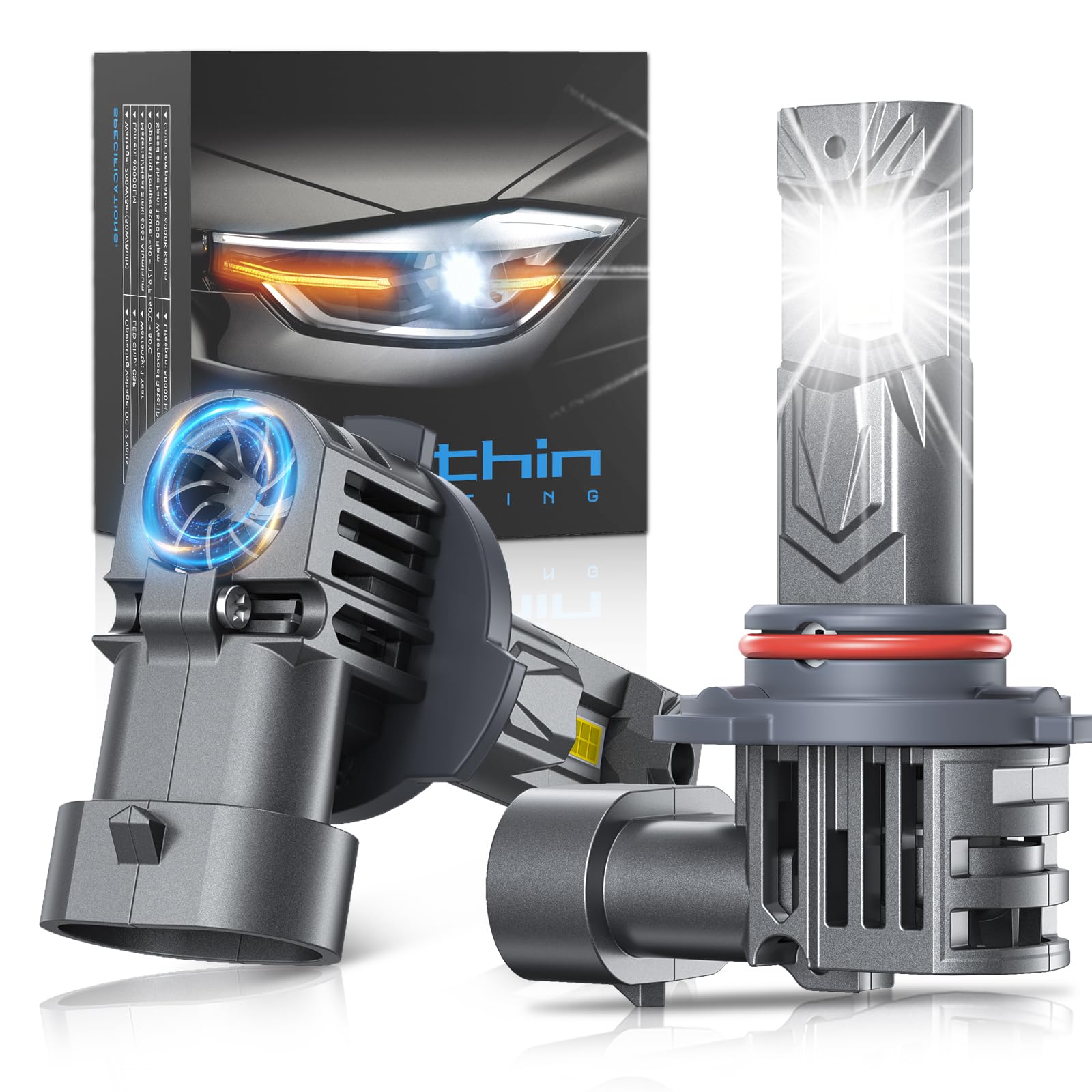

5. rimthin 9006 Bulbs
The rimthin 9006 provides a no‑frills entry into LED lighting for the Camry low beam. Its 1:1 mini design copies the halogen footprint exactly, so it fits inside the dust cap without any struggle. The cool white color temperature improves visibility over the yellow halogen glow, and the IP67 rating means moisture and road spray will not cause premature failure.
Cooling relies on a 15,000 RPM fan and aviation‑grade aluminum housing, good for the claimed 50,000‑hour lifespan. The plug‑and‑play nature means no extra drivers or adapters. Build quality is adequate for the price tier — the materials feel less premium than the AUXITO or SEALIGHT alternatives, but the basic function works.
Owners should be aware that beam pattern may not be as precisely defined as more expensive options; there is some reported scatter in reflector housings. Additionally, the rimthin lacks a CANbus decoder, so a small number of Camry owners may experience a flicker at startup or during cold weather. For a strictly budget‑minded upgrade where absolute beam quality is secondary, rimthin gets the job done.
What works
- Very affordable entry point
- Weatherproof design suits all climates
- Simple drop‑in installation
What doesn’t
- Beam pattern less precise than premium bulbs
- No Canbus decoder included
- Plastic components feel less durable
Hardware & Specs Guide
Lumen Output & Color Temperature
Higher lumens mean more total light, but beam focus determines usable visibility. 6500K LEDs produce a daylight white that improves contrast, while 5000K leans warmer. For a 2005 Camry, 30,000–50,000 lumens per pair is the sweet spot — enough to see far without overwhelming the reflector housing.
Beam Pattern Design
Dual‑panel LEDs and 1:1 filament replica designs align the light source exactly where the halogen filament sat. This preserves the factory cutoff and prevents glare. Avoid bulbs with offset chips; they scatter light and reduce effective range.
Cooling System Type
Active cooling (fan) moves heat away rapidly, maintaining full brightness for long periods. Fanless designs (passive or heat‑pipe) eliminate noise and moving parts but run hotter. For high‑beam use, fanless works well; for low‑beam all‑night use, a quality fan is usually better.
Canbus & Error Prevention
Some 2005 Camry models dim or flicker with non‑Canbus LEDs because the computer senses lower resistance. Bulbs with built‑in decoder simulate halogen load. If you already have resistor packs or anti‑flicker harnesses, Canbus bulbs may not be required.
FAQ
Does a 2005 Toyota Camry use 9005 or 9006 bulbs?
Will LED bulbs fit inside the Camry headlight housing?
Do I need a Canbus adapter for a 2005 Camry?
How long do LED headlight bulbs last?
Can I mix bulbs from different brands?
Final Thoughts: The Verdict
For most buyers, the 05 toyota camry headlight bulb winner is the AUXITO HB4 9006 because it combines a precise beam pattern, long lifespan, and built‑in Canbus reliability in a straightforward package. If you want a fanless design for the high‑beam slot, grab the AUTOONE HB3 9005. And for maximum budget‑friendly simplicity, nothing beats the rimthin 9006.
