Your 2003 Camry’s check engine light is glaring P0420, the exhaust smells like rotten eggs, and the local shop just quoted a four-figure replacement that nearly matches the car’s trade-in value. The catalytic converter on a 2.4L ULEV or V6 3.0L Camry is a targeted theft item and a common failure point after 150,000 miles, but the aftermarket has quietly matured. Today’s direct-fit options range from EPA-compliant stainless units that slide into factory hangers to premium CARB-legal manifold assemblies that let you pass California smog without bending pipes.
I’m Amir — the founder and writer behind Four Wheel Ask. I’ve analyzed hundreds of hours of owner-reported fitment data, cross-referenced OEM part numbers (641525, 55435, 25051-0H040) against aftermarket catalogs, and studied substrate technology (400-cell ceramic vs. metallic, triple-metal washcoats) to separate the parts that bolt up perfectly from those that trigger endless downstream headaches.
Whether you’re chasing a dead catalytic converter code on a 2.4L four-cylinder or replacing a stolen unit on a 3.3L V6, this guide cuts through the noise to deliver the most comprehensive analysis of the 03 camry catalytic converter market currently available.
How To Choose The Best 03 Camry Catalytic Converter
The XV30 Camry shipped with three distinct engine families: the 2.4L 2AZ-FE (ULEV and federal emissions variants), the 3.0L 1MZ-FE, and the later 3.3L 3MZ-FE. Each requires a specific converter position and pipe geometry. Buying the wrong one means mounting holes that miss by a half-inch or an O2 sensor bung that faces the firewall.
Emissions Compliance — Where You Park Matters
EPA-compliant units are legal for 49 states but are explicitly blocked for sale or installation in California, Colorado, New York, and Maine. If your Camry is registered in a CARB-adopting state, you must source a California-grade (CARB EO-numbered) converter such as the MagnaFlow 452843. Installing a non-CARB part on a California-registered vehicle will fail the visual inspection during smog check and can trigger fines against the installer.
Position and Piping — Rear Cat vs. Front Manifold vs. Left/Right Pair
The 2.4L Camry uses a single rear converter (OEM 55435/40483) that sits under the passenger floorpan in the same pipe as the flex joint. The 3.0L and 3.3L V6 cars use a pair of manifold catalytic converters (left side near the radiator, right side near the firewall, OEM 641525) plus a rear unit further downstream. Replace only the failed unit or the entire chain — mixing a fresh high-flow converter with a clogged downstream unit will re-trigger P0420 within weeks.
Substrate Technology and Precious Metal Loading
Aftermarket converters use a ceramic honeycomb coated with platinum, palladium, and rhodium. The loading density (grams per cubic foot) determines how effectively the converter scrubs NOx, CO, and HC. Premium parts like the Walker Ultra series use OE-spec washcoat formulas that maintain efficiency near the factory calibration, while budget units with thin precious metal loading may clear the code initially then fail within 12 months as the substrate thermally degrades.
Quick Comparison
On smaller screens, swipe sideways to see the full table.
| Model | Category | Best For | Key Spec | Amazon |
|---|---|---|---|---|
| Walker Ultra 55435 | Premium Direct-Fit | 2.4L owners wanting OE-grade longevity | 48″ length, OE-style washcoat, aluminized heat shields | Amazon |
| MagnaFlow 452843 | CARB Compliant | California-registered 3.0L/3.3L V6 | CARB EO #, spun manifold body, stainless steel | Amazon |
| PHILTOP 55380 | Mid-Range V6 | 2002-2006 Camry 3.0L / Lexus ES300 | Double-layer ceramic carrier, aluminized pipes | Amazon |
| Pulcherflow Rear | 2.4L Direct-Fit | Budget-friendly 2.4L ULEV replacement | 48.62″ length, polished stainless, includes gaskets | Amazon |
| PTPDRH Multi-Fit | Wide Compatibility | 1996-2004 Avalon/Camry/Sienna V6 | 147% direct-fit claim, three-way substrate | Amazon |
| QKVBKAU Triple-Metal | 2.4L OEM Match | Exact replacement for 25051-0H040/050 | Triple-metal substrate (Pt/Pd/Rh), 1 lb weight | Amazon |
| ECHO AUTOMILES 641525 | Left/Right V6 Pair | 3.0L/3.3L Camry, Solara, Lexus ES330 | 400-cell OEM honeycomb, 2.5-year warranty | Amazon |
| A-Premium Front Left | Premium Front Manifold | Front left (radiator side) V6 replacement | 6-bolt inlet welded flange, 1-year warranty | Amazon |
| PHILTOP High-Flow 2.4L | High-Flow 2.4L | Dual position (front/rear) 2.4L Camry/Solara | 24.7 lb, multiple OEM cross-numbers | Amazon |
In‑Depth Reviews
1. Walker Ultra EPA 55435 Direct Fit Catalytic Converter
The Walker Ultra 55435 is the closest you will get to a factory replacement without visiting the Toyota dealer. It measures 48 inches from flange to flange and includes OE-style hangers, brackets, and heat shields that align with the factory mounting points on the 2002–2006 Camry 2.4L — no welding, no pipe bending, no exhaust shop detours. Owners consistently report that the P0420 code clears immediately after installation and that the substrate maintains efficiency through multiple smog cycles.
What separates this unit from the sub- competition is the precious metal load and washcoat technology. Walker uses an OE-style high-technology washcoat paired with an optimal precious metal loading that keeps the oxygen storage capacity within the ECU’s learned range. The substrate is a 400-cell ceramic honeycomb that provides the right balance of flow and conversion efficiency for the 2.4L 2AZ-FE engine without triggering downstream O2 sensor trim drift.
Installation notes from owners highlight that while the front header nuts often come off easily on low-rust cars, the rear flange bolts on higher-mileage Camrys tend to snap — standard for any exhaust job on the XV30 platform. The part itself arrives with gaskets, but the aftermarket hardware is basic; grabbing a set of OEM manifold-to-pipe gaskets (Walker 31585) beforehand saves a trip to the hardware store mid-job.
What works
- Genuine bolt-on direct fit with no modification required for 2.4L models
- OE-spec aluminized heat shields protect the undercarriage exactly where Toyota placed them
- Proven to clear P0420 and stay cleared across thousands of owner-reported miles
What doesn’t
- Not legal for sale or use in California, New York, Colorado, or Maine
- Flex section rod weld placement differs slightly from OEM on some production runs
2. MagnaFlow Catalytic Converter 452843 — California Grade, Manifold
If your 03 Camry V6 is registered in California or another CARB-adopting state, the MagnaFlow 452843 is the only option on this list that will pass visual smog inspection. This is a front manifold converter designed for the 3.0L 1MZ-FE and 3.3L 3MZ-FE engines in the Camry and Lexus ES300/ES330. The spun stainless steel body and mandrel-bent piping resist corrosion far better than aluminized steel, and the flex pipe section reduces vibration transfer that can crack manifolds on high-mileage chassis.
The CARB certification is not just a sticker — MagnaFlow puts every production batch through an emissions bench test to verify conversion efficiency across the full RPM and load range. Owners installing this on 2004 Lexus IS300 and GS300 models also report successful smog passes, confirming that the catalyst formulation meets the strict California NOx and HC limits. The manifold-to-cylinder-head flange uses a 6-bolt pattern that matches the factory exhaust port layout exactly.
The downside is that this is the single most expensive unit in the roundup, and some owners report that the integrated heat shields do not align with the original body-side bracket locations on certain V6 configurations. Additionally, the included gaskets are minimal — you will want to order the correct manifold-to-head gasket separately. The removal of the old manifold is the real labor bottleneck; the intake plenum, engine ground strap, and lower heat shields must come out to gain clearance for the crossover bolts.
What works
- Full CARB EO compliance for California, New York, and other CARB states
- Spun stainless construction resists cracking and corrosion far longer than welded tube designs
- Flex pipe section reduces NVH and stress on the manifold-to-head joint
What doesn’t
- Premium price reflects the CARB certification cost
- Heat shield brackets do not perfectly match all V6 Camry body-side mounting tabs

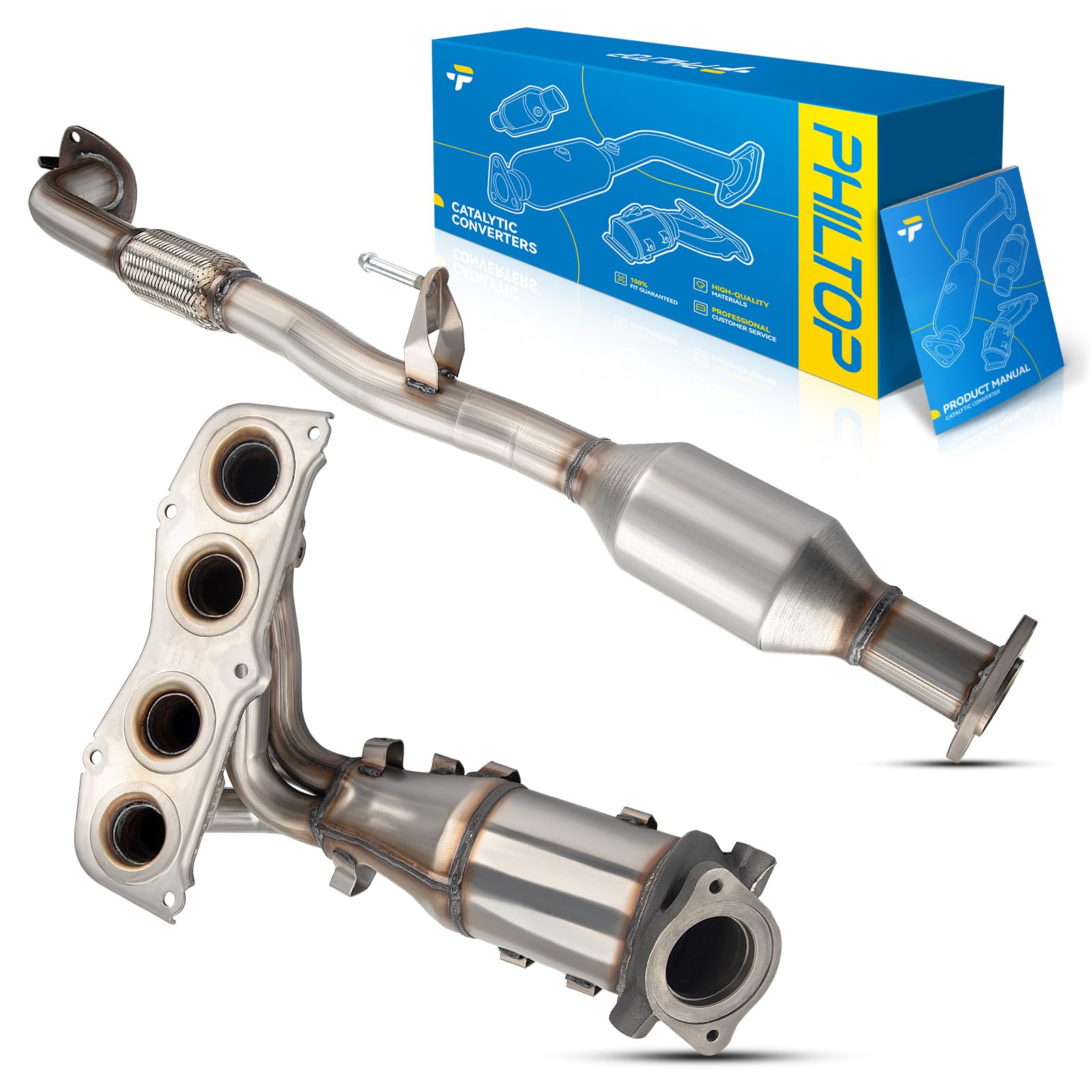

3. PHILTOP High Flow Catalytic Converter — 2.4L Camry/Solara
This PHILTOP unit is one of the few aftermarket converters that explicitly cross-references both front and rear positions for the 2.4L Camry and Solara, covering OEM numbers 40587, 55435, 40483, 643001, and 641518. It weighs 24.7 pounds — significantly heavier than the rear-only Walker because it comes with thicker stainless steel piping and a double-layer high-temperature ceramic carrier that improves structural rigidity under thermal cycling.
The high-flow design is built around a ceramic substrate with generous precious metal loading that aims to reduce exhaust backpressure compared to a clogged factory unit. Owners report that the car regains lost highway power — one reviewer noted their Camry would not exceed 20 MPH with the original clogged unit and now cruises at 90 MPH after replacement. The kit includes gaskets and hardware, though some users recommend replacing the supplied bolts with Grade 8 hardware if your car lives in the rust belt.
Fitment feedback is generally positive for the 2.4L 2AZ-FE engine, but a small number of installations on Subaru and Honda platforms (where buyers attempted to use it outside the listed fitment) warn that the pipe angles are model-specific. Stick to the listed 2002–2006 Camry and Solara applications and the flange bolt holes line up correctly without oblonging.
What works
- Dual front/rear fitment covers both exhaust positions on the 2.4L XV30
- Stainless and aluminized construction resists rust better than bare steel budget cats
- Direct bolt-on cleared P0420 immediately for multiple verified owners
What doesn’t
- Supplied hardware quality is inconsistent; plan to reuse factory bolts or buy aftermarket
- Restricted in CA, CO, NY, and ME — not a universal 50-state part
4. Pulcherflow Rear Catalytic Converter — 2002-2006 Camry 2.4L ULEV
The Pulcherflow rear converter is purpose-built for the ULEV (Ultra Low Emission Vehicle) calibration of the 2002-2006 Camry 2.4L — it will not fit federal emissions or Japanese import models. The polished stainless steel shell and mandrel-bent 48.62-inch pipe length replicate the factory rear section geometry exactly, and the unit arrives with gaskets and hardware pre-installed on the flanges for a straight drop-in replacement on the mid-pipe.
Owner reports are overwhelmingly positive for the specific ULEV fitment: the first three verified purchasers on Camry 2003 models all confirmed perfect fitment with no check engine light after installation. The polished exterior is cosmetic but appreciated on cars in the salt belt, where aluminized pipes tend to develop surface rust within one winter season. The precious metal load meets EPA standards for tailpipe emissions reduction down to PZEV-level thresholds.
The major limitation is the strict ULEV-only compatibility — if your Camry has a federal emissions label (check the underhood VECI sticker), this converter will not match the calibration parameters and may trigger P0420 within days. It is also non-CARB compliant and banned for sale in California, New York, Colorado, and Maine. Budget-conscious owners who confirm ULEV fitment will find this the cheapest path to a clear check engine light and a quiet exhaust note.
What works
- True direct fit for ULEV 2.4L Camrys with no modification or welding
- Polished stainless shell resists cosmetic corrosion far better than budget aluminized pipes
- Confirmed multiple successful installations clearing P0420 on 2003 Camry 2.4L
What doesn’t
- Compatibility is restricted to ULEV emission calibration only — federal cars need a different part
- Not legal for sale or installation in California, Colorado, New York, or Maine

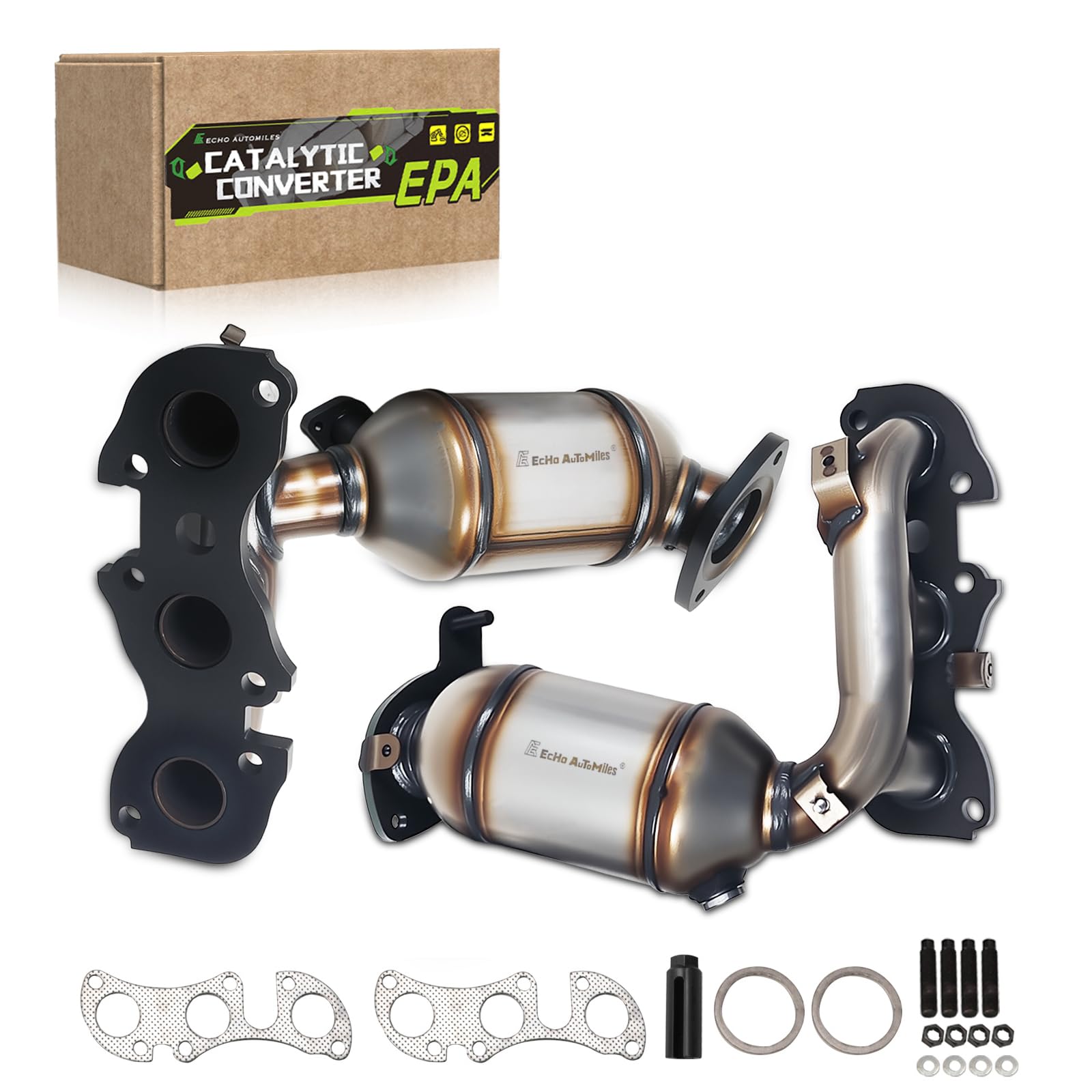

5. ECHO AUTOMILES Left & Right Catalytic Converter Pair — V6 Camry/Solara/ES330
The ECHO AUTOMILES pair covers both the left (radiator side) and right (firewall side) manifold converters for the 3.0L and 3.3L V6 engines across the Camry, Solara, Lexus ES300, and ES330. Each converter uses a 400-cell OEM-equivalent honeycomb substrate that mimics the flow characteristics of the factory unit, reducing backpressure compared to generic 200-cell cheap cats while still maintaining the surface area needed for full NOx conversion.
What distinguishes this set from single-converter aftermarket replacements is the 2.5-year or 25,000-mile warranty — a meaningful commitment from the brand that reflects confidence in the precious metal loading and thermal durability. Owners report the flanges line up with the 6-bolt manifold pattern on the 3.3L 3MZ-FE engine, although some note that the heat shields are not identical to the originals and required minor trimming to clear the subframe on the left side.
The kit includes gaskets and hardware for both sides, but the supplied bolts are medium-grade and several owners chose to upgrade to OEM Toyota manifold studs. For Camry V6 owners who need to replace both manifold cats simultaneously (common when one fails and the other is near the end of its thermal life), this pair offers the most coherent solution without mixing brands between banks.
What works
- Complete left/right pair ensures matched substrate characteristics across both cylinder banks
- 400-cell honeycomb provides factory-equivalent flow and conversion efficiency
- 2.5-year warranty exceeds the typical 1-year coverage on mid-range converter pairs
What doesn’t
- Heat shield profiles differ from OEM and may need minor trimming for subframe clearance
- Restricted in California, Colorado, Maine, and New York
6. A-Premium Front Left Exhaust Manifold Catalytic Converter Kit — V6 Camry/Solara/ES330
The A-Premium front left manifold converter targets the radiator-side bank on the V6 Camry, Solara, Lexus ES300, and ES330. It cross-references OEM part numbers 641525, 674-882, and 2505220140 through 2505220210, covering the full production run of the 3.0L and 3.3L engines. The inlet uses a six-bolt welded flange that matches the factory exhaust port pattern, and the outlet is a two-bolt welded flange that connects to the Y-pipe.
Owners on the Lexus ES330 and Camry 3.3L confirm that this converter cleared their P0420 codes after replacing the passenger side bank. The stainless steel body and included gaskets simplify the swap, though the front left position is the tighter of the two banks to work on — the radiator hose and fan shroud limit wrench access to the downstream flange bolts. Removing the plastic intake duct and the engine ground strap provides the extra few inches needed for socket clearance.
The 1-year unlimited-mileage warranty is standard for this price tier, but the build quality of the 6-bolt flange is noticeably thicker than the budget converters reviewed. The substrate uses triple-metal chemistry (platinum, palladium, rhodium) that matches the conversion efficiency curve of the factory densified substrate, which helps the downstream O2 sensor read a stable switching pattern rather than a flat line.
What works
- Direct-fit front left manifold conversion with correct 6-bolt inlet pattern for the V6 block
- Stainless steel body resists thermal cracking better than aluminized alternatives
- Reported immediate clearing of P0420 on 2005 ES330 with no check engine light return
What doesn’t
- Front left position is physically tight to install — radiator clearance is marginal
- 1-year warranty is shorter than the 2.5-year coverage offered by ECHO AUTOMILES on a similar product

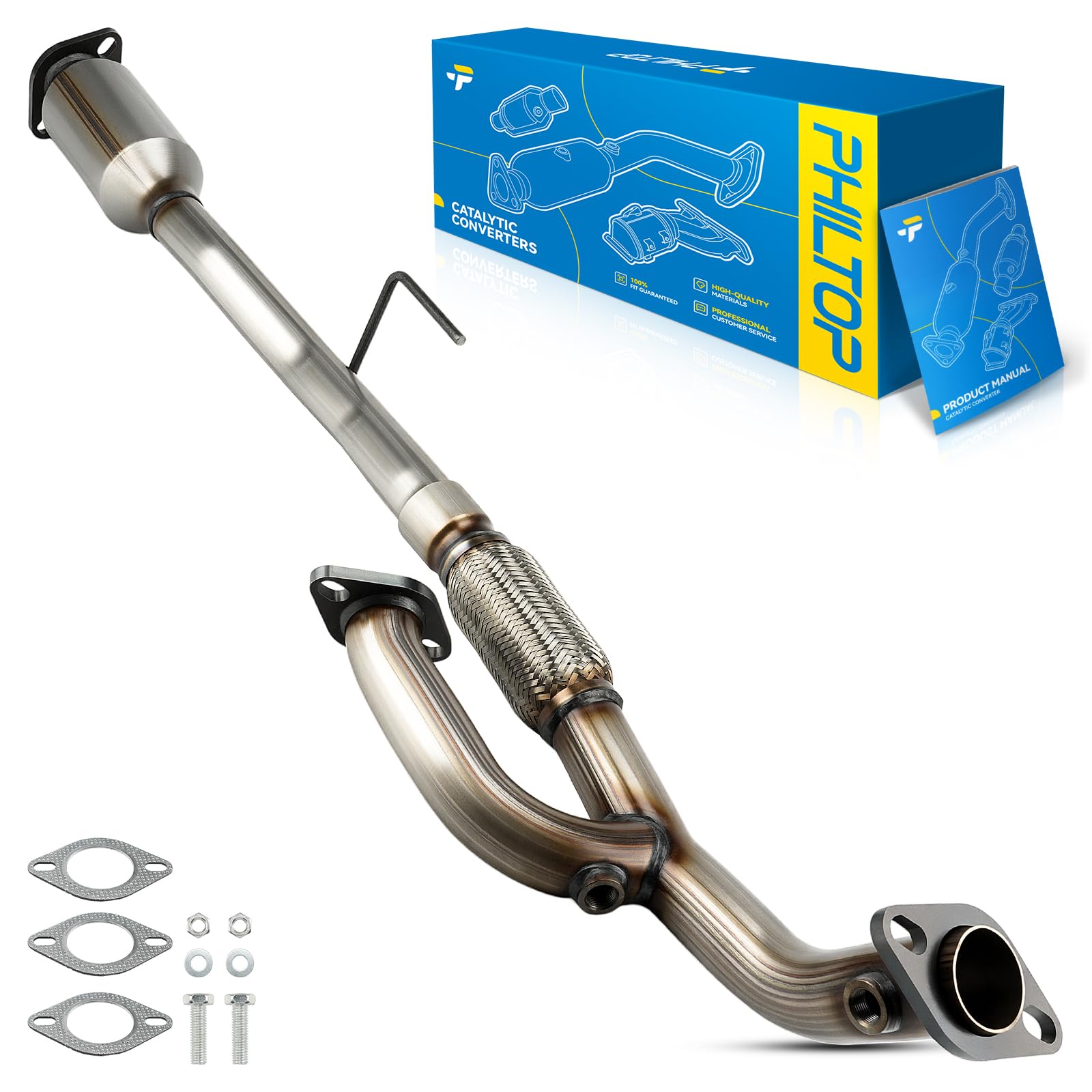

7. PHILTOP 55380 Direct-Fit Stainless Steel Catalytic Converter — Camry 3.0L / ES300
The PHILTOP 55380 is engineered specifically for the 3.0L 1MZ-FE engine in the 2002-2006 Camry and the 2002-2003 Lexus ES300. The body uses aluminized steel rather than full stainless, which is a cost trade-off — it offers good rust resistance for most climates but will not outlast a stainless unit in heavy road-salt environments. The double-layer high-temperature ceramic carrier improves the substrate’s resistance to thermal shock when the engine goes from cold startup to full-load exhaust flow.
Reference numbers 55380, 643014, and 40782 cross-reference the original Toyota part, and the direct-fit design includes the necessary gaskets and hardware. A verified owner reported that the converter fit exactly as described and eliminated the catalytic converter code without any modification. The exit flange aligns with the downstream exhaust pipe without needing to oval the bolt holes, which is a common complaint on looser-tolerance budget converters.
The clear limitation is that this only fits the 3.0L engine — owners of the later 3.3L 3MZ-FE must look at the ECHO AUTOMILES or A-Premium offerings instead. Additionally, the EPA compliance restricts it from California, New York, Colorado, and Maine, so Lexus ES300 owners in those states need the CARB-legal MagnaFlow manifold.
What works
- Precise flange alignment for the 3.0L Camry and Lexus ES300 with no need to oval bolt holes
- Double-layer ceramic carrier provides thermal shock resistance during cold-start cycles
- Plug-and-play installation with all necessary gaskets included in the box
What doesn’t
- Aluminized pipe construction, not full stainless — corrosion resistance is moderate
- Only compatible with 3.0L 1MZ-FE engines; does not fit 3.3L 3MZ-FE

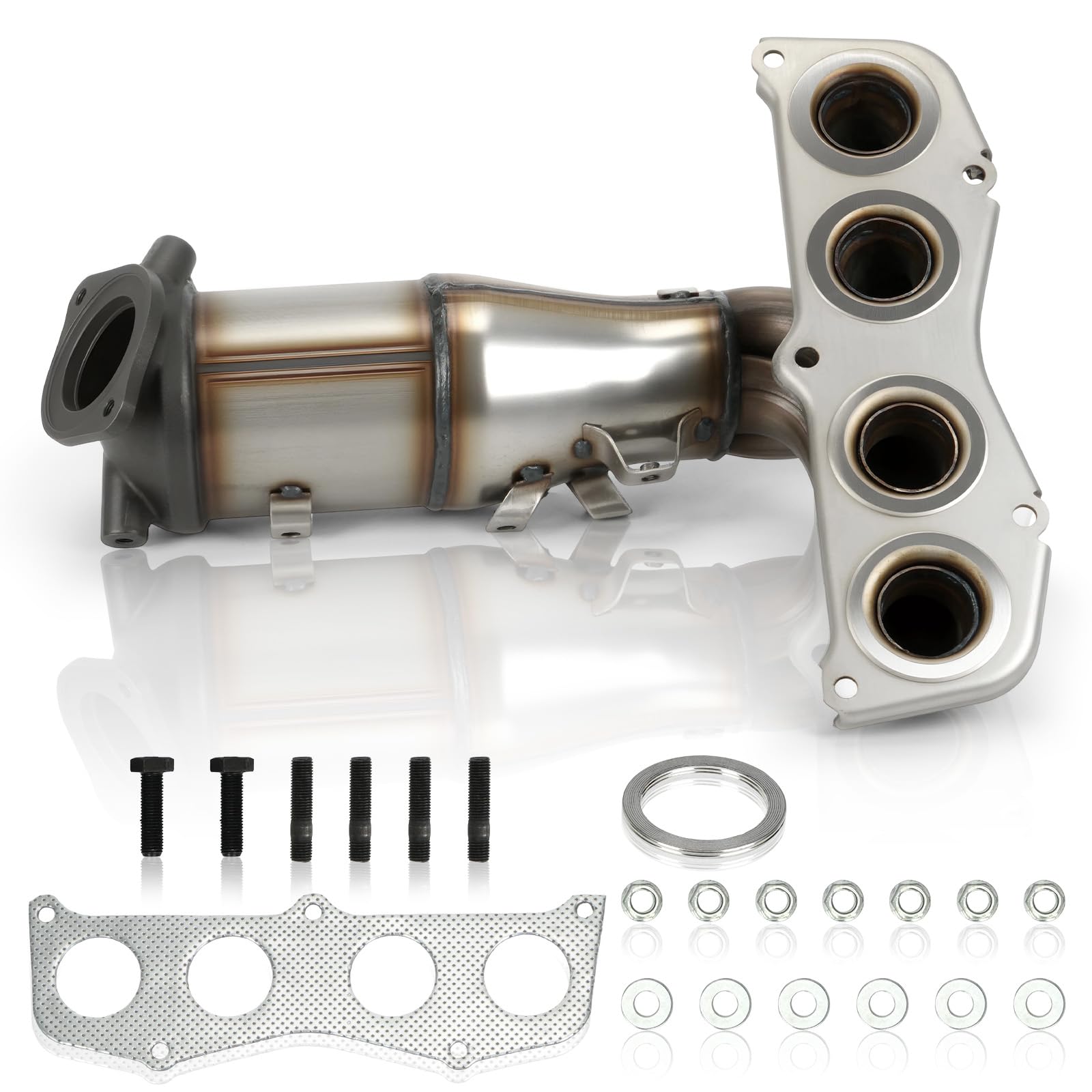

8. QKVBKAU Direct-Fit Catalytic Converter — 2.4L Camry/Solara Triple-Metal
The QKVBKAU converter targets the 2.4L L4 in the 2002-2006 Camry and 2002-2008 Solara, replacing OEM parts 25051-0H040, 25051-0H050, and 16498. It uses a ceramic substrate coated with platinum, palladium, and rhodium — the same triple-metal chemistry found in OE converters, though the total grams per cubic foot are lower than premium brands. This is a trade-off that keeps the price accessible for owners who just need to clear a P0420 for an emissions test.
Owner feedback highlights that the flanges do line up correctly on the listed vehicles, and the converter functions as a direct-fit part without requiring exhaust shop intervention. The compact 1-pound packaging is misleading — this is a rear-position converter with a slim profile that fits the tunnel under the Camry floorpan without heat-clearance issues. Several owners mentioned that the supplied hardware is marginal and that they recycled their original bolts for a more secure fit.
The long-term durability of the triple-metal substrate is unproven beyond the first year of ownership. Budget converters in this price tier tend to display thermal degradation symptoms — reduced conversion efficiency — after 18-24 months if the engine has an undiagnosed misfire or rich condition that dumps unburned fuel into the substrate. Make sure the O2 sensors and ignition system are in good health before installing this unit to maximize its service life.
What works
- Triple-metal washcoat (Pt/Pd/Rh) provides proper three-way conversion chemistry
- Exact OEM cross-reference for 25051-0H040/050 ensures correct flange alignment
- Low weight and compact profile fits the factory exhaust tunnel without clearance issues
What doesn’t
- Lower precious metal loading may not survive beyond 2 years in rich-running or misfiring engines
- Supplied bolts and gaskets are low-grade; plan to reuse OEM hardware where possible

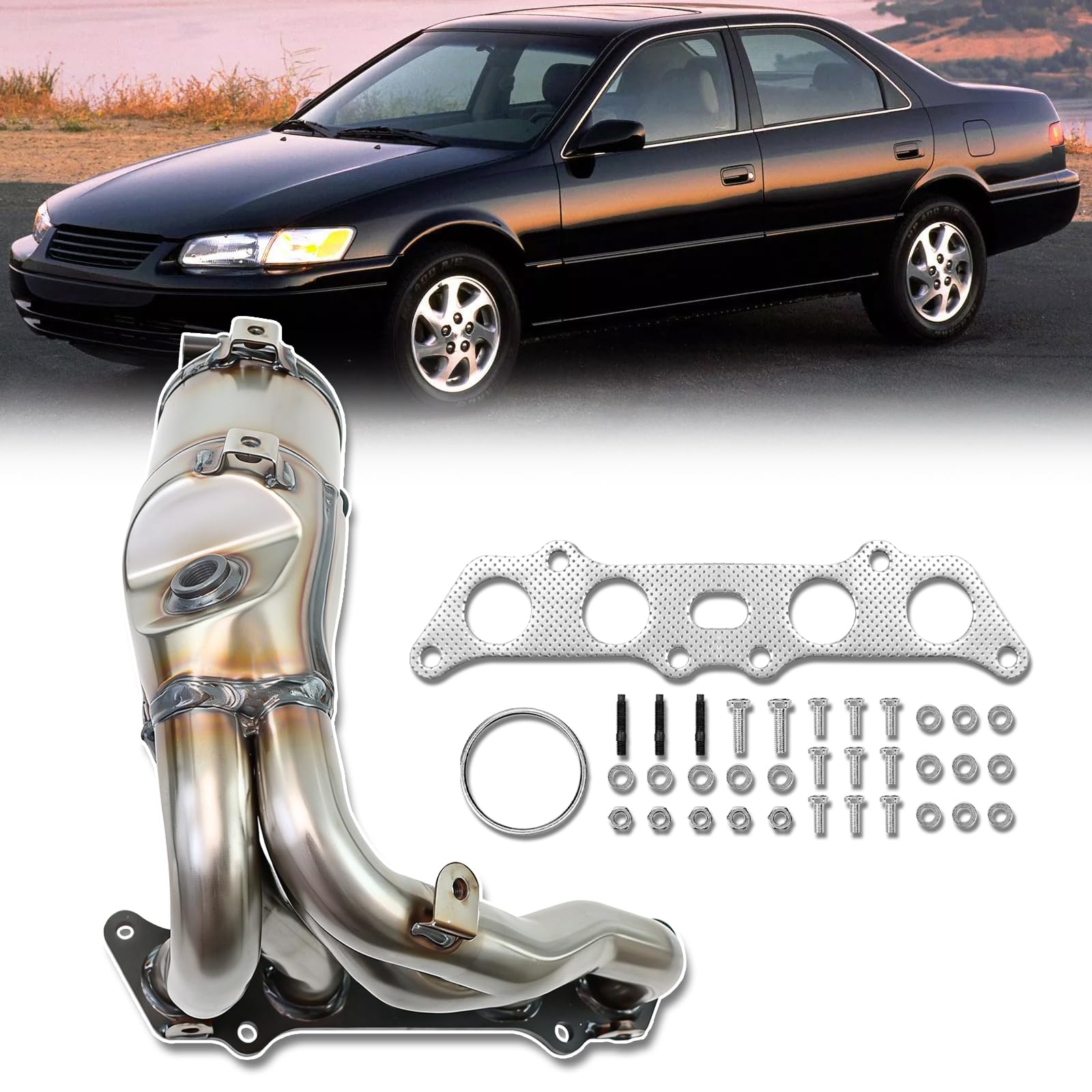

9. PTPDRH Catalytic Converter — Multi-Vehicle V6 3.0L (Avalon/Camry/Sienna/Solara/Lexus)
The PTPDRH converter covers the widest vehicle application range in this roundup — 1996-2004 Toyota Avalon, 1996-2001 Camry, 2001-2003 Sienna, 1999-2003 Solara, 1996-2001 Lexus ES300, and 1997-1998 Lexus SC300, all on the 3.0L V6. The stainless steel body and three-way catalytic substrate make it a versatile replacement for multiple Toyotas sharing the 1MZ-FE engine family, and it is EPA-certified for federal emissions compliance.
Owner reviews are mixed but skew positive for the price. A Camry owner noted that the converter fit well after switching from the included hardware to their own bolts (the supplied fasteners stripped at torque spec). Another owner on a 2011 Nissan Altima (outside the listed fitment) managed to adapt it, but this is not recommended for an 03 Camry 3.0L owner — stick to the exact vehicle years listed. The 3.0L V6 in the XV20 and XV30 chassis shares the same bolt pattern and pipe geometry, so the Camry fitment is verified.
The “147% direct fit” claim in the marketing material refers to the flange-to-flange length plus the included gasket compression allowance — the actual pipe routing and hanger positions match OEM specifications. The substrate uses a 400-cell ceramic structure that provides appropriate flow for the 3.0L engine’s 210 horsepower output without causing excessive backpressure that would reduce fuel economy.
What works
- Broad vehicle coverage across Toyota and Lexus V6 3.0L models from 1996-2004
- Stainless steel body offers better corrosion resistance than aluminized steel alternatives
- 400-cell substrate maintains factory-equivalent exhaust flow for the 1MZ-FE engine
What doesn’t
- Included fasteners are prone to stripping at torque values below OEM spec
- Longevity of the precious metal load is uncertain beyond the first 12-18 months of use
Hardware & Specs Guide
Substrate Cell Count and Material
The catalyst substrate is the ceramic honeycomb inside the converter shell where exhaust gases pass over precious metal coatings. A 400-cell substrate offers the best balance for street-driven Camrys — it provides enough surface area (approximately 400 channels per square inch) to achieve high conversion efficiency at operating temperature while keeping backpressure low enough that the 2.4L four-cylinder or 3.0L V6 does not lose top-end power. Sub-200-cell converters flow freely but fail to scrub NOx sufficiently for post-1996 OBDII monitoring, causing the downstream O2 sensor to flag P0420. The substrate material should be cordierite ceramic (not metallic) for street use — metallic substrates heat up faster but cost significantly more and are primarily used in motorsport applications where immediate light-off is critical.
OE Cross-Number Verification
Every OEM Toyota catalytic converter carries a stamped part number that tells you exactly which aftermarket unit fits your car. Rear converters on the 2.4L Camry use 55435, 40483, 643001, or 641518. Front manifold converters on the V6 Camry use 641525, 674-882, or 2505220140-2505220210. Always compare your factory stamp against the aftermarket product listing before purchasing — the Amazon fitment filter is useful but not infallible for 20-year-old vehicles where previous owners may have swapped the exhaust system. If the stamp is illegible from rust, measure the pipe length from flange face to flange face (approximately 48 inches for 2.4L rear cat) and the inlet/outlet flange bolt count (2-bolt for rear cat, 6-bolt for V6 manifold cat).
FAQ
What is the difference between ULEV and federal emissions for the 2003 Camry catalytic converter?
Will a non-CARB catalytic converter work if I install it in California anyway?
Why does my P0420 code return within months after replacing the catalytic converter?
Can I replace just the rear catalytic converter on my 2003 Camry V6 without touching the manifold cats?
Final Thoughts: The Verdict
For most buyers working on a 2.4L 2003 Camry, the 03 camry catalytic converter winner is the Walker Ultra 55435 because it delivers true OE-grade direct fitment, OE-spec washcoat and precious metal loading, and an aluminized heat shield that preserves undercarriage protection — all without requiring any custom fabrication. If you need CARB legality for a California-registered V6, nothing else on the shelf compares to the MagnaFlow 452843. And for V6 owners outside CARB states who want a matched left/right pair with a warranty that outlasts the competition, the ECHO AUTOMILES 641525 pair provides the most complete solution at a competitive price point.
